Cyber Power Mini Central CPSPV40000ETL Series User manual

User’s Manual
CPSPV30000ETL/ CPSPV33000ETL/ CPSPV40000ETL
CyberPower Systems Inc.
www.cpsww.com

User Manual 1 / 54 CPS Mini Central series
Index
1 Information on this Manual ...................................................................................................... 3
1.1 Validity ........................................................................................................................................................... 3
1.2 Target Group .................................................................................................................................................. 3
1.3 Symbols Used................................................................................................................................................. 3
2 Safety....................................................................................................................................... 4
2.1 Intended Use.................................................................................................................................................. 4
2.2 Safety Precautions ......................................................................................................................................... 5
2.3 Assembly Warnings........................................................................................................................................ 5
2.4 Electrical Connection Warnings ..................................................................................................................... 6
2.5 Operation Warnings....................................................................................................................................... 7
2.6 Symbols on the inverter................................................................................................................................. 8
3 Product Description.................................................................................................................. 9
3.1 CPS Mini Central series overview................................................................................................................... 9
3.2 Type label..................................................................................................................................................... 10
3.3 Size and weight ............................................................................................................................................ 11
3.4 Transportation.............................................................................................................................................. 12
3.5 Storage of Inverter ....................................................................................................................................... 12
3.6 The advantage of the CPS Mini Central inverters ........................................................................................ 12
4 Unpacking .............................................................................................................................. 13
5 Installation ............................................................................................................................. 14
5.1 Safety instruction......................................................................................................................................... 14
5.2 Selecting the Installation Location............................................................................................................... 15
5.3 Installation guide ......................................................................................................................................... 16
5.3.1 Mounting the Bracket ....................................................................................................................... 16
5.3.2 Mounting Inverter............................................................................................................................. 18
5.3.3 Installation layout ............................................................................................................................. 19
5.4 Electrical Connections.................................................................................................................................. 20
5.4.1 Safety ................................................................................................................................................ 20
5.4.2 Wiring AC Output............................................................................................................................ 200
5.4.3 Wiring DC Input................................................................................................................................. 23
5.4.4 Grounding ................................................................................................................................................. 24
5.5 Grid Type...................................................................................................................................................... 26
5.5.1 Common grid type ............................................................................................................................ 26
5.5.2 Compatibility Table ........................................................................................................................... 27
6 Commissioning ....................................................................................................................... 28
6.1 Commission the Inverter.............................................................................................................................. 28
6.2 Operation Modes......................................................................................................................................... 28
6.3 Initial Settings and LCD Display.................................................................................................................... 29
6.3.1 Initial Settings ................................................................................................................................... 29
6.3.2 Power on Display .............................................................................................................................. 31
6.3.3 Operate by knock.............................................................................................................................. 33
6.3.4 Data checking and parameters setting ............................................................................................. 34

User Manual 2 / 54 CPS Mini Central series
6.4 Double MPPT of the CPS Mini Central ......................................................................................................... 40
6.5 Communication............................................................................................................................................ 41
6.5.1 Using ‘Solar Power Setup’ to set the information of the inverter or update firmware .................... 41
6.5.2 Monitor the inverters........................................................................................................................ 41
6.5.3 RS485 cable connection .................................................................................................................... 42
7 Start-Up and shut down the inverter....................................................................................... 45
7.1 Start-Up the inverter.................................................................................................................................... 45
7.2 Shut down the Inverter................................................................................................................................ 45
8 Maintenance and Cleaning ..................................................................................................... 46
8.1 Cleaning Fans and Grills ............................................................................................................................... 46
8.2 Exchange Fan ............................................................................................................................................... 47
9 Trouble shooting..................................................................................................................... 48
9.1 Error Messages displayed on LCD ................................................................................................................ 48
9.1.1 System fault ...................................................................................................................................... 49
9.1.2 Inverter warning ............................................................................................................................... 49
9.1.3 Inverter fault ............................................................................................................................................. 50
10 Decommissioning ................................................................................................................. 51
10.1 Dismantling the Inverter ............................................................................................................................ 51
10.2 Packing the Inverter................................................................................................................................... 51
10.3 Disposing of the Inverter ........................................................................................................................... 51
11 Specification......................................................................................................................... 52
11.1 Specification of CyberPower Mini Central Series....................................................................................... 52
11.2 Torque Values............................................................................................................................................. 53
12 Certificates ........................................................................................................................... 53
13 Contact................................................................................................................................. 53

User Manual 3 / 54 CPS Mini Central series
1 Information on this Manual
1.1 Validity
This installation guide contains installation, commissioning, communication, trouble shooting. Information of CPS
Mini Central series:
CPSPV30000ETL
CPSPV33000ETL
CPSPV40000ETL
With this installation guide, users are able to install and operate the inverters easily. This manual does not cover
any details concerning equipment connected to the CPS Mini Central series. Store this manual where accessible at
all times.
1.2 Target Group
This manual is for qualified persons such as PV system installers or electricians.
Notes: For possible changes in this manual, CyberPower Systems, Inc. accepts no responsibilities to inform the
users
1.3 Symbols Used
The following types of safety instructions and general information appear in this document as described below:
Symbol
description
Read the manual
DANGER indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE indicates a situation which, if not avoided, could result in
property damage.
Information that you must read and know to ensure optimal operation of
the system.

User Manual 4 / 54 CPS Mini Central series
2 Safety
2.1 Intended Use
CPS Mini Central series inverters are to be used solely to feed solar energy converted photovoltaically into the
public grid. CPS Mini Central series inverters are multi-string inverters with multi-MPP trackers, which mean they
are able to connect to different PV module arrays. The equipment may only be operated in compliance with its
intended use.
Grid-tied PV system Overview:
Fig 1.1
The inverter may only be operated with a permanent connection to the public power grid. The inverter is not
intended for mobile use. Any other or additional use is not considered as intended use. The manufacturer is not
responsible for any damages resulting from unintended use. Damage caused by such unintended use is at the
sole risk of the operator.
As drawings shown above, a complete Grid-tied PV system consists of PV modules, PV inverters, public grid and
other components. Moreover, PV inverters always act as key components.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with cells on a metallic substrate,
may only be used if their coupling capacity does not exceed 470nF. During feed-in operation, a leakage current
flows from the cells to earth, the size of which depends on the manner in which the PV modules are installed (e.g.
foil on metal roof) and on the weather (rain, snow). This "normal" leakage current may not exceed 50mA due to
the fact that the inverter would otherwise automatically disconnect from the electricity grid as a protective
measure.

User Manual 5 / 54 CPS Mini Central series
If PV modules of the PV system require POSITIVE or NEGATIVE to connect
to GROUND, or the capacitance relative to ground of the modules is
large, please contact CyberPower Systems, Inc. for technical support
before installation.
2.2 Safety Precautions
The CPS Mini Central series is designed and tested according to international safety requirements; however, certain
safety precautions must be observed when installing and operating this inverter. Read and follow all instructions,
cautions and warnings in this installation manual.
2.3 Assembly Warnings
Prior to installation, inspect the unit to ensure absence of any
transport or handling damage, which could affect insulation integrity
or safety clearances; failure to do so could result in safety hazards.
Unauthorized removal of necessary protections, improper use,
incorrect installation and operation may lead to serious safety, shock
hazards or equipment damage.
In order to minimize the potential of a shock hazard due to hazardous
voltages, cover the entire solar array with dark material prior to
connecting the array to any equipment.
Grounding the PV modules: Comply with the local requirements for
grounding the PV modules and the PV generator.
CyberPower recommends connecting the generator frame and
other electrically conductive surfaces in a manner which ensures
continuous conduction and ground these in order to have optimal
protection of the system and personnel.

User Manual 6 / 54 CPS Mini Central series
2.4 Electrical Connection Warnings
Some components in the inverter are live. Touching live components can
result in serious injury or death.
Danger to life due to high voltages in the inverter
All work on the inverter may be carried out by qualified personnel only.
The appliance is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction.
Children are forbidden to play around the CPS Mini Central series.
Make all electrical connections (e.g. conductor termination, fuses, PE
connection, etc.) in accordance with prevailing regulations. When working
with the inverter powered on, adhere to all prevailing safety regulations to
minimize risk of accidents.
The CPS Mini Central series may only be operated with PV generators
(modules and cabling) with protective insulation. Do not connect any source
of energy other than PV modules to the CPS Mini Central series.
Systems with inverters typically require additional control (e.g., switches,
disconnects) or protective devices (e.g., fusing circuit breakers) depending
upon the prevailing safety rules.
Please read this manual carefully, the manufacturer or supplier is not
responsible for damage caused by incorrect operation, installation, wiring,
transport, etc.
The CPS Mini Central series is to be used solely to feed solar energy
converted photovoltaic into the public grid. The inverter is suitable for
mounting indoors and outdoors.
You can use the AC current generated as follows:
House
grid:
Energy flows into the house grid. The consumers connected,
for example, household devices or lighting, consume the
energy. The energy left over is fed into the public grid. When
the CPS Mini Central series do not generate any energy, e.g., at
night, the consumers which are connected are supplied by the
public grid. The energy displayed on the LCD of inverter is for
reference only. When energy is fed into the public grid, the
energy meter spins backwards.
Public grid:
Energy is fed directly into the public grid. The CPS Mini Central
series need install a separate energy meter. The energy
produced is compensated at a rate depending on the electric
power company.

User Manual 7 / 54 CPS Mini Central series
2.5 Operation Warnings
Ensure all covers and doors are closed and secure during operation.
Although designed to meet all safety requirements, some parts and
surfaces of Inverter are still hot during operation. To reduce the risk of
injury, do not touch the heat sink at the back of the PV-Inverter or nearby
surfaces while Inverter is operating.
Incorrect sizing of the PV plant may result in voltages being present which
could destroy the inverter. The inverter display will read the error
message “ PV Voltage High ”
Turn the rotary switch of the DC Disconnect to the Off position
immediately.
Contact installer.
All operations regarding transport, installation and start-up, including
maintenance must be operated by qualified, trained personnel and in
compliance with all prevailing codes and regulations.
Anytime the inverter has been disconnected from the power network,
use extreme caution as some components can retain charge sufficient to
create a shock hazard; to minimize occurrence of such conditions, comply
with all corresponding safety symbols and markings present on the unit
and in this manual.
In special cases, there may still be interference for the specified
application area despite maintaining standardized emission limit values
(e.g. when sensitive equipment is located at the setup location or when
the setup location is near radio or television receivers).In this case, the
operator is obliged to take proper action to rectify the situation.
Possible damage to health as a result of the effects of radiation!
Do not stay closer than 20 cm to the inverter for any length of time.

User Manual 8 / 54 CPS Mini Central series
2.6 Symbols on the inverter
Symbol
Explanation
Refer to operation instruction
Caution, risk of electrical shock
Caution, hot surface
Earth (ground) terminal
Caution, risk of electrical shock.
Energy stored discharge time.
Direct Current (DC)
Alternating Current (AC)
CE mark.
The inverter complies with the requirements of the
applicable EC guidelines.

User Manual 9 / 54 CPS Mini Central series
3 Product Description
3.1 CPS Mini Central series overview
CD E F G B I J A H
Position
Description
A
LCD
B
LED
C
DC Switch
D
PV input terminals
E
AC output
F
RS232 lid
G
RS485
H
Serial Number
I
Warning Label
J
Type label

User Manual 10 / 54 CPS Mini Central series
Symbol on the inverter
3.2 Type label
The type labels provide a unique identification of the inverter (The type of product, Device-specific
characteristics, Certificates and approvals). The type labels are on the right-hand side of the enclosure.
More detail about the type label as the chart below:
Symbol
Description
Explanation
Tap symbol
Indicates display operation (see Section 6).
Inverter state symbol
Green/constant
Operation
Red/constant
1、Fault-- contact installer
2、Standby module
Red/flashing
1、Fans Fault-- contact installer
2、Software update

User Manual 11 / 54 CPS Mini Central series
Model Name
CPSPV30000ETL
CPSPV33000ETL
CPSPV40000ETL
Max DC voltage
1000V
1000V
1000V
Max input current
35A / 35A
38A / 38A
38A / 38A
MPP voltage range
460V-1000V
460V-1000V
550V-1000V
AC Nominal voltage
3/N/ PE
230V/400V
3/N/ PE
230V/400V
3/ PE
277V/480V
AC grid frequency;
Range
50/60Hz
-6Hz/+5Hz
50/60Hz
-6Hz/+5Hz
50/60Hz
-6Hz/+5Hz
Max. AC output power
30kW/30kVA
33kW/33kVA
40kW/40kVA
Nominal output current
43.5A
47.8A
48.1A
Max. output current
45.5A
50A
50A
Protection Degree
IP65
IP65
IP65
Operation temperature
range
-25°C ~ +60°C
-25°C ~ +60°C
-25°C ~ +60°C
3.3 Size and weight
A(mm)
B(mm)
C(mm)
D(mm)
Weight(kg)
CPSPV30000ETL
CPSPV33000ETL
CPSPV40000ETL
740
550
276
778
61.6

User Manual 12 / 54 CPS Mini Central series
3.4 Transportation
The inverter is thoroughly tested and inspected strictly before delivery. Our inverters leave our factory in
proper electrical and mechanical condition. Special packaging ensures safe and careful transportation.
However, transport damage may still occur. The shipping company is responsible in such cases. Thoroughly
inspect the inverter upon delivery. Immediately notify the responsible shipping company if you discover any
damage to the packaging which indicates that the inverter may have been damaged or if you discover any
visible damage to the inverter. We will be glad to assist you, if required. When transporting the inverter, the
original or equivalent packaging should to be used, and the maximum layers for original carton is four, as this
ensures safe transport.
3.5 Storage of Inverter
If you want to storage the inverter in your warehouse, you should choose an appropriate location to
store the inverter.
The unit must be stored in original package and desiccant must be left in the package.
The storage temperature should be always between -25℃and +70℃. And the storage relative
humidity should be always between 0 and 95%.
If there are lots of inverters need to be stored, the maximum layers for original carton is four.
After long term storage, local installer or service department of CyberPower should perform a
comprehensive test before installation
After long term storage, the Real Time Clock of the inverter maybe
not correct, it will cause the Energy produced today (E_day) error,
you need to set the time and date, refer to Fig 6.3.15 or 6.4.3 text
line.
3.6 The advantage of the CPS Mini Central inverters
The features of CPS Mini Central series inverter are below:
Dual independent MPP trackers
Integrated DC disconnect switch
Wide PV voltage range：300V~1000V
The maximum efficiency is 98.2%
The Europe efficiency is 97.8%
IP65 environmental protection
Easy to install

User Manual 13 / 54 CPS Mini Central series
4 Unpacking
Before opening the packing box of CPS Mini Central inverters, please note that whether there are any visible
external damages.
Once open the packing box, please check the delivery for completeness and for any visible external damages of the
inverter. If there are anything damaged or missing, please contact your dealer. Complete delivery should contain as
follows.

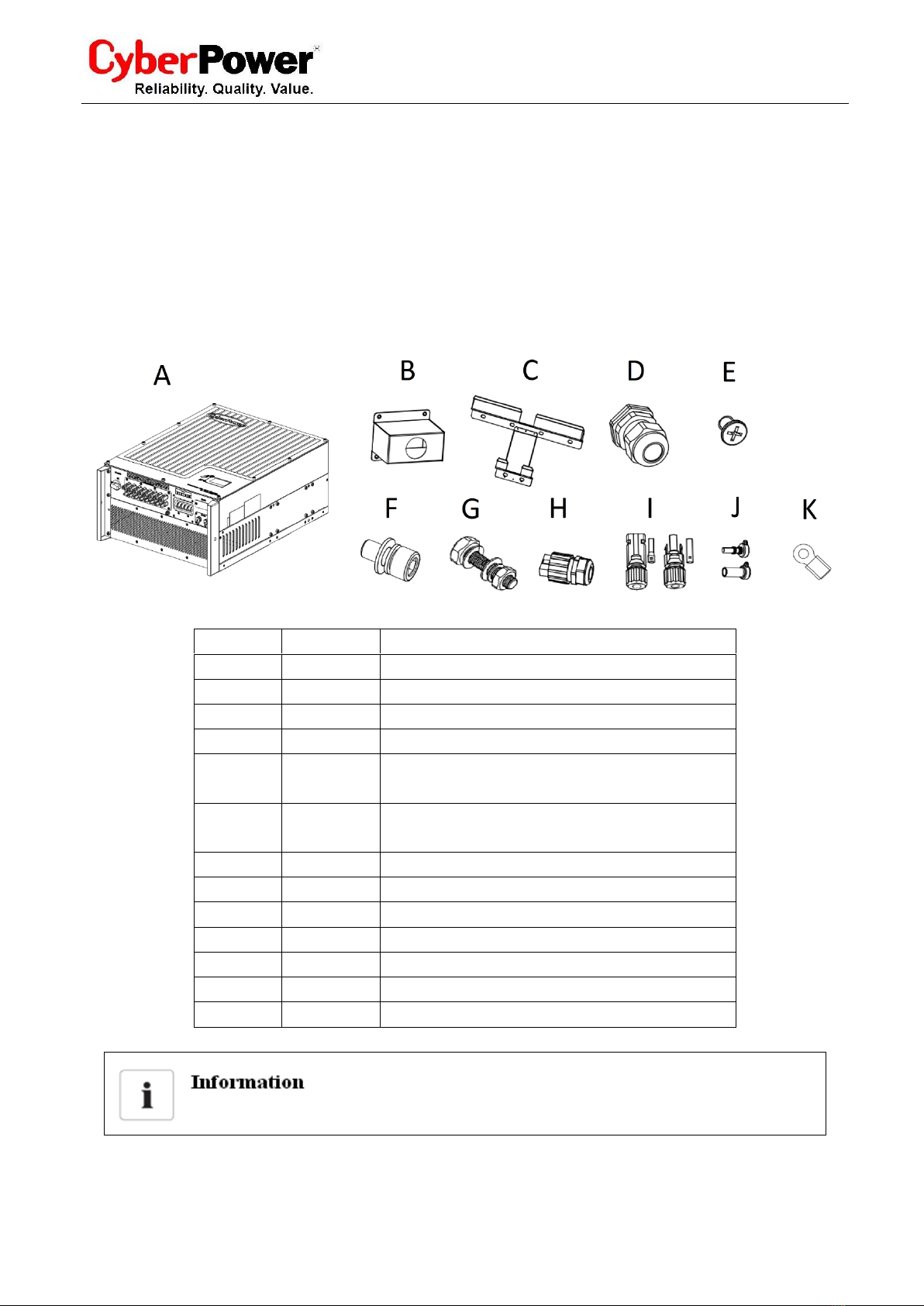

Fig 4.1
Item
quantity
Description
A
1 pcs
CPS Mini Central inverter
B
1 pcs
Waterproof cover for AC power cable
C
1 pcs
Wall-Mount bracket
D
1 set
Cable gland for AC connection
E
4 pcs
M4 cross recessed countersunk head screws for
Waterproof cover
F
3 set
M6 socket head cap screws for fix inverter on wall
mount bracket
G
6 set
Hex head cap screw and nuts for wall mount bracket
H
2 set
RS485 waterproof plug assembly
I
4 set
Field Wiring DC connectors
J
6 set
Plugs for unused PV terminals
K
5 pcs
Ring Terminals
--
1 pcs
Warranty(not show in the picture)
--
1 pcs
User manual (not show in the picture)
Though the packaging box of CPS Mini Central inverter is durable, please
treat the packing box gently and avoid dispose the packing box.

User Manual 14 / 54 CPS Mini Central series
5 Installation
5.1 Safety instruction
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
Do not install the inverter on easily flammable materials and where
flammable materials are stored.
Risk of burns due to hot enclosure parts
Mount the inverter in such a way that it cannot be touched inadvertently.
All electrical installations shall be done in accordance with the local and national electrical codes.
Do not remove the casing. Inverter contains no user serviceable parts. Refer servicing to
qualified service personnel. All wiring and electrical installation should be conducted by a
qualified service personnel.
Carefully remove the unit from its packaging and inspect for external damage. If you find any
imperfections, please contact your local dealer.
Be sure that the inverters connect to the ground in order to protect property and personal
safety.
The inverter must only be operated with PV generator. Do not connect any other source of
energy to it.
Both AC and DC voltage sources are terminated inside the PV Inverter. Please disconnect these
circuits before servicing.
This unit is designed to feed power to the public power grid (utility) only. Do not connect this
unit to an AC source or generator. Connecting Inverter to external devices could result in serious
damage to your equipment.
When a photovoltaic panel is exposed to light, it generates a DC voltage. When connected to this
equipment, a photovoltaic panel will charge the DC link capacitors.
Energy stored in this equipment’s DC link capacitors presents a risk of electric shock. Even after
the unit is disconnected from the grid and photovoltaic panels, high voltages may still exist
inside the PV-Inverter. Do not remove the casing until at least 5 minutes after disconnecting all
power sources.
Although designed to meet all safety requirements, some parts and surfaces of Inverter are still
hot during operation. To reduce the risk of injury, do not touch the heat sink at the back of the
PV-Inverter or nearby surfaces while Inverter is operating.

User Manual 15 / 54 CPS Mini Central series
5.2 Selecting the Installation Location
This is guidance for installer to choose a suitable installation location, to avoid potential damages to device and
operators.
1) The wall selected to install the inverter must be strong and firm enough to support and bear the weight
of the inverter for a long period time. (Refer to Chapter 11 Specifications)
2) The location selected must be suitable for inverters’ dimension. (Refer to 3.3 Dimensions and Fig.5.2
Required Clearances)
3) Do not install the inverter on structures constructed of flammable or thermo labile materials.
4) Never install the inverter in environment of little or no air flow, nor dust environment.
5) The Ingress Protection rate is IP65 which means the inverter can be installed outdoors and indoors.
6) Do not expose the inverter to direct sunlight, in order to avoid the power and efficiency derating caused
by excessive heating.
7) The humidity of the installation location should be 0~95% without condensation.
8) The ambient temperature of the inverter should be -25℃~+60℃.
9) The installation location must be freely and safely to get at all times.
10) Vertically installation and make sure the connection of inverter must be downwards. Never install
horizontal and avoids forward and sideways tilt.( Refer to drawings below)
Fig 5.1

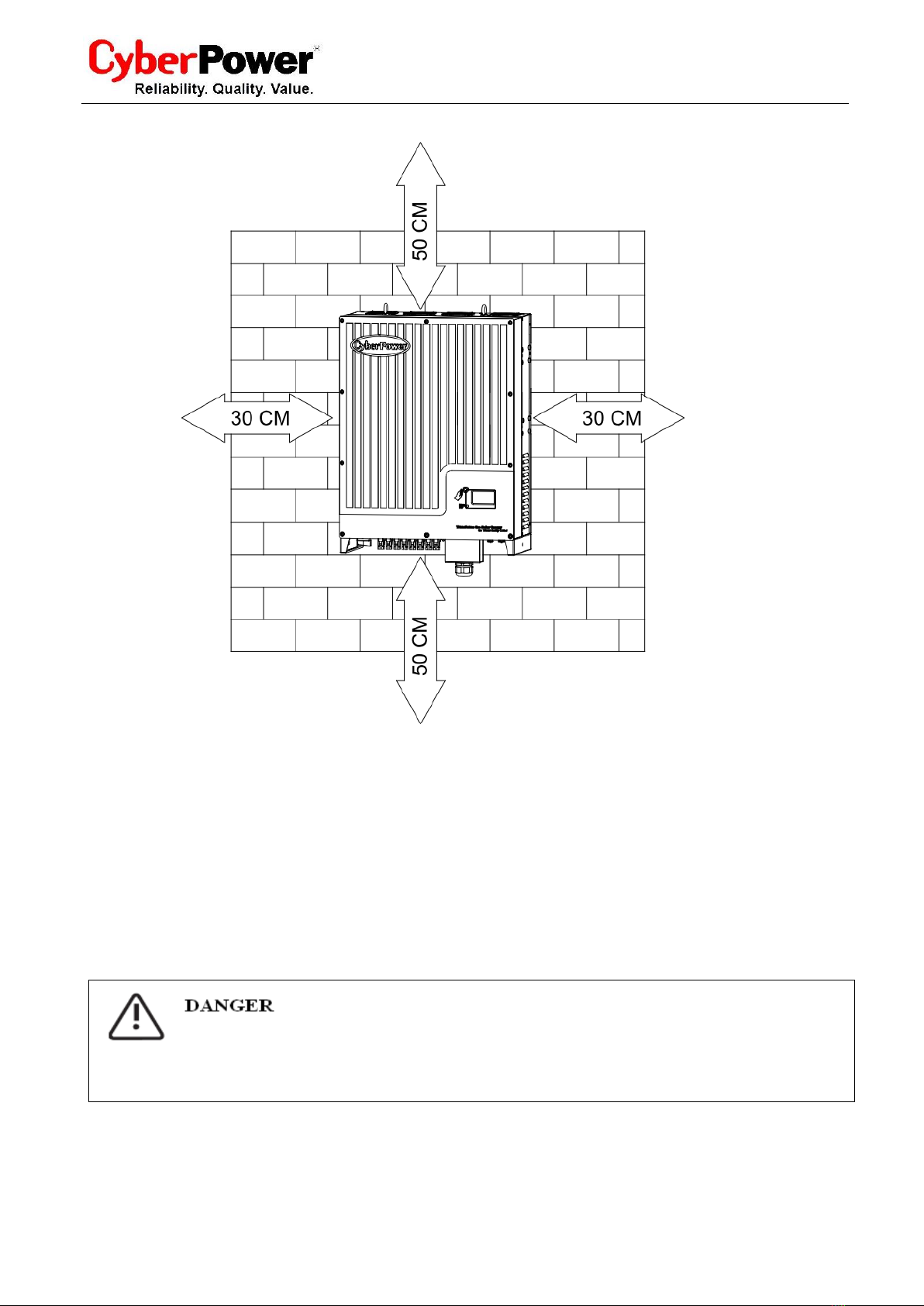

11) Notice the minimum clearances of the inverter. (Refer to 3.3 Dimensions and Fig.5.2 Required
Clearances).

User Manual 16 / 54 CPS Mini Central series
Fig 5.2
12) Do not install the inverter near television antenna or any other antennas and antenna cables.
13) Do not install the inverter in living area, the noise caused by the machine may affect daily life.
14) For security reasons, don’t install the inverter in place where the children can reach.
5.3 Installation guide
5.3.1 Mounting the Bracket
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing
installations before drilling holes.
To mount the inverter on the wall, we should mount the bracket to the wall firmly first of all.

User Manual 17 / 54 CPS Mini Central series

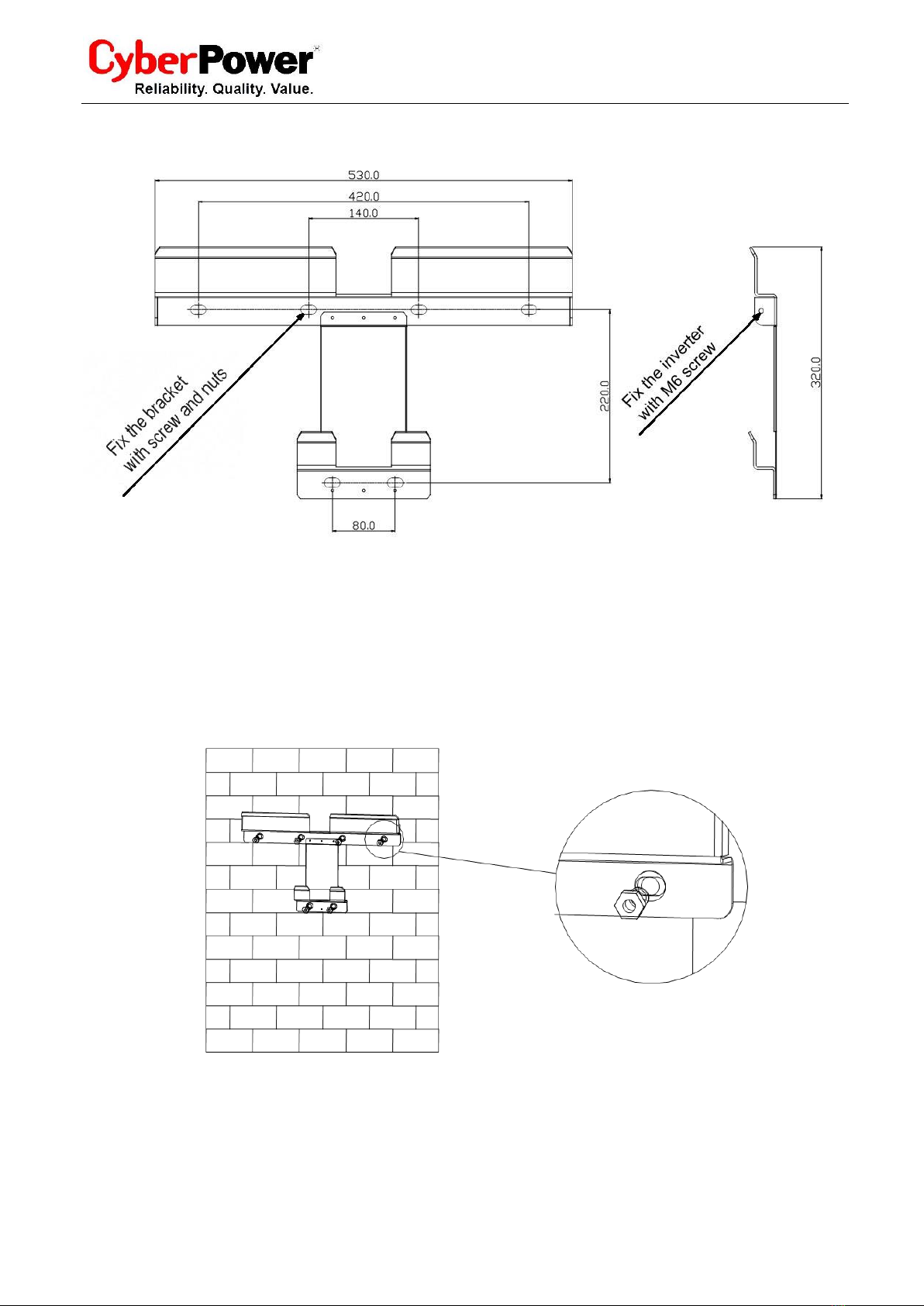

Dimension of Bracket (units :mm)
Fig 5.3
Steps:
Drill 6 holes for screws while use the mounting frame as template.
Fix the mounting frame on the wall as the figures shown below, combine as the screws as the Items Fig
4.1 shows (items D)
Fig 5.4

User Manual 18 / 54 CPS Mini Central series
5.3.2 Mounting Inverter
Falling equipment can cause serious or even fatal injury, never mount the inverter on the
bracket unless you are sure that the mounting frame is really firmly mounted on the wall after
carefully checking.

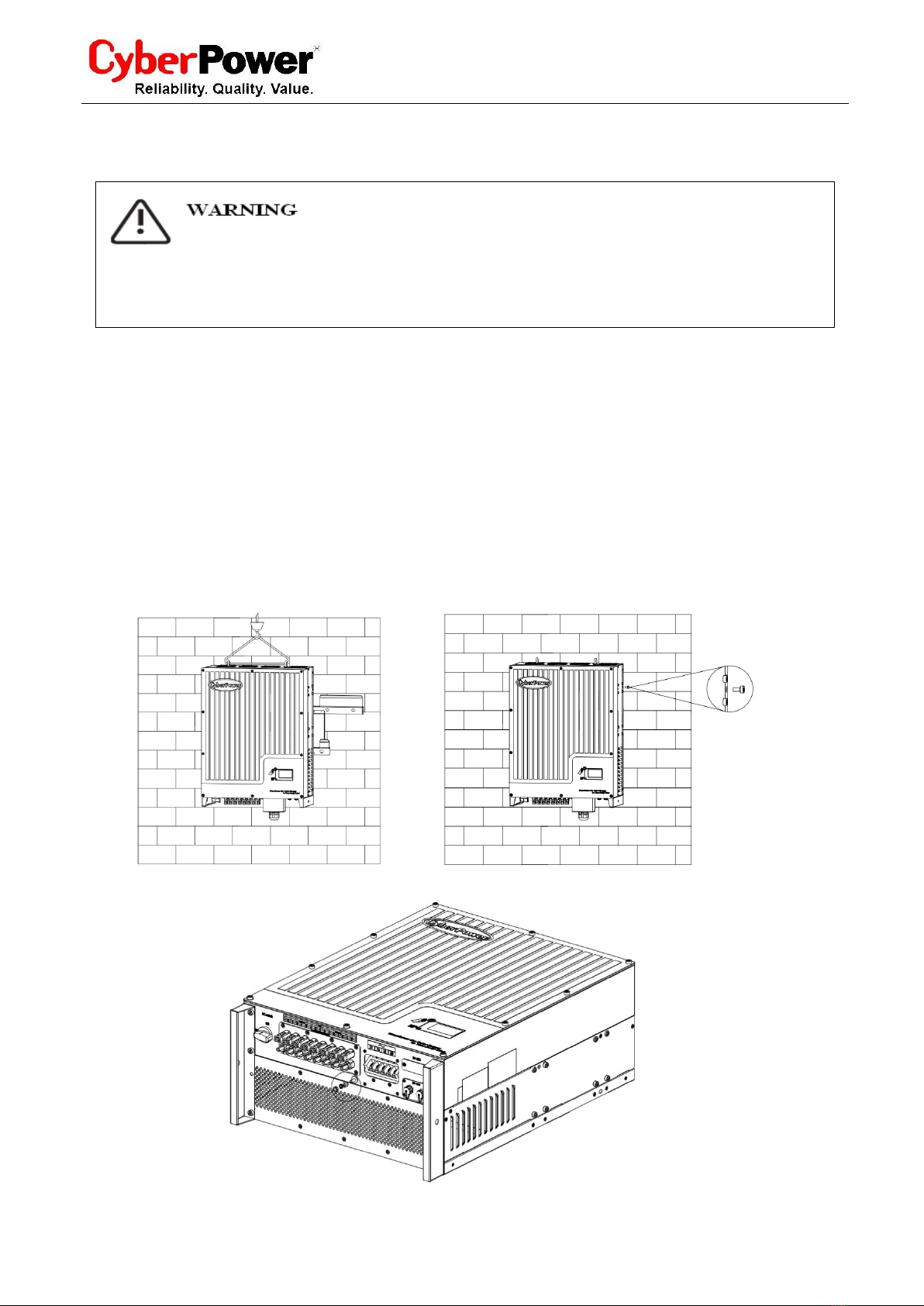

After the bracket is firmly mounted on the wall, then mount the inverter on the bracket.
Rise up the CPS Mini Central a little higher than the bracket. Considering the weight of CPS Mini Central, you
need to hang on the inverter. During the process please maintain the balance of the CPS Mini Central.
Hang the inverter on the bracket through the match hooks on bracket and the back of the inverter. Please
reference in Fig5.5
Installed one M6*10 screw at each side of inverter to reliable fixed it on the wall. Please reference in Fig 5.6.
Connection of a second protective earthing conductor. Please reference in Fig5.7.
Recommend awning installation, the purpose is to extend the inverter service life and reduce the power
derating of the inverter. The dimension of the awning refer to Fig5.8.
Fig 5.5 Fig 5.6
Fig. 5.7

User Manual 19 / 54 CPS Mini Central series
5.3.3 Installation layout
Fig. 5.8

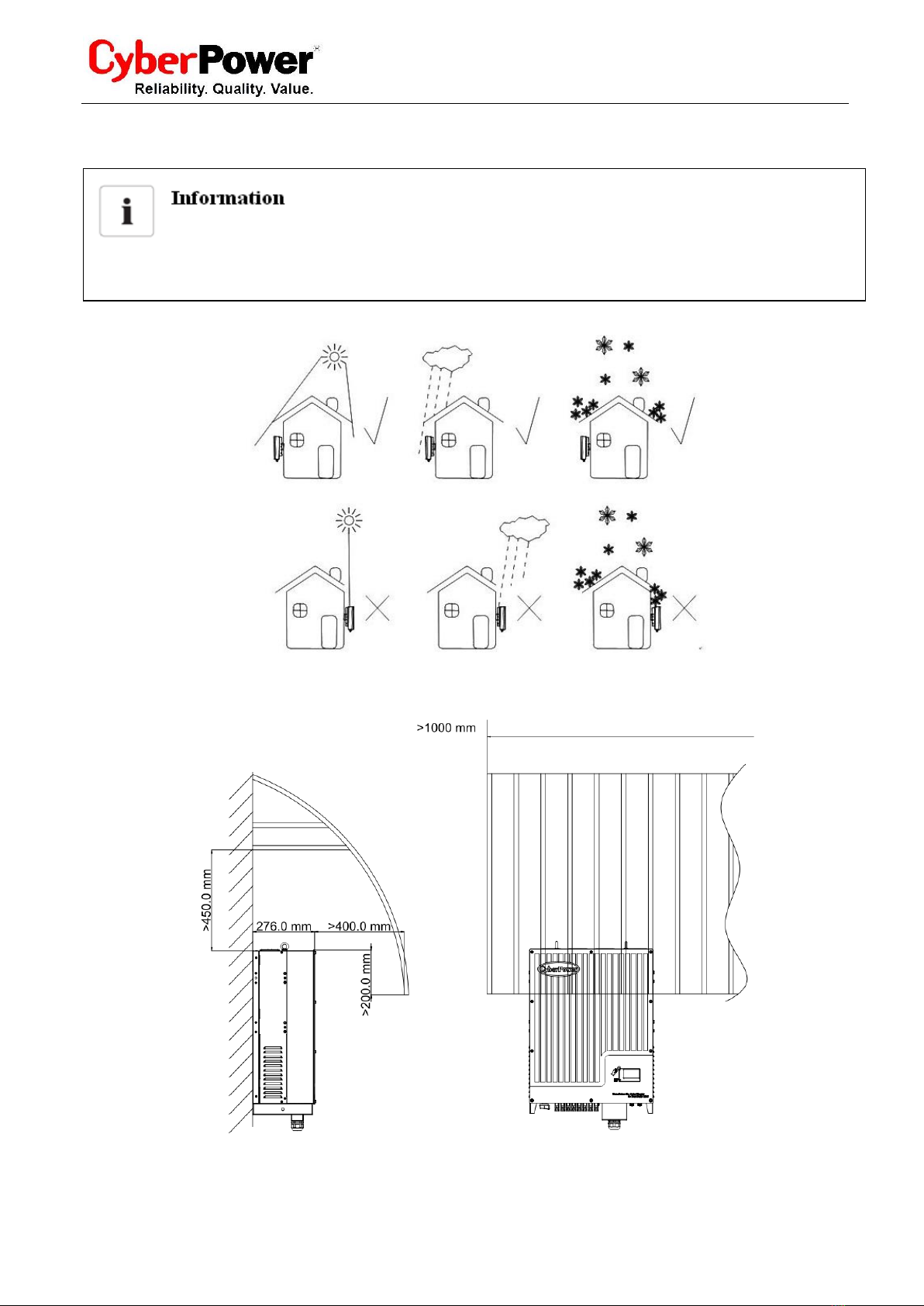

More than one inverter need to be installed, the dimensions below should be considered.
Avoid exposing inverter to direct sunlight, rain or snow to extend the inverter service life despite the IP65
protection degree. Exposure to the sunlight may cause additional internal heating which will cause power derating.
Shaded site of the building is preferred, otherwise, we recommend installing an awning, the detail is showed in
Fig5.9:
