Cyber Power CPSHB300ETR-IN User manual

User’s Manual
CPSHB300ETR-IN
Cyber Power Systems, Inc.
www.cyberpower.com

Contents
1 Information on this Manual............................................................................................................ 1
1.1 Validity......................................................................................................................................... 1
1.2 Target Group................................................................................................................................ 1
1.3 Symbols Used .............................................................................................................................. 1
2Safety ................................................................................................................................................ 2
2.1 Intended Use ............................................................................................................................... 2
2.2 Safety Precautions....................................................................................................................... 2
2.3 Assembly Warnings ..................................................................................................................... 3
2.4 Electrical Connection Warnings .................................................................................................. 3
2.5 Operation Warnings .................................................................................................................... 4
2.6 Symbols on the Unit .................................................................................................................... 4
3Product Description.......................................................................................................................... 5
3.1 CPS Solar Hybrid Power Generating System Overview ............................................................... 5
3.2 Size and Weight ........................................................................................................................... 5
3.3 Transportation ............................................................................................................................. 6
3.4 Storage of Unit ............................................................................................................................ 6
3.5 The Advantage of CPS Solar Hybrid Power Generating Systems................................................. 6
4Unpacking ......................................................................................................................................... 7
5Installation ........................................................................................................................................ 8
5.1 Safety Instruction ........................................................................................................................ 8
5.2 Selecting the Installation Location .............................................................................................. 8
5.3 Electrical Connections ................................................................................................................. 9
5.3.1 Safety........................................................................................................................................ 9
5.3.2 Wiring PV Input ...................................................................................................................... 10
5.3.3 Wiring External Battery Input................................................................................................. 11
5.3.4 Wiring AC Output................................................................................................................... 12

6Commissioning................................................................................................................................ 13
6.1 Commission the Unit ................................................................................................................. 13
6.2 Operation Modes ...................................................................................................................... 13
6.3 Charge Current Setting .............................................................................................................. 14
6.4 LEDs Indicators .......................................................................................................................... 16
7Start-up and Shut-down the Unit .................................................................................................. 19
7.1 Start-up the Unit for On Grid Operation ................................................................................... 19
7.2 USB Charger Only ..................................................................................................................... 19
7.3 Start-up the Unit for Off Grid Operation.................................................................................. 19
7.4 Shut-down the Unit ................................................................................................................... 20
8Maintenance................................................................................................................................... 21
8.1 Replace the Internal Batteries................................................................................................... 21
8.2 Replace the Fuse ....................................................................................................................... 22
9 Decommissioning ............................................................................................................................. 23
9.1 Dismantling the Unit ................................................................................................................. 23
9.2 Packing the Unit ........................................................................................................................ 23
9.3 Disposing of the Unit................................................................................................................. 23
10 Specification.................................................................................................................................... 24
10.1 Specification of CPSHB300ETR-IN ........................................................................................... 24
10.2 Torque Values .......................................................................................................................... 25
11 Contacts .......................................................................................................................................... 26

Table of Figures
Fig. 2-1 Energy storage system....................................................................................................... 2
Fig. 3-1 Layout of CPSHB300ETR-IN ............................................................................................... 5
Fig. 3-2 Dimensions of CPSHB300ETR-IN ....................................................................................... 5
Fig. 4-1 Components included in the scope of deliver................................................................... 7
Fig. 5-1 Permitted and prohibited installation positions ............................................................... 9
Fig. 5-2 Clearance space for installation ........................................................................................ 9
Fig. 5-3 Grid output and standalone output connections............................................................ 10
Fig. 5-4 Connect PV connectors to unit........................................................................................ 11
Fig. 5-5 The location of extended battery connector................................................................... 12
Fig. 7-1 Power flow of On-Grid operation .................................................................................... 19
Fig. 7-2 Power flow of Off-Grid operation.................................................................................... 20
Fig. 8-1 Procedure of replacing batteries..................................................................................... 21
Fig. 8-2 Grid O/P fuse replacement.............................................................................................. 22

Table of Figures
Table 6-1 Charge current setting ................................................................................................ 15
Table 6-2 LEDs indicators for On Grid operation........................................................................ 16
Table 6-3 LEDs indicators for Off Grid operation........................................................................ 17
Table 10-1 Specification ............................................................................................................... 24
Table 10-2 Torque values.............................................................................................................. 25

1 Information on this Manual
1.1 Validity
This installation guide contains installation, commissioning, basic troubleshooting and tech-support contact
information regarding CyberPower’s CPS Solar Hybrid Power Generating System CPSHB300ETR-IN
Using this guide, users will be able to install and operate the unit rather easily. This manual does not cover
any details regarding equipment connected to the unit.
1.2 Target Group
This manual is most suitable for users who have basic knowledge around electricity and electrical devices.
Note: CyberPower Systems, Inc. will not inform users for any changes taken place within this guide.
1.3 Symbols Used
The following types of safety instructions and general information appear within this document:
Symbol Description
WARNING indicates a hazardous situation which, if not avoided, can
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, can
result in minor or moderate injury.
NOTICE indicates a situation which, if not avoided, could result in
property damage.
Information that you
must read and know to ensure optimal
operation of the system.
WARNING
!
CAUTION
!
NOTICE
!
i
Information
User Manual 1 Hybrid CPSHB300ETR-IN

2Safety
2.1 Intended Use
The CPS Solar Hybrid Power Generating System can be used to converter photovoltaic energy to battery
and/or to balance the attached load power. Please note, that charging the batteries takes presidency over
all other functions!
It can supply power to appliances when public grid is not available. The unit contains 2 x 12V/9Ah Sealed
Lead Acid batteries in 24VDC configuration that can be expanded through the use of an external battery
array. It also has a built-in USB charger that provides 2ports with 2A totally maximum, able to charge
connected 5VDC USB devices, such as Smart Phones, Tablets, Cameras, etc.
Hybrid Energy Storage System Overview:
PV Module
Electrical Grid
Appliances
(Emergency usage)
Multiple charge, 5V/2A
(2A max for each USB and total)
CPSHB300ETR-IN
Optional external battery
VRLA, 24V (12V*2)
Fig. 2-1 Energy storage system
Like the above drawing indicates, a complete energy storage system consists of PV module, CPS Solar
Hybrid Power Generating System, public grid and other components.
2.2 Safety Precautions
The CPS hybrid series is designed and tested according to international safety requirements; however,
certain safety precautions must be observed when installing and operating this unit. Read and follow all
instructions, cautions and warnings in this installation manual.
User Manual 2 Hybrid CPSHB300ETR-IN

2.3 Assembly Warnings
2.4 Electrical Connection Warnings

Prior to installation, inspect the unit to ensure absence of any
transport or handling damage, which could affect insulation
integrity or safety clearances; failure to do so could result in
safety hazards.

Unauthorized removal of necessary protections, improper use,
incorrect installation and operation may lead to serious safety,
shock hazards or equipment damage.

In order to minimize the potential of a shock hazard due to
hazardous voltages,
cover the entire solar array with dark
material prior to connecting the array to any equipment.
Grounding the PV modules: Comply with the local requirements for
grounding the PV modules and the PV generator.
CyberPower recommends connecting the generator frame and other
electrically conductive surfaces in a manner which ensures continuous
conduction and ground these in order to have optimal protection of
the system and personnel.

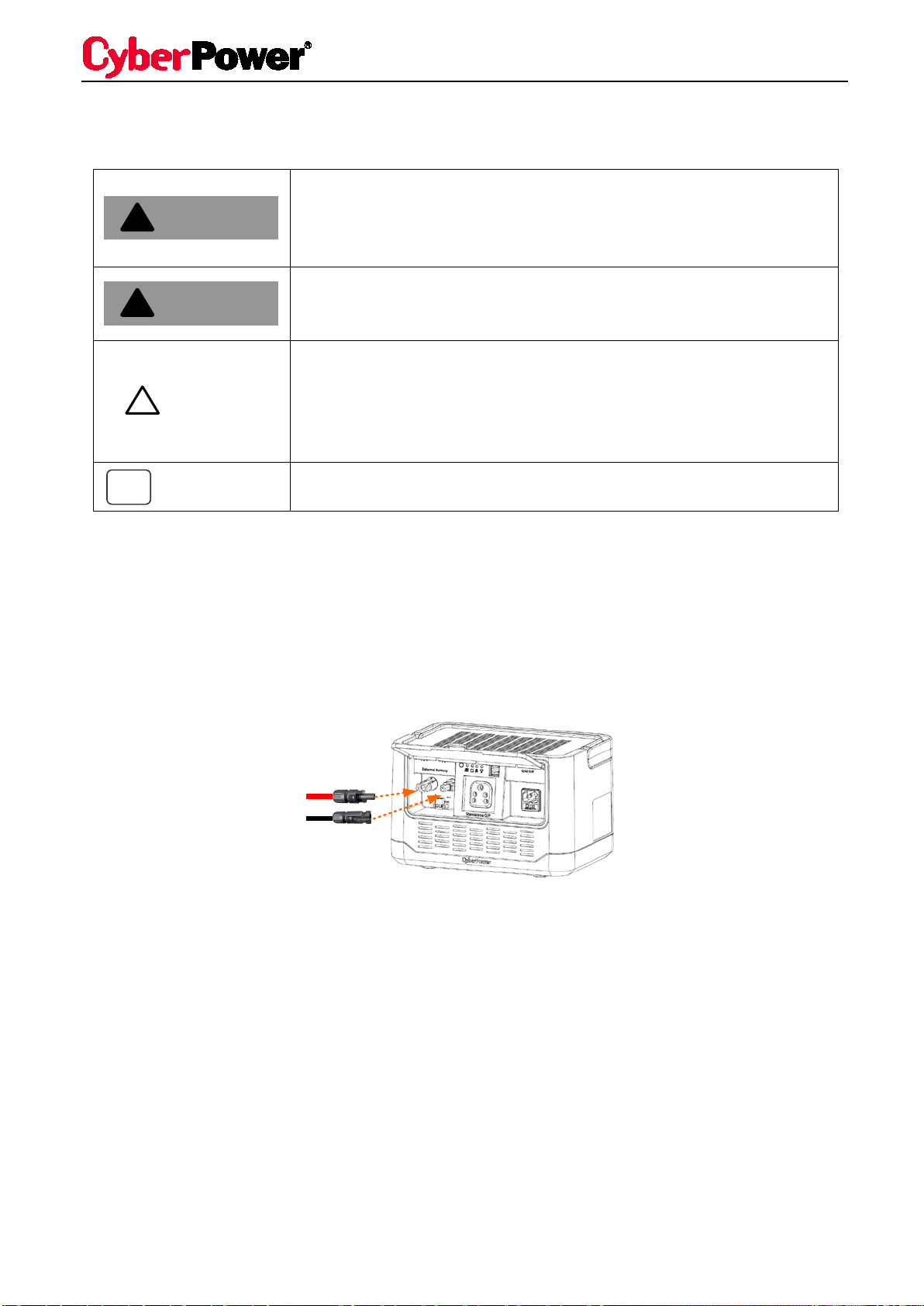

Make all electrical connections (e.g. conductor termination, fuses, PE
connection, etc.) in accordance with prevailing regulations. When
working with the unit
powered on, adhere to all prevailing safety
regulations to minimize risk of accidents.
The unit m
ay only be operated with PV generators (modules and
cabling) with protective insulation. Do not connect any source of energy
other than PV modules to the CPS hybrid unit.
Systems with unit
typically require additional control (e.g., switches,
disconnects)
or protective devices (e.g., fusing circuit breakers)
depending upon the prevailing safety rules.
Please read this manual carefully, the manufacturer or supplier is not
responsible for damage caused by incorrect operation
, installation,
wiring, transport, etc.
When energy flows into the house grid through the unit, household devices
or lighting consume that energy. Leftover energy may be fed into the public
grid. If you choose this function and indeed there is left-over power fed into
the public grid,
depending on your connection, the energy consumption
meter might be spinning backwards!
WARNING
!
CAUTION
!
WARNING
!
CAUTION
!
User Manual 3 Hybrid CPSHB300ETR-IN

2.5 Operation Warnings
2.6 Symbols on the Unit

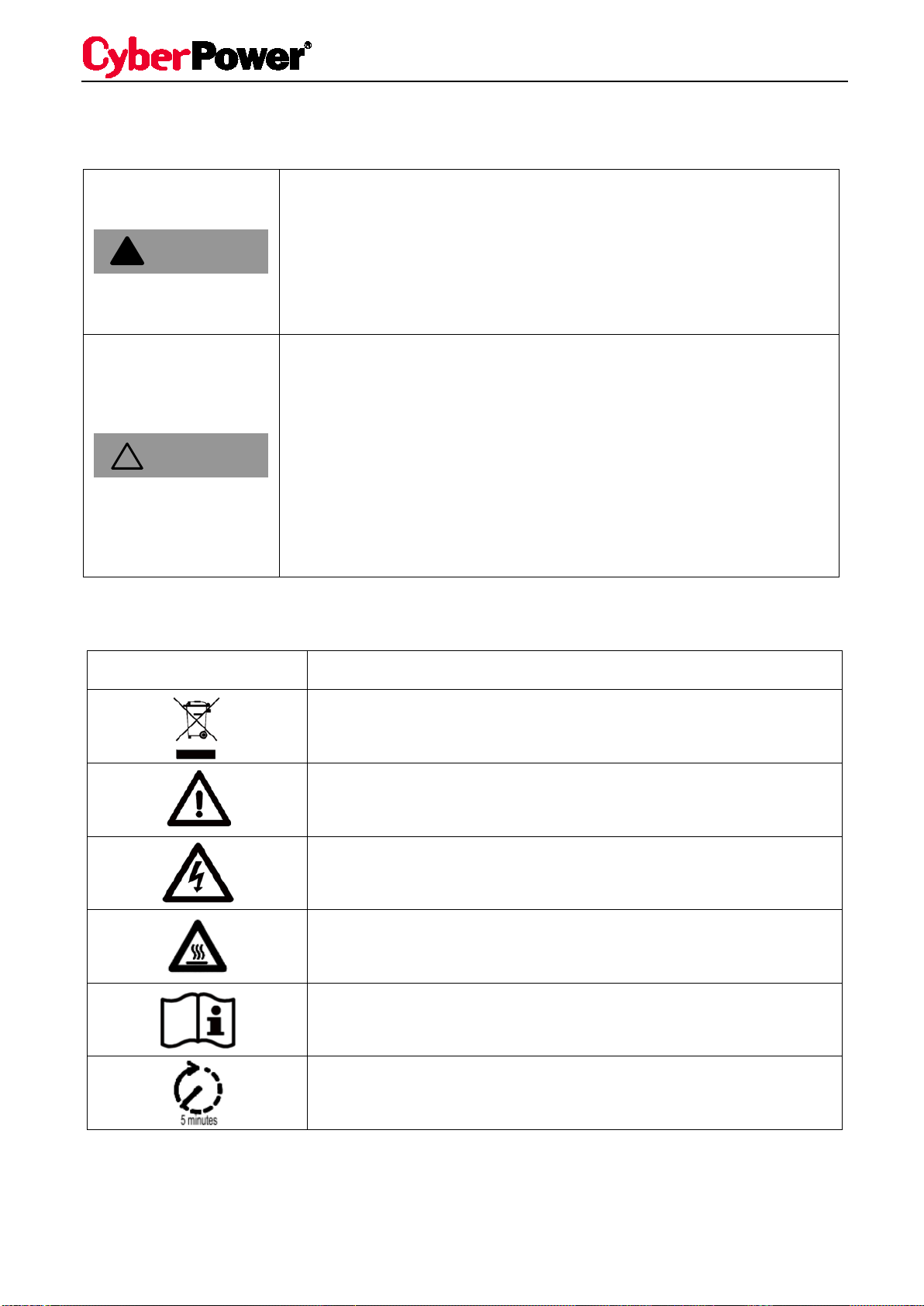

Symbol Explanation
Don’t dispose of the product together with the household waste. In
accordance with the applicable disposal regulations for electronic waste.
Notice
Install and operate the product must follow the manual and instruction,
incorrect installation or operation may damage the product.
Danger to life due to high voltage
There high voltage inside the product, don’t open the enclosure or touch
the live parts.
Risk of burns
The product’s surfaces are hot during operation. Don’t touch during
operation.
Observe the documentation
Observe all documentation supplied with product
Danger to life due to high voltage
Prior to performing any work on the product, always disconnect it from
all sources and wait for 5 minutes.
Ensure all covers and doors are closed and secure during operation.

Although designed to meet all safety requirements, some parts and
surfaces of Unit
are still hot during operation. To reduce the risk of
injury, do not touch the surfaces while Unit is operating.
Incorrect sizing of the PV plant may result in voltages being present
which could destroy the unit.

Anytime the unit has been disconnected from the power network, use
extreme caution as some components can retain charge sufficient to
create a shock hazard; to minimize occurrence of such conditions,
comply with all corresponding safety symbols and markings present on
the unit and in this manual.

In special cases, there may still be interference for the specified
application area despite maintaining standardized emission limit values
(e.g. when sensitive equipment is located at the setup location or when
the setup location is near radio or television receivers).In this case, the
operator is obliged to take proper action to rectify the situation.
WARNING
!
CAUTION
!
User Manual 4 Hybrid CPSHB300ETR-IN

3Product Description
3.1 CPS Solar Hybrid Power Generating System Overview
A
B
CD
E
F
G
HIJ
Fig. 3-1 Layout of CPSHB300ETR-IN
Position Description
A Handle
B Transparent Cover
C USB Charger
D
LED Indicators (4 LEDs)
E
Operation Button
F
PV Input Connectors
G
External Battery Connector
H AC-out Power Outlet
I AC-in Power Outlet / GRID
J Tool for Removing PV Connectors
3.2 Size and Weight
The dimensions of CPSHB300ETR-IN as Fig. 3-2, the weight is 9kg includes batteries.
Unit: mm
Fig. 3-2 Dimensions of CPSHB300ETR-IN
292
186
202
User Manual 5 Hybrid CPSHB300ETR-IN

3.3 Transportation
The unit is thoroughly tested and inspected strictly before delivery. Our units leave our factory in proper
electrical and mechanical condition. Special packaging ensures safe and careful transportation. However,
transport damage may still occur. The shipping company is responsible in such cases. Thoroughly inspect
the unit upon delivery. Immediately notify the responsible shipping company if you discover any damage to
the packaging which indicates that the unit may have been damaged or if you discover any visible damage
to the unit. We will be glad to assist you, if required. When transporting the unit, the original or equivalent
packaging should to be used.
3.4 Storage of Unit
If you want to storage the unit in your warehouse, you should choose an appropriate location to
store the unit.
The unit must be stored in original package and desiccant must be left in the package.
For the life and capacity of battery, the storage temperature should be always between
-10
℃
and +40
℃
. And the storage relative humidity should be always between 0 and 95%.
After long term storage, local installer or service department of CyberPower should perform a
comprehensive test before installation
3.5 The Advantage of CPS Solar Hybrid Power Generating Systems
Features of CPSHB300ETR-IN are follows:
User friendly handle, making carrying very convenient
Very easy to install
2 USB charger ports with 2A maximum charging current in total *1
Extendable battery capacity
*1 High power operation can cause high temperature and influence the charging current of USB, please
keep light or no power from AC-Out outlet during USB charging operation.
User Manual 6 Hybrid CPSHB300ETR-IN

4Unpacking
Before opening packing, please note that whether there are any visible external damages.
After opening packing, please check the contents for completeness and for any visible external device
damages. If there are any damages, or parts missing, please contact your dealer. Complete delivery should
contain the following:
A BC

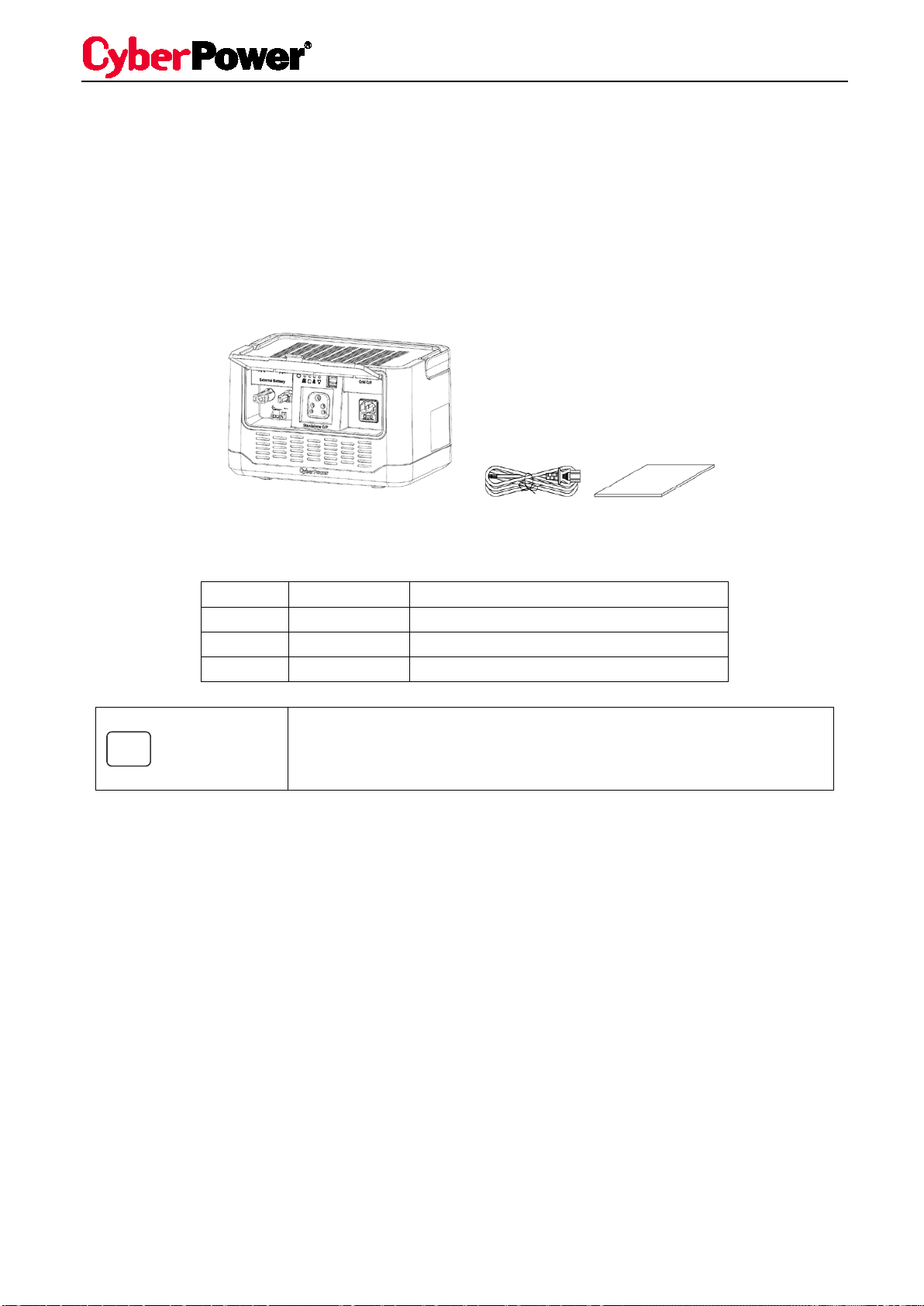

Fig. 4-1 Components included in the scope of deliver
Item Quantity Description
A 1 Solar Hybrid Power Generating System
B
1
Power cord for AC connection
C
1
User manual & Warranty Card
Even though packaging is made to be durable, please treat it gently and
avoid tossing it around.
i
Information
User Manual 7 Hybrid CPSHB300ETR-IN

5Installation
5.1 Safety Instruction
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
Do not install the unit on easily flammable materials and where
flammable materials are stored.
Carefully remove the unit from its packaging and inspect for external damage. If you find any
imperfections, please contact your local dealer.
The PV input interface can only be connected with PV panel(s), ant the external battery connector can
only accept SLA battery types in 24VDC configuration.
Disconnect whole connections before servicing.
Do not connect this unit to an AC source or generator.
When a photovoltaic panel is exposed to light, it generates a DC voltage. When connected to this
equipment, a photovoltaic panel will charge the DC link capacitors.
Energy stored in this equipment’s DC link capacitors presents a risk of electric shock. Even after the unit
is disconnected from the grid, external battery and photovoltaic panels, high voltages may still exist
inside the unit. Do not remove the casing until at least 2 minutes after disconnecting all power sources.
Although designed to meet all safety requirements, some parts and surfaces of unit are still hot during
operation. To reduce the risk of injury, do not touch the surfaces of unit during operation.
5.2 Selecting the Installation Location
The points below help you select a suitable installation location, thus avoiding any potential damages to
both device and operators:
1) Obviously the location selected must be suitable for the units’ dimensions, with room to spare.
2) Do not install the unit on structures constructed of flammable or thermo labile materials.
3) Never install the unit in environment of little or no air flow, nor dust environment.
4) The unit must be installed indoors.
5) Do not expose the unit to direct sunlight, in order to avoid the power and efficiency de-rating
caused by excessive heating.
6) The humidity of the installation location should be 0~95% without condensation.
7) The ambient temperature of the unit should be -10
℃
~+50
℃
.
8) The installation location must be freely and safely to get at all times.
9) Vertically installation only. Never install in horizontal positions, and avoid forward and sideways
tilting; (observe drawings below)
WARNING
!
User Manual 8 Hybrid CPSHB300ETR-IN

Fig. 5-1 Permitted and prohibited installation positions
10) Notice the minimum clearances of the unit. (Refer to 3.3 Dimensions and Fig.5.2
Required Clearances).
>20cm
Fig. 5-2 Clearance space for installation
11) Do not install the unit near TV antennas, or any other antennas and antenna cables.
12) Don not install in place where the children can easily reach.
5.3 Electrical Connections
5.3.1 Safety
Hazardous voltage
High voltages which may cause electric shocks are present in the
conductive parts of the unit. Prior to performing any work on the unit,
disconnect the unit on the AC and DC sides
Top Top
Top
WARNING
!
User Manual 9 Hybrid CPSHB300ETR-IN

5.3.2 Wiring PV Input
Check the connection cables of the PV modules for correct polarity and make sure that the maximum open
circuit voltage shall never exceed 50V.
1The diagram drawing of DC side is shown as below, notice that the connectors are in pair (male
and female connectors).
Note: Please use 14-10AWG(2-6mm2) wires for the PV input connection.
2Check the DC connectors for correct polarity and connect them onto the unit.
Fig. 5-3 Connect PV connectors to unit
Hazardous voltage
Whenever a PV panel is exposed to sunlight, a shock hazard exists at the
output wires or
exposed terminals. Cover the panel with an opaque
material before making PV input connection.
To reduce the risk of electric shock, avoid touching the live components
and treat the terminals carefully.
NEVER connect or disconnect the DC connectors under load.
Risk of damage to the unit.
If the voltage of the PV modules exceeds the maximum input voltage of
the unit, it can be destroyed by the overvoltage. This will void all warranty
claims. Do not connect strings to the unit that have an open-circuit voltage
greater than the maximum input voltage of the unit.
Please use the same brand male and female PV connectors. Under any
conditions the total circuit current should never exceed the Max. Current.
WARNING
!
WARNING
!
NOTICE
!
i
Information
User Manual 10 Hybrid CPSHB300ETR-IN

5.3.3 Wiring External Battery Input
1Loose the screw of battery connector by screwdriver and pull out the connector.
2Tight connector screws after you insert battery-wires to lock them into place. An AWG14 wire type is
recommended. Place the battery connector back to the unit and tight it into place.
Fig. 5-4 Location of extended battery connector
To reduce the risk of electric shock, avoid touching the live components
and treat the terminals carefully.
NEVER connect or disconnect the connectors under load.
Risk of damage to the unit.
If the voltage of the battery exceeds the maximum input voltage of the
unit, it can be destroyed by the overvoltage. This will void all warranty
claims.
If the polarity of battery is reversed connect, it can damage the unit fuse
and unit can’t operate anymore. Before connecting, make sure the polarity
is correct.
Battery type must be valve-regulated lead-acid battery
Improper operation during the wiring
process can cause fatal injury to
operator or unrecoverable damage to the unit.
WARNING
!
NOTICE
!
NOTICE
!
User Manual 11 Hybrid CPSHB300ETR-IN

5.3.4 Wiring AC Output
Conditions for the AC Connection
Measure the grid’s voltage and frequency. It should be: (Voltage: 220~240VAC single-phase; Frequency:
50Hz/60Hz).
1. Open the transparent cover and plug in the AC power cord, the other end of power cord plug to
electrical socket
2. Plug-in the load power cord if needed.
Note: Please use the accessorial power cord.
(Different area has different plug type)or or...
To loads (appliances)
Electrical socket
~
~
Fig. 5-5 Grid output and standalone output connections
User Manual 12 Hybrid CPSHB300ETR-IN

6Commissioning
6.1 Commission the Unit
1) Remove the cover from the PV panel.
2) Check the PV and AC voltage.
3) If there’s DC switch, turn it to ON position.
If the unit is connected with PV panel and the input voltage is higher than 27Vdc, while the AC
grid is not connected yet, LEDs will display as below. PV power would be transferred to charge the
batteries.

PV >27V and <50V

(Off)
4) Connects unit Grid O/P to electrical socket, it will bypass the Grid power to standalone output
automatically.
5) Under normal operating conditions, the Grid LED turns green.
6) Plug in load to unit standalone output, unit will feed-in the residual power to Grid to balance the
power consumption of load (If the residual power is more than load, unit would reduce the input
power to make the net power to Grid as zero).
6.2 Operation Modes
Self-consumption (On-Grid) Mode
In this mode, the unit convers PV power to charging battery and/or to balance the load power consumption;
Whenever the DC voltage is lower than 25Vdc, the unit will work in waiting state and attempt to connect
the grid by 5mins for <25Vdc and 30s for <16Vdc. In waiting state the unit continuously monitors the
internal system. Grid bypasses power to load directly.
Note: The unit starts up automatically when DC power from the PV panel is sufficient.
Off Grid Mode
In this mode, whenever the PV or Battery has sufficient power, the unit convers PV and/or battery power to
loads when Grid power is no available.
Fault Mode
The internal intelligent unit can continuously monitor and adjust the system state. If unit finds any fault
conditions, unit would shutdown immediately

PV >27V and <50V

User Manual 13 Hybrid CPSHB300ETR-IN

Bypass Mode
When no PV power during On Grid operation, unit off internal switch but keep bypass relay on to
continuously supply loads power from Grid directly.
Charger Mode
If user doesn’t want On-Grid, bypass or Off-Grid operation, wants all PV power to charge battery. Either one
of below ways can make unit stay in charger mode.
-Disconnect Grid O/P and Standalone, power on PV power.
-Press and hold button for 3s during operation (unit would back to On-Grid operation after PV
power off and on) if Grid is available.
Sleeping Mode
User can off unit by press and hold the button for 3s during unit operation. In this mode, unit off all LEDs to
save energy but keep monitoring the internal system for quickly going back to normal operation. When PV
power comes back, unit will enter charger mode automatically. When PV power is gone, unit will enter
shutdown mode.
Shutdown Mode
Unit automatically stop running during no PV power and low battery. In shutdown mode the units take no
power from panel and battery. If Grid is available, the inner charger would continuously charge battery but
without any LED indicator. If user wants to check the capacity of battery in this mode, can press the button
and see the battery LED color.
De-rating mode
When temperature high or PV voltage >38Vdc, the unit will de-rate its output power.
6.3 Charge Current Setting
Risk of damage to the unit
Adjust the charge current according the total Ah value of battery and don’t
more than 0.3C (ex. S
et 2Amax for 9Ah, 6Amax for 20Ah). Larger charge
current to lower capacity battery can reduce the life of battery.
User can set the charge current as 1/2/3/5/7/9A (default is 1A).
Note: The charger power comes from PV. Larger charge current would reduce the feeding power to Grid
and/or loads.
Procedure for changing charge current,
Press and hold the button.

3s later, unit shutdown and all LEDs are red

Another 3s later, all LEDs are
green

Another 3s later, BAT LED is blinking with green and the other LEDs are orange, release the button
immediately.

PV LED on green and red alternately, means unit stay in setting mode.
Note: It is not able to enter setting mode if user don’t release the button within 4s when all LEDs are
orange, must release the button and redo the procedures.
Now, user can change the charge current by pressing button (refer to Table 6-1 for the setting).
NOTICE
!
User Manual 14 Hybrid CPSHB300ETR-IN
