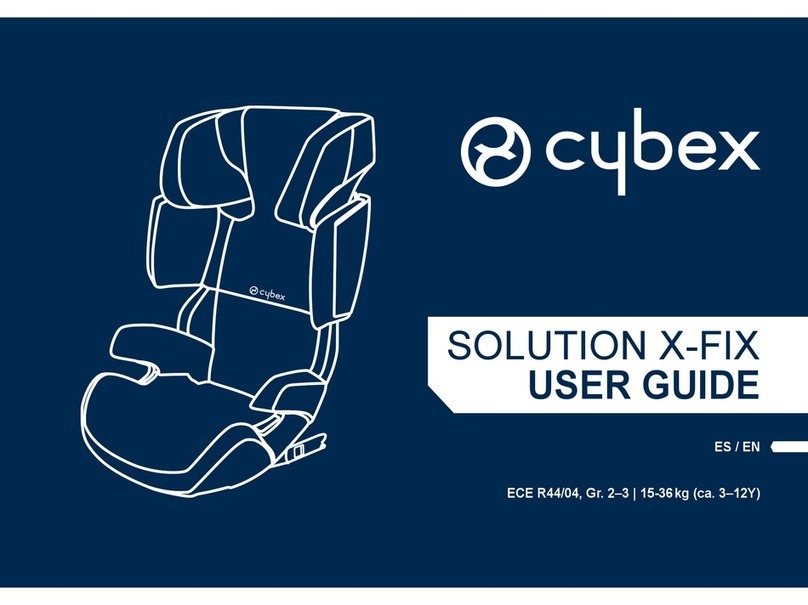

CYBEX SOLUTION X-FIX User manual

SOLUTION X–FIX
High Back Booster Seat
Asiento Infantil de Elevación con Respaldo Alto
Owner’s Manual
Manual del Propietario
>3 years
>3 años
or older
33—100 lb
15—45 kg
38—60”
96—152 cm
++
de edad
o más
READ AND FOLLOW ALL
BOOSTER SEAT AND VEHICLE
INSTRUCTIONS CAREFULLY.
LEA Y SIGA CUIDADOSAMENTE
TODAS LAS INSTRUCCIONES DEL
ASIENTO DE ELEVACIÓN Y LAS
DEL VEHÍCULO.
!

Dear parents,
Thank you for purchasing the CYBEX Solution X–fix High Back Booster Seat. We are proud
to bring this German engineered seat to North America. We hope the Solution X–fix will make
your child’s travel both safer and more pleasant, as well as making installation and use for you as
simple and easy as possible.
The Solution X–fix has undergone extensive testing and meets or exceeds all applicable Federal
Motor Vehicle Safety Standards in North America, as well as all applicable standards in Europe.
In four independent German magazine tests in 2009 and 2010, the Solution X-fix was rated the
number one High Back Booster Seat in both front and side impact protection. Additonally, in 2010
the Insurance Institute of Highway Safety (IIHS) awarded the Solution X-fix a "Best Bet" based on
how well the booster seat will position the vehicle seat belt on your child.
Statistics show that over 75% of car seats are installed incorrectly! Please read and follow these
instructions to install this booster seat correctly, even if the installation and use of this booster
seat might seem simple and intuitive. The safety of your child depends on it! Although many
booster seats may be used without the backrest attached, the Solution X-fix should NEVER BE
USED WITHOUT THE BACKREST ATTACHED as it dramatically reduces the protection in
a crash.
We recommend keeping your young child in a properly sized and installed car seat as long as
possible before making the switch to the Solution X-fix High Back Booster Seat.
No car seat can guarantee protection from injury in every situation, but proper use helps reduce
the risk of death or serious injury. If you have any questions or need assistance, please contact
Regal Lager, Inc. the North American distributor at 1–800–593–5522. Also, please remember to
register your booster seat so we can contact you in the unlikely event of a recall.
Keep this Owner’s Manual for future reference by storing it in the pocket on the back of Solution
X-fix. We appreciate your purchase and invite you to visit our web site www.cybex-online.com to
see other great CYBEX products.
Before the first use of this booster seat, please make sure you have followed all the steps in the
Safety Checklist and CYBEX Safe Practices found on page 32.
Bengt Lager
President, Regal Lager, Inc.
Child Passenger Safety Technician
WELCOME TO CYBEX!

The Solution X-fix....................................................................................................................................................................2
Registration and Recall Information....................................................................................................................................3
Warnings to Parents and Caregivers .................................................................................................................................4
Child Size: Height, Weight and Age Ranges...................................................................................................................7
Booster Seat Overview .........................................................................................................................................................8
Booster Seat Assembly.........................................................................................................................................................10
Vehicle LATCH Requirements..............................................................................................................................................11
Vehicle Seat Location Requirements .................................................................................................................................12
Installation using LATCH.......................................................................................................................................................16
Using the Booster Seat with Seat Belt Only....................................................................................................................20
Adjusting the Booster Seat for Your Child........................................................................................................................21
Securing Your Child into the Booster Seat .....................................................................................................................23
Removing the Booster Seat after using LATCH .............................................................................................................27
Fabric Covers ..........................................................................................................................................................................28
Care and Cleaning .................................................................................................................................................................30
Service and Accessories.......................................................................................................................................................31
Safety Checklist ......................................................................................................................................................................32
For more Information..............................................................................................................................................................33
Warranty....................................................................................................................................................................................34
ESPAÑOL
¡Bienvenido a CYBEX! ..........................................................................................................................................................35
La Solution X-fix.......................................................................................................................................................................36
Registro e Información Sobre Retiro del Producto.........................................................................................................37
Advertencias para los Padres de Familia y Cuidadores ................................................................................................38
Componentes del Asiento Infantil de Elevación para Auto...........................................................................................42
Tamaño del Niño: Altura, Peso y Gamas de Edad ..........................................................................................................44
Montaje del Asiento Infantil de Elevación..........................................................................................................................45
Requisitos del Vehículo – sistema LATCH .......................................................................................................................46
Requisitos para la Ubicación de los Asientos del Vehículo ..........................................................................................47
Instalación Utilizando el Sistema de Anclajes Inferiores
y Sujetadores para Niños – LATCH...................................................................................................................................51
Utilización del Asiento Infantil de Elevación Solamente
con el Cinturón Seguridad....................................................................................................................................................55
Ajuste del Asiento Infantil de Elevación a la Medida del Niño......................................................................................56
Retiro despues de Utilizar el Sistema de Anclajes Inferiores ......................................................................................62
Forros de Tela ..........................................................................................................................................................................63
Servicio y Accesorios.............................................................................................................................................................66
Lista de Verificación Sobre Seguridad ..............................................................................................................................67
Para Mayores Informes..........................................................................................................................................................68
Garantía.....................................................................................................................................................................................69
TABLE OF CONTENTS/ÍNDICE

LINEAR SIDE IMPACT PROTECTION™
The Linear Side Impact Protection System
allows the forces from a side impact
collision to be reduced gradually to
minimize injuries.
A series of reactions are triggered and
the Head and Shoulder Protectors absorb
the momentum of the head and body to
maximize the protection of your child. The
Head and Shoulder Protectors are made
of extra deep and thick energy absorbing
EPS foam to create a deep Safety Zone™
around your child.
THREE POSITION, RECLINING
HEADREST
We all know the head of a child falling
asleep in a booster seat tends to fall
forward, and in most cases ends up
outside the Safety Zone of the head
protectors. The CYBEX Three Position
Reclining Headrest eliminates this by
allowing your child’s head to recline and
remain protected in the Safety Zone of the
Head Protectors.
If your child slumps forward out of position
when asleep, there is an increased risk
that your child will not be well protected in
the event of a collision.
Thanks to the Reclining Headrest of the
Solution X-fix, your child will be able to
sleep comfortably with the head inside the
Safety Zone.
Reports show that 27% of all crashes are side impact collisions1.The Solution X-fix
brings all new technologies to the High Back Booster Seat category to greatly increase
the safety of your child in the event of a side impact collision.
1National Highway Traffic Safety Administration, Traffic Safety Facts 2005, 2007
2
D
E
E
P
THE SOLUTION XFIX

Please complete the Registration Card
that came with your Child Restraint and
mail it immediately or register online.
Child restraints could be recalled for safety
reasons. You must register this restraint to
be reached in a recall. Send your name,
address, e-mail address if available, and the
restraint’s model number and manufacturing
date to:
Attention: CYBEX Registration
Regal Lager, Inc.
1100 Cobb Place Blvd NW
Kennesaw, Georgia 30144, USA
or call 1-800–593–5522
or register online at www.regallager.com
For recall information, call the U.S.
Government’s Vehicle Safety Hotline at:
1–888–327–4236 (TTY: 1-800-424-9153), or go to www.NHTSA.gov.
CERTIFICATION
This child restraint system conforms to all applicable Federal
Motor Vehicle Safety Standards. This restraint is certified for
use in motor vehicles.
THIS RESTRAINT IS NOT CERTIFIED FOR USE IN
AIRCRAFT as shoulder belts are not available for proper use.
Registration information may be
found on the label to the right or
affixed to the underside of the
Booster Base.
3
FOR YOUR CHILD’S CONTINUED SAFETY
Please take a few moments to promptly  ll out and return the
attached card (or register online using the direct link to the
manufacturer’s registration website provided below).
Although child restraint systems undergo testing and evalua-
tion, it is possible that a child restraint could be recalled.
In case of a recall, we can reach you only if we have your name
and address, so please send in the card (or register online) to
be on our recall list.
Please  ll this card out and mail it NOW,
or register online at
www.regallager.com/register/cybexcarseats
while you are thinking about it.
The card is already addressed and we’ve paid the postage.
Tear off and mail this part
CONSUMER: JUST FILL IN YOUR NAME, ADDRESS AND E-MAIL
ADDRESS. PLEASE PRINT CLEARLY.
Your Name
Your Street Address
City State Zip Code
Email Address
CHILD RESTRAINT REGISTRATION CARD
MODEL NAME:
MODEL NUMBER:
COLOR:
MANUFACTURED IN:
DO NOT USE AFTER:
SOLUTION X-FIX
050020015
BERRY FABRIC: COMFORT
04/10
04/17
REGISTRATION AND RECALL INFORMATION

• Your child’s safety depends on you correctly installing and using this booster seat.
Read and follow all booster seat and vehicle instructions carefully. FAILURE TO
FOLLOW these instructions can result in DEATH or SERIOUS INJURY of your child
in a sharp turn, sudden stop, or crash.
• DO NOT install or use this booster seat until you have read and understand the
instructions in this manual and in your vehicle Owner’s Manual . If there is a
conflict between the two, the vehicle Owner’s Manual must be followed.
• DO NOT let others install or use this booster seat unless they understand how to
correctly install and use it.
• KEEP this Owner’s Manual for future reference by storing it in the pocket on the back
of the booster seat.
• USE ONLY with children who are 3 years of age or older AND whose height is
between 38—60 inches (96—152 cm) AND who weigh between 33—100 lb
(15—45 kg). Using this booster seat with a child who does not meet ALL of these
requirements will increase the risk of death or serious injury.
• ONLY USE this booster seat with the bottom of the Head Protection positioned at
two fingers width above your child’s shoulders.
• NEVER USE the Booster Base without the Backrest attached.
• NEVER TAKE your child out of the booster seat to tend to his or her needs while the
vehicle is moving. Unrestrained occupants are at a greatly increased risk of DEATH or
SERIOUS INJURY in a car crash.
• NEVER TEND to your child’s needs while driving. Driving while distracted is the
cause of many car crashes. Safely stop your vehicle in order to tend to your child.
• The primary protection for occupants of a vehicle in a collision is the structure of
the vehicle itself; a booster seat will not protect a child when the vehicle is seriously
impacted. Correctly used, this booster seat will substantially improve the chances for
survival in most crashes.
• TOO MUCH RECLINE IN THE VEHICLE SEAT BACK can result in improper seat
belt position. An improperly positioned seat belt increases the risk of DEATH or
SERIOUS INJURY in a crash. Follow your vehicle Owner’s Manual instructions
for proper seat back positioning.
• USE ONLY the vehicle’s three point lap and shoulder belt system when restraining
your child in this booster seat.
• NEVER USE this booster seat with a two–point only vehicle belt, (lap belt or shoulder
belt only) or with any motorized, or door mounted vehicle belts. Your child would not
be properly restrained in the event of a crash.
• IMPROPER PLACEMENT of this booster seat in a vehicle affects the booster seat’s
performance and can result in DEATH or SERIOUS INJURY.
4
!WARNING!
DEATH or SERIOUS INJURY can occur

• ONLY PLACE this booster seat in a vehicle seating location allowed by the vehicle
manufacturer. Refer to your vehicle Owner’s Manual for information about vehicle
seat belt systems, air bags, and child restraint/booster seat installation to determine
allowable seating positions.
• Based on crash statistics, the National Highway Traffic Safety Administration
(NHTSA) recommends that parents select the REAR SEAT as the safest location for
a properly installed booster seat. Study the sections on vehicle seat belts and vehicle
seat location in these instructions to ensure your child’s safety.
• DO NOT USE this booster seat in a seating position with
an airbag unless the vehicle manufacturer specifically allows
placement of a child restraint there. If an air bag inflates, it
can hit your child with such a great force that it may cause
DEATH or SERIOUS INJURY.
• The Backrest of this booster seat MUST REST against the
vehicle seat back.
• Vehicle headrest MUST NOT INTERFERE with the booster seat Backrest. See the
vehicle Owner’s Manual for adjustment or possible removal of vehicle headrest.
• NO PART of this booster seat should hang over the front of the vehicle seat.
• Use this booster seat FORWARD FACING O N LY.
• NEVER USE a locking clip when installing this booster seat.
• NEVER LEAVE an unsecured booster seat in your vehicle. Always secure this booster
seat with the vehicle seat belt, even when not occupied.
• NEVER LEAVE an unsecured booster seat in your vehicle. This booster seat must
be secured by the vehicle’s seat belt, even when not occupied. In a sharp turn, crash
or sudden stop, an unsecured booster seat can be thrown around and could injure
vehicle occupants.
• DO NOT SECURE this booster seat to the vehicle’s lower LATCH anchors if the seat
belt or seat belt buckle is not easily accessible when the booster seat is securely
installed.
• NEVER LEAVE a vehicle seat with a folding mechanism unlocked. In the event
of a sudden stop, a loose vehicle seat back could prevent this booster seat from
protecting your child as well as it should.
• DO NOT LEAVE loose objects (e.g. books, bags, etc.) in a vehicle. In the event of a
sudden stop, loose objects become projectiles, potentially causing serious injuries.
• DO NOT USE anything to raise this booster seat off the vehicle seat.
5
!WARNING!
DEATH or SERIOUS INJURY can occur

• NEVER USE this booster seat in the home, on aircraft, boats, low speed vehicles
(LSV), all-terrain vehicles (ATV), golf carts, or any other non-certified applications.
• NEVER ALLOW children to play with this booster seat.
• NEVER ALLOW children to play with vehicle seat belts as they may create an
ENTANGLEMENT HAZARD for any child that can reach the seat belt and may wrap
it around his or her neck.
• DO NOT USE this booster seat if it has been in a crash. There may be hidden
damage and it must be replaced. Your insurance company may provide some
assistance replacing the booster seat.
• NEVER USE this booster seat if it has been damaged in any way or has missing
parts.
• NEVER USE a cut, damaged, frayed, or inoperable vehicle seat belt.
• DO NOT ATTEMPT to make repairs to or otherwise modify or tamper with this
booster seat.
• NEVER USE this booster seat without properly installed fabric covers.
• NEVER USE a second–hand booster seat or a booster seat whose history you do not
know.
• DO NOT USE accessories or parts with this booster seat other than those approved
by CYBEX. Use of accessories or parts from other manufacturers could alter the
performance of the booster seat.
• DISCONTINUE USING this booster seat when it is older than seven (7) years and
recycle it. The date of manufacture can be found on a label affixed to the bottom of the
Booster Base.
• This booster seat and the vehicle seat belt can become very hot if left in the sun and
can burn your child’s skin. ALWAYS TOUCH the surfaces of the parts before putting
your child in the booster seat.
• NEVER leave children unattended in a vehicle, even for a short period of time.
6
!WARNING!
DEATH or SERIOUS INJURY can occur

ONLY USE this booster seat with the
bottom of the Head Protection
positioned at two fingers width above
child’s shoulders.
When your child sits properly in the
booster seat, the lap and shoulder belts
MUST lie within the GREEN ZONE as
shown:
• The shoulder belt threaded through the
belt guide and positioned across the
mid-point of your child’s chest and
shoulder, and NEVER in contact with
your child’s neck.
• The lap portion of the seat belt must
be positioned low and snug on
your child’s thighs and NEVER
on your child’s abdomen.
If the vehicle belt does not fall within the
GREEN ZONE, adjust the Backrest to
achieve proper belt fit.
7
!WARNING!
DEATH or SERIOUS INJURY can occur
USE ONLY with children who are 3 years of age or older AND whose height is
between 38—60 inches (96—152 cm) AND who weigh between 33—100 pounds
(15—45 kg). Using this booster seat with a child who does not meet ALL of these
requirements will increase the risk of DEATH or SERIOUS INJURY.
CHILD SIZE: HEIGHT, WEIGHT AND AGE RANGES

8
FRONT VIEW
LATCH Guides
(tied to Booster Base for shipping) Owner’s Manual
SOLUTION X–FIX
High Back Booster Seat
Asiento Infantil de Elevación con Respaldo Alto
Owner’s Manual
Manual del Propietario
>3 years
>3 años
33—100 lb
15—45 kg
38—60”
96—152 cm
++
READ AND FOLLOW ALL BOOSTER SEAT
AND VEHICLE INSTRUCTIONS CAREFULLY.
LEA Y SIGA CUIDADOSAMENTETODAS
LAS INSTRUCCIONES DEL ASIENTO DE
ELEVACIÓNY LAS DEL VEHÍCULO.
Reclining Headrest
Backrest Shoulder Protection
Head Protection
Armrest
Lower Belt Guides
Booster Base
BOOSTER SEAT OVERVIEW

9
REAR VIEW
BOTTOM VIEW
Owner’s Manual Storage Pocket
Model Name: Solution Q-fix
Model Number: 124200000
Color: Charcoal
CYBEX Article: 514120033
Manufactured in: MM/YYYY
Do not use after: MM/YYYY
Distributed by Regal Lager, Inc.
1100 Cobb Place Blvd., Ste. 120
Kennesaw, GA 30144, USA.
Made in China.
Shoulder Belt Guides
LATCH Connectors
(stored inside base)
Height Adjustment Handle
LATCH Adjustment Handle
Product Information Label
BOOSTER SEAT OVERVIEW

1. Connect the Backrest to the Booster
Base.
2. Fold the Backrest up until it CLICKS
into place.
i
The Backrest of the Solution X-fix will
adjust to the vehicle seat back
through an allowable adjustment
range of approximately 15° as shown
in green.
NEVER USE this booster seat with
the Backrest past the allowable
adjustment range. An audible CLICK
will alert you when you have gone
too far.
10
CLICK!
CLICK!
!WARNING!
DEATH or SERIOUS INJURY can occur
NEVER USE THE BOOSTER BASE WITHOUT THE BACKREST ATTACHED
BOOSTER SEAT ASSEMBLY

Applicable only if installing booster seat using the lower LATCH anchors:
• LATCH (Lower Anchors and Tethers for CHildren) refers to a pair of fixed Lower
Anchors and Top Tether Anchors built into your vehicle. The Solution X–fix High Back
Booster Seat has been designed to attach to the lower LATCH anchors. A top tether
is not required for Belt Positioning Booster seats such as the Solution X-fix.
• The lower LATCH anchors are located in the crease between the vehicle seat back
and seat cushion. If the lower LATCH anchor locations are not visible, their position
will be indicated by symbols located near the crease between the seat back and
seat cushion.
• Vehicles manufactured for the 2003 model year or newer have at least two
rear seating locations with lower LATCH anchors. Some 2001 and 2002
model year vehicles have lower LATCH anchors. Vehicles from model years
2000 and older DO NOT have lower LATCH anchors. Refer to your vehicle
Owner’s Manual for lower LATCH anchor positions in your vehicle.
11
VEHICLE LATCH REQUIREMENTS

The REAR SEAT is the safest
location for a properly installed
booster seat.
Use this booster seat FORWARD
FACING ONLY.
Use this booster seat in FORWARD
FACING SEATS ONLY.
12
Refer to vehicle
Owner’s Manual
!WARNING!
DEATH or SERIOUS INJURY can occur
• ONLY PLACE this booster seat in a vehicle seating location allowed by the vehicle
manufacturer. Refer to your vehicle Owner’s Manual for information about
vehicle seat belt systems, air bags, and child restraint/booster seat installation to
determine allowable seating positions.
• Based on crash statistics, the National Highway Traffic Safety Administration
recommends that parents SELECT THE REAR SEAT AS THE SAFEST
LOCATION for a properly installed booster seat. Study the section on vehicle seat
belts in these instructions to ensure your child’s safety. If in doubt about installing
this booster seat, consult the vehicle Owner’s Manual .
• DO NOT USE this booster seat in a seating position with an airbag unless the
vehicle manufacturer specifically allows placement of a child restraint there. If an air
bag inflates, it can hit your child with such a great force that it may cause DEATH or
SERIOUS INJURY to your child.
• TOO MUCH RECLINE IN THE VEHICLE SEAT BACK can result in improper seat
belt position. An improperly positioned seat belt increases the risk of DEATH or
SERIOUS INJURY in a crash. Follow your vehicle Owner’s Manual instructions
for proper vehicle seat back positioning.
VEHICLE SEAT LOCATION REQUIREMENTS

The design and operation of vehicle seat
belt systems vary from vehicle to vehicle
and from seating location to seating
location in the same vehicle. Refer to your
vehicle Owner’s Manual for proper
use, placement, and adjustment of the
vehicle’s lap and shoulder belts.
This booster seat MAY NOT fit some
vehicle seating positions.
Select a seat location allowed by your
vehicle manufacturer that is equipped with
a THREE POINT LAP AND SHOULDER
BELT system.
USE ONLY the vehicle’s three point
lap and shoulder belt system when
restraining your child in this booster
seat.
NEVER USE with a lap belt only.
NEVER USE with:
• a lap belt with motorized
shoulder belt
• vehicle belts that are attached
to the door in any way
• vehicle belts that move along a
track automatically to restrain the
passenger when the door is closed
• Inflatable seat belts
13
VEHICLE SEAT LOCATION REQUIREMENTS

The vehicle headrest MUST NOT
INTERFERE with the booster seat
head support.
i
If the vehicle headrest interferes with
the installation of this booster seat,
adjust or remove the vehicle
headrest. Check your vehicle
Owner’s Manual for more
information.
NO PART of this booster seat
should hang over the front of vehicle
seat.
NEVER ALLOW your child to use
this booster seat if the vehicle seat
back is in a reclined position.
14
VEHICLE SEAT LOCATION REQUIREMENTS

15
The Backrest MUST REST against
the vehicle seat back.
The Backrest will adjust to the vehicle seat
back through an allowable adjustment
range of approximately 15° as shown in
green.
NEVER USE this booster seat with
the Backrest past the allowable
adjustment range. An audible CLICK
wil alert you when you have gone too
far.
CLICK!
VEHICLE SEAT LOCATION REQUIREMENTS

NEVER USE the Booster Base
without the Backrest attached.
DO NOT INSTALL this booster seat
using LATCH if the seat belt buckle
is located in between the lower
LATCH anchors.
DO NOT INSTALL this booster
seat using LATCH if the seat belt is
located between the lower LATCH
anchors.
The Solution X-fix is designed to be used with the vehicle’s lower LATCH anchors, if
available. This booster seat may be used in seating positions without lower LATCH
anchors, see page 20.
16
INSTALLATION USING LATCH

1. First, refer to pages 12—15 for Vehicle
Seat Location Requirements.
Select a seat location allowed by your
vehicle manufacturer equipped with
a three point LAP AND SHOULDER
BELT system. Locate the lower LATCH
anchors or the symbols indicating their
location.
2. If the lower LATCH anchors are hidden
behind the crease between the seat
back and seat cushion, install the
supplied LATCH Guides to the lower
LATCH anchors for easier installation of
the booster seat.
To install, connect the two LATCH
Guides to the two lower LATCH anchors
by sliding the LATCH Guides into the
crease and under the lower LATCH
anchor.
a
bc
17
INSTALLATION USING LATCH

3. Place the Solution X–fix on its side.
While squeezing the orange LATCH
Adjustment Handle, located on the
bottom of the Booster Base, pull the
LATCH Connectors out until they stop.
4. Rotate the LATCH Connectors as
shown.
5. Slide both of the LATCH Connectors
into both LATCH Guides (if being used)
until you hear both of them CLICK
as they lock onto the lower LATCH
anchors.
18
CLICK!
INSTALLATION USING LATCH
