CynkoMet N-221/3-9 User manual

CynkoMet®N-221/3-9
1
CynkoMet Sp. z o.o.
ul. Fabryczna 7
16-020 Czarna Białostocka
phone [phone]
MANURE SPREADER
N-221/3-9
N-221/3-9 E (Type N-2)
INSTRUCTIONS FOR USE AND OPERATION
Identification of the machine
Symbol/Type: N-2
Version: ………...
Variant: ………...
VIN:…………………………….
The factory number is punched on the rating plate and on the front beam of
the spreader’s bottom frame The rating plate is riveted to the front beam of
the top frame.
When buying the machine, check the conformity of the serial numbers
stamped on the spreader with the serial number written in the warranty card,
in the sales documents and in the instruction manual.

CynkoMet®N-221/3-9
2
NOTE!
The manufacturer reserves the right to introduce, in the manufactured
machines, structural alterations facilitating servicing and improving the quality
of their work. The information on significant design changes are communicated
to the user by means of enclosed information (annexes).
Comments and observations about the design and operation of the
machine should be sent to the manufacturer. This information will allow
objective evaluation of the machine, and serve as guidelines in their further
modernization.
NOTE!
NOTE!
Before the operation, the user should be familiar with this
manual and follow all recommendations. This will ensure safe
maintenance and trouble-free operation of the machine.
According to the Regulation of the Minister of Infrastructure of 31
December 2002 on the technical conditions of vehicles and obligatory
equipment, the Manufacturer announces that the agricultural tractors and low-
speed vehicles, and spreaders designed to connect with these vehicles should
be marked with a distinctive plate (Section 3.6, fig. 2). The plates are not
required when the vehicle is included in the kit and is the last vehicle in the set.
In accordance with the above Regulation, the Manufacturer has equipped
the spreader with a plate holder.
The N-221/3-9 spreader complies with the rules of moving on public roads
by machines with a speed of up to 30km/h (Act on Road Traffic Law of 20 June
1997). The manufacturer also claims that the supplied spreader cannot be
moved faster on public roads than the above-indicated speed.
If the information contained in the manual will prove to be insufficient or
not fully understandable, it is advisable to seek help at the sales point in which
the machine was purchased or go directly to the Manufacturer.
Manufacturer's Address:

CynkoMet®N-221/3-9
3
CynkoMet Sp. z o.o.
ul. Fabryczna 7W
16-020 Czarna Białostocka
phone . [phone]
INSTRUCTIONS FOR USE AND SERVICE CONSTITUTES BASIC EQUIPMENT
OF THE MACHINE!
The machine is designed in accordance with the applicable standards,
documents and legal regulations currently in force.
DETERMINATION OF DIRECTIONS IN THE MANUAL
Left side - side to the left hand of the observer facing in the forward
direction of travel of the machine.
Right side - the right-hand side of the observer facing in the direction of
travel of the machine forward.
Rear - behind the back of the observer facing in the direction of forward
travel of the machine.
Front - in front of the observer facing in the direction of forward travel
of the machine.

CynkoMet®N-221/3-9
4
DECLARATION OF CONFORMITY

CynkoMet®N-221/3-9
5
Table of contents
1. Introduction.................................................................................................7
1.1 Identification of the machine ...............................................................................8
2. Purpose of the spreader............................................................................10
3. Safety in use..............................................................................................12
3.1 General safety and accident prevention regulations ............................................12
3.2 Attaching and detaching the machine to the tractor ...........................................14
3.3 Wheels .............................................................................................................15
3.4 The pneumatic and hydraulic system .................................................................15
3.5 Maintenance.....................................................................................................16
3.6 The principles of movement on public roads. .....................................................17
3.7 Description of residual risk. ................................................................................20
3.8 Residual risk assessment. ...................................................................................21
3.9 Information and warning stickers........................................................................22
4. Information regarding use.........................................................................27
4.1 Technical characteristics.....................................................................................27
4.2Description of construction and operation. .........................................................28
4.2.1 General Description.................................................................................. 28
4.2.2 Chassis..................................................................................................... 29
4.2.3 The upper frame / loading crate................................................................ 30
4.2.4 Adapter..................................................................................................... 31
4.2.5 Hydraulic system ...................................................................................... 32
4.2.6 Brake system/ handbrake......................................................................... 37
4.2.6 Electrical installation, lighting and signaling...................................................... 41
4.2.7 Extensions, conveyor ................................................................................... 42
4.3 Rules of proper use of the spreader....................................................................43
4.3.1 Preparation before running for the first time. ............................................ 43

CynkoMet®N-221/3-9
6
4.3.2 Preparation for the spreader’s work.......................................................... 47
4.3.3 Connecting and disconnecting with the tractor. ........................................ 49
4.3.5 Loading the cargo box. ............................................................................. 52
4.3.6 Load transport .......................................................................................... 59
4.3.7 Adjustment of fertilizer dose and manure spreading................................. 61
4.3.8 Unloading of the crate serving as a transporter. ....................................... 63
5. Equipment and accessories .......................................................................64
6. Technical Support .....................................................................................65
6.1 Tightening torques for screws. ...........................................................................66
6.2 Regulation of driving wheel bearings backlash. ...................................................67
6.3 Mounting and removal of the wheel and inspection of nut tightening..................69
6.4 Brake inspection after spreader purchase. ..........................................................71
6.5 Brake adjustment. .............................................................................................72
6.6 Handling the break system. ...............................................................................74
6.7 Hydraulic installation maintenance. ....................................................................75
6.8 Handling the spring leaf system. ........................................................................76
6.9 Adapter maintenance........................................................................................76
6.10 Operation of the floor conveyor ........................................................................77
6.11 Handling electrical equipment............................................................................78
6.12 Lubrication .......................................................................................................79
6.13 Storage and maintenance..................................................................................81
6.14 Troubleshooting................................................................................................82
7. Transport...................................................................................................85
8. Spreader cassation ....................................................................................87
9. Guarantee .................................................................................................87
10. Environmental hazard ..........................................................................87
SPARE PARTS CATALOGUE ..........................................................................90

CynkoMet®N-221/3-9
7
1. Introduction
This manual describes the basic principles of safe use and operation of
manure spreader.
NOTE!
NOTE!
Before using the spreader, you should carefully read the content
of the user’s manual. Before each running of the spreader, it must
be checked in terms of operational safety.
If the information contained herein will prove to be not fully understood,
seek help from the manufacturer of the machine or the sales point where it
was purchased.
Particularly important information and recommendations, the observance of
which is absolutely necessary in the text are highlighted in bold or preceded
by the word “CAUTION!”.
Information, descriptions of danger and precautions, as well as commands
and orders "related to the safety of use are highlighted in the user’s manual
with a sign and furthermore mentioned in the chapter "SAFETY OF USE".
NOTE!
NOTE!
The operating instructions must absolutely be passed at the
moment of delivering the machine to another user, allowing him
to get acquainted with its content. It is recommended that the
transfer of the instruction is done against a confirmation.

CynkoMet®N-221/3-9
8
1.1 Identification of the machine
The manure spreader is marked with the use of a nameplate (1) and a serial
number (2). The serial number is located on the front beam of the lower frame,
and the rating plate is located on the front beam of the upper frame (fig. 1.1)
or on the beam of the lower frame’s drawbar (fig. 1.2.)
When buying the spreader, check the compatibility of the serial numbers on
the machine with the number written in the WARRANTY CARD , in the sales
documents and in the USER’S MANUAL.

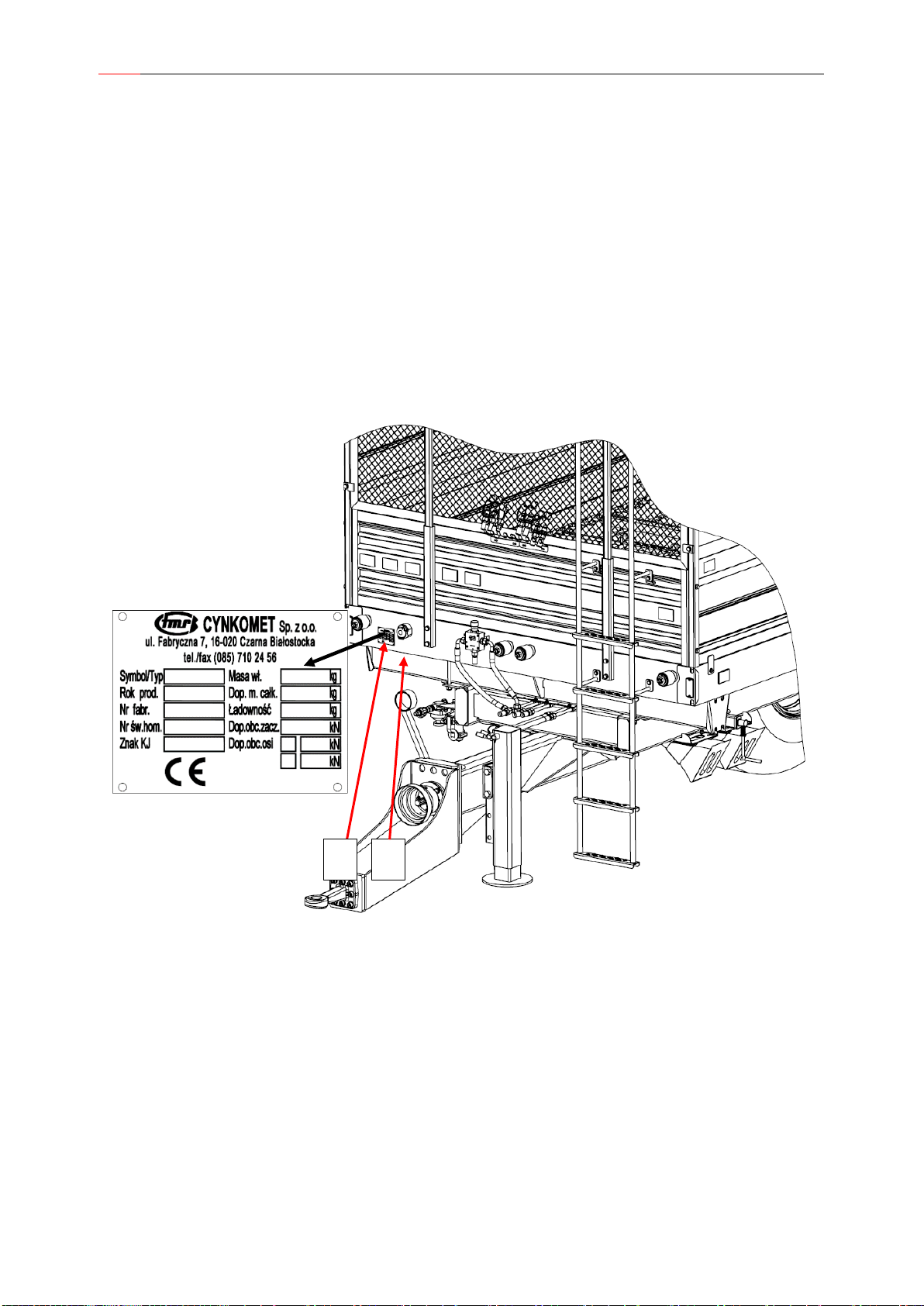

Figure 1.1. Place of rating place fixing and serial number stamping, and reference
rating plate (PL homologation)
1 –rating plate, 2 –serial number (VIN),
1
2

CynkoMet®N-221/3-9
9

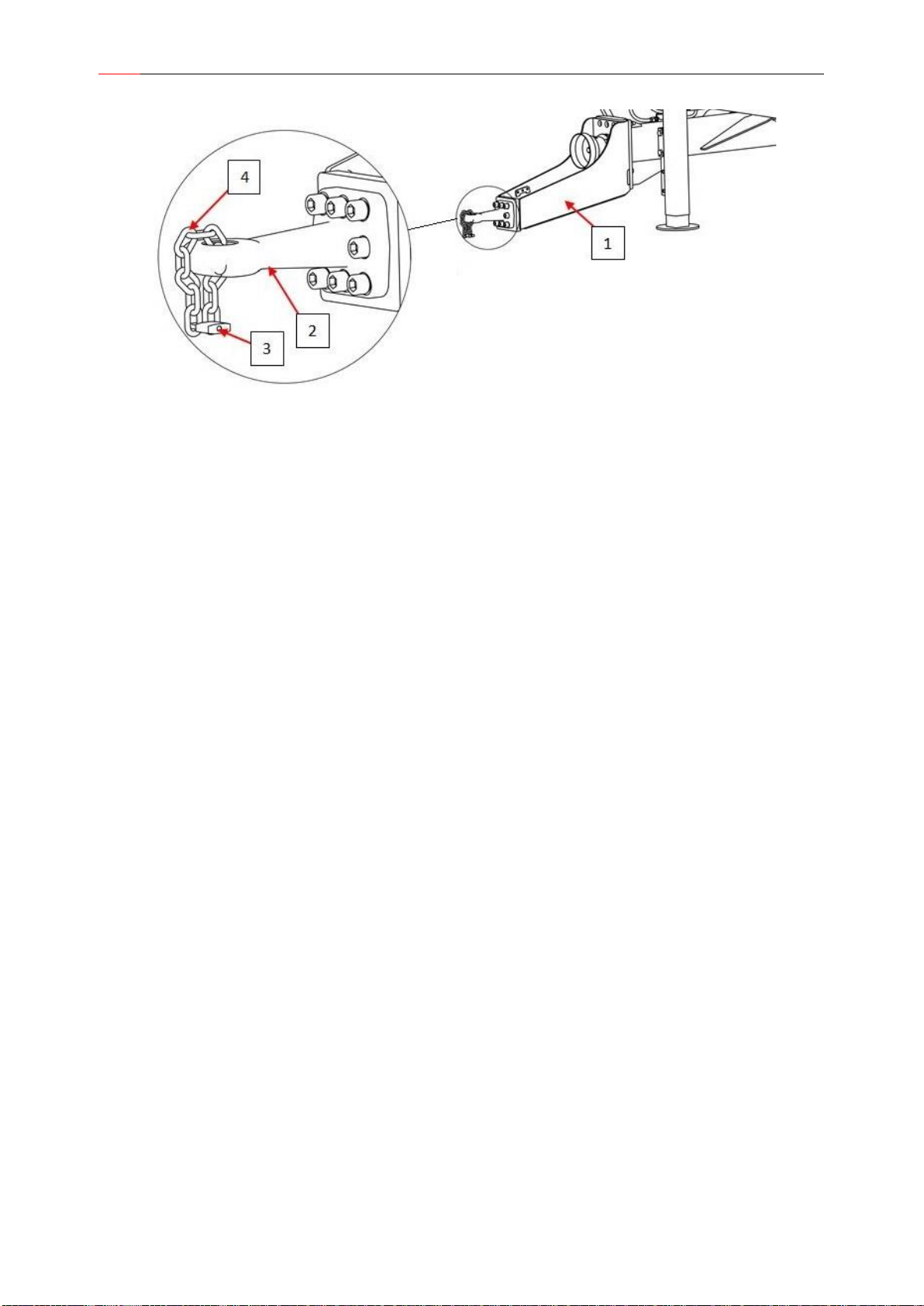

Figure 1.2. Potential place of rating place fixing and serial number stamping, and
reference rating plate (EU homologation)
1 - rating plate, 2 - serial number (VIN), 3 - rating plate of brake system, 4 - plate
with homologation of brake system (optional)
NOTE!
NOTE!
It is forbidden to use the spreader when the nameplate is illegible
or has been removed from the machine.

CynkoMet®N-221/3-9
10
2. Purpose of the spreader
The spreader is a universal agricultural machine designed for spreading
manure of any kind, lime, peat and compost, after mounting extensions (the
mounting method is further in the manual - Section 4,2,7 Extensions,
Conveyor) and replacing the rear wall adapter it can be used as a volumetric
dump trailer. The suspension of TANDEM type on parabolic leaves ensures
optimum driving characteristics. The adapter with two vertical rollers ending
with plates in combination with the split deflector (also called the spread limiter
deflector) provides a wide range of potential operating settings which ensure
precise application of the fertilizer and the deflector itself provides a protection
of adapters. The machine is also equipped with a hydraulic wall, which allows
you to adjust the dosage of the material located on the loading box. The
spreader consists of a support frame, floor with a thickness of 3mm and walls
with a height of 1.35 meters (wall 1m + extension 0.35m), which are made from
sheet metal with a thickness of 2mm.
The brake system and lighting and signaling system meet the
requirements arising from the “Regulation of the Minister of Infrastructure of
31 December 2002 on technical conditions of vehicles and the range of
their necessary equipment”.
Failure to follow the transport and loading of goods specifications
described by the Manufacturer and the rules on road transport in force in the
country in which the spreader is used, will void the warranty service and is
regarded as use of the machine incompatibly with its purpose.
The spreader is adapted to cooperation with agricultural tractors
equipped with an external hydraulic system and lower trailer hitch with capacity
of 3000 kg.
The spreader IS NOT SUITABLE and cannot be used to transport people
and / or animals and other materials identified in the following pages.
NOTE!
NOTE!
The spreader must not be used incompatibly with its purpose, and
in particular:
•for transporting people and animals,

CynkoMet®N-221/3-9
11
•for transporting bulk hazardous toxic materials when there is a
possibility of causing environmental contamination,
•to transport machinery and equipment,
•with removed security guards, and use without its covers
•spreading manure, peat, lime, where in those materials there are
stones, pieces of wood or other solid materials that can damage
the adapter and threaten the safety of users and bystanders
•to carry stones, gravel and other building materials.
Use in accordance with the product's destination also includes all activities
related to correct and safe operation and maintenance of the machine.
Therefore, the user is obliged to:
•read the content of the USER’S MANUAL of the spreader and the WARRANTY
CARD and adhere to the recommendations contained in these elaborations,
•comply with the established maintenance plans and regulations,
•comply with general safety regulations while working
•Prevent accidents,
•comply with the road traffic regulations and transport regulations in force in
the country in which the spreader is exploited,
•read the instructions for operating the agricultural tractor and comply with its
recommendations, in combination with the spreader.
The spreader can be handled and operated only by persons of full age who:
•Are familiar with ALL THE CONTENT of the spreader's manual,
•have the required authorization to drive and are familiar with the road traffic
regulations and transport regulations.
NOTE!
NOTE!
The operation and exploitation of the machine not in accordance
with the Instruction Manual releases the Manufacturer from liability
for the consequences resulting from non-compliance with the
provisions contained therein. At the same time, it causes a loss of
warranty.

CynkoMet®N-221/3-9
12
NOTE!
NOTE!
The manufacturer is not responsible for changes made by the user
in the design of the spreader, and such changes will void the
warranty.
3. Safety in use
3.1 General safety and accident prevention regulations
•Before using the spreader, you should carefully read the contents of the
manual. During operation, observe all instructions contained in the manual.
•Before each use, check the spreader for operational safety (completeness of all
screens, tightness of all the screws (table 6) if there are no cracks on the
structure or visible damage, state of the tension of the chain "if it is not too
loose")
•Entering onto the spreader is possible only during absolute motionlessness of
the machine, when the tractor's engine is switched off and the Power
take-off is disconnected from the tractor.
•The spreader should be combined with tractors recommended by the
manufacturer accordingly to table 2.
•Pay attention to the warnings in places of crushing and shearing when starting
the machine and all the pictograms placed on the spreader.
•During transport, check the condition of preheat of the tires, brake drums and
wheel bearings. In the case of detecting an excessively heating element, stop
the machine from operating until determining the cause and rectifying the
fault.
NOTE!
NOTE!
Before driving with the spreader in a place where there are
flammable materials you should imperatively check the status of
the heating elements of the spreader, especially the brake drums
and driving wheel bearings, due to the risk of fire.

CynkoMet®N-221/3-9
13
•The speed of driving must always be adapted to the environmental conditions.
Please undertake special care when overcoming unevenness and avoid sudden
turns.
•When switching and disconnecting the machine from the tractor, you must be
careful.
•Exceeding the permissible load can cause accidents on the road and damage
to the machine.
•When cornering, you should take into account the inertia of the machine.
•Before you start, check if the spreader has any loose parts.
•Within additional elements which are force operated (e.g. by hand), there are
places of crushing and shearing.
•Malfunctioning of the spreader should be removed only during absolute
motionlessness of the machine and disconnection of the PTO from the
tractor.
•No one can stay between the tractor and the spreader before the vehicle is
not protected against self-running off through the parking brake (hand brake)
and wedges under the wheels.
•The permissible transport speed 30 km / h cannot be exceeded.
•It is forbidden to transport people or animals on the spreader.
•It is forbidden to enter into the loading platform during operation and when
coupling the tractor with the spreader.
•The machine is designed to work on slopes up to 8 °.
•Disconnecting the spreader from the tractor is not allowed with the engine
running and key not removed.
•Modifications can be made only with the permission of the manufacturer. The
basic condition for safety are original spare parts and components. Using other
parts may result in exclusion of liability of the manufacturer for resulting
consequences.
•Careless operation and use of the spreader can injure the operator or third
parties and damage the tractor-spreader set.
•It is forbidden to use the machine by persons not qualified to drive agricultural
tractors, including under aged persons and persons under the influence of

CynkoMet®N-221/3-9
14
alcohol.
•It is forbidden to use the spreader in non-compliance with its purpose. The
staff operating the machine should strictly observe basic safety rules
•Prior to every use of the spreader, check its technical condition, especially the
condition of the coupling system, drive system, brake system and light
signaling system.
•The machine is marked with information and warning inscriptions in the form
of stickers as specified in Table 1. The user is obliged to constantly take care of
the readability of signs and warning symbols on the machine. In the event of
damage or destruction replace them with new ones.
•Labels with inscriptions and symbols are available from the manufacturer.
3.2 Attaching and detaching the machine to the tractor
•Before attaching the spreader, make sure that the tractor and spreader are
technically efficient.
•Remove the chain protecting against unauthorized use from the eye of the
drawbar (fig. 3.1) (applies to EU homologation).
•When connecting the spreader, use only the intended trailer hitch in
accordance with the instruction manual of the tractor. After completion of the
machine coupling, check the security of the hitch. Read the whole manual for
the tractor's use If the tractor is equipped with an automatic hitch, make sure
the coupling operation has been completed correctly.
•Be very careful when you connect the machine.
•When coupling, nobody may stay between the trailer and the tractor, it is
essential to take advantage of the adjustable drawbar support.
•Coupling and uncoupling of the spreader may only take place when the
machine is immobilized with the parking brake.
•Before uncoupling the machine, lower the drawbar’s support foot by resting it
on the ground in a stable manner.
•After uncoupling the machine, mount the chain back on the drawbar’s eye and
secure it with a padlock (applies to EU homologation).

CynkoMet®N-221/3-9
15
Figure 3.1. Securing the machine against unauthorized use.
1 - drawbar, 2 –drawbar eye, 3 –padlock, 4 –chain
3.3 Wheels
•When working with the wheels, secure the spreader, in case of self-launching
of movement, using the parking brake and planting chocks under the wheels.
•Replacement of wheels should be carried out on a stable ground, which
prevents collapse of the wheel on which the spreader stands or the lift.
•Repair work on the wheels should be carried out in accordance with the wheel
point exchange and using appropriate tools.
•After each installation of a wheel, tighten the nuts after the first 10 working
hours, then every 50 working hours to check their tightening (according to
Table 7).
•The air pressure is to be checked regularly. Observe the recommended air
pressure.
•Dismantling the wheels can be carried out only in the case when the spreader
is not loaded.
•Avoid damaged road surface, quick and variable maneuvers and high speed
during turns.
•Tire valves are to be protected with caps to prevent penetration of impurities.
3.4 The pneumatic and hydraulic system
•The hydraulic and pneumatic installations during operation are under high

CynkoMet®N-221/3-9
16
pressure.
•Regularly check the technical condition of the connections and the hydraulic
and pneumatic systems. Oil leaks and air leaks are unacceptable.
•In case of failure of the hydraulic or pneumatic installation, the spreader should
be out of operation until failure removal.
•When connecting the hydraulic hoses to the tractor, pay attention that the
hydraulic system of the tractor and the spreader are not under pressure. If
necessary, reduce the residual pressure system.
•In the case of injury with a strong jet of hydraulic oil should, immediately
consult a doctor. The hydraulic oil can penetrate the skin and cause an
infection. If the oil gets into your eyes, rinse with plenty of water and consult a
doctor.
•The oil in the working hydraulic installation may be heated to high
temperatures. In the case of burns, cool the burned place and contact a
physician.
•In the event of contact of oil with skin, wash the dirty spot with soap and water.
Do not use organic solvents (petrol, kerosene).
•Use the hydraulic oil recommended by the Manufacturer.
•After replacing the hydraulic oil, the used oil must be disposed of Used oil or
one that has lost its properties should be stored in its original containers or in
substitute packages which are hydrocarbon-resistant. Replacement containers
must be carefully described and stored properly.
•It is forbidden to store hydraulic oil in packaging designed for food storage.
•Rubber hydraulic couplings must be replaced every 4 years regardless of their
technical condition. Hose replacement must comply with the technical
requirements of the manufacturer.
3.5 Maintenance.
•Repair, maintenance and cleaning operations and the removal of function
faults can be performed only by disconnecting the spreader from the tractor
by disconnecting the PTO.
•During maintenance and repair jobs use appropriate tools and protective

CynkoMet®N-221/3-9
17
clothing.
•Oils and lubricants are to be carefully removed. The used oil and grease is to
be disposed of.
•Before electrical, welding and working works on the electrical system, separate
the continuous supply of power to the electrical system of the tractor.
•Use the spare parts according to the catalog of spare parts.
•Modifications can be made only with the permission of the manufacturer. The
basic condition for safety are original spare parts and components. Using other
parts may result in exclusion of liability of the manufacturer for resulting
consequences.
•Maintenance operations of the spreader should be carried out on a stable
surface and with securing the spreader against uncontrolled rolling off
(through planting chocks under the wheels, using the handbrake)
•It is forbidden to weld galvanized elements because of the harmful vapors.
3.6 The principles of movement on public roads.
•When driving on public roads you must adapt to the road traffic regulations
and transport regulations in force in the country in which the spreader is
operated.
•Do not exceed the speed limit.
•Adapt the speed to the prevailing road conditions and the degree of loading
of the spreader.
•While driving on public roads, the spreader should be equipped with a certified
or approved warning triangle. A triangular plate should be placed on the rear
wall for slow-moving vehicles (1) as shown below (Fig. 3.2). The triangle must
be attached to the handles located on one of the walls of the deflector.

CynkoMet®N-221/3-9
18
Figure 3.2. The location of the placement of the plate distinguishing slow-
moving vehicles.
•The presence and transport of people in the load crate of the spreader is
prohibited.
•Before driving, make sure that the spreader is properly connected to the tractor
(in particular, check the link pin hook).
•It is forbidden to park on the slopes with a loaded and unsecured machine.
Securing is based on stopping with the service brake, parking brake and
planting chocks under the wheels. The chocks (1) should be planted only under
one wheel (2) (one front wheel and one on the back - Fig. 3.3).
1

CynkoMet®N-221/3-9
19
Figure 3.3. The way of placing the chocks.
1 - chock, 2 - road wheel
•Before driving, check that the swivels securing the deflector are is in place.
Make sure that all the walls and the deflector and their mounting is not
damaged mechanically and if that malfunction could cause detachment of the
particular item from the construction of the spreader.
•Prior to each spreader's use, check its technical condition, especially in terms
of safety. In particular, check the technical condition of the coupling system,
drive system, brakes and signaling lights and hydraulic, pneumatic and
electrical connection elements.
•Before driving, check that the parking brake is released and the braking force
regulator is set to the correct position (concerns pneumatic systems with a
manual, three-position regulation).
•The spreader is adapted for driving on slopes up to a maximum inclination of
8°. Moving the spreader on steeper slopes may cause the spreader to tip over
as a result of loss of stability.
•Each time, after finished work, drain the air reservoir in the pneumatic
installation. During frosts, freezing water may cause damage to pneumatic
system components.
•It is prohibited to exceed the admissible spreader load. Exceeding the carrying
1
2

CynkoMet®N-221/3-9
20
capacity may lead to equipment damage, loss of stability while driving,
scattering of the load and cause a hazard to third parties during driving. The
brake system of the machine has been adapted to the total weight of the
spreader, which if exceeded will result in a drastic reduction in the effectiveness
of the brake system.
•The load on the spreader should be distributed evenly and must not impede
driving the set.
•When reversing, it is recommended to use the assistance of another person.
During maneuvering, the person helping must keep a safe distance from the
danger zones and at all times be visible to the operator of the tractor.
•If during reversing we are not using the help of a second person, before
commencing the maneuver, make sure that nobody is in the danger zone.
Before the start of the maneuver, use a sound signal.
NOTE!
NOTE!
Before each maneuver of reversing and start of spreading the
material loaded on the load box, use of the beep signal 2 times
is recommended in the tractor in order to inform bystanders
about the threat.
3.7 Description of residual risk.
Although the "CYNKOMET" Czarna Białostocka company takes
responsibility for the design and construction in order to eliminate the danger,
and has made every effort to eliminate the risk of an accident, some elements
of risk during operation of the spreader are unavoidable. The residual risk
stems from the wrong behavior of the machine operator.
The greatest danger occurs when you do the following:
•use the spreader for purposes other than those described in the manual,
•Being between the spreader and the tractor during work of the engine during
maneuvers, reversing, turning, or aggregation of the spreader to the tractor.
•operating the machine by unauthorized persons, under aged persons or under
the influence of alcohol or other drugs,
•stay on the machine during operation,
