CYP PUV-1082-4K22 User manual

PUV-1082-4K22
10x10 HDMI HDBaseT™ Matrix with Audio Matricing
(4K, HDCP2.2, HDMI2.0, PoH, LAN, OAR, 100m)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 12/05/2016 First release
v1.01 31/05/2016 Updated Web GUI images
v1.02 02/06/2016 Amended 4K 50/60 references
v1.03 06/06/2016 Corrections to Images/Tables

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................7
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......9
6.1 Front Panel................................................... 9
6.2 Rear Panel...................................................10
6.3 Side Panel...................................................12
6.4 Remote Control........................................13
6.5 OLED Menu................................................14

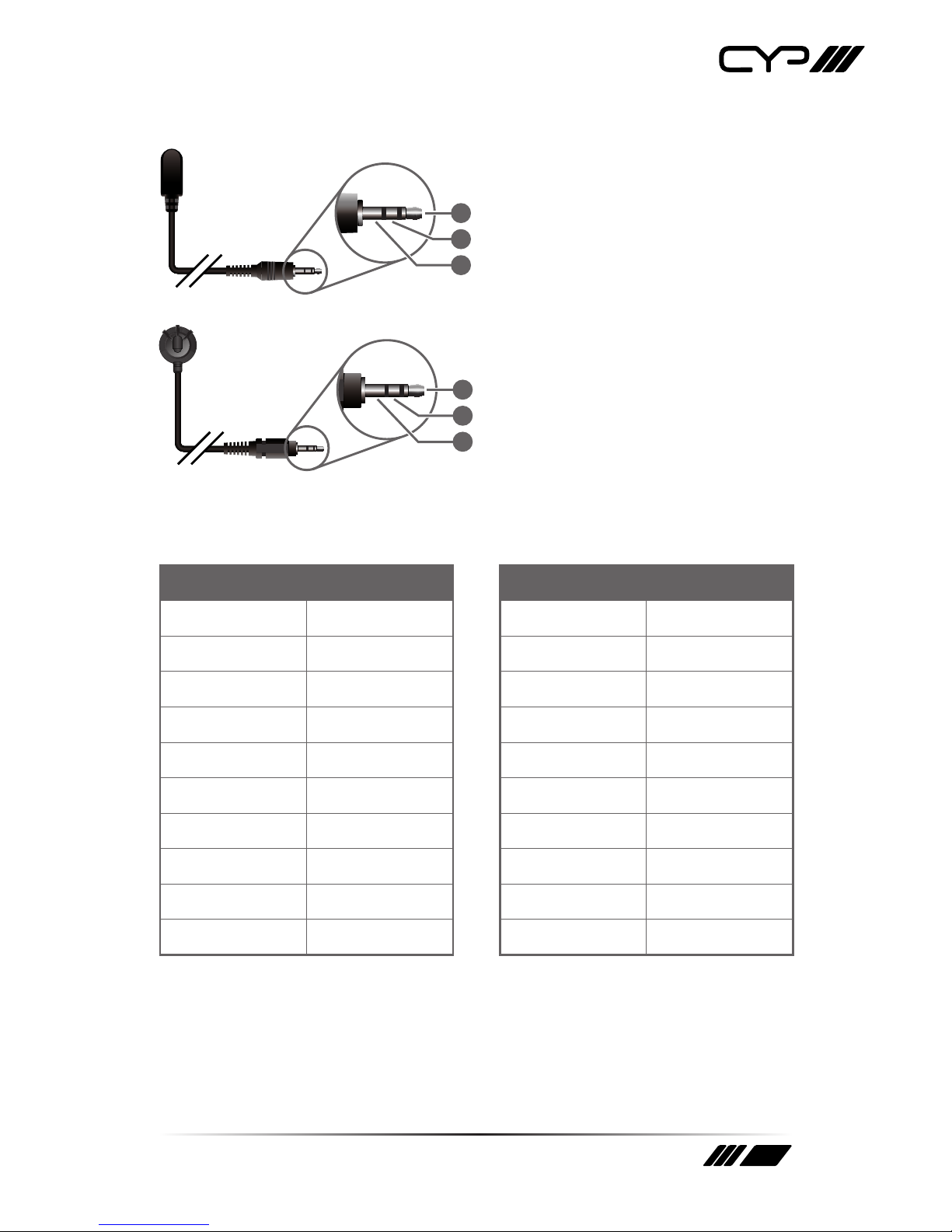

6.6 IR Cable Pin Assignment.......................15
6.7 RS-232 Protocol........................................15
6.8 RS-232 and Telnet Commands............16
6.9 Telnet Control............................................36
6.10 WebGUI Control.....................................38
7. Connection Diagram .......................... 58
8. Specications...................................... 59
8.1 Technical Specications ........................59
8.2 Supported Video Formats ....................60
8.3 Supported Audio Formats....................60
8.4 HDBaseT Features....................................61
8.5 CAT5e/6/7 Cable Specications .........61
9. Acronyms............................................. 62

6
1. INTRODUCTION
The PUV-1082-4K22 HDMI/HDBaseT Matrix supports the transmission
of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-
channel digital audio from 10 HDMI sources to 8 HDBaseT outputs and 2
independent HDMI2.0 outputs. HDBaseT outputs allow transmission via a
single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs
support cable lengths of up to 10m. This matrix supports high resolution
digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital
Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content.
This matrix incorporates an independent audio matrix with 14 audio
outputs and 10 audio inputs. These outputs and inputs can also be used
for de-embedding HDMI audio to the audio outputs and embedding
audio to the HDBaseT and HDMI outputs. The audio CAT connections,
along with compatible bi-directional audio modules (PU-305BD-RX & PU-
305BDA-RX) allow integration with remote sources and remote audio
zones. In addition, volume, mute, treble, bass and audio lip-sink correction
controls are available on all direct audio outputs. Optical Audio Return
(OAR) Technology allows the optical input on the PUV-1530RX receiver to
be routed back to the audio matrix.
LAN connectivity provides a 100BaseT network for smart TV's or games
consoles in every zone. The matrix has a built-in pattern generator which
can be used to verify the video signal on any of its 10 output ports.
The Power over HDBaseT (PoH) function provides power to compatible
receivers.
Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
CYP provide control drivers for all the major control systems. This unit
also supports RS232 pass-through to the receivers. The PUV-1082-4K22 is
designed to be used with PUV-1530RX or PUV-1510RX receivers that can
utilise the PoH and LAN capabilities of the matrix.
2. APPLICATIONS
Full Audio Video matrix system
Residential AV matrix installation
Commercial AV matrix installation
Security systems
University lecture hall systems
Retail installation systems

7
3. PACKAGE CONTENTS
1× 10×10 Matrix system
2× 24V DC Power Adaptor
11× IR Blaster
9× IR Extender
2× Racked Ear
1× Remote Control (CR-163)
1× UK Power Cord
1× Europe Power Cord
1× Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source devices
Audio only source devices
Standard and/or compatible AudioCAT based ampliers – AU-A50 &
AU-A300-HBT
Compatible AudioCAT receivers – PU-305BD-RX & PU-305BDA-RX
HDMI equipped displays
Compatible HDBaseT receivers – PUV-1530RX and PUV-1510RX
Industry standard CAT6/7 cables
HDMI cables – ‘Premium High Speed HDMI Cables’are recommended
with 6G HDMI sources.
5. FEATURES
HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
Routes ten HDMI sources to ten displays using eight HDBaseT outputs
and two independent or mirrored HDMI outputs
HDBaseT 5-Play™ convergence: High-Denition video and audio,
100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-
Directional IR & RS-232 pass through)
Supported HDBaseT resolutions: VGA~WUXGA, 480i~1080p, 4K
UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:4:4), 4K UHD@ 60Hz (YUV 4:2:0),
dependent upon the output display’s EDID settings

8
Supports resolutions up to 4K@60 (YUV 4:4:4) on HDMI output ports
Supports automatic 4K@60 YUV 4:4:4 to YUV 4:2:0 conversion for
HDBaseT outputs
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and
100m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby
Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-
HD Master Audio and DTS X
Supports audio matrix functionality enabling full audio management of
the system including HDBaseT audio zone selection, fully independent
audio only zones and HDMI audio embedding and de-embedding
Supports Digital to Analogue Conversion (DAC) and Analogue to
Digital Conversion (ADC) for audio integration
Supports on-board audio over CAT inputs and outputs for transmission
up to 150m
Supports Volume, Mute, Treble, Bass, and Audio delay for lip-sync on
direct audio outputs
HDBaseT outputs with Optical Audio Return (OAR) system
Audio mixer function
Advanced internal and external EDID management with 4 sets of
congurable EDID settings
Internal test pattern generation for self-testing and sink device testing.
(Internal test patterns up to and including 4K signals)
Bi-directional IR support over HDBaseT
Control is via RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
2U rack mounted design
Note : Audio break away functions support PCM format only

9
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER
ENTER
PRESET
MENU
/CANCEL
LOCK
A1B2C3D4E5
F6G7H8I9J10
+
IN
-
OUT
2.2
+
isolated
2 3 4 111086
975
1
1POWER: Press this button to power on/ o device.
2POWER LED: The LED will illuminate in green when the power is on,
and shown in red when power o this device.
The network function will remain active once press this power o
button. This is for connected Receiver can get power when matrix unit
be power o.
3IR WINDOW: Receiving remote control signal to control this device,
please use the remote control unit supplied in the package.
4OUTPUT A~J & INPUT 1~10: Press“OUT” button to select the output
source (A~J). Next, press output keys (A~J) to select output source;
then press“IN”key to select input source (1~10). Finally, press“ENTER”
to conrm selection.
For example, if outputs A~D need to be assign to input 1, following
sequences of button presses need to be performed:
OUT
→A,B,C,D →IN → number key“1”→ENTER
If all output source would like to be assigned to single input, press
“OUT” button and all input buttons“A~J” then press“IN”and enter the
number key of input and enter to conrm the selection.
5MENU & CANCEL: Press“MENU”button to access the LCM menu. The
menu tree please refers to section 17. Press “CANCEL”button to cancel
the selection.
6ENTER: Press this button to conrm the selection.
7PLUS (+)/IN: Press Plus“+”button to navigate up button selection.
Press“IN” button for input port sources selection.

10
8MINUS (-)/OUT: Press Minus “-”button to navigate down button
selection. Press“OUT”button for output port sources selection.
9LOCK: Press this button for three second to lock all buttons on panel.
The right top side will display “L”once front panel locked. Press for few
seconds to unlock.
10 PRESET: Press this button to recall preset setting, allow maximum
8 sets preset setting to recall. The preset settings are able to be
completed on WebGUI. Please refer to section 9.1.4 for advanced
preset setting.
11 LCM: The LCM displays the setting and information.
6.2 Rear Panel
1 2
A
RS-232 POH 24V
CAT
B
3
C
4
D
5
E
6
FG
MAIN 24V
SERVICE
H
B
AD
CF
EH2
14 32 141 2
3 4
3
AUDIO IN
1
2
1 2
A
ZONE
EXTENDED ANALOG DIGITAL
ALL LAN RS-232
B
3
C
4
D
5
E
6
F
7
G
8 9
MAIN 24V
SERVICE
IR IN IR OUT
10 IJ
H
B
A
L
R
D
CF EH
G2
14 32 1412
3 4
3
AUDIO OUT
AUDIO OUT
AUDIO IN
AUDIO I/O
AUDIO IN
1
2
1
2
3
4
V+
GND
GND GND
V+
L
R
L
R
L
R
L
R
CAT5e/6 OUTCAT5e/6 OUT
IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN CAT5e/6 OUT IR IN IR IN CAT5e/6 OUT IR IN
HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN HDMI IN
IR OUTIR OUTIR OUTIR OUTIR OUTIR OUTIR OUTIR OUT
HDMI IN
IR OUT
HDMI IN HDMI OUTHDMI OUT
IR OUT
6 7 811 13
12
149 10
54321
1ZONE AUDIO OUT: Eight sets of audio output from HDBaseT output.
Those audio outputs capable to be individual routing to any HDMI
input for example insert external audio source as background music
or select any two audio to mix together then input to HDMI input. The
audio mixer, treble, bass range, audio delay and volume adjustment
are able to be setting on WebGUI. The ampliers are able to be
connected for audio source broadcasting.
2EXTENDED AUDIO OUT: Four sets of extended audio output provide
exibility to extend audio output to preferred space. The ampliers
are able to be connected for audio source broadcasting. The audio
mixer, treble, bass range, audio delay and volume adjustment are able
to be setting on WebGUI.
3ANALOG AUDIO IN: Plug analog audio source from DVD player, PC,
MP3…etc. to insert audio source into matrix unit. The audio source
is able to be assign to any HDMI input or mixing with other audio
source. The audio mixer, treble, bass range, audio delay and volume
