CYP CDPS-41SQ User manual

CDPS-41SQ
4 x 1 HDMI Seamless Quad PIP Scaler
Operation Manual
Operation Manual
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.0 December 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
All manuals and user guides at all-guides.com

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 17/10/13 Preliminary Release
VR1 07/03/14 Add Support Chart
VR2 20/06/14 Update RS-232 & OSD, Add
WebGUI
VR3 18/07/14 Add RS-232 Command
All manuals and user guides at all-guides.com

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
6.3 Remote Control................................4
6.4 RS-232 Protocols ...............................5

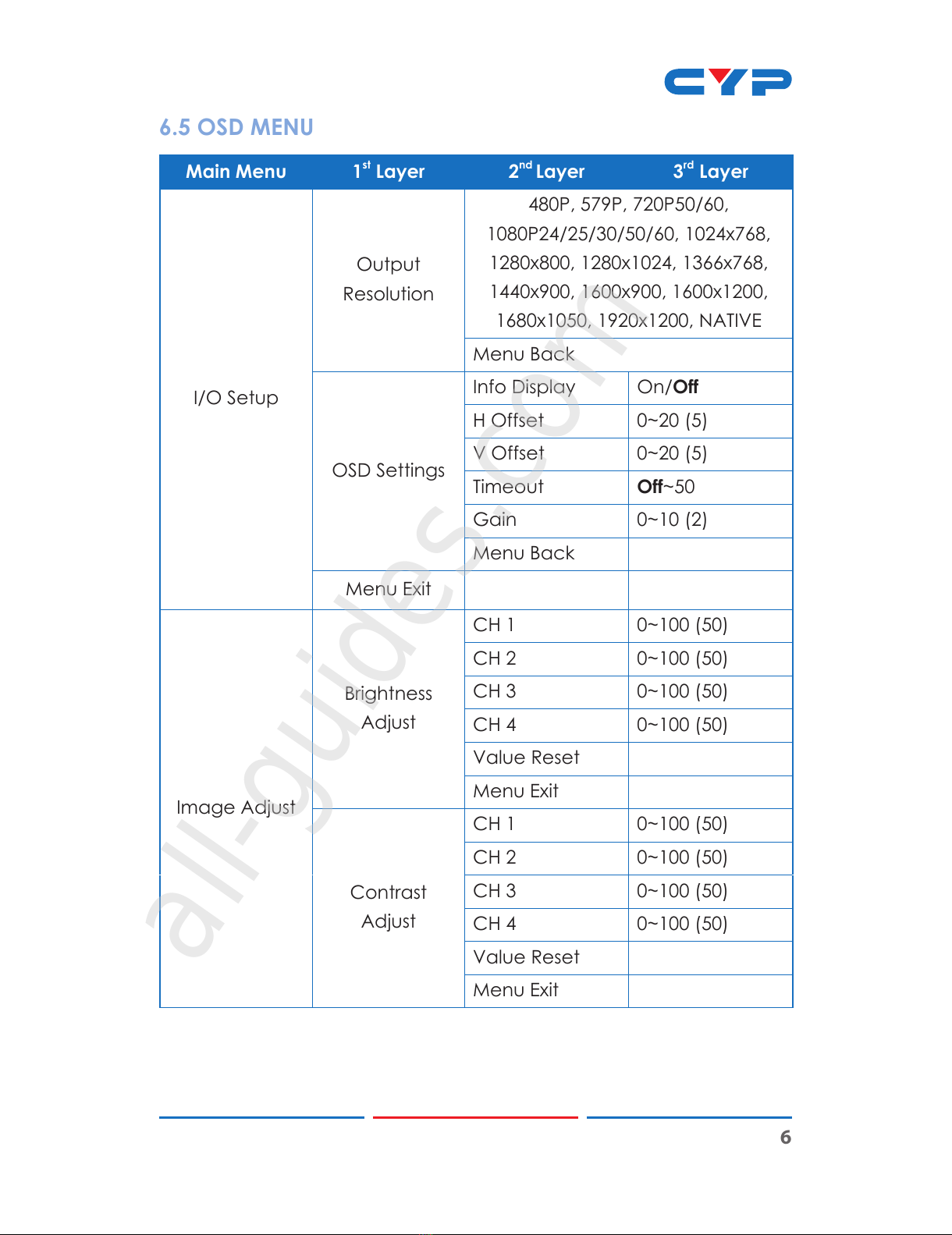

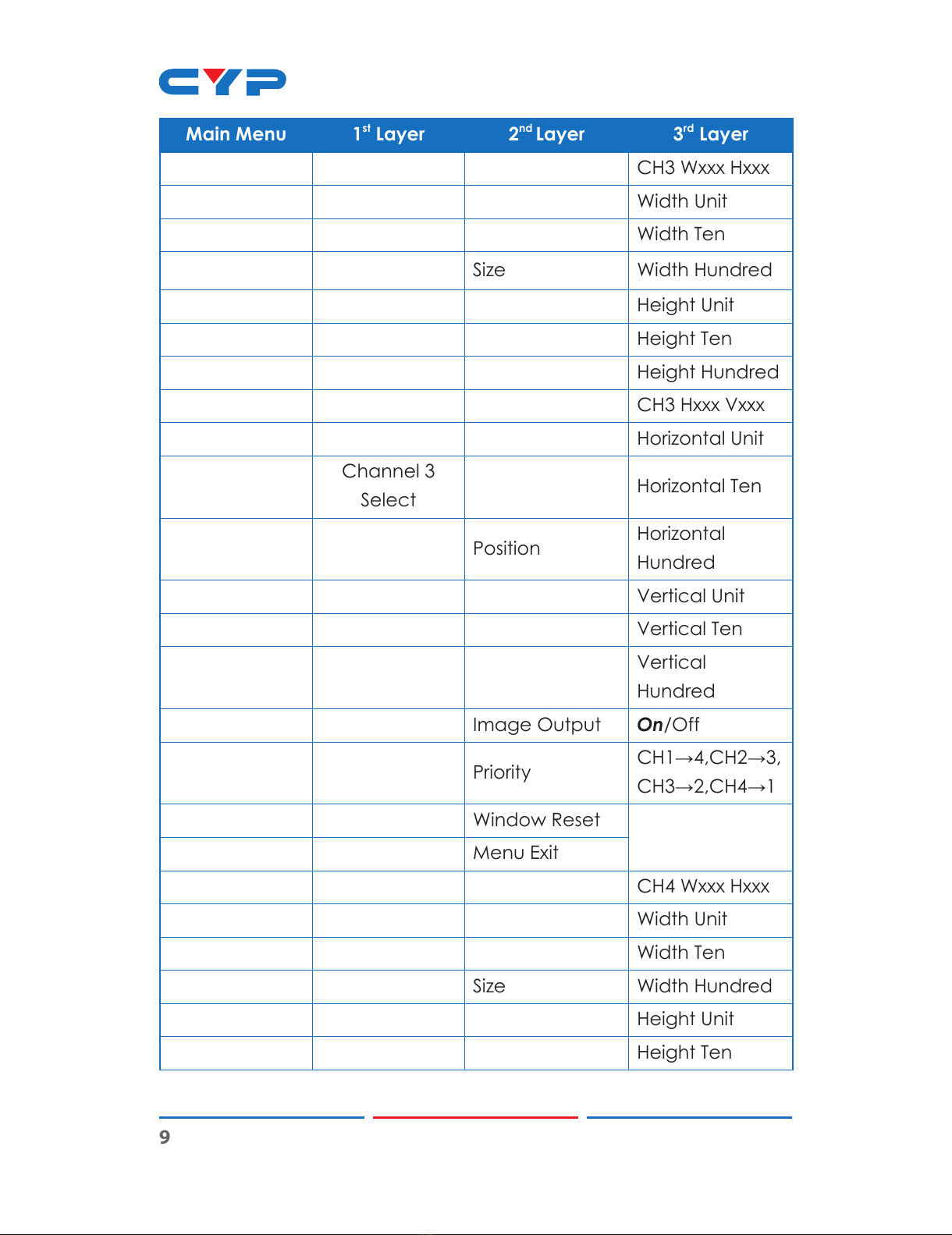

6.5 OSD MENU.........................................6

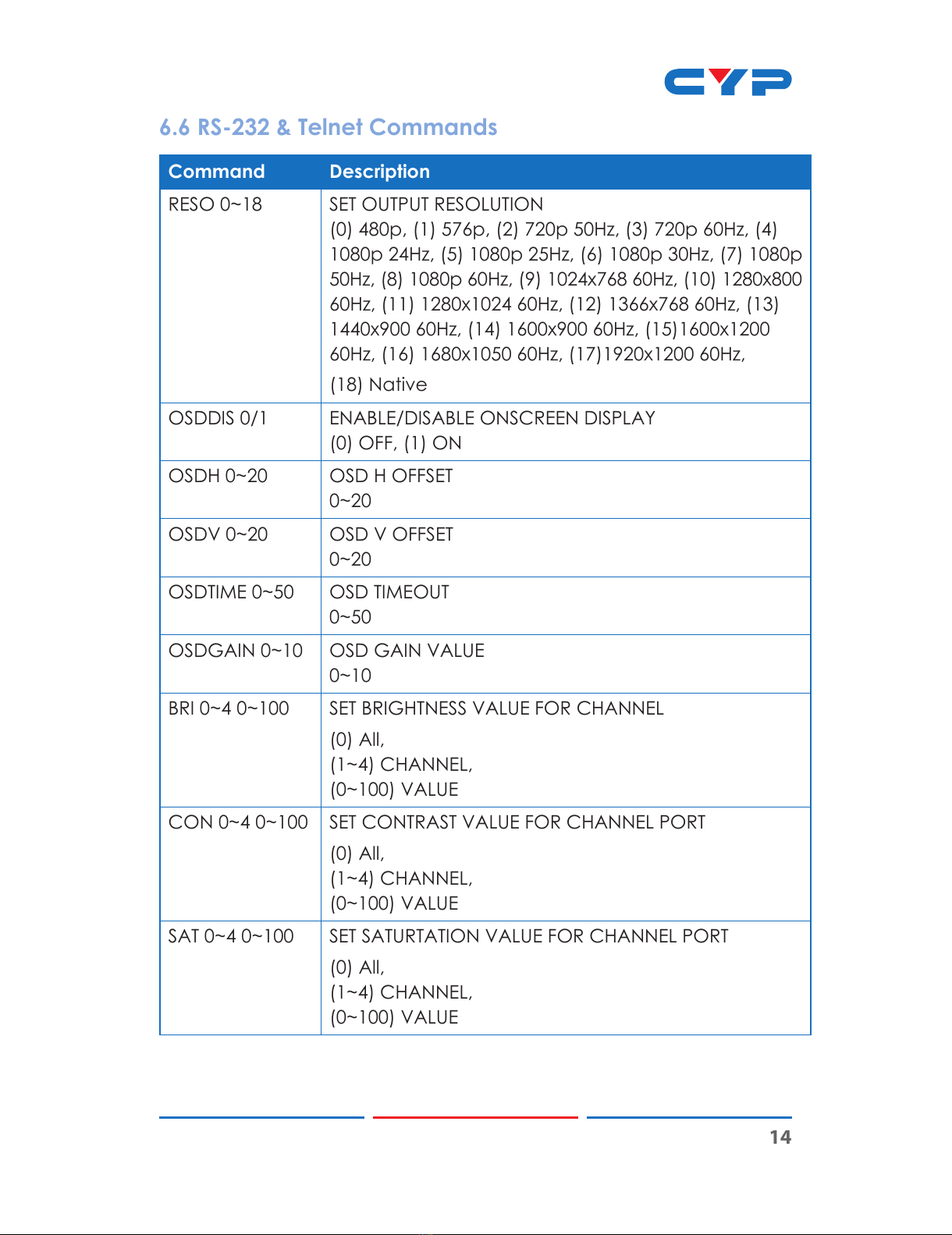

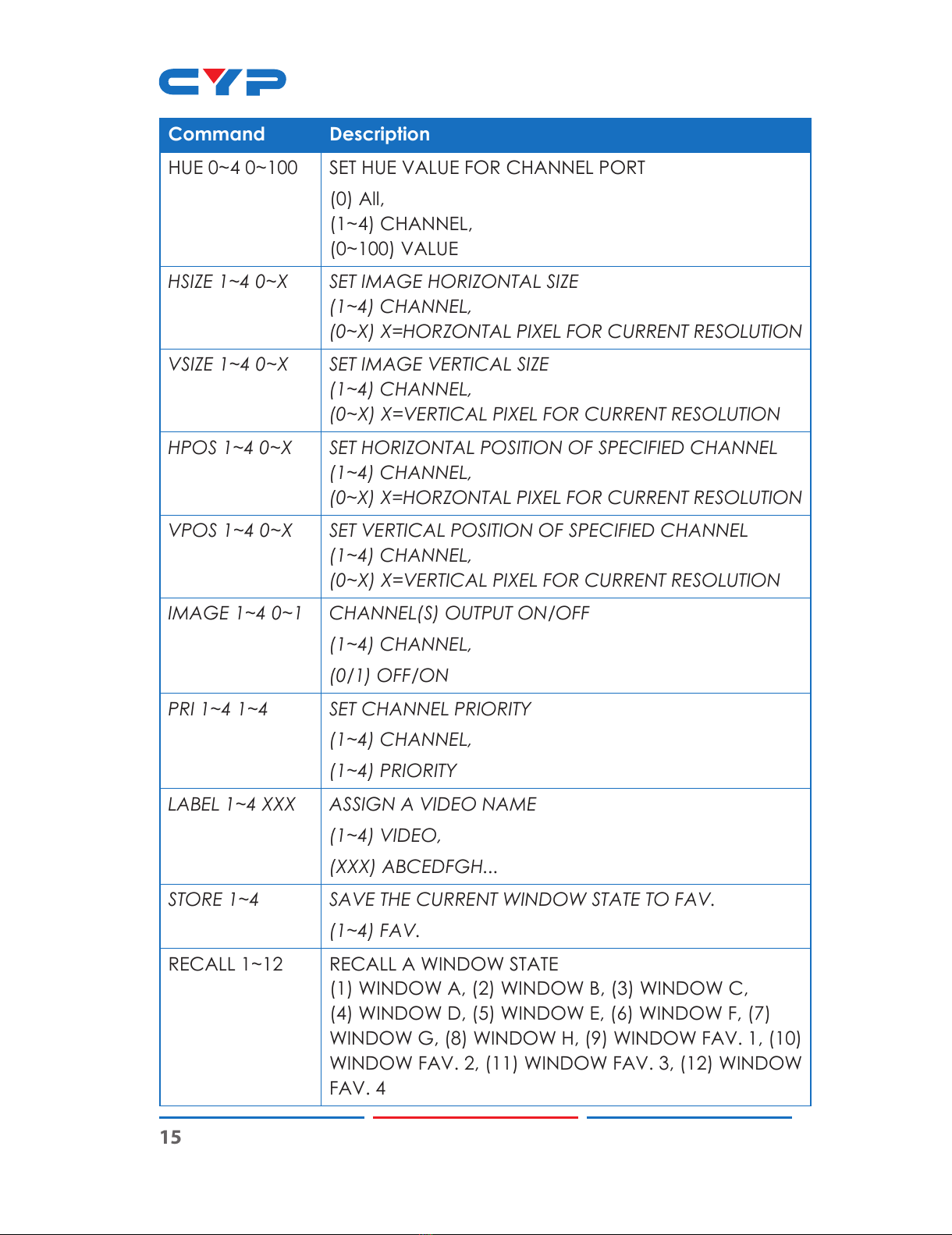

6.6 RS-232 & Telnet Commands..........14
6.7 Telnet Control .................................21
6.8 WebGUI Control .............................22
7. Specications ...................................... 27
8. Connection and Installation............... 29
All manuals and user guides at all-guides.com

1

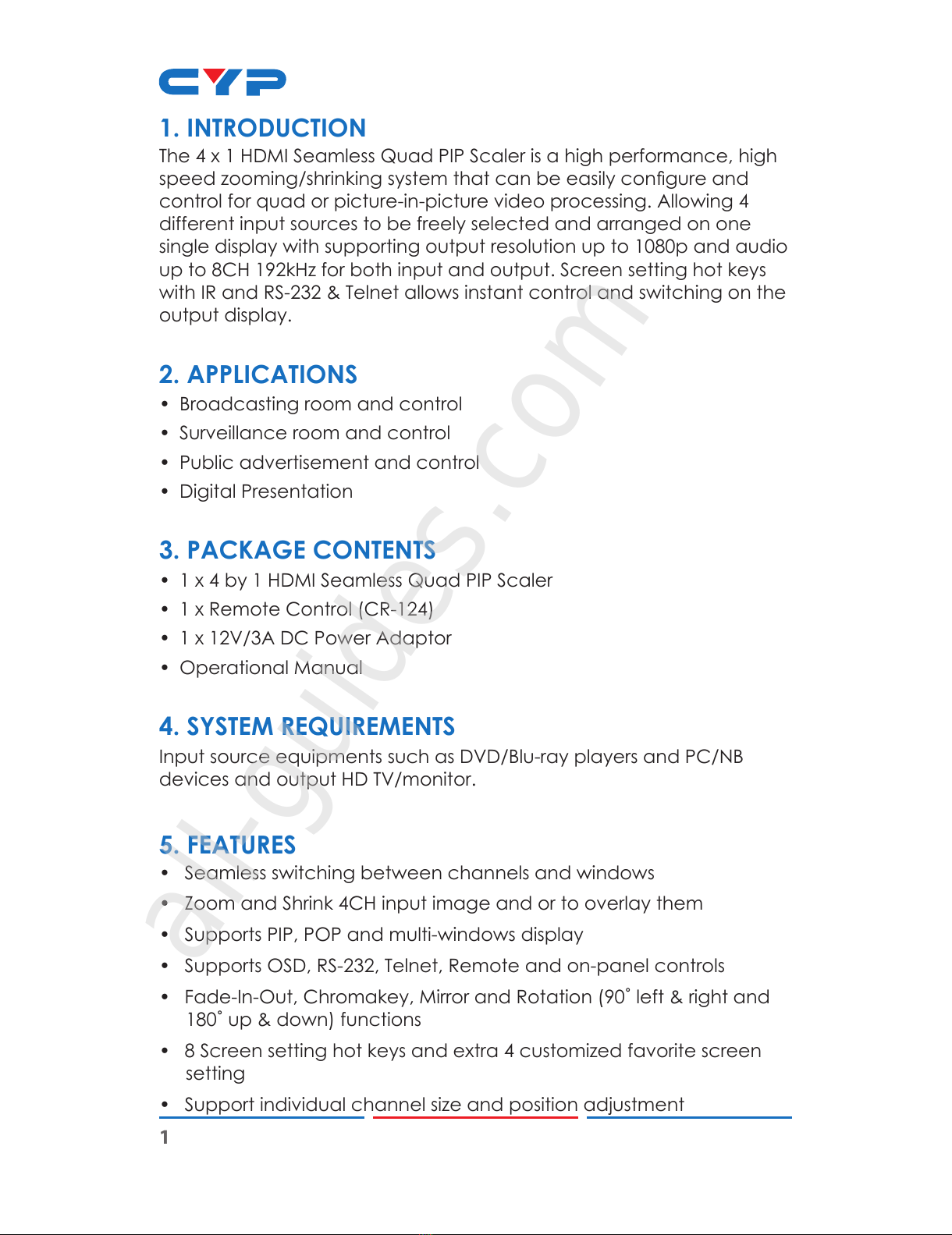

1. INTRODUCTION
The 4 x 1 HDMI Seamless Quad PIP Scaler is a high performance, high
speed zooming/shrinking system that can be easily congure and
control for quad or picture-in-picture video processing. Allowing 4
different input sources to be freely selected and arranged on one
single display with supporting output resolution up to 1080p and audio
up to 8CH 192kHz for both input and output. Screen setting hot keys
with IR and RS-232 & Telnet allows instant control and switching on the
output display.
2. APPLICATIONS
• Broadcasting room and control
• Surveillance room and control
• Public advertisement and control
• Digital Presentation
3. PACKAGE CONTENTS
• 1 x 4 by 1 HDMI Seamless Quad PIP Scaler
• 1 x Remote Control (CR-124)
• 1 x 12V/3A DC Power Adaptor
• Operational Manual
4. SYSTEM REQUIREMENTS
Input source equipments such as DVD/Blu-ray players and PC/NB
devices and output HD TV/monitor.
5. FEATURES
• Seamless switching between channels and windows
• Zoom and Shrink 4CH input image and or to overlay them
• Supports PIP, POP and multi-windows display
• Supports OSD, RS-232, Telnet, Remote and on-panel controls
• Fade-In-Out, Chromakey, Mirror and Rotation (90˚ left & right and
180˚ up & down) functions
• 8 Screen setting hot keys and extra 4 customized favorite screen
setting
• Support individual channel size and position adjustment
All manuals and user guides at all-guides.com
all-guides.com

2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWERMENU
- +
1
CHANNEL
INPUT 234
4
1
2
3
1
A
WINDOW 234
12
34
234
1
1234
B C D E
G H
F
1 2 3 4 5 6
1IR Window
Accept IR signal from the device’s remote control included in the
package.
2POWER
Press this button to power ON the device or set it to standby mode.
3MENU
Press this button to bring up the OSD menu on screen.
4-/+ Buttons
Press these buttons to scroll down/up the OSD selections.
5CHANNEL INPUT 1~4
Press these buttons to rotate HDMI 1~4 input source on each
channel to be display on screen. All channels can select the same
input or each channel a different input.
6WINDOW A~H
Press these hot keys to select the screen setting where A~D are
display a full screen of each channel and E~H are a different
combination of a full screen setting with all 4 channels.
Windows A~D's channel input selection is corresponding to
channel input no. 1~4. That is, to change window A's input channel
must press channel input 1's button. Channel input 2~4's button
will not activate under window A's selection. Windows E~H's size
are adjustable through the OSD menu setting and only window
G is PIP(Picture in Picture) where E,F & H are POP (Picture out Of
picture) settings.
All manuals and user guides at all-guides.com

3
Under window E~H when the size setting is overlapping one
another, channel display sequence is CH4 > CH3 > CH2 >CH1.
That is, CH4 will cover CH3 and CH3 will cover CH2 and so on.
Under some dislay the borderline may have interference, adjusting
display's motion setting may resolve the interference issue.

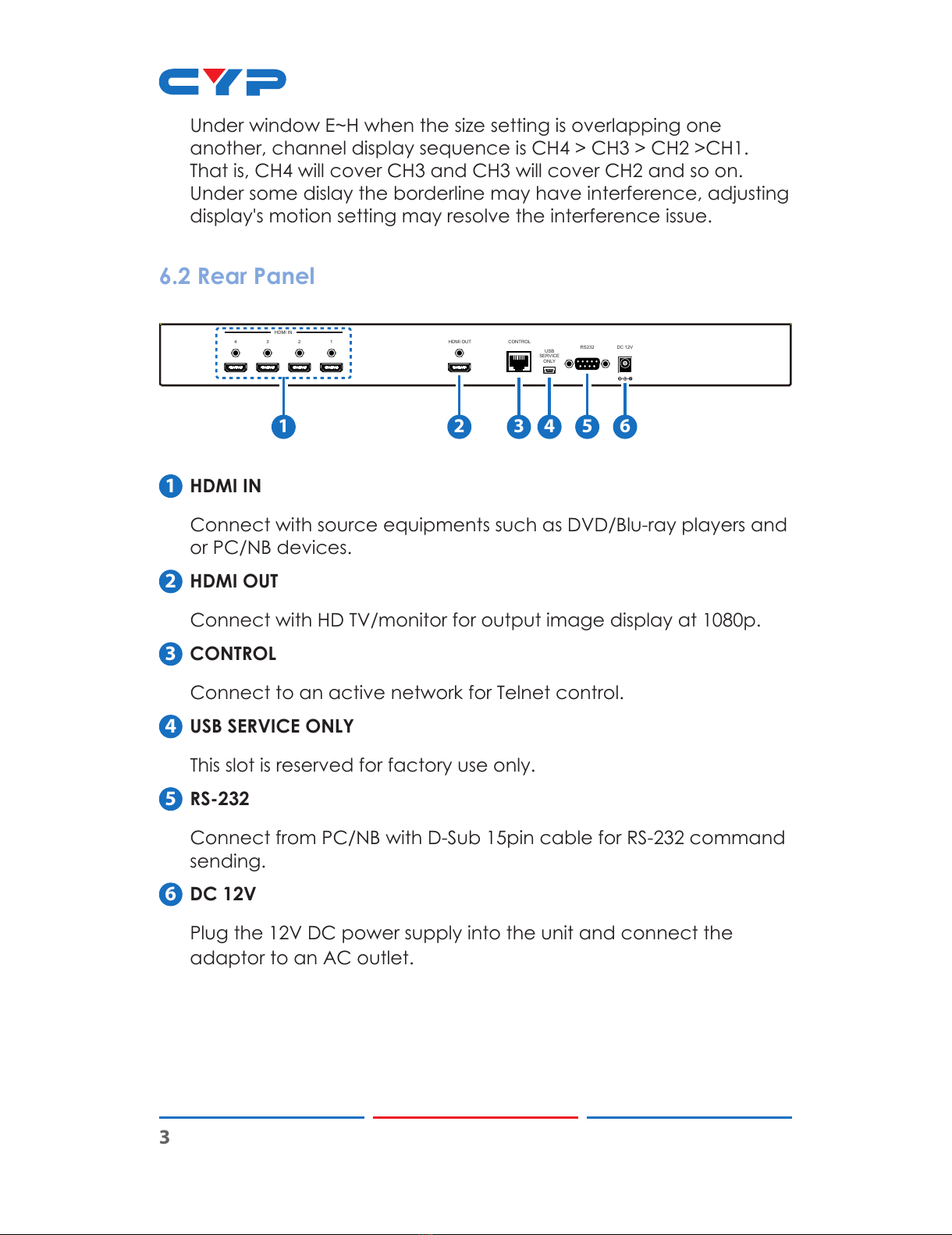

6.2 Rear Panel
4321
HDMI IN
HDMI OUT
RS232 DC 12V
USB
SERVICE
ONLY
1 2 43 5 6
CONTROL
1HDMI IN
Connect with source equipments such as DVD/Blu-ray players and
or PC/NB devices.
2HDMI OUT
Connect with HD TV/monitor for output image display at 1080p.
3CONTROL
Connect to an active network for Telnet control.
4USB SERVICE ONLY
This slot is reserved for factory use only.
5RS-232
Connect from PC/NB with D-Sub 15pin cable for RS-232 command
sending.
6DC 12V
Plug the 12V DC power supply into the unit and connect the
adaptor to an AC outlet.
All manuals and user guides at all-guides.com

4

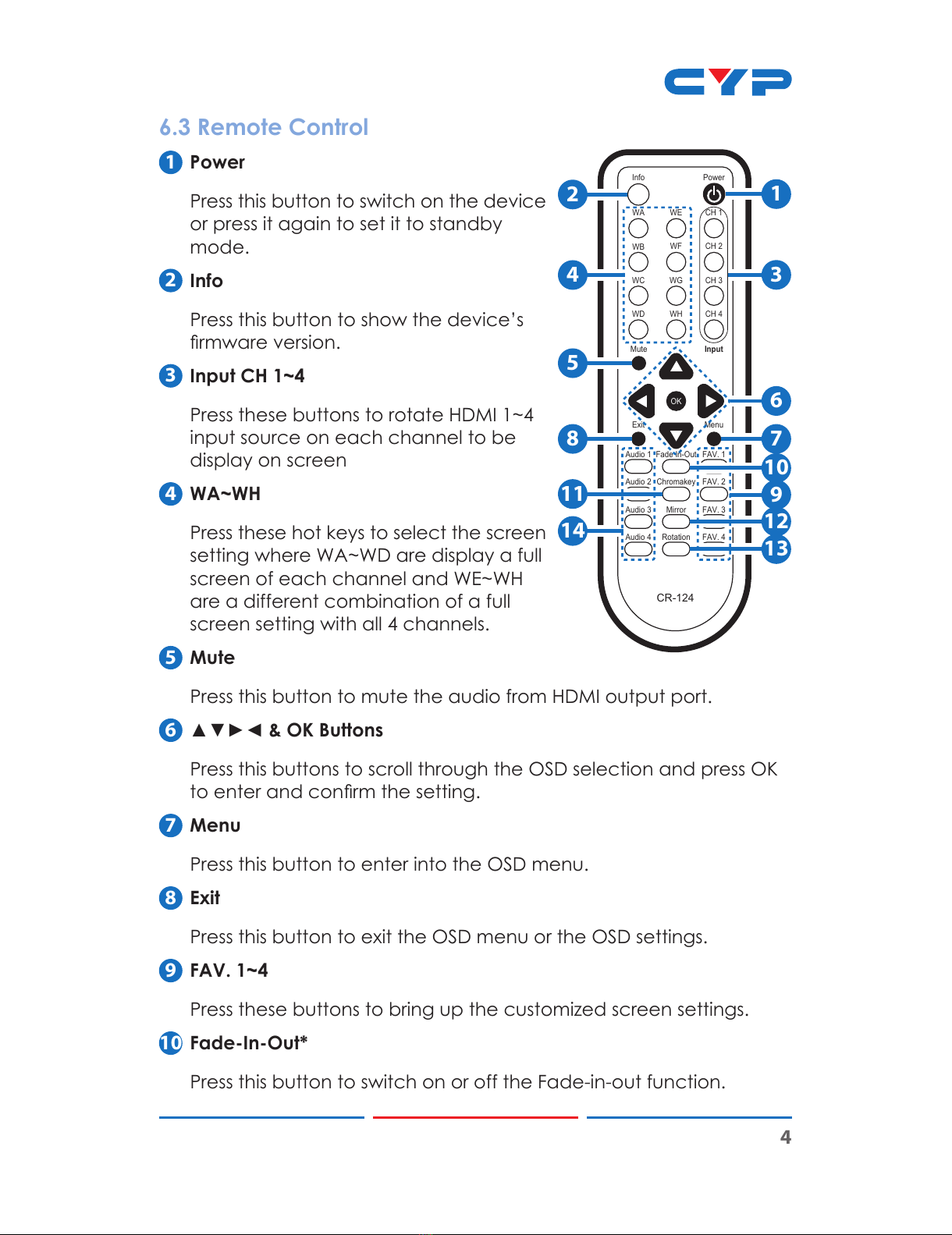

6.3 Remote Control
1Power
Press this button to switch on the device
or press it again to set it to standby
mode.
2Info
Press this button to show the device’s
rmware version.
3Input CH 1~4
Press these buttons to rotate HDMI 1~4
input source on each channel to be
display on screen
4WA~WH
Press these hot keys to select the screen
setting where WA~WD are display a full
screen of each channel and WE~WH
are a different combination of a full
screen setting with all 4 channels.
5Mute
Press this button to mute the audio from HDMI output port.
6▲▼►◄ & OK Buttons
Press this buttons to scroll through the OSD selection and press OK
to enter and conrm the setting.
7Menu
Press this button to enter into the OSD menu.
8Exit
Press this button to exit the OSD menu or the OSD settings.
9FAV. 1~4
Press these buttons to bring up the customized screen settings.
10 Fade-In-Out*
Press this button to switch on or off the Fade-in-out function.
WA WE CH 1
WB WF CH 2
WC WG CH 3
WD WH CH 4
Input
Mute
Menu
OK
Exit
Audio 1Fade In-Out FAV. 1
Audio 2Chromakey FAV. 2
Audio 3MirrorFAV. 3
Audio 4RotationFAV. 4
Info Power
CR-124
1
3
6
7
9
10
12
13
2
4
5
8
11
14
All manuals and user guides at all-guides.com

5
11 Chromakey*
Press this button to enter into Chroma function where CH 1 is the
background and CH 2 is the top image.
12 Mirror*
Press this button to display the screen in mirror image.
13 Rotation*
Press this button to rotate the image 90˚ left and right or 180˚
upside down.
14 Audio 1~4
Press these buttons to select audio from HDMI input source 1~4.
* Functions only work under Window A to D. The system will force to
switch to Window A when operate under Window E~H.
6.4 RS-232 Protocols
CDPS-41SQ Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9NC 9NC
Baud Rate: 115200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
