CYP CP-302M User manual

HDMI Scaler and Format
Converter - ID# 976
Operation Manual

Introduction
The HDMI to HDMI Scaler is designed to scale HDMI source signal to HDMI signal. The
device is HDMI & DVI 1.0 compliant and it features many great functions such li e
motion adaptive 3-D de-interlacing, 3D noise reduction, frame rate conversion,
adaptive contrast enhancement… and etc. Further, a simplify OSD function is
available allowing user with easy viewing on the displaying status.
Applications
●PC timing converted into HD timing
●HD timing converted into PC timing
System
Requirements
Input source equipment such as PC/laptop or Blu-ray player and output to HDTV or HD
monitor with HDMI connection cables.
Features
●HDMI, HDCP1.1 and DVI1.0 compliant
●Upscale video signal from HDMI source up to 1080p@50/60
●Accepts a wide range of input resolutions from 480i ~ 1080p and PC from VGA ~
WUXGA
●Supports audio sampling rate up to 192 Hz
●Motion adaptive 3-D deinterlacing algorithm
●3-D noise reduction in both temporal and spatial domain
●Frame rate conversion
●Adaptive contrast enhancement
Operation Controls
and Functions

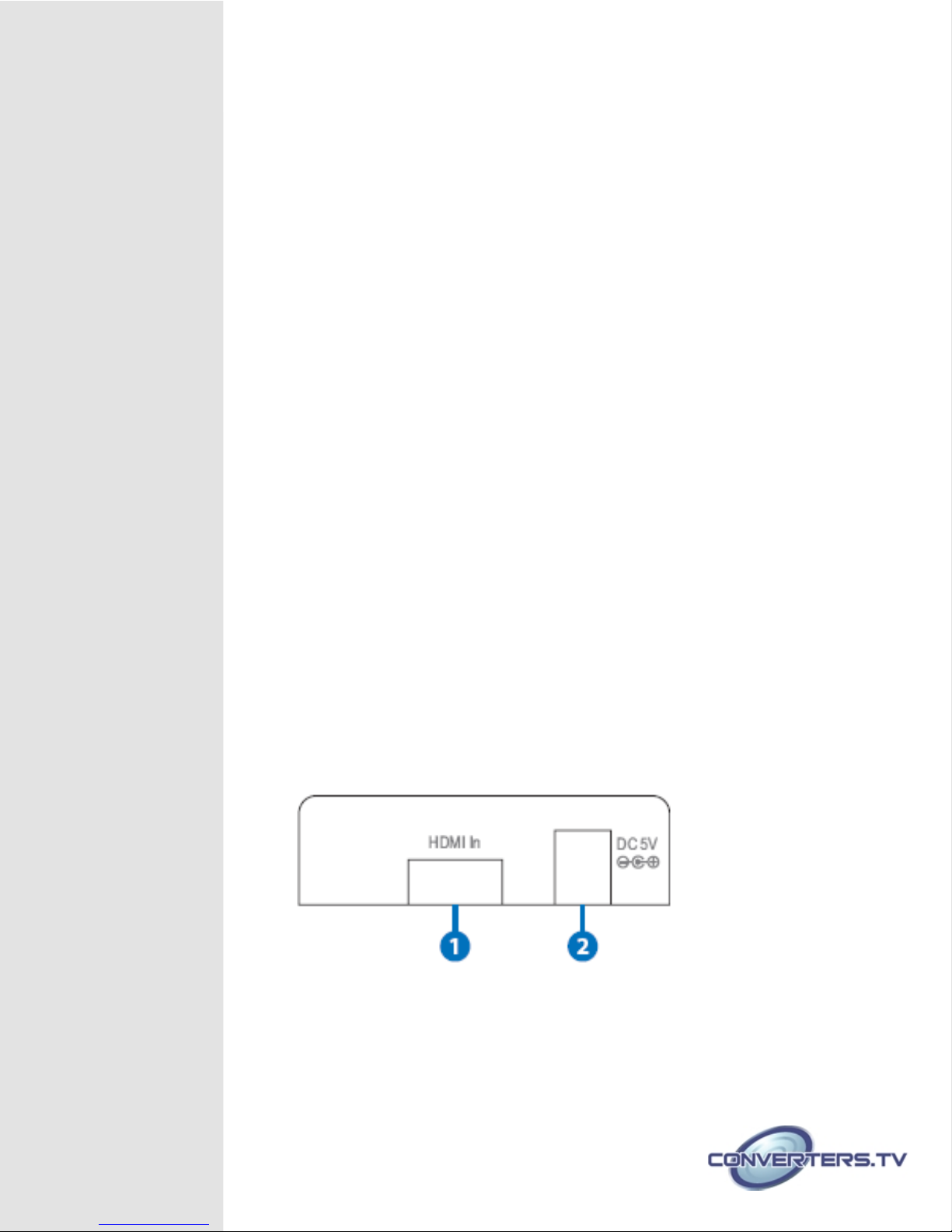

Front Panel
1. HDMI In
This slot is where you plug in your input source device such as PC/laptop or Blu-ray
player with an HDMI cable.
2. DC 5V
This slot is where you plug the 5V DC power supply included in the pac age into the
unit and connect the adaptor to an AC outlet.

Rear Panel
1. Service Only
This slot is specifically made for factory usage. It does not support any signal
transmission or power supply.
2. HDMI Out
This slot is to connect to an HD TV/display with a HDMI cable for displaying your
sources content.
Top Panel
1. Timing button
Press this button once to show the OSD menu and while OSD is still on press it again
to select the output resolution leave it for 3 seconds and output will switch to the
selected timing accordingly. Press and hold for 5 seconds the LED will blin twice and
switch output timing to 720p@60
2. Power ED
This LED will illuminate when the device is connected with power supply.

OSD Menu
1. Current input output timing
2. Output timing selection.
3. Select output display's native resolution. The device will read native 1's EDID first and
then native 2, if both native timings are not supported the device will output 720p@60.
4. Display both source and sin 's information and the device's firmware version.

Connection
Specifications
Ma imum Pi el Rate 165MHz
Input Ports 1 x HDMI, 1 x USB (for serv ce only)
Output Ports 1 x HDMI
Audio Sampling Rate 44.1, 48, 96,192kHz
HDMI Cable In 1080p 8-b t/ 15M
HDMI Cable Out 1080p 8-b t/ 15M
ESD Protection Human body model:
± 8 kV (A r-gap d scharge)
±4 kV (Contact d scharge)
Power Supply 5V/1A l near power adaptor (US/EU
standards, CE/FCC/UL cert f ed)Or
5V/ 1.2A sw tch ng power adaptor (w th
un versal plug, CE/FCC/UL cert f ed)
Dimensions 63.5mm(W) × 99.5mm(D) × 25mm(H)
Weight 120 g
Chassis Material Plast c
Silkscreen Colour Wh te
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C / −4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condens ng)
Power Consumption 5.5 W
* Cable tested w th 24AWG cable, us ng cables of another type may result n a
d fferent operat ng d stance.
* F gures prov ded n th s manual are reference f gures only, actual
f gures may depend on source and d splay use w th cable.
