CYP CSC-6011 User manual

CSC-6011
4K UHD PC/HD & HDMI to HDMI Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2016 by Cypress Technology.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 04/07/16 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 OSD Menu.........................................5
7. Connection Diagram ............................ 7
8. Specications ........................................ 8
8.1 Technical Specication...................8
8.2 Audio Specication Chart ..............9
8.3 Supported Resolutions.....................9

1
1. INTRODUCTION
This is a compact yet versatile PC/HD and HDMI to HDMI Scaler Box. It
accept a wide-range of PC/HD resolution up to 1080p/WUXGA and
4K2K UHD 6G HDMI signal and scale it to selectable resolution up to
4K2K with both digital and analog audio outputs simultaneously. This
device has a comprehensive OSD menu that allows user with easy
setting and hot key design for fast timing switching. An ideal device
between incompatible PC/HD and HDMI source to display.
2. APPLICATIONS
• PC/HD contents on to HDMI display
• Household PC/HDMI signal enlargement onto HDMI TV/display with
audio
• Lecture room/Showroom/Meeting room or Classroom signal display
3. PACKAGE CONTENTS
• 1 x PC/HD and HDMI to HDMI Scaler Box
• 1 x 5V/2.6A DC Power Adaptor
• 1 x Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source signal such as PC/Laptop, DVD player, Blu-ray
player and …etc. with output HDMI display and connection cables.

2
5. FEATURES
• HDMI with 4Kx2K 6G supported, HDCP2.2 and DVI compliant
• Supports full range of PC resolution from VGA~WUXGA and HDMI
resolution from 480i~4K2K_YUV444
• Supports 50/60 frame rate conversion
• Supports 3-D motion video adaptive, 3-D de-interlacing and 3:2/2:2
pull-down detection and recovery
• Automatically detect the factory setting of the connected display
and output the corresponding resolution and refresh rate, when the
NATIVE output is selected
• Provides scaling output picture adjustment on contrast, brightness,
hue, saturation, sharpness, RGB (color tone) level and aspect ratio
size
• Supports stereo LPCM analog/digital audio input and stereo LPCM
analog/digital output by selecting among the audio input sources
in the OSD menu and simultaneously output to HDMI, Optical and
phone jack
• Supports USB rmware update
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,
output display and HDMI cables are required in order to secure the
best image display.

3
6. OPERATION CONTROLS AND FUNCTIONS

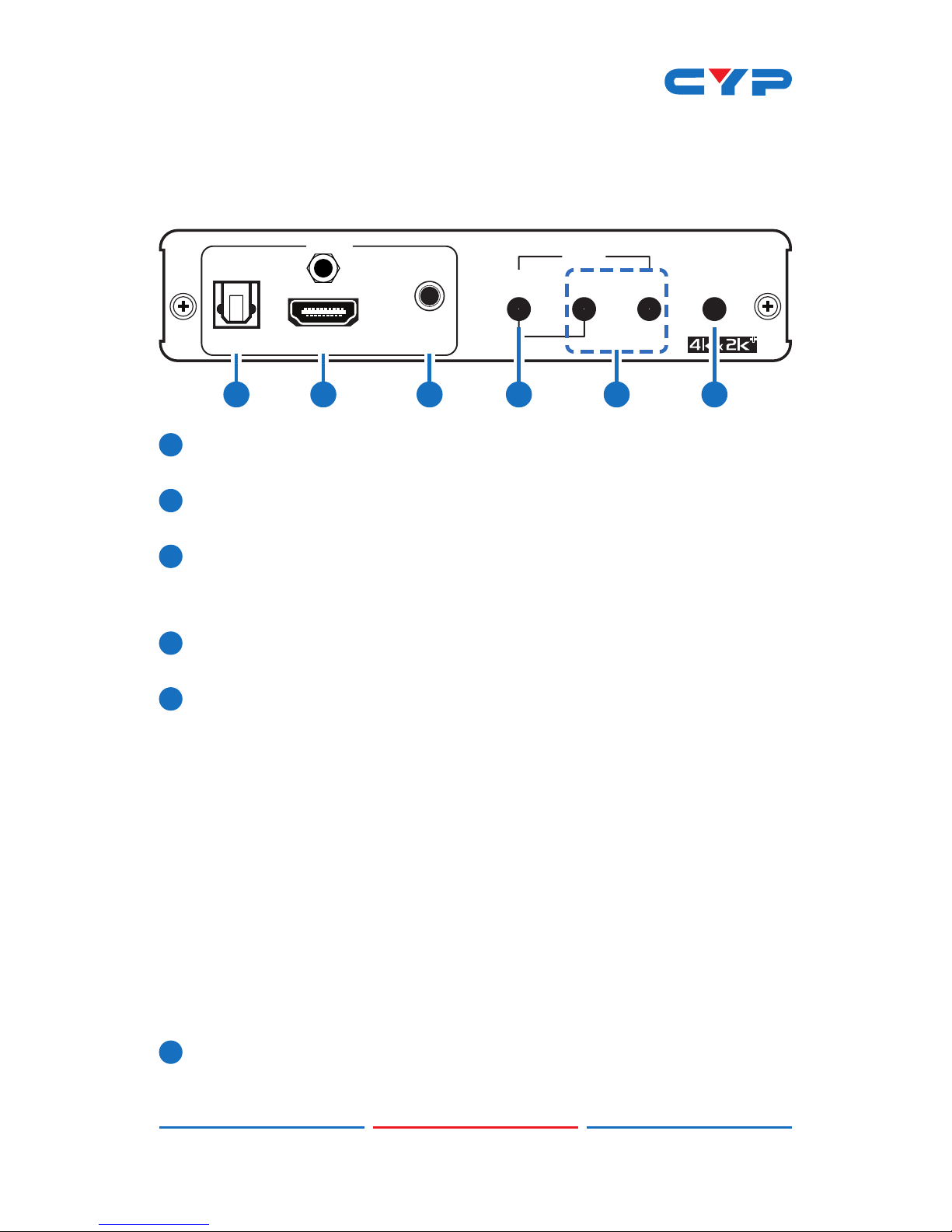

6.1 Front Panel
OUT XGA
MENU ENTER
+ -
OPTICAL HDMI AUDIO
720P
+
654321
1OPTICAL OUT: Connect to amplier or active speaker with optical
cable for audio output. LPCM format support 2CH only.
2HDMI OUT: Connect to HDMI TV/monitor for output image display
or with AV receiver for audio output.
3AUDIO OUT: Connect to an amplier or active speaker with 3.5mm
phone jack for audio output. Supports LPMC 2CH only, bitstream
format will be muted.
4MENU: Press this button to enter into the OSD menu and press it
again to enter into the selection.
5-/+ Buttons: Press these buttons to
i. Press “-“ to adjust output L/R audio volume
ii. Press “+” to Auto Adjust PC input signal
iii. Press “-“ together with “MENU” to switch output resolution to
720P@60 instantly
iv. Press “+” together with “MENU” to switch output resolution to
XGA@60 instantly
v. Press both “+” together with “-“ and "ENTER" to set the device
back to factory reset setting
Under OSD selection:
vi. Move up/down the OSD selection
vii.To adjust the value
6ENTER: Press this button to switch input between PC/HDMI or when
under OSD selection press to conrm the selection.

4
6.2 Rear Panel
DC 5V
POWER
IN
PC HDMI AUDIO
OPTICAL SERVICE
654321
1PC IN: Connect from source equipment such as PC/Laptop with
D-Sub 15-pin cable or DVD player with D-Sub to RCA adaptor.
2HDMI IN: Connect from the audio source equipment such as DVD/
Blu-ray player or DVI source equipment with DVI to HDMI adaptor.
3AUDIO IN: Connect from the audio source equipment such as PC/
Laptop with 3.5mm phone jack for analog audio signal input.
4OPTICAL IN: Connect from audio source equipment such as DVD/
Blu-ray player with optical cable for digital audio signal input.
5SERVICE: This is reserved for rmware update use only.
6DC 5V/ POWER LED: Connect the adapter included in the
package and connect to AC wall outlet for power supply. The LED
will illuminate when the device is connected to an active power
supply.

5
6.3 OSD Menu
CONTRAST 0~100 (50)
PICTURE BRIGHTNESS 0~100 (50)
EXIT
HUE 0~100 (50)
FINETUNE SATURATION 0~100 (50)
HDMI/YPbPr SHARPNESS 0~100 (50)
NR OFF/LOW/MIDDLE/HIGH
EXIT
PHASE 0~100
CLOCK 0~100
FINETUNE PC H – POSITION 0~100
V – POSITION 0~100
EXIT
RED 0~100 (50)
COLOR GREEN 0~100 (50)
BLUE 0~100 (50)
EXIT
OUTPUT
SOURCE PC/YPbPr, HDMI
RESOLUTION
NATIVE, 640x480/60,
800x600/60, 1024x768/60,
1280x768/60, 1360x768/60,
1280x800/60, 1280x1024/60,
1440x900/60, 1400x1050/60,
1680x1050/60, 1600x1200/60,
1920x1200/60RB, 480P60,
576P50, 720P50, 720P60,
1080P50, 1080P60, 4K2K/24,
4K2K/25, 4K2K/30 4K2K/50,
4K2K/60, 4K2K/50 420, 4K2K/60
420
4K2K MODE 4K2K 3840/4K2K 4096

6
OUTPUT SIZE
FULL/OVER SCAN/UNDER
SCAN/LETTER BOX/PAN
SCAN/BEST FIT
EXIT
HDMI INPUT AUTOMATIC/EMBEDDED/
ANALOG/OPTICAL
PC INPUT ANALOG/OPTICAL
AUDIO VOLUME (L/R
OUT)
0~100(VOL 100->2Vrms
Analog Out L/R)
EXIT
TIMER OFF, 5~100 (10)
OSD DISPLAY INFO/ON/OFF
EXIT
EDID MANAGE
(HDMI Only)
EDID COPY
DEF. 1080P/ DEF. 4K2K(6G)/
DEF. 4K2K(420)/ DEF.
4K2K(3G)/ OUTPUT
EXIT
AUTO SYNC OFF OFF/FAST(≈10 sec.)/
SLOW(≈120 sec.)
AUTO INPUT OFF/ AUTO SWITCH
ADVANCED HDCP ON INPUT OFF/ON (HDMI Only)
AUTO ADJUST OFF/ON (PC Only)
EXIT
FACTORY RESET NO/YES
EXIT
Default settings are in Bold or () print. Scaling 4K2K resolution with the
same frame rate the OSD selection in italic font will be muted.

7
7. CONNECTION DIAGRAM
DC 5V
POWER
IN
PC HDMIAUDIO
OPTICAL SERVICE
OUT XGA
MENU ENTER
+ -
OPTICAL HDMIAUDIO
720P
+
PC/HD & HDMI to
HDMI Scaler Box
HDMI Cable
HDMI Cable
Optical Cable
Optical Cable
HDMI TVActive Speakers Amplier
D-Sub
DVD
PC
L/R Audio Cable
L/R Audio Cable

8
8. SPECIFICATIONS
8.1 Technical Specication
Video Bandwidth 600MHz/18Gbps
Input Ports 1 x HDMI 1 x D-Sub 15-pin, 1 x Optical, 1 x
3.5mm Phone Jack, 1 x USB(Service)
Output Ports 1 x HDMI, 1 x Optical, 1 x 3.5mm Phone
Jack
Supported Resolutions VGA~WUXGA@60,
480i~1080p@24/50/60
4K2K@24/25/30/50/60(YUV444)
HDMI Cable Distance 5m@4K2K/60_YUV444
10m@1080p/12-bit
10m@1080p/8-bit
Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/ UL
certied)
ESD Protection Human Body model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Chassis Material Aluminum
Silkscreen color Black
Dimensions 145mm (W) x 192mm (D) x 30mm (H) (Jacks
excluded)
145mm (W) x 201.2mm (D) x 30mm (H)
(Jacks included)
Weight 578g
Operating Temperature 0˚C~40˚C/32˚F~104˚F
Storage temperature -20˚C~60˚C/-4˚F~140˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption 8.47W

9
Note: HDMI cable distance might affected by material or design of
cable. It is suggested to use Premium High Speed HDMI cable for 6G
HDMI signal.
8.2 Audio Specication Chart
Input
Level/Freq.
Output
Terminal Output Level THD+N
Frequency
Response SNR Crosstalk
Digital
0dB/1kHz Digital 0dB ~ -1db <0.01% ±1dB >80dB <-80dB
Analog
1Vrms/1kHz Digital 0dB ~ -1.5db <0.1% ±3dB >70dB <-60dB
Digital
0dB/1kHz Analog 0.5Vrms ±10% <0.1% ±3dB >80dB <-60dB
Analog
1Vrms/1kHz Analog 0.5Vrms ±10% <0.1% ±3dB >70dB <-60dB
8.3 Supported Resolutions
INPUT OUTPUT
PC HD PC HD
640x480@60/72/75/85  @60
800x600@56/60/72/75/85  @60
1024x768@60/70/75/85  @60
1280x1024@60/75/85  @60
1360x768@60  
1280x800@60  
1280x1024@60  
1440x900@60  
1400x1050@60  
1600x1200@60  
1680x1050@50/60  @60
1920x1200@60  

10
INPUT OUTPUT
PC HD PC HD
480i/576i 
480p/576p  
720p@50/60  
1080i@50/60 

@50/60
Only
1080p@24/50/60  
3840x2160@24/25/30/50/60  
4096x2160@24/25/30/50/60  
Input Output ByPass Mode Scaler Mode
Any Timing 640x480/60 X
Any Timing 800x600/60 X
Any Timing 1024x768/60 X
Any Timing 1280x768/60 X
Any Timing 1360x768/60 X
Any Timing 1280x800/60 X
Any Timing 1280x1024/60 X
Any Timing 1440x900/60 X
Any Timing 1400x1050/60 X
Any Timing 1680x1050/60 X
Any Timing 1600x1200/60 X
Any Timing 1920x1200/60RB X
Any Timing 480P60 X 
Any Timing 576P50 X 
Any Timing 720P50 X 

11
Any Timing 720P60 X 
Any Timing 1080P50 X 
Any Timing 1080P60 X 
Not 4K2K/24 4K2K/24 X 
Not 4K2K/25 4K2K/25 X 
Not 4K2K/30 4K2K/30 X 
Not 4K2K/50 4K2K/50 X 
Not 4K2K/60 4K2K/60 X 
Not 4K2K/50 4K2K/50 420 X 
Not 4K2K/60 4K2K/60 420 X 
4K2K/24 4K2K/24 X
4K2K/25 4K2K/25 X
4K2K/30 4K2K/30 X
4K2K/50 4K2K/50 X
4K2K/60 4K2K/60 X
4K2K/50 4K2K/50 420 X
4K2K/60 4K2K/60 420 X

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
MPM-CSC601
