CYP PUV-2606RX User manual

PUV-2606RX
HDBaseT™ to HDMI Receiver with USB Connectivity
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2020 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2019/04/25 Preliminary release

CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents .........................................1
4. System Requirements ..................................2
5. Features.........................................................2
6. Operation Controls and Functions..............3
6.1 Front Panel.............................................................3
6.2 Rear Panel...............................................................4
6.3 IR Cable Pinouts ...................................................5
6.4 RS-232 Pinout and Defaults.............................5
7. Connection Diagram ....................................6
8. Specications................................................7
8.1 Technical Specifications ....................................7
8.2 Video Specifications............................................8
8.3 Audio Specifications........................................ 10
8.3.1 Digital Audio ........................................... 10
8.3.2 Analogue Audio..................................... 10
8.4 Cable Specifications ........................................ 11
8.5 HDBaseT Features............................................. 12
9. Acronyms.....................................................13

1
1. INTRODUCTION
This HDBaseT 2.0 Receiver is a great solution for receiving uncompressed
HD audio and video as well as Ethernet and control via a single run of
Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and
control signal types are supported, including USB 2.0, IR, RS-232 and LAN
connections. An independent balanced analogue stereo audio output is
also provided to support easy audio signal extension from compatible
Transmitters. The HDBaseT input supports receiving resolutions up to
a maximum of 4K@30Hz (4:4:4, 8-bit) or 4K@60Hz (4:2:0, 8-bit) from a
compatible HDBaseT Transmitter.
When paired with this unit’s standard Transmitter, 2 switchable USB 2.0
host (Type B) connections are available (1 on the Transmitter, 1 on the
Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports
(3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM
extension configuration (Note: Only 1 USB host may be active at a time).
This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the
connected HDBaseT Transmitter (PD) (compatible Transmitters only),
allowing for greater flexibility within different installation scenarios. This
unit is controllable via a front panel button.
2. APPLICATIONS
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1× HDBaseT to HDMI/USB Receiver
1× 24V/2.7A DC Power Adapter
1× 3.5mm to IR Blaster Cable
1× 3.5mm to IR Extender cable
1× Shockproof Feet (Set of 4)
1× Operation Manual

2
4. SYSTEM REQUIREMENTS
HDMI receiving equipment such as an HDTV, monitor or audio
amplifier.
A compatible HDBaseT 2.0 Transmitter with PoH (PD) support is
recommended.
The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
HDBaseT 2.0 compatible
1 HDBaseT input and 1 HDMI output
3 USB 2.0 Type A ports and 1 USB 2.0 Type B port
Supports HDBaseT input resolutions up to 4K@60Hz (4:2:0, 8-bit)
HDMI output supports resolutions up to 4K@60Hz (4:2:0, 8-bit)
HDBaseT input receives video, audio, and data over a single Cat.5e/6/7
cable and can reach distances up to 100m/230ft at 4K when using
Cat.6a/7
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH
(PSE), and control (bi-directional IR/RS-232/USB 2.0)
Supports CEC bypass
Supports pass-through of audio formats including LPCM (up to 8
channels), Bitstream and HD Bitstream from HDMI sources
Reception of independent analogue stereo audio extension
Flexible USB host selection using the front panel button
Note: Multiple USB hosts may be connected at once (up to 2 total, between
the Tx and a compatible Rx unit) with a single selected host active at a time
Supports local power, or power via PoH from Receiver (PSE) to
Transmitter (PD) (compatible Receivers only)
Controllable via a front panel button

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
USB SELECT
POWER
LINK
PUV-2606RX
1 2 3 4
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
3USB 2.0 (Type A) Ports: Connect directly to standard USB 2.0
peripherals such as a mouse, keyboard or flash drive to extend their
USB functionality to the designated Host Port.
4USB SELECT Button & LED: Press this button to toggle between the
USB Host Ports on the Receiver or compatible Transmitter. The LED will
illuminate to indicate which USB Host Port is currently active. If the
LED is off, the USB Host Port on the connected Transmitter is active.
Note: Changing the USB host will force the HDBaseT connection to briefly
disconnect while it reconfigures. The connected host (PC, laptop, etc.) may
also take a moment to detect all available devices.
USB 2.0 (Type B) Port: Connect directly to a standard USB host
such as a PC or laptop to extend its USB functionality to all currently
connected USB devices.
Note: Multiple USB hosts may be connected at once (up to 2 total,
between the Tx and a compatible Rx unit) with a single selected host
active at a time

4
6.2 Rear Panel
LANANALOGUE OUTHDMI OUTCAT 5e/6/7 INIR INIR OUTSERVICEDC 24V
ON OFF
TXRX
BYPASS LR
RS-232
1 2 3 4 5 6 7 8
1DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
2SERVICE Switch: This switch is reserved for factory use only. The
default setting is “OFF”.
3BYPASS RS-232 Terminal Block: Connect to a PC, laptop, or serial
controllable device with a 3-pin adapter cable for the extension of
RS-232 signals between both ends of the HDBaseT connection.
4IR OUT Port: Connect to the provided IR Blaster to transmit IR signals
from the other end of the HDBaseT connection to devices within
direct line-of-sight of the IR Blaster.
IR IN Port: Connect to the provided IR Extender to receive IR control
signals and extend them to devices connected to the other end of
the HDBaseT connection. Ensure that the remote being used is within
direct line-of-sight of the IR Extender.
5CAT 5e/6/7 IN Port: Connect to a compatible HDBaseT Transmitter
with a single Cat.5e/6/7 cable for reception of all data signals. PoH will
also be supplied to a connected compatible PD Transmitter.
6HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital
video and audio output.
7Analogue OUT Terminal Block: Connect to powered speakers or
an amplifier for balanced analogue stereo audio output. This will
output the independent audio channel sent by compatible HDBaseT
Transmitters.
8LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.

5

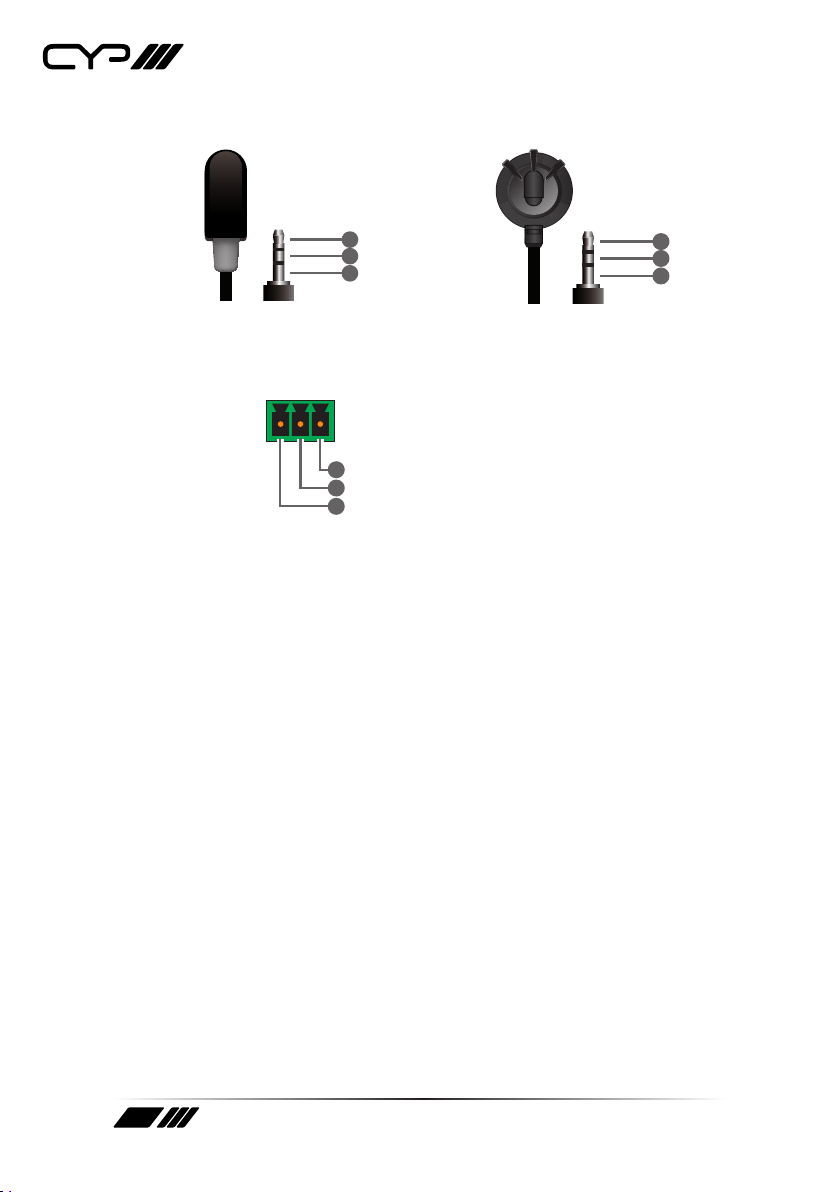

6.3 IR Cable Pinouts
IR Blaster
Cable
1
2
3
Infrared
Power
Not Used
IR Extender
Cable
1
2
3
Infrared
Power
Ground
6.4 RS-232 Pinout and Defaults
1
2
3
RxD
GND
TxD
3-pin
Terminal Block
