CYP PUV-1730PLRX-AVLC User manual

PUV-1730PLRX-AVLC
HDBaseT™ HDR Receiver (70m)
(4K, HDCP2.2, PoH, OAR, 18Gbps)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 19/06/2018 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 IR Cable Pinouts .......................................10
6.4 RS-232 Control..........................................10
6.5 RS-232 Commands..................................11
7. Connection Diagram .......................... 12
8. Specifications...................................... 13
8.1 Technical Specifications ........................13
8.2 Video Specifications................................14
8.3 Audio Specifications...............................15
8.4 Cable Specifications ...............................16
8.5 HDBaseT Features....................................16
9. Acronyms............................................. 17

6
1. INTRODUCTION
This HDMI over single Cat.5e/6/7 Receiver is a great solution for extending
HD audio and video as well as Ethernet and control via a single run of
Cat.5e/6/7 cable over distances of up to 70 metres. Multiple data and
control interfaces are provided, including IR and RS-232 connections. This
Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards,
as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.
Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video
sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit
sources with HDR, are able to be processed and extended by the use
of AVLC (Adaptive Visually Lossless Compression) when connected to a
compatible AVLC Transmitter.
Beyond video, data, and control this unit also contains useful audio fea-
tures. The Optical Audio Return (OAR) feature supports transmitting opti-
cal audio back to a compatible Transmitter for local playback. Rounding
out the feature set is automatic TMDS re-clocking support. This Receiver
(PD) is powered by 48V PoH (Power over HDBaseT) from a compatible
Transmitter (PSE), allowing for exibility within dierent installation sce-
narios.
2. APPLICATIONS
48V PoH from Transmitter (PSE) to Receiver (PD)
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1×HDMI over HDBaseT Receiver with HDR & OAR
1×3.5mm to IR Extender Cable
1×Rackmount Ears (Set of 2)
1×Operation Manual

7
4. SYSTEM REQUIREMENTS
HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
A compatible HDBaseT Transmitter (PSE) with 48V PoH support is
required.
The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly
recommended.
The use of “Premium High Speed HDMI” cables is highly recommended.
5. FEATURES
HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
and output
Supports Deep Colour input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Supports CEC bypass
Simultaneous reception of uncompressed video, audio and data over a
single Cat.5e/6/7 cable up to 70m/230ft at 1080p60 and 35m/115ft at
4K
HDBaseT feature support: HD Video and Audio, 48V PoH, and Control
(bidirectional IR/RS-232 pass-through)
Support for compatible AVLC (Adaptive Visually Lossless Compression)
Transmitters, allowing for the output of HDMI sources that were
originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz)
with no loss of visual quality
Supports the Optical Audio Return (OAR) function to transmit optical
audio from the Receiver to a compatible Transmitter
Performs TMDS re-clocking and signal re-generation for improved
signal integrity
Ultra-thin design (16mm thickness) for convenient installation
Powered by standard 48V PoH from Transmitter (PSE) to Receiver (PD)
(compatible Transmitters only)

8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
CONSOLE/
BYPASS
RX
RS-232SERVICE
OPT. IN
TX
LINK
POWER
IR BLASTER 1IR EXTENDER 2
1 2 3 4 5 6 7
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
2OPT. IN: Connect to the optical audio output of a device such as a
media player or game console using an appropriate optical cable.
Audio is sent to the Optical Audio Return output on a connected
compatible Transmitter.
3IR EXTENDER 2: Connect to an IR Extender to extend the IR control
range of devices connected to the other end of the HDBaseT
connection. Ensure that the remote being used is within direct line-of-
sight of the IR Extender.
4IR BLASTER 1: Connect to the provided IR Blaster to transmit IR
signals from the other end of the HDBaseT connection to devices
within direct line-of-sight of the IR Blaster.
5SERVICE: This USB port is reserved for firmware update.
6RS-232: Connect to a PC, laptop or other serial control device
with a 3-pin adapter cable for the extension of RS-232 signals to
the Transmitter in "Bypass" mode, or for control this unit when in
"Console" mode.
Note: Depending on the controlled device connected to the Transmitter
side, the Tx and Rx pins might need to be reversed.
7CONSOLE/BYPASS: This switch controls the operational mode of the
RS-232 port. When set to “Bypass”, RS-232 signals will be passed to the
connected Transmitter. When set to “Console”the RS-232 port may be

9
used to send commands directly to the Receiver.
Note: RS-232 bypass requires both the Transmitter and Receiver to be set
to “Bypass” mode.
6.2 Rear Panel
CAT5e/6/7 IN HQ
STD
HDMI OUT
21 3
1HQ & STD LEDs: These LEDs illuminate to indicate which AVLC mode
will be used when AVLC is required. The lower green LED indicates that
AVLC will use HQ (High Quality) mode. The upper yellow LED indicates
that AVLC will use STD (Standard) mode.
2HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital
video and audio output.
3CAT5e/6/7 IN: Connect to a compatible, 48V PoH supplying, HDBaseT
Transmitter with a single Cat.5e/6/7 cable for transmission of all data
signals as well as to power the unit.

10
6.3 IR Cable Pinouts
3
1
2
Infrared
Power
Ground
IR Extender
3
1
2
IR Blaster Power
Infrared
NC
6.4 RS-232 Control
Terminal Block Controlling PC Serial Port Settings
Pin Denition Pin Denition Baud Rate 19200
1 GND 1 Data Bits 8
2 Rx 2 Rx Parity Bit None
3Tx 3Tx Stop Bits 1
4Flow Control None
5 GND
6
7
8
9

11
6.5 RS-232 Commands
COMMAND
Description and Parameters
HELP
Show the full command list.
?
Show the full command list.
GET MODEL NAME
Show the unit’s model name.
GET MODEL TYPE
Show the unit’s model type.
GET POWER
Show the power state of the unit.
SET SYSTEM REBOOT
Reboot the unit.
GET IN 1 SYNC STATUS
Show the current input sync state.
GET OUT A SYNC STATUS
Show the current output sync state.
GET TRANSCEIVER COMPRESS RATE
Show the current AVLC compression mode.
Note: Commands will not be executed unless followed by a carriage return.
Commands are not case-sensitive.

12

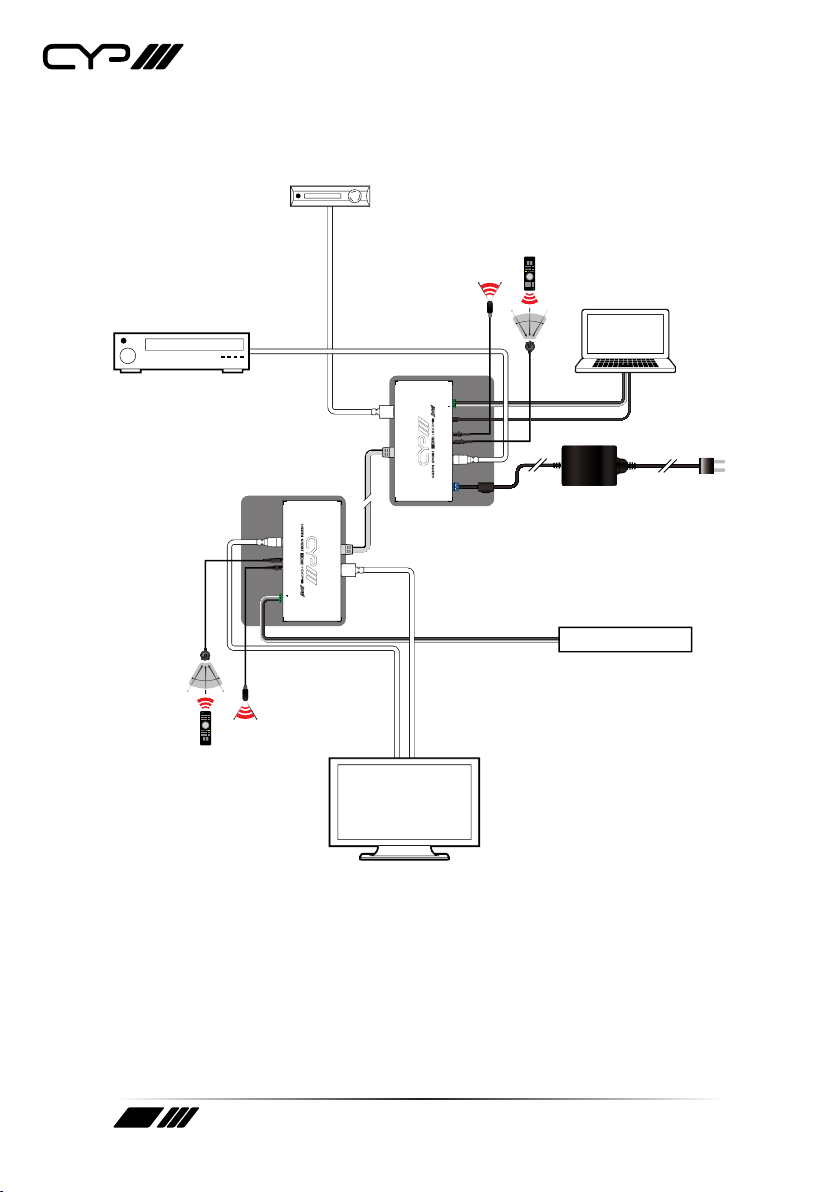

7. CONNECTION DIAGRAM
TX
RX
IR IN CONSOLE/
BYPASS
RX
RS-232SERVICEIR OUTOPT. OUT
CAT5e/6/7OUTHQ / STD
SWITCH
HQ
STD
HDMI IN
EDID
DC 48V
+
-
POWER LINK
TX
IR IN CONSOLE/
BYPASS
RX
RS-232SERVICEIR OUT
OPT. IN
CAT5e/6/7IN HQ
STD
HDMI OUT
POWER LINK
TX
7m3m 3m
60°
1.5m
60°
1.5m
60°
7m3m 3m
60°
Game Console
UHDTV (w/ Optical
Audio Output)
RS-232 Controlled
Device
Power Supply
Router
RS-232
RS-232
USB
RS-232 Equipped
PC/Laptop
HDMI
Input
HDMI
Output
Cat.5e/6/7
Cable
Optical Audio
Retun (OAR)
IR In & Out
IR In & Out
Optical Audio
Return (OAR)
AV Receiver

13
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 600MHz/18Gbps
HDBaseT Bandwidth 340MHz/10.2Gbps
Input Ports 1×HDBaseT (RJ45)
1×S/PDIF (TOSLINK)
Output Port 1×HDMI
Pass-through Ports 1×IR Extender (3.5mm)
1×IR Blaster (3.5mm)
Pass-through/Control Port 1×RS-232 (3-pin Terminal Block)
IR Frequency 30–50kHz
(30–60kHz under ideal conditions)
Baud Rate Up to 115200bps
Power Supply 48V PoH
(US/EU standards, CE/FCC/UL certied)
ESD Protection Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions 163mm×16mm×78mm (W×H×D)
[Case Only]
183mm×16mm×81mm (W×H×D)
[All Inclusive]
Weight 200g
Chassis Material Aluminum
Silkscreen Colour Black
Operating Temperature 0 ˚C–40 ˚C/32 ˚F–104 ˚F
Storage Temperature -20 ˚C–60 ˚C/-4 ˚F–140 ˚F
Relative Humidity 20–90% RH (Non-condensing)
Power Consumption 7W

14
8.2 Video Specifications
Supported PC Resolutions (Hz)
HDMI
Input
HDBaseT
Output
640×480 60, 72, 75, 85  
720×400 70, 85  
800×600 56, 60, 72, 75, 85  
1024×768 60, 70, 75, 85  
1152×864 75  
1280×720 50, 60  
1280×768 60, 75, 85  
1280×800 60, 60 (RB)  
1280×960 60  
1280×1024 60  
1360×768 60  
1366×768 60  
1400×1050 60, 60 (RB)  
1440×900 60, 60 (RB)  
1600×900 60  
1600×1200 60  
1680×1050 60, 60 (RB)  
1920×1080 60  
1920×1200 60, 60 (RB)  

15
Supported TV Resolutions (Hz)
HDMI
Input
HDBaseT
Output
720×480i 59.94, 60  
720×576i 50  
720×480p 59.94, 60  
720×576p 50  
1280×720p 50, 59.94, 60  
1920×1080i 50, 59.94, 60  
1920×1080p 50, 59.94, 60  
1920×1080p 23.97, 24, 25, 29.97, 30  
3840×2160p 24, 25, 30  
4096×2160p 24, 25, 30  
3840×2160p
(YUV 4:2:0)
50, 60  
3840×2160p 24, 25, 30 (10, 12-bit HDR)  
(AVLC)
3840×2160p
(YUV 4:2:0)
50, 60 (10, 12-bit HDR)  
(AVLC)
3840×2160p 50, 60  
(AVLC)
8.3 Audio Specications
Digital (S/PDIF) Input
Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192

16
8.4 Cable Specifications
HDMI Cable
Length
1080p 4K
8-bit 12-bit 8-bit
Output 10m 10m 5m
Cat. Cable
Length 1080p 4K
Cat.5e 70m 35m
Cat.6 70m 35m
Cat.7 70m 35m
Full HD Video (1080p)
-Up to 1080p@60Hz, 12-bit colour
-Data rates lower than 5.3Gbps or below 225MHz TMDS clock
Ultra HD Video (4K)
-4K@24/25/30Hz & 4K@50/60Hz (YUV 4:2:0), 8-bit colour
-4K@50/60Hz (4:4:4, 8-bit) with AVLC active
-Data rates higher than 5.3Gbps or above 225MHz TMDS clock
8.5 HDBaseT Features
HDBaseT Feature Supported
Video & Audio 
IR Pass-through 
RS-232 Pass-through 
Accept power from Transmitter 
Send power to Transmitter ×
LAN Pass-through ×

17
9. ACRONYMS
ACRONYM COMPLETE TERM
AVLC Adaptive Visually Lossless Compression
Cat.5e Category 5 (enhanced) cable
Cat.6 Category 6 cable
Cat.7 Category 7 cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
EDID Extended Display Identification Data
HD High-Definition
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Multimedia Interface
HDR High Dynamic Range
IR Infrared
LPCM Linear Pulse-Code Modulation
OAR Optical Audio Return
PC Personal Computer
PD Powered Device
PoH Power over HDBaseT
PSE Power Sourcing Equipment
S/PDIF Sony/Philips Digital Interface Format
UHD Ultra-High-Definition
UHDTV Ultra-High-Definition Television
USB Universal Serial Bus
