CYP CFSW-51MHL User manual

CFSW-51MHL
5 by 1 HDMI/MHL Fast Switcher
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 01/04/11 Preliminary Release
VS1 22/03/13 Updated format/diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Remote Control................................5
6.4 RS-232 Protocol.................................6
6.5 Remote Command Protocol..........7
7. Connection Diagram ............................ 8
8. Specications ........................................ 9
9. Acronyms ............................................... 9

1
1. INTRODUCTION
The 5 by 1 HDMI/MHL Fast Switcher has MHL (Mobile High-Denition
Link) interface integrated on its fth input which can be used to
share high denition video and audio from any of your MHL-ready
mobile devices on an HDTV, and simultaneously charge the device
whilst connected. The switcher supports 3D signal up to 2.25Gbps
bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features
dened by HDMI specications, on all of its 5 input. Source selection
can be easily controlled through on-panel buttons, IR remote control
or by RS-232 protocol.
2. APPLICATIONS
• Smart home entertainment
• Show room or meeting room
• Smart AV installation
• Mobile device integration
3. PACKAGE CONTENTS
• 1× 5 by 1 HDMI/MHL Fast Switcher
• 1×5V DC Power Adaptor
• 1×IR Extender Cable
• 1×MHL to HDMI Cable
• 1×Remote Control with Battery (CR-113)
• Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI sources such as PS3 or Blu-ray players for ports 1 to 5 using
standard HDMI cabling. The fth port can be connected to an MHL-
ready mobile device with an MHL to HDMI cable.
• HDMI equipped display.

2
5. FEATURES
• Supports InstaPort Technology™
• Supports ve HDMI input ports, the fth port is an HDMI/MHL port
• Supports one HDMI output
• Supports video resolutions up to 1080p@60 Hz
• Supports HDMI specication features, including data rates up to
2.25Gbps and12-bit Deep Color
• Supports 3D signal
• MHL port supports 1080p@30 Hz or 1080i@60 Hz resolutions
• MHL port supports charging of a connected mobile device

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL
54321
POWER
INPUT
1 2 3
1IR
Receiver
Supports reception of IR codes from the system's IR remote control
only.
2INPUT
Press the 'INPUT' source button to select the required input source,
the blue LED will indicate the selected source.
3POWER
Press this button to switch the device 'ON' or press it again to put
it into standby mode. When the system is on the green LED will
illuminate.

4
6.2 Rear Panel
DC 5V
54321
MHL/HDMI
HDMI IN
HDMI OUT
RS232
IR IN
1 2 3 4 5
1IR IN
Connect to the supplied IR extender cable for receiving the IR
remote signal for this device only.
2RS232
Connect to a PC or control system with D-Sub 9-pin cable for RS-
232 control. For RS-232 commands please refer to section 6.4.
3HDMI OUT
Connect to LCD TV or HD monitor with an HDMI cable.
4HDMI IN
Connect HDMI sources to the HDMI inputs 1 to 5 such as DVD
players, Blu-ray players, PS3s or other sources with HDMI cables. The
fth input can be used to connect to HDMI or MHL-Ready mobile
devices.
 Note:WhenanMHLdeviceisconnectedtothefthMHL-ready
inputitwillbechargedautomatically.IftheMHLdeviceisswitched
offwhenconnected,itwillbeturnedonautomatically.
5DC 5V
Connect the DC 5V power supply into the system and plug the
adaptor to an AC wall outlet.

5
6.3 Remote Control
1Power
Press this button to switch the
device on or to put the device
into standby mode.
2HDMI 1~5
HDMI Input selection keys. Press a
key to directly select that input.
 Note:Forthismodelonlykeys1~5
areactive.
3Mute/Vol +/Vol -
These buttons control the volume
level or mute the audio from the
MHL mobile device or CEC-enabled source devices connected to
MHL input port.
4
These buttons can control what is playing on the MHL input source
(including CEC-enabled source devices or MHL mobile device),
play/pause and track skip forward/backwards.
 Note:InordertocontroltheMHLmobiledevice,thescreentime-
outsettingmustbesetto'OFF'.
5Input
Press this button to cycle through the input selections (from 1~5).
6Menu
Press this button to enter the input source's root menu (including
CEC-enabled source devices or MHL device).
7▲▼◄► & Enter
These buttons will control the input source's OSD menu selection.
 Note:Forthesystemtocontrolfunctions3~6,theinputsource
devicemustbeanHDMICEC-enableddevicewithitsCECfeature
turnedon.Pleaserefertothemanualforthesourcedeviceforthe
instructions.
8Exit
Press this button to exit the selection.
Menu Input
HDMI 1HDMI 2HDMI 3
HDMI 6
HDMI 4HDMI 5
Vol +
HDMI 7HDMI 8
Mute
Vol -
Exit
Enter
CR-113
1
2
4
5
7
3
6
8

6
6.4 RS-232 Protocol
CFSW-51MHL
►
◄
REMOTE CONTROL
Pin Assignment Pin Assignment
1 NC 1 NC
2TxD 2RxD
3RxD 3TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8-bit
Parity: None
Flow Control: None
Stop Bit: 1-bit
COMMANDS ACTION
POWER 00 Power Off (standby)
POWER 01 Power On
PORT 01 Output Select Input 1
PORT 02 Output Select Input 2
PORT 03 Output Select Input 3
PORT 04 Output Select Input 4
PORT 05 Output Select Input 5
AUTO 00 AUTO switch off
AUTO 01 AUTO switch on
ISP 01 Software ISP process
RCP 00-7f RCP (remote command protocol) command
Note:TheRS-232commandswillnotbeacceptedunlessfollowedby
acarriagereturn.

7
6.5 Remote Command Protocol
Opcode Key Name Opcode Key Name Opcode Key Name
0x00 Select 0x2B Enter 0x4D-0x4F Reserved
0x01 Up 0x2C Clear 0x50 Angle
0x02 Down 0x2D-02xF Reserved 0x51 Subpicture
0x03 Left 0x30 Channel Up 0x52-0x5F Reserved
0x04 Right 0x31 Channel
Down
0x60 Play Function
0x05 Right-Up 0x32 Previous
Channel
0x61 Pause_Play
Func.
0x06 Right-Down 0x33 Sound Select 0x62 Record
Function
0x07 Left-Up 0x34 Input Select 0x63 Pause_Record
Func.
0x08 Left-Down 0x35 Show Info 0x64 Stop Function
0x09 Root Menu 0x36 Help 0x65 Mute Function
0x0A Setup Menu 0x37 Page Up 0x66 Restore_
Volume Func.
0x0B Contents
Menu
0x38 Page Down 0x67 Tune Function
0x0C Favorite Menu 0x39-0x3F Reserved 0x68 Select_Media
Func.
0x0D Exit 0x40 Reserved 0x69 Reserved
0x0E-0x1F Reserved 0x41 Volume Up 0x6A Reserved
0x20 Numeric 0 0x42 Volume Down 0x6B-0x70 Reserved
0x21 Numeric 1 0x43 Mute 0x71 F1
0x22 Numeric 2 0x44 Play 0x72 F2
0x23 Numeric 3 0x45 Stop 0x73 F3
0x24 Numeric 4 0x46 Pause 0x74 F4
0x25 Numeric 5 0x47 Record 0x75 F5
0x26 Numeric 6 0x48 Rewind 0x76-0x7D Reserved
0x27 Numeric 7 0x49 Fast Forward 0x7E Vendor_
0x28 Numeric 8 0x4A Eject Specic
0x29 Numeric 9 0x4B Forward 0x7F Reserved
0x2A Dot 0x4C Backward

8

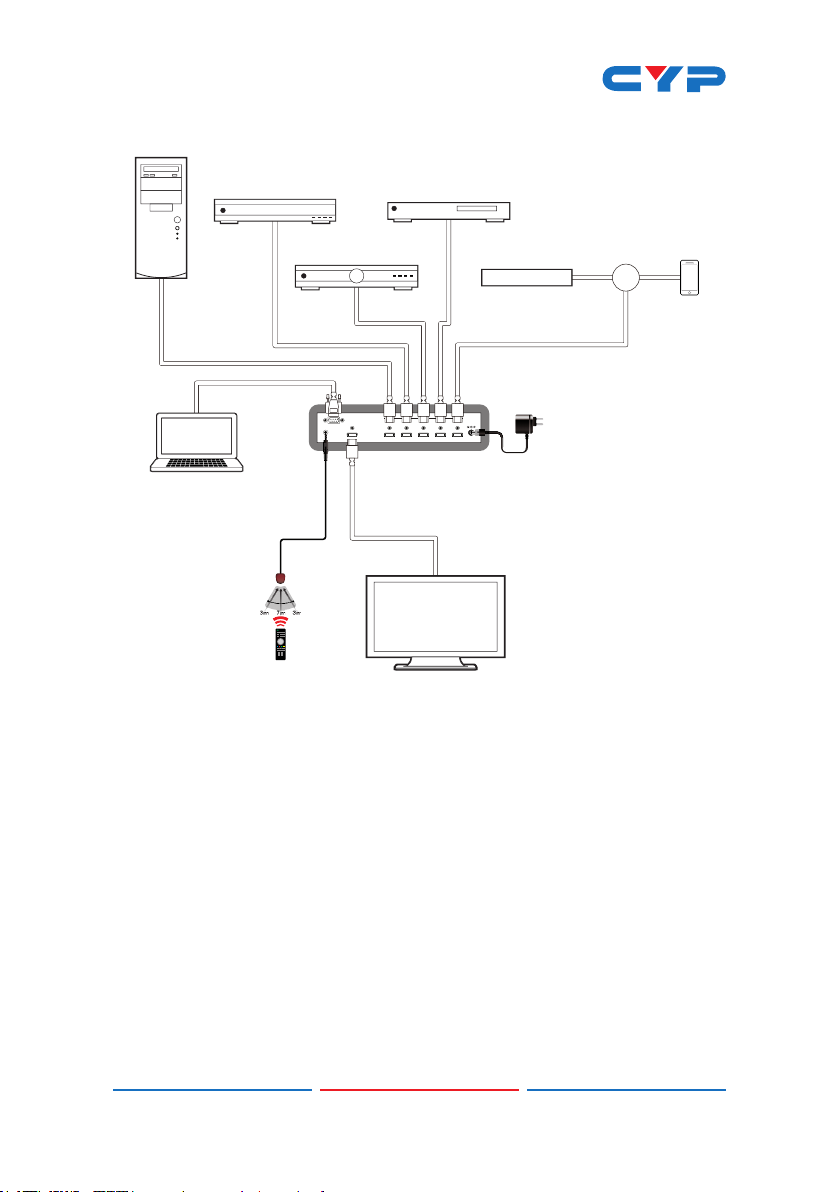

7. CONNECTION DIAGRAM
DC 5V
54321
MHL/HDMI
HDMI IN
HDMI OUT
RS232
IR IN
OR
60°
MHL
to HDMI
HDMI
Power Supply
HDTV
HDMIHDMI
RS-232
HDMI HDMI HDMI
Set-top Box
PC
Blu-ray Player
Satellite Recever Media Player Smartphone
Remote
IR Extender
RS-232 Equipped
PC or Notebook

9
8. SPECIFICATIONS
Video Bandwidth 225 MHz/6.75 Gbps
Input Ports 5×HDMI
Output Port 1×HDMI
Resolution Support VGA~WUXGA@60 (RB)
480i/p, 576i/p, 720p@50/60/120
1080i@50/60, 1080p@24/30/50/60
(MHL only supports 1080p@30 & 1080i@60)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 240 mm (W)×110 mm (D)×49 mm (H)
Weight 792 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90% RH (No Condensation)
Power Consumption 3 W
9. ACRONYMS
ACRONYM COMPLETE TERM
CEC Consumer Electronics Control
HDMI High-Denition Multimedia Interface
MHL Mobile High-Denition Link

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
