CYP EL-5500-HBT User manual

EL-5500-HBT
8 x 4 HDBaseT™ / HDMI / VGA Presentation Switch
(With switchable digital bypass output)
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 24/09/14 First release

5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 Remote Control .......................................10
6.4 RS-232 Pin Assignment..........................11
6.5 RS-232/Telnet Commands....................12
6.6 OSD Menu ..................................................15
7. Connection Diagram .......................... 19
8. Specications...................................... 20
8.1 Input Resolution Support.....................20
8.2 Input Resolution Support.....................21
8.3 Output Resolution Support.................22

6
1. INTRODUCTION
The EL-5500-HBT is an advanced rack mountable HDBaseT™, HDMI,
VGA, Composite, and Component presentation switcher. This device
can scale and switch eight input sources to it's two HDMI outputs and a
single HDBaseT output, with their associated audio signals to the native
resolutions supported by the connected display. This presentation switch
also features a switchable digital bypass output allowing any HDMI or
HDBaseT input to be directly bypassed via the HDMI bypass output.
Control is via the IR remote, RS-232, IP, or via manual selection buttons.
Both digital and analogue stereo audio is supported via a built-in DAC
(Digital to Analogue Converter) and ADC (Analogue to Digital Converter)
providing exible audio signal integration. The EL-5500-HBT is the perfect
solution for any educational or commercial environment requiring
integration of multiple sources and signal formats to two HDMI displays.
2. APPLICATIONS
Home Theater/Entertainment
Lecture Room/Hall Presentation
Show Room/Demo Room
Public Commercial Display
Information Board
3. PACKAGE CONTENTS
1×8 by 4 Presentation Scaler
1×IR Extender Cable
1×IR Receiver Cable
1×Remote Control with Battery
1×24V/ 2.7A DC Power Adaptor
1×Power Cord
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box
and output HDMI TV/Display and or audio amplier with connection
cables.

7
5. FEATURES
HDMI, HDCP, and DVI compliant
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Supported Resolutions: HDTV: 480i to 1080p PC: VGA to WUXGA
Aspect Ratio Adjustment
Motion Adaptive De-interlace (3D)
Video Noise Reduction
Underscan / Overscan Selection
Picture Adjustment Settings
HDBaseT Input/Outputs support PoE (Power over Ethernet) through to
compatible connected receiver
Independent HDMI bypass output (switching digital inputs only)
Supports HDBaseT LAN Serving function
Supports IR/RS-232/IP and front panel button control

8
6. OPERATION CONTROLS AND FUNCTIONS

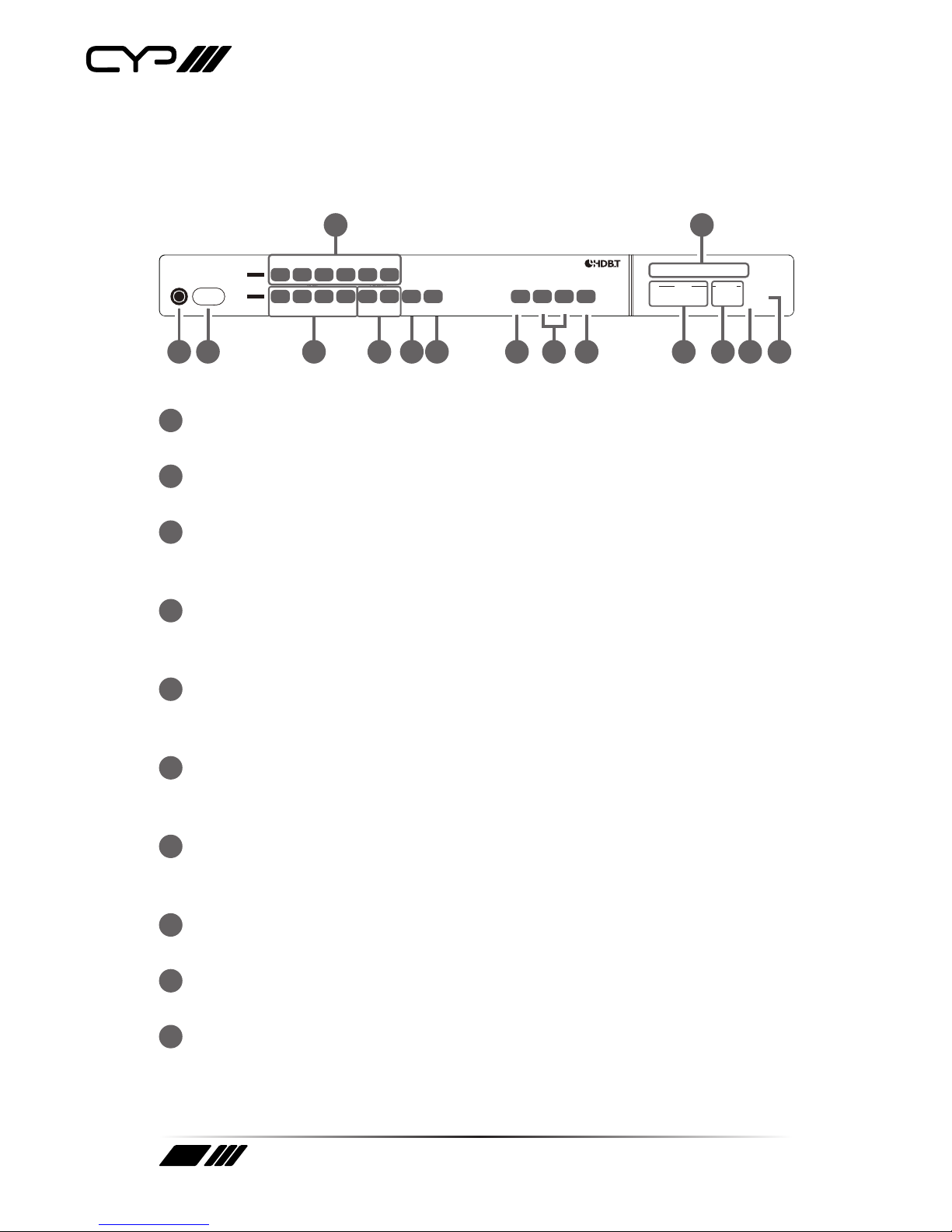

6.1 Front Panel
POWER
123456
123456
78
PC CV
MENU ENTER
-
+
HDMI CA5e/6/7 HDMI CAT5e/6/7
123456
12345678
CVPC
BYPASS
INPUT
1 2 3 65 7 8 10 3
4
6 79
4
5
1POWER: Press this button to turn ON the device and the LED will
illuminated.
2IR Window: This IR receiver receives only the remote control signal
from the packaged included remote control.
3INPUT HDMI 1~4 & LED: Press the IN buttons to select an input
source signal from the 4 HDMI input sources to be display for output
ports. The LED will illuminate according to the selection.
4BYPASS & LED: Press these buttons to select an input source signal
from the 6 input sources to be display for BYPASS output port. The
LED will illuminate according to the selection.
5INPUT CAT5e/6/7 5~6 & LED: Press the IN buttons to select an input
source signal from the 2 CAT5e/6/7 input sources to be display for
output ports. The LED will illuminate according to the selection.
6INPUT PC & LED: Press this button to select PC input source signal to
be display for PC output port. The LED will illuminate according to the
selection.
7INPUT CV & LED: Press this button to select CV input source signal s
to be display for CV output port. The LED will illuminate according to
the selection.
8MENU: Press this wheel to enter into the menu and press it again to
conrm the selection.
9+/-: Press these buttons to move up/down under menu selection or
under volume control to adjust audio volume up/down.
10 ENTER: Press this button to conrm menu selection.

9
6.2 Rear Panel
IR IN
HDMI 1HDMI 2
SERVICE 2
COAX
AUDIO
AUDIO AUDIO 7AUDIO 1 AUDIO 2 AUDIO 3 AUDIO 4
HDMI
BYPASS
CAT5e/6/7CAT5e/6/7 CAT5e/6/7 PC
HDMI 1 HDMI 2 HDMI 3HDMI 45 67
INPUT RLCV
8
LAN
RS-232
DC 24 V
OUTPUT
IR OUT
SERVICE 1
ON OFF
DSP PROG.
1
2 6 8 13 14 16
5 7
3 7 9 10 12 15 17114
1IR OUT: Connect to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
2IR IN: Connect to the supplied IR Extender cable for IR signal
reception. Ensure that remote being used is within the direct line-of-
sight of the IR Extender.
3OUTPUT CAT5e/6/7: Connect to the Receiver unit with a Single
CAT5e/6/7 cable for transmission of all data signals.
4OUTPUT HDMI: Connect to a HDMI equipped TV/monitor for display
of the HDMI input source signal.
5OUTPUT COAX: Connect to audio sound equipment such as speaker
or amplier for audio sound output.
6OUTPUT AUDIO: Connect to audio sound equipment such as speaker
or amplier for audio sound output.
7SERVICE 1& 2: These slots are reserved for rmware update use only.
8DSP PROG Switch: This switch is reserved for rmware update use
only.
9BYPASS: Connect to a HDMI equipped TV/monitor or DVI equipped
monitor with audio sound equipment such as speaker for both video
and audio output display.
10 INPUT HDMI 1~4 & AUDIO 1~4: Connect to HDMI source equipment
such as DVD or Blu-ray player along or to DVI source equipment along
with audio source signal.
11 INPUT CAT5e/6/7: Connect this port to HDMI to CAT5e/6/7
Transmitter with CAT5e/6/7 cable to extend the signal up to 100m.

10
12 INPUT PC & AUDIO: Connect this port to PC/Laptop with audio signal
for input signal selecting.
13 INPUT CV: Connect this port to source equipment such as video
player or Set-Top-Box for input signal selecting.
14 RS-232: Connect from PC/Laptop for RS-232 command sending to
control the device.
15 LAN: Connect from PC/Laptop with active internet service for Web
GUI control with RJ-45 terminated cable.
16 POWER Toggle: Switch this toggle to turn ON and OFF the device’s
power.
17 DC 24V: Connect the adaptor with power cord included in the
package and connect to AC wall outlet for power supply.
6.3 Remote Control
1POWER:
Press this button to switch the device
ON or to put the device into Standby
mode.
2MUTE:
Press this button to mute output audio
sound.
3INPUT:
Press these buttons one time each to
select input source for outputs display.
4MENU:
Press this button to enter into the On-
Screen Menu.
5EXIT:
Press this button to exit menu
selection.
6▲▼◄► & OK:
Press OK to conrm the selection or use
the directional buttons to navigate the On-Screen-Menu.
MUTE
CAT5e/6/7
POWER
EXIT MENU
RESET ADJUST
- +
CR-135
OK
HDMI 1 CAT5e/6/7 1
HDMI 2
HDMI 3
CAT5e/6/7 2
HDMI 4
HDMI 4
HDMI 1 1PC
HDMI 2 2CV
HDMI 3
INPUT
BYPASS
12
5
8
3
9
4
7
6

11
7ADJUST:
Auto PC adjust.
8RESET:
Resets the unit to factory default settings.
9BYPASS:
Selects the source for the Bypass output.
6.4 RS-232 Pin Assignment
EL-5500-HBT
►
◄
Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19,200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

12
6.5 RS-232/Telnet Commands
COMMAND DESCRIPTION
S SOURCE 1~8 1=HDMI 1
2=HDMI 2
3=HDMI 3
4=HDMI 4
5=HDBT 1
6=HDBT 2
7=PC
8=VIDEO
R SOURCE Reports the numerical equivalent for SOURCE
setting (as above)
S OUTPUT 1~25 0=640×480
1=800×600
2=1024×768
3=1280×768
4=1360×768
5=1280×720
6=1280×800
7=1280×1024
8=1440×900
9=1400×1050
10=1680×1050
11=1600×1200
12=1920×1080
13=1920×1200
14=480p
15=720p@60
16=1080p@60
17=1080i@60
18=576p
19=720p@50
20=1080p@50
21=1080i@50
R OUTPUT Reports the numerical equivalent for OUTPUT
setting (as above)
S SIZE 0~6 0=OVERSCAN
1=FULL
2=BEST FIT
3=PAN SCAN
4=LETTER BOX
5=UNDER 2
6=UNDER 1
R SIZE Reports the numerical equivalent for SIZE setting
(as above)
S INPUTHDCP 0/1
R INPUTHDCP
HDMI support HDCP status (0=OFF, 1=ON)
Reports HDMI support HDCP status
S CONTRAST 0~60 Setups the numerical equivalent for CONTRAST
setting (as left)
R CONTRAST Reports the numerical equivalent for CONTRAST
setting
S BRIGHTNESS 0~60 Setups the numerical equivalent for BRIGHTNESS
setting (as left)

13
COMMAND DESCRIPTION
R BRIGHTNESS Reports the numerical equivalent for BRIGHTNESS
setting
S HUE 0~60 Setups the numerical equivalent for HUE setting (as
left)
R HUE Reports the numerical equivalent for HUE setting
S SATURATION 0~60 Setups the numerical equivalent for SATURATION
setting (as left)
R SATURATION Reports the numerical equivalent for SATURATION
setting
S SHARPNESS 0~30 Setups the numerical equivalent for SHARPNESS
setting (as left)
R SHARPNESS Reports the numerical equivalent for SHARPNESS
setting
S NR 0~3 0=OFF
1=LOW
2=MIDDLE
3=HIGH
R NR Reports the numerical equivalent for the NOISE
REDUCTION setting (as above)
S VOLUME 0~100
R VOLUME
Volume Value
Reports Volume value
S AUDIO DELAY 0~3 0=OFF
1=40ms
2=110ms
3=150ms
R AUDIO DELAY Reports the numeric equivalent for AUDIO DELAY
setting (as above)
S AUDIO MUTE 0/1 0=ON 1=MUTE
R AUDIO MUTE Reports the numeric equivalent for AUDIO MUTE
setting (as above)
S HDMIAUDIO 0/1 0=AUTO
1=EXT.
R HDMIAUDIO Reports HDMI AUDIO Status
S KEY LOCK 0/1 0=ENABLE 1=DISABLE
R KEY LOCK Reports the numeric equivalent for KEY
LOCK setting (as above)
S FREERUNCOLOR 0/1 0=ENABLE 1=DISABLE
R FREERUNCOLOR Reports the numeric equivalent for AUDIO
SELECT setting (as above)

14
COMMAND DESCRIPTION
S HDBTUART 0/1 0=ENABLE 1=DISABLE
R HDBTUART Reports the numeric equivalent for HDBTUART
setting (as above)
S AUTOSCAN 0/1 0=ENABLE 1=DISABLE
R AUTOSCAN Reports the numeric equivalent for AUTOSCAN
setting (as above)
S BYPASS 1-6 1=HDMI / 2=HDMI2 / 3=HDMI3 /4=HDMI4 /
5=HDBT1 / 6=HDBT2
R BYPASS Reports the numeric equivalent for BYPASS setting
(as above)
S RESET 1 Setups the numerical equivalent for RESET
setting (as left)
S POWER 0/1 0=OFF 1=ON
R POWER Reports the numeric equivalent for POWER setting
(as above)
PORT 0~8 0=HDMI
4=HDMI 4
7=VIDEO
1=HDMI 2
5=HDBT 1
3=HDMI
36=HDBT2
8=PC Last Memory
VOL +
VOL -
Volume Value
Volume Value
GETIP Shows IP Address / MAC Address
ST FW Version & Source
Note:
1. Audio Delay is only supported on Analog Stereo output.
2. When the HDMI input is encoded with HDCP, no image will be output
from the PC/HD output.
3. Only LPCM 2 channel digital audio is supported, please ensure that
the source audio is set to LPCM 2 channel audio in order to avoid
unnecessary audio noise.
4. RS-232 commands will be not executed unless followed with a carriage
return and LF. Commands are case-insensitive.

15
6.6 OSD Menu
1st Layer 2nd Layer 3rd Layer Remark
DISPLAY OUTPUT 640X480 60
800x600 60
1024x768 60
1280x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720X480P 60
1280X720P 60
1920X1080I 60
1920X1080P 60
720X576P 50
1280X720P 50
1920X1080I 50
1920X1080P 50

16
1st Layer 2nd Layer 3rd Layer Remark
DISPLAY SIZE OVER SCAN
FULL
FOLLOW INPUT
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1
MODE INFO OFF
INFO
ON
INPUT HDCP
(HDMI mode
only)
OFF
ON
PC
(PC mode
only)
AUTO SETUP Yes/No(Default No)
(PC mode only) 0~60
V_POSITION 0~60
PHASE 0~31
CLOCK
WXGA/XGA XGA/WXGA(Default XGA)
RESET Yes/No(Default No)

17
1st Layer 2nd Layer 3rd Layer Remark
COLOR CONTRAST 0~60(Default 30)
BRIGHTNESS 0~60(Default 30)
COLOR R 0~1023(Default 512)
G 0~1023(Default 512)
B 0~1023(Default 512)
R OFFSET 0~1023(Default 512)
G OFFSET 0~1023(Default 512)
B OFFSET 0~1023(Default 512)
HUE 0~60(Default 30)
SATURATION 0~60(Default 30)
SHARPNESS 0~30(Default 0)
NR. OFF
LOW
MIDDLE
HIGH
AUDIO VOLUME 0~100(Default 100)
DELAY OFF
40mS
110mS
150mS
SOUND ON
MUTE
SOURCE
(HDMI mode
only)
AUTO

18
1st Layer 2nd Layer 3rd Layer Remark
SETUP FACTORY RESET OSD Setting back to
factory default
KEY LOCK OFF
ON
POWER SAVE OFF
ON
IP MODE DHCP
STATIC
SET STATIC IP IP ADDRESS 0.0.0.0~
255.255.255.255
(Default 192.168.0.1)
SUBNET MASK 0.0.0.0~
255.255.255.255
(Default 255.255.255.0)
Def. GATWAY 0.0.0.0~
255.255.255.255
(Default 192.168.0.254)
FREERUN
COLOR
BLUE
BLOCK
MISC. HDBTOUT
(UART1)
HDBT1~2(Default HDBT1)
AUTOSCAN OFF (Default=OFF)
ON
INFORMATION INPUT:
OUTPUT:
REVISION:
IP ADDRESS:
7. CONNECTION DIAGRAM

19
7. CONNECTION DIAGRAM

20
8. SPECIFICATIONS
8.1 Input Resolution Support
Frequency bandwidth Up to 10.2Gbps
Input Ports 4 x HDMI
4 x L/R
2 x CAT5e/6/7
1 x PC + L/R
1 x CV+L/R
2 x USB (Service only)
1 x LAN
1 x RS-232
1 x IR
Output ports 2 x HDMI
1 x HDMI Bypass
1 x CAT5e/6/7
1 x Coaxial
1 x L/R
Resolution 480i~1080p@50/60, 1080p@24,VGA~WUXGA(RB)
Audio Format LPCM 2CH, Dolby Digital 2~5.1CH/ DTS 2~5.1CH
(Pass through)
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 24VDC/2.7A (US/EU standards, CE/FCC/UL certied)
Dimensions 438mm (W) x 269mm (D) x 44mm (H)/Jack
Excluded
438mm (W) x 275mm (D) x 44mm (H)/Jack Included
Weight 3410g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption
