DCS-700L
Quick Install Guide
Wi-Fi Baby Monitor
Day / Night Cloud Camera

Before you Begin
• Please save this guide for future reference.
• Read these instructions before using your product.
• Do not cover the ventilation holes.
• Do not cover this product with a blanket.
• Do not allow children to play with this product.
• Do not allow this product to get wet. Only use a dry cloth to clean it.
• Do not place this product near water or other liquids, such as near a sink,
shower, or bathtub.
• Do not attempt to open or disassemble this product.
• This product is not a replacement for responsible adult supervision.
WARNING - STRANGULATION HAZARD
Children have STRANGLED in cords. Keep adapter
cord out of reach of children (minimum of 3 ft or 1m
away). NEVER place the camera or adapter cord inside the
crib or child sleeping area. Do not use extension cords. This
product is NOT intended to replace proper supervision of
children.
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or
registered trademarks of D-Link Corporation or its subsidiaries. All other third-party marks
mentioned herein may be trademarks of their respective owners. This publication may
not be reproduced, in whole or in part, without prior express written permission from
D-Link Systems, Inc.
2

If any of the above items are missing, please contact your reseller.
DCS-700L Wi-Fi Baby Monitor
Power Adapter
Quick Install Guide
Package Contents
Wall Mount Kit
Blue and Pink Accent Rings
Minimum Requirements
• Smartphone or tablet:
Refer to the mydlink Baby app page on the App Store and Google Play
• Computer with:
• 1.3GHz processor or above and at least 128 MB RAM
• Microsoft Windows® 8, 7, Vista®, or Mac OS® X (10.6 or higher)
• Internet Explorer® 7, Firefox® 12, Safari® 6, or Chrome™ 20 or higher
with Java installed and enabled
• Internet access required for remote viewing
• 802.11g/n Wi-Fi network (Wireless N network recommended for
optimal performance)
3

Hardware Overview
Front View
Microphone
Front Accent Ring
Camera Base
Light Sensor
Camera Lens
Back View
Direct Connect
Button
Reset Button
Power LED
Cloud/Direct
Mode LED
Night Vision Light (IR)
MicroUSB
Power Port
Speaker
4

Camera Setup Options
Connect to your DCS-700L through your home wireless network.
2. Remotely...
Connect to your DCS-700L using the Internet.
Note: You can also connect directly to your DCS-700L wirelessly, so there is no need
for an Internet connection or a router. See the Advanced Features section of the
User Manual for details. Go to mydlink.com/support to download the DCS-700L
User Manual.
1. At Home...
5

Installation
Download the free mydlink Baby Camera app on your smartphone
or tablet.
WARNING - STRANGULATION HAZARD
Children have STRANGLED in cords. Keep adapter cord out of
reach of children (minimum of 3 ft or 1m away). NEVER place the
camera or adapter cord inside the crib or child sleeping area. Do
not use extension cords. This product is NOT intended to replace
proper supervision of children.
1
2Launch the mydlink Baby Camera app.
6

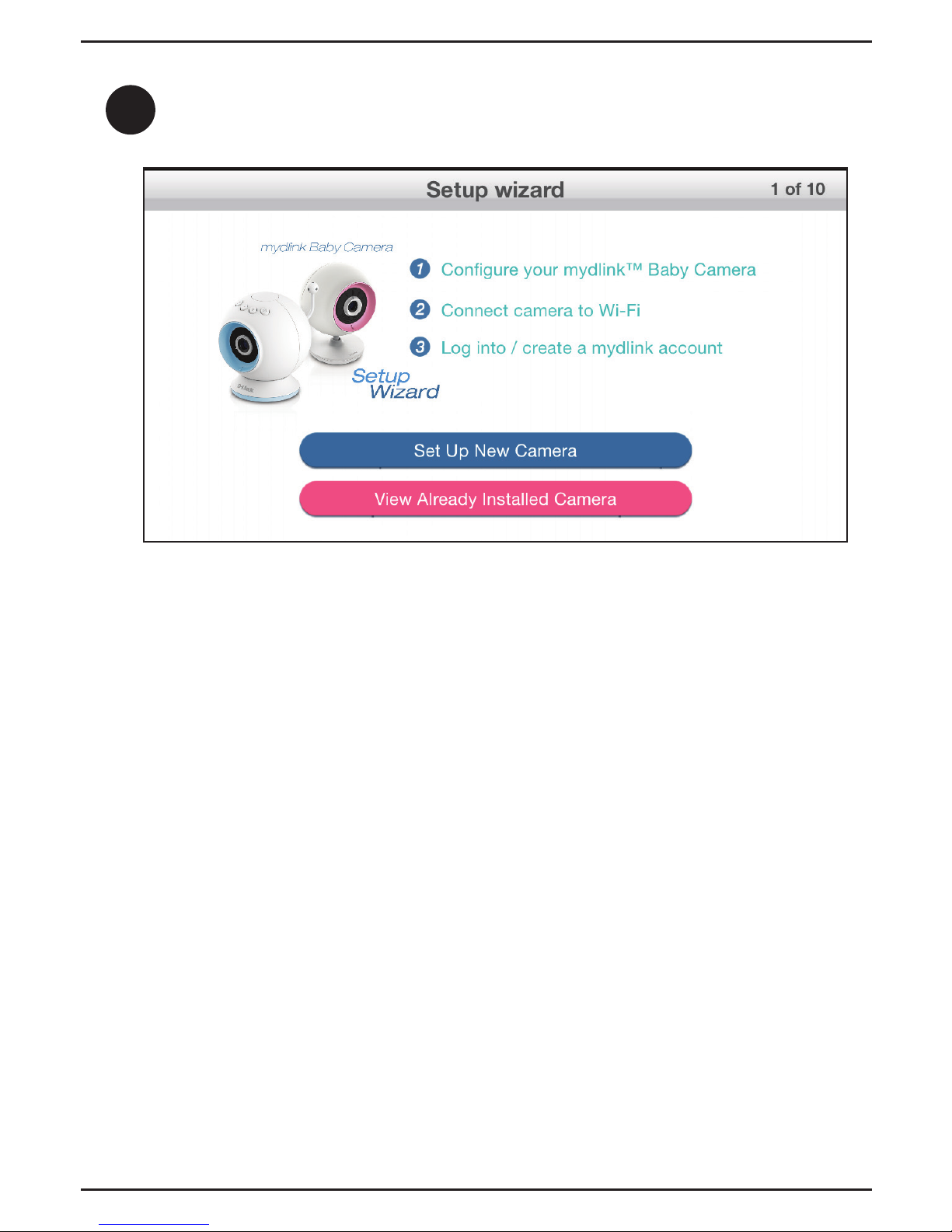

Tap Setup on the start screen to launch the Setup Wizard. It will guide
you through the conguration process.
3
7

Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Warning: Indoor use only. Do not mount in a location where it may
be in contact with water as it may damage the product and/or cause
injury.
Use a 6mm drill bit to drill two holes 36mm
apart, and at least 30mm deep.
36mm
30mm
Place the mounting holes on the base of the
camera over the screws as shown, then slide
the camera down to mount the camera.
FCCID:KA2CS800LA1
IC:4216A-CS800LA1
CANICES-3 (B)/NMB-3(B)
Model:DCS-800LA1
DCS- 8 0
0L
Make sure the camera is positioned so that
the D-Link logo is at the bottom of the base.
Adjust the angle of the camera as desired.
Then use a mallet to insert the wall anchors
into the holes. Screw the included screws
into the wall anchors.
8

FAQs
1. How do I change the accent ring?
Rotate the accent ring counterclockwise, then lift it o. Put the new ring on and rotate
it clockwise until it clicks into place.
2. I started the mydlink Baby Camera app, but I can’t nd my camera.
• Make sure your camera is turned on and receiving power.
• If you have set up your camera before, make sure your smartphone or tablet is
connected to the same router as your camera.
• If you are setting up a new camera, or using the camera away from home, make
sure your smartphone or tablet is connected to the camera’sWi-Fi signal (not your
wireless router).
• The Wi-Fi network name is [myBabyCam-XXXX], where XXXX is the last four digits
of your camrea’s MAC address. (This number can be found on the label on the
bottom of your DCS-700L.)
• TheWi-Fi network name and password is printed on a label on the bottom of your
camera and on the back of this install guide.
• If you still can’t nd your camera, reset your camera by pressing its reset button for
10 seconds (while it is powered on).
3. Why is there a white haze when viewing in night vision mode?
The night vision light on the camera may be reecting o a nearby surface. Try
repositioning and aiming the camera.
4. How can you power the camera?
The camera can be powered with the provided power adapter or you can use an
external USB battery for total portability. (USB battery is not included. Requires 5V/2A
output.)
5. How do I access the camera remotely?
You can set up a new mydlink account and register the camera with mydlink services
during the initial setup. Once the process is complete, log in to your mydlink account
by tapping the mydlink Login button on the Home screen. With mydlink, you can
monitor your baby from anywhere as long as your smartphone or tablet is connected
to the Internet (over Wi-Fi or over the cellular network).
Note: If you don’t enable mydlink services, you will only be able to view the camera within
your home’s wireless coverage area.
9

6. Should the app be running constantly on my device?
The app can run in the background, allowing you to hear your baby continuously,
even when the phone is locked. The smartphone or tablet can still be used normally
while the app is running. If you do not want to hear audio from the camera when the
app is open, you can turn o the Background audio on the Conguration menu. If
you close the app, the camera audio will be turned o.
7. How do I adjust the sensitivity of motion and audio detection?
From the Live View page, tap on the screen to reveal the icons, and tap the
Conguration icon ( ) to go to the Conguration menu. Tap the Events arrow to
access the motion and audio detection settings.
8. What can I do if I forget my password?
If you forget your password, you must reset the
camera. Unfortunately, this process will change
all your settings back to factory default. To reset
the camera, locate the reset button on the back of
the camera. With the camera powered on, use an
unfolded paper clip to hold the button down for 10
seconds.
Reset
10

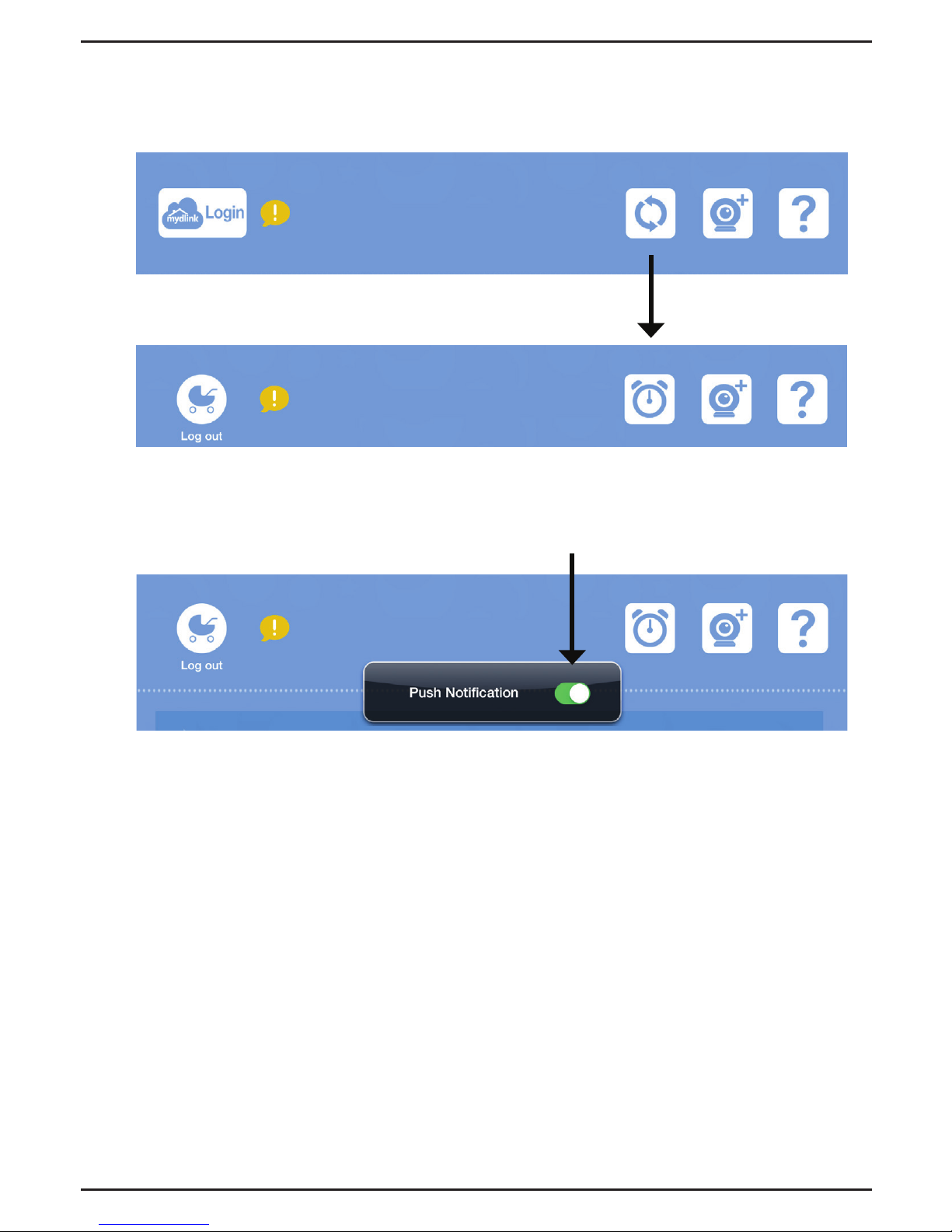

9. How do I activate push notications?
Note: If you do not receive alerts, go to the Conguration menu and adjust the
sensitivity level of sound and motion detection as described on the previous page,
question 7.
A. Go to the Home page and log in.
B. After logging in, you will notice that the refresh icon
on the top right has changed to an alarm clock icon.
C. Tap on the alarm clock icon, and you will see the Push Notication setting. Tap
on the switch icon to activate push notications. The switch icon will turn
green, and you should begin to receive alerts as specied.
11

Notes
12

Notes
13

Notes
14

Notes
15

Technical Support
This guide is only for the rst time conguration. Refer to the user manual to
learn more, or visit http://support.dlink.com (USA) for more information. Also feel
free to contact us through our website.
Version 1.0(US)_90x130
June 30, 2014
6DCS700LQA01G
©2014 D-Link. All rights reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation
or its subsidiaries. All other third party marks mentioned herein may be trademarks of their respective owners. Maximum
wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary.
Network conditions and environmental factors, including volume of network trac, building materials and construction,
and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal
range. Product specications, size and shape are subject to change without notice, and actual product appearance may
dier from that depicted on the packaging. This publication may not be reproduced, in whole or in part, without prior
express written permission from D-Link Systems, Inc. Visit www.dlink.com for details.
Camera Wi-Fi Network Details:
Your Camera
Password:
http://support.dlink.com
