D-Link DCS-700L User manual

User Guide
Wi-Fi Baby Monitor
Day / Night Cloud Camera
Version 1.0 | 9/24/14
DCS-700L

2D-Link DCS-700L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to
the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 September 24, 2014 • Initial release
Trademarks
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries. All
other third-party marks mentioned herein may be trademarks of their respective owners. This publication may not be reproduced, in whole or in part,
without prior express written permission from D-Link Systems, Inc.
Preface

3D-Link DCS-700L User Manual
Table of Contents
Preface.............................................................................................. 2
Manual Revisions.................................................................. 2
Trademarks.............................................................................. 2
Product Overview......................................................................... 4
Package Contents................................................................. 4
System Requirements ......................................................... 5
Introduction............................................................................ 6
Important Safety Information.......................................... 7
Hardware Overview ............................................................. 9
Front View............................................................................ 9
Rear View ...........................................................................10
Installation ....................................................................................11
Wireless Installation Considerations............................11
Camera Setup.......................................................................12
Mounting the Camera.......................................................13

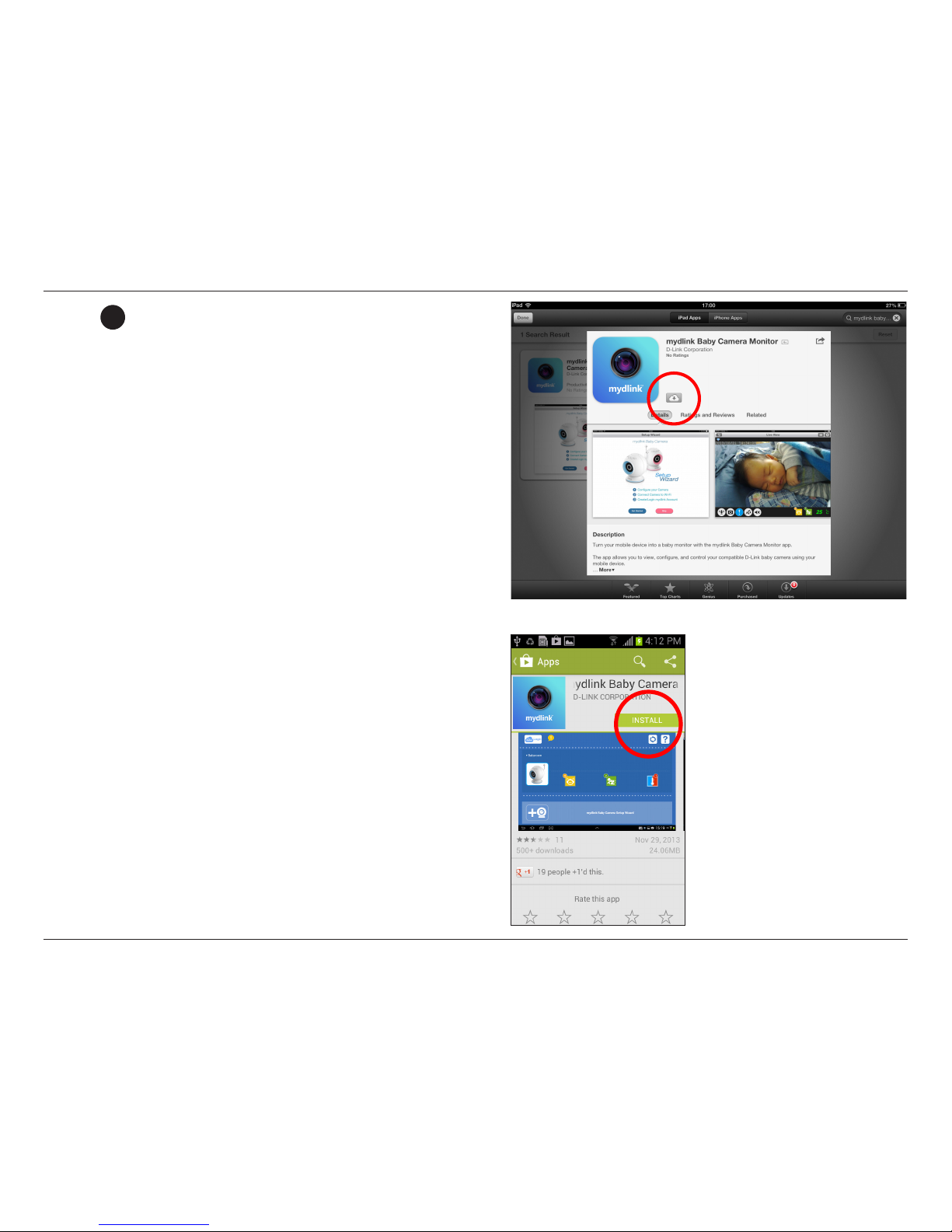

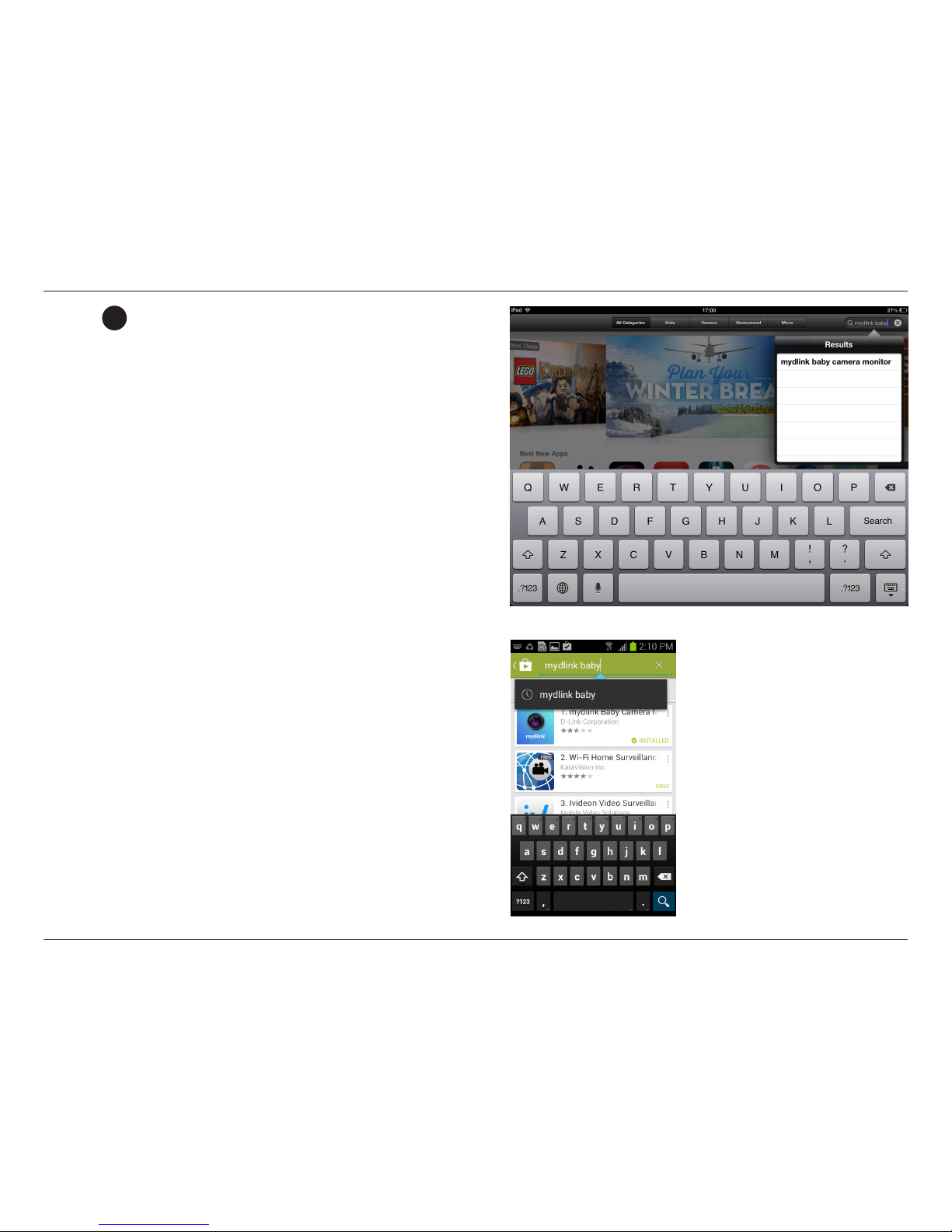

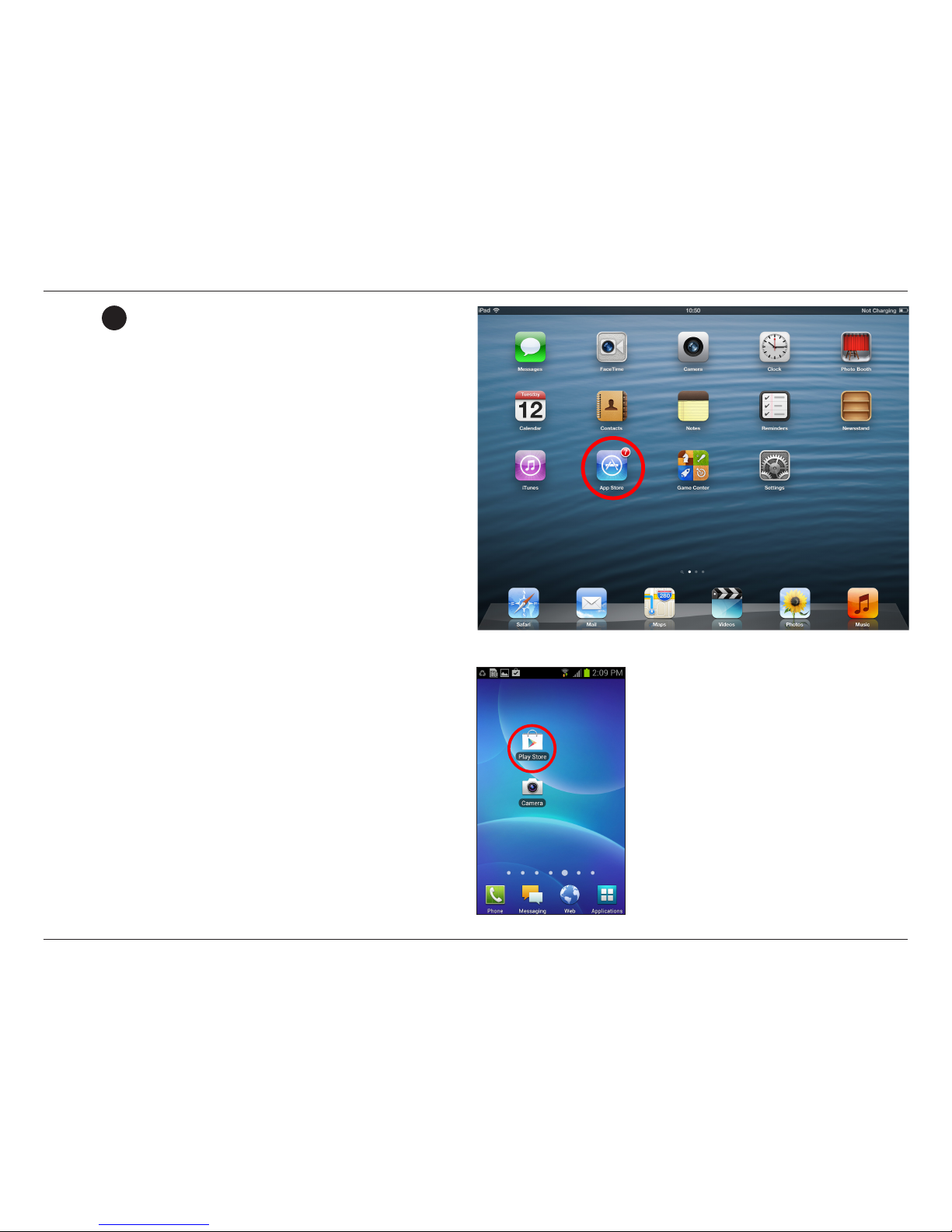

Download the mydlink Baby App.................................14

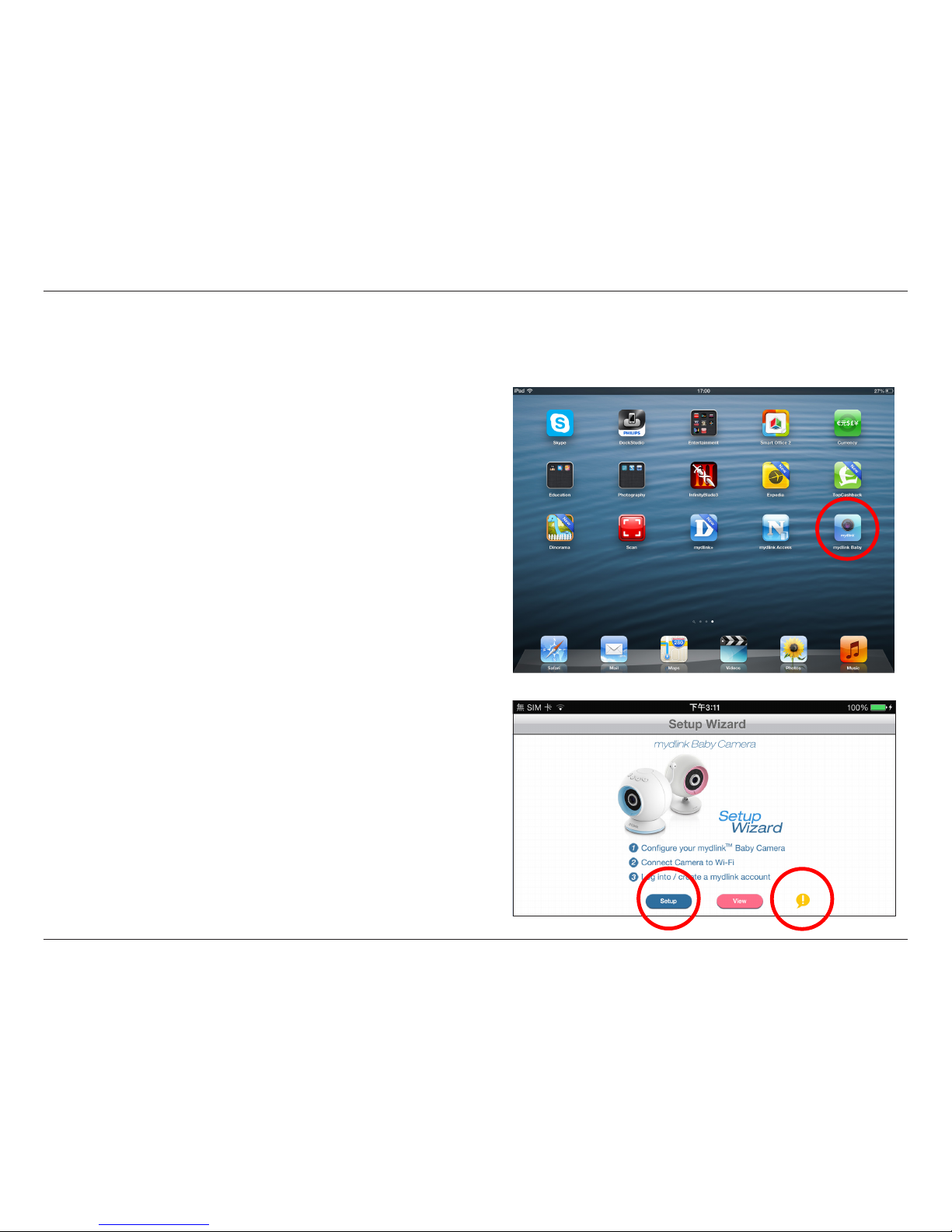

Set Up a New Camera with the mydlink Baby App 18
Monitoring....................................................................................19
mydlink Baby App Home Screen ..................................19
mydlink Baby App Live View...........................................20
Conguration...............................................................................21
mydlink Baby App Conguration .................................21
mydlink Baby App Settings.............................................24
Video Recording and Playback..............................................25
Taking Snapshots or Recording Videos ......................25
Viewing Snapshots or Playing Videos .........................26
Creating a mydlink Account ...................................................27
Advanced Features ....................................................................28
Enabling Direct Connect..................................................28
Troubleshooting .........................................................................30
Technical Specications...........................................................33
Contacting Technical Support ...............................................35
Warranty ........................................................................................36
Registration ..................................................................................43

4D-Link DCS-700L User Manual
Section 1: Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
DCS-700L Wi-Fi Baby Monitor
Wall Mount Kit
Power adapter
Additional Accent Ring
Quick Install Guide

5D-Link DCS-700L User Manual
Section 1: Product Overview
Minimum Requirements
Mobile Requirements • For mobile requirements refer to the Compatibility List on mydlink Baby app page on the
App Store and Google Play
Computer Requirements
• Computer with 1.3GHz processor or above and at least 128 MB RAM
• Microsoft Windows® 8, 7, Vista®, or Mac OS® X (10.6 or higher)
• Internet Explorer® 7, Firefox® 12, Safari® 6, or Chrome™ 20 or higher with Java installed and enabled
Network Requirements • 802.11g/n Wi-Fi network
(Wireless N network recommended for optimal performance)
Remote Viewing Requirements* • Internet access required for remote viewing
mydlink Requirements • For mydlink requirements refer to:
http://www.mydlink.com
*Note: Direct Connection requires no Internet connection and no router. Refer to "Advanced Features" on page 28.

6D-Link DCS-700L User Manual
Section 1: Product Overview
Introduction
Keep an eye on your little one with the DCS-700L Wi-Fi Baby Monitor. This portable camera transforms your mobile device into a versatile, yet easy-to-use baby
monitor. Connect to the camera wirelessly at home, or through the Internet when you are at work, so you can check on your infant no matter where you are. You
can even take the DCS-700L with you when you travel with your baby. All you need is a mobile device to connect directly to the Wi-Fi Baby Monitor.
The DCS-700L is packed with features including motion detection, sound detection, and night vision. It will take snapshots, record videos, and can even play
gentle lullabies to help ease your baby to sleep!

7D-Link DCS-700L User Manual
Section 1: Product Overview
Important Safety Information
The DCS-700L is designed to meet the highest safety standards. Please make sure that it is set up and used correctly. It is very important that you follow the
safety guidelines below:
Make sure the DCS-700L and cord are out of baby’s reach. In general,
this means the Wi-Fi Baby Monitor and cord should be placed at least
three feet away from baby’s crib.
Use caution if you wall-mount the DCS-700L. Be careful not to allow
the Wi-Fi Baby Monitor cord to dangle between the crib and a wall. You
should use the three foot minimum spacing between baby and the cord
in this case, too.
Watch out for other cord hazards. While you’re securing the Wi-Fi Baby
Monitor cord, take a moment to look around for any other strangulation
hazards as well. One common culprit is window blind cords that are within
baby’s reach. Cords for other electronics and nursery decor with ribbons
or decorative cords may also be a risk.
Don’t place the DCS-700L on the crib rail. Even if you think your baby
would not touch the Wi-Fi Baby Monitor, it’s too risky to leave it within
easy reach of your baby. Even camera cords that are secured to the rail
could be yanked or twisted by a curious child.
Mounting the DCS-700L on tabletops. Place the Wi-Fi Baby Monitor on
a tabletop no less than three feet away from your baby’s crib. Feed the
power cord down the back of the table or use wall clips to secure the cord
away so your baby cannot reach the cord. Plug in the power cord, check
your smartphone or tablet to ensure that you are getting a good view of
your child and that there are no obstructions.
As your baby reaches toddlerhood, you should re-evaluate placement
of the DCS-700L When little arms get longer and toddlers learn to climb
and reach for things, you may need to move the Wi-Fi Baby Monitor to
prevent access to the cord.
You can use the DCS-700L in other places besides the nursery, if it's
indoors. When considering alternative locations, avoid placement where
the camera may come in contact with water. Don’t forget to also check to
make sure you can place the Wi-Fi Baby Monitor out of baby’s reach.
Do not place the DCS-700L close to water or heat. Don't use the Wi-Fi
Baby Monitor near bathtubs, showers, or sinks. Keep the camera away
from heat sources such as stoves, radiators, etc.
Strangulation Hazard: Keep the DCS-700L and any attached cords at least three feet out of reach of any children or babies.
Make sure you keep any attached cords out of your baby’s crib or child's sleeping area.

8D-Link DCS-700L User Manual
Section 1: Product Overview
Make sure there is proper ventilation around the DCS-700L. Make sure
you do not place the Wi-Fi Baby Monitor on sofas, cushions, beds, etc. in a
way that may block ventilation. DO NOT cover the camera with a blanket.
Remember the DCS-700L is not a toy. Do not allow babies or children to
play with the Wi-Fi Baby Monitor. You should never attempt to open or
disassemble the camera.
Most Important: Remember that the DCS-700L is not a babysitter. The Wi-Fi Baby Monitor should only be used as a parenting aid for monitoring your
baby or child. While it does give you the ability to remotely view your baby or child, there should always be an adult in the same house. The Wi-Fi Baby
Monitor should not be considered a replacement for responsible adult supervision. In addition to monitoring your baby or child with the Wi-Fi Baby
Monitor, make sure you check on your child or baby regularly.
How to Ensure your DCS-700L is Secure
The rst step is to make sure you turn on security features during the installation process. Follow the instructions, and make sure you set up
a strong password at least eight characters long, with a mix of symbols and upper and lower case letters. Make sure you keep the Wi-Fi Baby
Monitor software and mydlink Baby app up-to-date.
How to CleanYour DCS-700L
Clean the camera with a dry cloth only; never allow the camera to get wet.

9D-Link DCS-700L User Manual
Section 1: Product Overview
Front View
Hardware Overview
1 Night Vision Light (IR) Infrared light illuminates the camera's eld of view at night.
2 Camera Lens Allows you to record or view video of the surrounding area.
3 Light Sensor Sensor for ambient (surrounding) light.
4 Front Accent Ring Decorative switchable front accent ring (in blue or pink).
5 Microphone Allows you to record or listen to audio from the surrounding area.
6 Camera Base Camera base for placement on a desktop or wall mounting.
1
6
25
3
4

10D-Link DCS-700L User Manual
Section 1: Product Overview
Rear View
1 Cloud/Direct Mode LED A solid blue light indicates a connection to the mydlink server. A blinking blue light means Direct Connect is enabled.
2 Direct Connect Button Press the button to allow direct connection from your mobile device to your DCS-700L wirelessly.
3 Micro USB Power Port Micro USB connector for the supplied power adapter or USB battery pack*.
4 Speaker Allows you to talk to your baby and to play lullabies.
5 Power LED A solid red light indicates the camera is powered on or has been reset to the factory default settings.
6 Reset Button Press and hold the recessed button with a paper clip for 10 seconds to reset the camera to factory default settings.
5
*Note: USB battery not included. Only the 5V /2A battery pack is supported.
1
2
4
3
6

11D-Link DCS-700L User Manual
Section 2: Installation
This D-Link camera can connect to your wireless network from anywhere within the operating range of your wireless network. However, the
number, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range. Typical ranges
vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your camera and other network devices - each wall or ceiling can reduce your camera’s
range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal.Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your camera at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible.The base transmits
a signal even if the phone is not in use.
Installation
Wireless Installation Considerations

12D-Link DCS-700L User Manual
Section 2: Installation
There are several ways to set up your DCS-700L:
Camera Setup
2. Remotely...
Connect to your DCS-700L using the Internet.
Connect to your DCS-700L through your home wireless network.
1. At Home...
Note: You can also connect directly to your DCS-700L wirelessly, so there is no need for an Internet connection or a router.
Refer to "Advanced Features" on page 28 for details.

13D-Link DCS-700L User Manual
Section 2: Installation
Mounting the Camera
1. Use a 6mm drill bit to drill two holes that are 36mm apart, and at least 30mm deep.
4. Make sure the camera is positioned so that the D-Link logo is at the bottom of the base.
Adjust the angle of the camera as desired.
2. Use a mallet to insert the wall anchors into the holes. Screw the included screws into the
wall anchors.
3. Place the mounting holes on the base of the camera over the screws as shown, then slide
the camera down to mount the camera.
Refer to the steps below for mounting the camera. The DCS-700L is for indoor use only. Do not mount it in a location where it may be in contact
with water as this may damage the product and/or cause injury.
We suggest you congure the camera before mounting it.
2
4
WARNING - STRANGULATION HAZARD
Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of three feet away). NEVER place the camera or adapter cord inside
the crib or child's sleeping area. Do not use extension cords. This product is NOT intended to replace proper adult supervision of children.
36mm
30mm
1
36mm
30mm
3
FCCID:KA2CS825LA1
IC:4216A-CS825LA1
CANICES-3(B)/NMB-3(B)
Model:DCS-820LA1
DCS-820L

14D-Link DCS-700L User Manual
Section 2: Installation
Download the mydlink Baby App
mydlink Baby Camera Monitor (Free)
Search for mydlink Baby in the App Store or Google Play. You can download and install the app on your smartphone or tablet
when connected to the Internet. Instructions for installing the app begin on the next page.
System Requirements: Refer to mydlink Baby app page on the App StoreSM and Google Play™.
You can also nd the mydlink Baby app by scanning the QR code above with a QR code reader. Install the app and skip to
"Set Up a New Camera with the mydlink Baby App" on page 18.
Note: If you experience issues registering this device with your mydlink account, or If you purchased an open box or resold unit, perform
a hard reset by pressing and holding the reset button on the device for 10 seconds while the device is powered on. If you are returning
the device to the place of purchase, please perform the hard reset procedure to clear the device of any personal data.

15D-Link DCS-700L User Manual
Section 2: Installation
For an iOS device, tap on the App Store icon.
1
For an Android device, tap on Play Store.

16D-Link DCS-700L User Manual
Section 2: Installation
2Search for mydlink baby within the search eld.
Similar search for mydlink baby for Android.

17D-Link DCS-700L User Manual
Section 2: Installation
For Android, tap on Install to install the app.
For an iOS device, tap on the (+) icon to install the mydlink
Baby app.
3

18D-Link DCS-700L User Manual
Section 2: Installation
Set Up a New Camera with the mydlink Baby App
Once the mydlink Baby app is installed, simply tap on the icon
to open the app. The next screen you see is the Setup Wizard.
Tap Setup to launch the Setup Wizard and congure your camera.
The wizard will guide you through the process of connecting
your camera to your home Wi-Fi network and creating your
mydlink account.
If you need help during the setup process, tap on the yellow (!)
symbol. Helpful hints will appear on the screen.
Note: Although the main screens that follow are for an iOS device, instructions for an Android device are very similar.
Note: If you experience issues registering this device with your
mydlink account, perform a hard reset by pressing and holding
the reset button on the device for 10 seconds while the device is
powered on.

19D-Link DCS-700L User Manual
Section 3: Monitoring
Monitoring
mydlink Baby App Home Screen
Once the setup process is complete, you will see the mydlink Baby app Home Screen.
1 DCS-700L Tap the camera view snapshot to go to the Live View screen. Refer to "mydlink Baby App Live View" on page 20.
2 Local/Remote Access Tap on the Home icon to switch from local access to remote access to your DCS-700L.
After you change to remote access, you will see the Login screen*.
3 ! Tap on the Exclamation Point (!) icon for helpful hints.
4 Refresh Tap on the Refresh icon to scan for Wi-Fi Baby Monitors on your network that have not yet been added to the app.
5Camera Setup Wizard Tap on Camera + icon to set up an additional DCS-700L.
6 ? Tap on the Question Mark (?) icon for FAQs (frequently asked questions).
7 Alert Icons
When sound or motion is initially detected, the corresponding alert icon changes color and a number appears.
As additional sounds and/or motions are detected, the number increases.
To reset alerts, tap on the alert icon.
1
4
6
5
7
*Note: When you log in, the refresh icon will change, allowing you to access the control for push notication. Refer to question 11 of "Troubleshooting" on page 30.
2
3

20D-Link DCS-700L User Manual
Section 3: Monitoring
mydlink Baby App Live View
At any time, tap on the Live View screen to return to
the Home screen, and to access both the Settings and
Conguration menus.
1 Return Tap on the Return icon to return to the Home screen.
2 Wi-Fi Status Indicates the type of connection to the Wi-Fi Baby Monitor. (Blue = local, pink = mydlink remote, green = direct connect, and grey = disconnected.)
3 Microphone Tap on the Microphone icon to enable or disable two-way audio.
4 Camera Tap on the Camera icon to access snapshot and video recording mode.
5 Alerts Tap on the Alerts icon ( ! ) to enable or disable alert notication.
6 Music Tap on the Music icon to select from the ve available lullabies to play on your camera's speaker. Also is used to enable or disable the music.
7 Speaker Tap on the Speaker icon to enable or disable Live View audio. Volume can be controlled by using the volume buttons on the mobile device.
8 Sound Alert Indicates when a loud sound is detected, like the sound of a baby crying.
9 Motion Alert Indicates when motion is detected, like when the baby is moving.
10 Settings Tap the Settings Icon ( ) to access settings, such as the camera's video resolution, brightness or speaker volume.
11 Conguration Tap the Conguration icon ( ) to access the conguration menu.
111
10
456789
3
Note: The rst time you access your DCS-700L Live View,
you will get a reminder to adjust the focus on the camera.
This will ensure you get the best possible image. You only
need to do this once, and then you can turn o the reminder.
2
Other manuals for DCS-700L
2
This manual suits for next models
1
Table of contents
Other D-Link Baby Monitor manuals

D-Link
D-Link DCS-820L User manual

D-Link
D-Link DCS-820L User manual

D-Link
D-Link EyeOn Baby User manual

D-Link
D-Link DCS-850L User manual

D-Link
D-Link DCS-825L User manual

D-Link
D-Link DCS-850L User manual

D-Link
D-Link DCS-855L User manual

D-Link
D-Link DCS-825L User manual

D-Link
D-Link DCS-800L User manual

D-Link
D-Link DCS-850L User manual
