D-Link DAP-1860 User manual

DAP-1860
User Manual
AC2600 Wi-Fi Range Extender
Version 1.00 | 2016/03/16

iD-Link DAP-1860 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2016 by D-Link Corporation. All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed
written permission from D-Link Corporation.
Revision Date Description
1.00 March 16, 2016 • Initial release
Preface
ErP Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: 4.93 watts
Switched O: 0.096 watts

iiD-Link DAP-1860 User Manual
Table of Contents
Preface................................................................................. i
Product Overview..............................................................1
Package Contents......................................................................... 1
System Requirements.................................................................2
Introduction ...................................................................................3
Features............................................................................................ 4
What is a Wireless Extender? ............................................5
Hardware Overview.....................................................................6
Front and Side........................................................................ 6
Bottom......................................................................................8
Back............................................................................................9
Installation.......................................................................10
Wireless Installation Considerations....................................10
Antenna Setup.............................................................................11
Hardware Setup ..........................................................................12
Getting Started................................................................13
WPS-PBC Conguration ...........................................................14
QRS Mobile App Setup.............................................................16
Web-based Setup.......................................................................21
Setup Wizard ................................................................................22
Connecting Your Device via WPS..................................23
WPS Successful...............................................................24
WPS Unsuccessful..........................................................24
Extend an Existing Network............................................25
Add Wireless to Your Wired Network...........................28
Congure Administrator Password..............................30
Save Your Conguration...................................................31
Conguration...................................................................32
Home ..............................................................................................32
Uplink Router .......................................................................33
DAP-1860...............................................................................34
Connected Clients..............................................................35
Settings ..........................................................................................36
Extender Settings ...............................................................36
Network Settings................................................................38
Autoconguration (SLAAC/DHCPv6)......................39
Static IPv6 .........................................................................40
Link-local Only ................................................................41
Management................................................................................42
Admin .....................................................................................42
System ....................................................................................43
Upgrade .................................................................................44
Statistics.................................................................................45
Connecting Wireless Clients to the Extended Network 46
Using the WPS Button...............................................................46
Windows® 10................................................................................47
Windows® 8...................................................................................49
WPA/WPA2 ............................................................................49
Windows® 7...................................................................................51
WPA/WPA2 ............................................................................51
WPS..........................................................................................54
Table of Contents

iiiD-Link DAP-1860 User Manual
Table of Contents
Windows Vista®............................................................................58
WPA/WPA2 ............................................................................59
Troubleshooting ..............................................................61
Wireless Basics.................................................................63
Tips...................................................................................................64
Networking Basics...........................................................65
Check your IP address...............................................................65
Statically Assign an IP address...............................................66
Wireless Security............................................................67
What is WPA? ...................................................................67
Technical Specications..................................................68
GPL Code Statement........................................................69
Regulatory Statements ...................................................84

1D-Link DAP-1860 User Manual
Section 1 - Product Overview
Package Contents
Wi-Fi Conguration Note
If any of the above items are missing, please contact your reseller.
DAP-1860 AC2600 Wi-Fi Range Extender
Wi-Fi Conguration Card
Quick Installation Guide

2D-Link DAP-1860 User Manual
Section 1 - Product Overview
Network Requirements
• A wireless router with an active Internet connection.
• IEEE 802.11ac, 802.11n, 802.11g, 802.11b, or 802.11a
wireless clients/devices
Web-based Conguration
Utility Requirements
A Computer or Mobile Device with the following:
•Windows®, Apple® Mac OS®, or Linux-based operating system
• Wireless adapter or Wi-Fi functionality
• An Apple® iPhone®, iPod touch®, iPad®, or Android™ mobile
device
Browser Requirements:
• Internet Explorer® 10 or later
• Firefox® 20.0 or later
• Safari® 6 or later
• Google Chrome™ 28 or later
System Requirements

3D-Link DAP-1860 User Manual
Section 1 - Product Overview
Introduction
The D-Link DAP-1860 AC2600 Wi-Fi Range Extender extends your Internet connection over a blazing-fast Gigabit Wireless AC
connection of up to 2532 Mbps (Up to 1732 Mbps via 5 GHz Wireless AC and up to 600 Mbps via 2.4 GHz Wireless N)1, by using
advanced AC beamforming technology to maximize the speed and range of your wireless signal.The DAP-1860 connects with your
existing networking equipment to extend the range and enhance the capabilities of your home or oce network. This means you
can bring Wi-Fi to places where your current signal doesn’t reach, letting you move from room to room, oce to oce, oor to oor,
or yard to yard without losing signal. EnjoyWi-Fi on your porch, balcony, next to your pool, breakroom, the far end of your oce,
or in your basement.The DAP-1860 prepares your home to become a Connected Home by allowing you to install more wireless
surveillance cameras, baby monitors, sensors, and alarms in the places where you want rather just where your old signal reached.
Featuring a 4x4 MIMO antenna conguration, the DAP-1860 oers better data rates, fewer dead-spots, more coverage, and higher
reliability. Built with AC SmartBeam technology, the DAP-1860’s intelligent radios will direct wireless signals to exactly where they
are needed. Operating exclusively in the 5 GHz band, the DAP-1860’s 802.11ac wireless connections avoid crowded 2.4 GHz band
trac, giving you faster speeds while still maintaining backwards compatibility with older 802.11n/g/b devices.The DAP-1860’s
superior design allows you to enjoy full motion, high denition video calls on your mobile device while moving around. Equipped
with a Gigabit LAN/Internet port to provide speeds up to 10x faster than standard 10/100 ports, the DAP-1860 creates the best
networking experience to date.
The DAP-1860 AC2600 Wi-Fi Range Extender features D-Link’s Smart Signal LED technology which makes nding the optimal
location for your extender a cinch. With other range extenders, it is dicult or impossible to gauge how strong or weak the
connection between an extender and an uplink network is, but the DAP-1860’s Smart Signal LEDs eliminate the guesswork by
giving you instant visual feedback so you can quickly test out multiple locations to nd the best place for the DAP-1860.
The DAP-1860's Smart Connect Technology makes connecting to wireless networks easy by eliminating the confusion of multiple
networks. Ever since the introduction of 5 GHz multi-band wireless technology, users have had to guess whether the 5 GHz or 2.4
GHz band network would provide them with better range and speed. Smart Connect simplies this by only presenting a single
wireless network for the user to connect to. Behind the scenes, the DAP-1860's advanced algorithms determine the best band
for your device to connect to, automatically distributing devices to the optimal speed and band, thereby ensuring a faster, more
reliable, and hassle-free experience for all of your users and devices.

4D-Link DAP-1860 User Manual
Section 1 - Product Overview
• Superior Wireless Networking - The DAP-1860 AC2600 Wi-Fi Range Extender lets you easily extend a secure
wireless network with a press of a button. Connect the DAP-1860 to a router via Wi-Fi or Ethernet and share
your high-speed Internet access in more places throughout your home or small oce. The DAP-1860 provides
Gigabit wireless speeds of up to a combined 2532 Mbps (1732 Mbps 802.11ac 5 GHz, plus 600 Mbps 802.11n 2.4
GHz)1. This capability rivals wired connections, allowing users to participate in real-time activities online, such as HD
video communication, online gaming, and use mobile devices from anywhere in your home while still oering full
802.11n/g/b backward compatibility.
• Simple Setup - All it takes is a press of a button to connect compatibleWPS devices to the DAP-1860. Its easy-to-
use web interface lets you quickly and easily connect the DAP-1860 to an uplink router, congure the extended
wireless network, and manage administrative settings.The setup wizard will even guide you through the setup
process, getting your extended wireless network up and running in no time. Alternatively, connect an Ethernet
cable to your existing network infrastructure to quickly and easily create a wireless network.
• Smart Connect - Creates a ‘single’ wireless network for your devices to connect to. Behind the scenes, the
DAP-1860 automatically determines whether to connect a device to the 2.4 or 5 GHz band, thereby providing
the best speed and range for each device and optimally distributing devices between networks.
• LatestWireless Network Security and Encryption Standard-The DAP-1860 is fully compatible with the latest
802.11ac standard, but is also backwards compatible with IEEE 802.11n/g/b/a wireless devices, so you can use
your existing devices without sacricing performance.
1 Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, 802.11a, 802.11n, and 802.11ac specications. Actual data throughput will vary. Network
conditions and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate.
Environmental conditions will adversely aect wireless signal range.
Features

5D-Link DAP-1860 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
The DAP-1860 acts as a repeater to extend the range of an existing wireless network to provide a better signal for parts of your
home or oce that may have poor or no reception.Your existing wireless signal will be rebroadcast by the DAP-1860, allowing you
to reach the farthest corners of your home or oce.The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
You may also use the DAP-1860 as a wireless access point by connecting an Ethernet cable.
Extend Your Wireless Network using Wi-Fi
Create a Wireless Network using Ethernet
Router
Internet DAP-1860
Extender Wireless Devices
Router
Internet DAP-1860
Access Point Wireless Devices

6D-Link DAP-1860 User Manual
Section 1 - Product Overview
Hardware Overview
Front and Side
1
4
2
3

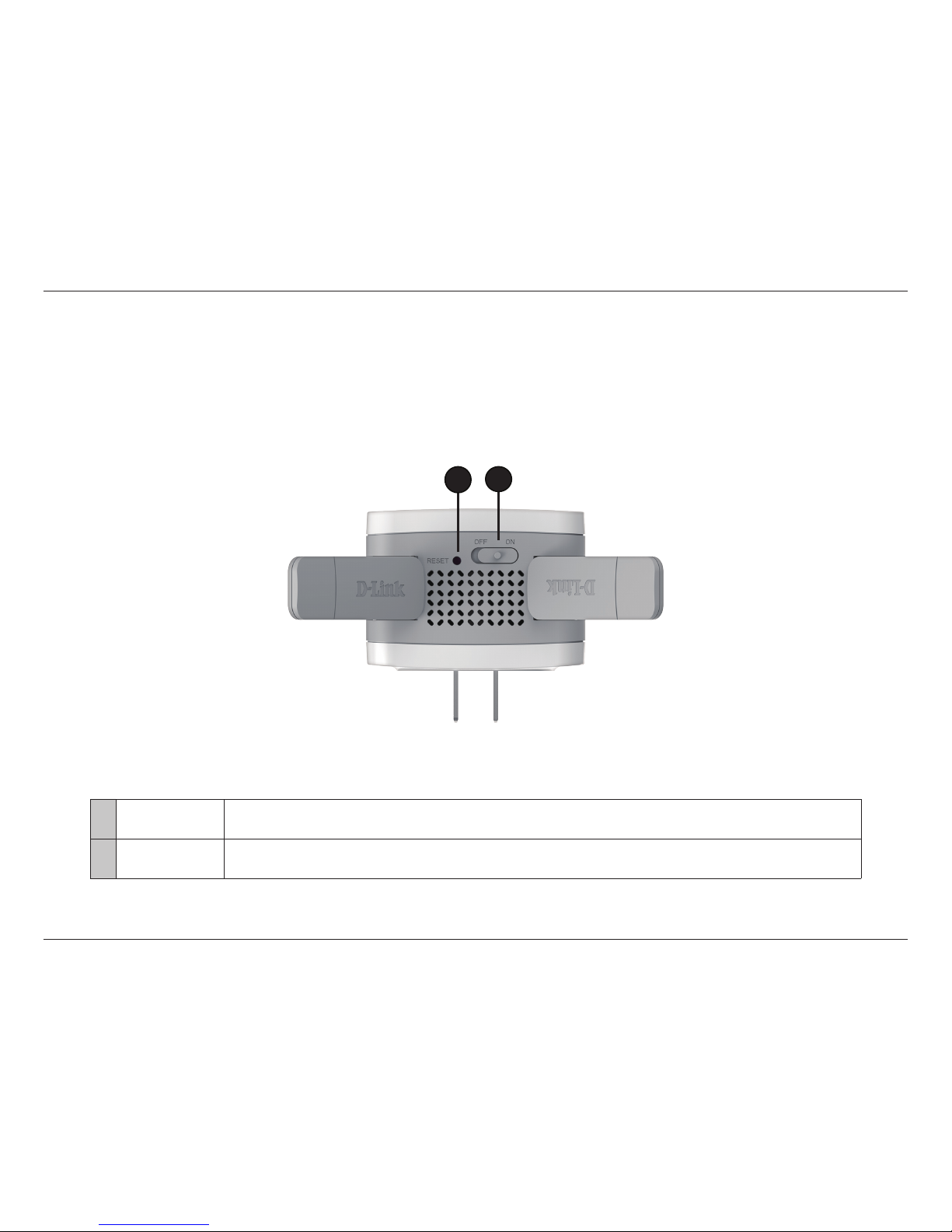

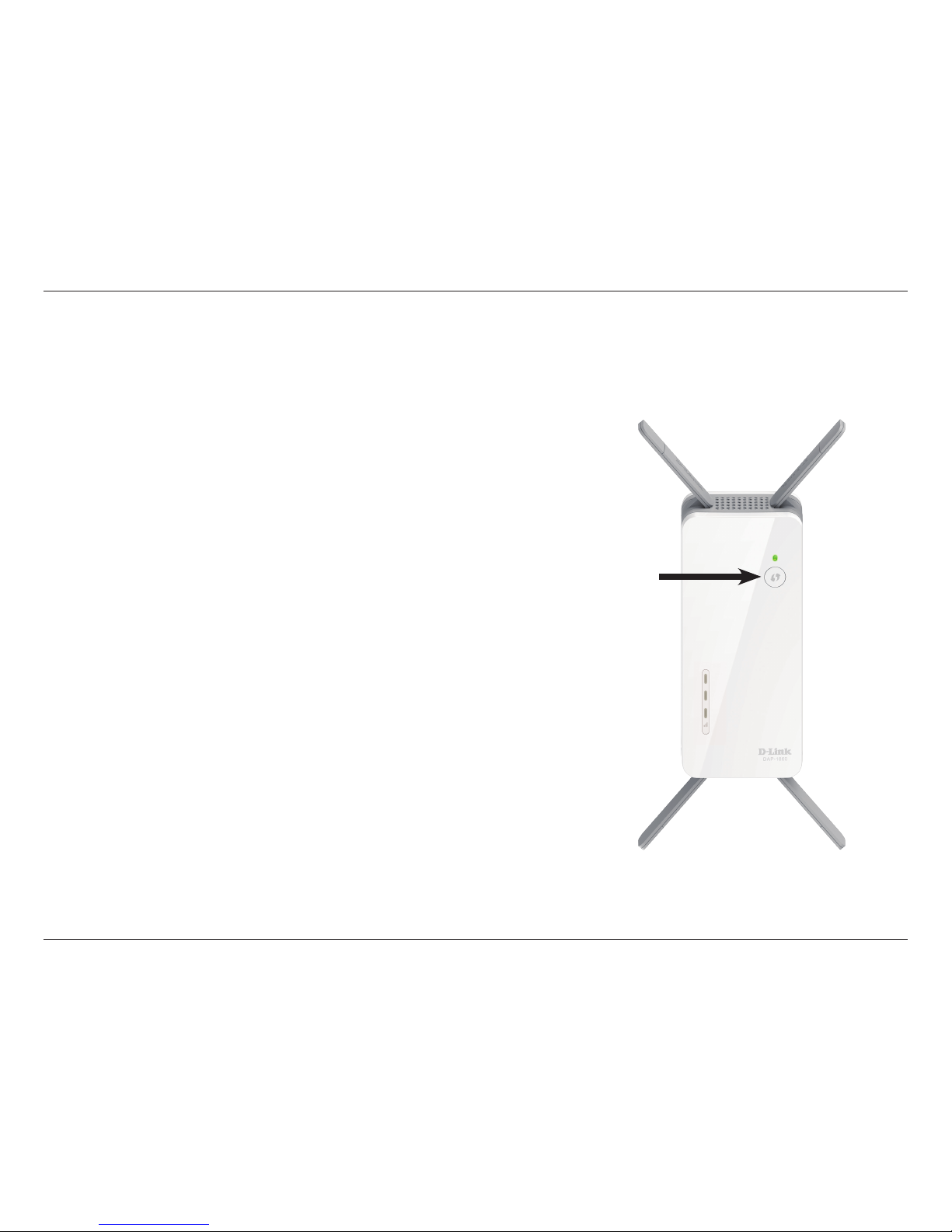

1Status/WPS LED This LED indicates the current status of the DAP-1860, as detailed on the next page.
2WPS Button Press to establish a connection with another WPS compatible device. Refer to Using the WPS Button on
page 46 for more information.
3Signal Indicator
LED

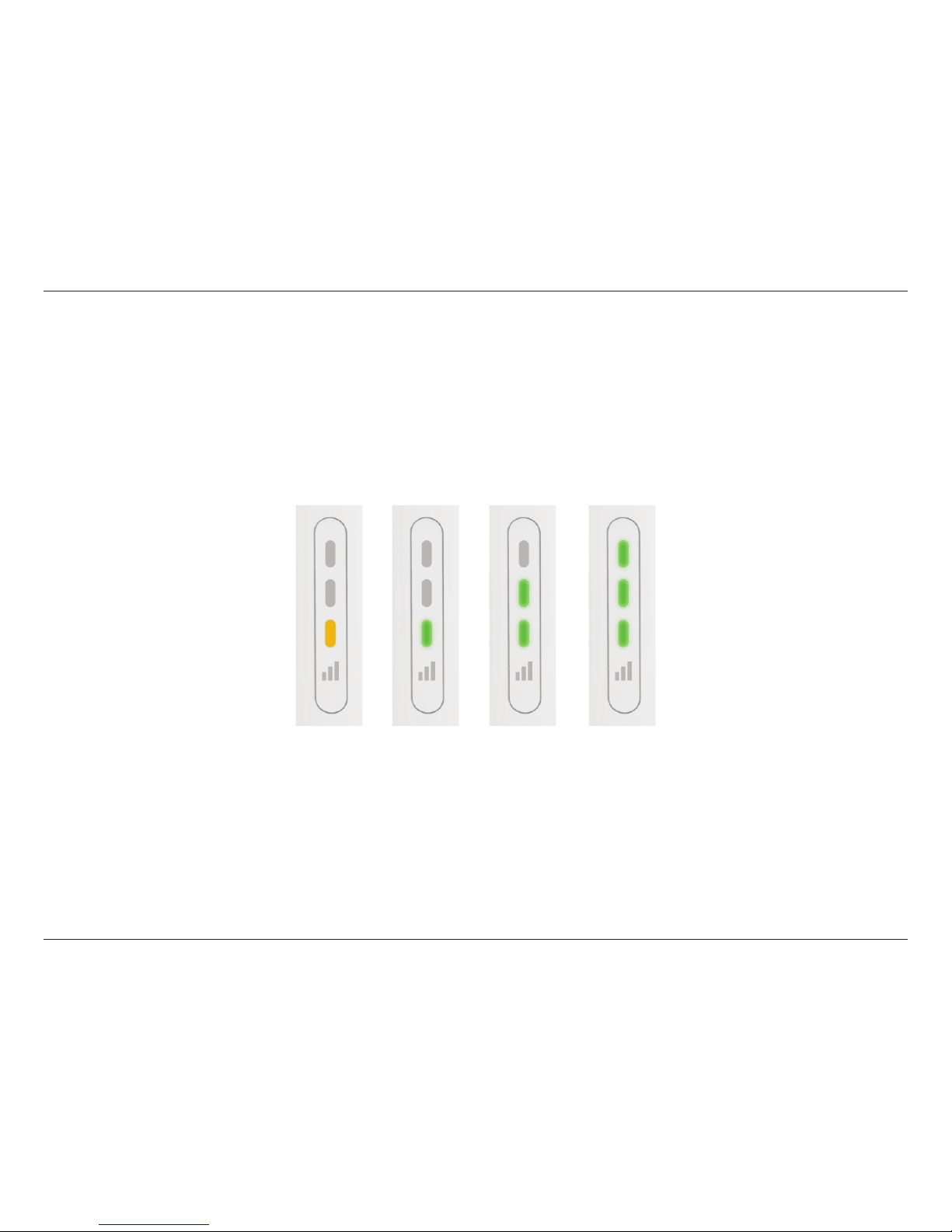

The more lit green bars on the Signal Indicator LED, the better the wireless signal to the host network. A
single solid amber LED indicates a weak Wi-Fi signal.
4LAN Port Connect an Ethernet cable if you are adding wireless to wired network.

7D-Link DAP-1860 User Manual
Section 1 - Product Overview

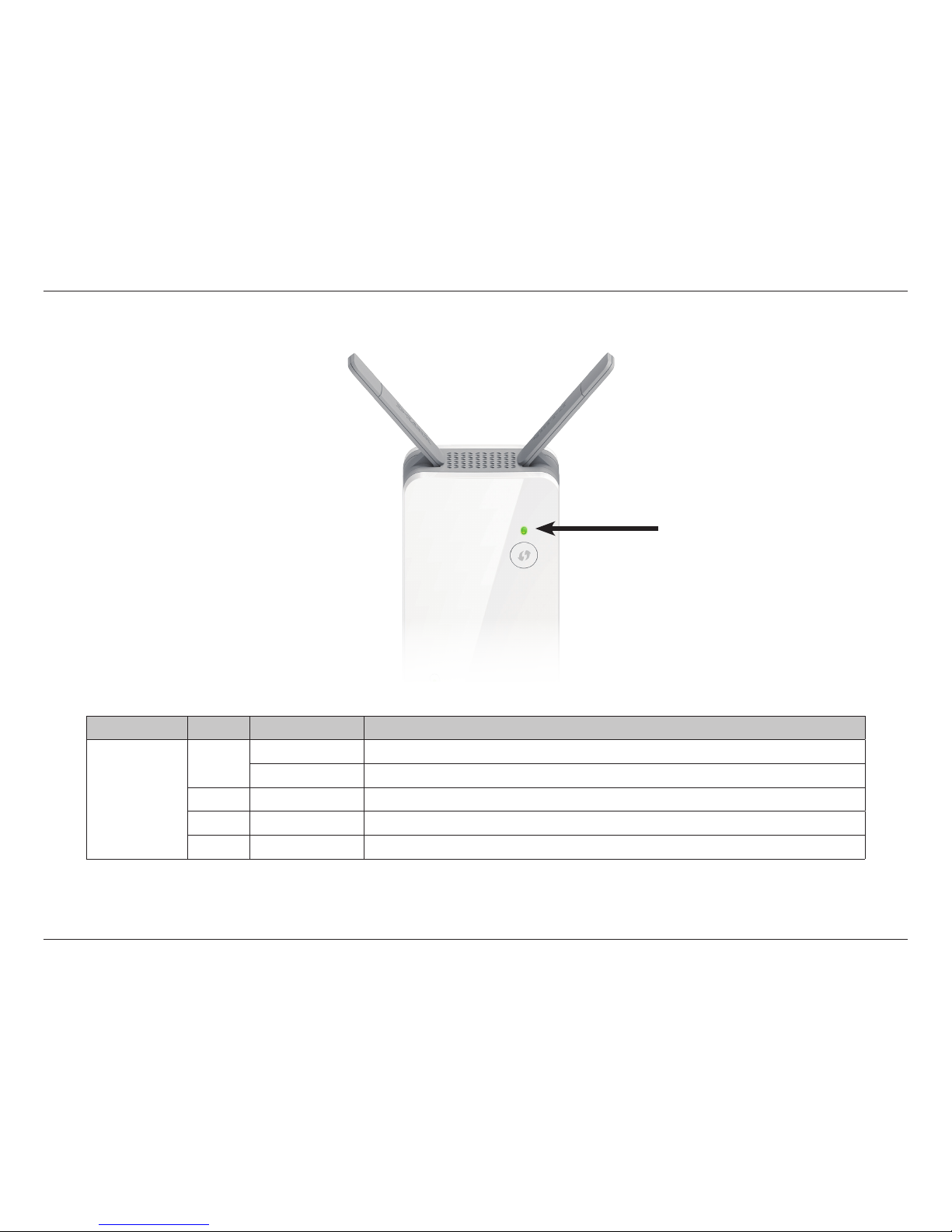

LED Indicator Color Status Description
Power/Status
Green Solid The DAP-1860 is receiving power and connected to a host network.
Blinking WPS mode is active and ready to add a wireless device.
Red Solid The DAP-1860 is booting or an error has occurred.
Amber Blinking The DAP-1860 is not connected to a host network.
None O Device is not receiving power. Check the power outlet.
Status/WPS LED Indicator
Status/WPS LED Indicator

8D-Link DAP-1860 User Manual
Section 1 - Product Overview
Hardware Overview
Bottom
2
1
1 Reset Button Use an unfolded paperclip to press and hold the reset button on the bottom of DAP-1860 for 10 seconds
to restore the factory default settings.
2 Power Switch Use the power switch to power the DAP-1860 when it will not be in use for an extended period of time.
The factory default is ON.

9D-Link DAP-1860 User Manual
Section 2 - Installation
You may locate the Wi-Fi name (SSID) and password for your DAP-1860. This information is printed on the label on the back of the
device.You will need this information to connect your computer or mobile device to the default network (SSID) of your DAP-1860.
This information is also provided on the included Wi-Fi conguration card.

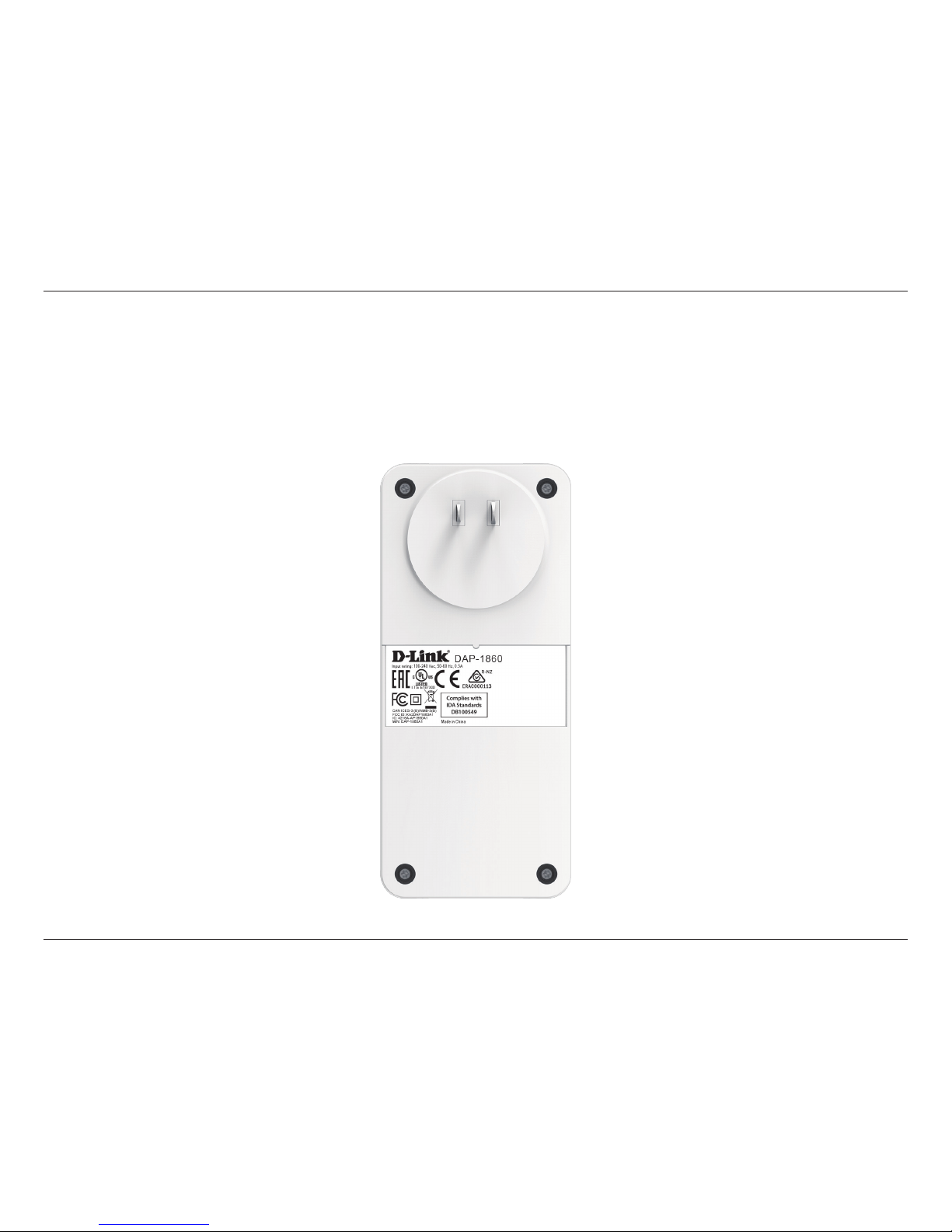

Hardware Overview
Back

10D-Link DAP-1860 User Manual
Section 2 - Installation
Installation
Wireless Installation Considerations
The DAP-1860 lets you extend your existing wireless network’s coverage as long as it is within range of the uplink network. Keep in
mind that the DAP-1860’s extension network’s range may be limited by the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through.Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business.The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link extender and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position extenders, access points, wireless routers, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.

11D-Link DAP-1860 User Manual
Section 2 - Installation

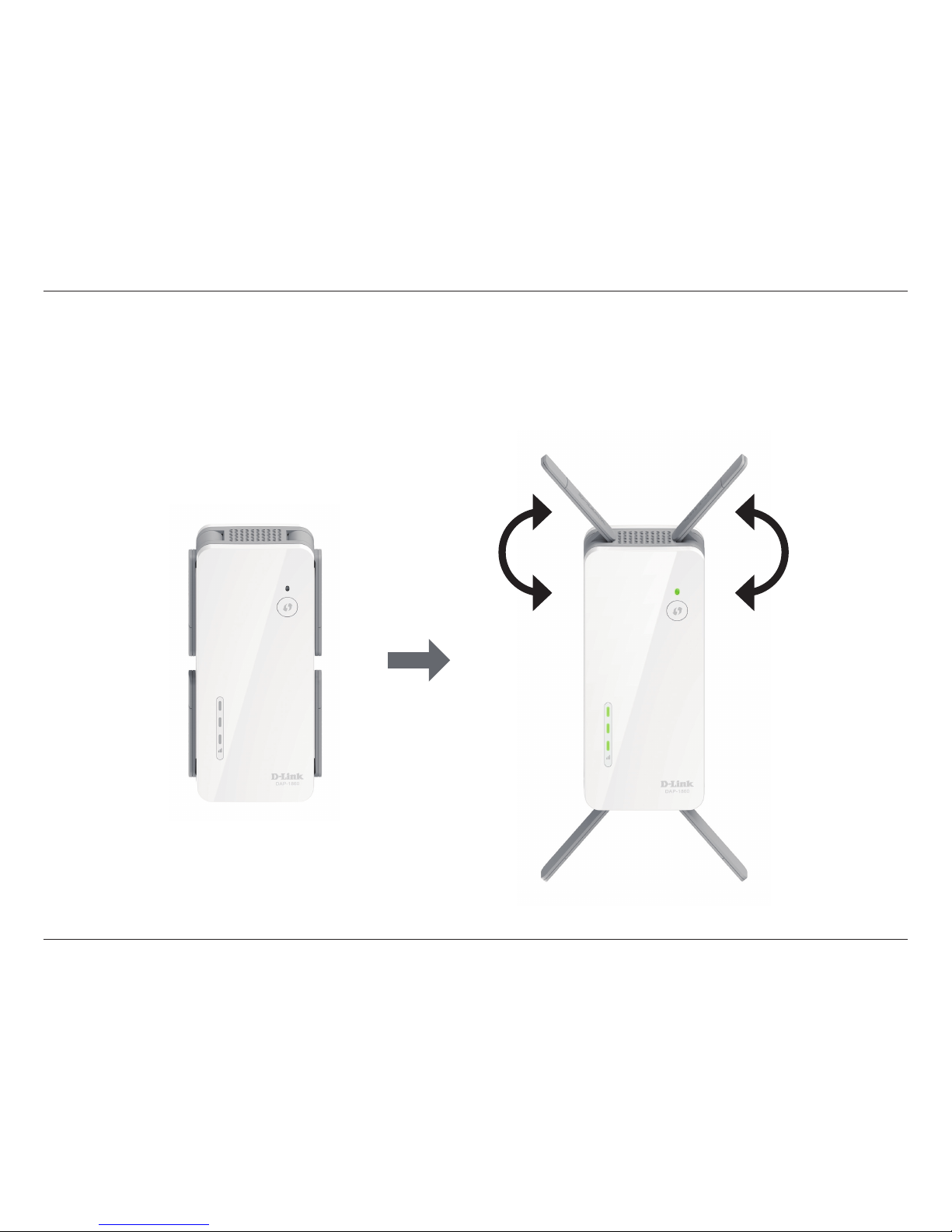

Antenna Setup
The DAP-1860 is designed to give you the fastest, most stable network connection possible. In order to maximize performance, fully
extend the antennas to provide optimal wireless coverage. Keep the extender in an open area for better wireless coverage.

12D-Link DAP-1860 User Manual
Section 2 - Installation

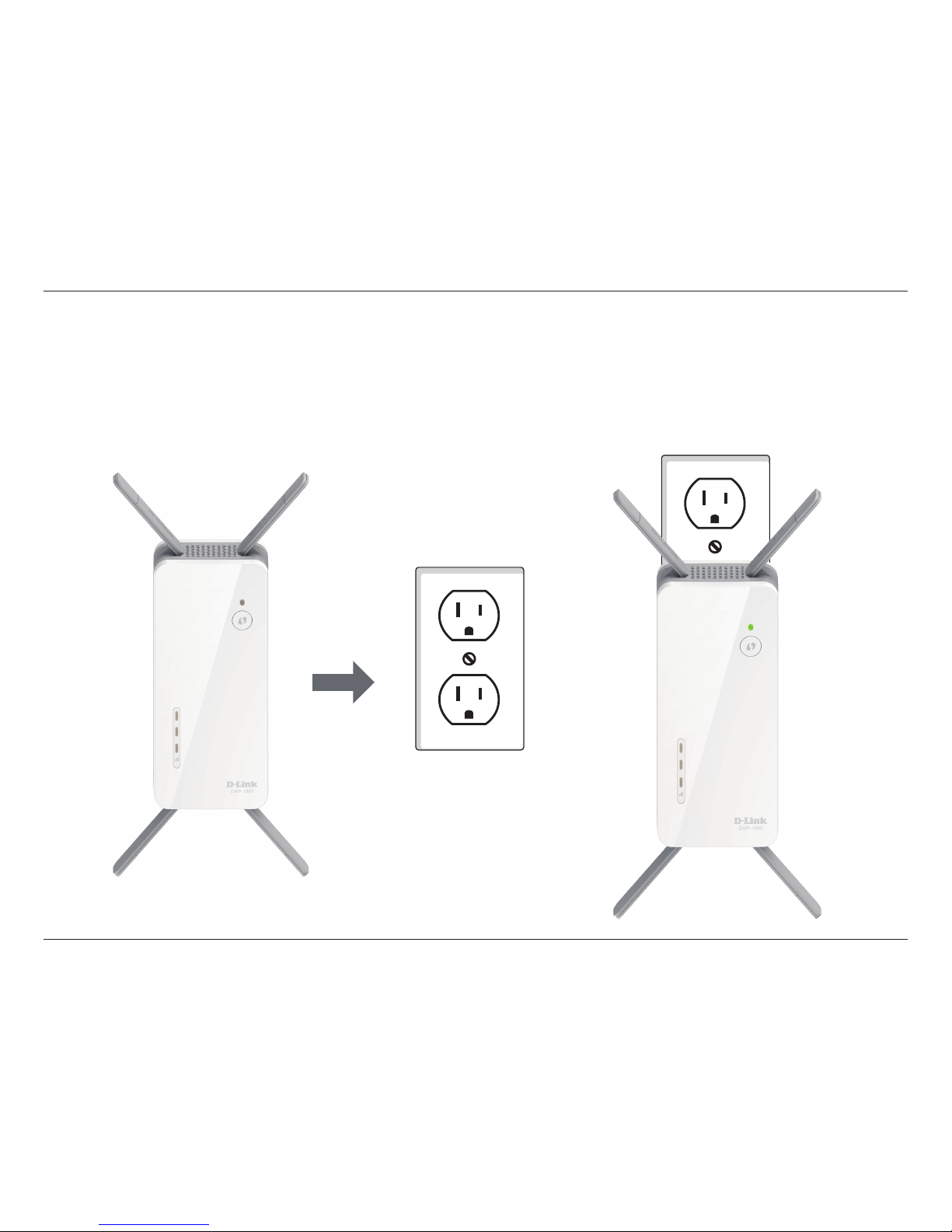

Ensure the power switch on the bottom of the DAP-1860 is in the ON position, plug the DAP-1860 into a wall outlet, and wait until
the Status/WPS LED is blinking amber.
Outlet
Ethernet
Outlet
Ethernet
Hardware Setup

13D-Link DAP-1860 User Manual
Section 3 - Conguration
There are several conguration tools you can use to set up your DAP-1860.
• WPS-PBC - To easily extend an existing wireless network, refer to WPS-PBC Conguration on page 14 for setup
instructions.
• QRS Mobile App - You can use your Android device or iPhone, iPad, or iPod touch to congure your extender. Refer to
QRS Mobile App Setup on page 16 for setup instructions.
• D-Link Setup Wizard - This wizard will launch when you log into the Extender’s web conguration utility for the rst
time. Refer to Setup Wizard on page 22 for setup instructions.
• Manual Conguration - Advanced users who wish to manually set up the extender or adjust its settings may refer to
Conguration on page 32 for more information.
Getting Started

14D-Link DAP-1860 User Manual
Section 3 - Conguration
WPS-PBC Conguration
Step 1 - Initiate WPS Mode
While the Status/WPS LED is blinking amber, push the WPS button on the source
wireless router or AP, and then push the WPS button on the DAP-1860.The
Status/WPS LED will start to ash green. Please allow up to two minutes for the
process to nish.The Status/WPS LED will turn solid green when the DAP-1860
has connected successfully to the source wireless router or access point.
Step 2 - Connecting Devices to the DAP-1860
The DAP-1860 is now ready to share the extended Wi-Fi network with your PCs
and mobile devices.You may use the WPS method to connect devices to the
extended network created by the DAP-1860 using the following network names
(SSID). The password will be the same as the wireless network you are extending.
• (Your router’s SSID)-EXT
The Smart Connect feature will present a single wireless network. When
connecting clients to the extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz SSIDs, refer to Extender Settings on
page 36.
Wireless Protected Setup (WPS) makes connecting your DAP-1860 easy. To use WPS, rst make sure the source router or access point
features a WPS Button or has a virtual WPS Button.

15D-Link DAP-1860 User Manual
Section 2 - Installation
The Status/WPS LED will turn solid green when the DAP-1860 has connected successfully to a wireless network and is extending
that network. If the Smart Signal LED has a single amber bar after the connection process has nished, the DAP-1860 has
established a poor quality connection. The more lit bars on the Signal Indicator LED, the better the wireless signal.To improve the
connection quality, the DAP-1860 should be relocated closer to the source wireless router. If the extender has been congured as an
Access Point and is connected via Ethernet cable to an uplink network, the Smart Signal LED will not be lit.
Poor Ok Good Best
Optimize Extender Location

16D-Link DAP-1860 User Manual
Section 2 - Installation

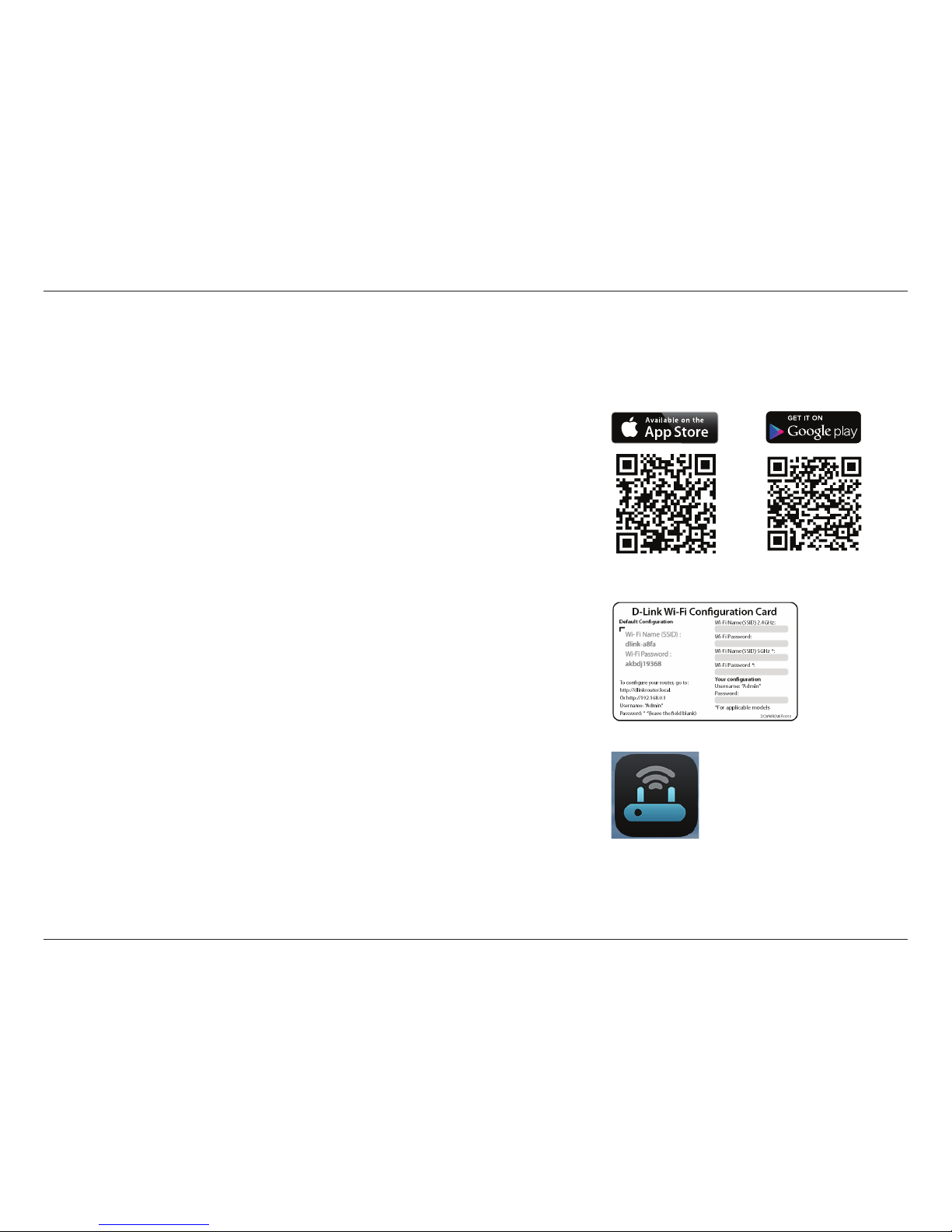

QRS Mobile App Setup
The DAP-1860 can be set up from your iPhone, iPod touch, iPad, or Android smartphone or tablet device using the QRS Mobile app.
Step 2
Once your app is installed, connect your mobile device to the wireless network of
your DAP-1860. You can nd the Wi-Fi name(SSID) and password of your device
on the included Wi-Fi Conguration Card.
Step 3
Once you are connected to the extender, launch the QRS Mobile app from the
Home screen of your device.
Note: The following steps show the iOS interface of the QRS Mobile app. If you are
using an Android device, the appearance may be dierent to that of the screenshots,
but the process is the same.
Step 1
Search for the free QRS Mobile app on the Apple App Store or Google Play and
install it.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
