D-Link DHP-W311AV User manual

Quick Installation Guide
DHP-W311AV
PowerLine AV500 Wireless
N Mini Starter Kit
(DHP-308AV & DHP-W310AV)
Version 1.11 | January 10, 2014
Краткое руководство по установке
Guía de Instalación Rápida
Guia de Instalação Rápida
快速安裝指南
Petunjuk Pemasangan Cepat

DHP-W311AV
2
ENGLISH
Package Contents
Wi-Fi Conguration Note
DHP-308AV Powerline
AV500 Mini Adapter
Wi-Fi Conguration CardCAT5 Ethernet Cable (2x)
DHP-W310AV PowerLine AV500 Wireless N Mini Extender
Installation CD-ROM
Hardware Installation

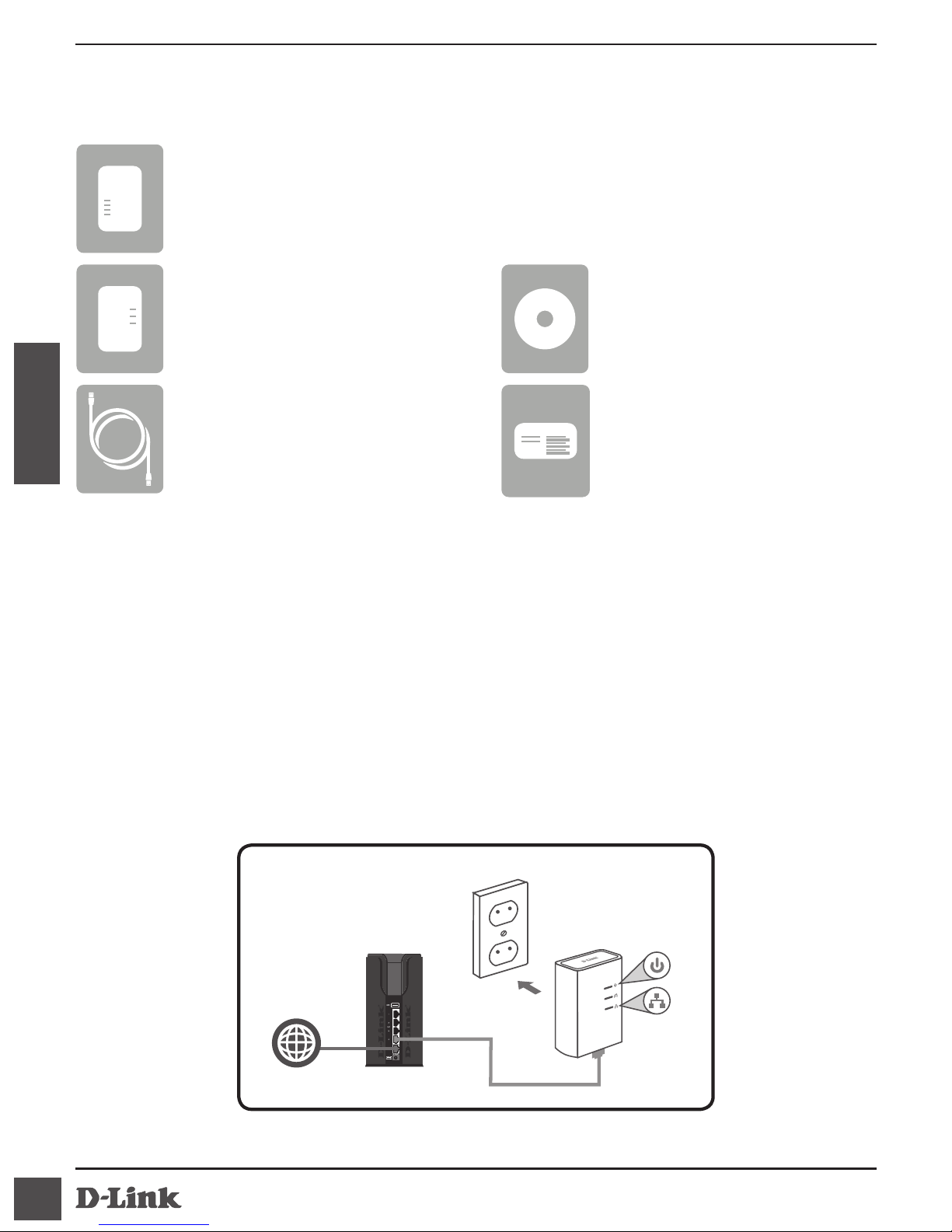

1. Plug the DHP-308AV Powerline AV500 Mini Adapter into a wall outlet near
your router. Connect one of the included Ethernet cables to a LAN port on
your router, and connect the other end of the cable to your DHP-308AV.
DHP-308AV
ROOM A
RouterInternet

3
DHP-W311AV
ENGLISH

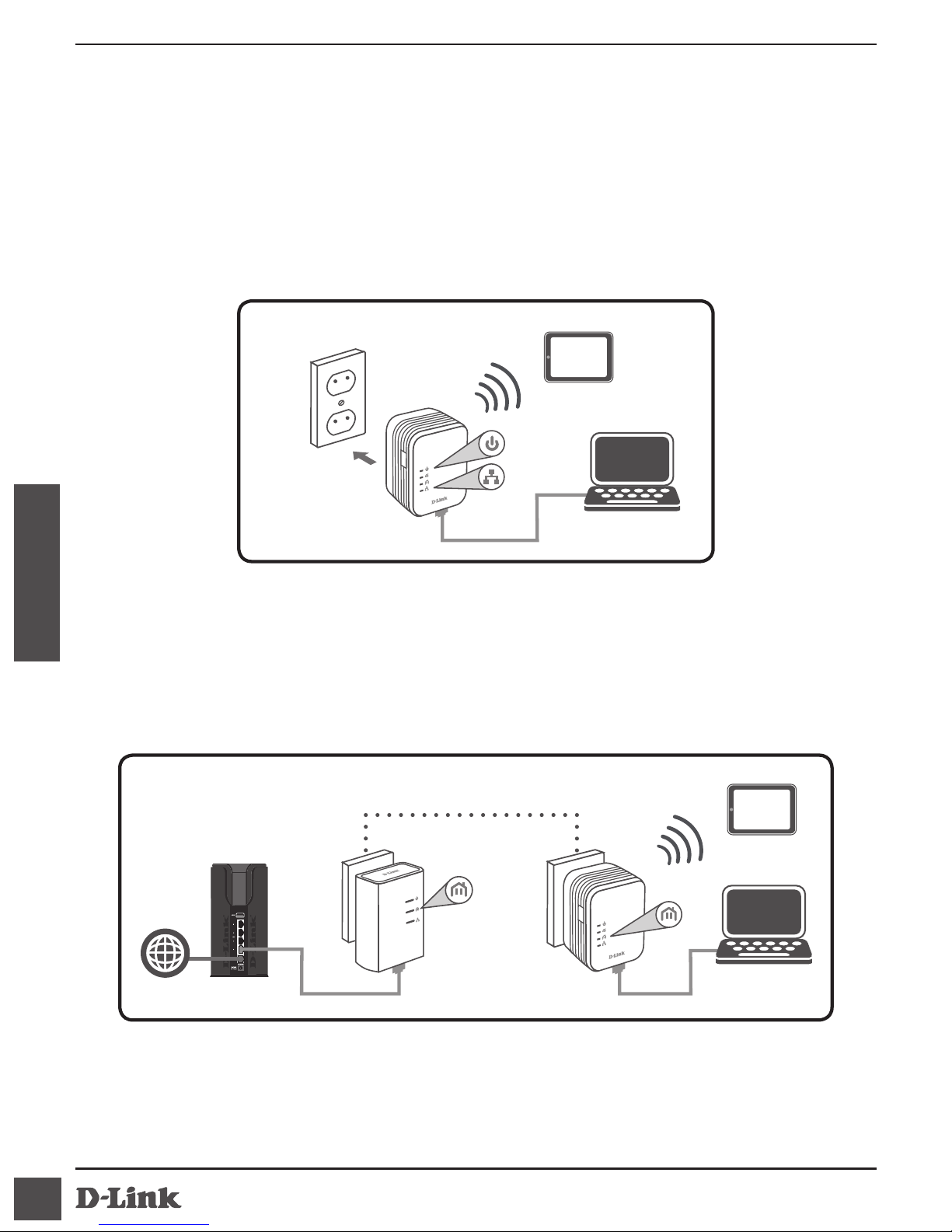

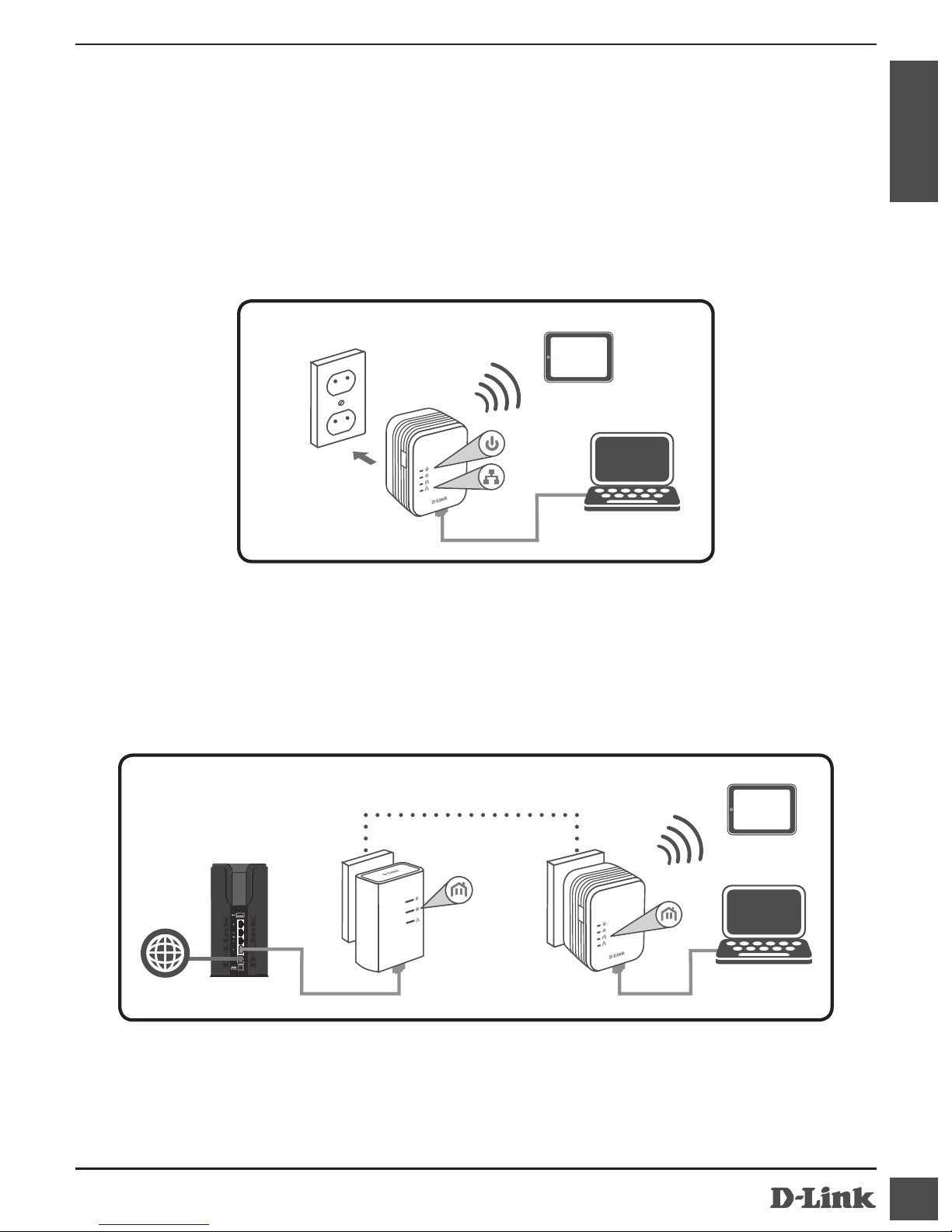

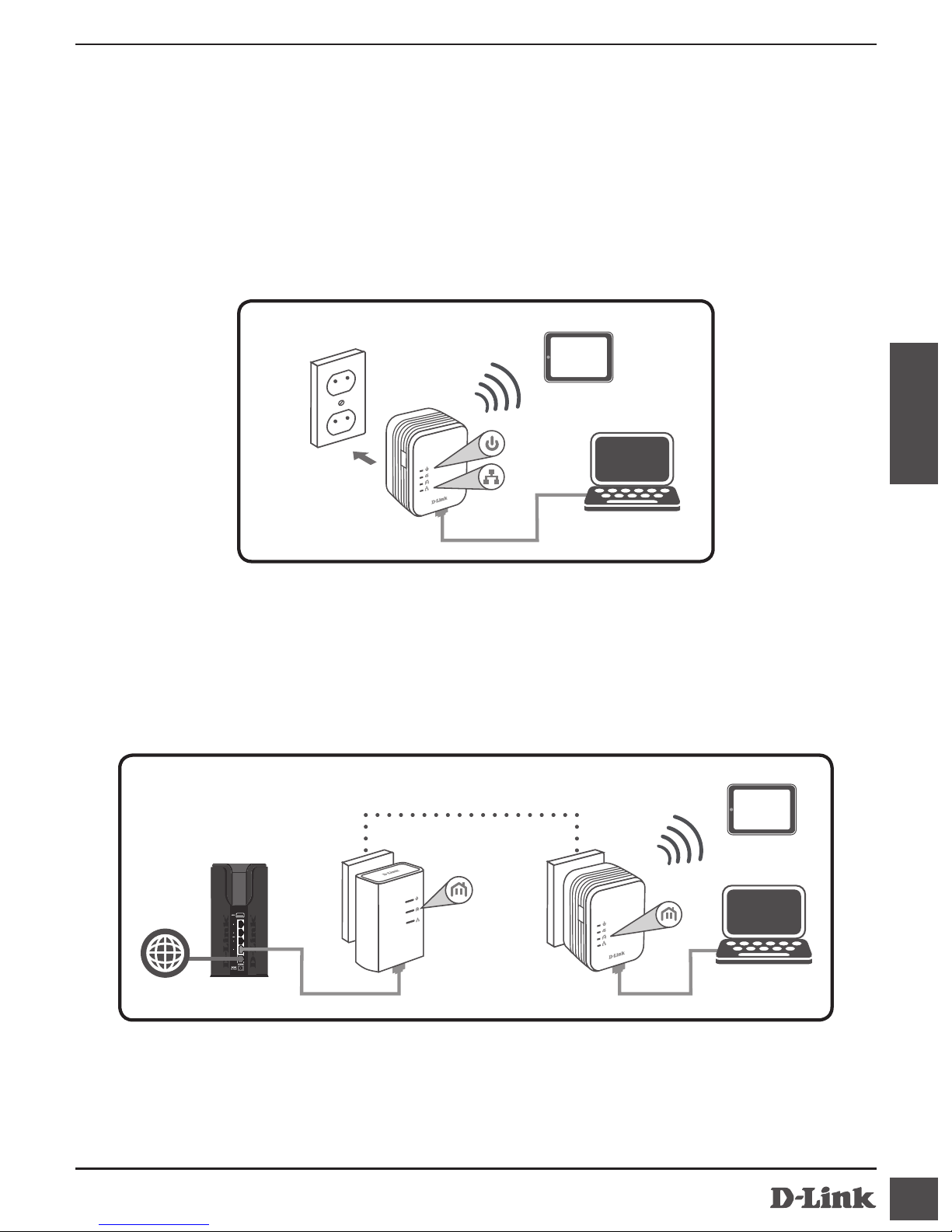

2. Plug the DHP-W310AV Powerline AV500 Wireless N Mini Extender
into a wall outlet in a place you want to extend your network.
Insert one end of the second included Ethernet cable into the DHP-W310AV,
and the other end into your computer. You may also connect to the DHP-
W310AV over Wi-Fi with the information on the Wireless Conguration
Card.
ROOM B
DHP-W310AV
iPad
Notebook
3. Your router, DHP-308AV, DHP-W310AV, and computer are all connected
now. Proceed to “First-time Conguration” on the next page.
ROOM A ROOM B
DHP-W310AVDHP-308AVRouterInternet Notebook
iPad

DHP-W311AV
4
ENGLISH
First-time Conguration
1. Use your web browser to go to:
Windows: http://dlinkapWXYZ or http://dlinkap
Mac OS: http://dlinkapWXYZ.local. or http://dlinkap.local.
Where WXYZ is the last 4 digits of the MAC address. The full address is
available on the included Wireless Conguration Card.

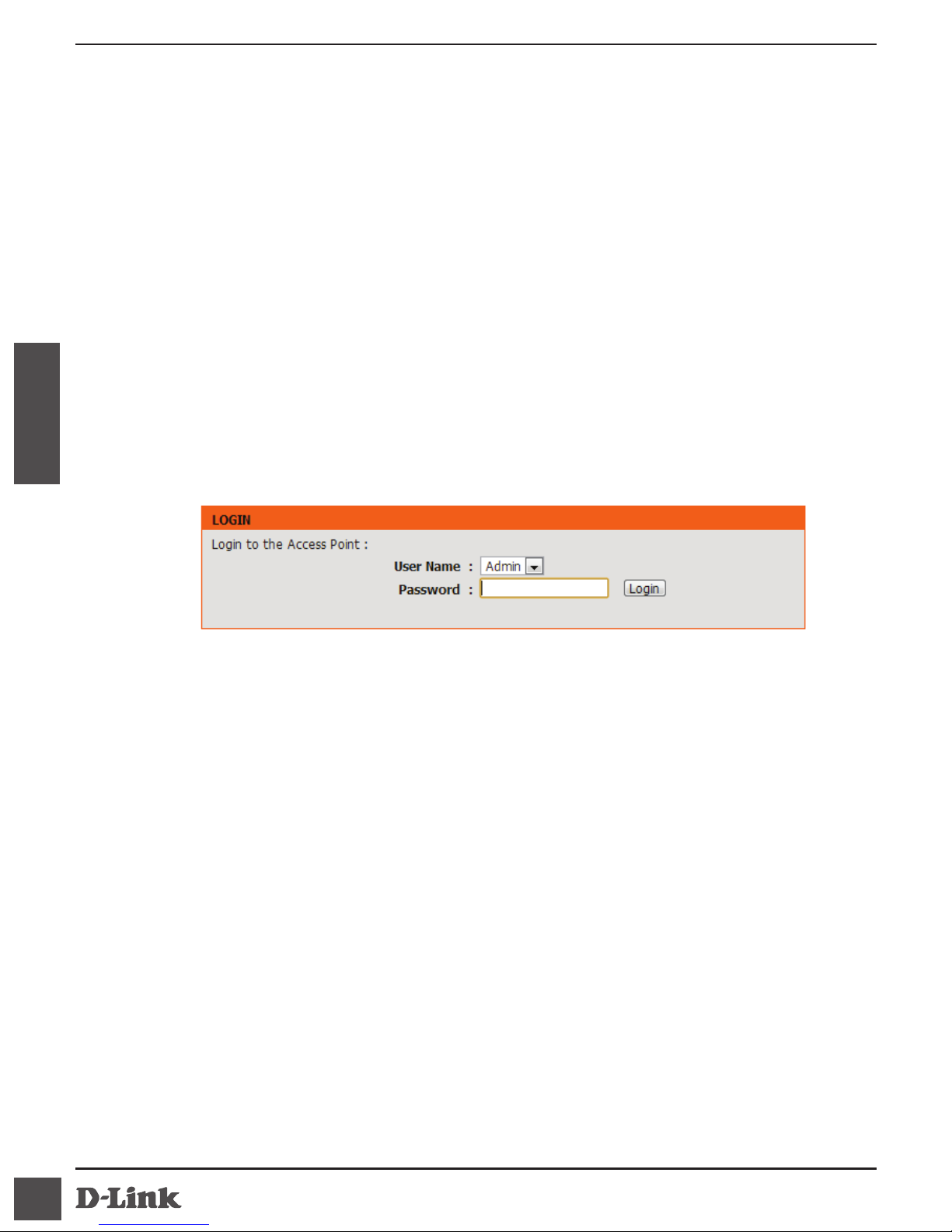

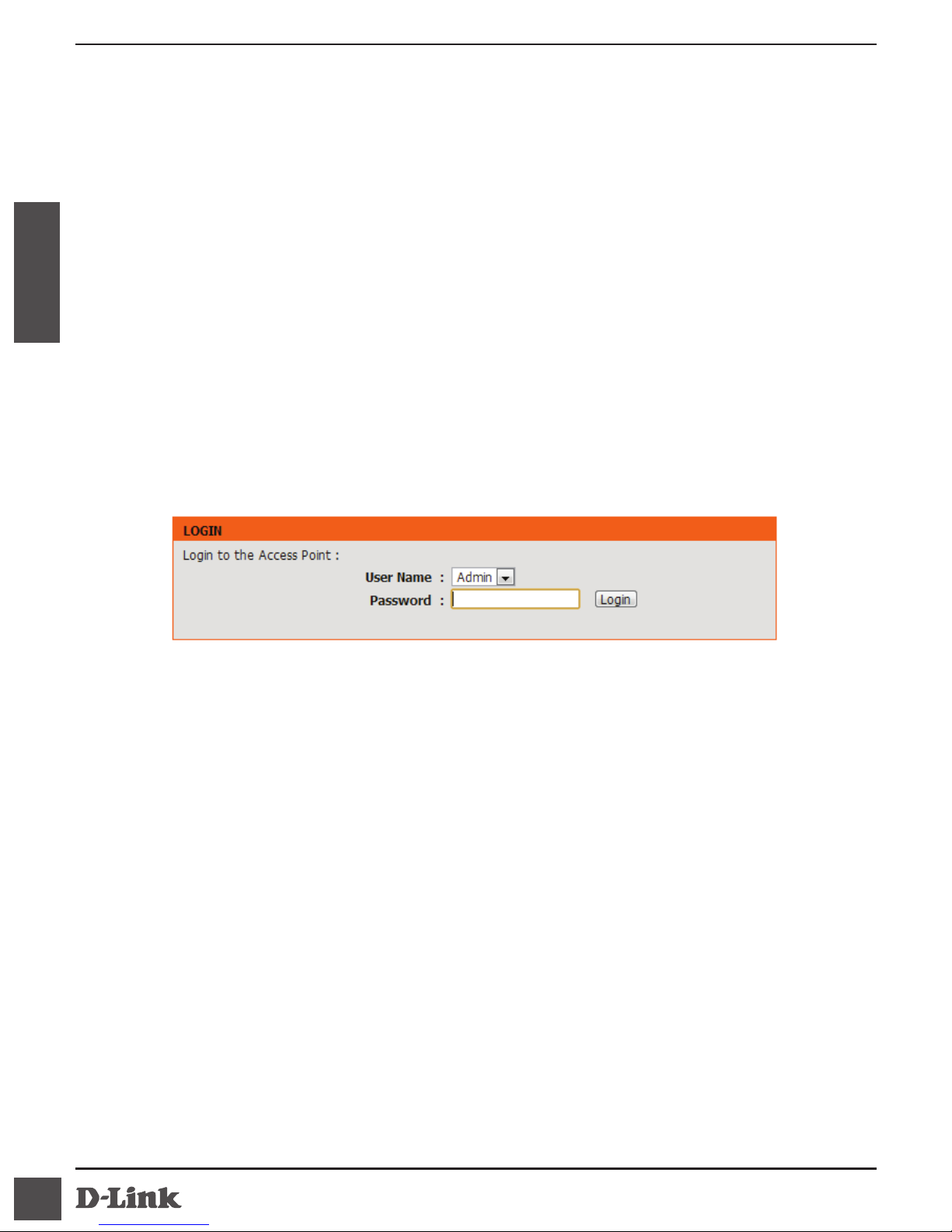

2. Select ADMIN for the User Name and leave the Password blank.

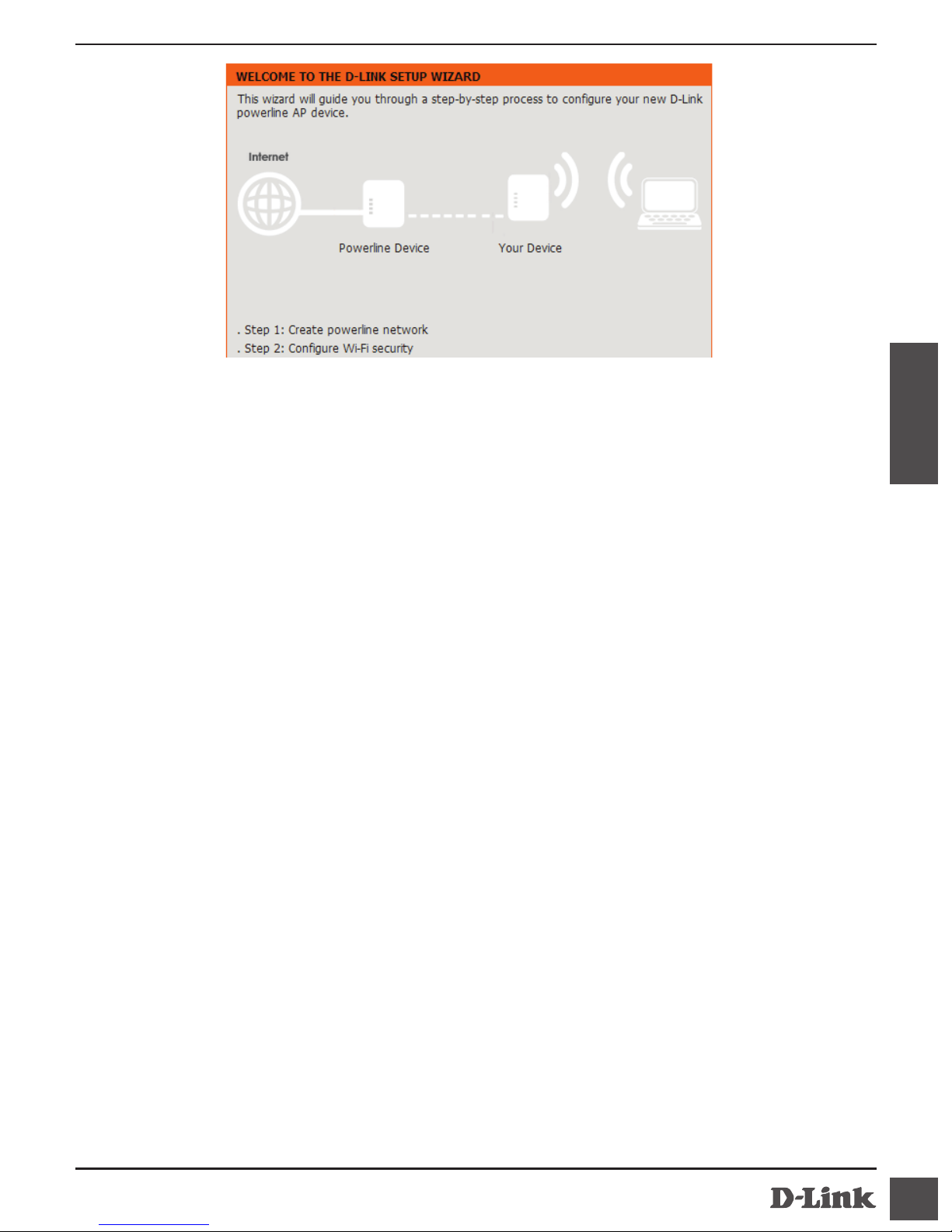

3. From the landing page, start the Setup Wizard for Powerline Connection.
4. When prompted, press the Common Connect Button for 2 seconds on the
DHP-308AV to connect it to the DHP-W310AV.
Note: If you have not previously secured your existing Powerline network,
you will need to set up security for all of your existing Powerline devices.
Perform the following steps for each device: press the Common Connect
Button on the DHP-W310AV, then press the Simple Connect Button on your
existing Powerline device within 2 minutes.
5. Follow the wizard’s steps to set up your Powerline network. For more
detailed support, please refer to the User Manual.

5
DHP-W311AV
ENGLISH
Frequently Asked Questions
Q: Why can’t my DHP-W310AV nd my DHP-308AV?
• Be sure you are plugging each directly into a wall outlet. Plugging into
anything else may slow or stop the connection.
• The electrical wiring must have a direct connection. For example, Powerline
connections may not be available across a street or to dierent units in an
apartment building.
Q: My connection is erratic and sometimes cuts out or is slow, why?
• Try to keep nearby outlets free of other devices, especially chargers and hair
dryers, to minimize electrical interference.
Q: How do I nd my wireless network? Why does it have such a weird
name? Can I change it?
• You can nd the Wi-Fi name (SSID) and password on the Wireless
Conguration Card. Common names and passwords like dlink or password
are avoided for security purposes.
• You can change your wireless settings by navigating a web browser to
http://dlinkapWXYZ.local. then Setup then Wireless Settings. WXYZ is an
example, the real address is on your conguration card.
Q: Can I use only the DHP-W310AV or DHP-308AV to get online?
• Powerline devices work together to create a network. They communicate
over your electrical wiring, but you still need an Internet connection from a
router and/or modem.
Q: Can I use more than one Powerline device at a time?
• Yes you can! D-Link oers a host of Powerline devices that include adapters,
extenders, and routers.

DHP-W311AV
