D-Link DAP-1360 User manual

2D-Link DAP-1360 User Manual
Table of Contents
Product Overview ................................................................................ 4
Package Contents......................................................................... 4
System Requirements ................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 7
Hardware Overview..................................................................... 8
Connections ........................................................................... 8
LEDs ........................................................................................... 9
WPS LED/Button..................................................................10
Installation ............................................................................................11
Operation Modes........................................................................11

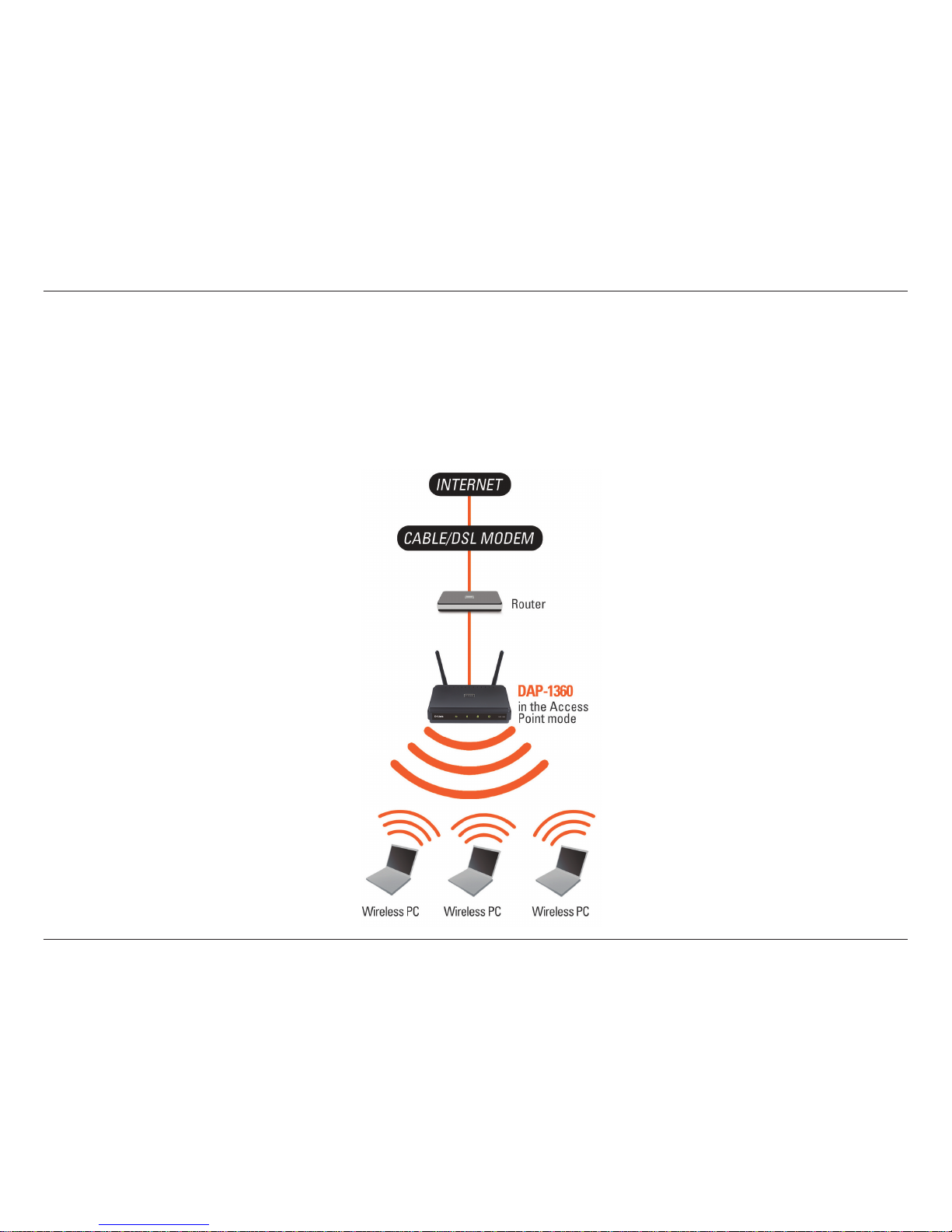

Access Point Mode .............................................................12

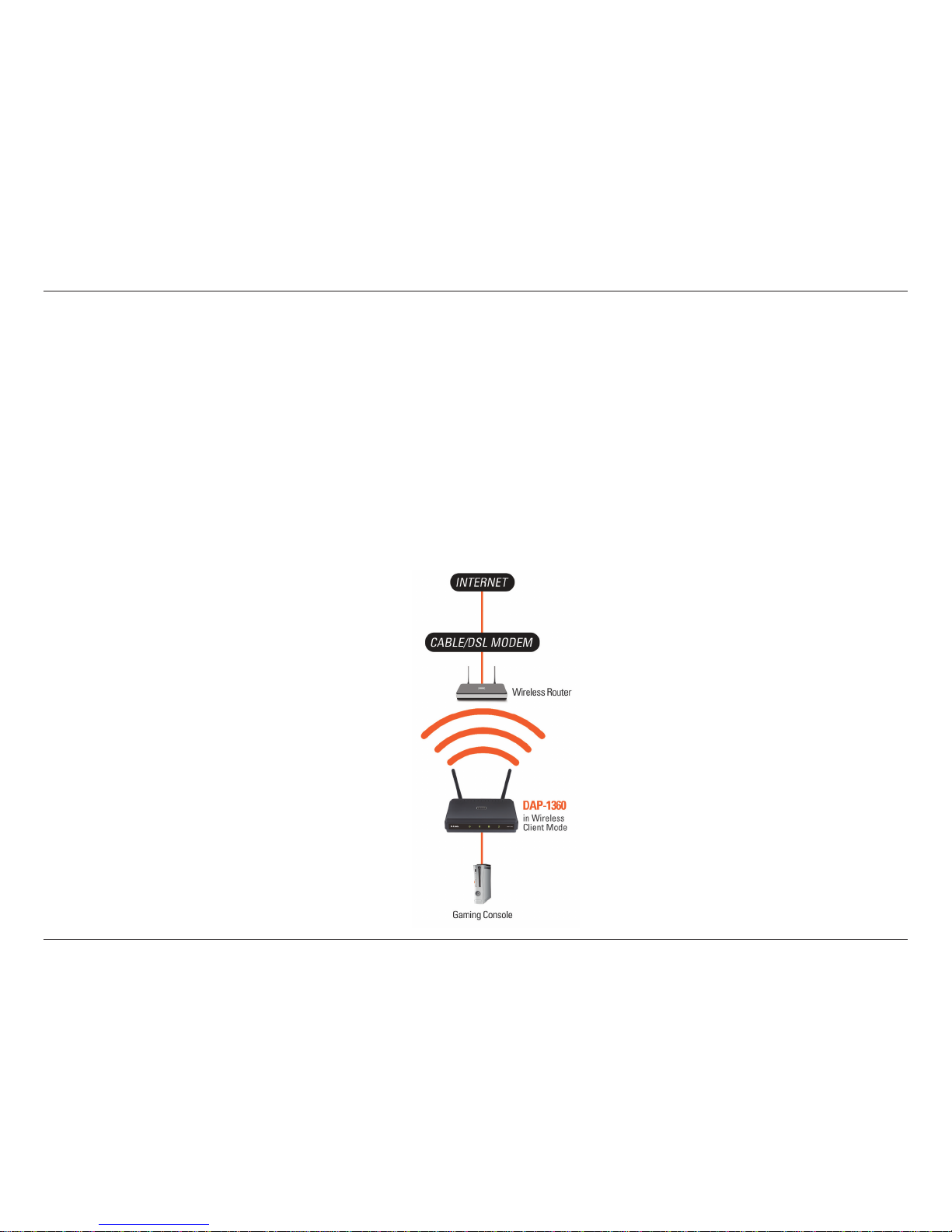

Wireless Client Mode.........................................................13

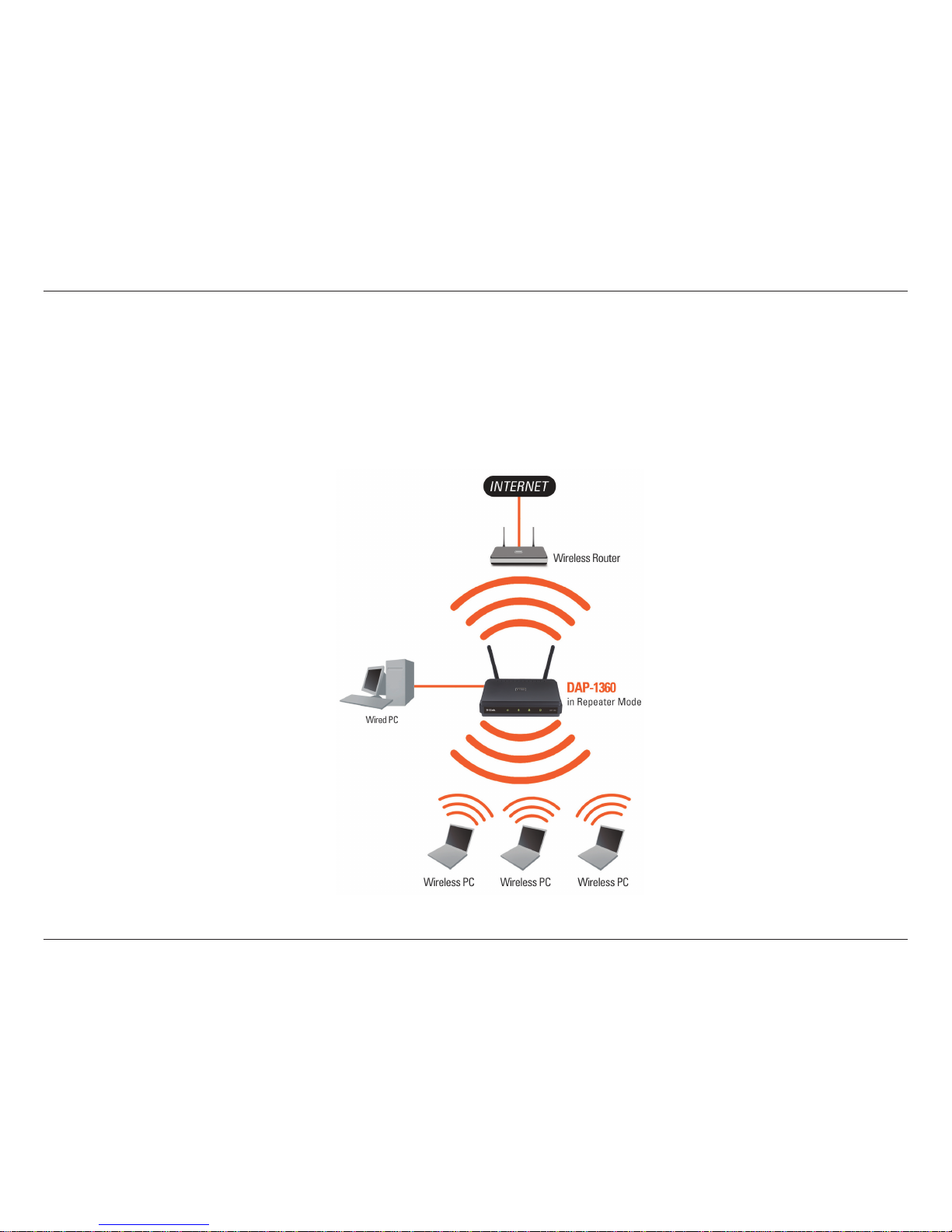

Repeater Mode....................................................................14

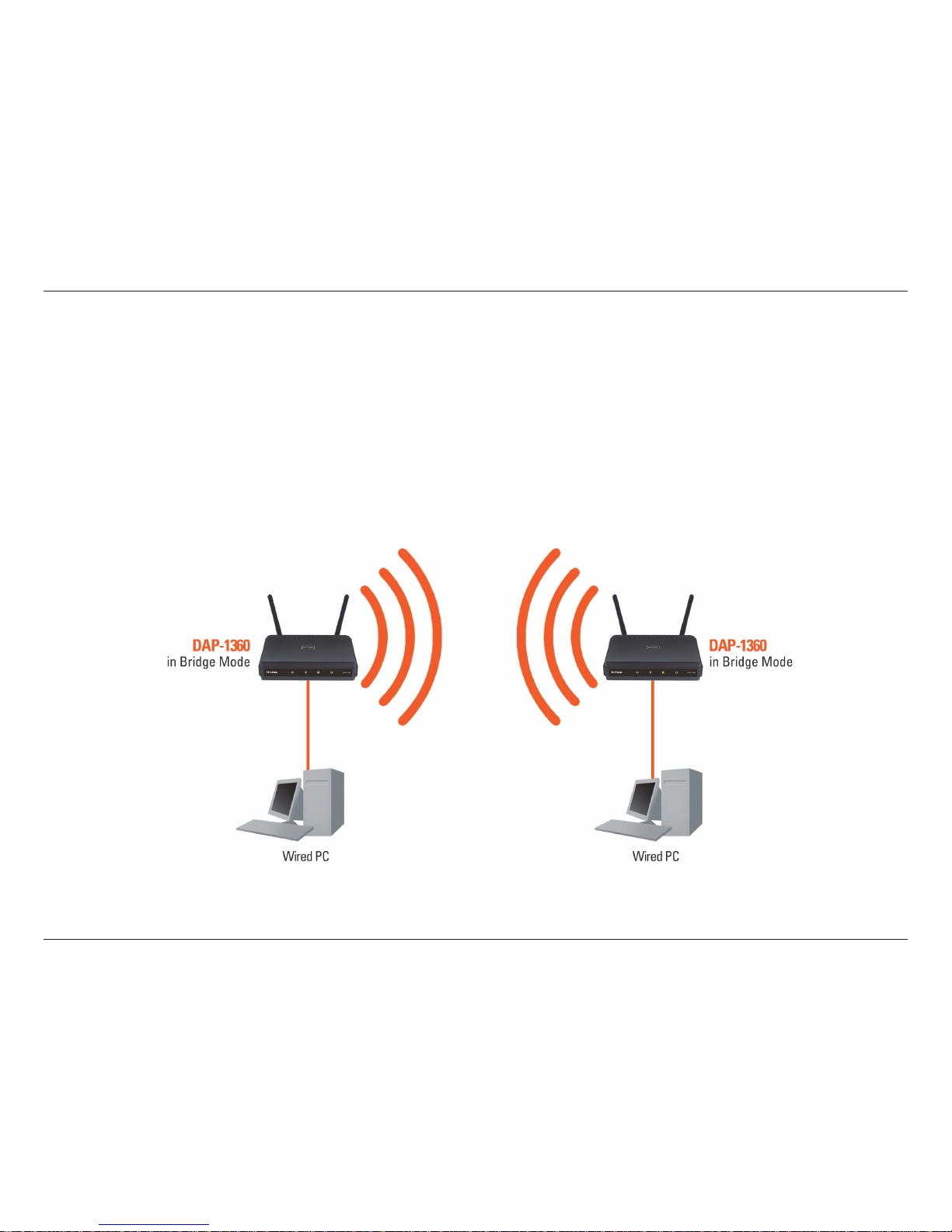

Bridge Mode.........................................................................15

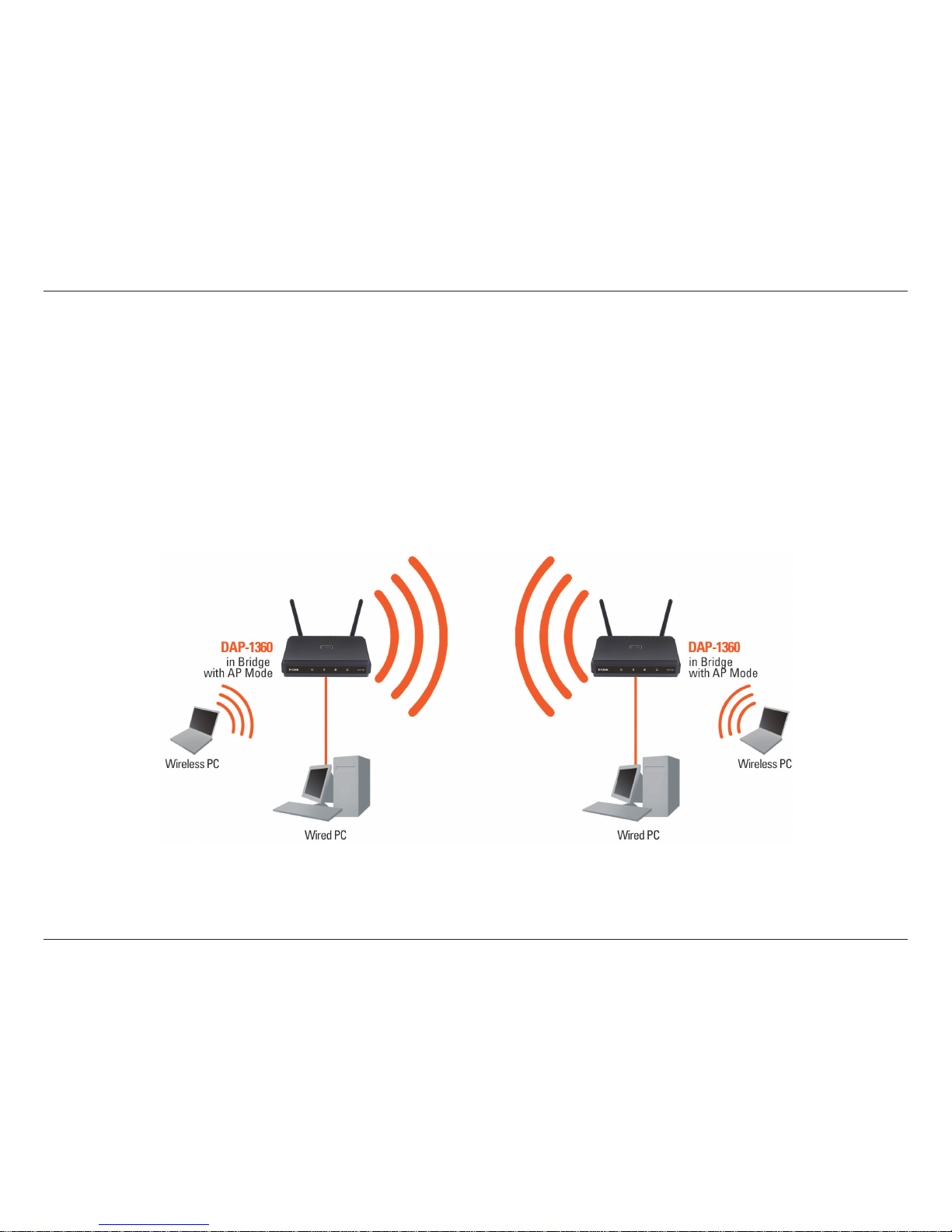

Bridge with AP Mode ........................................................16

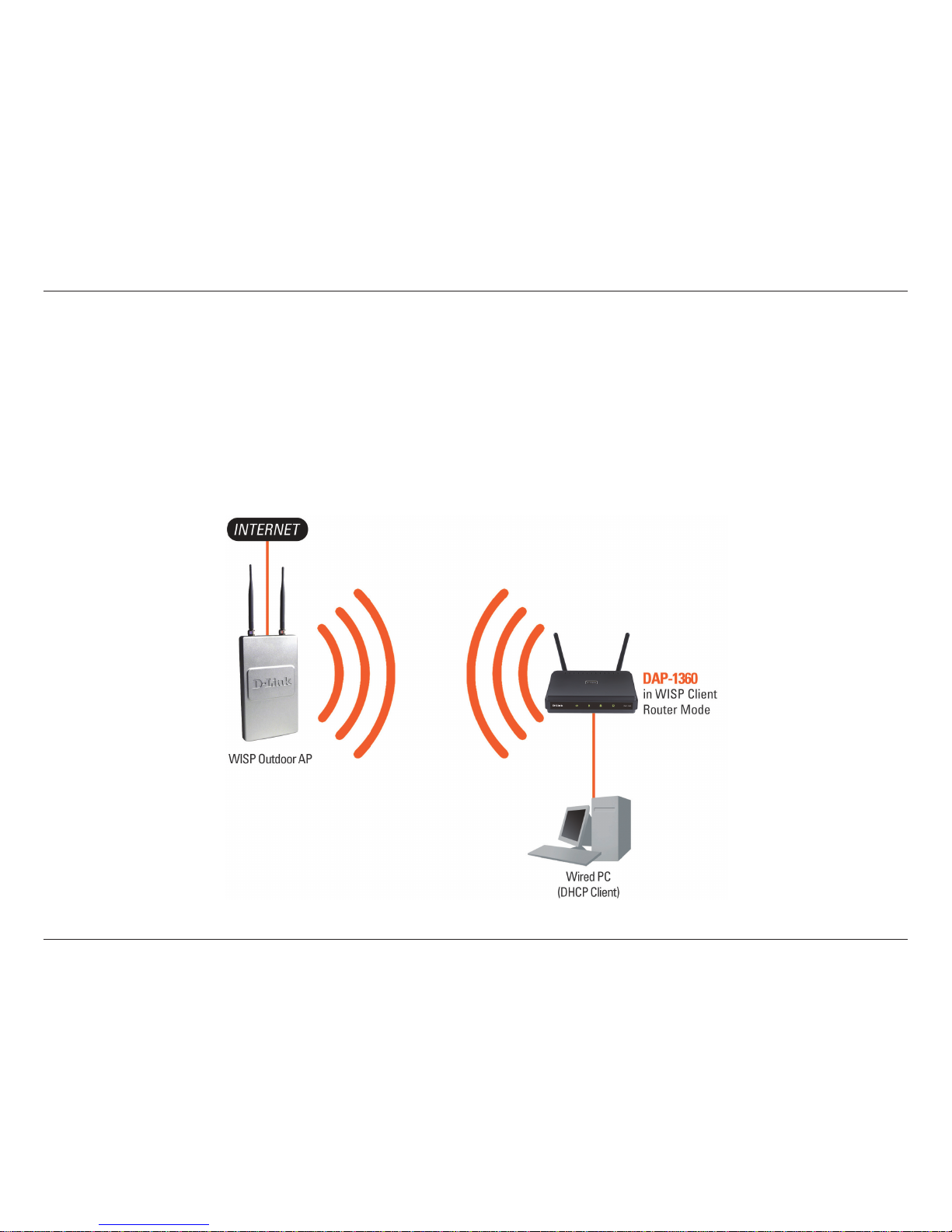

WISP Client Router Mode.................................................17

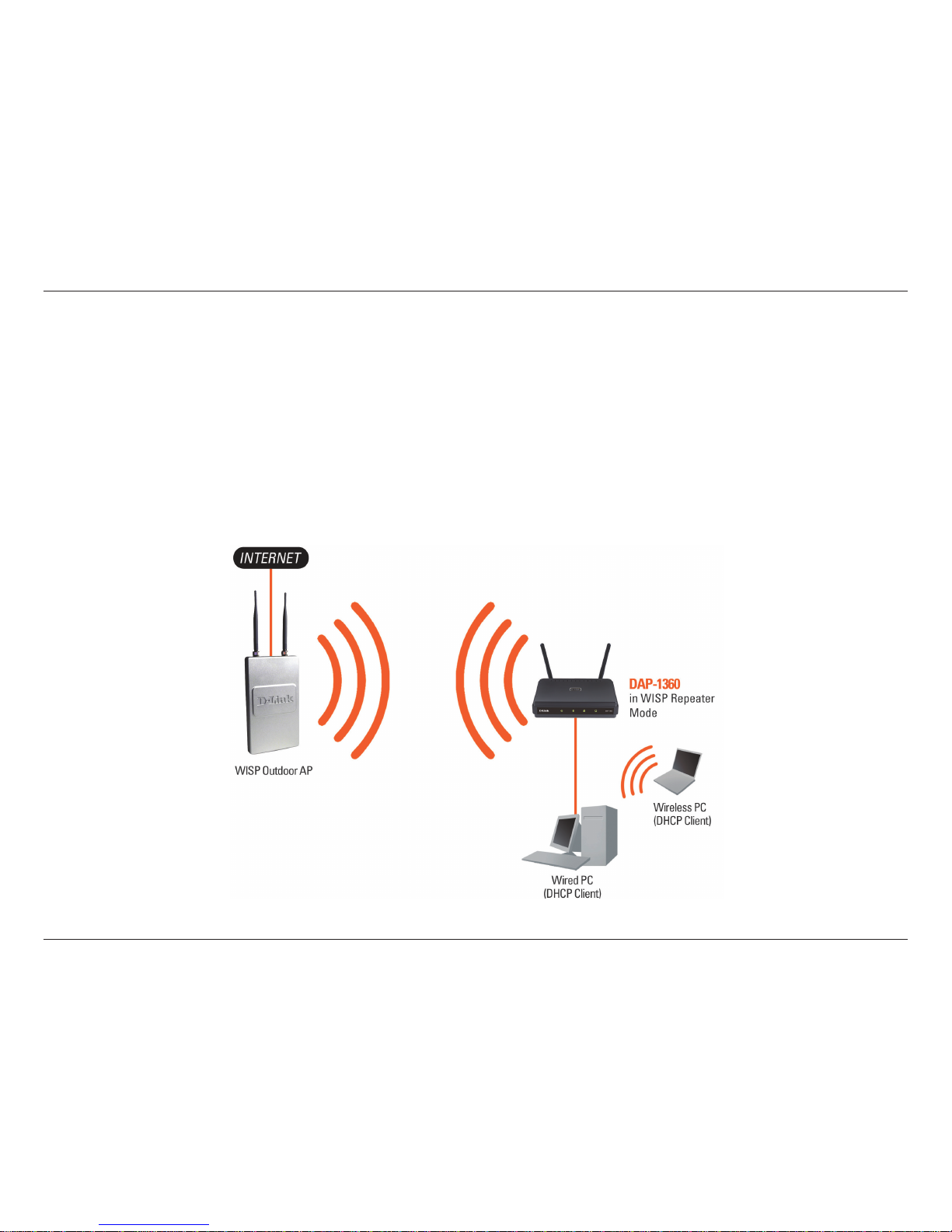

WISP Repeater Mode.........................................................18
Wireless Installation Considerations....................................19
Conguration.......................................................................................20

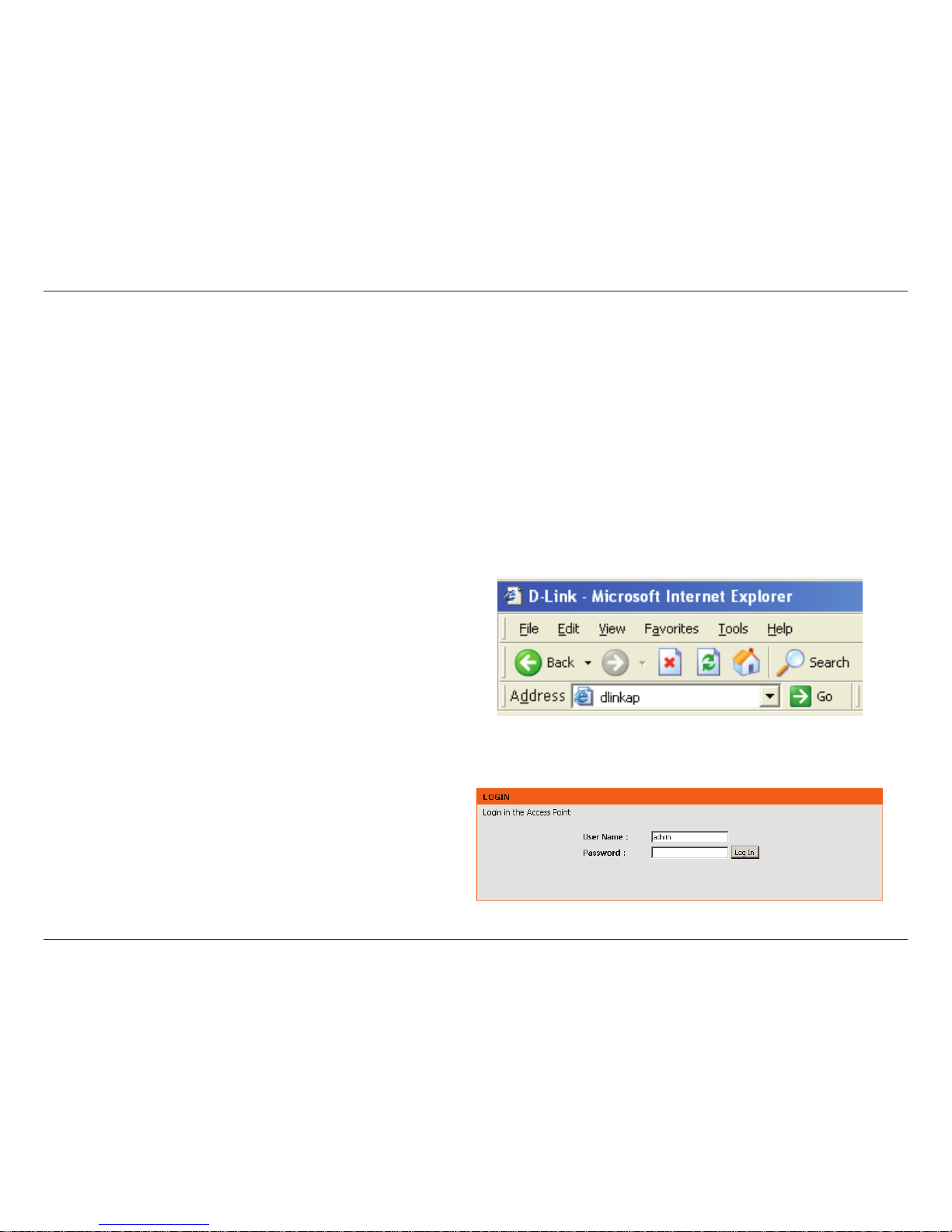

Web-based Conguration Utility..........................................20
Wireless Setup Wizard...............................................................21
Access Point Mode .............................................................22
Repeater Mode....................................................................26
Wireless Client Mode.........................................................32
Add Wireless Device With WPS ..............................................38
Manual Conguration...............................................................40
Wireless Settings.................................................................40
Access Point Mode ........................................................41
Repeater Mode ...............................................................43
Wireless Client Mode....................................................44
Bridge Mode ....................................................................45
Bridge with AP Mode....................................................46
WISP Repeater/Client Router Modes......................47
WAN Settings .......................................................................48
Dynamic IP (DHCP)........................................................48
Static IP..............................................................................49
PPPoE .................................................................................50
PPTP....................................................................................51
LAN Settings.........................................................................52
Static IP..............................................................................53
Advanced ......................................................................................54
Advanced Wireless .............................................................54
Access Control .....................................................................55
User Limit...............................................................................56
Port Forwarding (WISP modes only)............................57
Port Filter (WISP modes only).........................................58
DMZ (WISP modes only) ..................................................59
Parental Control (WISP modes only)............................60
Advanced Network (WISP modes only)......................61
Table of Contents

3D-Link DAP-1360 User Manual
Table of Contents
Maintenance ................................................................................62
Admin .....................................................................................62
System ....................................................................................63
Language Pack.....................................................................64
Firmware ................................................................................64
Watchdog ..............................................................................65
Time.........................................................................................66
Schedules ..............................................................................67
Status ..............................................................................................68
Device Info ............................................................................68
Logs .........................................................................................69
Statistics .................................................................................70
Wireless ..................................................................................71
Help .................................................................................................72
Wireless Security.................................................................................73
What is WEP? ................................................................................73
What is WPA?................................................................................74
Congure WEP.............................................................................75
Congure WPA/WPA2 Personal .............................................76
Congure WPA/WPA2 Enterprise..........................................77
Connect to a Wireless Network .....................................................78
Using Windows®XP ....................................................................78
Congure WEP.............................................................................79
Congure WPA-PSK....................................................................81
Connect to a Wireless Network .....................................................83
Using Windows Vista®...............................................................83
Congure WEP.............................................................................85
Congure WPA-PSK....................................................................86
Troubleshooting .................................................................................87
Wireless Basics.....................................................................................91
What is Wireless?.........................................................................92
Tips...................................................................................................94
Wireless Modes............................................................................95
Networking Basics..............................................................................96
Check your IP address...............................................................96
Statically Assign an IP address...............................................97
Technical Specications...................................................................98
Contacting Technical Support.......................................................99
Warranty ............................................................................................. 100
Registration ....................................................................................... 106

4D-Link DAP-1360 User Manual
Section 1 - Product Overview
• D-Link DAP-1360 Wireless N Range Extender
• Power Supply
• CAT5 Ethernet Cable
• CD-ROM with User Manual
• Quick Install Guide
System Requirements
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
adapter.
• Internet Explorer Version 6.0 or higher, Safari 3.0 or higher, or Firefox 3.0 or higher (for
conguration).
Product Overview
Package Contents
Note: Using a power supply with a different voltage than the one included with the DAP-1360 will cause damage and void
the warranty for this product.

5D-Link DAP-1360 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link DAP-1360 Wireless N Range Extender. With the
ability to transfer files with a maximum wireless signal rate of up to 300Mbps*, the DAP-1360 gives you high-speed
wireless network access for your home or oce.
The DAP-1360 is Wi-Fi IEEE 802.11n compliant, meaning that it can connect and interoperate with other 802.11n
compatible wireless client devices. The DAP-1360 is also backwards compatible with 802.11b/g. It can be flexibly
configured to operate in 7 different modes Access Point, Wireless Client, Bridge, Bridge with AP, Repeater, WISP
Client Router or WISP Repeater. With its Setup Wizard, the DAP-1360 ensures that you will be up and running on a
wireless network in just a matter of minutes.
The DAP-1360 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for
wireless data communications. The DAP-1360 also includes additional security features to keep your wireless connection
safe from unauthorized access.
The DAP-1360 supports WPS on the AP, repeater and wireless client operation modes,with each capable of being
conveniently set up by using the PIN method or Push Button.
• Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network
overhead, lower actual data throughput rate.

6D-Link DAP-1360 User Manual
Section 1 - Product Overview
TOTAL PERFORMANCE
Combines award winning access point features and Draft 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA/WPA2 encryption to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Wireless N Range Extender (DAP-1360) is a draft 802.11n compliant device that delivers real world performance
of up to 650% faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a
secure wireless network to share photos, les, music, video, printers, and network storage throughout your home. Connect the
DAP-1360 to router and share your high-speed Internet access with everyone on the network. In addition, this Range Extender
includes a Quality of Service (QoS) engine that keeps digital phone calls (VoIP) and online gaming smooth and responsive,
providing a better Internet experience.
EXTENDED WHOLE HOME COVERAGE
This high performance Wireless Bridge provides superior Whole Home Coverage while reducing dead spots. The DAP-1360 is
designed for use in bigger homes and for users who demand higher performance networking.
TOTAL NETWORK SECURITY
The DAP-1360 supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless
network or from the Internet. Support for WPA and WPA2 standards ensure that you’ll be able to use the best possible encryption
method, regardless of your client devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and Draft 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.

7D-Link DAP-1360 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1360 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio. The performance of this 802.11n wireless access point gives you the freedom
of wireless networking at speeds 650% faster than 802.11g.
• Compatible with 802.11b and 802.11g Devices - The DAP-1360 is still fully compatible with the 802.11b/g
standards, so it can connect with existing 802.11b/g PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays advanced network management features
including Content Filtering, which allows easily applied content ltering based on MAC Address.

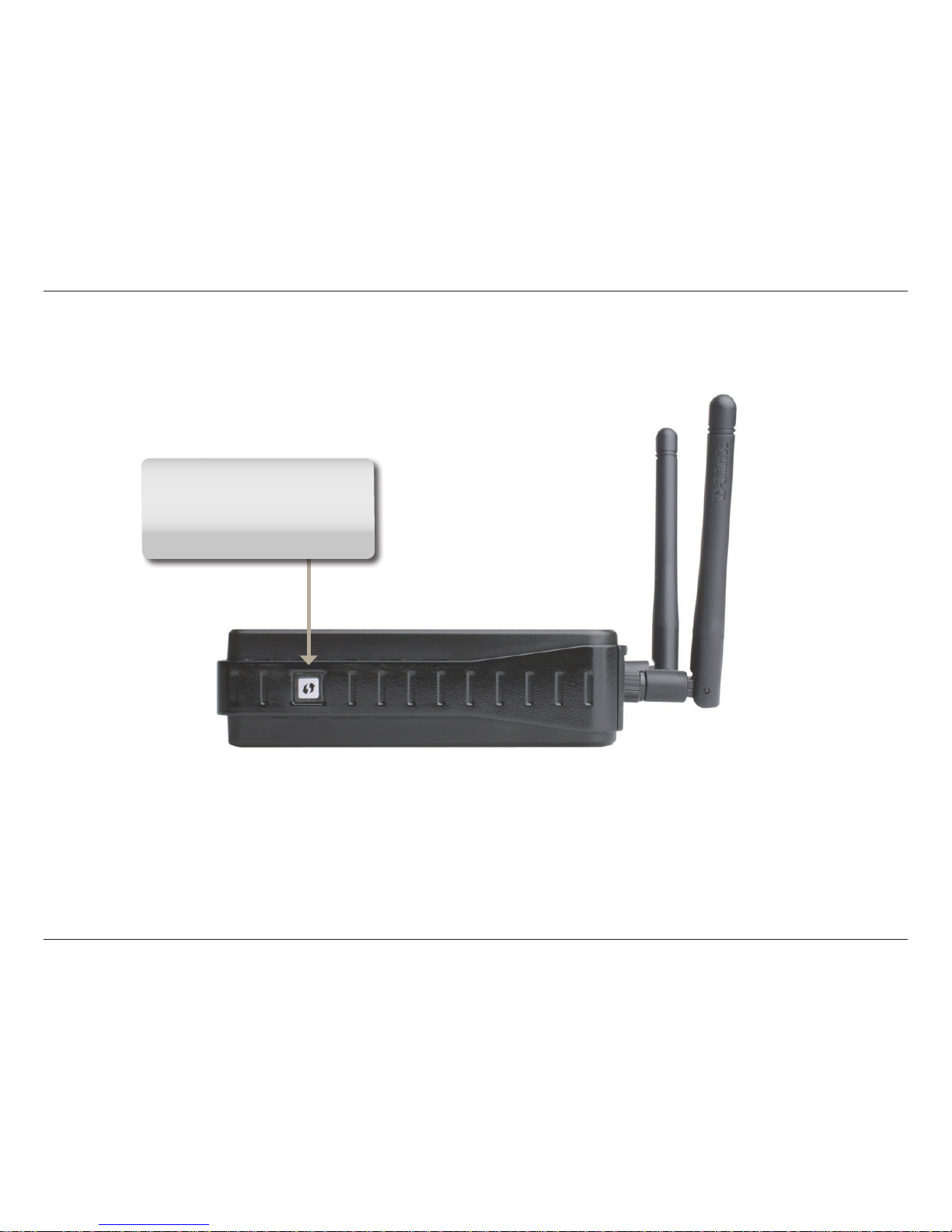

• WPS PBC- (Wi-Fi Protected Setup Push Button Configuration) Push Button Configuration is a button that can
be pressed to add the device to an existing network or to create a new network. A virtual button can be used on
the utility while a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1360 and another WPS
enabled device. A PC is no longer needed to log into the Web-based interface.
• WPS PIN - (Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used
to add the access point to an existing network or to create a new network. The default PIN may be printed on
the bottom of the access point. For extra security, a new PIN can be generated. You can restore the default PIN
at any time. Only the Administrator (“admin” account) can change or reset the PIN.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1360 lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your company’s
server. Congure your access point to your specic settings within minutes.
Features

8D-Link DAP-1360 User Manual
Section 1 - Product Overview

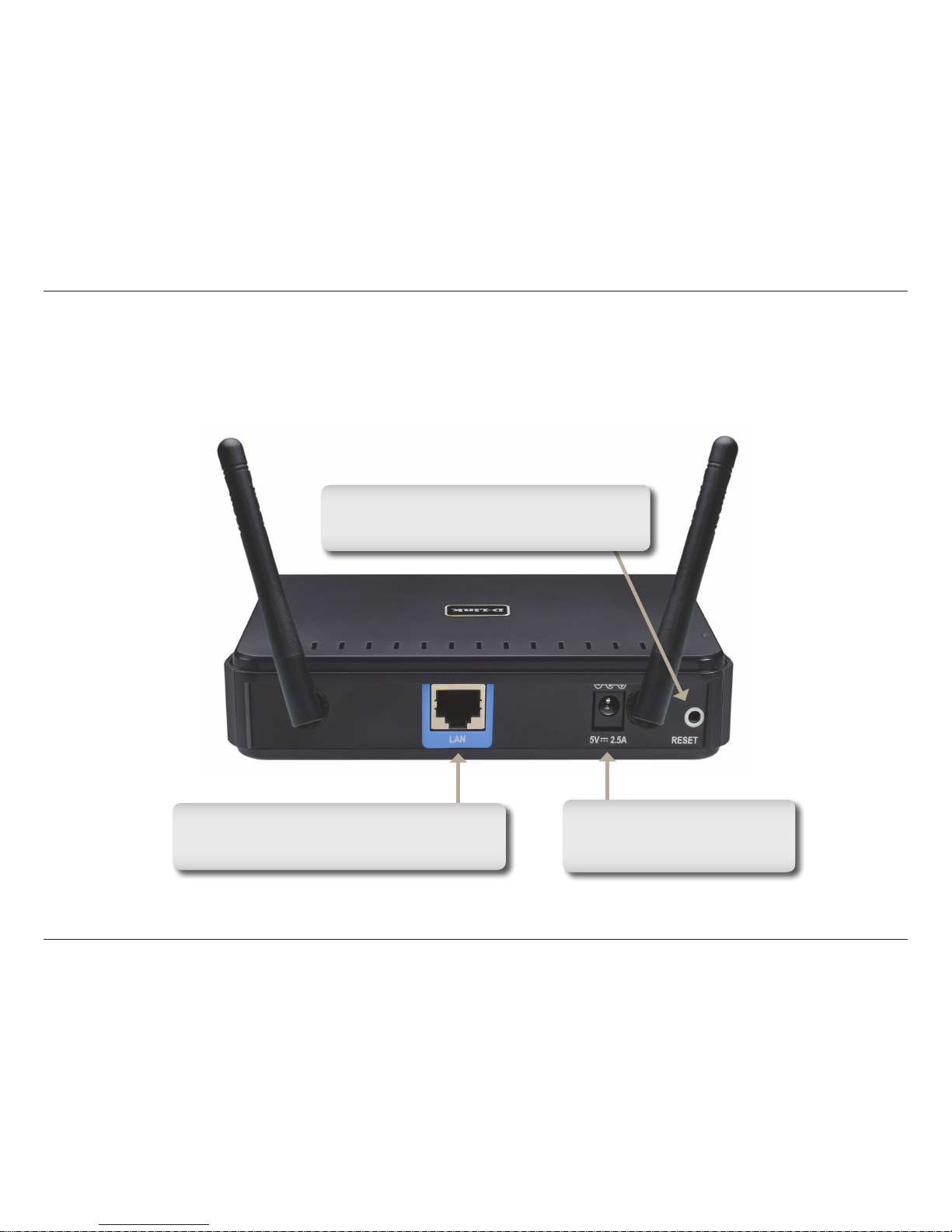

Hardware Overview
Connections
Reset
Pressing the Reset button restores the access
point to its original factory default settings.
Power Receptor
Receptor for the supplied power
adapter.
LAN Port
Connect Ethernet devices such as computers,
switches, game consoles, setup boxes and hubs.

9D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview

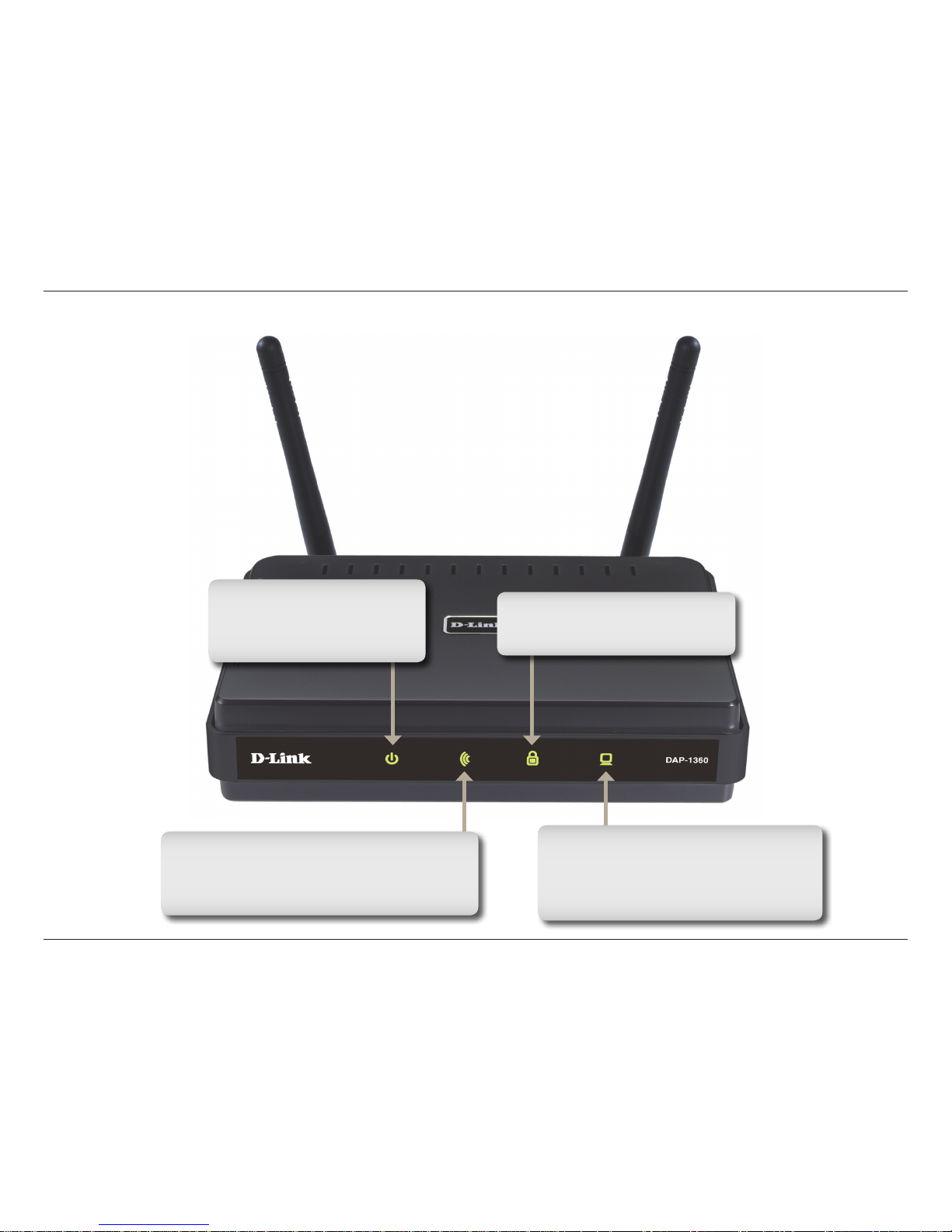

LEDs
LAN LED
A blinking green light indicates data is
being transferred through the LAN port.
A solid green light indicates the LAN port
connection is OK.
Wireless LED
A blinking green condition indicates wireless
activity is taking place or wireless connections are
OK.
Power LED
A solid green light indicates the
device has been successfully
connected to a power source.
Security LED
A solid light indicates that wireless
security is enabled.

10D-Link DAP-1360 User Manual
Section 1 - Product Overview
WPS LED/Button
A solid light indicates a successful
WPS connection. A blinking light
indicates the device is trying to
establish a connection.
Hardware Overview
WPS LED/Button

11D-Link DAP-1360 User Manual
Section 2 - Installation
Installation
Please configure the DAP-1360 with a computer connected directly to the AP. The next few pages will explain the
dierent operational modes you can use.
Operation Modes
Depending on how you want to use your DAP-1360 will determine which mode you use. This section will help you gure
out which setting works with your setup.
• Access Point mode - page 12
• Wireless Client mode - page 13
• Repeater mode - page 14
• Bridge mode - page 15
• Bridge with AP mode - page 16
• WISP Client Router mode - page 17
• WISP Repeater mode - page 18

12D-Link DAP-1360 User Manual
Section 2 - Installation
Access Point Mode
In the Access Point mode, the DAP-1360 acts as a central connection point for any computer (client) that has a 802.11n or
backward-compatible 802.11b/g wireless network interface and is within range of the AP. Clients must use the same SSID
(wireless network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need
to enter a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time.

13D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Client Mode
In the Wireless Client mode, the DAP-1360 acts as a wireless network adapter for your Ethernet-enabled device (such as a game
console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode
can support multiple wired clients.
If you are going to connect several Ethernet-enabled devices to your DAP-1360, connect the LAN port of the DAP-1360 to an
Ethernet switch, then connect your devices to this switch.
Example: Connect a gaming console using an ethernet cable to the DAP-1360. The unit is set to Wireless Client mode which
will wirelessly connect to a wireless router on your network.

14D-Link DAP-1360 User Manual
Section 2 - Installation
Repeater Mode
In Repeater mode, the DAP-1360 increases the range of your wireless network by extending the wireless coverage of another
AP or wireless router. The APs and wireless router (if used) must be within range of each other. Make sure that all clients, APs,
and the wireless router all use the same SSID (wireless network name), channel, and security settings.

15D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge Mode
In the Bridge mode, the DAP-1360 wirelessly connects seperate local area networks (LANs) that can’t easily be
connected together with a cable. For example, if there are two wired LANs separated by a small courtyard, it would be
expensive to bury cables to connect between the two sides together. A better solution is to use two DAP-1360 units to
wirelessly connect the two LANs. In the Bridge mode, both DAP-1360 units do not act as APs.
Note: The Bridge mode is not specied in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360
units. Communication with other APs (even other D-Link APs) is not guaranteed.
LAN 1 LAN 2
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Cannot Access the DAP-1360 Units)

16D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge with AP Mode
The Bridge with AP mode is the same as the Bridge mode, but in this case, the DAP-1360 also acts as an AP. Clients
with wireless interfaces can wirelessly connect to the DAP-1360 and then connect to the other LAN that the DAP-1360
bridges to.
Note: The Bridge with AP mode is not specified in the Wi-Fi or IEEE standards. This mode will only work using two
DAP-1360 units. Communication with other APs (even other D-Link APs) is not guaranteed.
LAN 1 LAN 2
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Can Access the DAP-1360 Units)

17D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Client Router Mode
In the WISP Client Router mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP.
In this mode, the DAP-1360 also acts as a router for wired clients on your LAN and provides NAT (Network Address
Translation) and a DHCP server to generate IP addresses for wired clients only. NAT and the DHCP server allow many
computers to share the same wireless Internet connection.
If you are a WISP subscriber and want to access your WISP account using wired computers, connect your computers
to the DAP-1360 to get NAT, and then connect them to the WISP AP.
Connecting Wired PCs to the Internet Using the DAP-1360

18D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Repeater Mode
In the WISP Repeater mode, the DAP-1360 wirelessly connects to a WISP (Wireless Internet Service Provider) AP. In
this mode, the DAP-1360 also acts as a router for both wireless and wired clients on your LAN. The WISP Repeater
mode provides NAT (Network Address Translation) and a DHCP server to generate IP addresses for both wireless and
wired clients. NAT and the DHCP server allow many computers to share the same wireless Internet connection.
If you are a WISP subscriber and want to use your WISP account in your house, but the signals from the outdoor WISP
AP are not strong enough to reach all of the areas in the house, use the DAP-1360 to can extend the signals from the
outdoor WISP AP and provide access to wireless clients in your house. Using this mode, wireless as well as wired
clients can connect to the outdoor WISP AP through the DAP-1360.
Connecting Wired and Wireless PCs to the Internet Using the DAP-1360

19D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere
within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to
a minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect
on range. Try to position access points, wireless access points, and computers so that the signal passes
through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation,
water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone is not in use.

20D-Link DAP-1360 User Manual
Section 3 - Configuration
Configuration
This section will show you how to congure your new D-Link wireless access point using the web-based conguration
utility.
Web-based Configuration Utility
If you wish to change the default settings or optimize
the performance of the DAP-1360, you may use the
web-based conguration utility.
To access the conguration utility, open a web browser
such as Internet Explorer and enter dlinkap or
192.168.0.50 in the address eld.
Type Admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please
refer to the Troubleshooting section for assistance.
