D-Link DVG-1120M User manual

VoIP Residential Gateway
Manual
(10/08/04)
Building Networks for People
D-Link
DVG-1120M

2
Contents
PackageContents ................................................................................3
Introduction............................................................................................4
Connections..........................................................................................5
Features andBenefits ...........................................................................6
LEDs ....................................................................................................7
Web-basedManagement......................................................................8
TechnicalSpecifications ......................................................................29
TechnicalSupport................................................................................32
Warranty..............................................................................................33
Registration ........................................................................................36

3
Contents of Package:

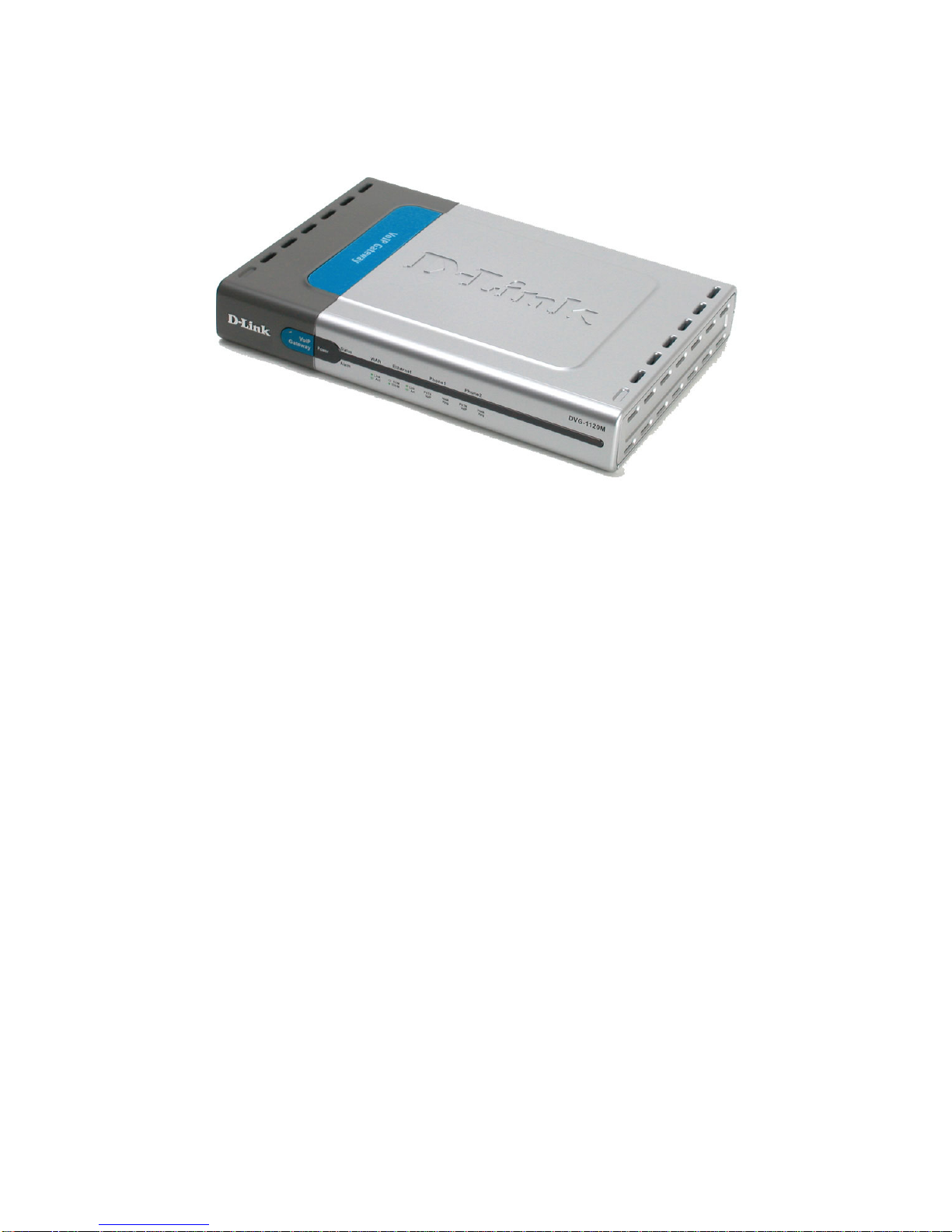

D-Link DVG-1120M
VoIPResidentialGateway
A/C PowerAdapter
CAT5-RJ-45 Ethernet Cable (Blue)
RJ-11 Telephone Cord (Gray)
QuickInstallationGuide
Package Contents




Note:Using a power supply with a different voltage ratingthantheoneincludedwith
theDVG-1120M will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements For Configuration:

At least 128MB of memory and a 500MHz processor
Computer with Windows, Macintosh, or Linux-based operating
system with an installed Ethernet adapter
Internet Explorer or Netscape Navigator version 4.0 or above,
with JavaScript enabled



4
Introduction
TheD-LinkDVG-1120MVoIPStationGatewaylinkstraditionaltelephonenetworks
to IP networks with conventional telephone devices such as analog phones or
fax machines.
The DVG-1120M includes two Foreign Exchange Subscriber (FXS) interfaces
with normal RJ-11 telephone connectors that provide voice/fax communication
over the IP network.
Two Ethernet ports are also provided. One Ethernet port is for a DSL/Cable
Modem or other WAN device, and the other is for connection to create a home
or small office LAN network.
The built-in DHCP server and Network Address Translation (NAT) function
automatically assigns IP addresses for LAN users, allowing multiple users to
share a single Internet connection. You can configure and monitor the DVG-
1120M via the Webbrowser.Telnet andSNMPmanagement is also supported.
Byroutingcalls overtheInternet or anyIPnetwork, the DVG-1120M canreduce
or eliminate long distance or inter-office phone charges. Corporations can also
enjoy the benefits of network consolidation and reduction of leased lines by
relying on the Internet service providers to deliver toll-quality voice
communications over the IP networks.

5

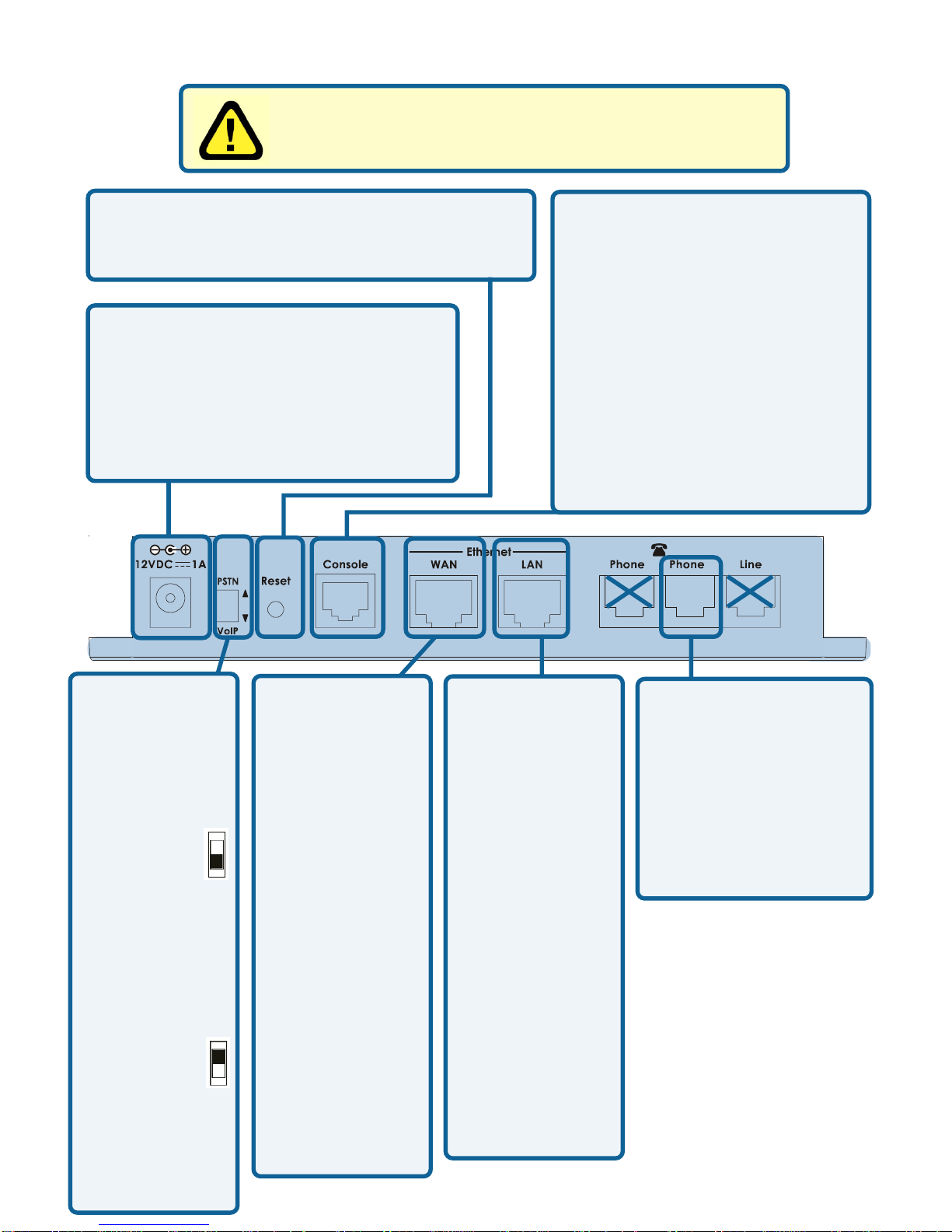

Connections
AC Power Connector Use the
includedpoweradapter.Ifyouuse
a power adapter other than the
oneincludedwith the productyou
will damage the device and void
the warranty on this product.
PSTN/VoIP
Switch to
select PSTN
or VoIP mode
When the
switch is in
the down
position,
Phone1/2 will
bein VoIP
Mode.
When the
switch is in
the up
position,
Phone1/2 will
be configured
to PSTN
Mode.
Reset Switch Used to return the device
to its original configuration. This is the
same as performing a factory reset.
Diagnostic Port An RJ-14
port used to configure the
device. (User needs a RJ-
14 to RS-232 converter).
Plug one end of a straight-
through wired RJ-14 cable
to the device and the other
end to a serial port of a PC
running a terminal
emulation program (such
as Microsoft HyperTerminal)
or a VT-100 terminal.
Phone 1
Normal RJ-11 phone
jack used to connect
to a telephone or fax
machine. Plug your
normal telephone or
fax machine directly
into this jack.
Ethernet WAN
A10Mbps
Ethernet port
fitted with an
RJ-45
connector used
to connect the
VoIPgateway
to a WAN
device(e.g.
Cable/ADSL
Modem). This
port accepts
Category 3, 4
or 5 UTP
cabling with an
RJ-45
connector.
Ethernet LAN
A10/100Mbps
dual-speed
Ethernet port
fitted with an
RJ-45
connector used
to connect the
VoIPgateway to
aLANdevice
(hub, switch,
PC, etc.). This
port accepts
Category 5 or
betterUTP
cabling with an
RJ-45
connector.
Warning! Using a different power adapter than the
oneincludedwithyourpurchase will damage the
DVG-1120Mandvoid thewarranty.
21

6
Oneanalog FXSinterfaceport acceptingan RJ-11 connectorto facilitate
a VoIP connection
One 10Mbps WAN port for connecting to a DSL/Cable Modem or other
WAN devices
One 10/100Mbps LAN port for connecting to a local network
IP address assignment using DHCP (Dynamic Host Configuration
Protocol) or static configuration
IP Routing support (RIP1, RIP2 and Static Routing)
Remote software download/update
Supports IP sharing to allow multiple users to access the Internet via a
single IP address
Built-in PPPoE function to support dial-up connection for broadband
technology
Supports Caller ID
Supports QoS to guarantee voice quality
Automatic Call Redirection (ACR) function support
VoIP line automatic selection (e.g. 110, 119)
VoIProuting tablesupport








Features & Benefits






7

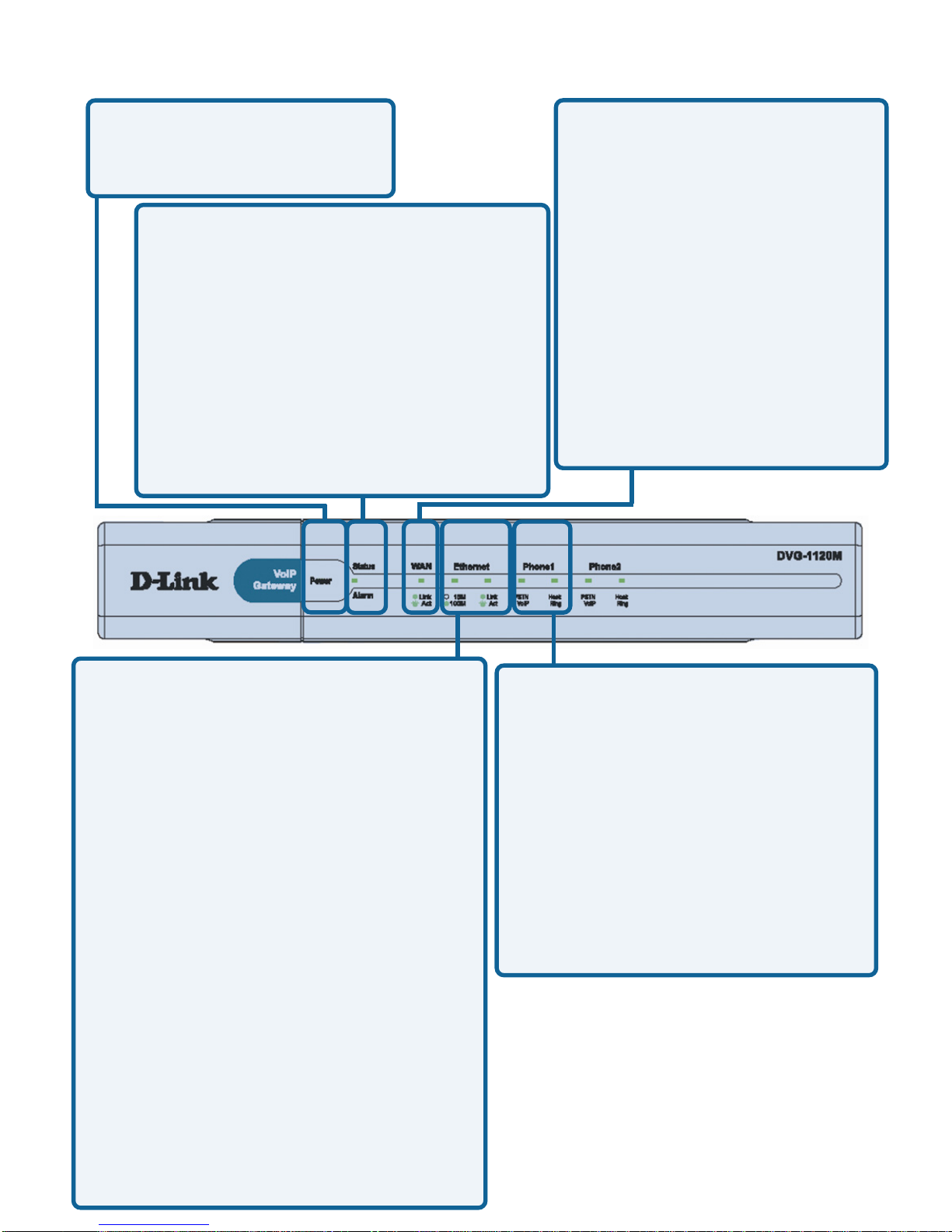

LEDS
Ethernet - This LED displays the
connection speed, link status, and
activity on the 10/100 dual-speed
Ethernet port that is used to connect
toyourLAN.
10/100M - This indicator remains
unlit when there is no connection,
or the port is operating at 10Mbps
throughaconnectiontoa10BASE-
T device. It is lit when the port is
operating at 100Mbps through a
connection to a dual-speed or
100BASE-TX Fast Ethernet
device.
Link/Act - When a good link to a
powered-up but idle device is
detected on a port, this indicator
shines steadily. When packets are
received from the device, the
indicator blinks off and on.
WAN This LED displays the
link status and activity on the
10MEthernetportthatisused
to connect to your WAN
device (usually a Cable or
ADSLModem).When agood
link to a powered-up but idle
device is detected on a port,
the WAN indicator shines
steadily. When packets are
received from the device, the
indicator blinks off and on.
Phone 1 - ThisLEDdisplays the
activity on the RJ-11 port that is
used to connect to your normal
telephone/faxmachineline.
Power This LED is lit when
the device is receiving
power; otherwise, it is unlit.
Status/Alarm
This LED will remain green when the
CPE is either performing a self-test or
booting up. The LED will flash green
slowly when the system is ready for a
connection with the CallAgent. It will
remain red when the self-test or
booting up is failed. It will flash red
slowly when the system is ready but
cannot receive an acknowledgment
from the CallAgent.
Hook/Ringing - When an off-
hook action is detected on a
phoneport,thisindicatorshines
steadily. When a ringing signal
isreceived from thedevice, the
indicator blinks off and on.

8
Web-based Management

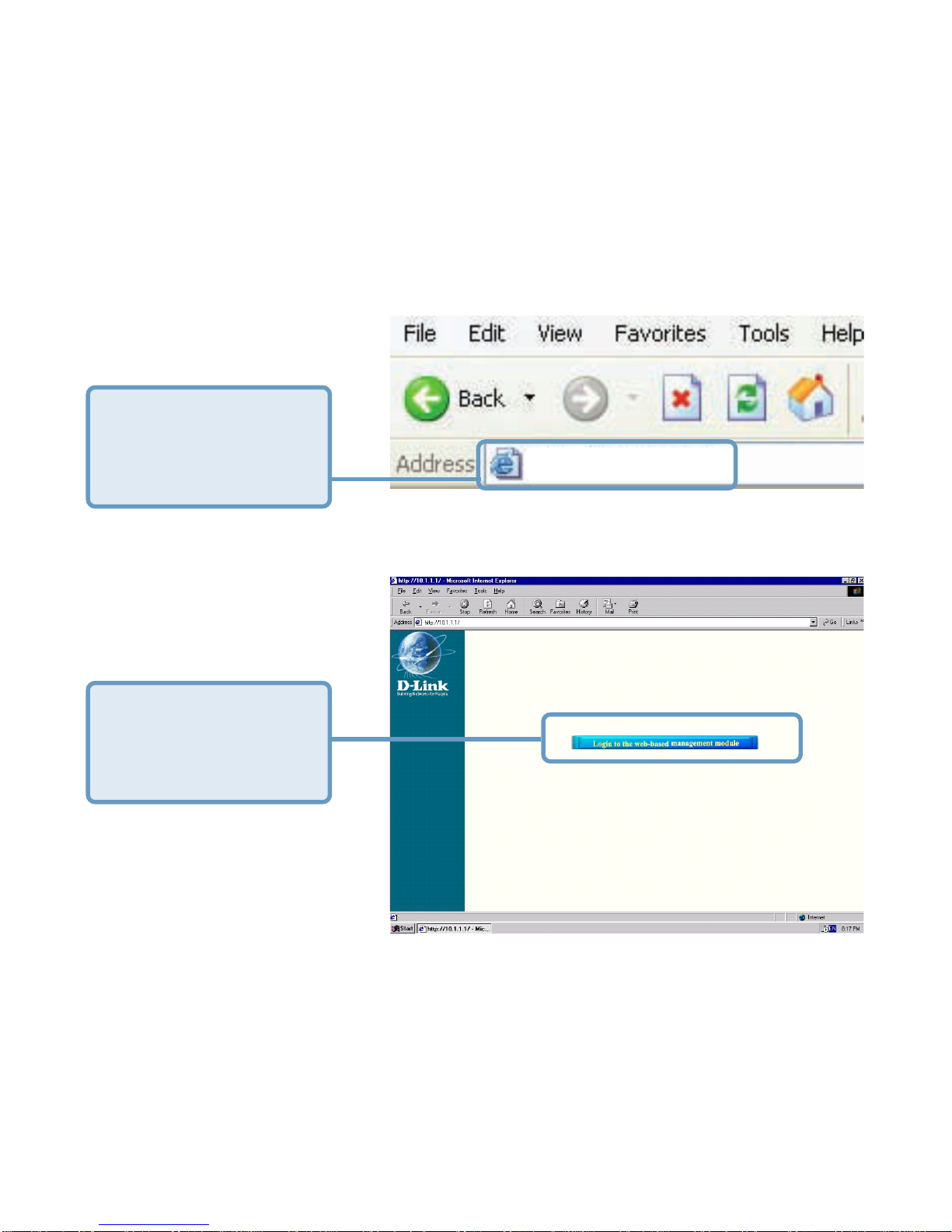

In order to use a web browser to configure the VoIP gateway, you must make
sure it has a valid Ethernet connection to a PC or LAN via its LAN port.
Accessthe configurationutilityto checkthe LANport byentering theIPAddress
into your web browser address field.
Click on Login to the
Web-based
Management
module
Type 192.168.15.1
(the IPAddress) into
the address field of
your browser. http://192.168.15.1

9
Web-based Management (continued)
Setting Up the Connection
TheVoIPgateway’s WANportcomes
withDHCP asdefaultIPsetting.Ifthe
VoIP gateway cannot get the
assigned DHCP IP, it will use the
manual IP (default is 10.1.10.5 ) as
it’s default IP.
Click on Configure WAN Port.
To configure theWAN port, please dothefollowing:
Then go to Start>Control
Panel>Network
Connections>Right-click local
area connection >select
Properties> double click Internet
Protocol (TCP/IP). The screen at
right will appear.
Make sure the PC is in the same IP
domain as the VoIP gateway. You
can do this by changing the IP
address of the PC as shown here.
Manually input the
WAN IPAddress here.

10
Web-based Management (continued)
To configure the LAN port for the device, please do
thefollowing:
After you have configured your WAN and LAN ports you can click on Save
and Restart System in the Configuration menu, or you can continue to
configure the VoIP.After you have completed configuring the VoIP, you must
Save and Restart the System or your changes will not be saved.

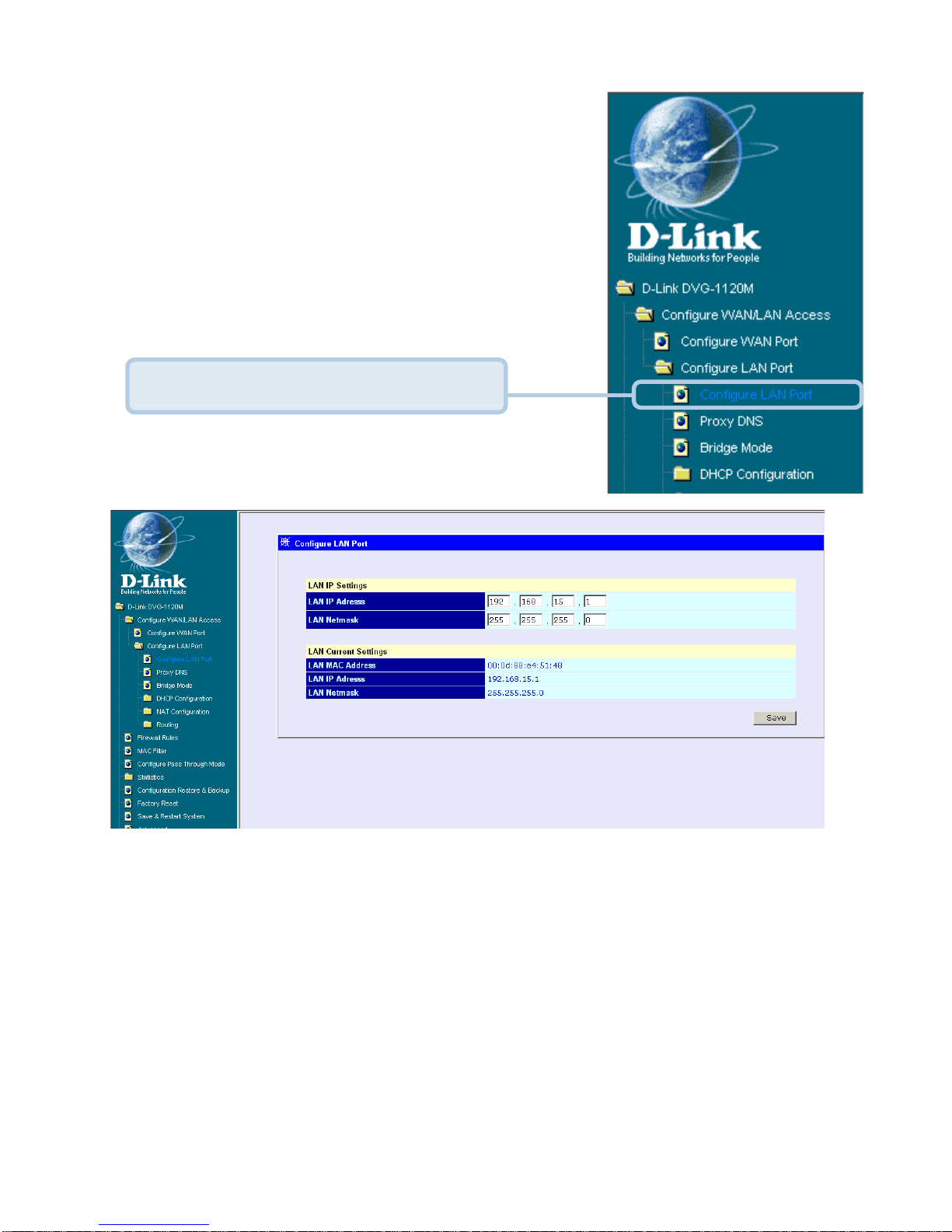

In this configuration menu, users can configure the LAN IPAddress.
(Recommended for advanced users.)
By default the LAN IPAddress is: 192.168.15.1
Click on Configure LAN Port.

11
Web-based Management (continued)

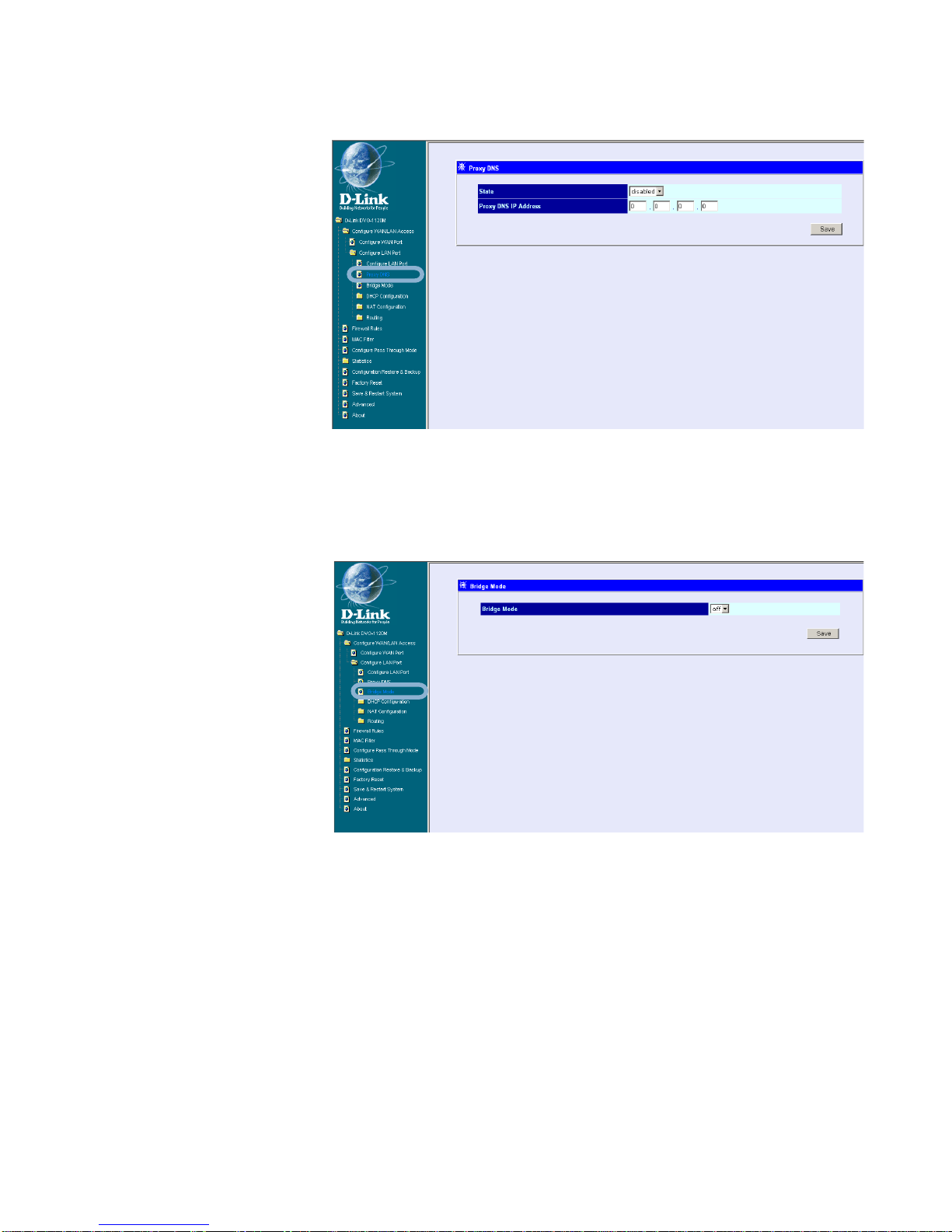

Configure LAN Port > Bridge Mode
State - This toggles
EnableandDisable for
the Proxy DNS
function.
Proxy DNS IP
Address - Enter the
ProxyDNS IPaddress
if instructed by your
service provider.
Configure LAN Port > Proxy DNS
Click Save to save the settings.
Bridge Mode - This
toggles On and Off to
turn NAT on or off for
Static Public IP
assignment.
Click Save to save the settings.

12
Web-based Management (continued)

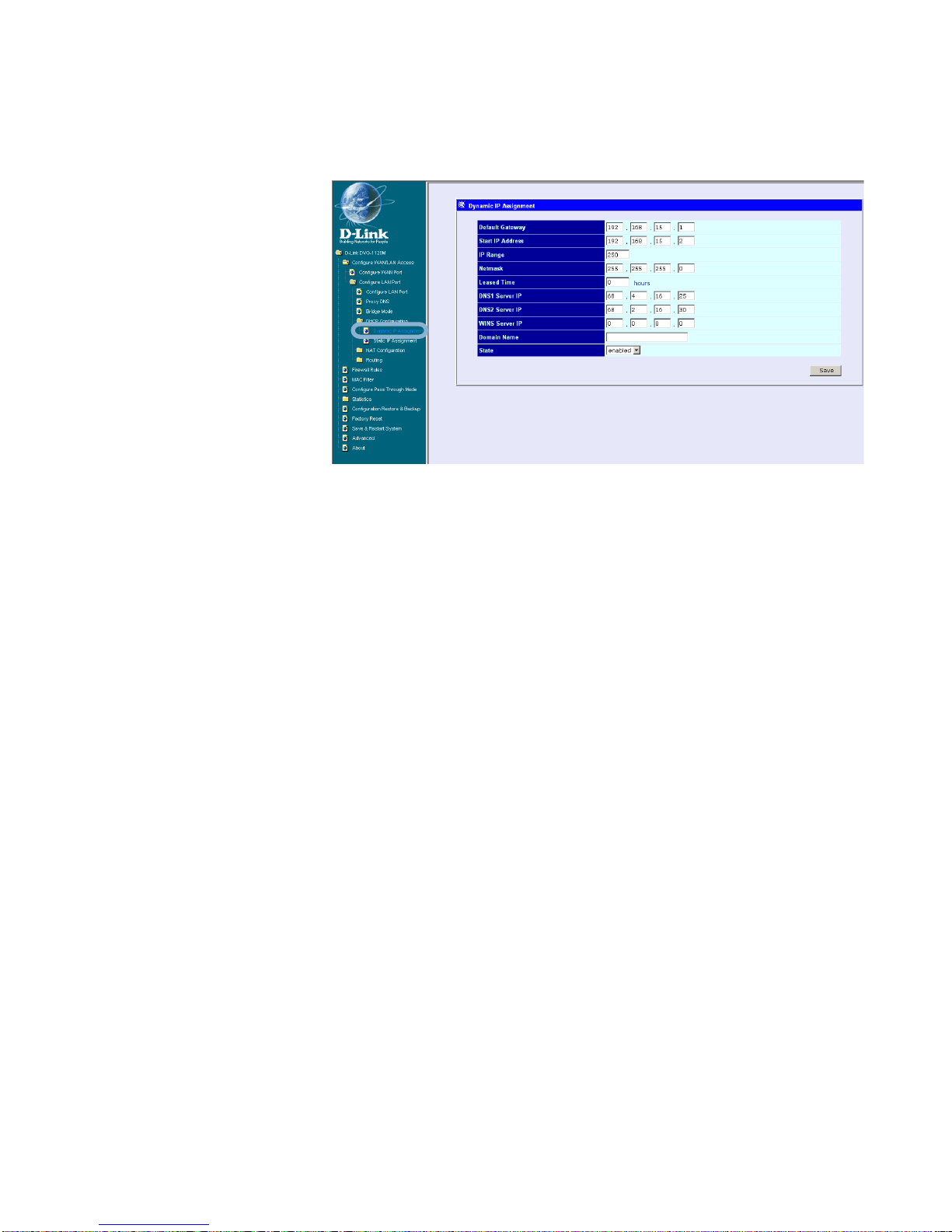

Configure LAN Port > DHCP Configuration > Dynamic IP Assignment
Click Save to save the settings.
Default Gateway - Thisspecifies the GatewayIPAddress that will beassigned
to and used by the DHCP clients.
Start IP Address -This is the base (starting) address for the IP pool of
unassigned IP addresses.
IP Range - This is the range of contiguous, IP addresses above the base IP
Address above.
Netmask - This mask informs the client, how the destination IP address is to
be divided into network, subnet, and host parts. The netmask has ones in the
bit positions in the 32-bit address which are to be used for the network and
subnet parts, and zeros for the host part.
Leased Time - This specifies the amount of time (in seconds) a client can
lease an IP address, from the dynamically allocated IP pool.
DNS Server IP - This specifies the Domain Name System server, used by the
DHCP clients using leased IP addresses, to translate hostnames into IP
addresses or vice-versa.
WIN Server IP - Some LANs may require using WINS servers; enter the IP
address of the WINS server or leave blank.
Domain Name - Enter a domain name for the network group or leave blank.
State - This toggles Disable and Enable for the DHCP function.
Use the Dynamic IP
Assignment to
configurethedevice to
act as a DHCP server
fortheLAN.
The items on this
windoware described
below:

13
Web-based Management (continued)

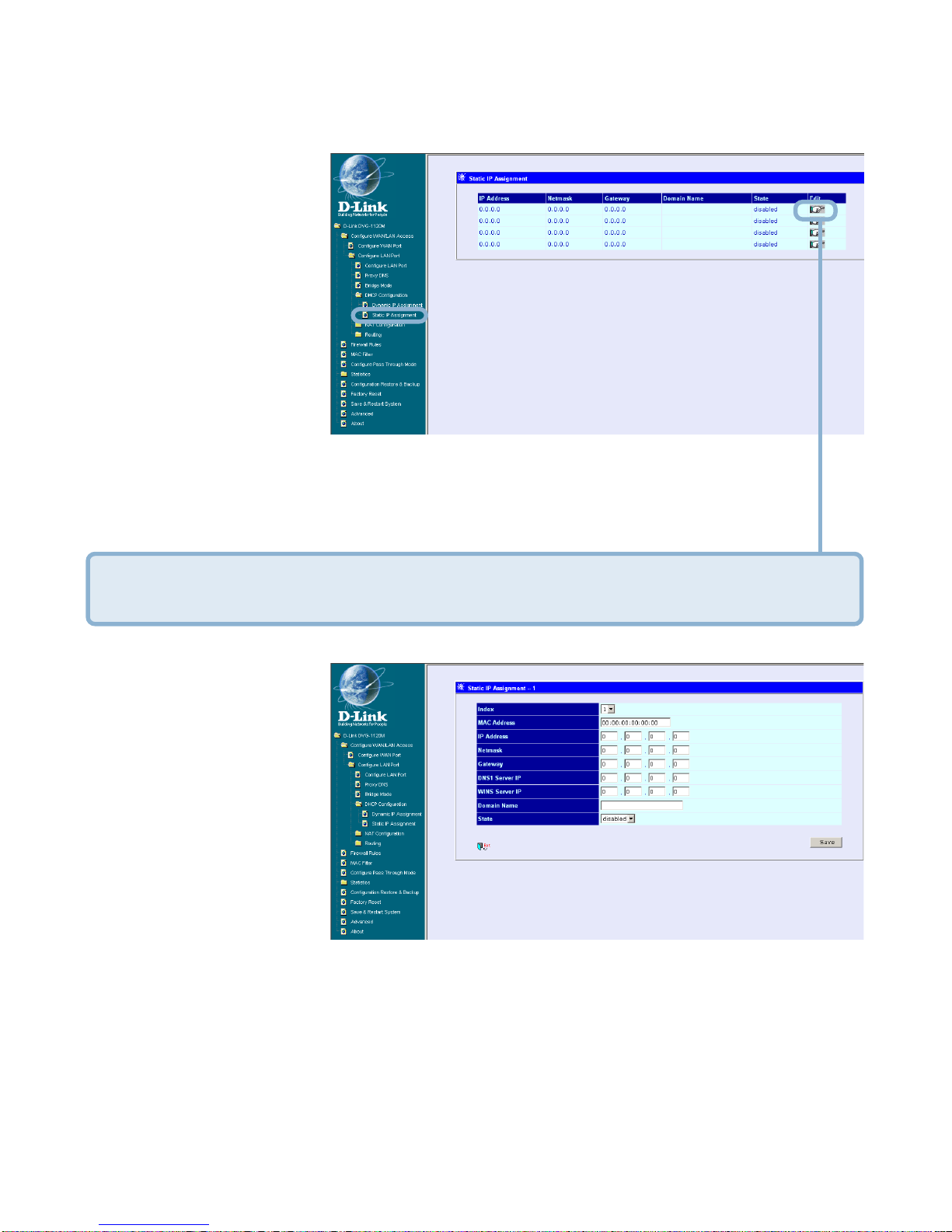

Configure LAN Port > DHCP Configuration > Static IP Assignment
Click Save to save the settings.
Index - Choose the
indexnumberthat you
wouldliketoedit(From
1 to 4).
MAC Address - This
specifies the physical
address of the
particular host that will receive the below IP address.
IP Address - This is the static IP address to be assigned.
All other parameters (Netmask, Gateway, DNS Server IP, WINS Server IP,
Domain Name and State) are identical to those in the Dynamic IPAssignment,
in the previous section.
The Static IP
Assignment functions
in much the same
wayastheDynamicIP
Assignment. The only
difference is that a
particular IP address
can be assigned to a
particular host. The
hostisidentifiedbythe
MAC Address of its
NIC which must be
entered on next
screen.
The items on this
window are described
below:
Click the edit icon on the window above to access the second Static IP
Assignment window:

14
Select enabled or
disabled for the NAT
function.
Click Save to save the
settings.
Web-based Management (continued)

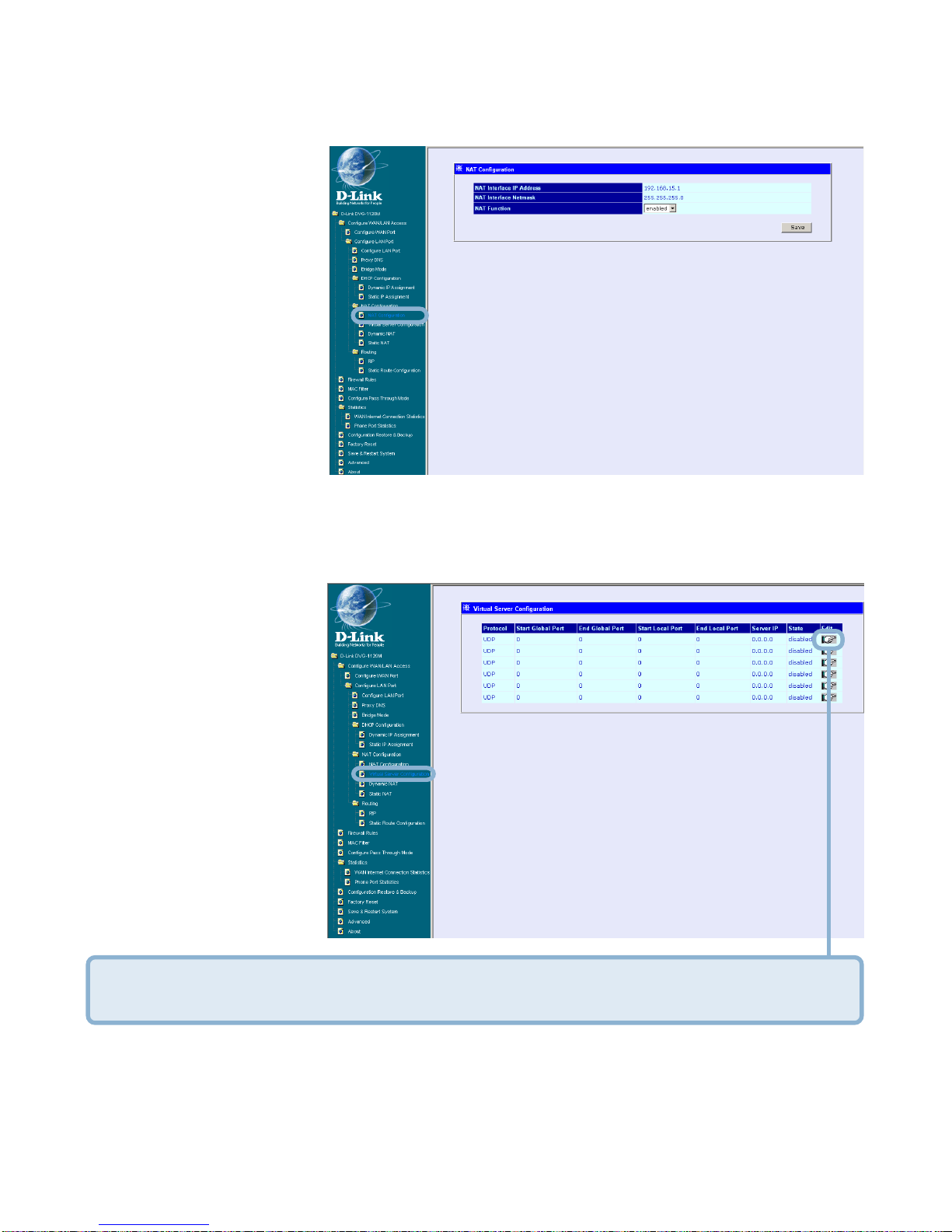

Configure LAN Port > NAT Configuration
Configure LAN Port > NAT Configuration > Virtual Server Configuration
This window allows
you to view the current
virtual server
configuration settings.
Click the edit icon on this window to access the second Virtual Server
Configuration window:

15
The items on this
window are described
below:
Web-based Management (continued)

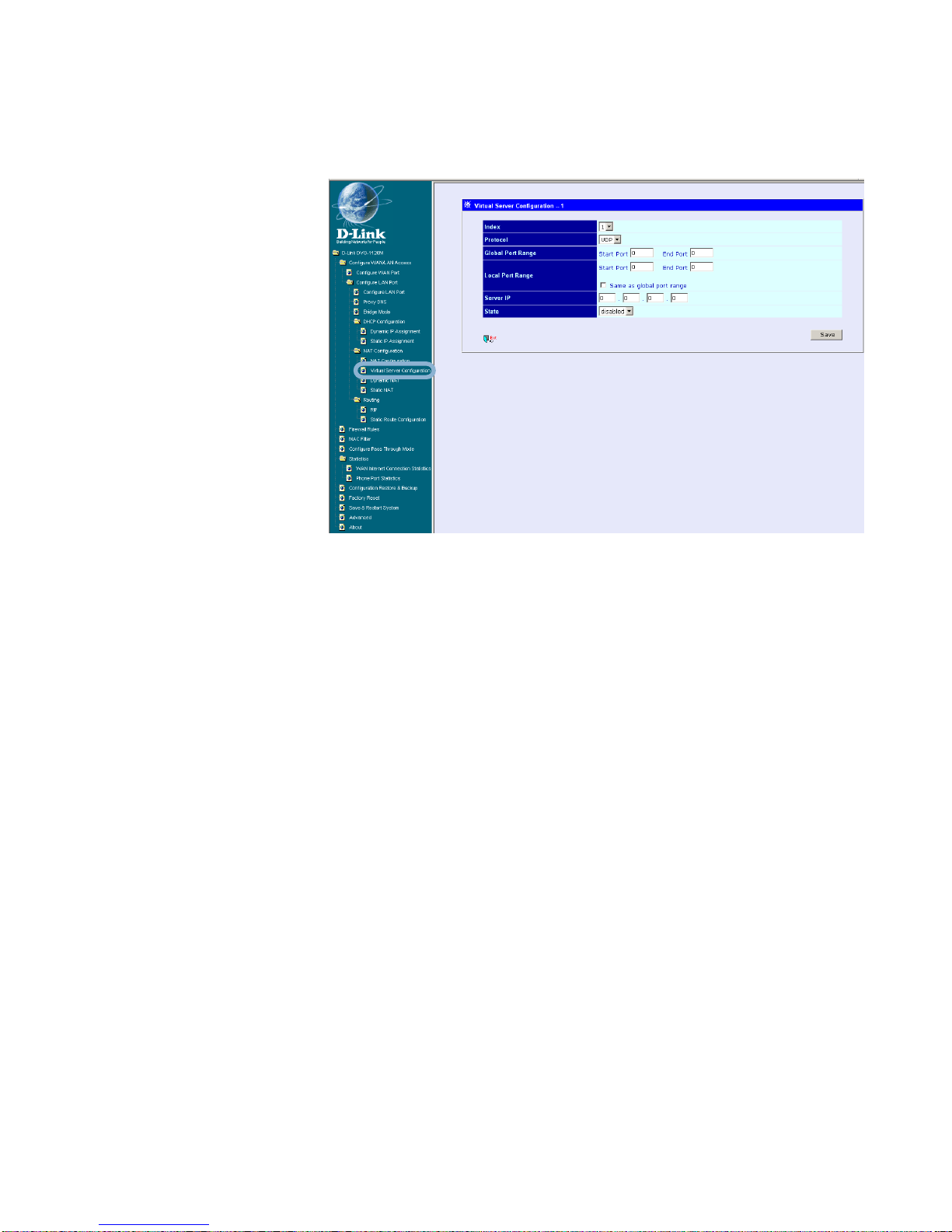

Configure LAN Port > NAT Configuration > Virtual Server Configuration
(continued)
Index - Choose the
indexnumber that you
wouldliketoedit(Form
1 to 6).
Protocol- Choosethe
protocoleitherTCPor
UDP.
Global Port Range -
Enter the designated
TCP or UDP protocol port number for the particular protocol packet you wish to
redirect.
Local Port Range - Enter the port number used by the designated host on the
LAN or use a well-known port.
Server IP - Enter the IP address of the local designated host computer or
device.
State - This toggles Disable and Enable for the Virtual Server Configuration
function.
Click Save to save the settings.

16
Web-based Management (continued)

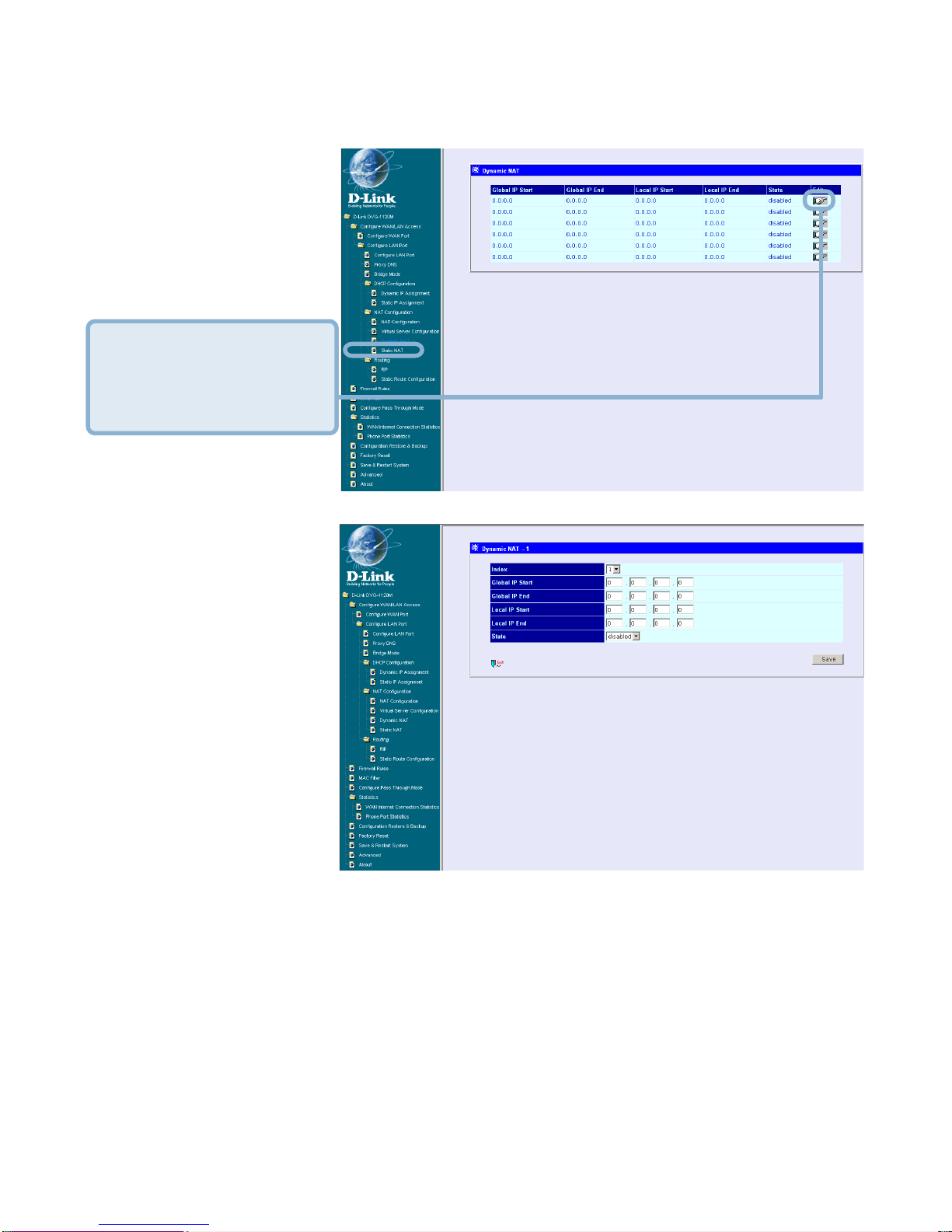

Configure LAN Port > NAT Configuration > Dynamic NAT
This window allows you
to view the current
Dynamic NAT settings.
Click the edit icon on
this window to access
the second Dynamic
NAT window:
The items on this
windoware described
below:
Click Save to save the settings.
Index - Choose the
index number that you
would like to edit (Form
1 to 6).
Global IP Start - Enter
thebeginningdesignated
IP address for the
particular range of
packets you wish to
redirect to local
addresses.
Global IP End - Enter the enddesignatedIPaddress for the particular rangeof
packets you wish to redirect to local addresses.
Local IP Start - Enter the beginning designated IP address for the particular
range of packets you wish to redirect to Global addresses.
Local IP End - Enter the end designated IP address for the particular range of
packets you wish to redirect to Global addresses.
State - This toggles Disable and Enable for the Dynamic NAT function.

17
Web-based Management (continued)

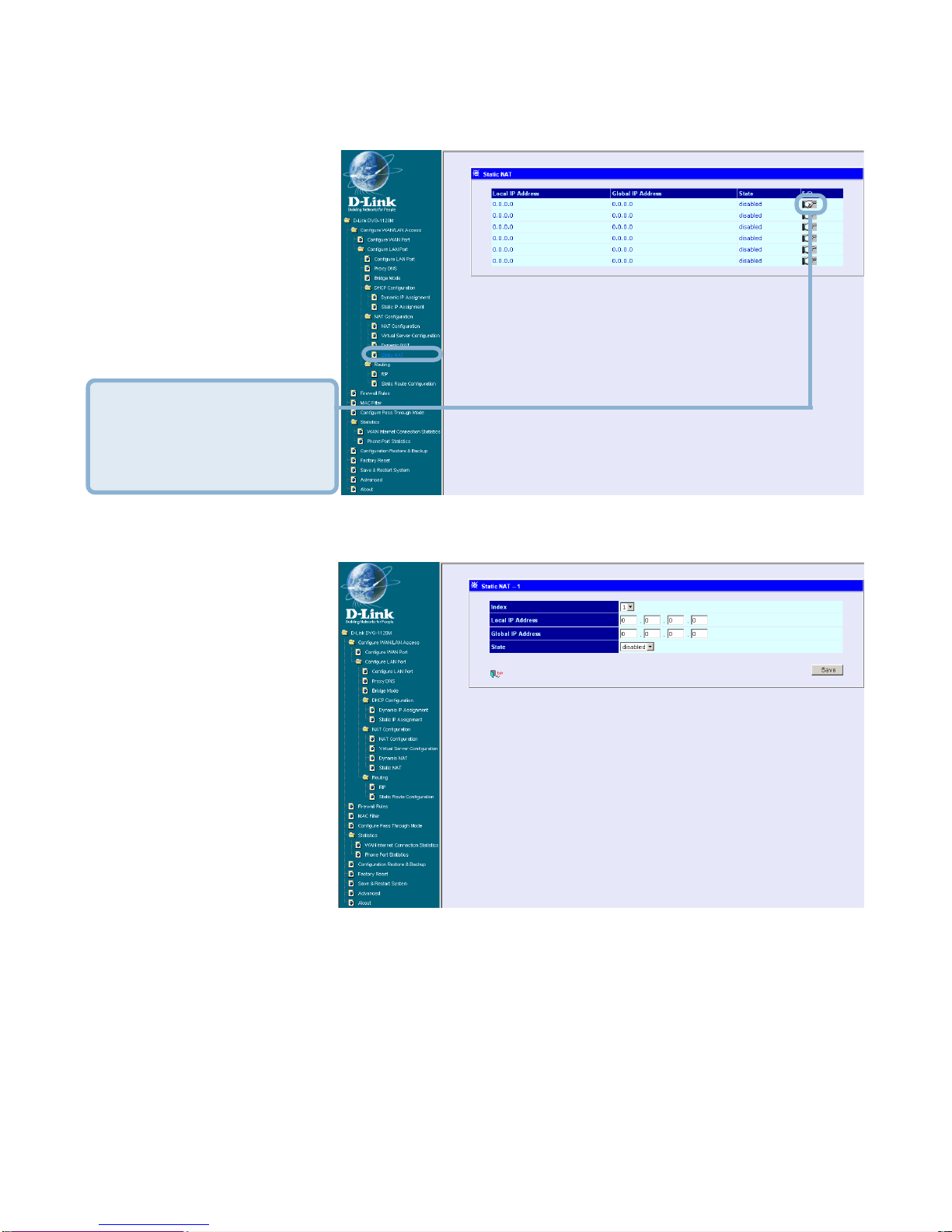

Configure LAN Port > NAT Configuration > Static NAT
This window allows you
to view the current Static
NAT settings.
Click the edit icon on
this window to access
the second Static NAT
window:
Index - Choose the index number that you would like to edit (Form 1 to 6).
Local IPAddress - Enter the designated IP address for the packet you wish to
redirect to a Global address.
Global IP Address - Enter the designated IP address for the packet you wish
to redirect to a Local address.
State - This toggles Disable and Enable for the Static NAT function for this
index.
The items on this
windoware described
below:
Click Save to save the settings.

18

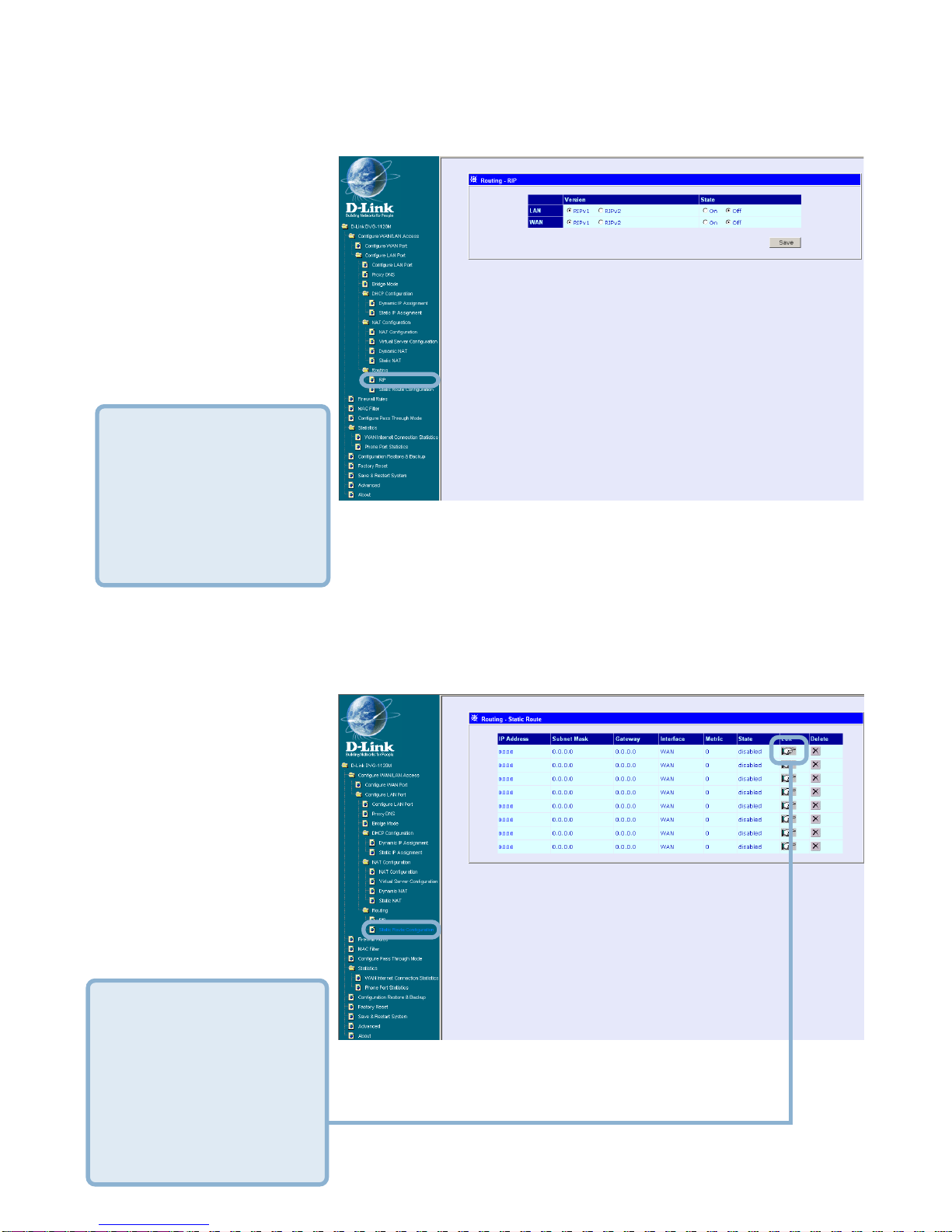

Select to use RIPv1,
RIPv2 or On (both
versions) for the LAN
and WAN interface.
To disable both
versions of RIP
select Off.
Click Save to save
the settings.
Use Static Routing to
specify a route used
for data traffic within
your WAN or LAN.
This can be used to
specify that all
packets destined for
a particular subnet
use a predetermined
gateway.
Click the edit icon on
the window above to
access the second
Static Route
Configuration
window:
RIP-Routing
InformationProtocol
thatspecifies how
routersexchange
information.With RIP,
routersperiodically
exchangeentiretables.
Web-based Management (continued)
Configure LAN Port > Routing > RIP
Configure LAN Port > Routing > Static Route Configuration

19

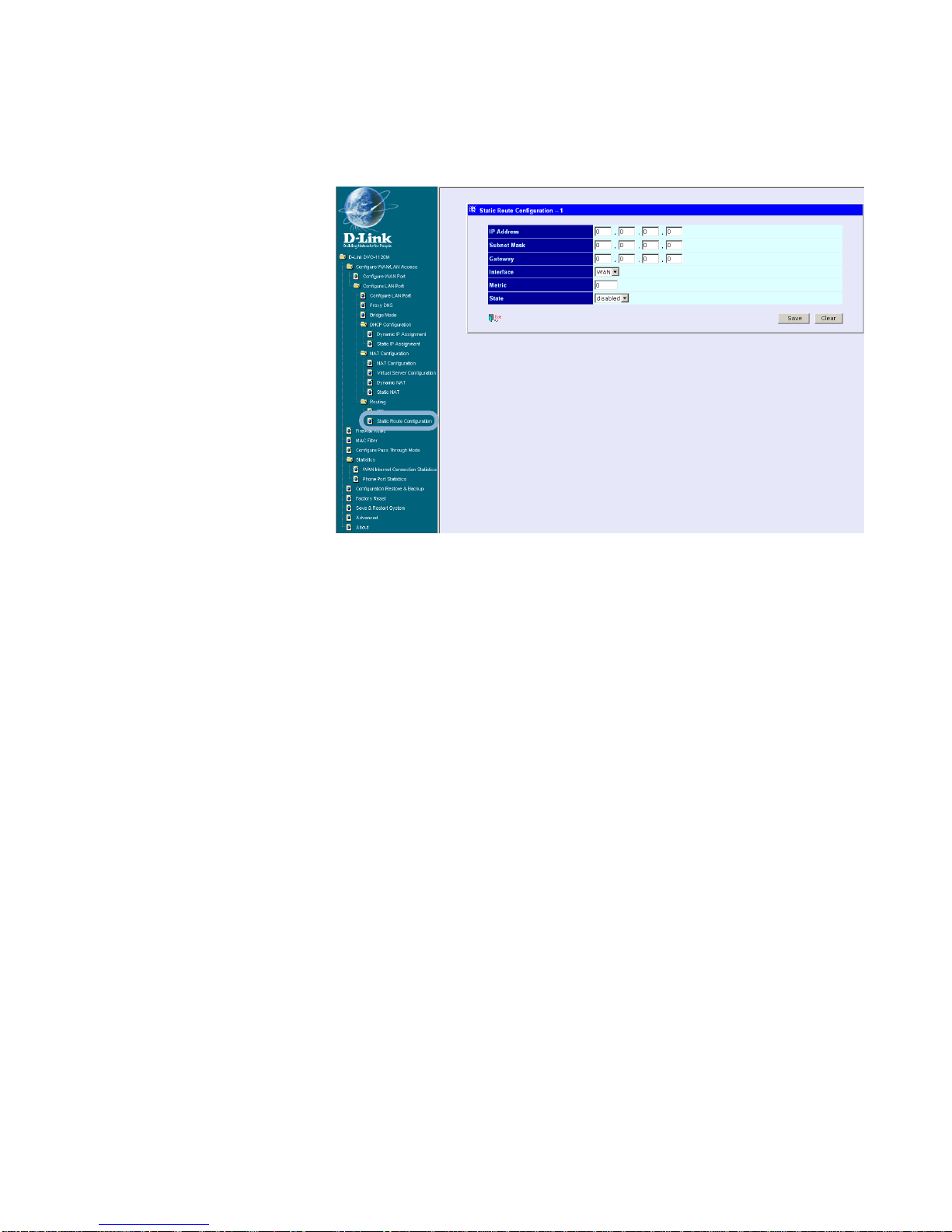

The items on this
window are described
below:
Web-based Management (continued)
Configure LAN Port > RIP > Static Route Configuration (continued)
IPAddress - Type in theIPAddressofthesubnetordevice where packetsare
routed.
Subnet Mask - Type in an appropriate subnet mask that allows the static
route to function.
Gateway - Type in the IP Address of the gateway used for traffic destined for
the specified subnet or device.
Interface - Select WAN or LAN Interface.
Metric - Type in the maximum number of hops allowed for the static route.
State - Enable or disable the route.
Click Save or Clear to Save or Clear the settings.

20
Web-based Management (continued)

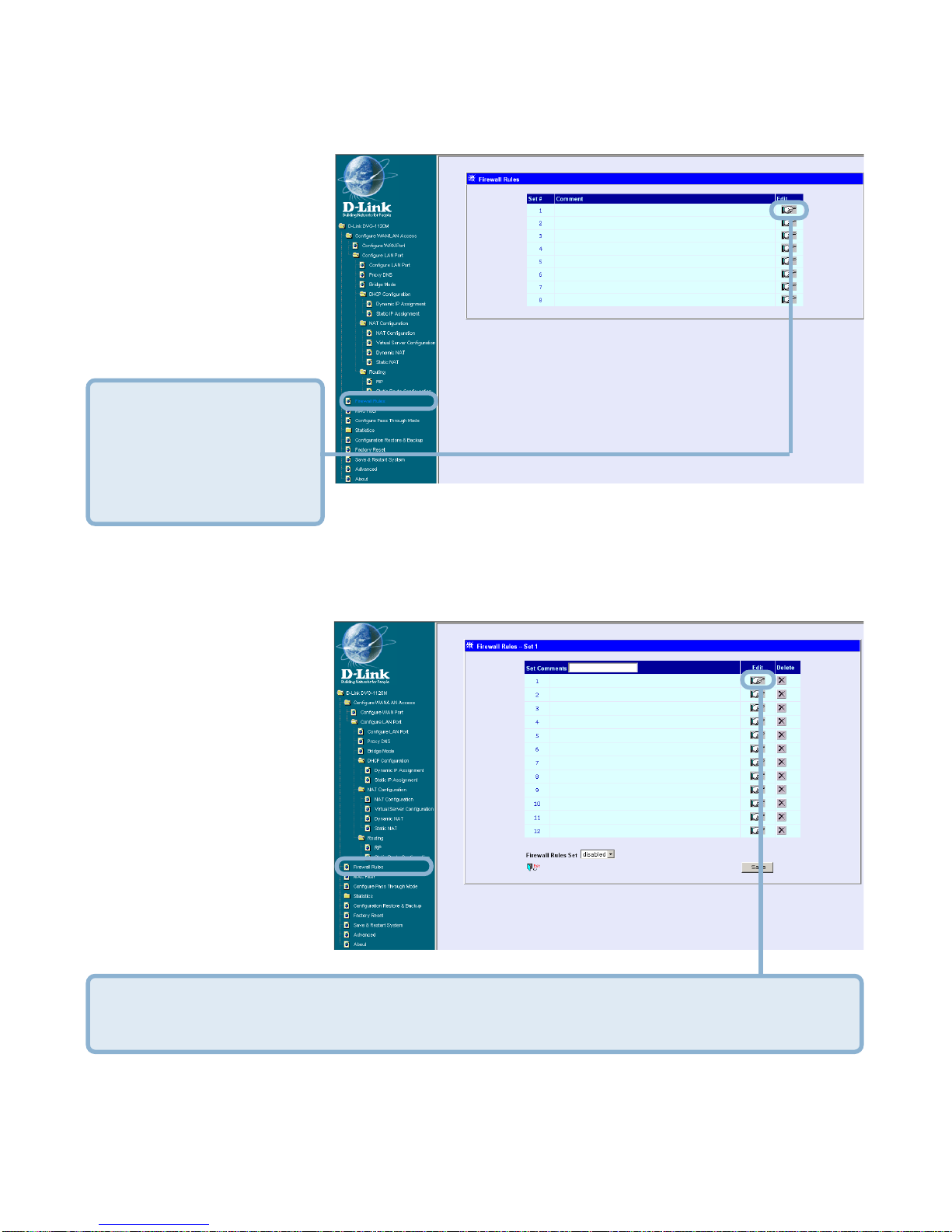

Firewall Rules
Firewall Rules is an
advance feature used
to deny or allow traffic
from passing through
the device. The filtering
sets are sets of rules
defined in the menus
shown below.
Click the edit icon on
the window above to
access the Firewall
Rules window for the
first rules set:
Type in an appropriate
identifying comment for
the Firewall Rules set.
When you are finished
defining the rules for
each set, select
enabled or disabled
to enable or disable the
listed Firewall rules
sets.
Click Save button to
save the settings.
Click the edit icon on the window above to access the third IP Filter window,
shown on the following page:
