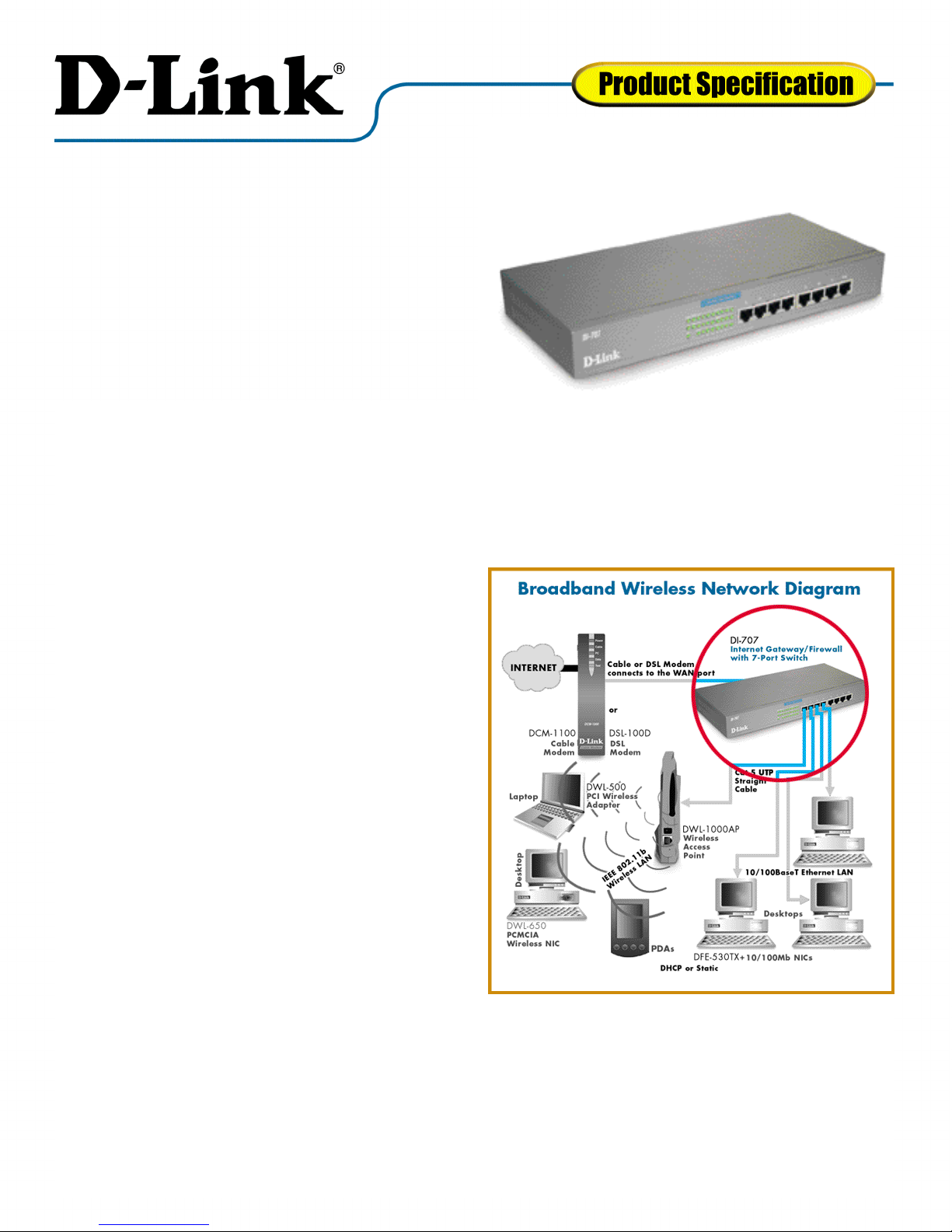

DI-707
Share and Protect Your
Cable/DSL Internet Connection
Internet Gateway/Firewall
with 7-Port Switch
The D-Link DI-707 is a Broadband Home and Small Business
Gateway with seven (7) Switched Fast Ethernet Ports. It allows
multiple computers to share a cable or DSLInternet connection. It
provides security as a firewall between a Local Network and the
Internet. The DI-707 is targeted at small businesses and home
users.
It allows up to 253 users to share a single Internet Connection
while providing the safety and security of both port blocking and
a natural firewall. Static address support, integrated DHCP, and
device name support will allow it to connect to nearly any
broadband provider, and at the same time simplify local area
network settings.
The DI-707 provides two levels of security support. First, it masks
local users’ IP addresses from others on the Internet making it
much more difficult for a hacker to target a machine on your
network. Secondly it can block and redirect certain ports to limit
the services that outside users can access. Specific ports can be
opened by the user to ensure that games and other Internet
applications will run properly. The Virtual Server feature allows
the user to expose HTTP, FTP, Game Servers and other local
services to be accessible to Internet users located outside of the
Unlike proxy server or NAT software that requires the software
server to remain visible on the Internet, no local computers are
directly externally visiblewhen usingthe DI-707.Also theDI-707,
like broadband, is always on, removing the need to constantly boot
a software server when access is desired from a client. No client
software is required to connect to the DI-707 so it will support any
operating system that can connect to a network whether PC or
Apple based.

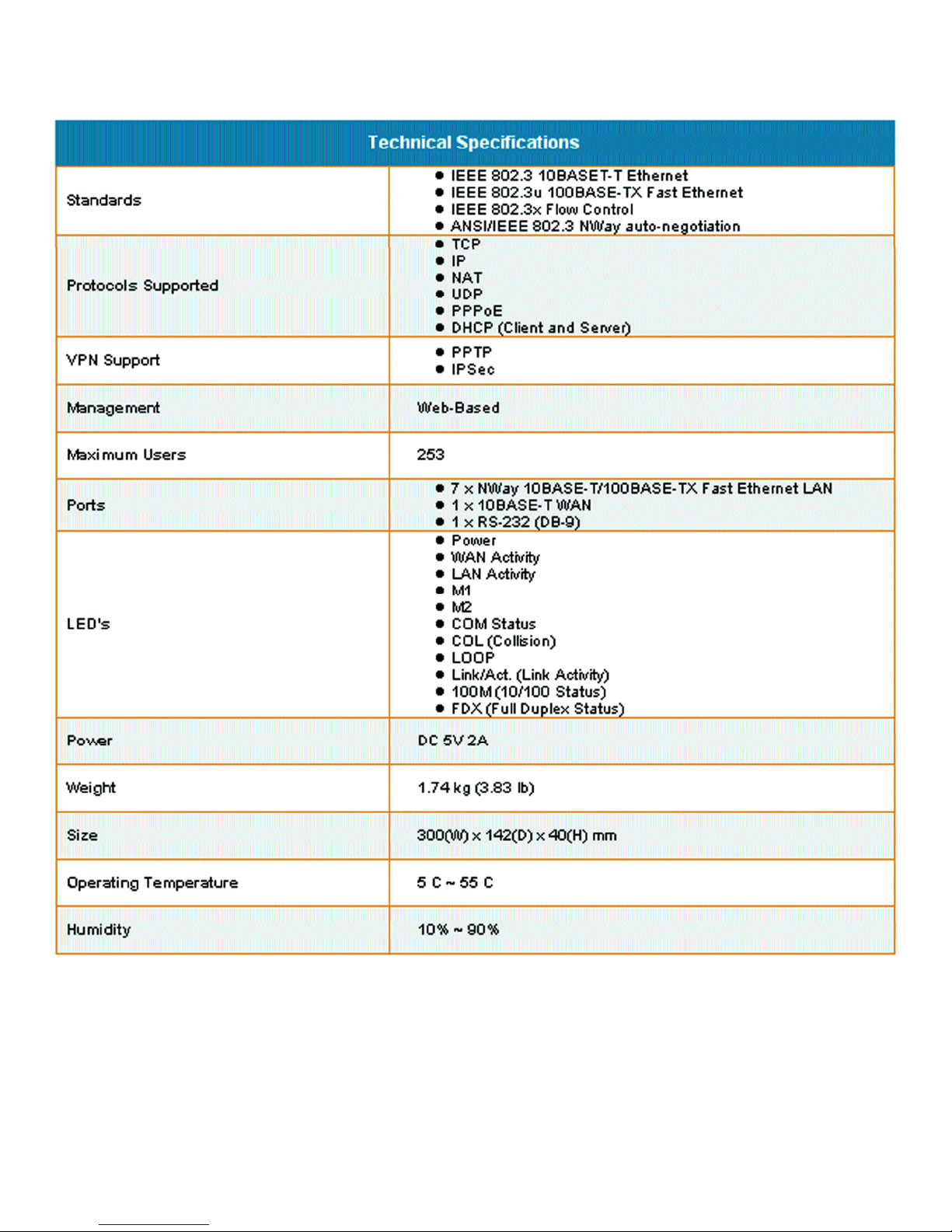

The D-Link DI-707 strictly adheres to IEEE standards, and is
compatible with existing network technology. The seven (7)
10/100 Mbps ports adhere to IEEE 802.3 and IEEE 802.3u, which
specify 10BASE-T and 100BASE-TX Ethernet technology
respectively, and use NWay auto-negotiation to switch between
10Mbps and 100Mbps speeds. The seven 10/100 Ethernet ports
use layer 2 switching technology to minimize packet broadcast,
greatly enhancing the speed and productivity of the LAN. Each
port also adheres to the IEEE 802.3x standard, which specifies
Flow Control support for full-duplex Ethernet ports.
DI-707 7-Port Switched Fast Ethernet
Broadband For Home and Small Business
Gateway
