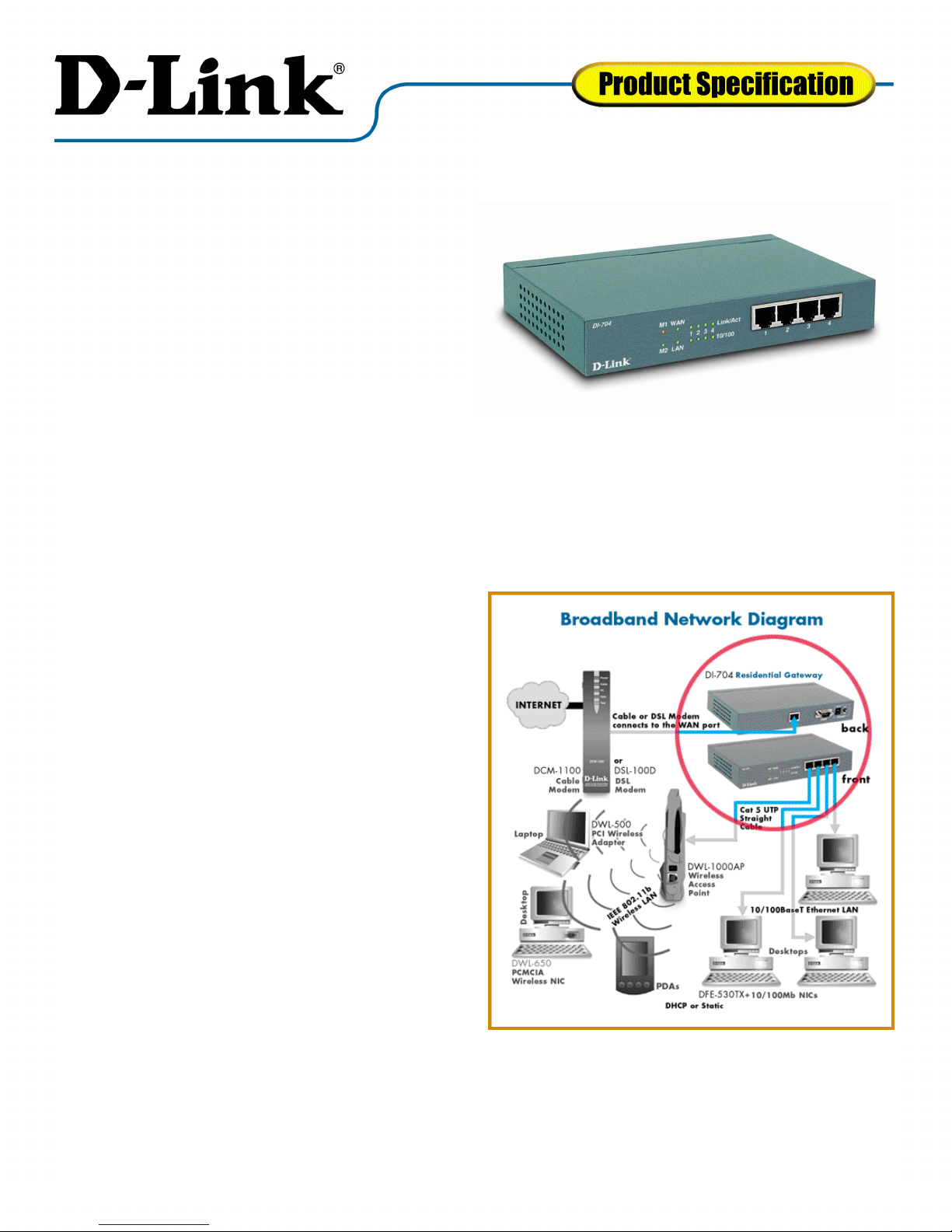

D-Link DI-704 User manual

DI-704
Share and Protect Your
Cable/DSL Internet Connection
Cable/DSL Internet Gateway
The DI-704 Home DSL/Cable Gateway + 4-port switch delivers
complete hardware firewall protection for a PC. The DI-704 will
stop hackers and intruders before they can get to the PC. It is
positioned in the path to take the intruder hit, while protecting the
PC.
The D-Link DI-704 is a Broadband Home and Small Business
Gateway with Four Switched Fast Ethernet Ports. It allows
multiple computers to share a cable or DSL Internet connection. It
provides security as a firewall between a Local Network and the
Internet. The DI-704 is targeted at small businesses and home
users.
The DI-704 allows up to253 computers to simultaneously connect
to the Internet through the same ISP account. The Di-704 employs
a Dynamic Host Configuration Protocol (DHCP) that provides
dynamic allocation of IP addresses for up to 253 clients on your
network. Being very flexible, the DI-704 will connect to any
Ethernet devices and multiple types of machines and operating
systems.
The DI-704 is an IEEE 802.3 Ethernet based Home DSL/Cable
Gateway and 4-port Switch . It provides four 10/100 Dual Speed
Ethernet ports for connection to create a home or small office
network and one 10Mb Ethernet port for a DSL Modem, Cable
Modem or other Broadband access device. The D-Link DI-704
provides the safety and security of both a port blocking device and
as a natural firewall as well as integrated NAT support that allows
up to 32 users to share asingle Internet Connection. Static address
support, integrated client/server DHCP, and device name support
will allow the D-Link Home DSL/Cable Gateway to connect to
nearlyany Broadband provider, and at thesametime simplify local
area network settings.
The DI-704 Home DSL/Cable Gateway +
4-port switch delivers complete hardware
firewall protection for a PC
D-Link Systems, 53 Discovery Drive Irvine CA 92618 www.dlink.com
Specifications are subject to change without notice. D-Link is a registered trademark of D-Link Systems, Inc. © 2000 D-Link Systems Inc. All rights reserved.

DI-704 Cable/DSL Internet Gateway
