DVG-3016S/3032S User’s Manual Product Overview
D-Link Systems, Inc. 1
1. Introduction
1-1 Product Overview
The DVG-3016S/3032S VoIP Gateway carries both voice and facsimile over the IP network. It uses the industry
standard SIP call control protocol so as to be compatible with free registration services or VoIP service providers’
systems. As a standard user agent, it is compatible with all common Soft Switches and SIP proxy servers. While
running optional server software, the gateway can be configured to establish a private VoIP network over the
Internet without a third-party SIP Proxy Server.
The gateway can be seamlessly integrated into an existing network by connecting to a phone set and fax
machine. With only a broadband connection such as an ADSL bridge/router, a Cable Modem or a leased-line
router, the gateway allows you to use voice and fax services over IP in order to reduce the cost of all long distance
calls.
DDNS support makes the gateway reachable via its domain name where an ISP dynamically assigns an IP
address. By enabling the CDR function, administrators are allowed to log-in and view all call records, for example
call duration, time and date of calls, and latency.
The gateway can be assigned a fixed IP address or it can have one dynamically assigned by DHCP over PPPoE.
It adopts either the G.711, G.726, G.729Aor G.723.1 voice compression format to save network bandwidth while
providing real-time, toll quality voice transmission and reception.

DVG-3016S/3032S 16/32-port VoIP Gateway User’s Manual Hardware Description
D-Link Systems, Inc. 2
1-2 Hardware Description

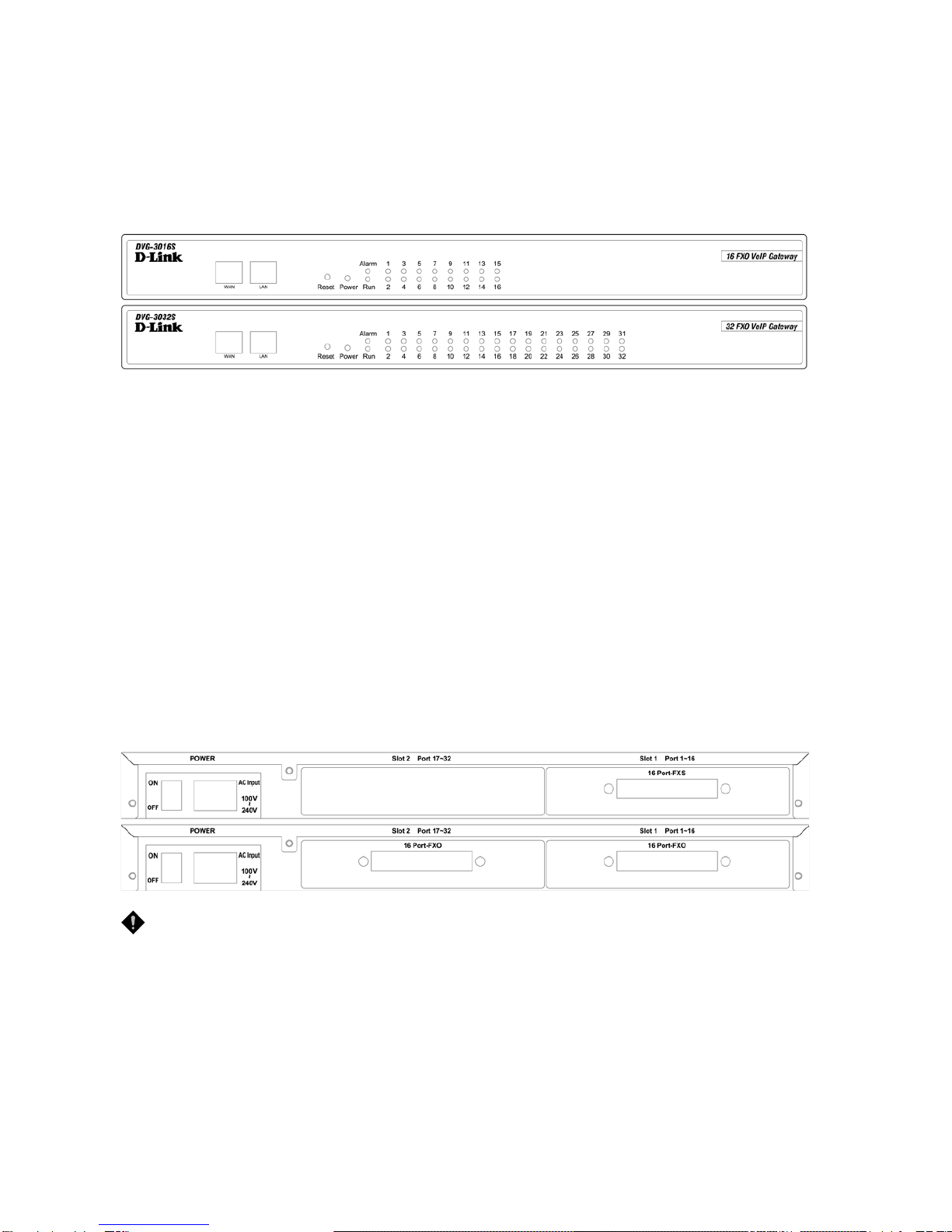

Front Panel
yPower Indicator: Green light indicates a normal power supply.
yRun Indicator: Blinking green light indicates normal operation.
yAlarm Indicator: When the system starts up, the red light will blink. It also indicates abnormal gateway
behavior.
y1 – 32 stands for Port1 – Port32 (Line1 – Line32).
yWAN stands for the WAN Port Indicator.
yLAN stands for the LAN Port Indicator.
9When starting up the system, the Alarm, Run, and Power indicators will light up. After about 40
seconds, the Alarm indicator will go off, the Run indicator will blink in green, and the Power
indicator will stay green under normal operational conditions. If the Alarm indicator continues to
blink, it means the system is currently communicating with ISP and has yet to obtain an IP address.
9When the WAN is connected, the WAN indicator will light up in green and if data is being transmitted
over the Internet, the indicator blinks in green and orange.
Rear Panel
WARNING: DO NOT (1) connect the phone ports to each other (FXS to FXS) or (2) connect any
phone port directly to a PSTN line (FXS to PSTN) or to an internal PBX line (FXS to PBX extension).
Doing so may damage your VoIP gateway
Restore to factory default: (IP address, User’s. Name and Password)
(1) Pull off the power plug.
(2) Press reset bottom (do not let go of the reset button)
(3) Plug the plug back into the socket (do not let go of the reset button).
(4) Let go of the reset button after 6 seconds. Factory settings will be restored.

DVG-3016S/3032S User’s Manual Network Interface
D-Link Systems, Inc. 3
2. Installation and Applications
2-1 Network Interface

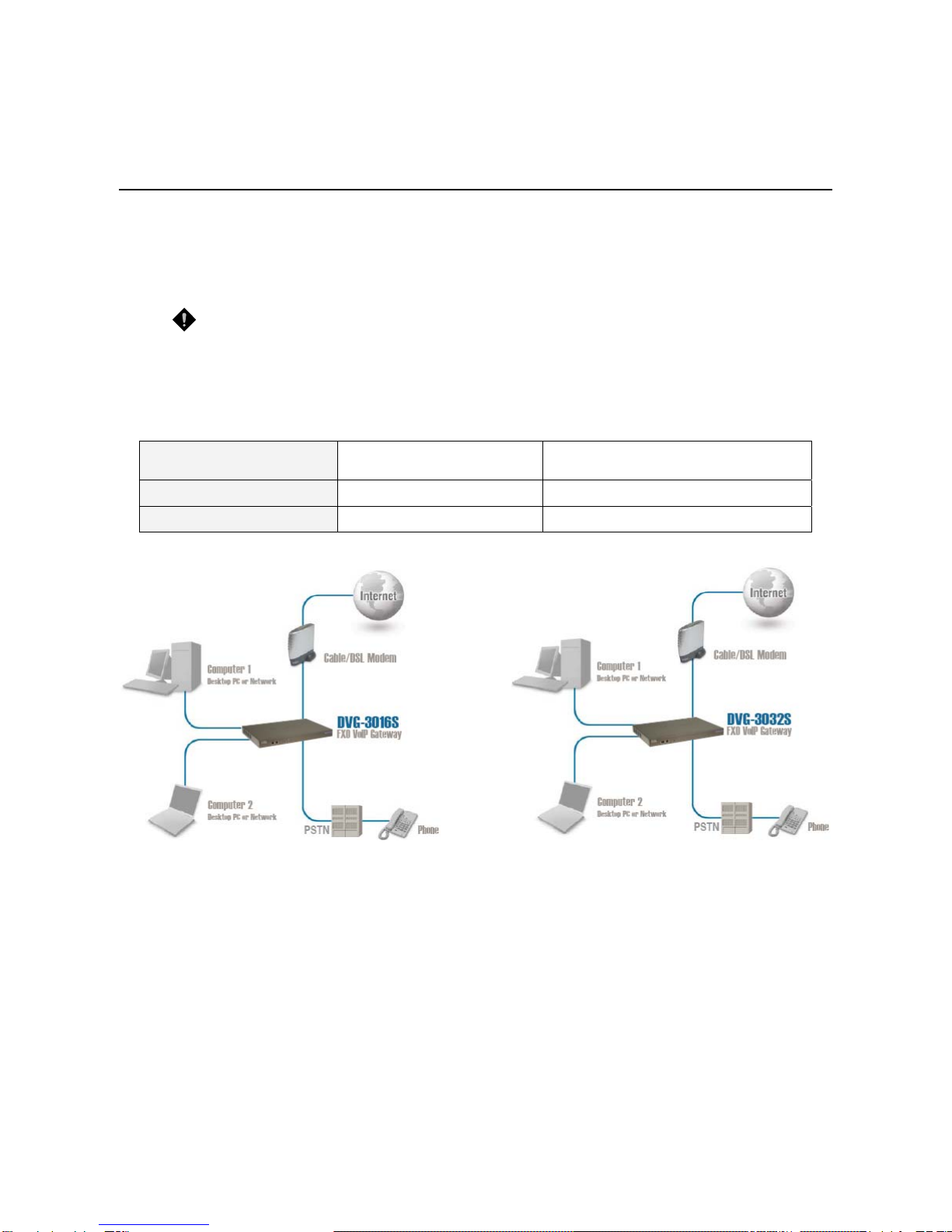

The network interface is divided into three basic modes as described below:
yGateway can be assigned a Public IP Address
yGateway can be built under the existing NAT
yGateway can be assigned a Public IP address and serve as an IP-sharing router.
NOTE: The Network Interface function mode setup is accessed through a web UI.
Gateway Assigned a Public IP Address
The gateway will have a public IP address for Internet connection regardless of whether the IP is a static
IP address, DHCP (using a Cable Modem), or PPPoE (Dial-up / ADSL).
Gateway IP Settings Need to be set up as static IP,
DHCP, or PPPoE
NAT/STUN Settings Unnecessary (Disabled)
DDNS Settings Unnecessary (Disabled)

DVG-3016S/3032S User’s Manual Telephone Interface
D-Link Systems, Inc. 4
2-2 Telephone Interface Description
Example for DVG-3016S/3032S:

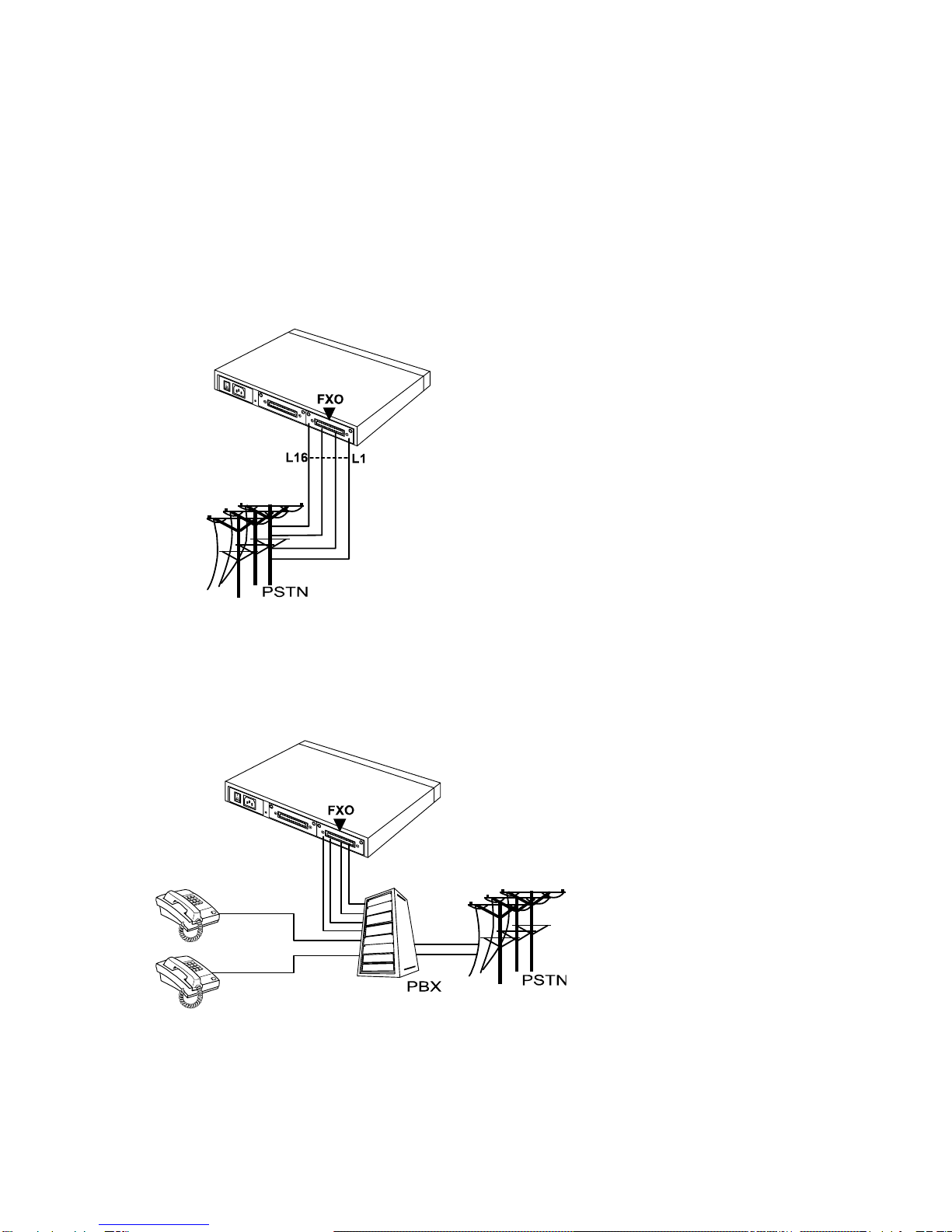

DVG-3016S/3032S connecting directly to the Telephone Line of a PSTN
L1-L16 or L1-L32 is FXO interfaces and can all be connected to a PSTN to serve as a bridge between the
PSTN and other VoIP telephones. The system also allows a call to be made from a traditional telephone line
to connect with a user behind the Gateway.
Integrating the DVG-3016S/3032S with a PBX
DVG-3016S/3032S connecting directly to the Telephone Line of a PSTN
L1- L16 or L1-L32 is FXO interfaces, and some of them can be connected to PSTN for direct calls. Others
can be connected to the PBX so other extension lines can make VoIP calls by calling extension phone
number.
.

DVG-3016S/3032S User’s Manual Gateway Configuration-Web Browser
D-Link Systems, Inc. 5
3. Gateway Configuration – Use Web Browser
The VoIP gateway allows users to configure its settings using a web interface (Web UI). You can access the
Configuration Menu by opening a web-browser (e.g., Internet Explorer or Netscape Navigator) and entering the
factory default LAN IP address: 192.168.8.254. The IP address of the Web UI is same as the default LAN IP
noted elsewhere in this user’s manual.
You can also use an ordinary telephone, connect it to the gateway, and dial ”101” to inquire about the current
WAN Port IP address and then use the WAN port to log-in.
Instructions
yOpen a Web-Browser (e.g., Explorer, Navigator, Opera, Firefox).
yEnter the LAN port IP address. The default LAN port IP address is: 192.168.8.254.

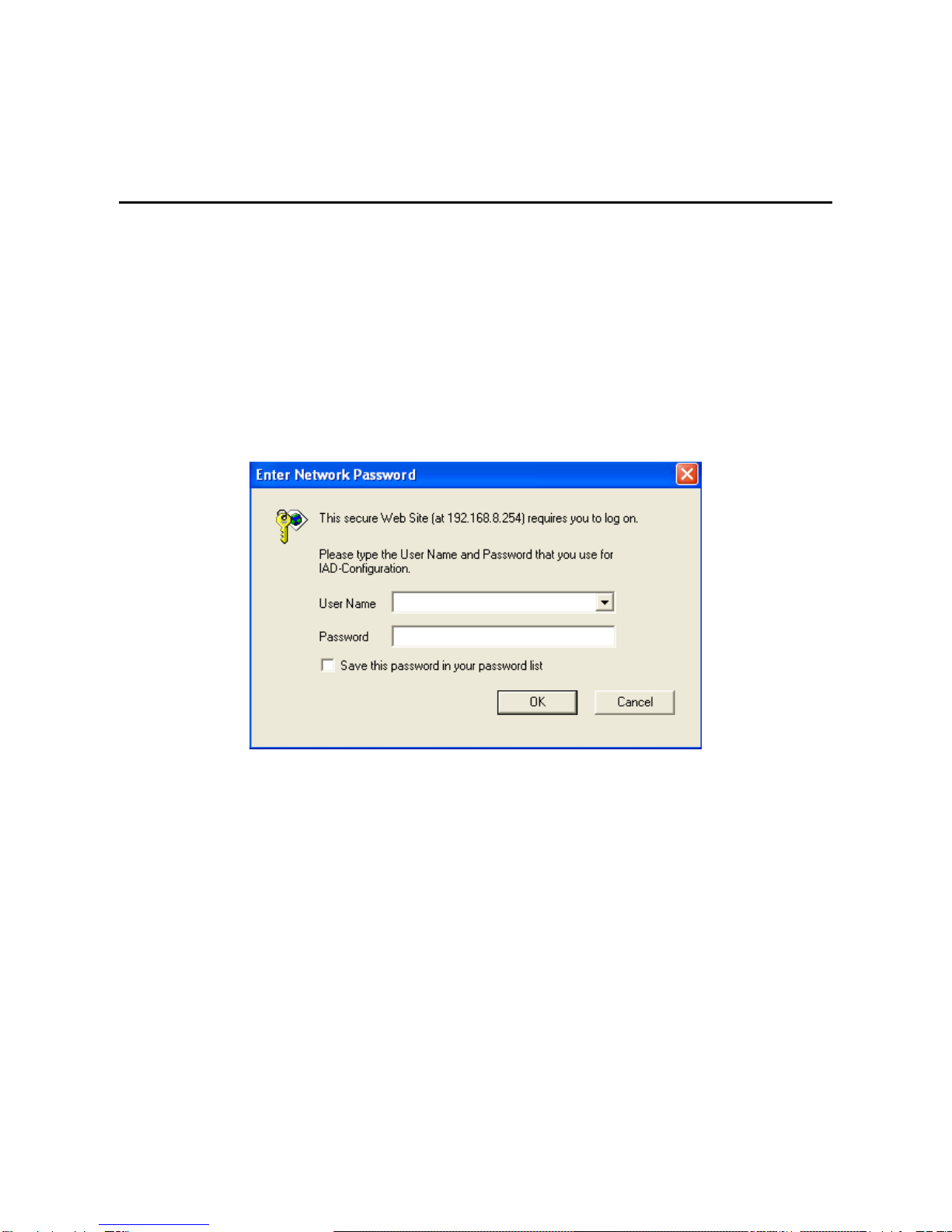

yThe log-in screen below will appear after you connect. (The factory default settings for Login ID and
Password are blank (i.e., no login ID, no password).)
The gateway does not allow multiple people to configure the gateway simultaneously. Please remember to
logout or restart the system if you are not using the web configuration function.

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 6
3-1 Network Settings (WAN)
The network settings are used to set the gateway’s communication ports, IP configurations, and Phone
Book Manager IP settings.

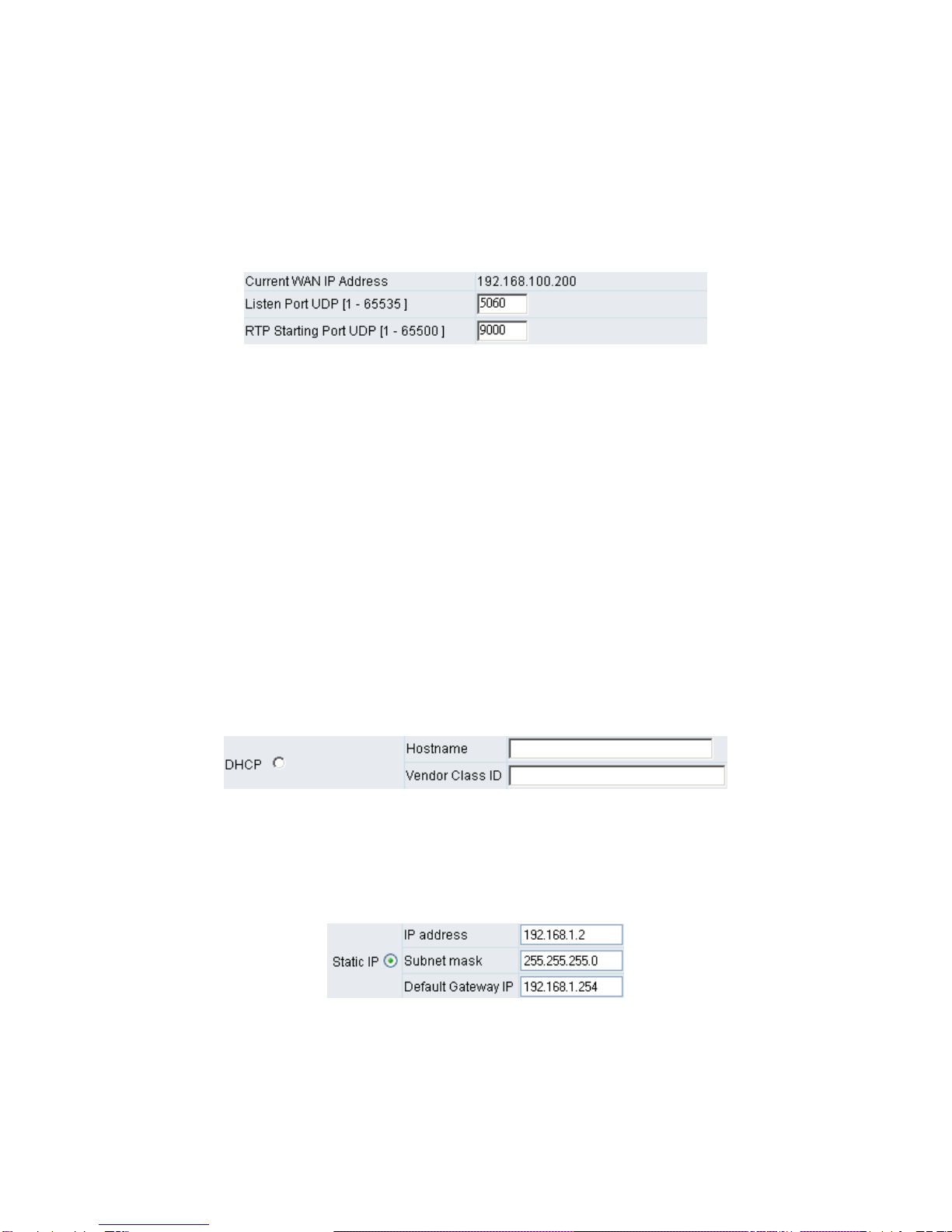

yCurrent WAN IP Address: The IP address of the WAN port.
yListen Port UDP: It is not necessary to change the protocol of the communication port used by the
gateway, unless it conflicts with ports used by another device in your network.
yRTP Starting Port UDP: The initial value of the port number for transmitting voice data among
gateway(s). Each line requires 2 ports. It is not necessary to change the setting, unless it conflicts with
ports used by another network device.
For example, if the starting port is 9000, then Line 1 is using ports 9000 and 9001, and Line 2 is using
ports 9002 and 9003, and so forth.
IP Configuration (Setting WAN Port)

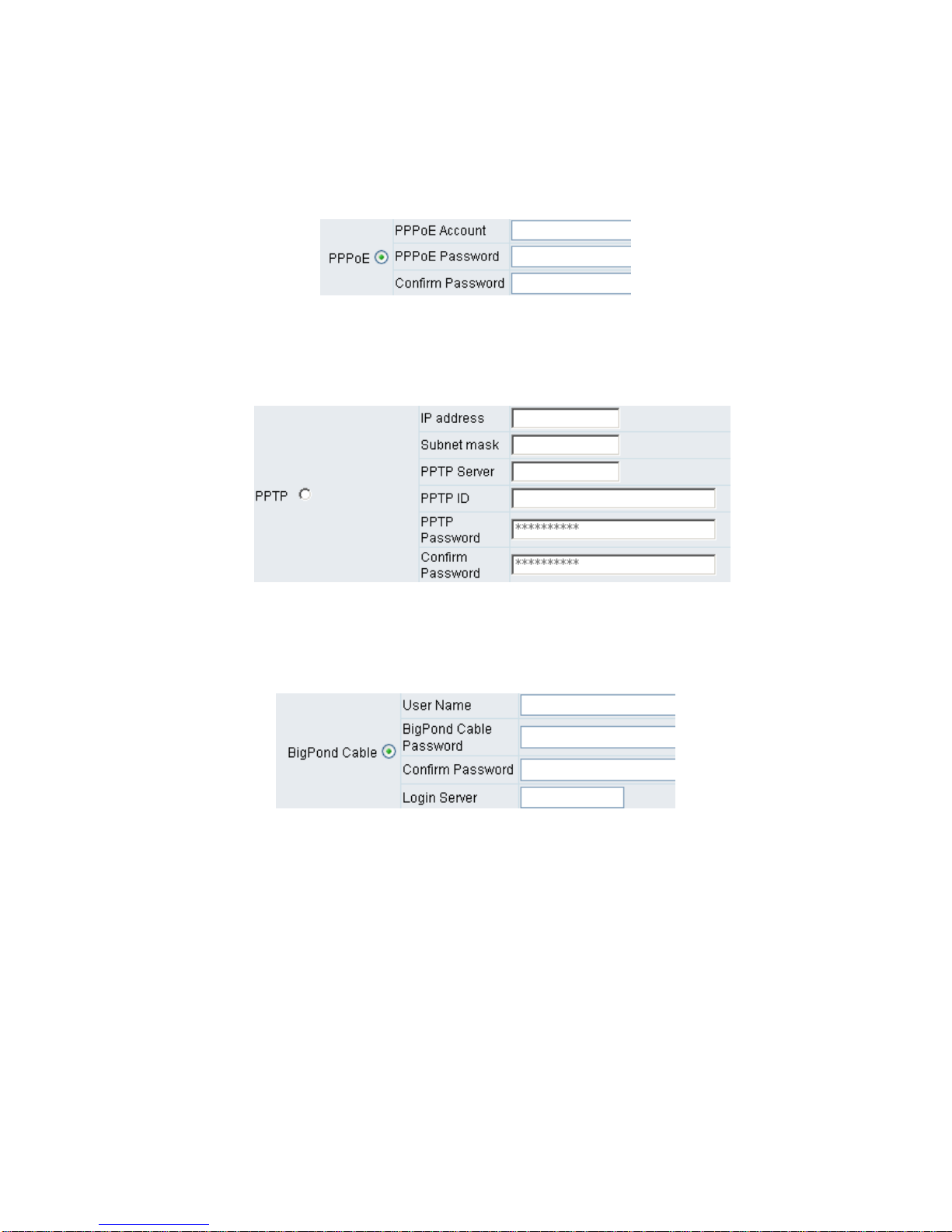

There are five methods of obtaining a WAN port IP address:
1. Static IP
2. DHCP, which means a Dynamic IP (Cable Modem)
3. PPPoE (dial-up ADSL)
4. PPTP
5. BigPond (for Australia only)
Methods for using DHCP and PPPoE for obtaining an IP address may vary. If you are not familiar with
creating a network connection, please contact your local ISP.
Setting Dynamic IP (DHCP)
Click “DHCP” to obtain a Dynamic IP address, enter the “Hostname” and “Vendor Class ID” if required by
your local ISP and then click the “Accept” button at the bottom of the screen.
Saving the settings: Click System Operation to select “Save Settings”, “Restart”, and then click the ”Accept”
button. Wait for about 40 seconds, and the system will obtain the required IP value from the DHCP Server.
Setting Static IP
Select “Static IP” and enter the IP address, Subnet Mask and Default Gateway values. Then click the
“Accept” button at the bottom of the screen. Save the settings, and then restart the system. Wait for about
40 seconds for the system to restart.

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 7
ADSL PPPoE Settings
Select “PPPoE” and enter the Account Number, Password and Reenter Password to confirm. Then click the
“Accept” button at the bottom of the screen. Save the settings, and then restart the system. The system will
take about 49 seconds to restart.
PPTP Settings
Click PPTP and enter IP Address, Subnet mask, PPTP Server,PPTP ID and Password. Then click the
Accept button at the bottom. Save the settings, and then restart the system.
BigPond (for Australia only)
Click “BigPond Cable” and enter the User Name and Password. Then click the “Accept” button at the
bottom of the screen.

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 8
(DNS) Settings

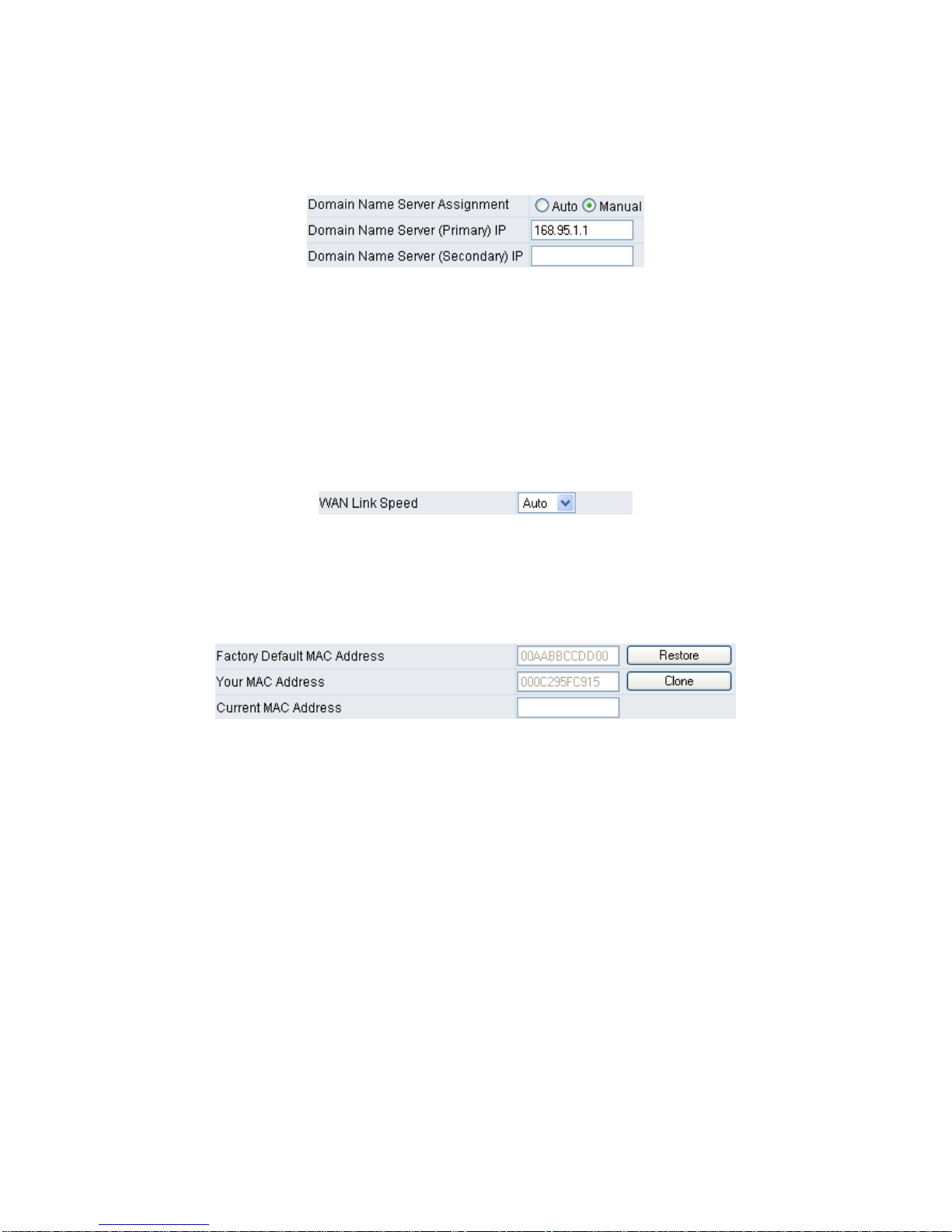

Domain Name Server (DNS): While a gateway is accessing another gateway or a computer with a
hostname, it will look up the IP address from the DNS provided by your ISP. Normally, the ISP assigns DNS
information while negotiating with PPPoE or DHCP. If the DNS is not assigned automatically or the WAN
port is assigned a static IP address, the DNS settings must be assigned manually.
Auto: the gateway learns primary and secondary addresses from the ISP’s DHCP server or PPPoE server.
Manual: enter the primary and secondary addresses manually. Please be sure that the IP addresses are
correct otherwise the gateway will not be able to access hosts using hostnames instead of IPs.
WAN Link Speed
It is used to choose the WAN Ethernet link speed. The default is “Auto”. Please choose the same speed with
Router/Switch/Hub when the VoIP gateway connected to Router/Switch/Hub has the link problem.
Clone MAC
Some Internet Service Providers (ISPs) assign bandwidth via MAC (Media Access Control) addresses. You
can click the "Clone" button to type in a MAC address which will be recognized by your ISP. It is only
necessary to fill in the field if it is required by your ISP.
The “Your MAC Address” field will be blank as you log-in via the WAN port.

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 9
Using Phone Book Manager

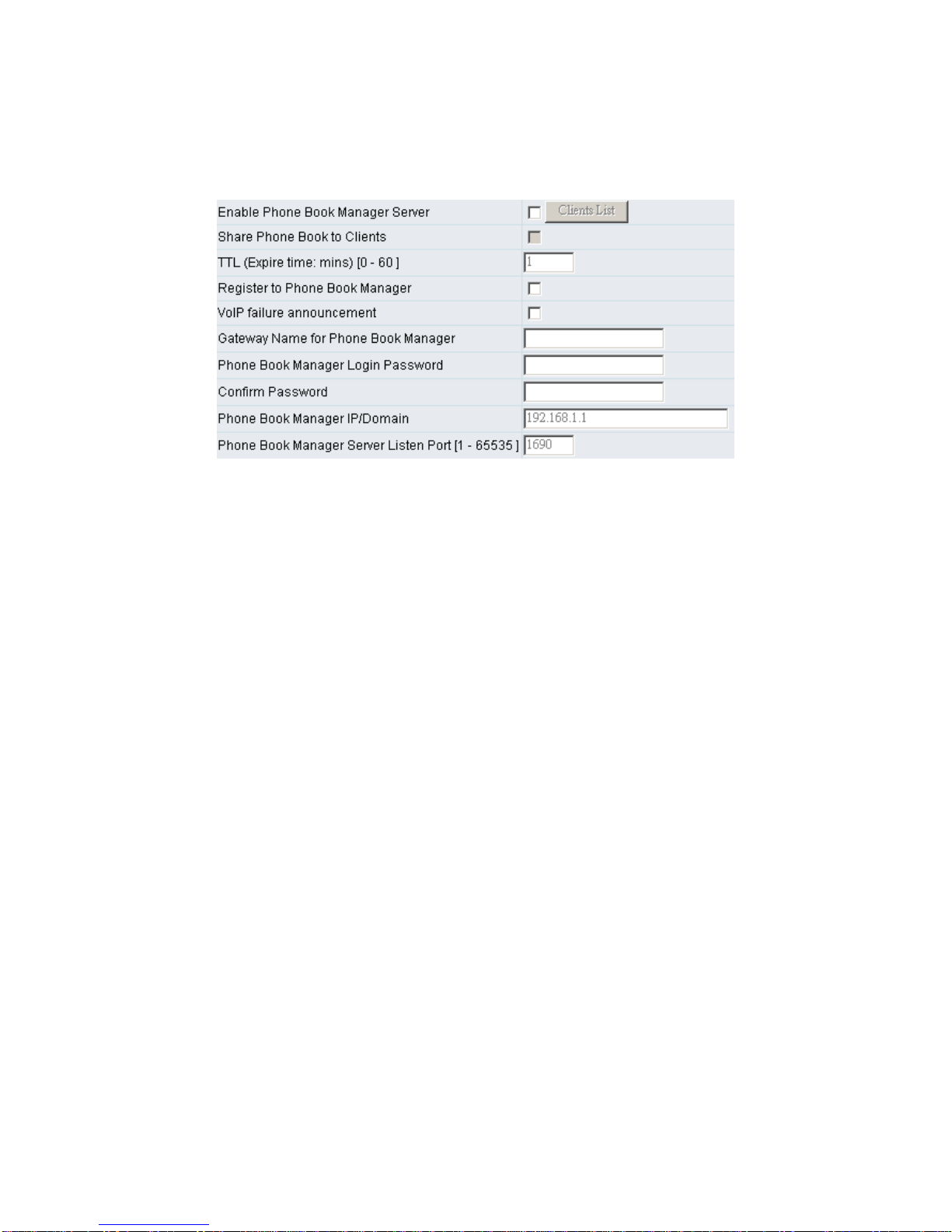

yEnable Phone Book Manager Server: this allows other gateway users to register the IP address and
telephone number in this Phone Book manager. It is recommended that the unit appointed as the
Phone Book Manager use static IP.
yShare Phone Book to Clients: While this option is enabled and the gateway is performing as a Phone
Book Manager, this gateway will append its Phone Book entries to the Manager for other clients to
lookup.
yTTL (Time to Live): If a gateway system that is controlled by the Phone Book Manager does not
report back within the deadline set by TTL, the system will be excluded from the user’s list. Each
gateway should report to the Phone Book Manager once every 30 seconds.
yRegister to Phone Book Manager: To register to the Phone Book Manager.
yVoIP failure announcement: As soon as the registration to Phone Book Manager is failed, the
gateway will drive IVR system to play out failure announcements for the caller
yGateway Name for Phone Book Manager: The alias registered with the Phone Book Manager.
yPhone Book Manager Login Password: Enter the registered password. If this system is serving as
the Phone Book Manager, the set password is also the password used for registering other gateway
systems.
yPhone Book Manager IP/Domain: Enter the IP address for the Phone Book Manager. (This variable
also supports URL (Uniform Resource Locator).)
yPhone Book Manager Server Listen Port [1 - 65535]: The protocol communication port for
transmitting signals between the Phone Book Manager and other gateway systems. Please confirm
whether or not the setting is the same as that of the Phone Book Manager.
y

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 10
3-2 Network Settings (LAN)

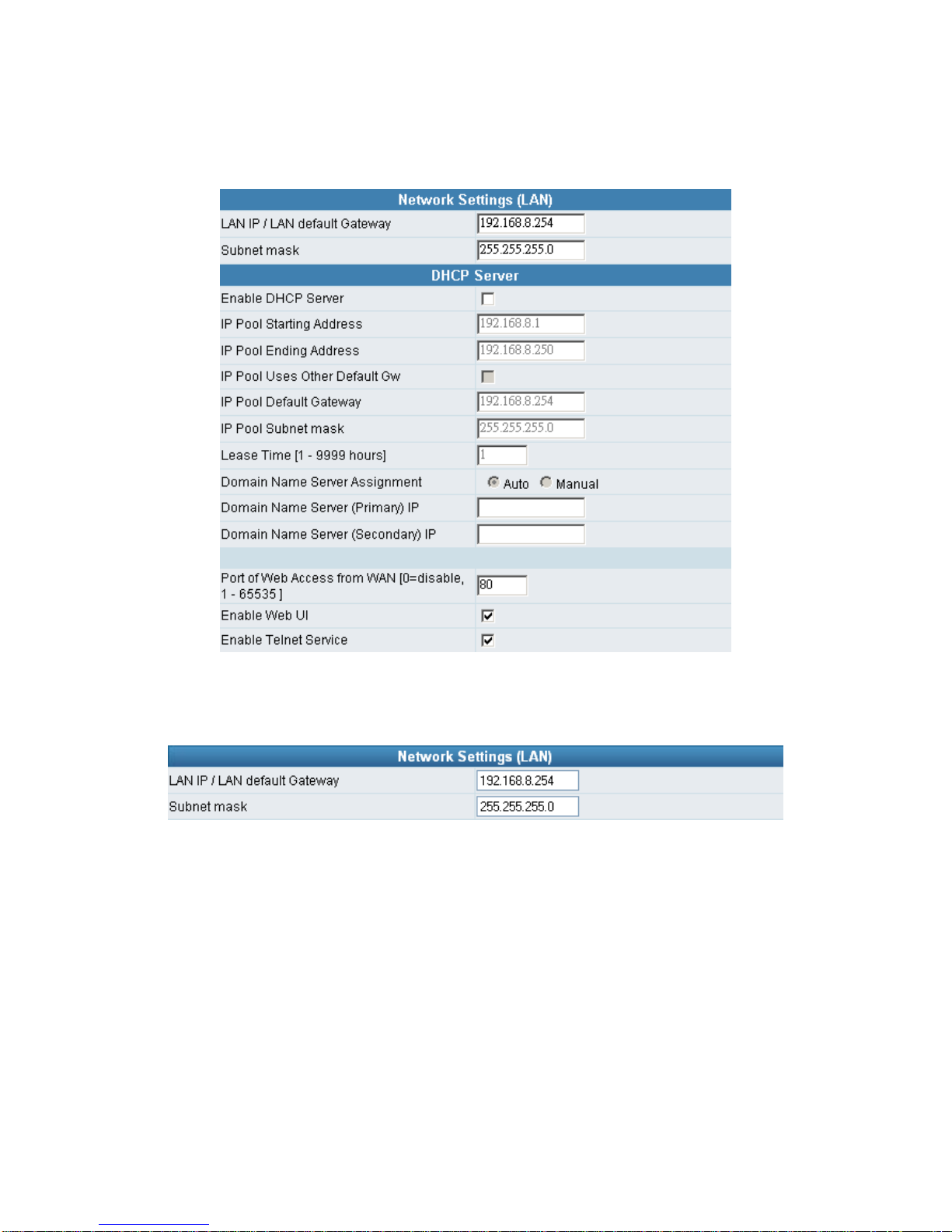

LAN IP/Subnet mask
Gateway LAN Port IP address and subnet mask settings.

DVG-3016S/3032S User’s Manual Network Settings
D-Link Systems, Inc. 11

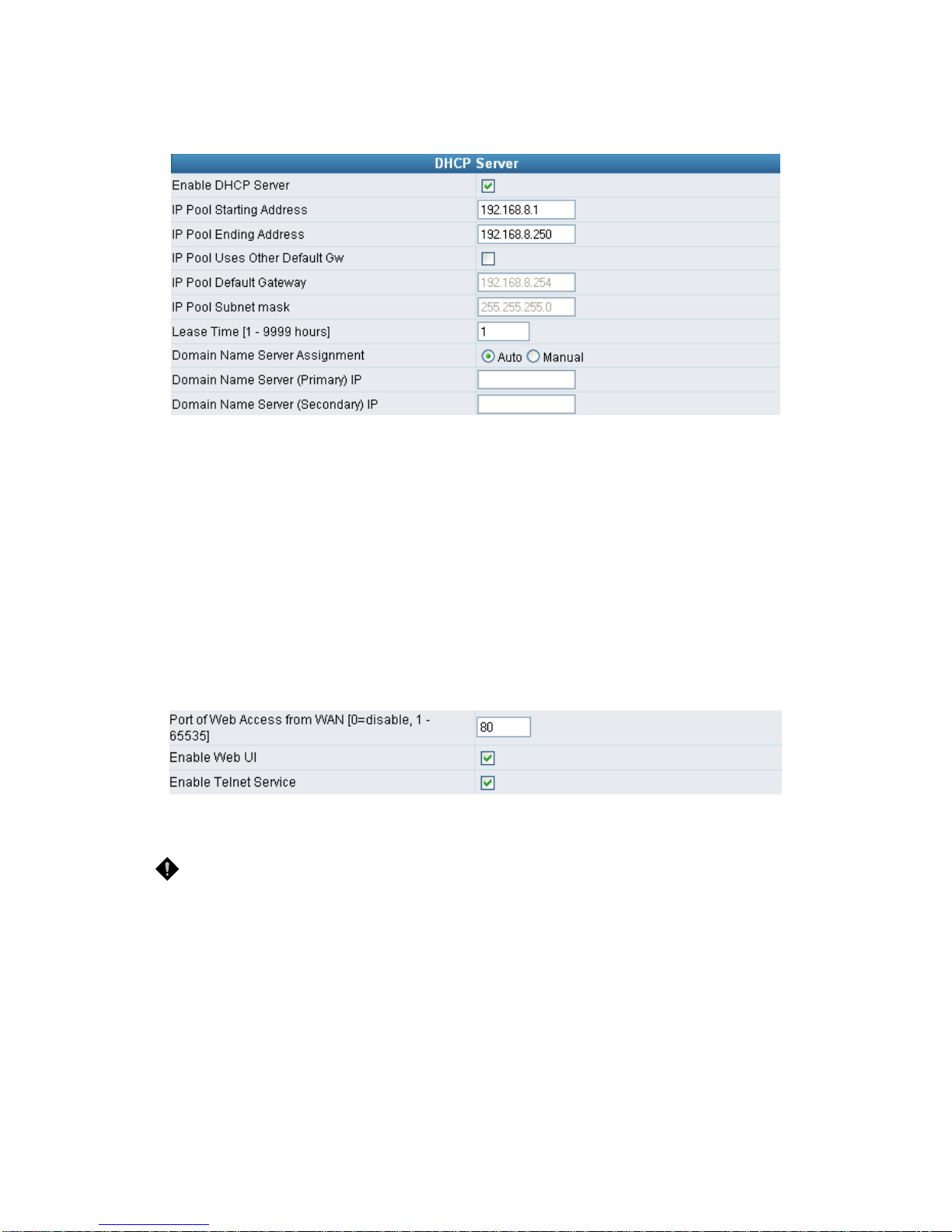

yEnable DHCP Server: Enable or Disable DHCP server service of the gateway.
yIP Pool Starting Address: The first IP address to be assigned to DHCP clients.
yIP Pool Ending Address: The last IP address to be assigned to DHCP clients.
yIP Pool Uses Other Default Gw: Tick the check box to give DHCP client the other default gateway.
yIP Pool Default Gateway: Assign the default gateway and subnet mask to DHCP client.
yIP Pool Subnet mask: Assign the default gateway and subnet mask to DHCP client.
yLease Time: The valid period of an assigned IP address.
yDomain Name Server Assignment: The DNS information to be assigned to DHCP clients.
Auto: the gateway learns primary and secondary addresses from the ISP’s DHCP server or PPPoE
server.
Manual: enter the primary and secondary addresses manually. Please be sure that the IP addresses
are correct otherwise the gateway will not be able to access hosts using hostnames instead of IPs.
yPort of Web Access from WAN: HTTP port for WAN. To change this setting, web configuration must
be accessed via the gateway’s LAN port. The gateway always uses port 80 for HTTP connection via
the LAN port.
NOTE: Due to network security concerns, Web Access for WAN port is disabled by default (port
number “0” in this option means disable web access). To enable it, simply enter a valid port number in this
field.
yEnable Web UI: When “Enable Web UI” is un-ticked, you cannot access from Web.
yEnable Telnet Service: It is to activate Telnet access from WAN or LAN when ticked. You can
configure all settings on web user interface through telnet, such as IP configuration, SIP settings,
Provision settings, reset to a default stat, etc.

DVG-3016S/3032S User’s Manual QoS Settings
D-Link Systems, Inc. 12
3-3 QoS Settings
WAN QoS

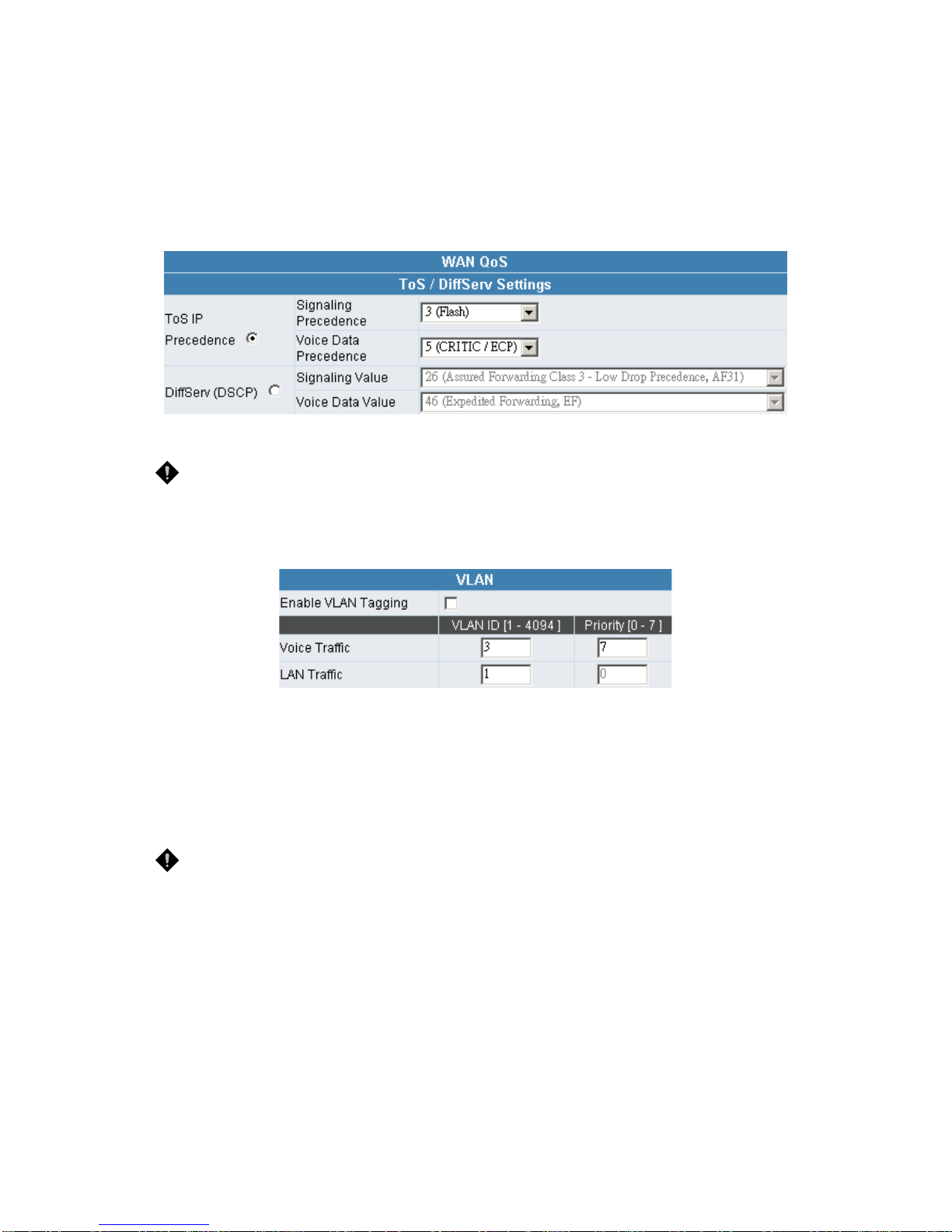

yToS/DiffServ (Type of Service/DSCP): Voice packets have the highest priority to ensure
telecommunication quality; the larger the value you set, the higher the priority.
NOTE: Please contact your ISP when you configure these values.
*VLAN – This feature is only supported for the special hardware.
VLAN is optional. It works with the Router or Switch that supports VLAN. There are 2 VLAN groups: Voice
and data (LAN). This improves efficiency of network performance and security.
Enable VLAN Tagging: It is to tag the packets for VLAN Router or Switch identifying.
VLAN ID: It is to assign uniquely a user-defined ID to each packet.
Priority: It is the proprietary to VLAN Router or Switch.
Note: Please do not change anything here unless requested by your ISP.

DVG-3016S/3032S User’s Manual NAT/DDNS
D-Link Systems, Inc. 13
3-4 NAT/DDNS

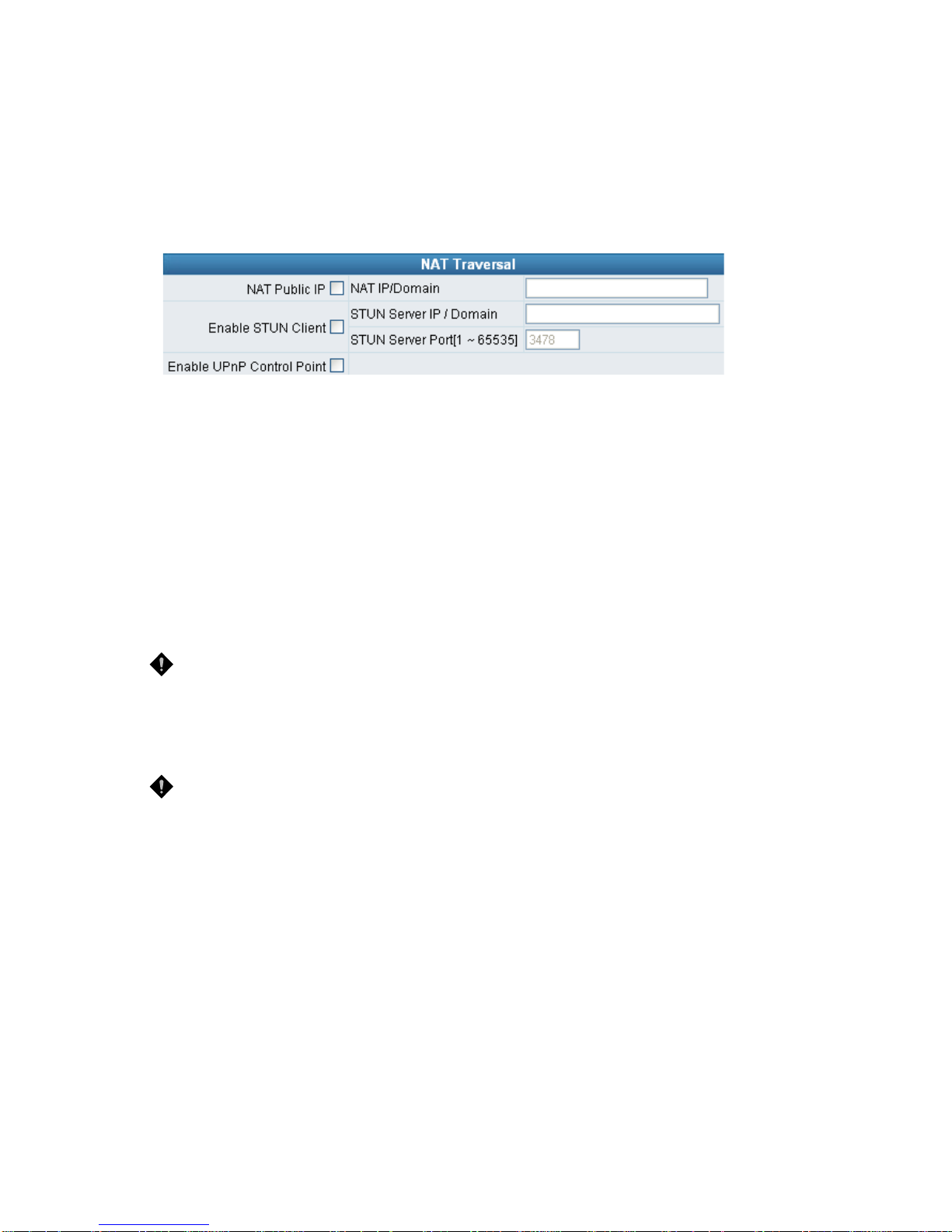

NAT Traversal
If your gateway is set up behind an Internet sharing device, you can select either the NAT or STUN protocol.
yNAT Public IP: The IP address used by the gateway should be a private address. Furthermore, users
must set Virtual Server Mapping in the Internet sharing device. (For example, a virtual server is usually
defined as a Service Port, and all requests to this port will be redirected to this specified server’s
private IP address).
The default ports of the gateway are listed below:
Listen Port (UDP): 5060
RTP Starting Port (UDP): Listen Port used for telephone communication.
DVG-3016: 9000~9095
DVG-3032: 9000~9191
yNAT IP/Domain: Enter the NAT Server IP address (real public IP address of the Internet sharing
device); or enter a true URL (Uniform Resource Locator) when DDNS is used. Please refer to the
DDNS settings.
NOTE: If you are setting a public IP in this field, it has to be a static public IP, otherwise VoIP
communication may not be established properly. Please contact your ISP to check whether your Internet
connection has static public IP addresses.
yEnable STUN Client: Using the STUN protocol prevents problems with setting the IP sharing function,
but some NATs do not support this protocol.
NOTE: If the NAT type is “Symmetric NAT,” then the gateway is not able to traverse the NAT. It is not a
flaw of the gateway design, but rather a limitation of the STUN protocol.
ySTUN Server IP/Domain and Port: Enter the STUN server IP address and Listen Port number. You
can set two STUN server IPs separated by a semicolon.
yEnable UPnP Control Point: This variable will enable the gateway’s IP traffic to pass through an
Internet sharing device. This function only works when the Internet sharing device supports UPnP and
has it enabled.

DVG-3016S/3032S User’s Manual NAT/DDNS
D-Link Systems, Inc. 14
DDNS

DVG-3016S/3032S User’s Manual NAT/DDNS
D-Link Systems, Inc. 15
These settings are only necessary when the gateway is set up behind an Internet sharing device that uses a
dynamic IP address and does not support DDNS.
Choose a DDNS Server: The current system allows users to choose either DynDNS、TZO、3322.org、PeanutHull
or a private server. You will need to apply for an account with DynDNS、TZO、3322.org、PeanutHull or a private
server before you type in the following information.
yServer address: the IP address or URL (Uniform Resource Locator) of the DDNS Server.
yHostname: the URL of the system (or NAT) – applied from domain name registration providers (e.g.
www.dyndns.org).
yLogin ID and Password: The ID and password used to log-in to the DDNS server.
yBehind NAT: Select this only when the system is set up behind a NAT device.

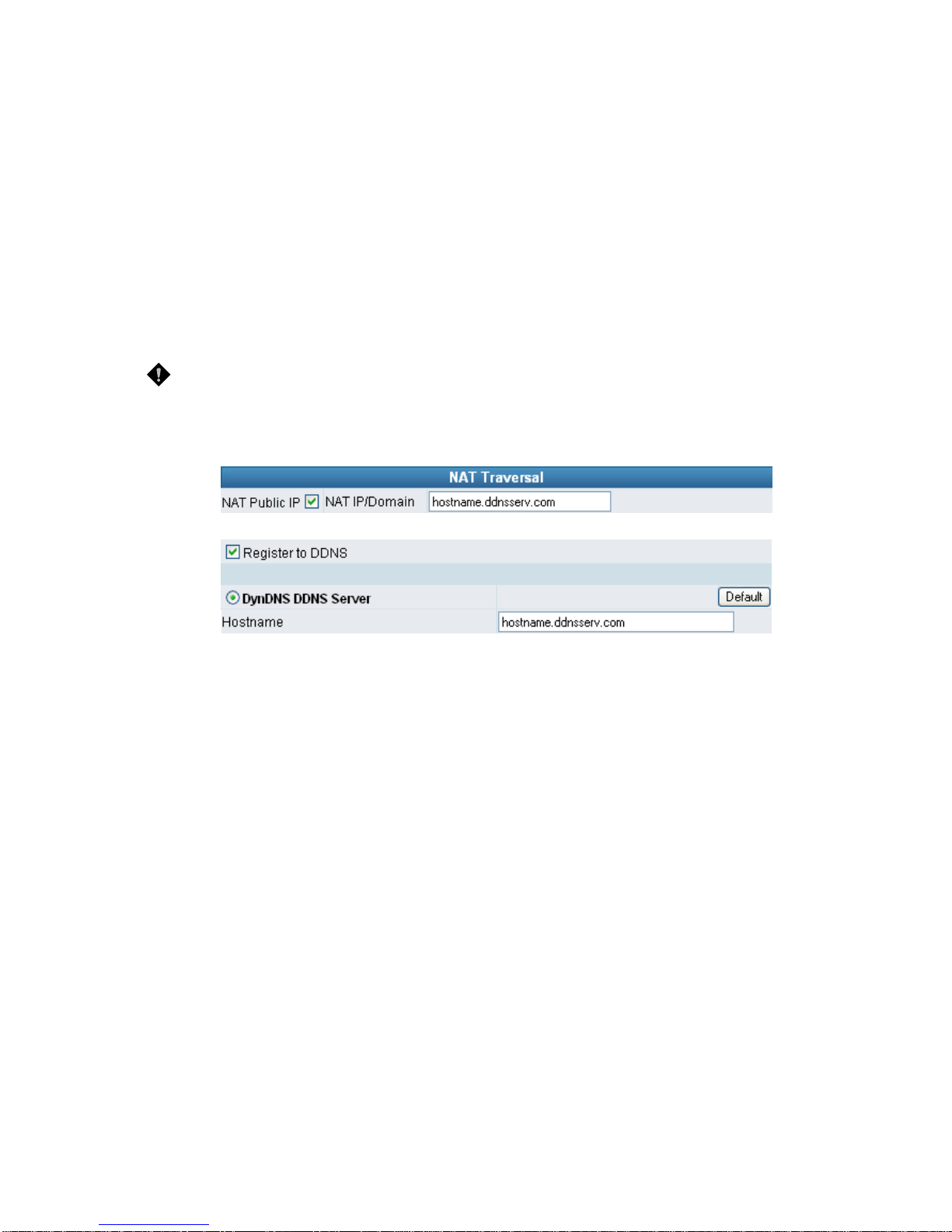

NOTE: If the gateway is set up under NAT, then enter the hostname in the NAT IP/Domain that is the
same as the Hostname of the DDNS.
Example:
NAT
DDNS

DVG-3016S/3032S User’s Manual Caller ID
D-Link Systems, Inc. 16
3-5 Caller ID

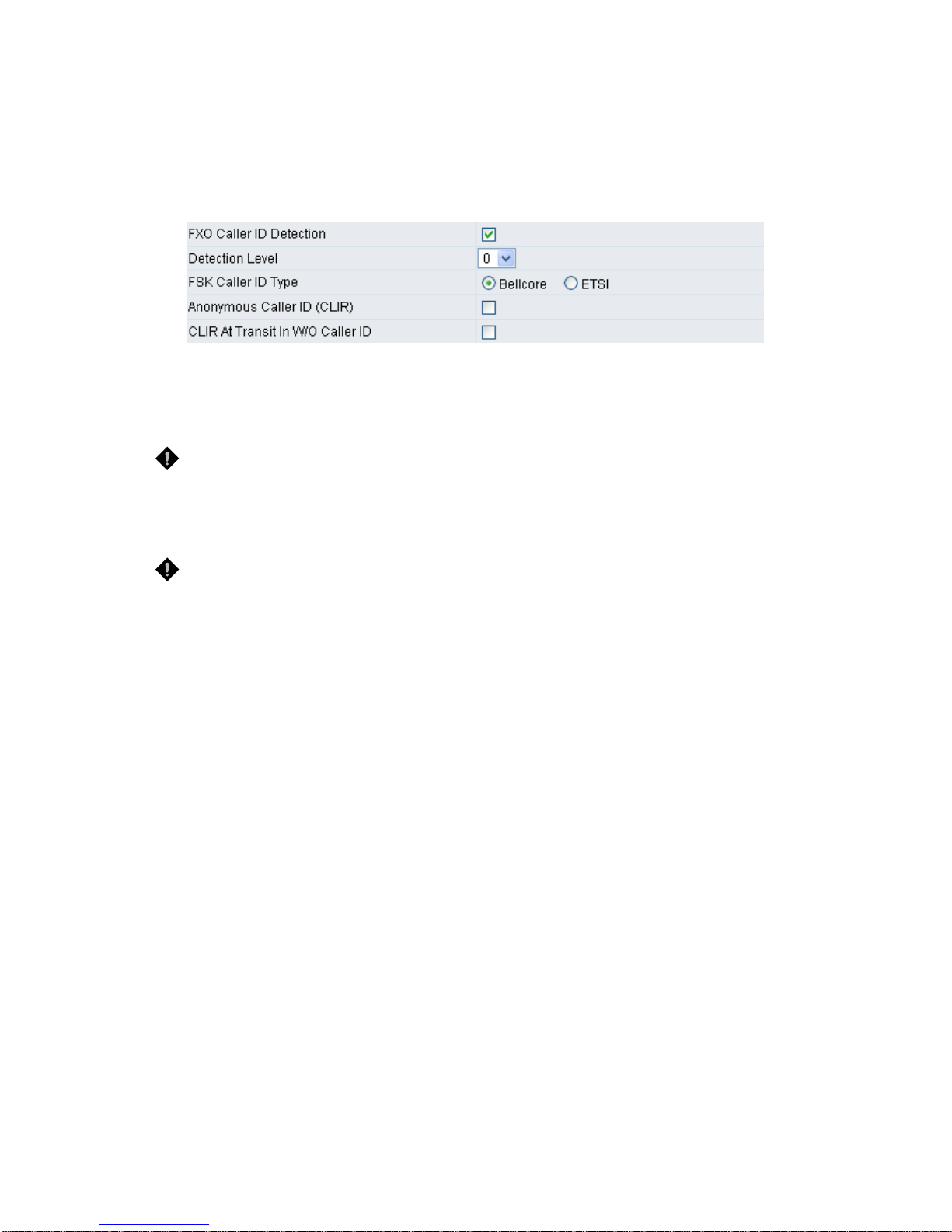

yFXO Caller ID Detection: Used to detect the Caller ID delivered from the PSTN to the FXO port.
When enabled, the Caller ID detected on the FXO port will be sent to the SIP Proxy Server on
transit in (dialing out) calls.
yDetection Level: If FXO can’t detect Caller ID, try to adjust it until it can.
NOTE: If you register the gateway to a Proxy, you may be unable to make a call because the
gateway will not send the number for authorization.
yFSK Caller ID Type: Bellcore is used inAustralia caller ID standards.
yAnonymous Caller ID (CLIR): When enabled, anyone receiving a call from you will not display
your number if they have caller ID.
NOTE: If you register the gateway to a Proxy and you check this option, you may be unable to make a
call. This is due to the fact that the VoIP gateway doesn’t send the number for authorization.
yCLIR At Transit In W/O Caller ID: When not enabled, if the FXO can detect caller ID in a call
from PSTN, the gateway will use the detected caller ID as caller identification when it makes
transit in calls; if FXO cannot detect caller ID in a call from PSTN, the gateway will use
“anonymous” as caller identification for transit in calls. When it enabled, the gateway will always
uses “anonymous” as caller identification for transit in calls.

DVG-3016S/3032S User’s Manual Caller ID
D-Link Systems, Inc. 17

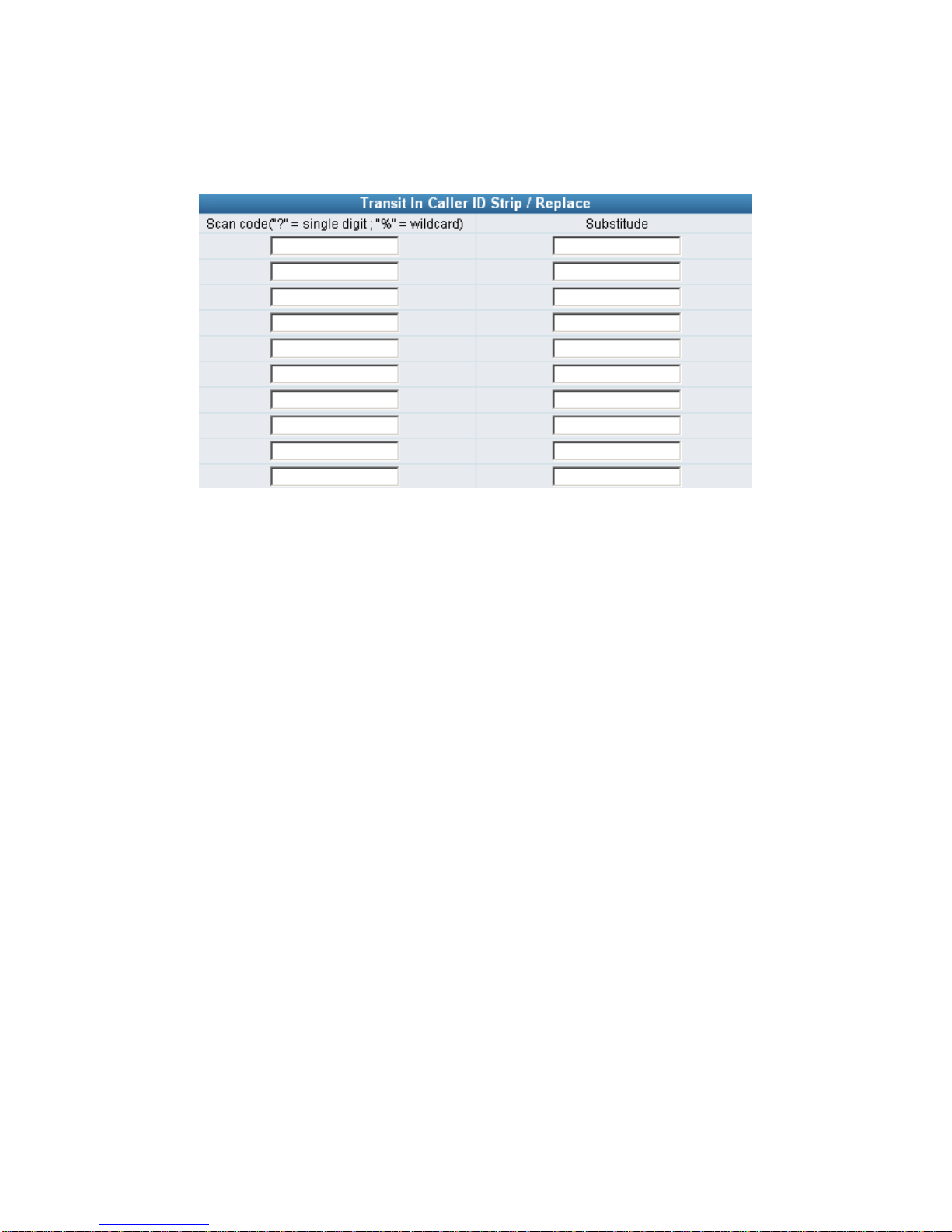

Transit In Caller ID Strip / Replace
yScan code: Defines the rule of the Caller IDs detected by FXO. It can be a prefix or a full number.
ySubstitude: Defines the changed display info. of the calling party while making calls to Internet
by FXO.
