D-Link DPN-1021G User manual

User Manual
DPN-1021G
GPON ONT VoIP Gateway with 1 GPON Port,
1 10/100/1000Base-T Port, 1 10/100Base TX Port,
and 1 FXS Port
July 2018

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Contents
Chapter 1. Introduction..........................................4
Contents and Audience.......................................................4
Conventions.................................................................4
Document Structure..........................................................4
Chapter 2. Overview..............................................5
General Information.........................................................5
Specifications .............................................................6
Product Appearance..........................................................9
Upper Panel...............................................................9
Back and Bottom Panels...................................................11
Delivery Package...........................................................12
Chapter 3. Installation and Connection..........................13
Before You Begin...........................................................13
Connecting to PC...........................................................14

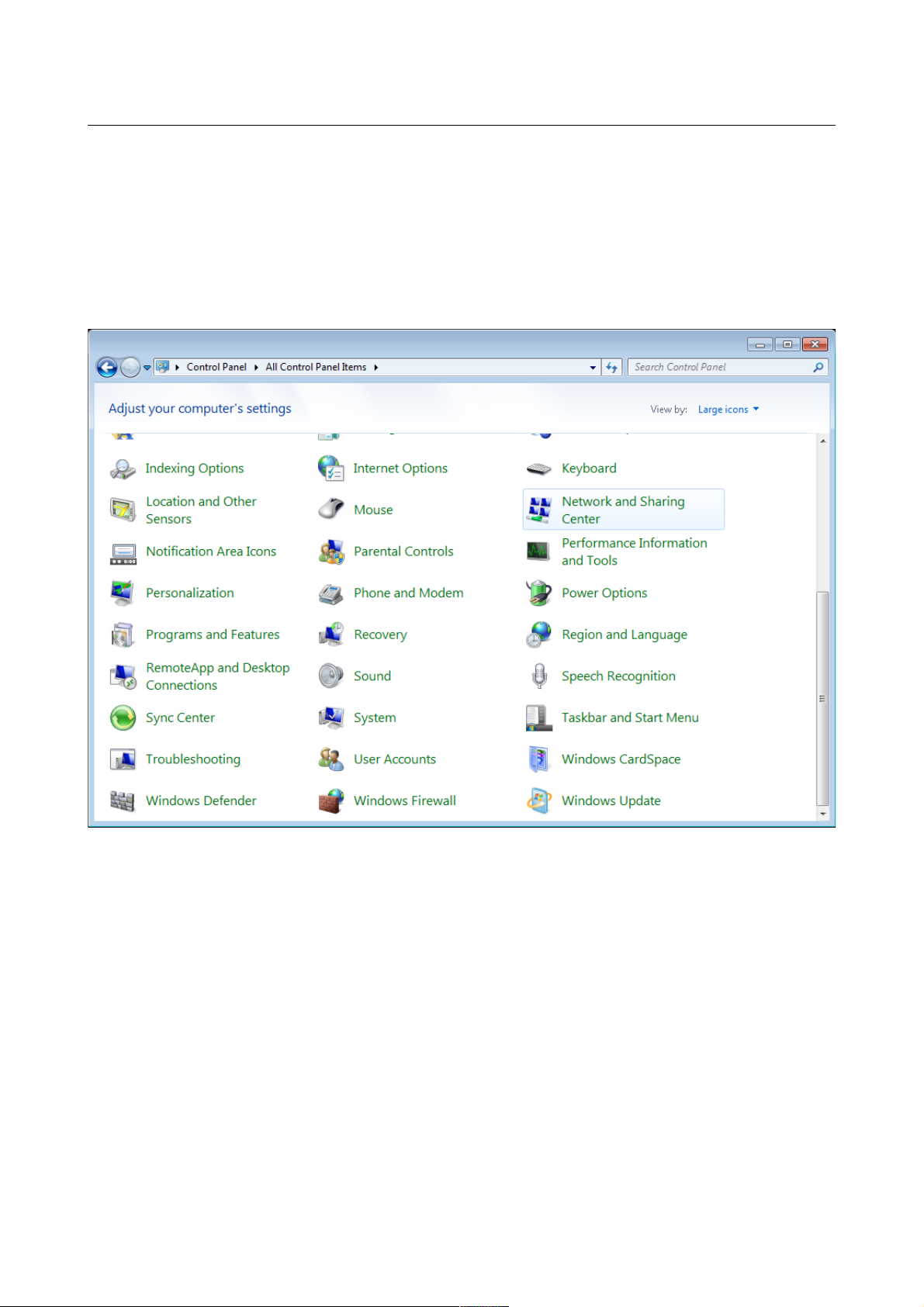

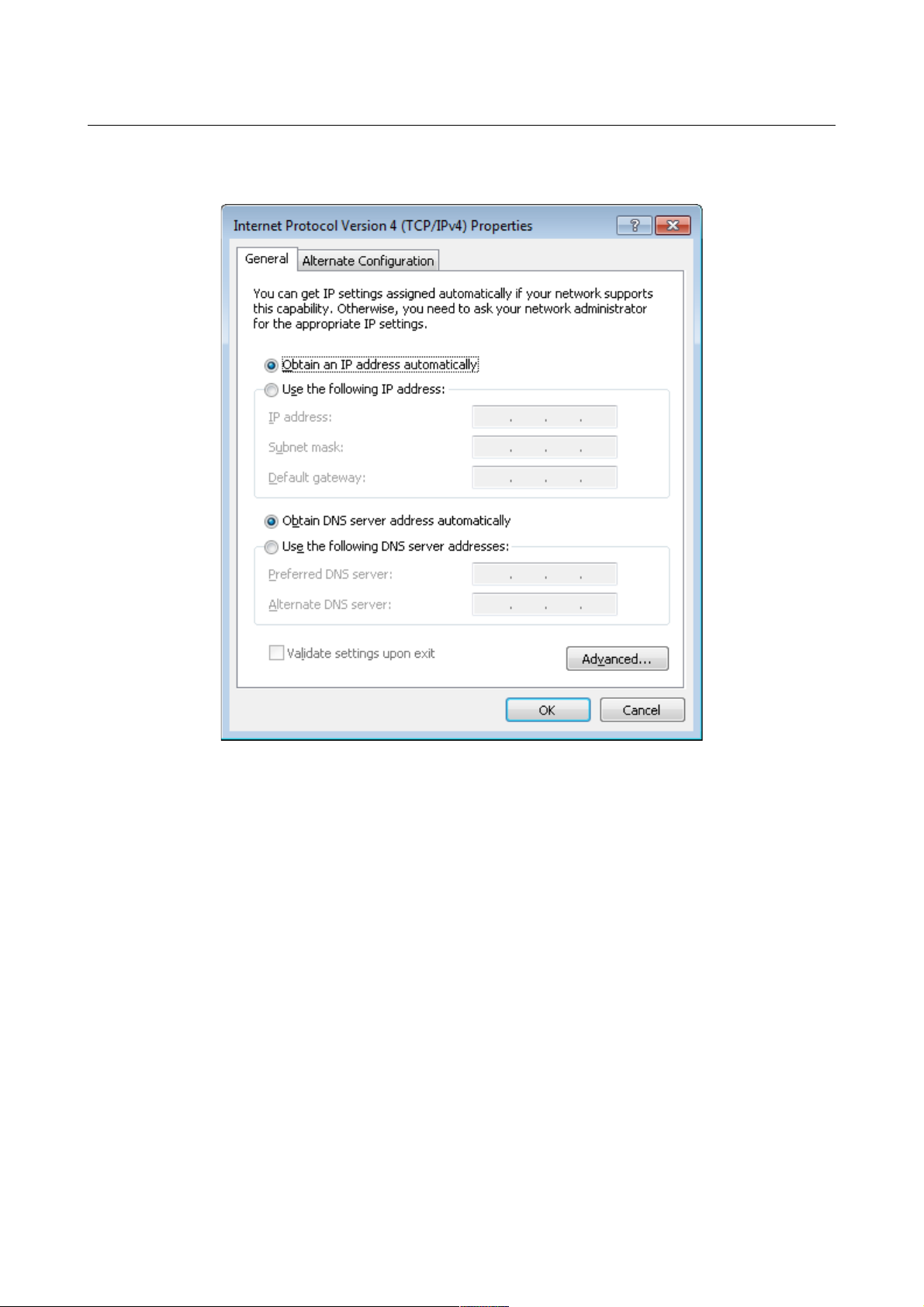

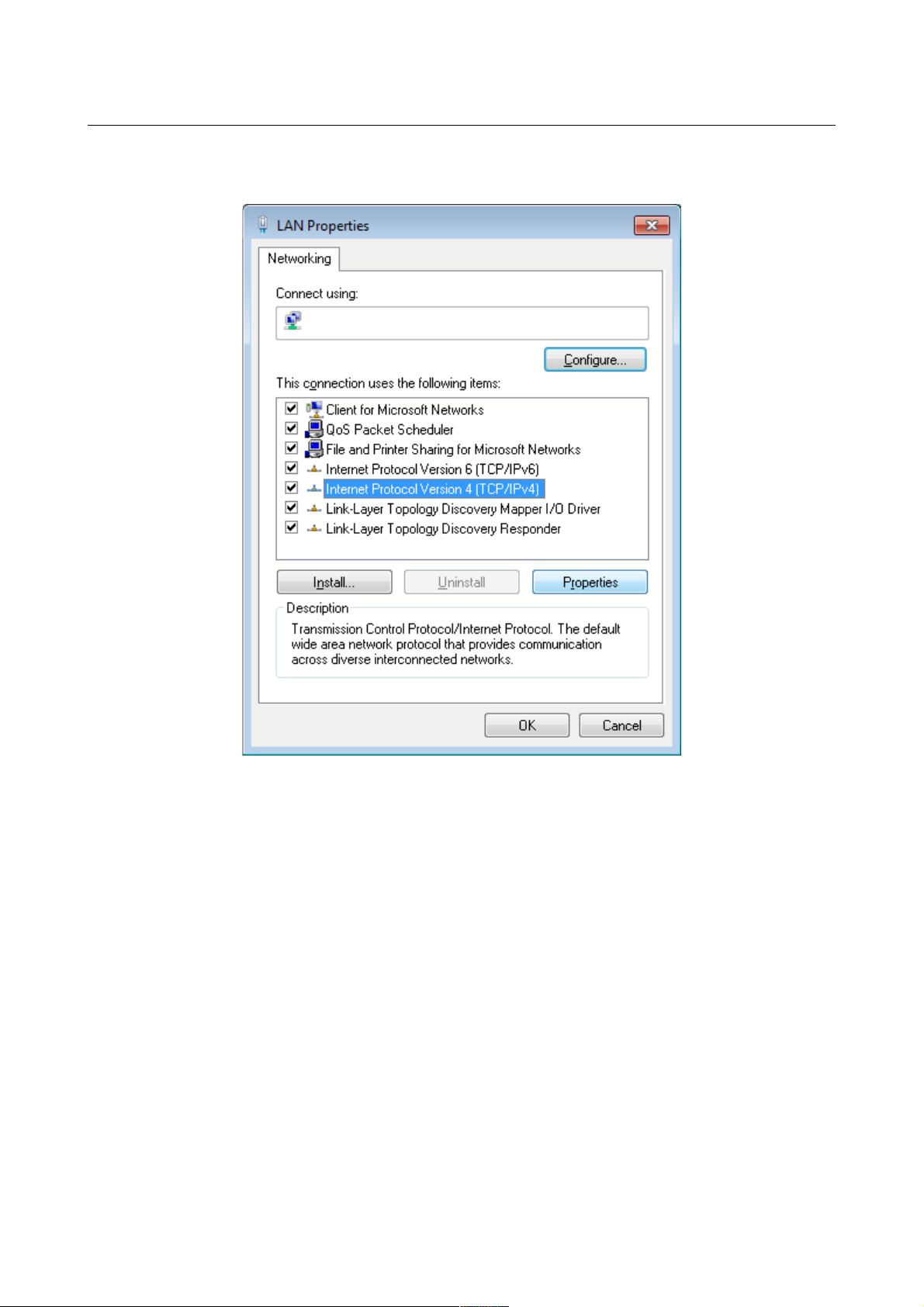

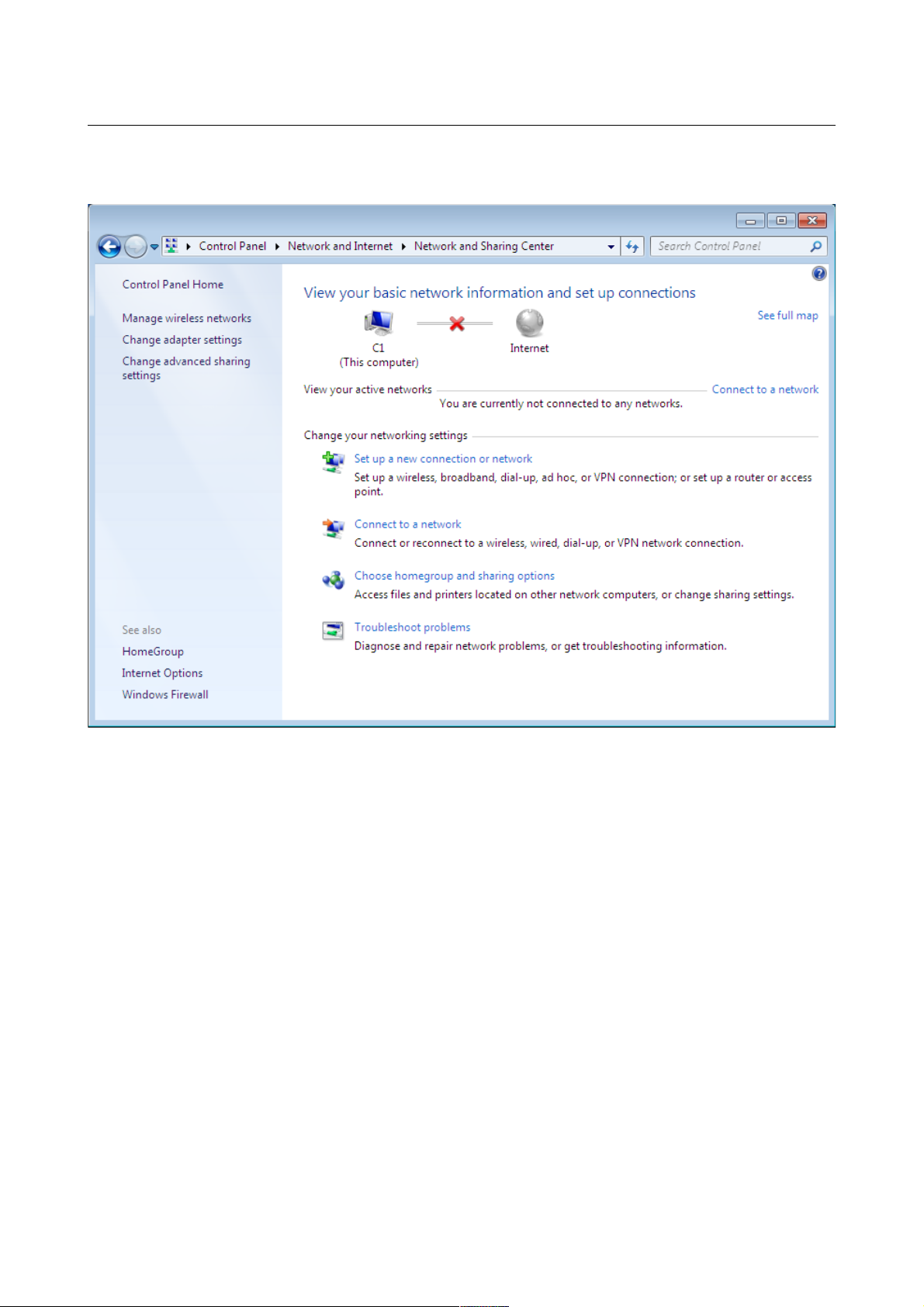

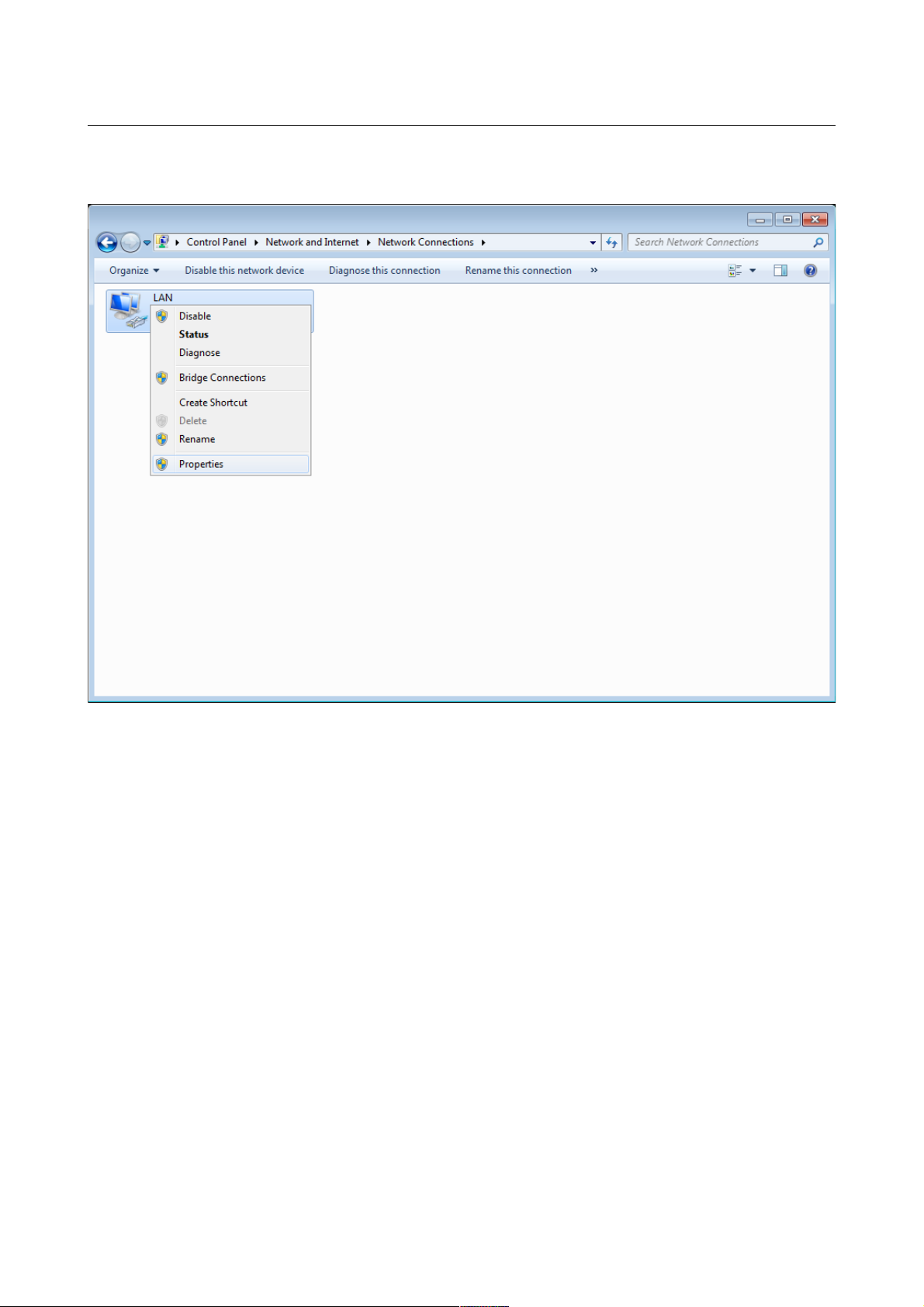

Obtaining IP Address Automatically in OS Windows .......................15
Connecting to Web-based Interface..........................................20
Web-based Interface Structure..............................................22
Summary Page.............................................................22
Menu Sections............................................................24
Notifications............................................................25
Chapter 4. Configuring via Web-based Interface..................26
Initial Configuration......................................................26
Statistics.................................................................28
Network Statistics.......................................................28
PON Statistics...........................................................29
DHCP.....................................................................30
Routing Table............................................................31
Clients..................................................................32
Multicast Groups.........................................................33
Clients and Session......................................................34
Connections Setup..........................................................35
WAN......................................................................35
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................37
Creating Dynamic IPv6 or Static IPv6 WAN Connection....................41
Creating PPPoE WAN Connection..........................................45
Creating PPTP or L TP WAN Connection...................................50
Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection.................54
LAN......................................................................60
IPv4...................................................................60
IPv6...................................................................63
Page 2 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Advanced...................................................................65
VLAN.....................................................................66
MVR......................................................................68
PON......................................................................69
EtherWAN................................................................. 0
DNS...................................................................... 1
Ports Settings........................................................... 2
Redirect................................................................. 5
DDNS..................................................................... 6
Routing.................................................................. 8
TR-069 Client............................................................80
Remote Access............................................................82
UPnP IGD.................................................................84
IGMP/ALG/Passthrough.....................................................85
IPsec....................................................................8
VoIP.......................................................................94
Basic Settings...........................................................94
Advanced.................................................................9
SIP Lines...............................................................100
Fax Settings............................................................103
Audio Settings..........................................................105
Routing call............................................................108
Call Feature Codes......................................................110
Call Logging............................................................112
Security................................................................113
Alarm Clock.............................................................114
Firewall..................................................................115
IP Filter...............................................................115
Virtual Servers.........................................................119
DMZ.....................................................................122
MAC Filter..............................................................123
URL Filter..............................................................125
System....................................................................126
Configuration...........................................................12
Firmware Update.........................................................129
Local Update..........................................................130
Remote Update.........................................................131
Log.....................................................................132
Ping....................................................................134
Traceroute..............................................................135
Telnet..................................................................136
System Time.............................................................13
Yandex.DNS................................................................139
Settings................................................................139
Devices and Rules.......................................................141
Chapter 5. Operation Guidelines................................143
Safety Rules and Conditions...............................................143
Abbreviations and Acronyms................................................144
Page 3 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Introduction
CHAP ER 1. IN RODUC ION
Contents and Audience
This manual describes the GPON ONT VoIP gateway DPN-1021G and e plains how to configure
and operate it.
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and system administrators, who install and configure networks in offices.
Conventions
Example Description
te t The body te t of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu, menu item, control (field, checkbo , drop-down
list, button, etc.).
192.168.0.1 Data that you should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the gateway's hardware and software features, describes its
appearance and the package contents.
Chapter 3 e plains how to install the gateway DPN-1021G and configure a PC in order to access its
web-based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safety instructions.
Chapter introduces abbreviations and acronyms used in this manual.
Page 4 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
CHAP ER 2. OVERVIEW
General Information
The DPN-1021G device is a GPON ONT VoIP gateway with one GPON port, one
10/100/1000Base-T port, one 10/100Base-TX port, and one FXS port.
The gateway DPN-1021G provides an optical line connection to a GPON OLT device. The key
advantage of GPON technology is e traordinary bandwidth of the channel. This helps to deliver the
ne t generation of high-speed Internet services to home and office users. DPN-1021G helps to
provide a reliable, long-reaching last-mile connection by e tending the high-bandwidth public
network to people living and working in remote multi-unit buildings.
High-speed broadband access with the rate up to 2.4Gbps allows to provide customers with all high-
demand services (such as HD IPTV, VoIP, Internet connection) simultaneously.
Also the device is equipped with an FXS port which allows connection of an analog phone for calls
via Internet.
Any Ethernet port of the device can be configured to connect to a private Ethernet line.
The VoIP gateway DPN-1021G includes a built-in firewall. The advanced security functions
minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access
to unwanted websites for users of your LAN.
In addition, the gateway supports IPsec and allows to create secure VPN tunnels.
Built-in Yande .DNS service protects against malicious and fraudulent web sites and helps to block
access to adult content on children's devices.
You can configure the settings of the gateway DPN-1021G via the user-friendly web-based
interface (the interface is available in two languages – in Russian and in English).
DPN-1021G itself checks the D-Link update server. If a new approved firmware is available, a
notification will appear in the web-based interface of the device.
The built-in TR-069 client allows to perform remote configuration and diagnostics of the device
independently from the customer.
Page 5 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
Specifications*
Hardware
Processor ·RTL9602
RAM ·128MB, DDR3
Flash ·128MB, NAND
Interfaces ·GPON port (SC/APC connector)
·10/100/1000BASE-T LAN port
·10/100BASE-TX LAN port
·RJ-11 FXS port
LEDs ·POWER
·GPON
·Internet
·VoIP
·2 LAN LEDs
Buttons ·ON/OFF b tton to power on/power off
·RESET b tton to restore factory defa lt settings
Power connector ·Power inp t connector (DC)
PON
GPON features ·Class B+ GPON optical transceiver
·Upstream (transmitter): 1310nm ± 50nm, 1.244Gbps pstream b rst data rate
·Downstream (digital receiver): 1490nm ± 10nm, 2.488Gbit/s downstream
contin o s data rate
·Single mode fiber cable
·AES encryption
·S pport of IGMP v1/v2 Snooping, 16 entries, enable/disable, Fast leaving
·MAC learning
·UNI port config ration (rate, d plex mode, flow control, disable/enable, a to
mode)
·Maxim m frame length to 1522 bytes
·Compliance to ONT dying gasp
·ONT a thentication
Phone
General SIP features ·Invite with Challenge
·Register by IP address or domain name of SIP server
·Back p proxy s pport
·S pport of DHCP option 120
·RFC3986 SIP URI format s pport
·O tbo nd proxy s pport
·STUN client
·NAT keep-alive
·Call types: voice/modem/fax
·User programmable Dial Plan
·Man al peer table (P2P)
·E.164 N mbering, ENUM s pport
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation, visit www.dlink.ru.
Page 6 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
Phone
Call features ·Direct IP-to-IP сall witho t SIP proxy
·Call hold/retrieve
·Call awaiting
·Forwarding ( nconditional, b sy, no answer)
·Do Not Dist rb
·Blocking hidden n mber calls
·Speed dialing
·Phone book
·Hotline
·Vertical service codes
·Filtering by IP address (white/black list)
·Alarm clock
Voice features ·Codecs: G.711 a/μ-law, G.729A, G.726, G.722, G.723.1
·DTMF detection and generation
·In-band DTMF, o t-of-band DTMF (RFC2833, SIP-INFO)
·Comfort Noise Generation (CNG)
·Voice Activity Detection (VAD)
·Dynamic Jitter B ffer
·Call progress tone generation (FXS)
·DTMF/PULSE dial s pport
·Caller ID detection and generation
·T.30 FAX bypass to G.711, T.38 Real Time FAX Relay
·Adj stable Flash Time
·Vol me control (speaker/microphone)
Software
WAN connection types ·Static IPv4 / Dynamic IPv4
·Static IPv6 / Dynamic IPv6
·PPPoE
·PPTP/L2TP
·PPPoE IPv6
·PPPoE D al Stack
Network functions ·DHCP server/relay
·Statef l/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
·DNS relay
·Dynamic DNS
·Static IP ro ting
·Static IPv6 ro ting
·IGMP Proxy
·RIP
·S pport of UPnP IGD
·S pport of VLAN
·S pport of MVR
·WAN ping respond
·S pport of SIP ALG
·S pport of RTSP
·A tonegotiation of speed, d plex mode, and flow control/Man al speed and
d plex mode set p for each Ethernet port
Page 7 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
Software
Firewall functions ·Network Address Translation (NAT)
·Statef l Packet Inspection (SPI)
·IP filter
·IPv6 filter
·MAC filter
·URL filter
·DMZ
·Prevention of ARP and DDoS attacks
·Virt al servers
·B ilt-in Yandex.DNS web content filtering service
VPN ·IPsec/PPTP/L2TP/PPPoE pass-thro gh
·IPsec t nnels
Management ·Local and remote access to settings thro gh TELNET/WEB (HTTP/HTTPS)
·Biling al web-based interface for config ration and management
(R ssian/English)
·Notification on connection problems and a to redirect to settings
·Firmware pdate via web-based interface
·A tomatic notification on new firmware version
·Saving/restoring config ration to/from file
·S pport of remote logging
·A tomatic synchronization of system time with NTP server and man al
time/date set p
·Ping tility
·Tracero te tility
·TR-069 client
Physical Parameters
Dimensions (L x W x H) ·160 x 115 x 43 mm (6.3 x 4.5 x 1.7 in)
Weight ·200 g (0.44 lb)
Operating Environment
Power ·O tp t: 12V DC, 1A
emperature ·Operating: from 0 to 40 °C
·Storage: from -40 to 70 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 8 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
Product Appearance

Figure 1. Upper panel view.
LED Mode Description
POWER
Solid green The gateway is powered on.
No light The gateway is powered off.
GPON
Solid green The gateway is synchronized with the OLT device.
Blinking green Synchronization with the OLT device is in progress.
No light The fiber optic cable is not connected.
Internet
Solid green The connection is on.
No light The connection is off.
VoIP
Solid green The phone is registered on the SIP server.
Blinking green Dialing a number, making or accepting a call.
No light The phone is not registered on the SIP server.
Page 9 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
LED Mode Description
LAN1
Solid green A device (computer) is connected to the port, the
connection is on (at the rate of up to 1000Mbps).
Blinking green Data transfer through the LAN port at the rate of up to
1000Mbps.
Solid orange A device (computer) is connected to the port, the
connection is on (at the rate of up to 100Mbps).
Blinking orange Data transfer through the LAN port at the rate of up to
100Mbps.
No light The cable is not connected to the port.
LAN2
Solid green A device (computer) is connected to the port, the
connection is on (at the rate of up to 100Mbps).
Blinking green Data transfer through the LAN port at the rate of up to
100Mbps.
No light The cable is not connected to the port.
Page 10 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview

Figure 2. Back panel view.
Name Description
LAN1/LAN2 2 Ethernet ports to connect computers or network devices. One port
can be used to connect to a private Ethernet line.
FXS A port to connect an analog phone.
RESE
A button to restore the factory default settings.
To restore the factory defaults, push the button (with the device turned
on), hold it for 10 seconds, and then release the button.
POWER Power connector.
ON/OFF A button to turn the gateway on/off.
The PON port located on the bottom panel of the gateway is designed to connect to a fiber optic
line.
Page 11 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Overview
Delivery Package
The following should be included:
•GPON ONT VoIP gateway DPN-1021G
•Power adapter DC 12V/1A
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents are available on D-Link website
(see www.dlink.ru).
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product.
Page 12 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
CHAP ER 3. INS ALLA ION AND CONNEC ION
Before You Begin
Please, read this manual prior to installing the device. Make sure that you have all the necessary
information and equipment.
Operating System
Configuration of the GPON ONT VoIP gateway with fiber GPON port DPN-1021G (hereinafter
referred to as “the gateway”) is performed via the built-in web-based interface. The web-based
interface is available from any operating system that supports a web browser.
Web Browser
The following web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet E plorer 10 and later
•Microsoft Edge 20.10240 and later
•Mozilla Firefo 44 and later
•Opera 35 and later.
For successful operation, JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer.
Wired NIC (Ethernet Adapter)
Any computer that uses the gateway should be equipped with an Ethernet adapter (NIC). If your
computer is not equipped with such a device, install an Ethernet adapter prior to using the gateway.
VoIP
In order to use VoIP over SIP, you need to connect an analog phone to the FXS port of the gateway.
Then access the web-based interface of the gateway, and you will be able to configure all needed
settings.
Page 13 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
Connecting to PC
!I nvisible laser radiation may be emitted from the end of the fiber and/or from DPN-1021G .
Take all necessary precautions to avoid unnecessary e posure to this radiation.
1. Connect an Ethernet cable between the Ethernet port of your PC and the 10/100/1000Base-T
port (LAN ) or 10/100Base-TX port (LAN2).
2. To connect the device to a fiber optic line: connect the fiber optic cable to the PON port in
the bottom panel of the gateway. Make sure that center conductor of the cable is inserted
directly into the center of the PON connector. Secure the cable by carefully pushing the fiber
connector onto the PON connector until tight. Be careful not to over-tighten the connector or
you may damage either the cable or the device.
3. To connect the device to an Ethernet line: in the web-based interface of the gateway, select
the gateway's LAN port that will be used as the WAN port and create an Ethernet WAN
connection. Then connect an Ethernet cable between an available Ethernet port of the
gateway and the Ethernet line.
!Please connect the gateway to the ISP's Ethernet line only after setting the WAN port and
creating the Internet connection.
4. Connect a phone cable between the FXS port of the gateway and the phone.
5. Connect the power cord to the power connector port on the back panel of the gateway, then
plug the power adapter into an electrical outlet or power strip.
6. Turn on the gateway by pressing the ON/OFF button on its back panel.
7. Wait for several minutes. When the device receives all needed settings, the GPON LED will
stop blinking and will light solid green. When the Internet connection is established, the
Internet LED will light solid green.
Page 14 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection

1. Click the Start button and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)
Figure 3. The Control Panel window.
Page 15 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
3. In the menu located on the left part of the window, select the Change adapter settings
line.
Figure 4. The Net ork and Sharing Center window.
Page 16 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
4. In the opened window, right-click the relevant Local Area Connection icon and select
the Properties line in the menu displayed.
Figure 5. The Net ork Connections window.
Page 17 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
5. In the Local Area Connection Properties window, on the Networking tab, select the
Internet Protocol Version 4 ( CP/IPv4) line. Click the Properties button.
Figure 6. The Local Area Connection Properties window.
Page 18 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
6. Select the Obtain an IP address automatically and Obtain DNS server address
automatically radio buttons. Click the OK button.
Figure . The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
Page 19 of 145

DPN-1021G GPON ONT VoIP Gateway with 1 GPON
Port, 1 10/100/1000Base-T Port, 1 10/100Base-TX Port,
and 1 FXS Port
User Man al
Installation and Connection
Connecting to Web-based Interface
When you have configured your computer, you can access the web-based interface and configure
needed parameters (create a WAN connection, configure VoIP, specify the settings of the firewall,
etc.).
!For security reasons, DPN-1021G with default settings cannot connect to the Internet. To
get started, please set your own password used to access the web-based interface and, if
needed, configure other settings recommended by your ISP.
Start a web browser (see the Before You Begin section, page 13). In the address bar of the web
browser, enter the IP address of the gateway (by default, 192.168.0.1). Press the Enter key.
Figure 8. Connecting to the web-based interface of the DPN-1021G device.
!If the error “ The page cannot be displayed ” (or “ Unable to display the page ”/“ Could not
connect to remote server ”) occurs upon connecting to the web-based interface of the
gateway, make sure that you have properly connected the gateway to your computer.
If the device has not been configured previously or the default settings have been restored, after
access to the web-based interface the Initial Configuration page opens (see the Initial
Configuration section, page 26).
Figure 9. The Initial Configuration page.
Page 20 of 145
