D-Link DVG-2016 User manual

Before You Begin
You must have the following:
A subscription with the service provider included in this package
A Computer with a CD-ROM drive and an Ethernet port running Windows
Ethernet-based broadband modem

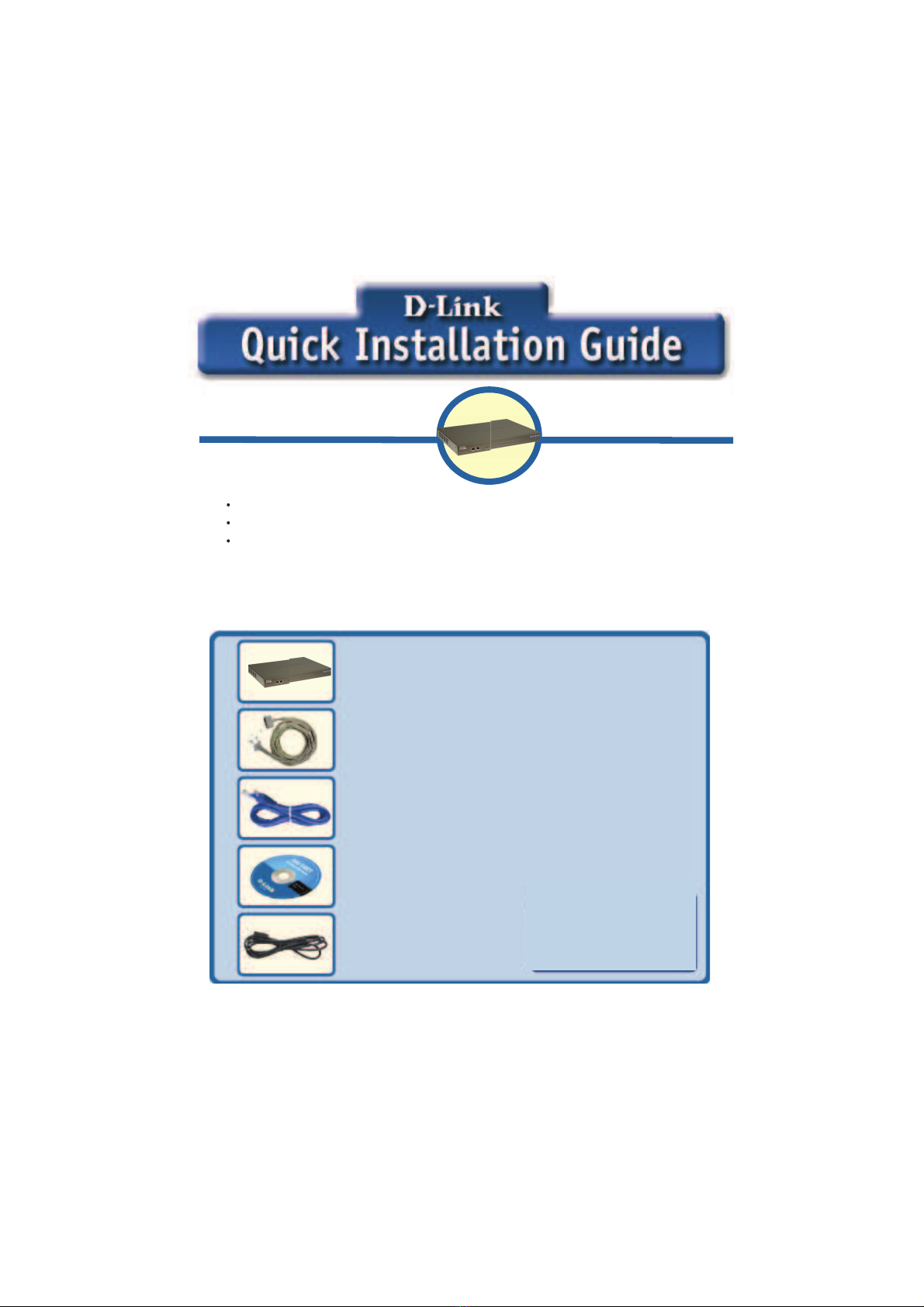

Check Your Package Contents
If any of the items below are missing, please contact your reseller.
These are the items included with your DVG-2016 purchase:
This product can be set up using Internet
Explorer or Netscape Navigator, 6.x or
above, with Javascript enabled
DVG-2016
DVG-2016 FXS VoIP Gateway
FXS
V
oIP Gatewa
y
Centronics Cable x 1
CAT5 Ethernet Cable
CD-ROM
AC Power Cord
©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DVG-2016 FXS
VoIP Gateway

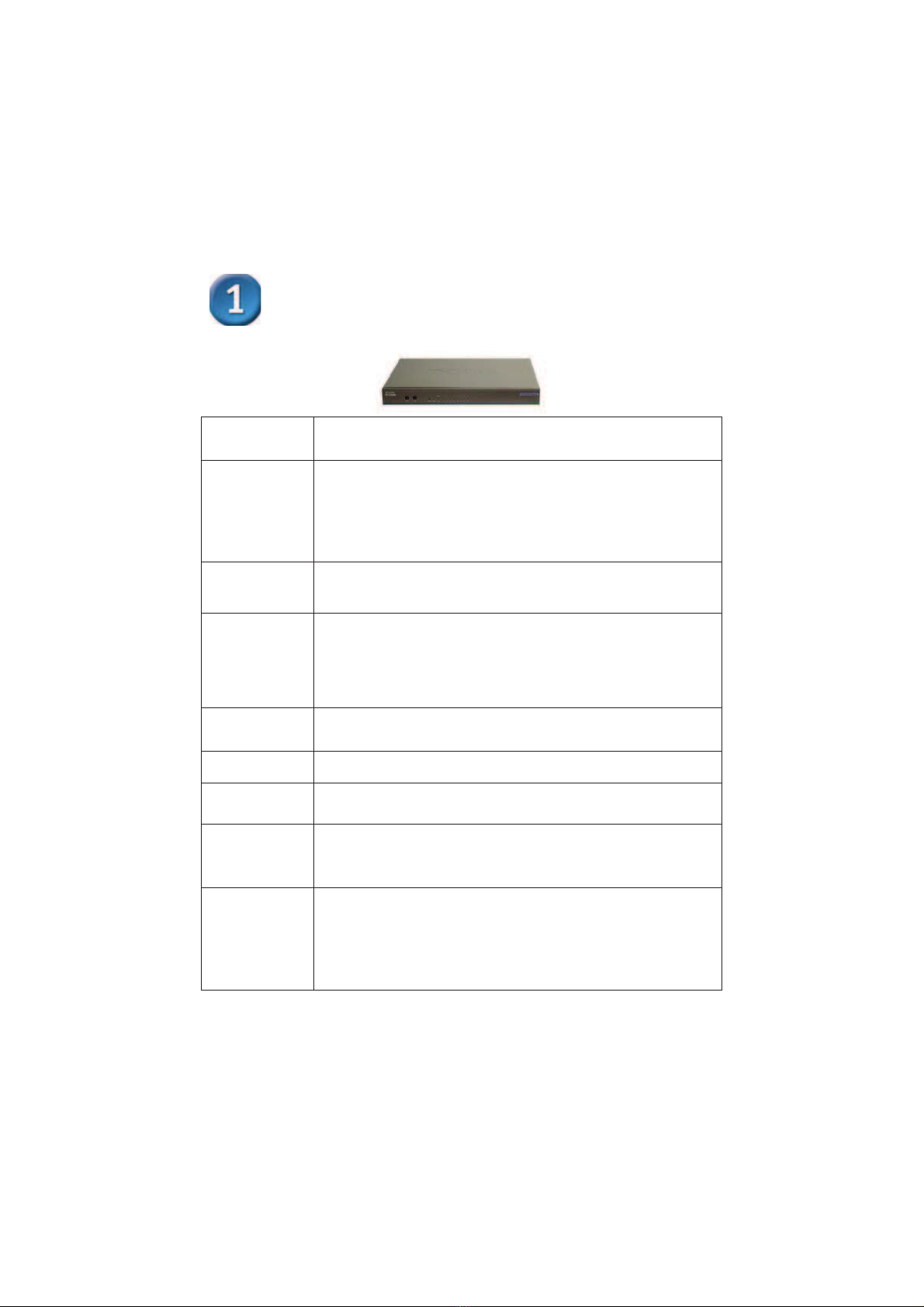

Hardware Overview
Front Panel
Connects to your broadband modem using an Ethernet
cable.
WAN Port
WAN LED When a connection is established, the 10 or 100 LED will
light up. The LED will blink to indicate activity. If the 10 or
100 LED does not light up when a cable is connected,
verify the cable connections and make sure your devices
are powered on.
LAN Port Connect to an Ethernet enabled computer using
Ethernet cabling.
LAN LED When a connection is established, the 10 or 100 LED
will light up. The LED will blink to indicate activity. If the
10 or 100 LED does not light up when a cable is
connected, verify the cable connections and make sure
your devices are powered on.
Reset This button is used to reset the unit to its factory default
settings.
Power LED Indicates the unit is powered on.
Run LED The Run LED will flash during the self-test/boot process
and light green if the self-test or boot fails.
The Alarm LED will light red if the self-test or boot fails.
The Alarm will flash red while the system is registering or
if registration fails.
Alarm LED
Phone LEDs
(1-32)
These LEDs display the VoIP status and Hook activity
on the phone ports that are used to connect normal
telephones. If a phone connected to a phone port is off
hook or in use, this LED will light up. When a phone is
ringing, the indicator will blink.
2

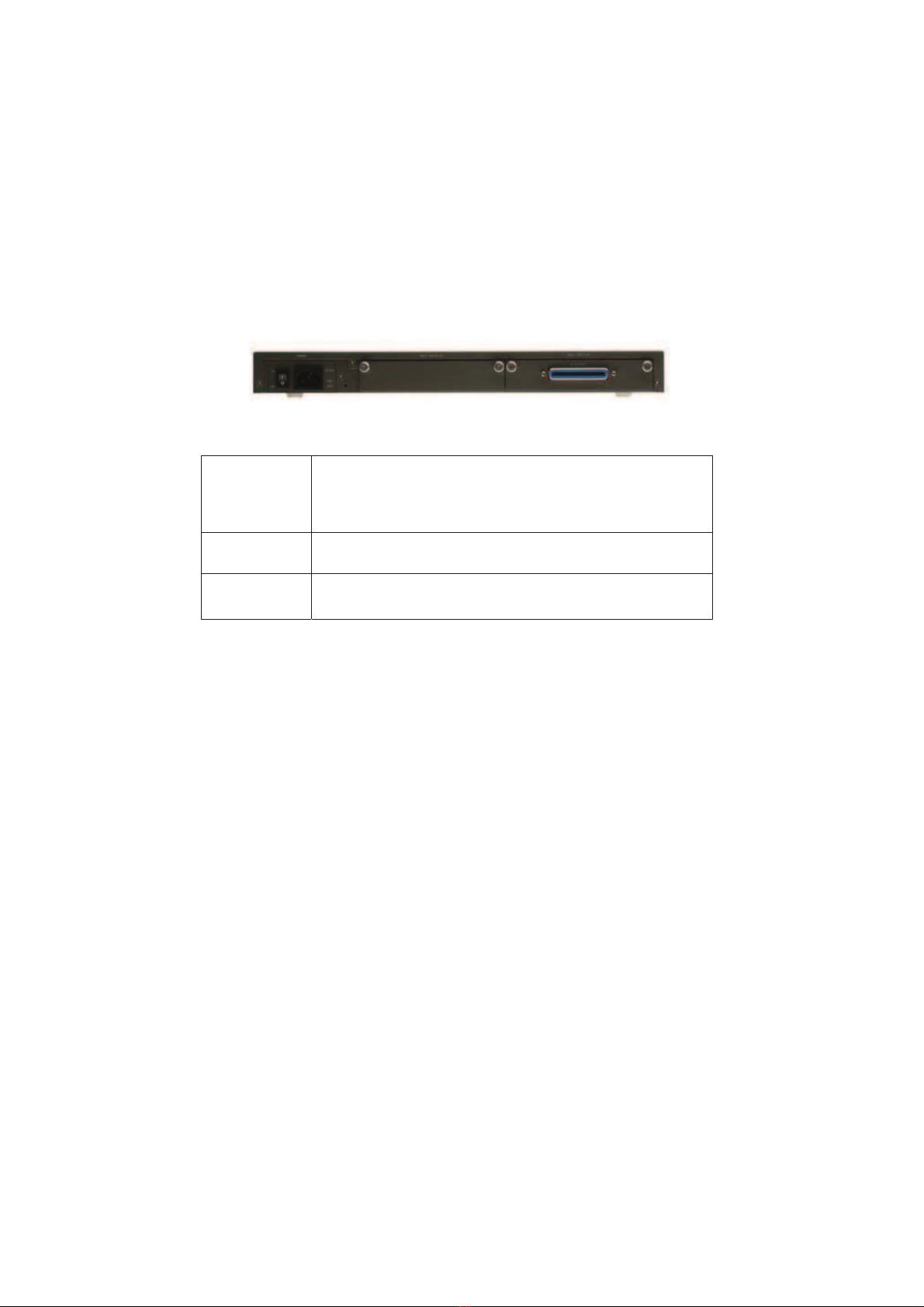

Rear Panel
RJ-21
Connector
to Phone
Ports
Connect up to thirty-two phones using (included)
Centronics cables.
Power
Switch Used to turn the unit on and off.
AC Input The power cord connects here.
3

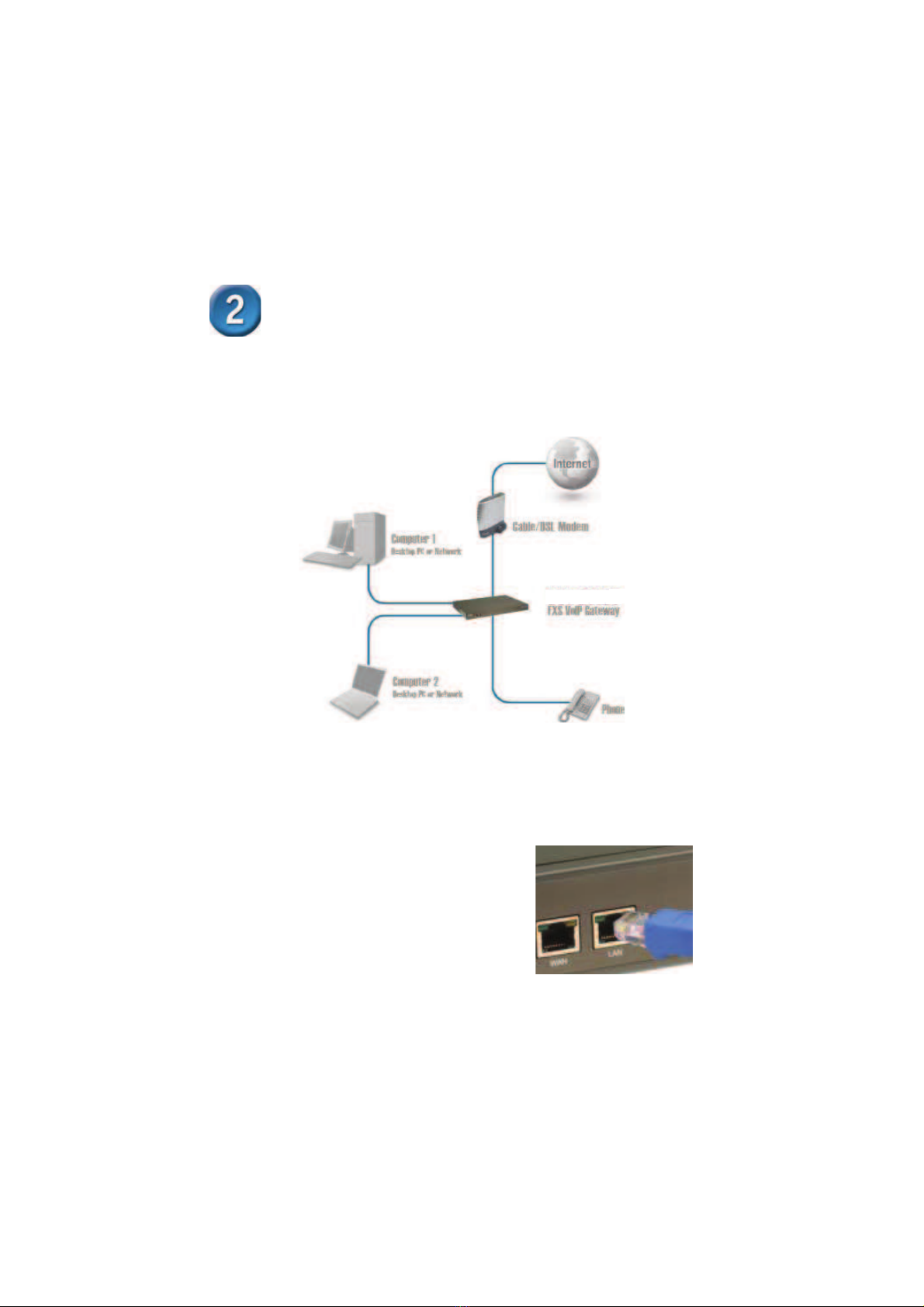

Connecting the DVG-2016 directly
to a Modem and Computer
If your computer connects directly to a DSL or Cable modem and does
not connect to a router, follow the steps below to install your DVG-2016.
For any other configuration, please refer to the user manual located on
the CD-ROM. After the steps are completed, your setup should look
similar to the diagram below.
a. Turn off your Computer.
b. Disconnect the power to your Cable/DSL Modem (unplug it or turn off
the power switch).
c. Unplug the Ethernet cable that is connected to your Cable/DSL
Modem’s LAN or Ethernet port. Leave
the other end of this cable connected to
your PC.
d. Plug the Ethernet cable connector that
you just removed from the modem into
the LAN port on the front of the DVG-
2016. The other end remains
connected to the PC.
4
DVG-2016
DVG-2016

Connecting the DVG-2016 directly to
a Modem and Computer
(
continued
)

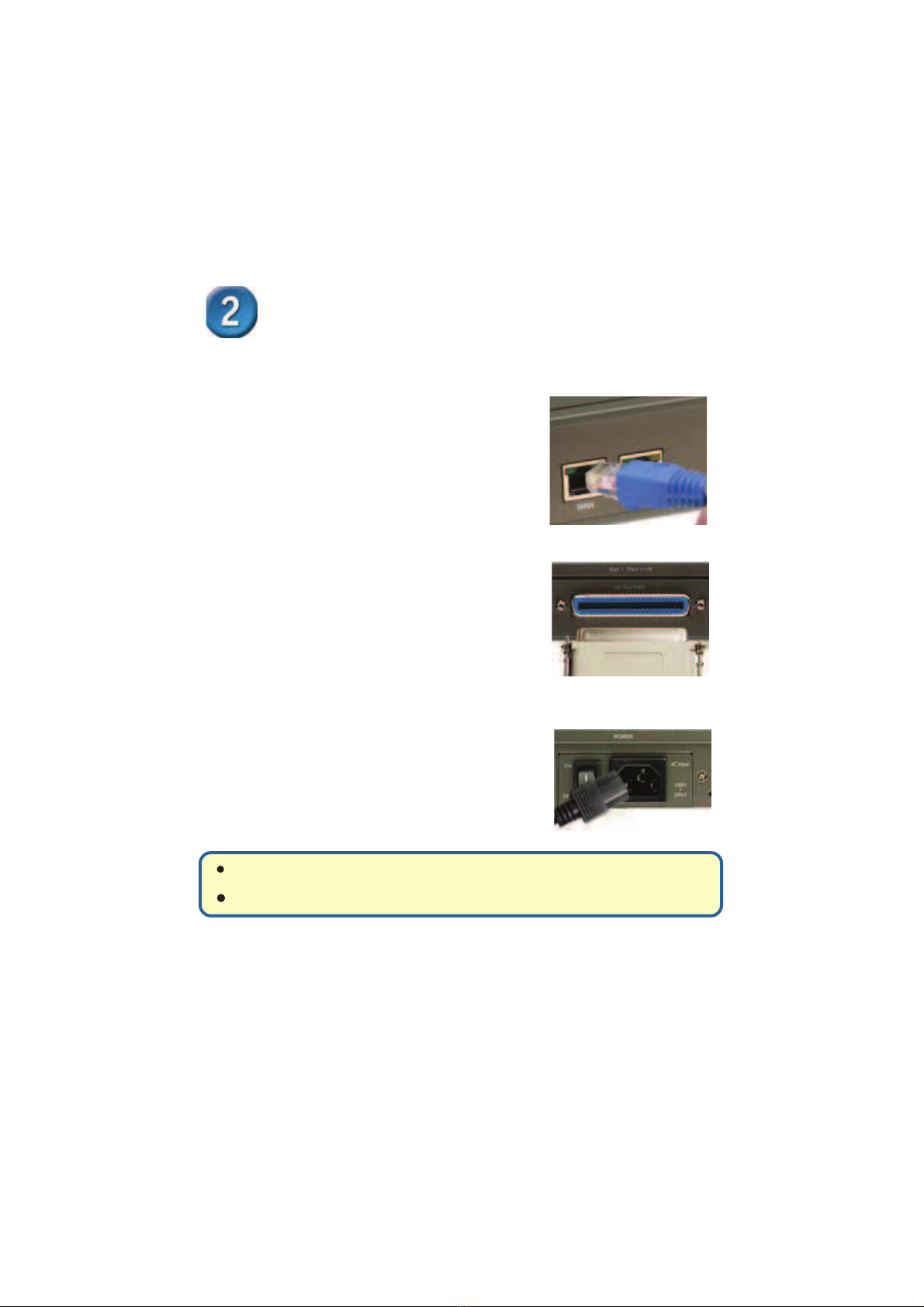

e. Connect one end of the Ethernet Cable provided in this package to
the LAN or Ethernet Port on the Cable/DSL Modem.
f. Connect the other end of the provided
Ethernet Cable to the WAN Port of the
DVG-2016.
g. Connect one end of one of the provided Centronics phone cables to
a standard analog telephone.
h. Connect the other end of the cable to one
of the Centronics ports on the rear panel of
the DVG-2016.
i. Restore power to the Cable/DSL Modem (plug it in or turn on the
power switch).
j. Restart your PC.
If your ISP registers your computer’s MAC address, see the section labeled MAC
Cloning for Connections in the user manual on the CD-ROM.
PPPoE Users , please continue to the next page for additional configuration steps.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
5

PPPoE Configuration
Some Internet Service providers use PPPoE as their method of
connecting clients. If you have a PPPoE connection, you must follow the
steps below to complete the configuration of your hardware. If you are
unsure of your connection type or do not know your username and
password, please check with your Internet Service Provider.
6

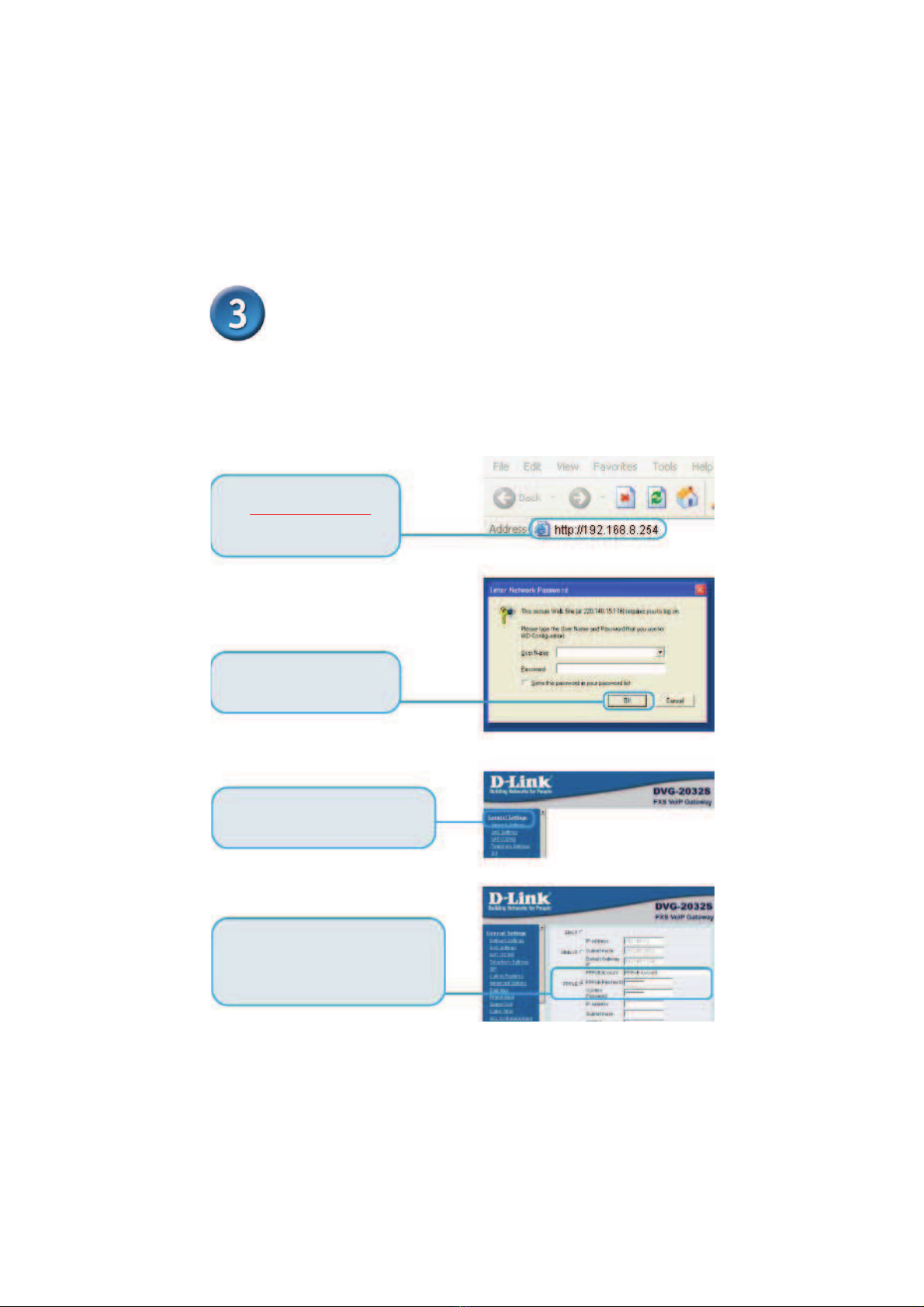

Open your Web browser and
type http://192.168.8.254 into
the URL address box. Press
the Enter or Return Key
Click OK to enter Web Site.
Click Network Settings.
Click PPPoE.
Enter PPPoE Account,Password
and Confirm Password.

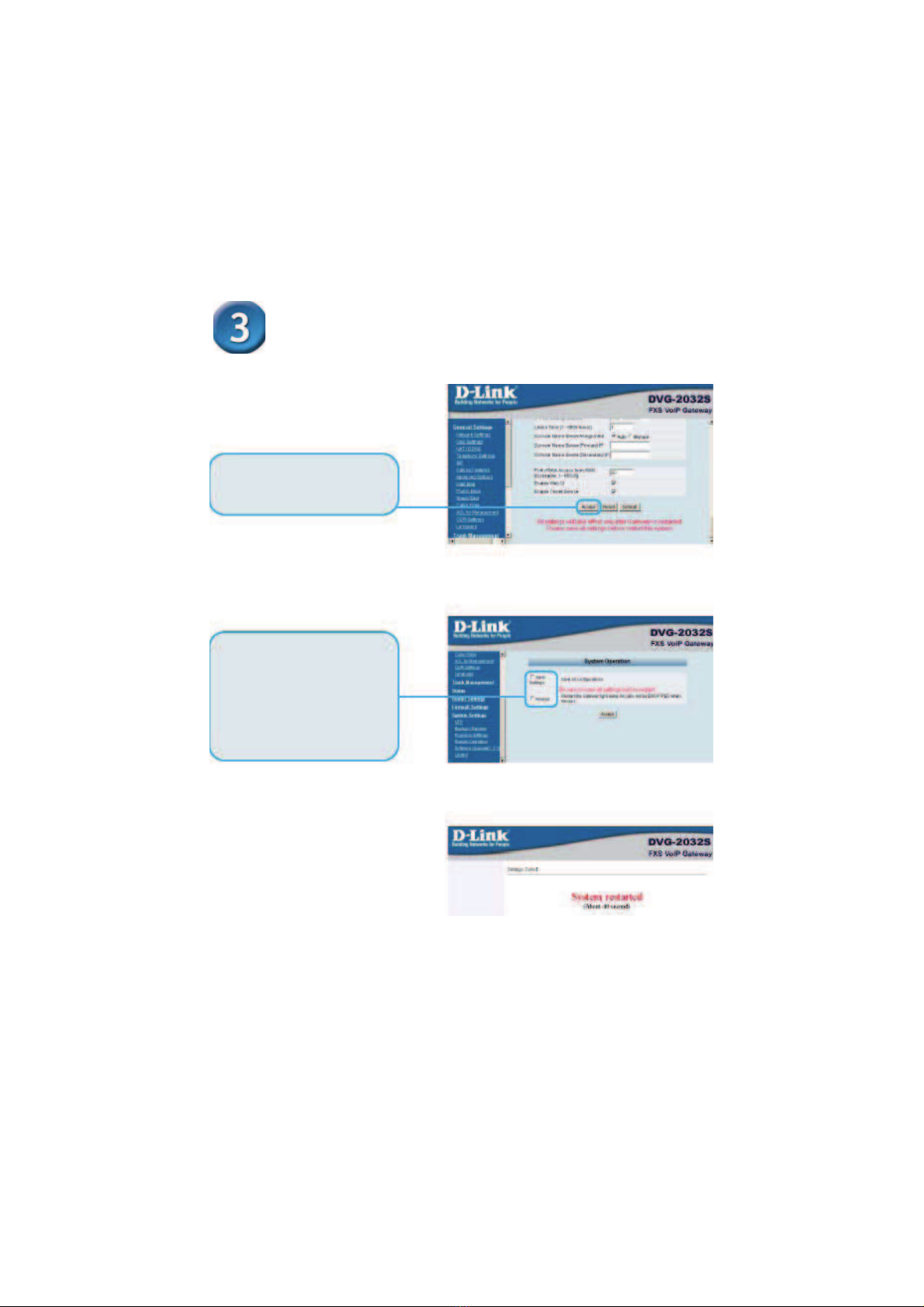

PPPoE Configuration (continued)
Click Accept at the bottom of
this page.
Click System Operation in the
left menu.
Select Save Settings and
Restart .
Click Accept .
Once the unit reboots you will see
a message. Check to see if the
status LED light goes from
blinking green to solid green on
the front panel of the DVG-2016.
The information displayed on
the Device Information page is
necessary for VoIP service
registration
