D-Link DVG-5004S Operator's manual

©2010 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DVG-5004S FXS
VoIP Gateway
Quick Installation Guide
DVG-5004S
DVG-5004S
VoIP Gateway
CD-ROM
which includes
the User
Manual
Phone Cord X4 Ether
(CAT5 UTP)
Cable
Power
Adaptor
Using a power
supply with a
different
voltage rating
will damage
this product
and void the
warranty

2

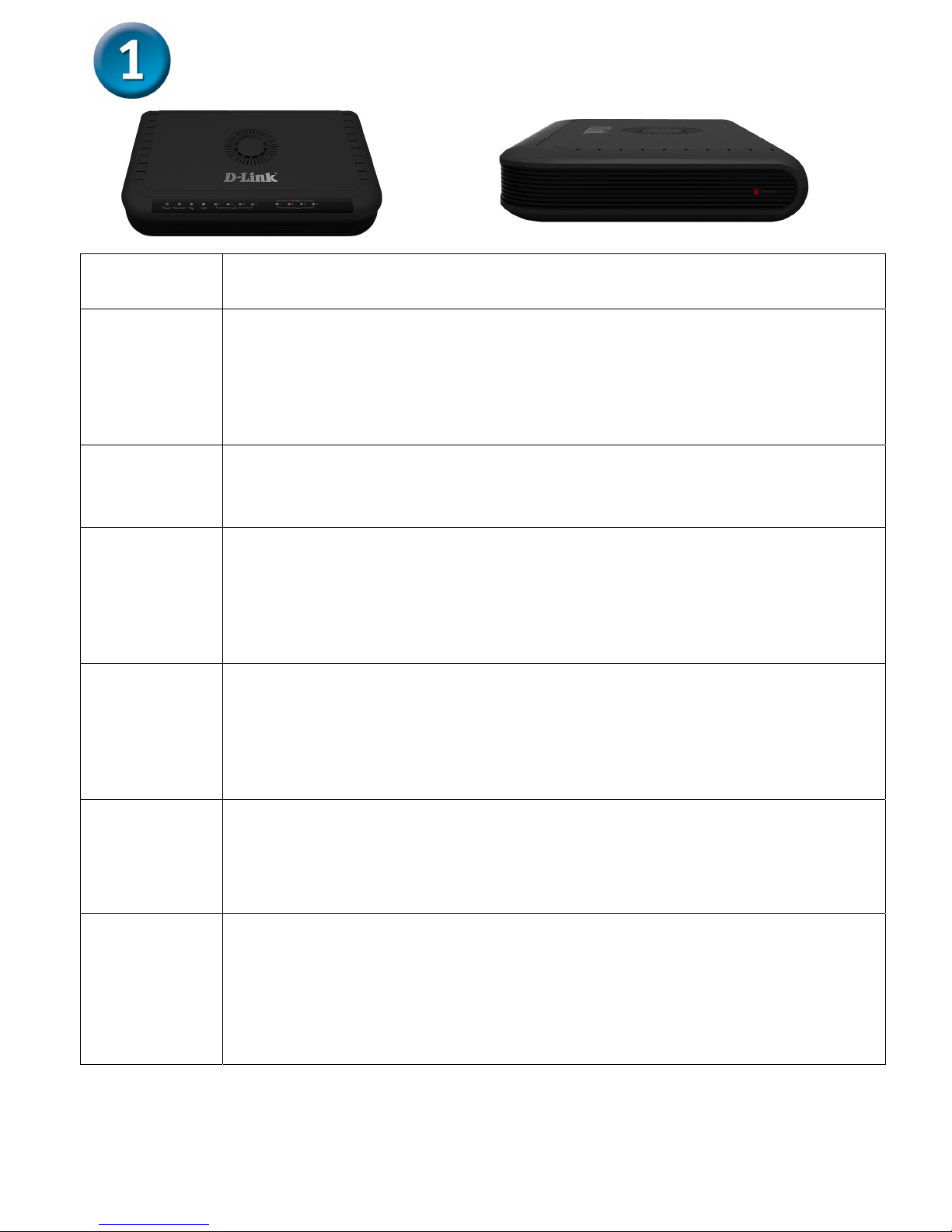

Power Power LED. A steady light indicates a proper connection to a
power source.
Prov./Alm.
A blinking light indicates the VoIP Gateway is attempting to
connect with the Provisioning server or DVG can’t get IP
from DHCP or PPPoE Server. Once the service connects,
the LED will turn off. The LED will light solid red if the self-
test or boot-up fails.
Reg.
The Reg. LED will turn on when the VoIP Gateway is
connected to a VoIP service provider. The LED will blinking if
not connected to a service provider.
WAN
When a connection is established the 10 or 100 LED will
light up solid. The LED will blink to indicate activity. If the 10
or 100 LED does not light up when a cable is connected,
verify the cable connections and make sure your devices are
powered on.
LAN
When a connection is established the 10 or 100 LED
(bottom) will light up solid on the appropriate port. The LEDs
will blink to indicate activity. If the 10 or 100 LED does not
light up when a cable is connected, verify the cable
connections and make sure your devices are powered on.
Phone
Green Blinking – FXS is alerting (ringing) for an inbound call.
Green Solid – The line is in use.
Red Solid – As users execute “Status-> FXS Line
Diagnostic” and there is some error on the FXS port.
Reset
Use Reset Button to restore factory default settings:
zPress and hold the reset button for 6 seconds and
Rrov./Alm. Indicator will be blinking fast
zRelease the reset button. Factory settings will be
restored.
Hardware Overview

3

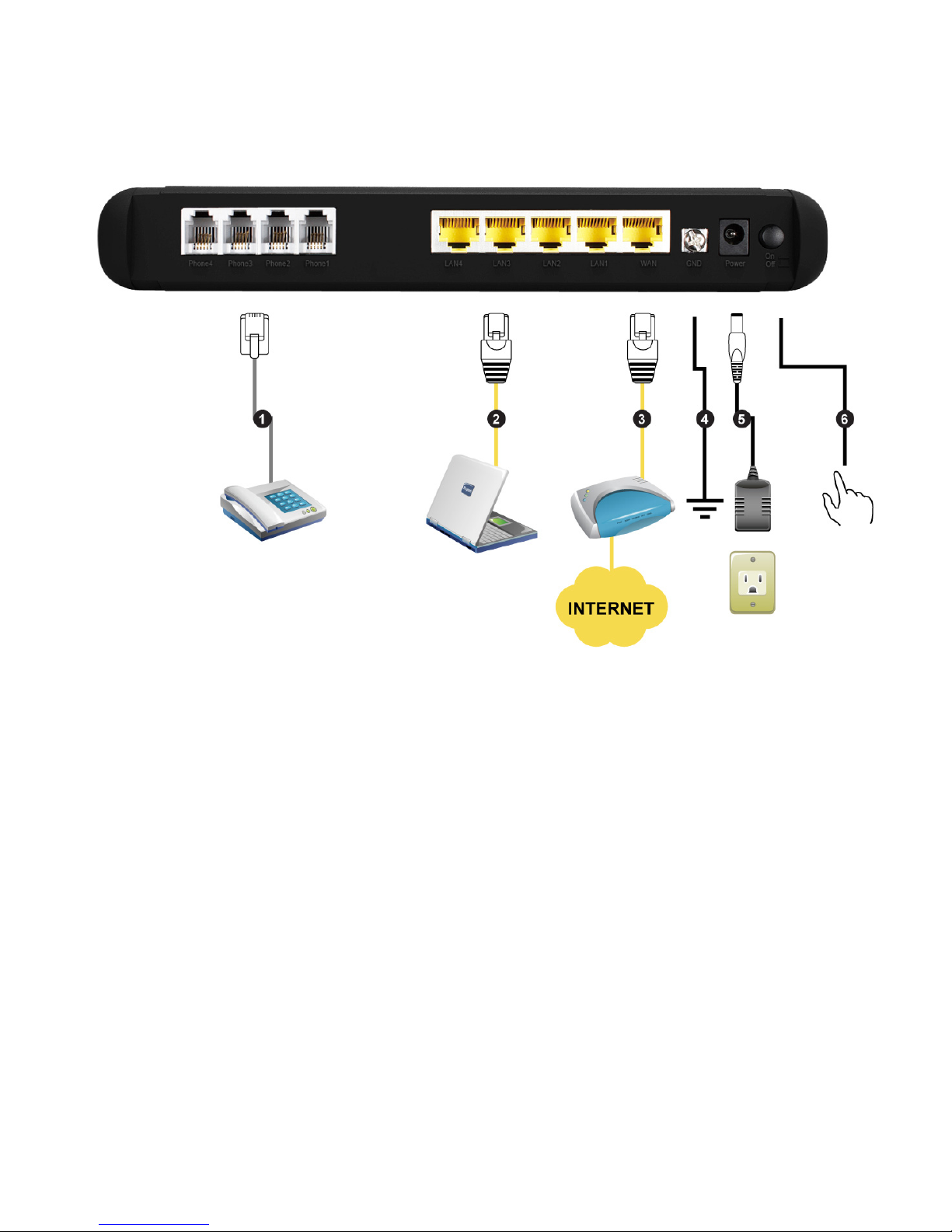

Rear Panel
1. Phone Port (1-4): Connect to your phones using standard phone
cabling (RJ-11).
2. LAN: Connect to your Ethernet enabled computers using Ethernet
cabling.
3. WAN: Connect to your broadband modem using an Ethernet cable.
4. Ground: A conducting connection with the earth. Connect with the
ground so as to make the earth a part of an electrical circuit using
metal wire.
5. Power Receptor: Receptor for the provided power adapter.
6. Power Switch: Press it down to turn on DVG.

4

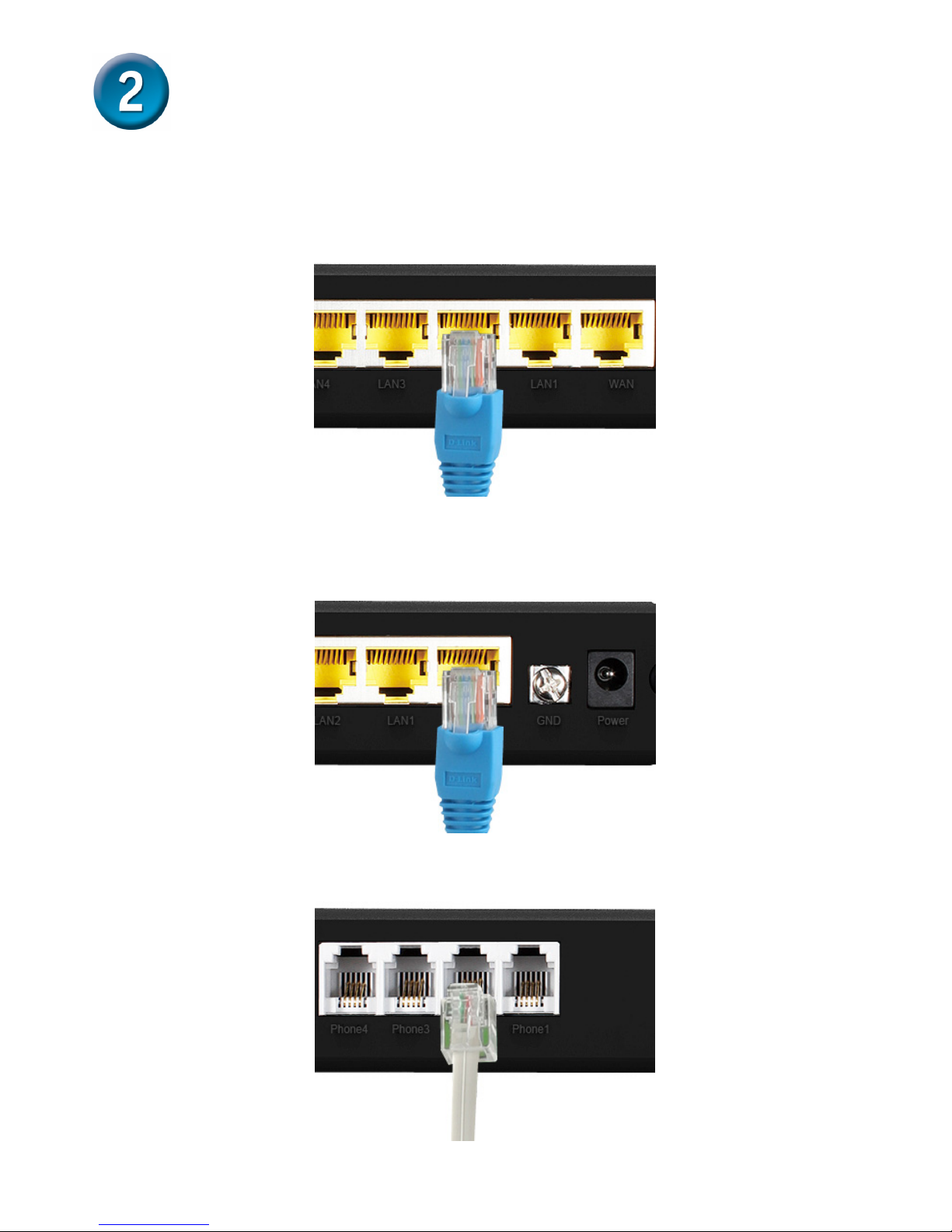

A. Insert one end of the Ethernet cable into the Ethernet (LAN) port on
the back panel of the DVG-5004S and the other end of the cable to an
Ethernet Adapter or available Ethernet port on your computer.
B. Insert one end of the Ethernet cable into the WAN port on the back of
the DVG-5004S and the other into your cable/DSL modem or the LAN
port of your router.
C. Insert a telephone cable into the Phone port, and then connect the
cable to your telephone.
Installing the Hardware

5

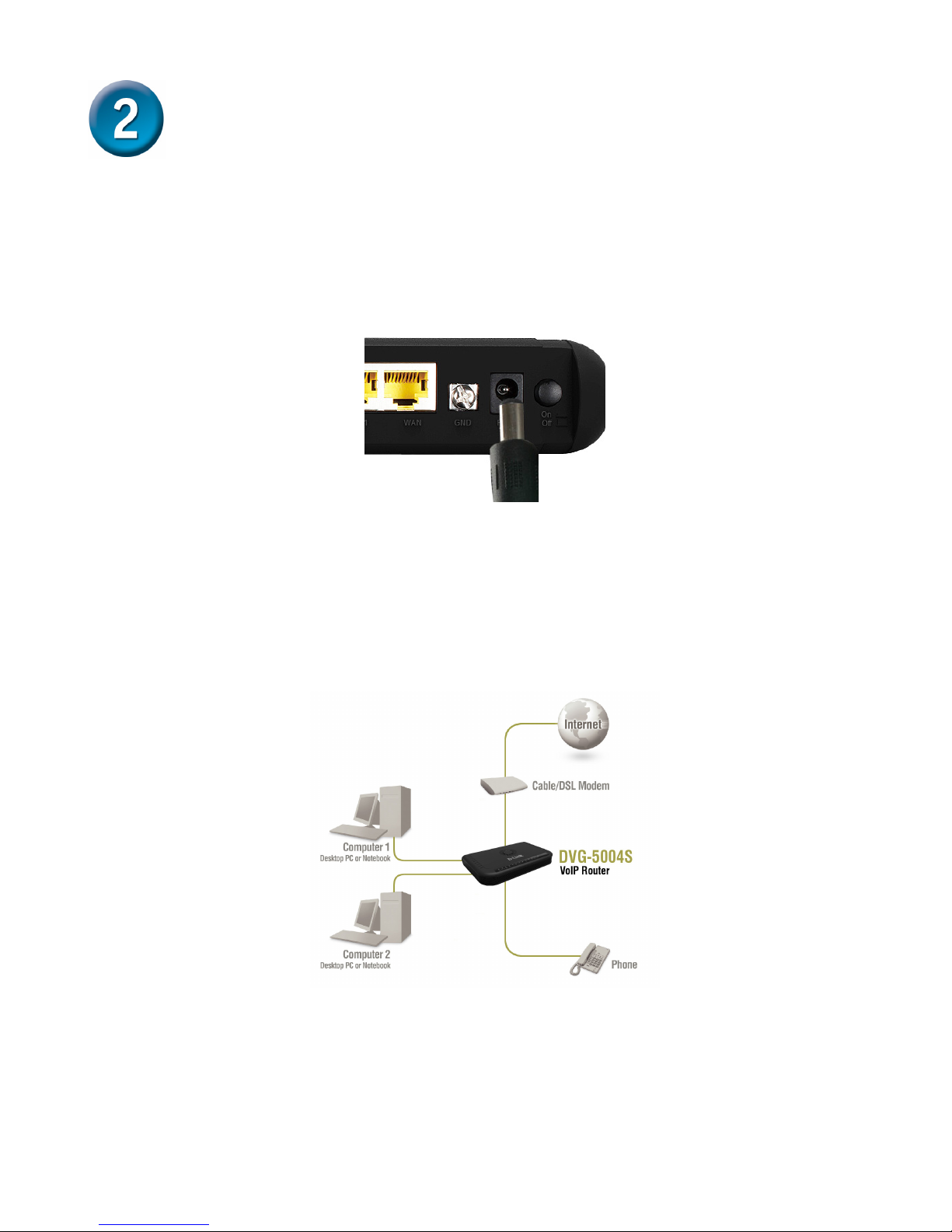

D. Connect the power adapter to the power input at the back panel of the
DVG-5004S and then plug the other end of the power adapter to a wall
outlet or power strip. Then press down Powr Switch. On the front of the
device, the Power LED will turn On to indicate proper operation.
E. Check the LED display on the front of the VoIP Router to confirm that
the connections have been made.
After the installations are completed, your network should look similar to
the diagram below.
Hardware configuration is complete! If your VoIP service is already activated, you
can make phone calls now.
Installing the Hardware (continued)

6

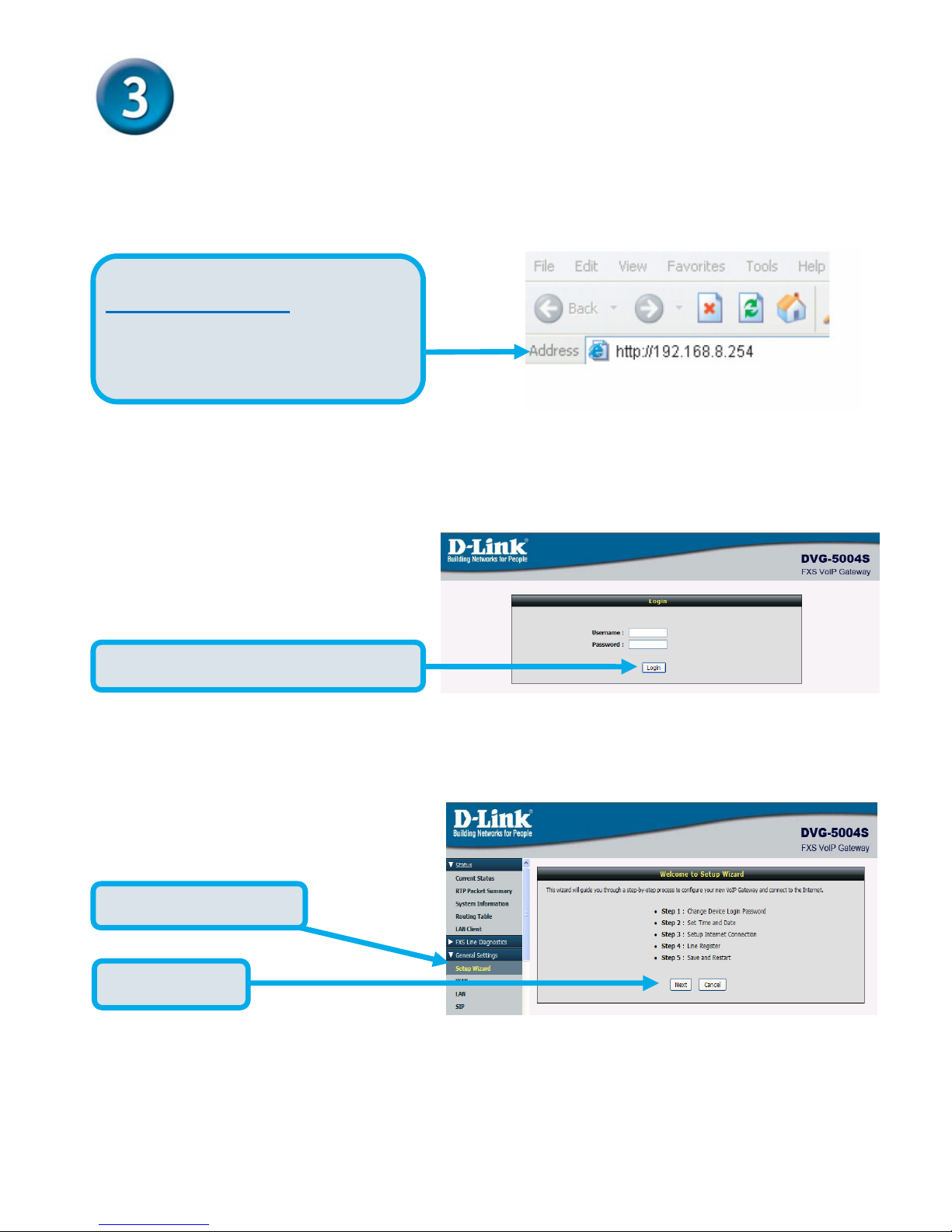

Configuration
To access the web-based configuration utility, open a web browser such as
Internet Explorer and enter the IP address of the DVG-5004S.
Click Next.
Open your Web browser and type
http://192.168.8.254 into the URL
address box. Press the Enter or
Return Key.
Click Lo
g
in to enter Web Site.
Click Setu
p
Wizard.

7

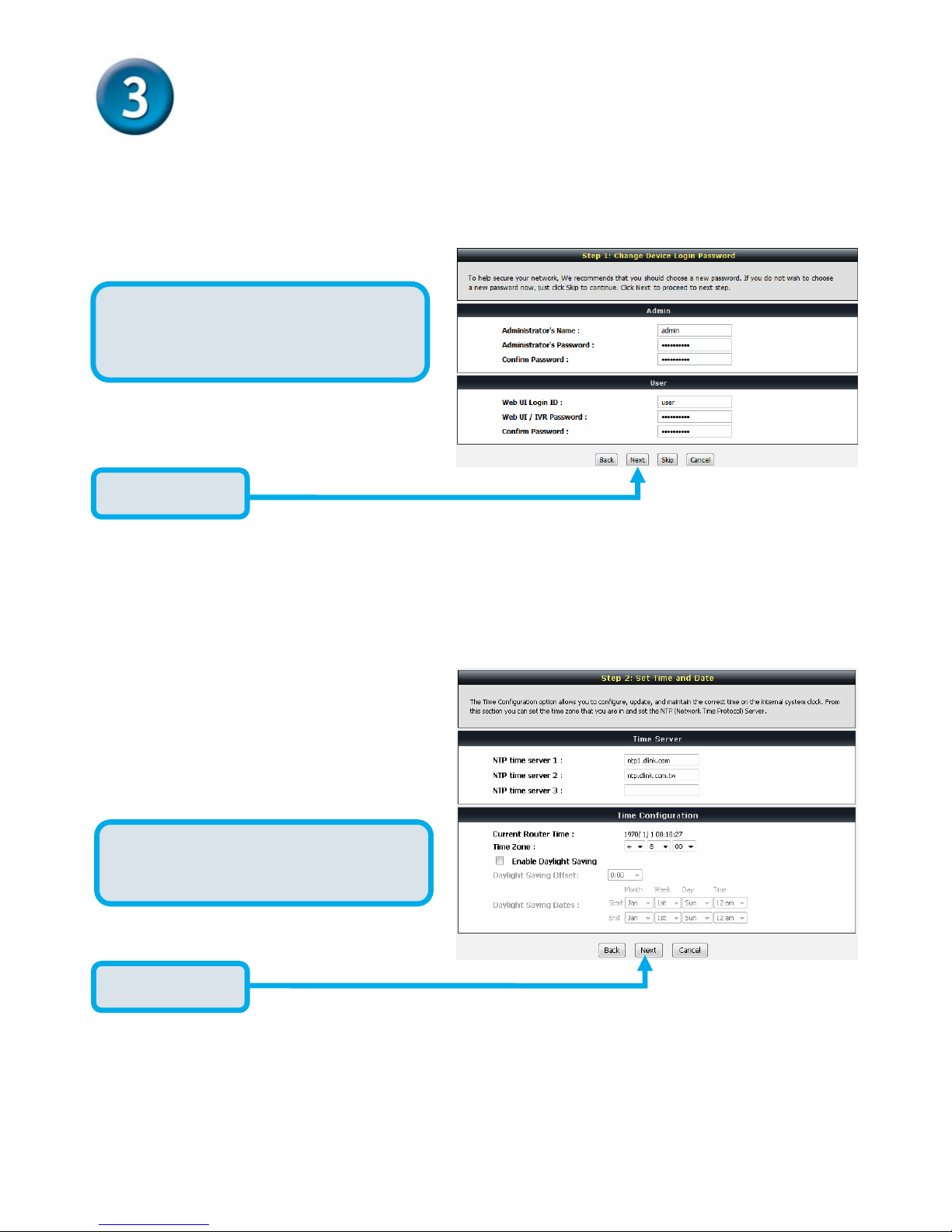

Configuration (continued)
It is highly recommended to create
a login ID and password to keep
your gateway secure.
Enter a NTP server or use the
default server.
Click Next.
Click Next.

8

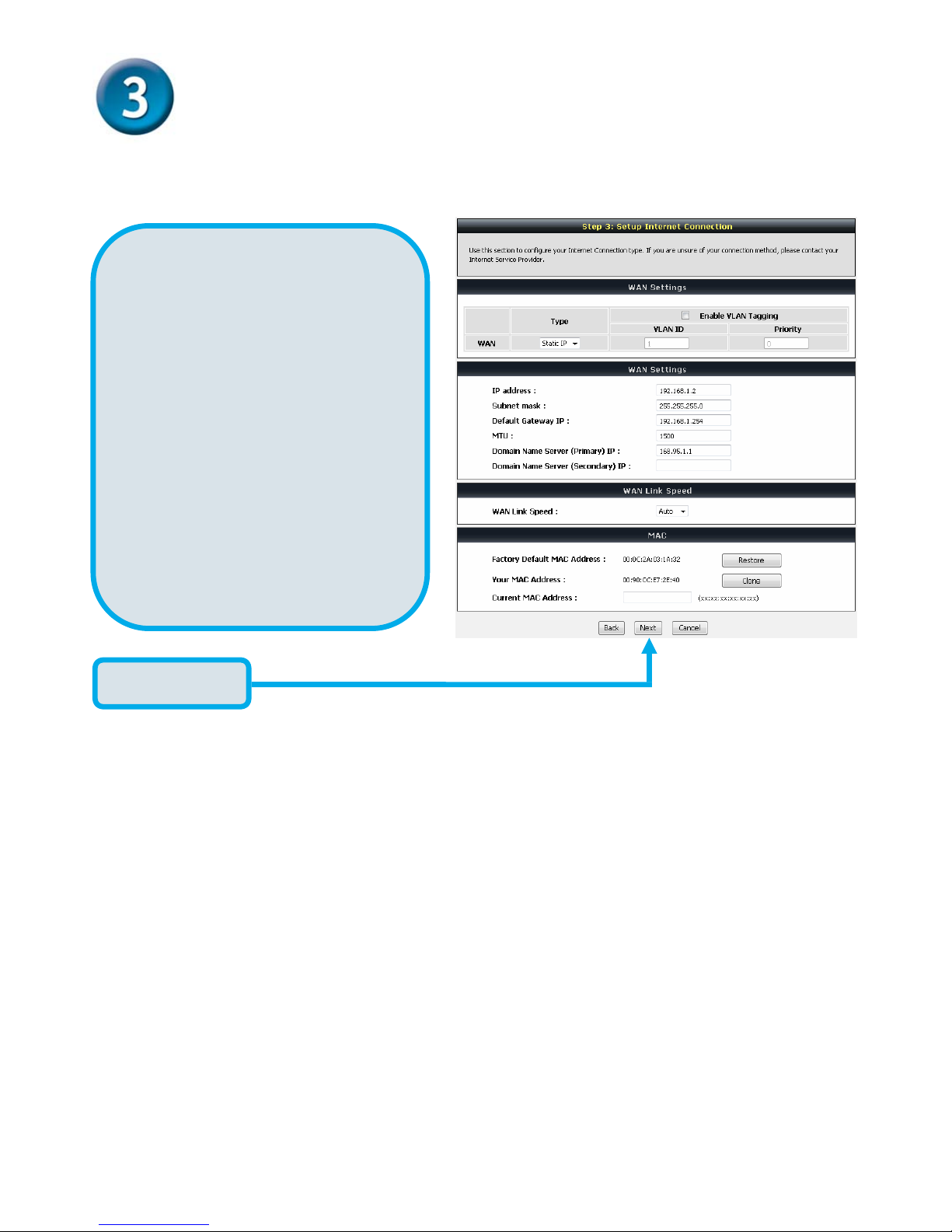

Configuration (continued)
Select your Internet connection
type:
DHCP – Most Cable ISPs or if
you are connecting the DVG-
5004S behind a router.
Static IP – Select if your ISP
supplied you with your IP
settings.
PPPoE – Most DSL ISPs.
PPTP – Select if required by
your ISP.
Select Manual to manually enter
IP address of DNS or select
Auto if DNS is assigned by ISP.
Click Next.

9
Configuration (continued)
Register to the SIP Proxy Server
by clicking Enable support of
SIP Proxy Server. Enter Proxy
Server IP/Domain and Port.
The Outbound Proxy Support
is optional. To register, please
click on the Outbound Proxy
Support check box and enter
Outbound Proxy IP/Domain
and Port in it.
Registration by phone line: enter
Number, User ID/Account and
Password supplied by your
ITSP. Click on the Register
check box to register to Proxy
Server.
Setup is finished. Check the
summary of your settings. To make
new settings effective, you must
click on the Restart button to reboot
the DVG-5004S.
Click Restart.
Click Next.

10
Technical Support
You can find software updates and user documentation on the D-Link
website.
Tech Support for customers within United States:
D-Link Technical Support over the Telephone:
[phone]
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
