D-Link DMC-300SC - Media Converter - External User manual

iD-Link Media Converter Series
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Preface
Revision Date Description
1.00 December 04, 2015 • Initial release
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation,
Inc.
Trademarks
Manual Revisions

iiD-Link Media Converter Series
Table of Contents
Preface................................................................................. i
Trademarks ...................................................................................... i
Manual Revisions........................................................................... i
Package Contents..............................................................1
Introduction ......................................................................2
Features ........................................................................................... 3
Hardware Overview...........................................................4
Front Panel View ........................................................................... 4
Rear Panel View .................................................................5
LED Indicators ................................................................... 6
Installation.........................................................................7
Before Installing the Media Converter.................................. 7
Standalone Installation .............................................................. 8
Rack Installation ........................................................................... 9
Management....................................................................10
Monitoring the Media Converter..........................................10
Link Passthrough Functionality .....................................10
Link Loss Carry Forward (LLCF)..............................................10
Link Loss Return (LLR)...............................................................10
DIP Switches ....................................................................11
Technical Specications..................................................12
Regulatory Statements ...................................................16
Table of Contents

1D-Link Media Converter Series
Section 1 - Product Overview
If any of the above items are missing, please contact your local reseller.
D-Link Media Converter
5 V /1 A Power Adapter
User Manual
Package Contents

2D-Link Media Converter Series
Section 1 - Product Overview
Introduction
Thank you and congratulations on the purchase of your new D-Link Media Converter Series device.These standalone plug-and-play converters oer
increased exibility when networking media technologies. The Media Converter Series is divided into two types of models.The DMC-300SC, 515SC,
and 530SC convert a copper Fast Ethernet connection to a ber optic Fast Ethernet connection. The DMC-810SC, 700SC, and 1910 series provide
Gigabit Ethernet to Gigabit ber optic conversion, ideal for expanding more demanding, high-speed networks. The Media Converter Series oers
network administrators a variety of solutions to expand networks over a greater distance while maintaining compatibility with existing network
equipment.

3D-Link Media Converter Series
Section 1 - Product Overview
Features
The Media Converter Series is designed to ease installation, increases networking exibility, and oers high performance. Plug-and-play functionality
means these media converters are also low maintenance, requiring no additional management after installation. Use the D-Link Media Converter Series
to expand your network as the scale and volume of network trac increases.
• Compliant with IEEE 802.3/u for 10/100BASE-TX/FX and IEEE 802.3ab/z for 1000BASE- T/SX/LX
• One-channel media conversion between 10/100BASE-TX to 100BASE-FX (DMC-300SC/515SC/530SC), and 1000BASE-T to
1000BASE-SX/LX (DMC-700SC/810SC/1910R,T)
• A variety of models helps you nd the perfect media converter to expand your network over longer distances according to
your needs
• Can be used as either a standalone converter or can be installed in the specially designed D-Link DMC-1000 chassis
• Hot-swappable when installed in the DMC-1000 chassis
• Provides intelligent troubleshooting functions such as Link Loss Return (LLR) and Link Loss Carry Forward (LLCF)
• Front panel LEDs for easily monitoring the device's status
• Auto-MDI/MDIX
• Full wire-speed forwarding rate

4D-Link Media Converter Series
Section 1 - Product Overview
Hardware Overview

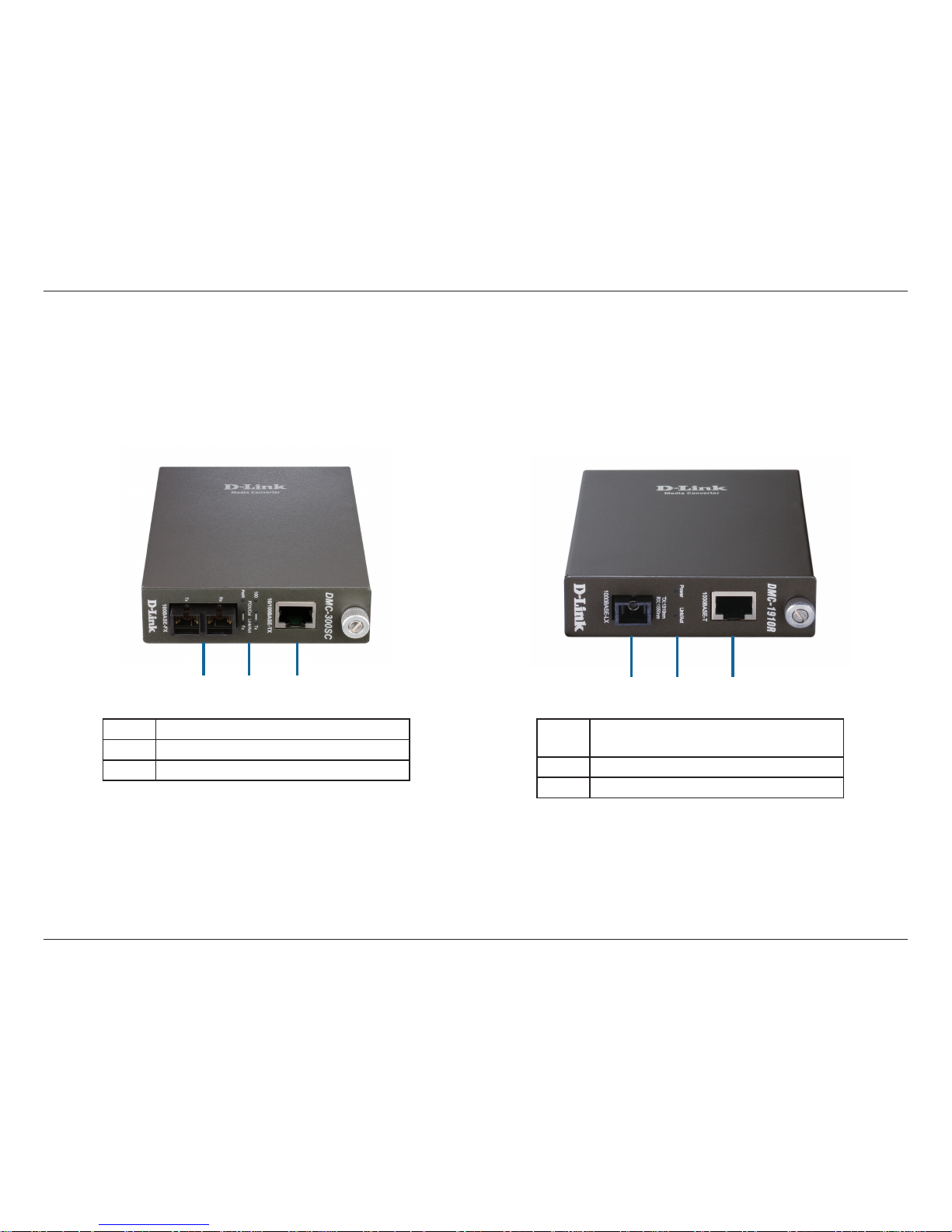

Front Panel View
1000 Mbps Media Converter Series10/100 Mbps Media Converter Series
2 31
1 Tx and Rx SC ber optic port
2 Indicator LEDs
3 10/100BASE-T Ethernet port
2 31
1LC ber optic port (1910R/T)
SC ber optic port (700SC/810SC)
2 Indicator LEDs
3 1000BASE-T Ethernet port

5D-Link Media Converter Series
Section 1 - Product Overview

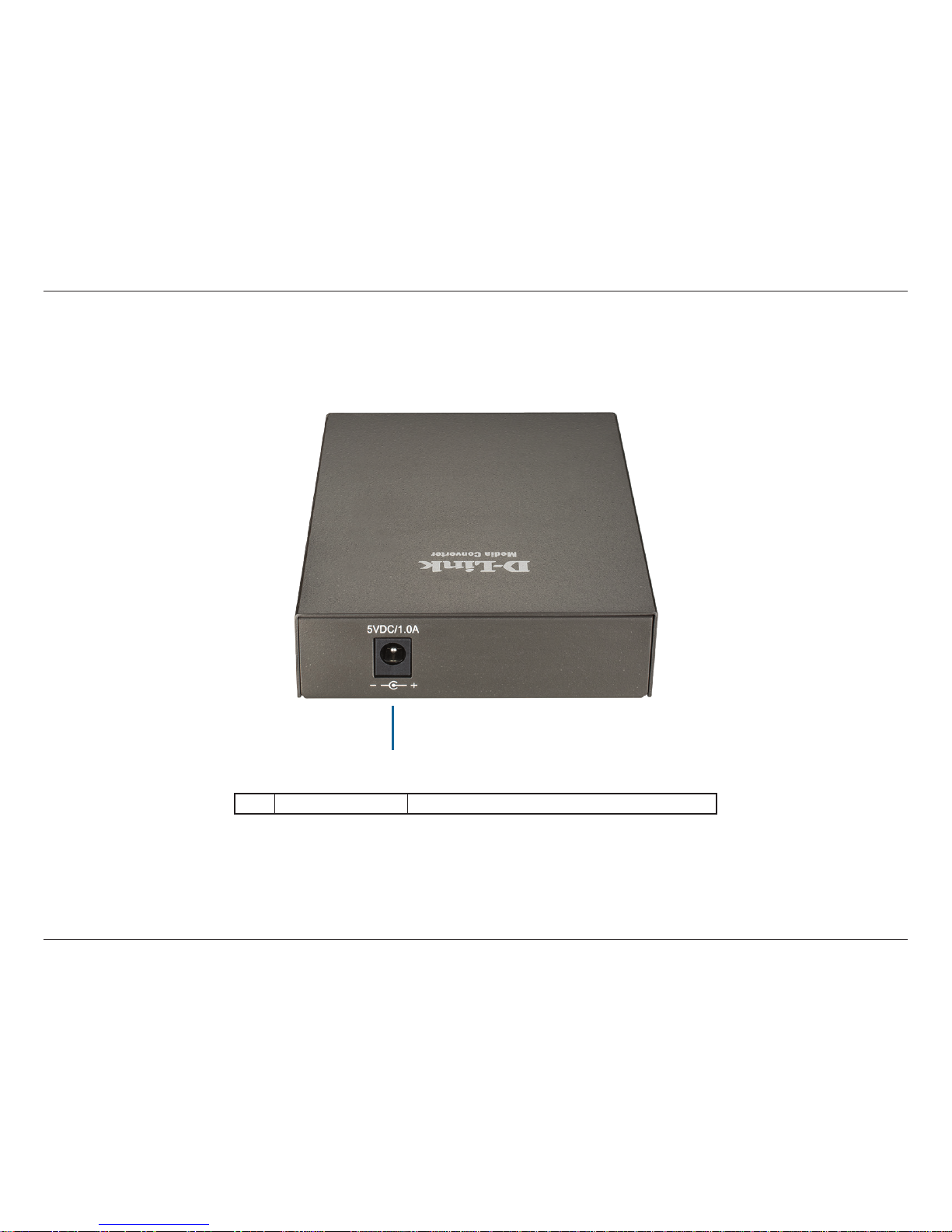

Rear Panel View
10/100 Mbps and Gigabit Media Converter Series
1
1 Power Connector Input for the supplied 5 V/1 A power adapter

6D-Link Media Converter Series
Section 1 - Product Overview

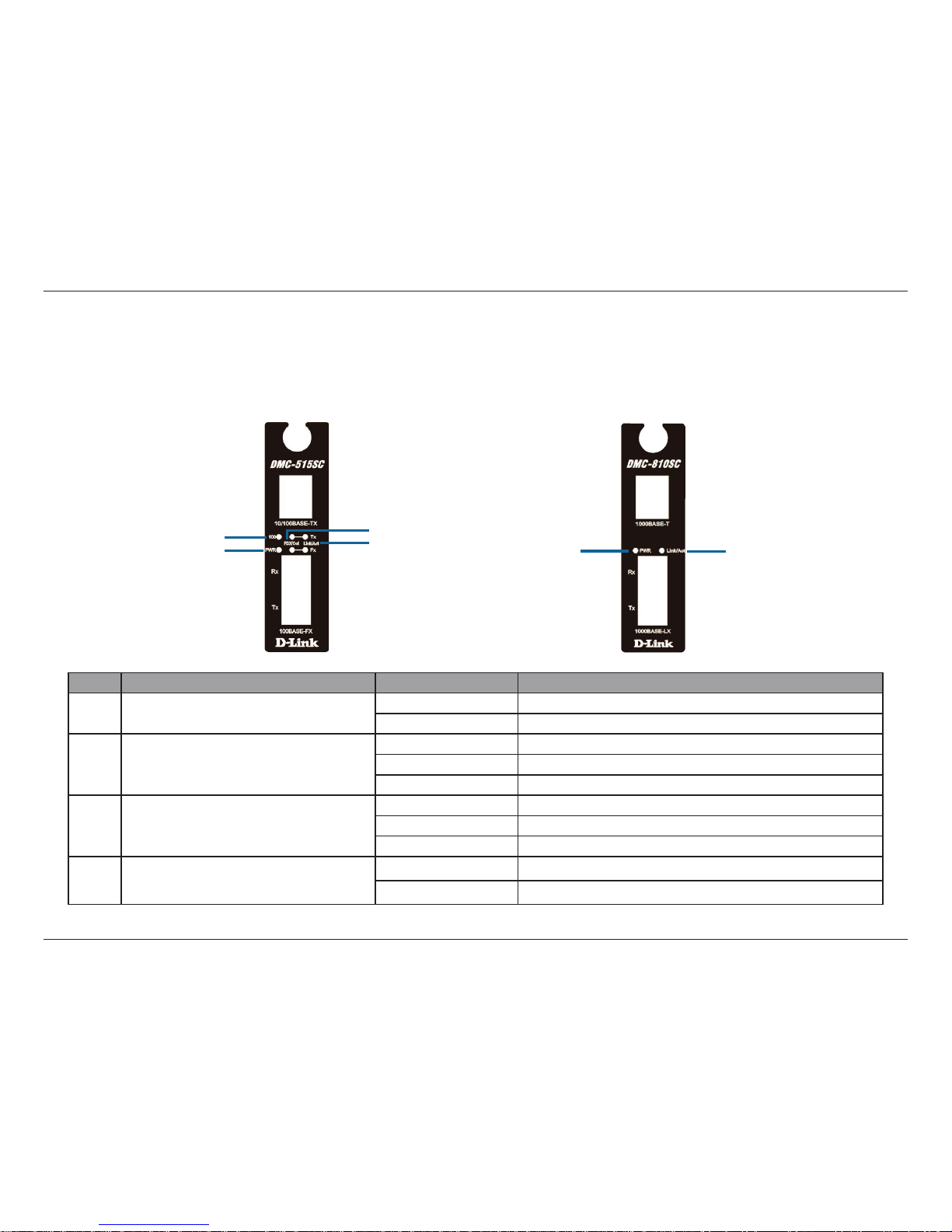

LED Indicators
Each media converter features front panel display LEDs that give you instant feedback on the status of your device.
LEDs Status Description
1 PWR (Power) On The device is powered on
O The device is powered o
2 LINK/ACT (Link and Activity)
On The link is active
Blinking Transmitting/receiving data
O The link is not active
3FDX/Col
(10/100 Mbps models only)
On The device is using full-duplex mode
Blinking Indicates a collision of data when using half-duplex mode
O The device is using half-duplex
4100 (Speed)
(10/100 Mbps models only)
On The link has negotiated at 100 Mbps
O The link has negotiated at 10 Mbps
11
22
3
4
10/100 Mbps series LEDs 1000 Mbps series LEDs

7D-Link Media Converter Series
Section 2 - Hardware Installation

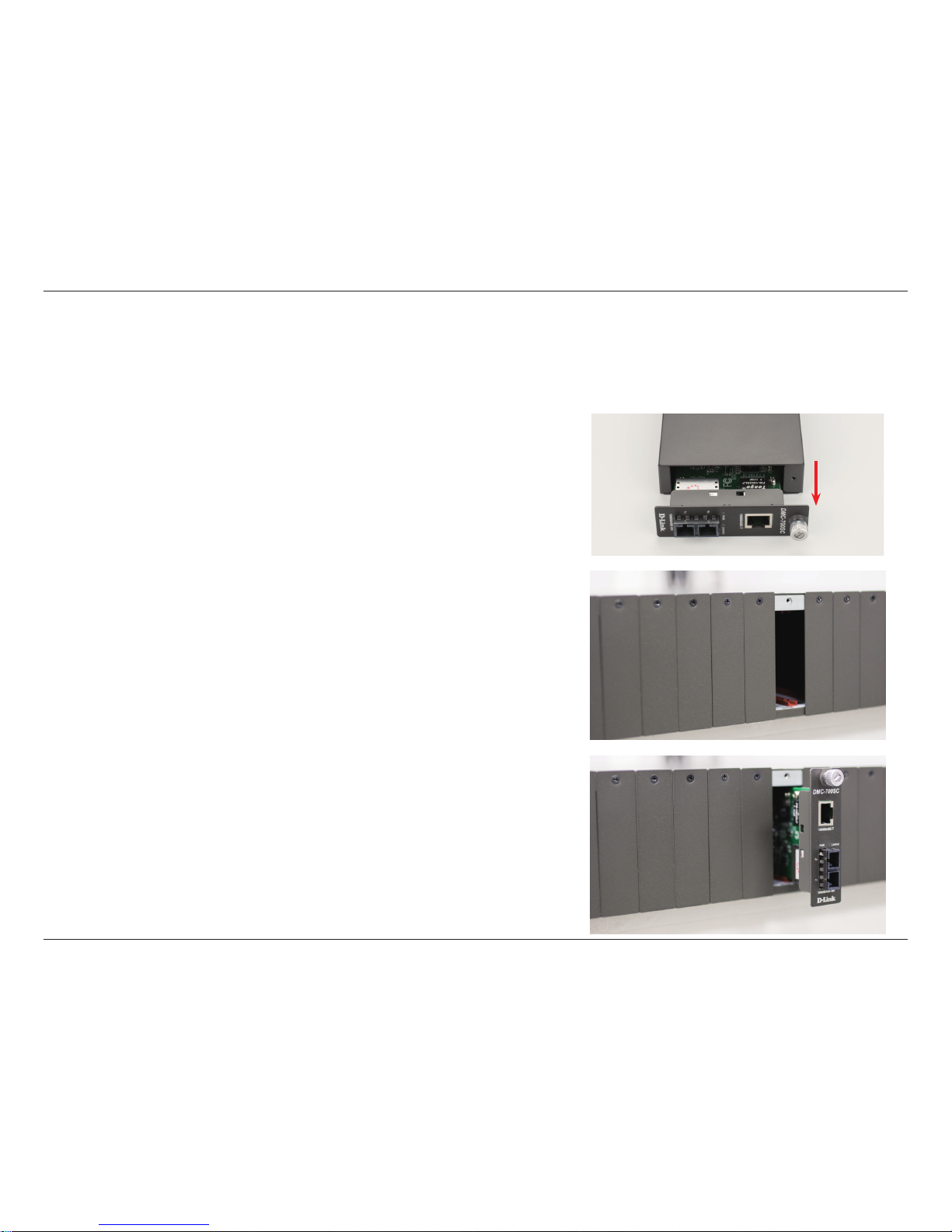

Installation
This chapter provides step-by-step instructions on how to install your D-Link Media Converter.
Before Installing the Media Converter
As with any electrical device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic
interference. Specically, the site you select should meet the following requirements:
1. The ambient temperature should be between 0 to 40 °C (32 to 104 °F).
2. The environment's relative humidity should be less than 90%, non-condensing.
3. Surrounding electrical devices should not exceed the electromagnetic eld (RFC) standards for IEC 801-3, Level 2 (3V/M) eld strength.
4. Make sure that the equipment is receiving sucient ventilation. Do not block the ventilation grates on each side of the converter or the fan
exhaust port on the side or rear of the equipment.
5. The power outlet should be within 1.8 meters of the converter.
