D-Link DSL-200 User manual

D-Link DSL-200
USB ADSL Modem
Before Your Begin
This Quick Installation Guide gives step-by-step instructions for setting up the D-Link
DSL-200 ADSL Modem. The model you have purchased may appear slightly
different from those shown in the illustrations. For more detailed information about
the ADSL Modem, its components, making network connections and technical
specifications, please refer to the User’s Manual included with your ADSL Modem.
Check Your Package Contents
These are the items included with your DSL-200 purchase:
©2006 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications are subject to change without notice.
•DSL-200 ADSL Modem (USB interface)
•CD ROM include Driver and User’s Guide
• Quick Installation Guide
•USB Cable
•Phone Cable
This product can be set up
using any current web
browser, i.e., Internet Explorer
6 or Netscape Navigator 6.2.3.
If any of the above items are missing,
please contact your reseller.

2
Install Modem Drivers
Before starting the software setup process, close all windows and quit any
application programs you are running.
1.1 Windows 98SE/ME

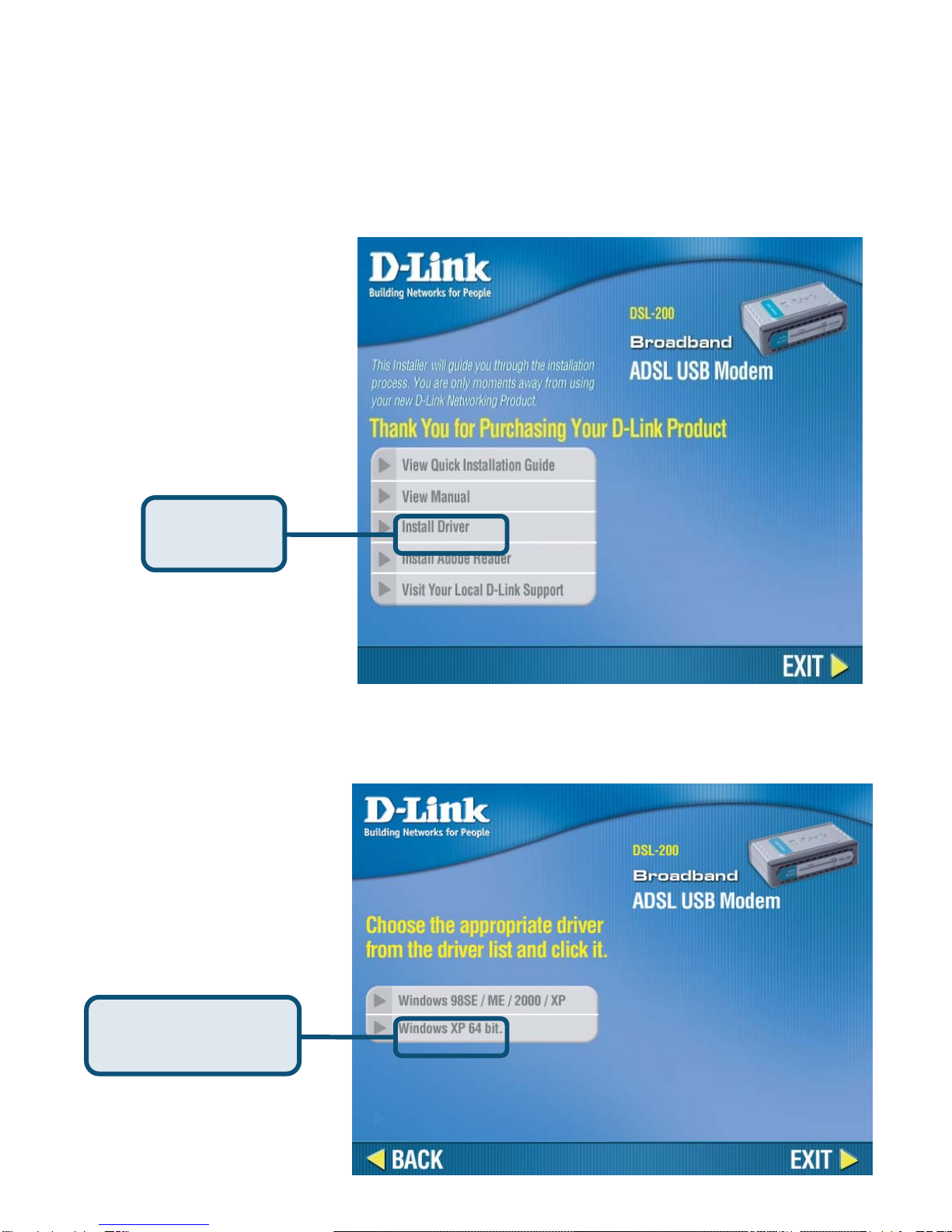

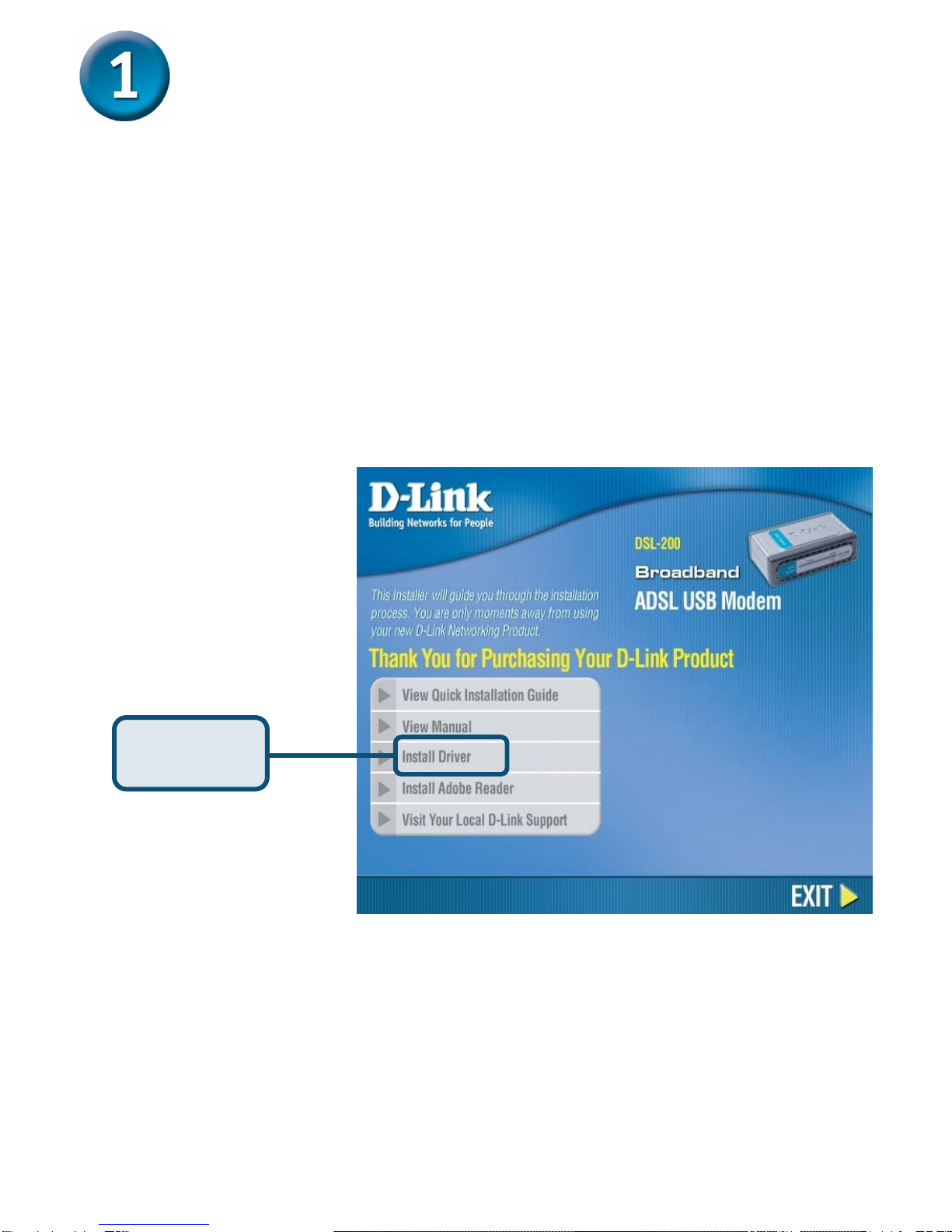

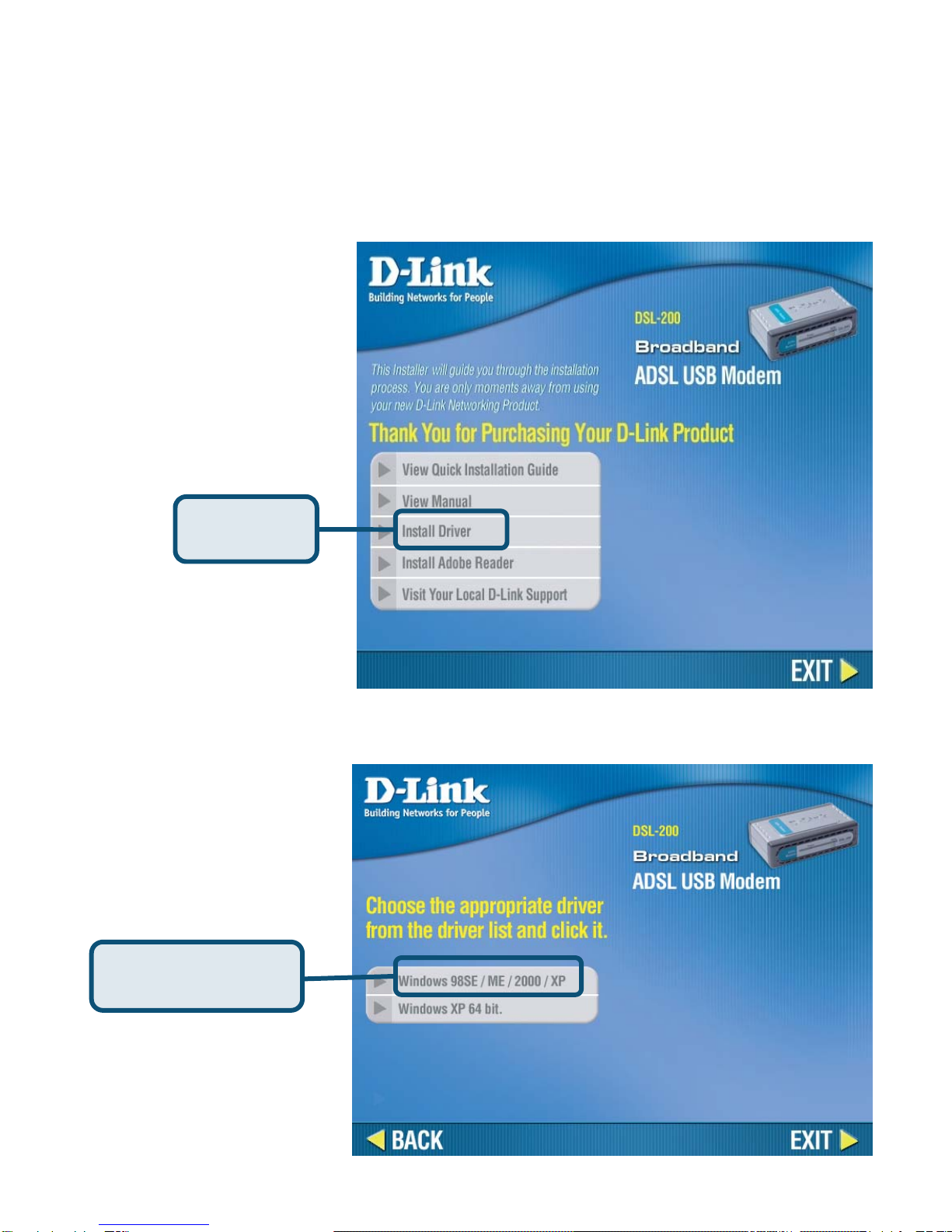

1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should
detect the installation program and run the program automatically. If installation
does not begin automatically after a few seconds, find the autorun.exe icon
located on the CD and double-click it. To view the contents of the CD, open My
Computer from the desktop, and right-click on your CD-ROM. Select the
“Explore” option and this will reveal the folders and files on the CD.
Click Install
Drivers.
Insert the driver
CD supplied into
the CD-ROM
drive.

3
2) Choose the appropriate driver from the driver list and click it. A notification
message will appear indicating that the setup process has begun.

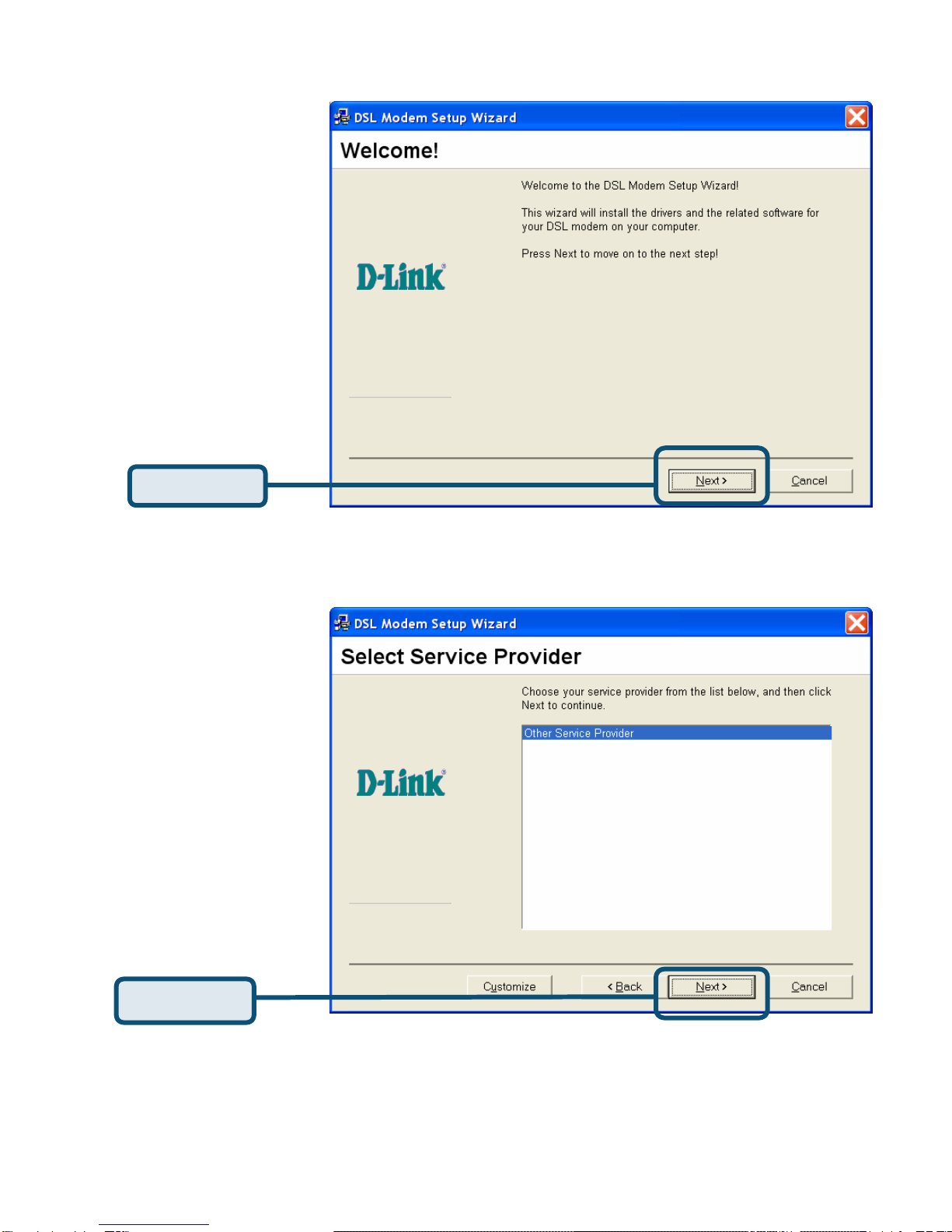

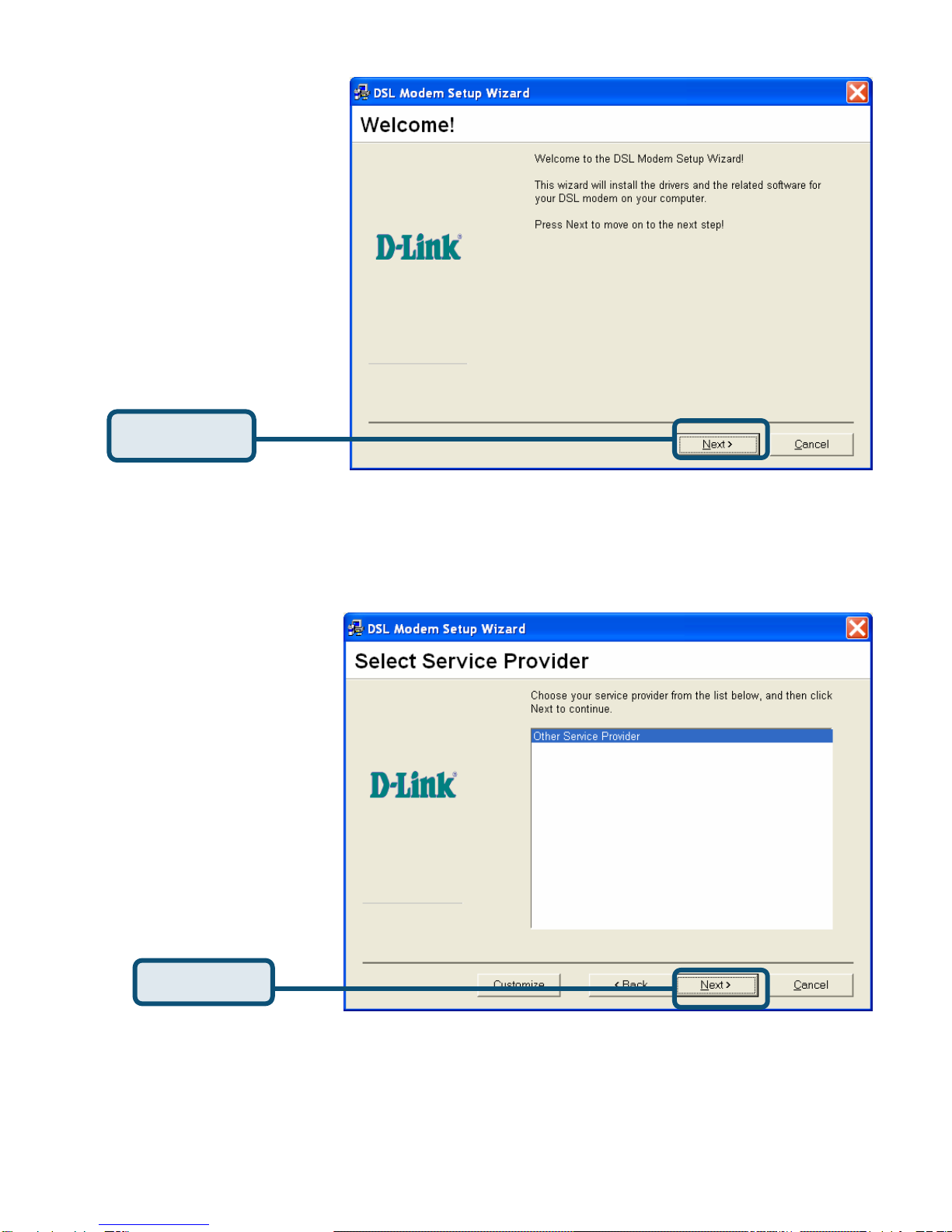

3) The Welcome window will appear. Make sure you have quit all other programs
and click Next.
Click Next.
Choose this
driver and click it

4

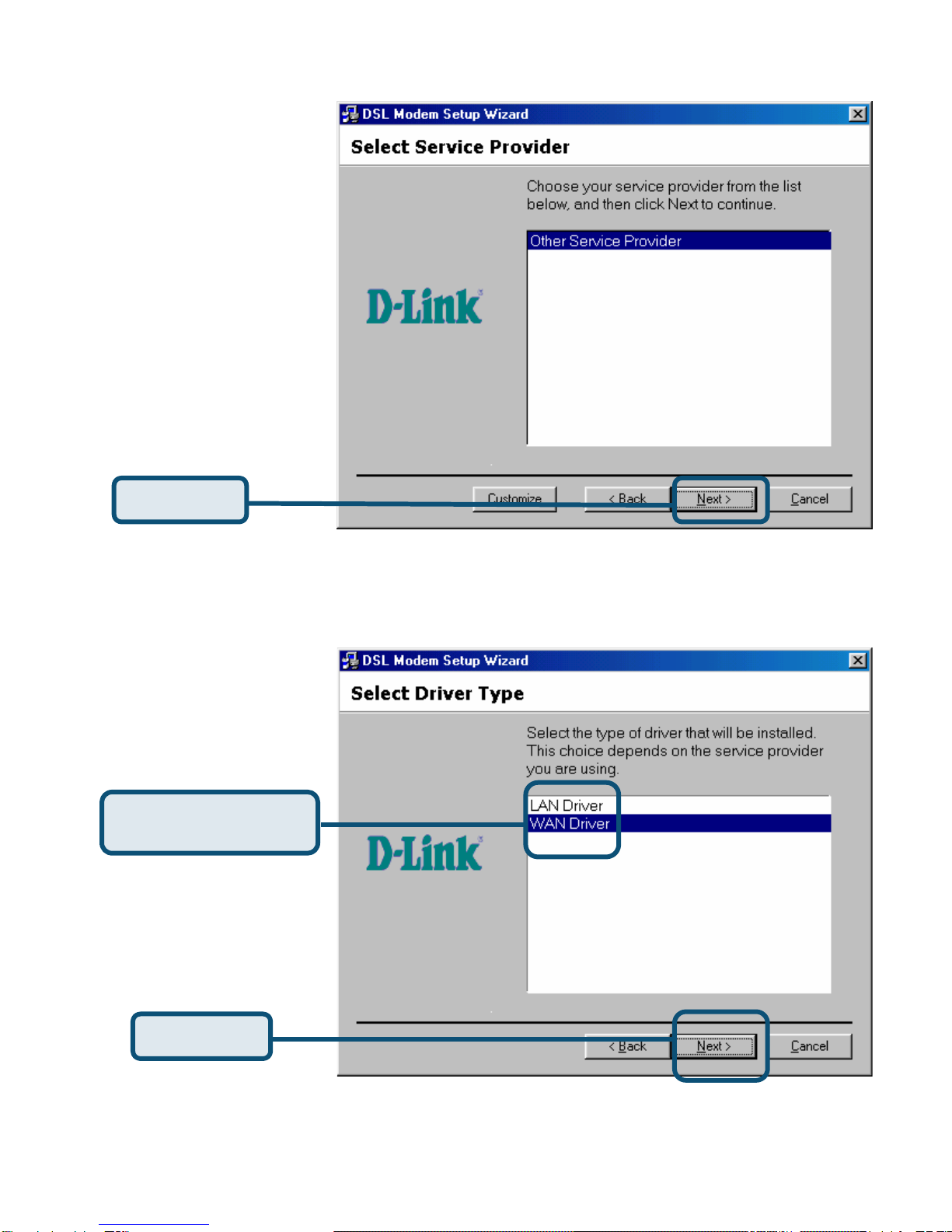

4) In the Select Service Provider window, select Other Service Provider and click
Next.

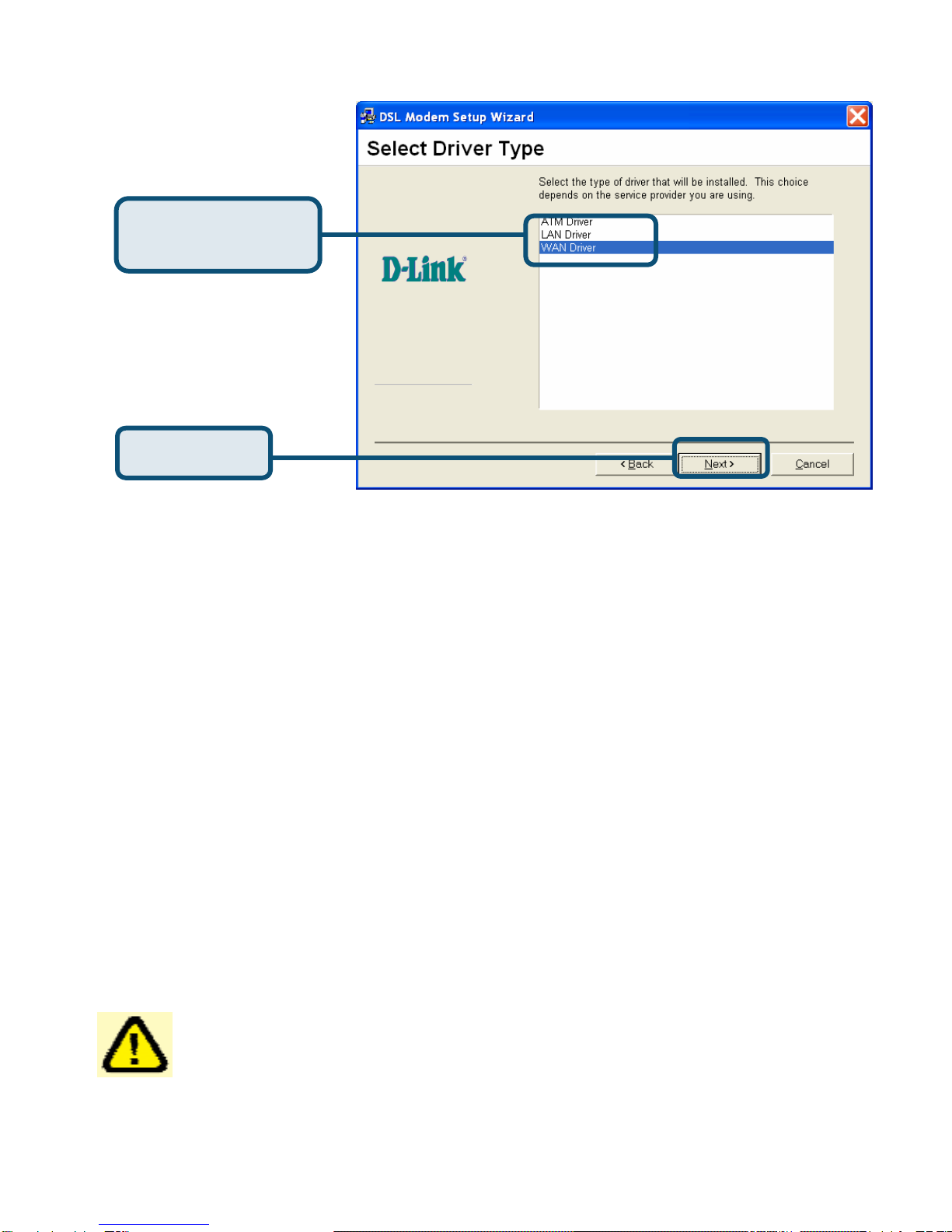

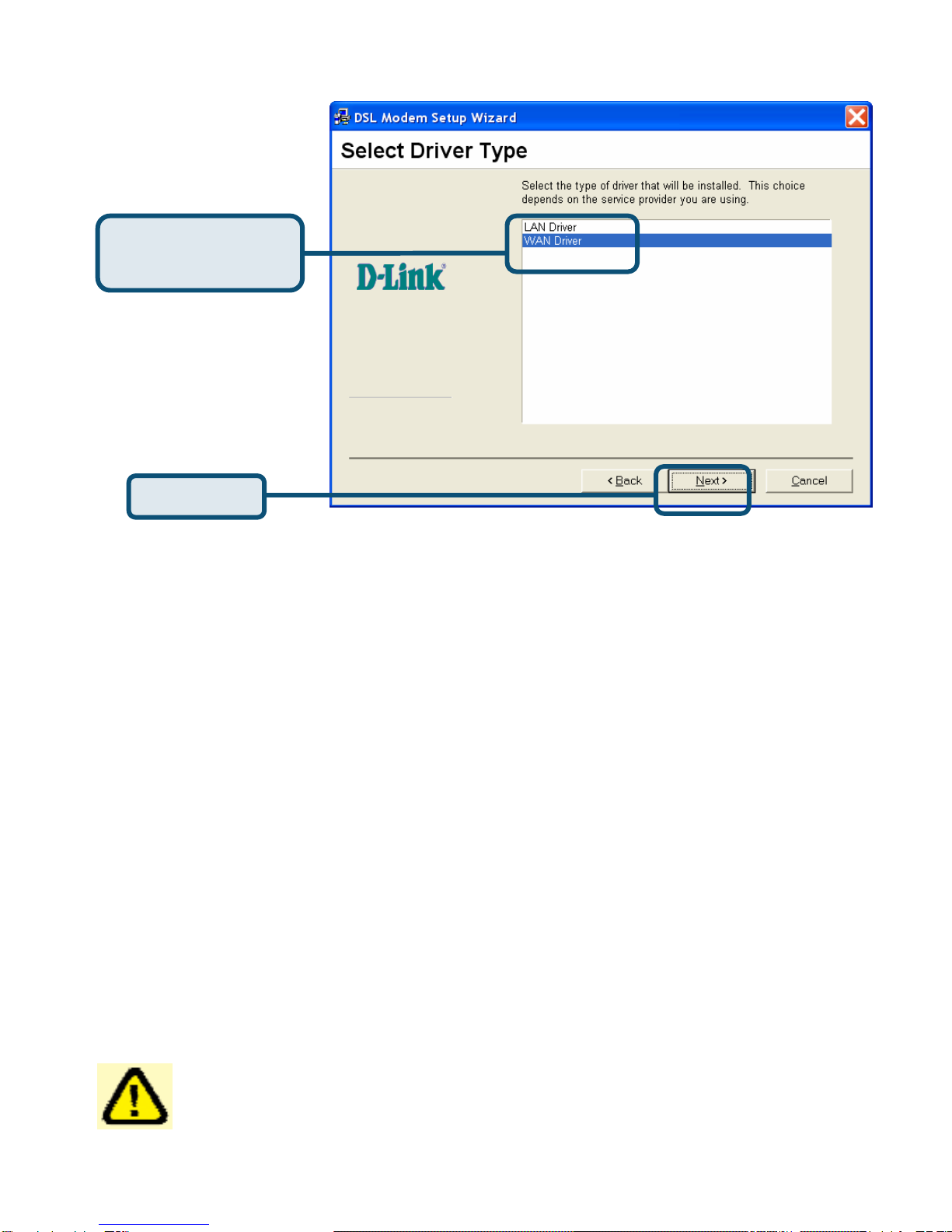

5) In the Select Driver Type window, choose the driver that best suits your ADSL
connection, and then click Next.
Click Next.
Click Next.
Select WAN Driver
or
LAN Driver
.

5

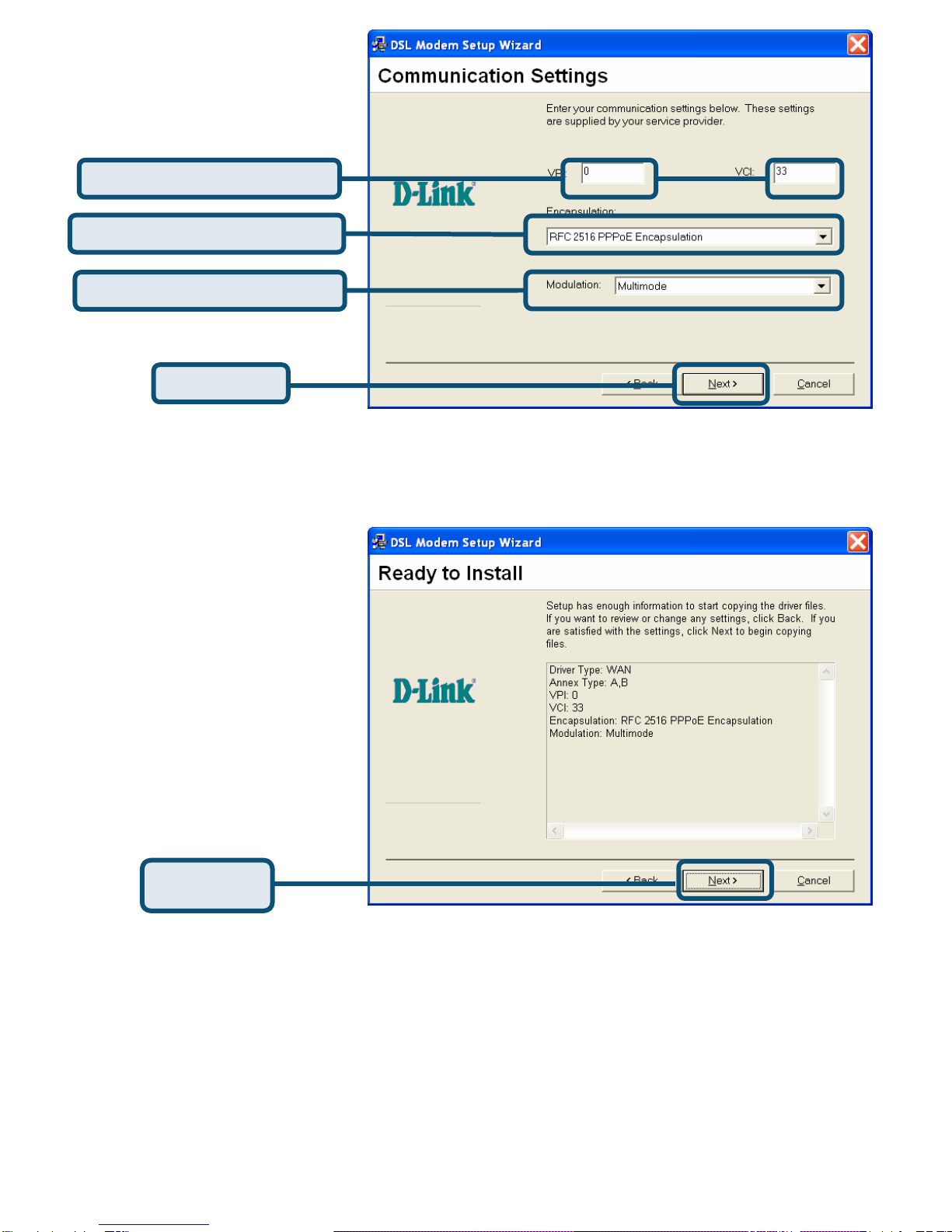

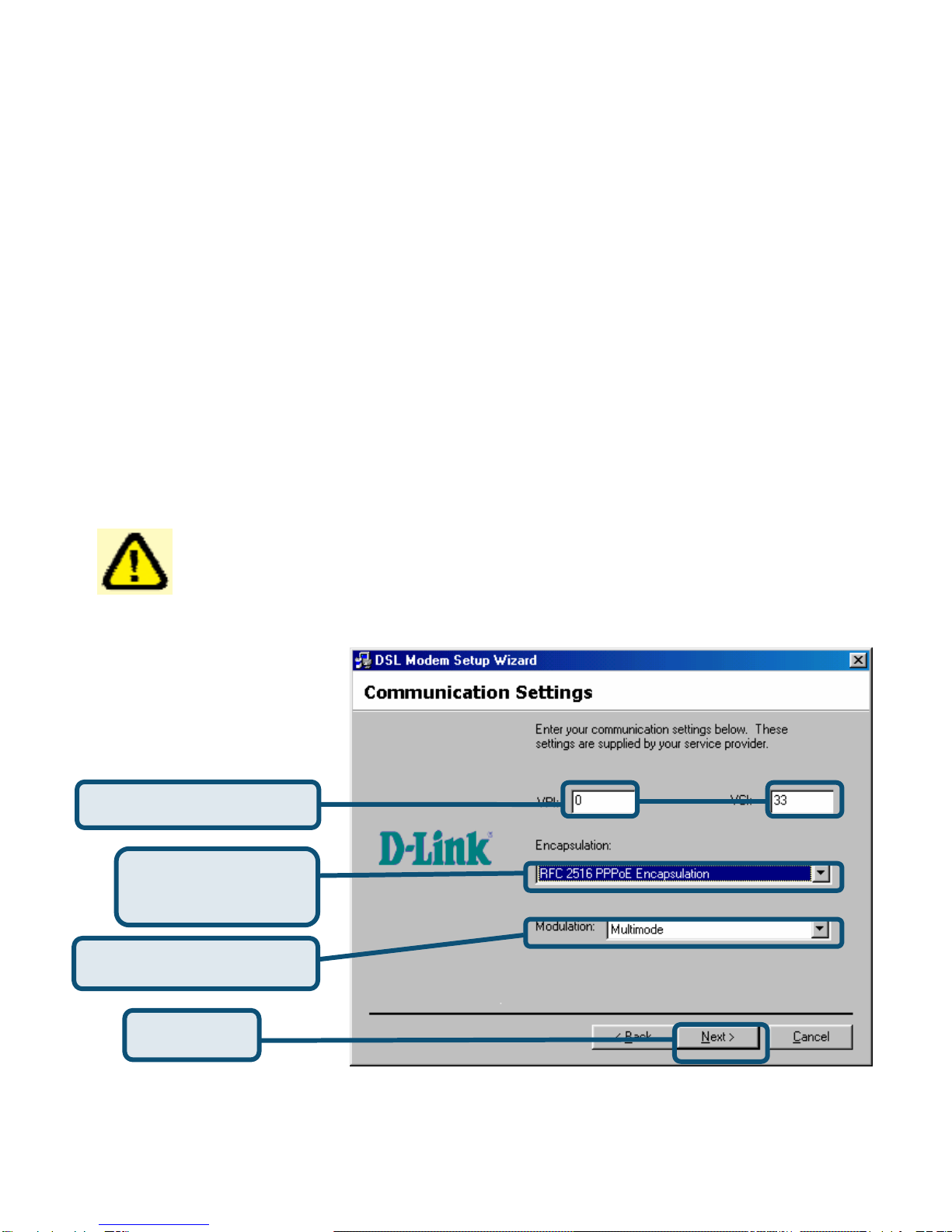

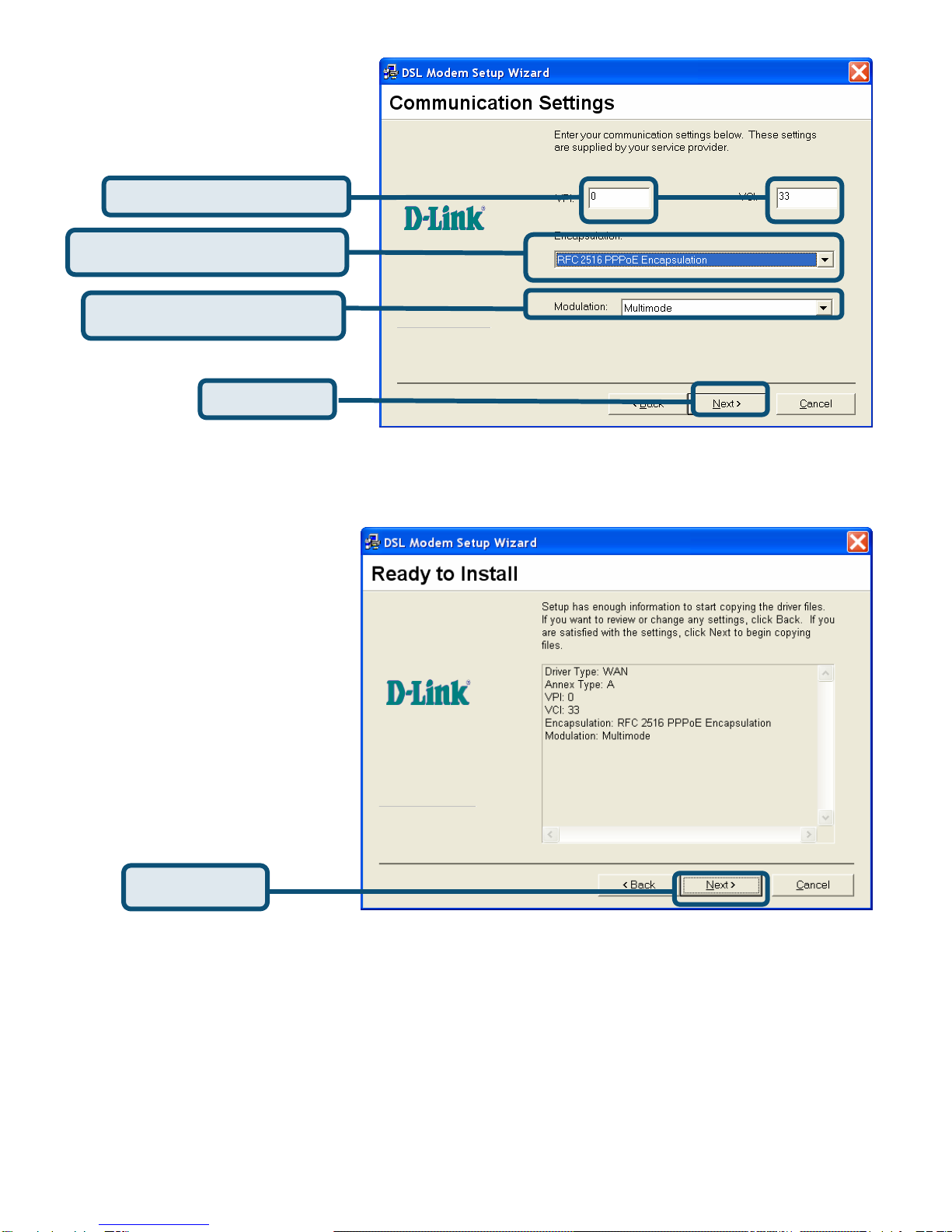

6) In the Communication Settings window you must provide the PVC settings,
Encapsulation method and Modulation method for configuring the Modem.
Type in the VPI and VCI values in their respective fields.
7) In the same window, select the appropriate Encapsulation method from the
drop-down menu. You will select the encapsulation setting that is appropriate for
the driver you are installing.
For RFC 2516 PPPoE, select RFC 2516 PPPoE Encapsulation. If you using
RFC 2364 PPPoATM and your service provider have not specified an
encapsulation setting, use RFC 2364 PPPoATM NULL Encapsulation.
If you are using the LAN driver, select the appropriate RFC 1483 encapsulation
setting. If your service provider has not specified an encapsulation setting, use
RFC 1483 IPoATM Bridged LLC Encapsulation.
8) Again in the same window, select the proper Modulation settings using the drop-
down menu. Your service provider will give you the appropriate Modulation
settings. Choose T1.413, Multimode, G.Lite or G.DMT. If your service provider
has not specified a modulation setting, use Multimode. Click Next to continue.
At this point you must choose the Encapsulation method and
Modulation technique used for your ADSL connection. Be sure to
have the correct information available.
Click Next
Enter your VPI and VCI.
Select your
Encapsulation.
Select your Modulation.

6

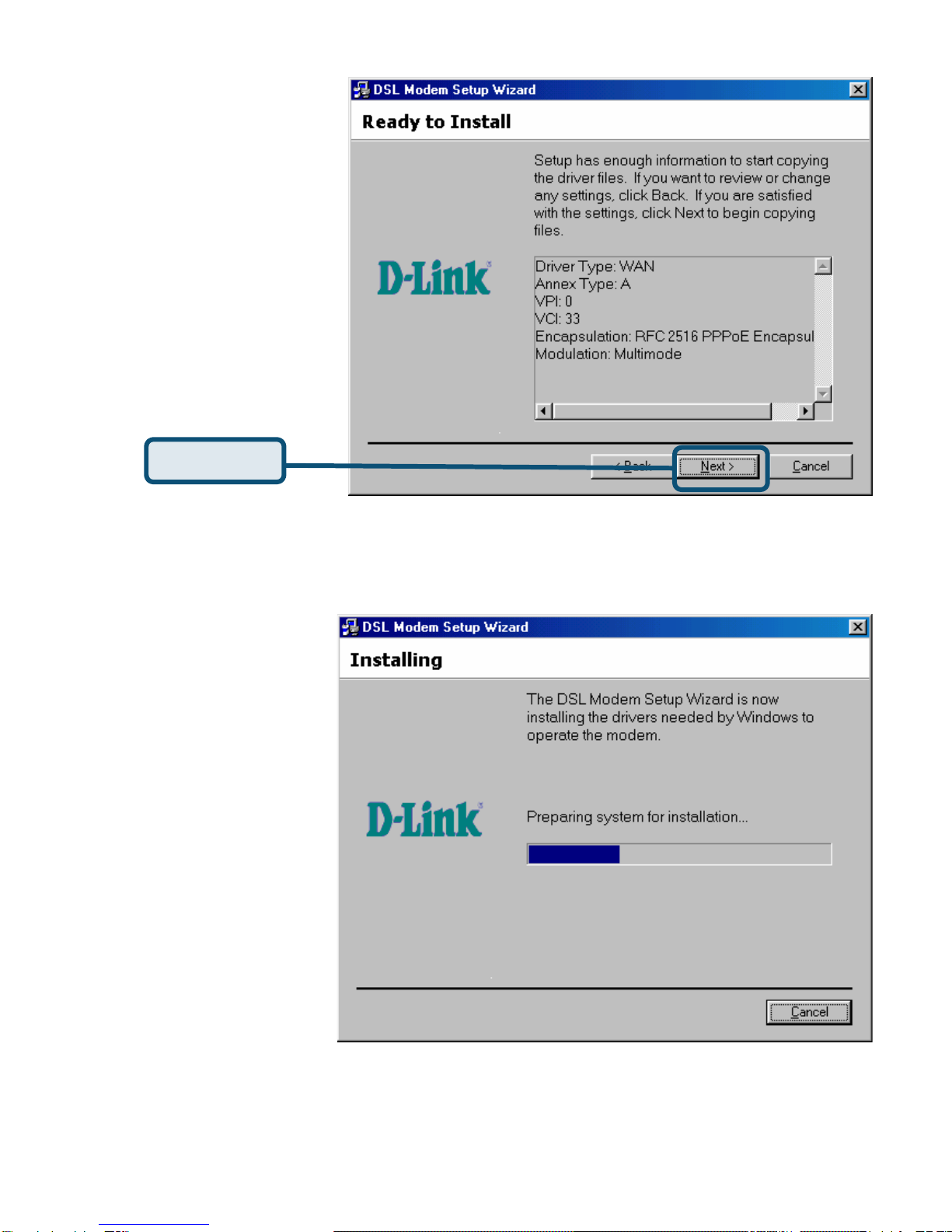

9) The Ready to Install window appears. Click Next to copy the needed driver files.
10) After clicking Next, the Installing screen below will appear notifying you that
your computer is downloading files and preparing for installation.
Click Next.
Wait for installation.

7

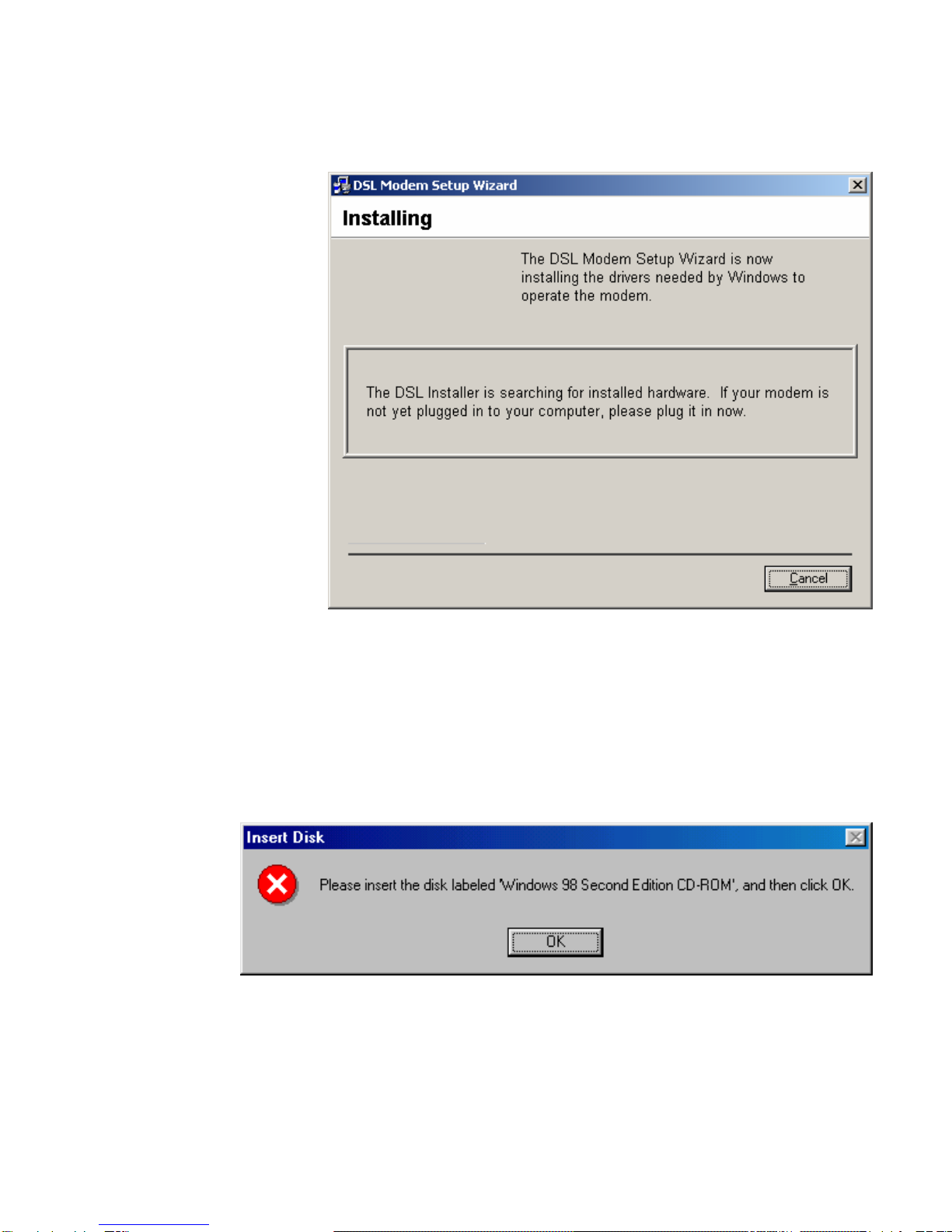

11) After the files are downloaded, another Installing screen will prompt you to plug
your modem into your computer. Plug the rectangular end of the USB cable into
the USB port of your PC, and then plug the square end of the USB cable into the
USB port of the ADSL Modem. The USB Modem will be detected and messages
will be displayed as the modem software is installed.

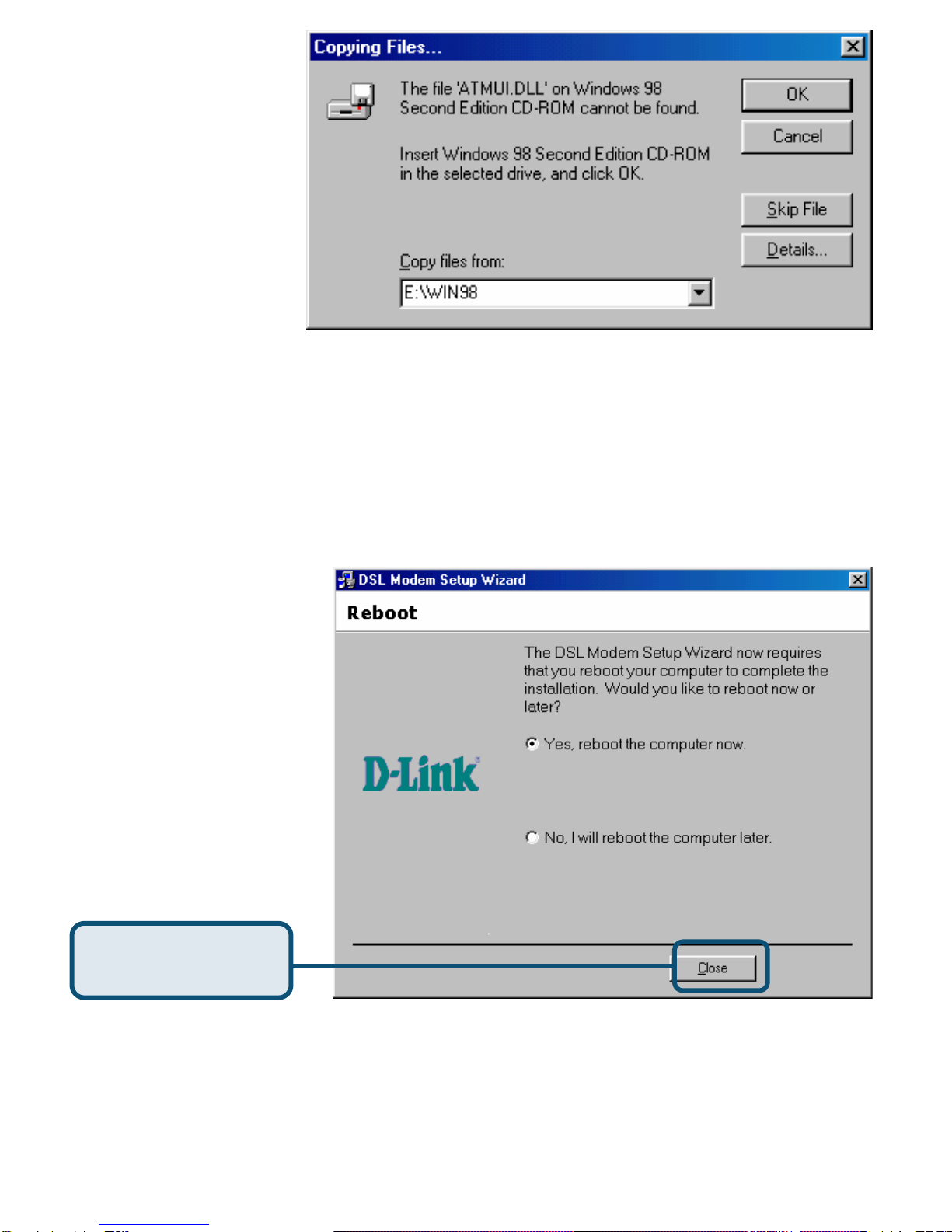

12) If you are installing Win98SE, please insert the Win 98SE disk into CD-ROM. If
you are installing Win ME, please go to next step.
Plug in your
Modem now.

8
13) The Found New Hardware screen will appear notifying you that your computer
has detected the modem and is currently installing it.
14) At the end of this process, the Reboot screen will appear prompting you to
restart your computer. Choose Yes, reboot the computer now because it is
necessary to reboot your computer to continue the installation, and then click
Close.
Click Close to reboot
the computer.
Please insert Win
98 CD-ROM now.

9

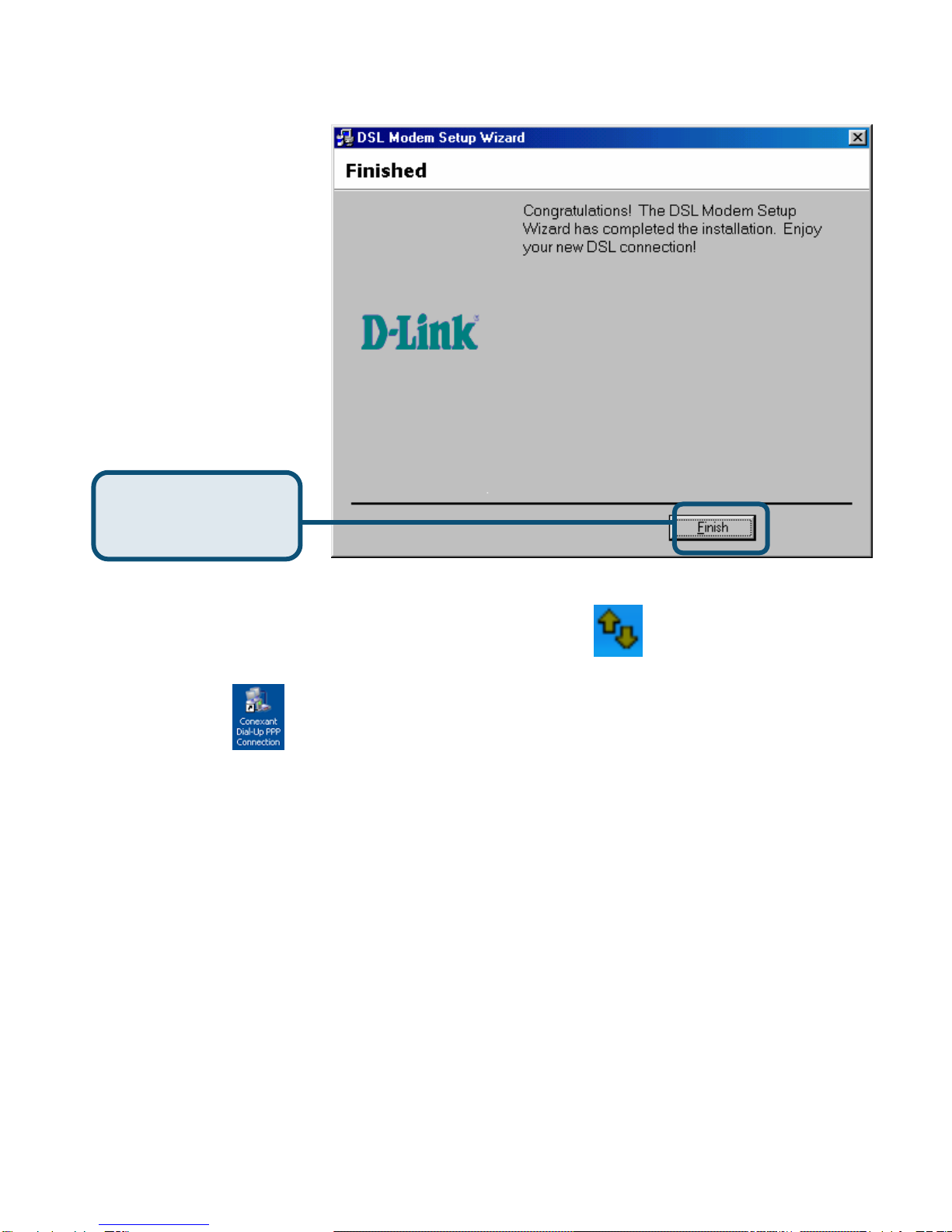

15) After restarting your computer, the Finished screen below should appear
notifying that you have successfully installed your DSL-200 Modem. Click Finish
to complete the installation process.
Upon restarting your computer, a new icon (two arrows) will appear in the
System Tray. If you are using PPP (WAN driver only) the D-Link Dial-up PPP
Connection icon will appear on your desktop after restarting.
After reboot, click
Finish to complete
the installation.

10
1.2 Windows 2000/XP
1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should
detect the installation program and run the program automatically. If installation
does not begin automatically after a few seconds, find the autorun.exe icon
located on the CD and double-click it. To view the contents of the CD, open My
Computer from the desktop, and right-click on your CD-ROM. Select the
“Explore” option and this will reveal the folders and files on the CD.
2) Choose the appropriate driver from the driver list and click it. A notification
message will appear indicating that the setup process has begun.
Insert the driver
CD supplied into
the CD-ROM
drive.
Click Install
Drivers.
Choose this driver
and click it

11
3) The Welcome window will appear. Make sure you have quit all other programs
and click Next.
4) In the Select Service Provider window, select Other Service Provider and click
Next.
C
li
c
kN
e
x
t
.
Click Next.

12
5) In the Select Driver Type window, choose the driver that best suits your ADSL
connection, and then click Next.
6) In the Communication Settings window you must provide the PVC settings,
Encapsulation method and Modulation method for configuring the Modem.
Type in the VPI and VCI values in their respective fields.
7) In the same window, select the appropriate Encapsulation method from the
drop-down menu. You will select the encapsulation setting that is appropriate for
the driver you are installing.
For RFC 2516 PPPoE, select RFC 2516 PPPoE Encapsulation. If you using
RFC 2364 PPPoATM and your service provider have not specified an
encapsulation setting, use RFC 2364 PPPoATM NULL Encapsulation.
If you are using the LAN driver, select the appropriate RFC 1483 encapsulation
setting. If your service provider has not specified an encapsulation setting, use
RFC 1483 IPoATM Bridged LLC Encapsulation.
8) Again in the same window, select the proper Modulation settings using the drop-
down menu. Your service provider will give you the appropriate Modulation
settings. Choose T1.413, Multimode, G.Lite or G.DMT. If your service provider
has not specified a modulation setting, use Multimode. Click Next to continue.
At this point you must choose the Encapsulation method and
Modulation technique used for your ADSL connection. Be sure to
have the correct information available.
Click Next.
Select WAN Driver
or LAN Driver.

13
9) The Ready To Install window appears. Click Next to copy the needed driver files.
Enter your
VPI
and
VCI
.
Select your Encapsulation.
Select your Modulation.
Click
Next
Click Next.

14

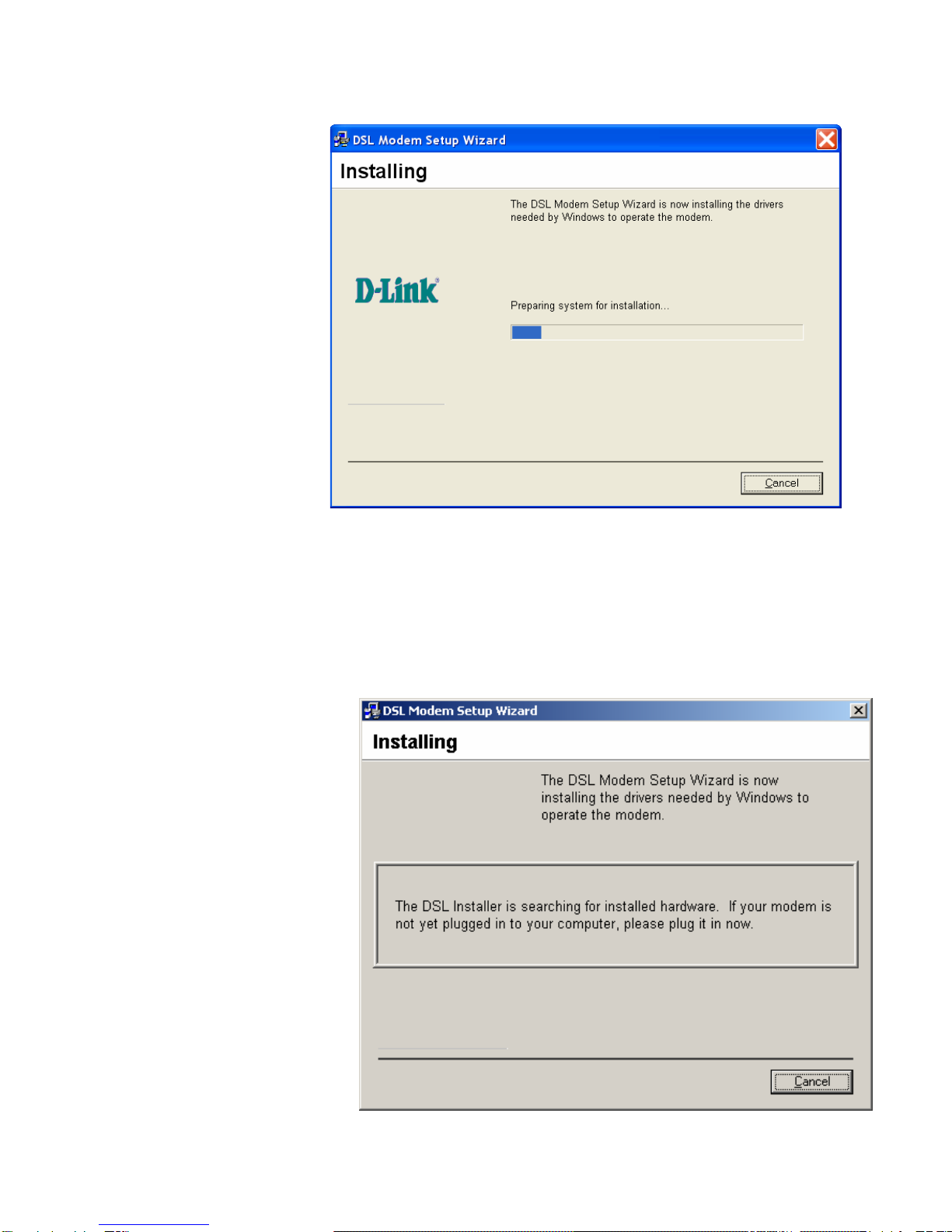

10) After clicking Next, the Installing screen below will appear notifying you that
your computer is downloading files and preparing for installation.
11) After the files are downloaded, another Installing screen will prompt you to
plug your modem into your computer. Plug the rectangular end of the USB
cable into the USB port of your PC, and then plug the square end of the USB
cable into the USB port of the ADSL Modem. The USB Modem will be
detected and messages will be displayed as the modem software is installed.
Wait for installation.
Plug in your Modem
now.

15
12) The Found New Hardware screen will appear notifying you that your computer
has detected the modem and is currently installing it.

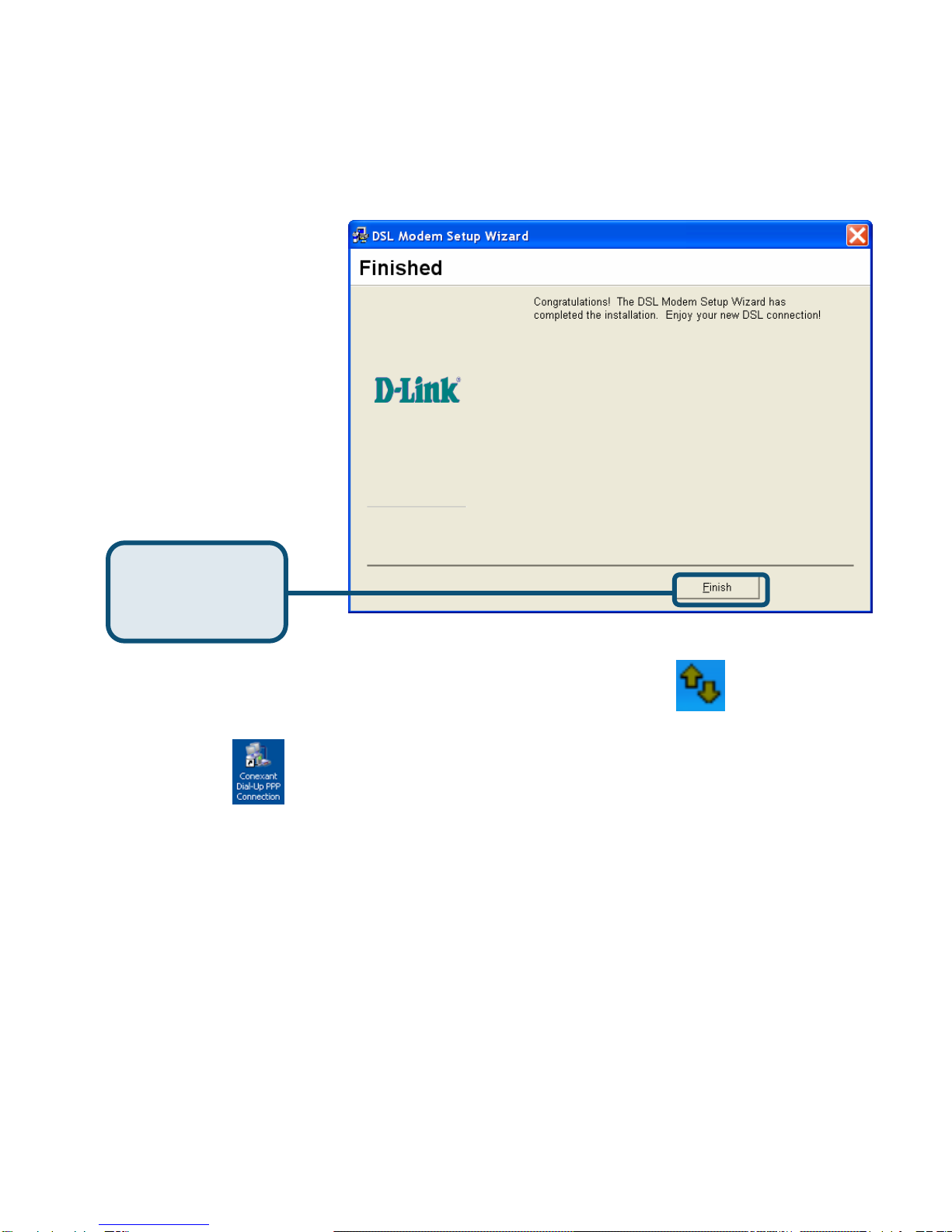

13) The Finished screen below will appear notifying that you have successfully
installed your DSL-200 Modem. Click Finish to complete the installation
process.
After finishing the installation procedure, a new icon (two arrows) will appear in
the System Tray. If you are using PPP (WAN driver only) the D-Link Dial-up PPP
Connection icon will appear on your desktop after installing.
Click Finish to
complete the
installation.

16
1.3 Windows XP 64bit
1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should
detect the installation program and run the program automatically. If installation
does not begin automatically after a few seconds, find the autorun.exe icon
located on the CD and double-click it. To view the contents of the CD, open My
Computer from the desktop, and right-click on your CD-ROM. Select the
“Explore” option and this will reveal the folders and files on the CD.
2) Choose the appropriate driver from the driver list and click it. A notification
message will appear indicating that the setup process has begun.
Click Install
Drivers.
Choose this driver
and click it

17
3) The Welcome window will appear. Make sure you have quit all other programs
and click Next.
4) In the Select Service Provider window, select Other Service Provider and click
Next.
Click Next.
Click Next.

18
5) In the Select Driver Type window, choose the driver that best suits your ADSL
connection, and then click Next.
6) In the Communication Settings window you must provide the PVC settings,
Encapsulation method and Modulation method for configuring the Modem.
Type in the VPI and VCI values in their respective fields.
7) In the same window, select the appropriate Encapsulation method from the
drop-down menu. You will select the encapsulation setting that is appropriate for
the driver you are installing.
For RFC 2516 PPPoE, select RFC 2516 PPPoE Encapsulation. If you using
RFC 2364 PPPoATM and your service provider have not specified an
encapsulation setting, use RFC 2364 PPPoATM NULL Encapsulation.
If you are using the LAN driver, select the appropriate RFC 1483 encapsulation
setting. If your service provider has not specified an encapsulation setting, use
RFC 1483 IPoATM Bridged LLC Encapsulation.
8) Again in the same window, select the proper Modulation settings using the drop-
down menu. Your service provider will give you the appropriate Modulation
settings. Choose T1.413, Multimode, G.Lite or G.DMT. If your service provider
has not specified a modulation setting, use Multimode. Click Next to continue.
At this point you must choose the Encapsulation method and
Modulation technique used for your ADSL connection. Be sure to
have the correct information available.
Select ATM, WAN,
or LAN Driver.
Click Next.

19
9) The Ready To Install window appears. Click Next to copy the needed driver files
Enter your
VPI
and
VCI
.
Select your
Encapsulation
.
Select your
Modulation
.
Click Next
Click
Next

20

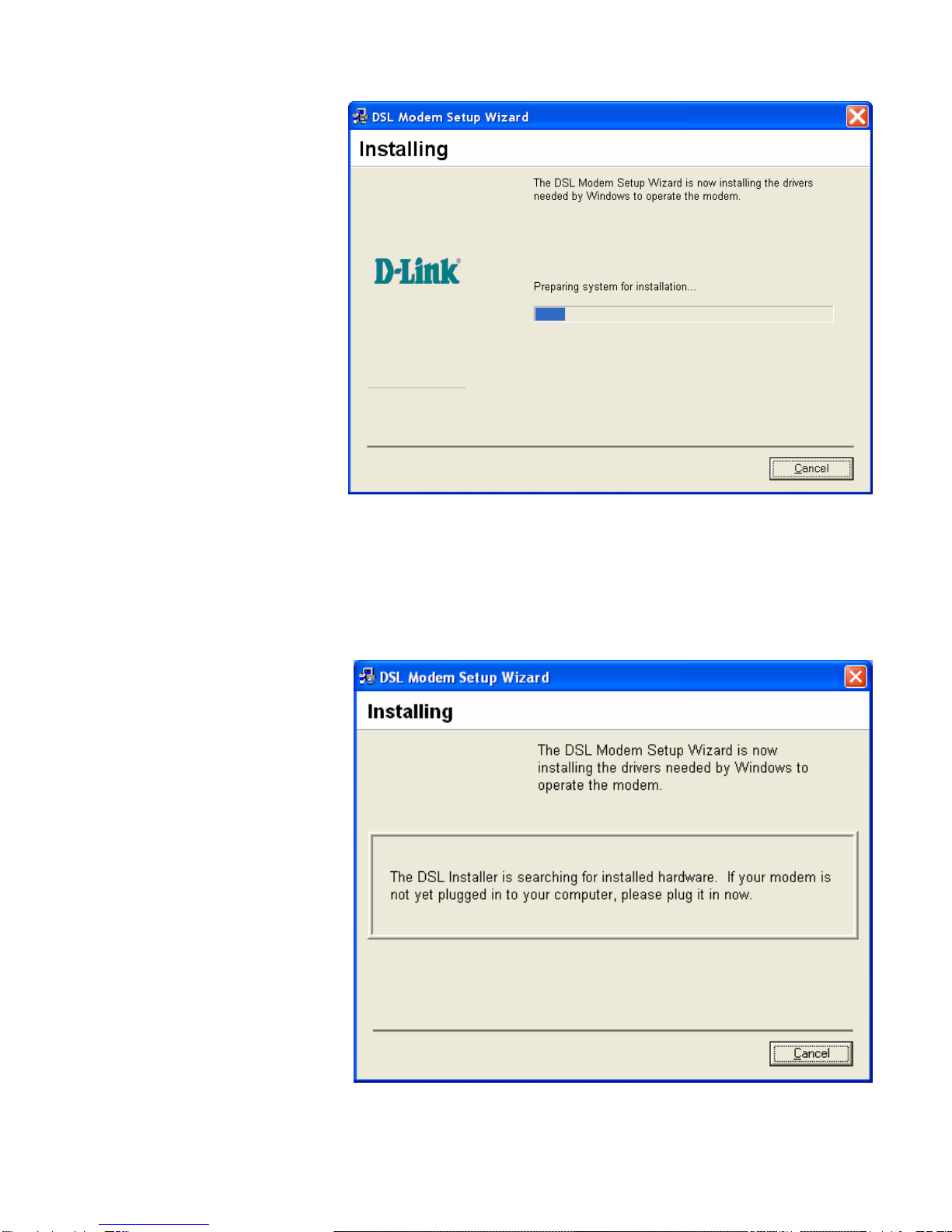

10) After clicking Next, the Installing screen below will appear notifying you that
your computer is downloading files and preparing for installation.
11) After the files are downloaded, another Installing screen will prompt you to plug
your modem into your computer. Plug the rectangular end of the USB cable into
the USB port of your PC, and then plug the square end of the USB cable into the
USB port of the ADSL Modem. The USB Modem will be detected and messages
will be displayed as the modem software is installed.
Wait for installation.
Plug in your Modem
now.
