Section 1 - Product Overview
D-Link DSL-2640R User Manual 1
Package Contents
•DSL-2640R Wireless ADSL Router
•Power Adapter
•CD-ROM with User Manual
•One twisted-pair telephone cable used for ADSL connection
•One straight-through Ethernet cable
•One Quick Installation Guide
Note: Using a power supply with a different voltage rating than the one included
with the DSL-2640R will cause damage and void the warranty for this product.
System Requirements
•ADSL Internet service
•Computer with:
•200MHz Processor
•64MB Memory
•CD-ROM Drive
•Ethernet Adapter with TCP/IP Protocol Installed
•Internet Explorer v6 or later, FireFox v1.5
•Computer with Windows 2000, Windows XP, or Windows Vista
•D-Link Click'n Connect Utility

Section 1 - Product Overview
D-Link DSL-2640R User Manual 2
11 Features
•PPP (Point-to-Point Protocol) Security – The DSL-2640R ADSL Router supports PAP (Password Authentication Protocol) and CHAP
(Challenge Handshake Authentication Protocol) for PPP connections. The Router also supports MSCHAP.
•DHCP Support – Dynamic Host Configuration Protocol automatically and dynamically assigns all LAN IP settings to each host on your
network. This eliminates the need to reconfigure every host whenever changes in network topology occur.
•Network Address Translation (NAT) – For small office environments, the DSL-2640R allows multiple users on the LAN to access the
Internet concurrently through a single Internet account. This provides Internet access to everyone in the office for the price of a single user.
NAT improves network security in effect by hiding the private network behind one global and visible IP address. NAT address mapping can
also be used to link two IP domains via a LAN-to-LAN connection.
•TCP/IP (Transfer Control Protocol/Internet Protocol) – The DSL-2640R supports TCP/IP protocol, the language used for the Internet. It is
compatible with access servers manufactured by major vendors.
•RIP-1/RIP-2 – The DSL-2640R supports both RIP-1 and RIP-2 exchanges with other routers. Using both versions lets the Router to
communicate with all RIP enabled devices.
•Static Routing – This allows you to select a data path to a particular network destination that will remain in the routing table and never “age
out”. If you wish to define a specific route that will always be used for data traffic from your LAN to a specific destination within your LAN (for
example to another router or a server) or outside your network (to an ISP defined default gateway for instance).
•Default Routing – This allows you to choose a default path for incoming data packets for which the destination address is unknown. This is
particularly useful when/if the Router functions as the sole connection to the Internet.
•Precise ATM Traffic Shaping – Traffic shaping is a method of controlling the flow rate of ATM data cells. This function helps to establish the
Quality of Service forATM data transfer.
•Full Network Management – The DSL-2640R incorporates SNMP (Simple Network Management Protocol) support for web-based
management and text-based network management.
•Easy Installation – The DSL-2640R uses a web-based graphical user interface program for convenient management access and easy set
up. Any common web browser software can be used to manage the Router.

Section 1 - Product Overview
D-Link DSL-2640R User Manual 3

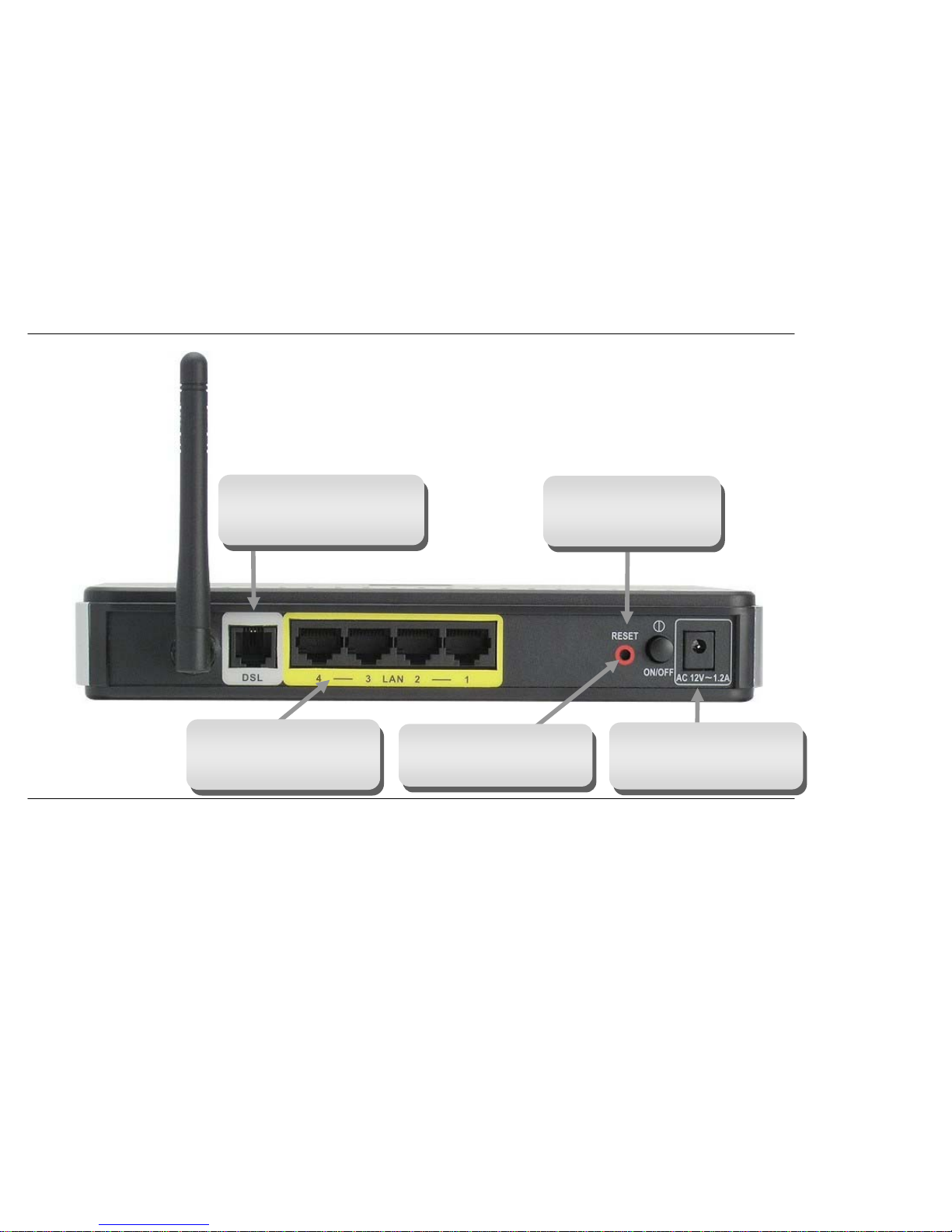

Power Insert
Use the adapter shipped with the
Router to connect to power
source
Power Button
Push in to power-on the Router.
Push again to power-off the
Router
Ethernet Ports
Use the Ethernet ports to connect
the Router to a computer or an
Ethernet LAN
ADSL Port
Use the ADSL cable to connect to
the your telephone line (RJ-11 port)
Reset Button
To manually reset, depress
button with the power on for at
least seven seconds
Hardware Overview
Connections

Section 1 - Product Overview
D-Link DSL-2640R User Manual 4
Hardware Overview
LEDs
Power
Steady green light indicates the unit is powered on.
This remains dark when power is off. A red colored
Power LED indicates system failure.
Internet
A solid green light indicates the WAN IP address from IPCP or
DHCP and DSL is up or a static IP address is configured and
PPP negotiation has been successfully completed. If the
indicator blinks green, this means the Router is active. If the
Router power is off, this remains dark.A solid red light indicates
there is no DHCP response, no PPPoE response, PPPoE
authentication has failed, and/or there is no IP.
DSL
A steady green light indicates a
valid ADSL connection. This will
light after the ADSL negotiation
process has been settled. A
blinking green light indicates
activity on the WAN (ADSL)
interface.
LAN
A solid green light indicates a valid link on
startup. This light will blink when there is activity
currently passing through the Ethernet port.
WLAN
Steady green light indicates a
wireless connection. A blinking
green light indicates activity on
the Wireless LAN interface.

Section 2 – Installation
D-Link DSL-2640R User Manual 5
Installation
This section will walk you through the installation process. Placement of the Wireless ADSL Router is very important. Do not place the Router in an
enclosed area such as a closet, cabinet, or in the attic or garage. Place the Wireless ADSL Router in a location where it can be easily connected to
Ethernet devices, the telephone line as well as to a power source.
Before You Begin
Please read and make sure you understand all the prerequisites for proper installation of your new Router. Have all the necessary information and
equipment on hand before beginning the installation.
Installation Notes
In order to establish a connection to the Internet it will be necessary to provide information to the Router that will be stored in its memory. For some
users, only their account information (Username and Password) is required. For others, various parameters that control and define the Internet
connection will be required. You can print out the two pages below and use the tables to list this information. This way you have a hard copy of all
the information needed to setup the Router. If it is necessary to reconfigure the device, all the necessary information can be easily accessed. Be
sure to keep this information safe and private.
Low Pass Filters
Since ADSL and telephone services share the same copper wiring to carry their respective signals, a filtering mechanism may be necessary to
avoid mutual interference. A low pass filter device can be installed for each telephone that shares the line with the ADSL line. These filters are easy
to install passive devices that connect to theADSL device and/or telephone using standard telephone cable. Ask your service provider for more
information about the use of low pass filters with your installation.
Operating Systems
The DSL-2640R uses an HTML-based web interface for setup and management. The web configuration manager may be accessed using any
operating system capable of running web browser software, including Windows 98 SE, Windows ME, Windows 2000, Windows XP, and Windows
Vista.

Section 2 – Installation
D-Link DSL-2640R User Manual 6
Web Browser
Any common web browser can be used to configure the Router using the web configuration management software. The program is designed to
work best with more recently released browsers such as Opera, Microsoft Internet Explorer® version 6.0, Netscape Navigator® version 6.2.3, or
later versions. The web browser must have JavaScript enabled. JavaScript is enabled by default on many browsers. Make sure JavaScript has not
been disabled by other software (such as virus protection or web user security packages) that may be running on your computer.
Ethernet Port (NIC Adapter)
Any computer that uses the Router must be able to connect to it through the Ethernet port on the Router. This connection is an Ethernet connection
and therefore requires that your computer be equipped with an Ethernet port as well. Most notebook computers are now sold with an Ethernet port
already installed. Likewise, most fully assembled desktop computers come with an Ethernet NIC adapter as standard equipment. If your computer
does not have an Ethernet port, you must install an Ethernet NIC adapter before you can use the Router. If you must install an adapter, follow the
installation instructions that come with the Ethernet NIC adapter.
Additional Software
It may be necessary to install software on your computer that enables the computer to access the Internet.Additional software must be installed if
you are using the device a simple bridge. For a bridged connection, the information needed to make and maintain the Internet connection is stored
on another computer or gateway device, not in the Router itself.
If your ADSL service is delivered through a PPPoE or PPPoA connection, the information needed to establish and maintain the Internet connection
can be stored in the Router. In this case, it is not necessary to install software on your computer. It may however be necessary to change some
settings in the device, including account information used to identify and verify the connection.
All connections to the Internet require a unique global IP address. For bridged connections, the global IP settings must reside in a TCP/IP enabled
device on the LAN side of the bridge, such as a PC, a server, a gateway device such as a router or similar firewall hardware. The IP address can be
assigned in a number of ways. Your network service provider will give you instructions about any additional connection software or NIC
configuration that may be required.
Wireless LAN
Computers using the Wireless network can access the Internet or use the embedded 802.1g wireless access point. Wireless workstations must
have an 802.1g or 802.1b wireless network card installed to use the Wireless ADSL Router. In addition the workstations must be configured to
operate on the same channel and SSID as the Wireless ADSL Router. If wireless security is used, the wireless workstations must be properly
configured for the security settings used.

Section 2 – Installation
D-Link DSL-2640R User Manual 7
Information you will need from your ADSL service
provider
Username
This is the Username used to log on to your ADSL service provider’s network. Your ADSL service provider uses this to identify your account.
Password
This is the Password used, in conjunction with the Username above, to log on to your ADSL service provider’s network. This is used to verify the
identity of your account.
WAN Setting / Connection Type
These settings describe the method your ADSLservice provider uses to transport data between the Internet and your computer. Most users will use
the default settings. You may need to specify one of the following WAN Setting and Connection Type configurations (Connection Type settings listed
in parenthesis):
•PPPoE/PPoA (PPPoE LLC, PPPoA LLC or PPPoA VC-Mux)
•Dynamic IP Address (1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483 Routed IP LLC(IPoA) or 1483 Routed IP VC-Mux)
•Static IP Address (1483 Bridged IP LLC, 1483 Bridged IP VC-Mux, 1483 Routed IP LLC(IPoA) or 1483 Routed IP VC-Mux)
•Bridge Mode (1483 Bridged IP LLC or 1483 Bridged IP VC Mux)
Modulation Type
ADSL uses various standardized modulation techniques to transmit data over the allotted signal frequencies. Some users may need to change the
type of modulation used for their service. The default DSL modulation (ADSL2+ Multi-Mode) used for the Router automatically detects all types of
ADSL, ADSL2, and ADSL2+ modulation.
Security Protocol
This is the method your ADSL service provider will use to verify your Username and Password when you log on to their network. Your Router
supports the PAP and CHAP protocols.

Section 2 – Installation
D-Link DSL-2640R User Manual 8
VPI
Most users will not be required to change this setting. The Virtual Path Identifier (VPI) is used in conjunction with the Virtual Channel Identifier (VCI)
to identify the data path between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual
connections, you will need to configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can
be changed in the WAN Settings window of the web management interface.
VCI
Most users will not be required to change this setting. The Virtual Channel Identifier (VCI) used in conjunction with the VPI to identify the data path
between your ADSL service provider’s network and your computer. If you are setting up the Router for multiple virtual connections, you will need to
configure the VPI and VCI as instructed by your ADSL service provider for the additional connections. This setting can be changed in the WAN
Settings window of the web management interface.
Information you will need about DSL-2640R
Username
This is the Username needed access the Router’s management interface. When you attempt to connect to the device through a web browser you
will be prompted to enter this Username. The default Username for the Router is “admin.” The user cannot change this.
Password
This is the Password you will be prompted to enter when you access the Router’s management interface. The default Password is “1234.” The user
may change this.
LAN IP addresses for the DSL-2640R
This is the IP address you will enter into the Address field of your web browser to access the Router’s configuration graphical user interface (GUI)
using a web browser. The default IP address is 192.168.1.1. This may be changed to suit any IP address scheme the user desires. This address will
be the base IP address used for DHCP service on the LAN when DHCP is enabled.
LAN Subnet Mask for the DSL-2640R
This is the subnet mask used by the DSL-2640R, and will be used throughout your LAN. The default subnet mask is 255.255.255.0. This can be
changed later.

Section 2 – Installation
D-Link DSL-2640R User Manual 9
Information you will need about your LAN or computer:
Ethernet NIC
If your computer has an Ethernet NIC, you can connect the DSL-2640R to this Ethernet port using an Ethernet cable. You can also use the Ethernet
ports on the DSL-2640R to connect to other computer or Ethernet devices.
DHCP Client status
Your DSL-2640R ADSL Router is configured, by default, to be a DHCP server. This means that it can assign an IP address, subnet mask, and a
default gateway address to computers on your LAN. The default range of IP addresses the DSL-2640R will assign are from 192.168.1.2 to
192.168.1.254. Your computer (or computers) needs to be configured to obtain an IP address automatically (that is, they need to be configured as
DHCP clients.)
It is recommended that you collect and record this information here, or in some other secure place, in case you have to re-configure your ADSL
connection in the future.
Once you have the above information, you are ready to setup and configure your DSL-2640R ADSL Router.
Device Installation
The Wireless ADSL Router maintains three separate interfaces, an ADSL, an Ethernet, and a Wireless LAN interface. Place the Wireless ADSL
Router in a location where it can be easily connected to Ethernet devices, the telephone line as well as to a power source.
The Router can be placed on a shelf or desktop, ideally you should be able to see the LED indicators on the front if you need to view them for
troubleshooting.

Section 2 – Installation
D-Link DSL-2640R User Manual 10
Power on Router
The Router must be used with the power adapter included with the device.
1. Connect the power adapter to the Power Input (12V AC 1.2A) on the back panel of the Wireless ADSL Router and plug the other end of the
power adapter to a wall outlet or power strip.
2. Push the Power Button toggle the power on.
3. The Power LED on the front panel will shine bright green to indicate the device is powered on.
4. If the Ethernet port is connected to a working device, check the LAN LED indicator to make sure the connection is valid. The Wireless ADSL
Router will attempt to establish the ADSL connection, if the ADSL line is connected and the Wireless ADSL Router is properly configured the
ADSL LED will light up after several seconds. If this is the first time installing the device, some settings may need to be changed before the
WirelessADSL Router can establish a connection.
Factory Reset Button
The Router may be reset to the original factory default settings by using a ballpoint or paperclip to gently push down the reset button in the following
sequence:
1. Press and hold the reset button while the device is powered off.
2. Turn on the power.
3. Wait for 5~8 seconds and then release the reset button.
Remember that this will wipe out any settings stored in flash memory including user account information and LAN IP settings. The device settings
will be restored to the factory default IP address 192.168.1.1 and the subnet mask is 255.255.255.0, the default management Username is “admin”
and the default Password is “admin.”

Section 2 – Installation
D-Link DSL-2640R User Manual 11
Network Connections
Connect ADSL Line
Use the ADSL cable included with the Router to connect it to a telephone wall socket or receptacle. Plug one end of the cable into the ADSL port
(RJ-11 receptacle) on the rear panel of the Router and insert the other end into the RJ-11 wall socket. If you are using a low pass filter device, follow
the instructions included with the device or given to you by your service provider. The ADSL connection represents the WAN interface, the
connection to the Internet. It is the physical link to the service provider’s network backbone and ultimately to the Internet.
Connect Router to Ethernet
The Router may be connected to a single computer or Ethernet device through the 10BASE-TX Ethernet port on the rear panel.Any connection to
an Ethernet concentrating device such as a switch or hub must operate at a speed of 10/100 Mbps only. When connecting the Router to any
Ethernet device that is capable of operating at speeds higher than 10Mbps, be sure that the device has auto-negotiation (NWay) enabled for the
connecting port. Use standard twisted-pair cable with RJ-45 connectors. The RJ-45 port on the Router is a crossed port (MDI-X). Follow standard
Ethernet guidelines when deciding what type of cable to use to make this connection. When connecting the Router directly to a PC or server use a
normal straight-through cable. You should use a crossed cable when connecting the Router to a normal (MDI-X) port on a switch or hub. Use a
normal straight-through cable when connecting it to an uplink (MDI-II) port on a hub or switch. The rules governing Ethernet cable lengths apply to
the LAN to Router connection. Be sure that the cable connecting the LAN to the Router does not exceed 100 meters.
Hub or Switch to Router Connection
Connect the Router to an uplink port (MDI-II) on an Ethernet hub or switch with a straight-through cable. If you wish to reserve the uplink port on the
switch or hub for another device, connect to any on the other MDI-X ports (1x, 2x, etc.) with a crossed cable.
Computer to Router Connection
You can connect the Router directly to a 10/100BASE-TX Ethernet adapter card (NIC) installed on a PC using the Ethernet cable provided.
Wireless Connection to Router
The Router’s embedded 802.11g wireless access point should be configured to suit the local wireless network. All 802.11g or 802.11b devices that
associate with the Router’s wireless access point must have the same SSID and channel. If wireless security is used, the wireless clients must be
configured with the correct security information to use the Router. More information on configuring the wireless settings is found later in this manual.

Section 3 – Configuration
D-Link DSL-2640R User Manual 12
Setup
This section will show you how to set up and configure your new D-Link Router using the Web-based configuration utility.
Web-based Configuration Utility
Connect to the Router
To configure the WAN connection used by the Router it is first necessary to communicate with the Router through its management interface, which
is HTML-based and can be accessed using a web browser. The easiest way to make sure your computer has the correct IP settings is to configure
it to use the DHCP server in the Router. The next section describes how to change the IP configuration for a computer running a Windows operating
system to be a DHCP client.

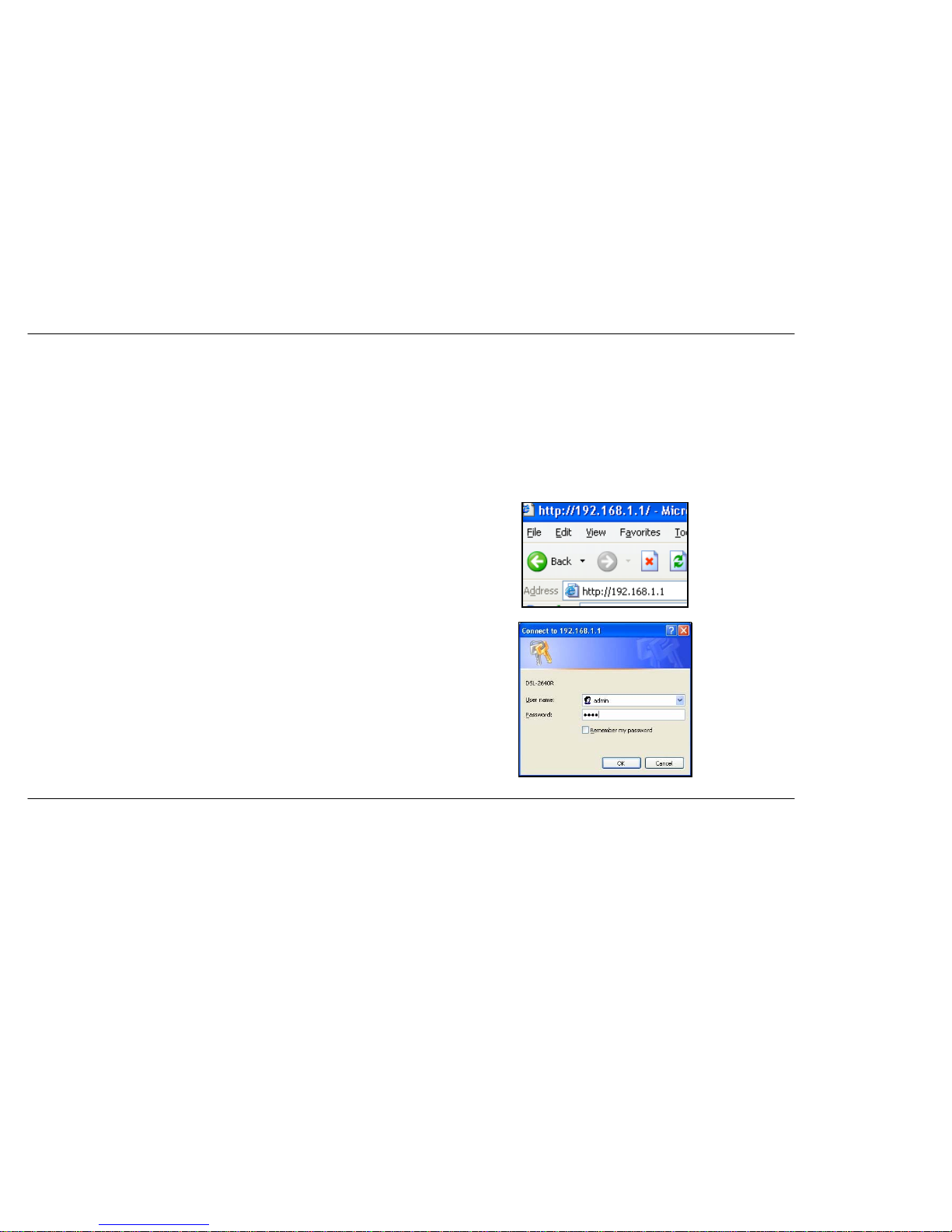

To access the configuration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.1.1).
Type “admin” for the User Name and “1234” in the Password field. If you
get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.

Section 3 – Configuration
D-Link DSL-2640R User Manual 13
Configure the Router

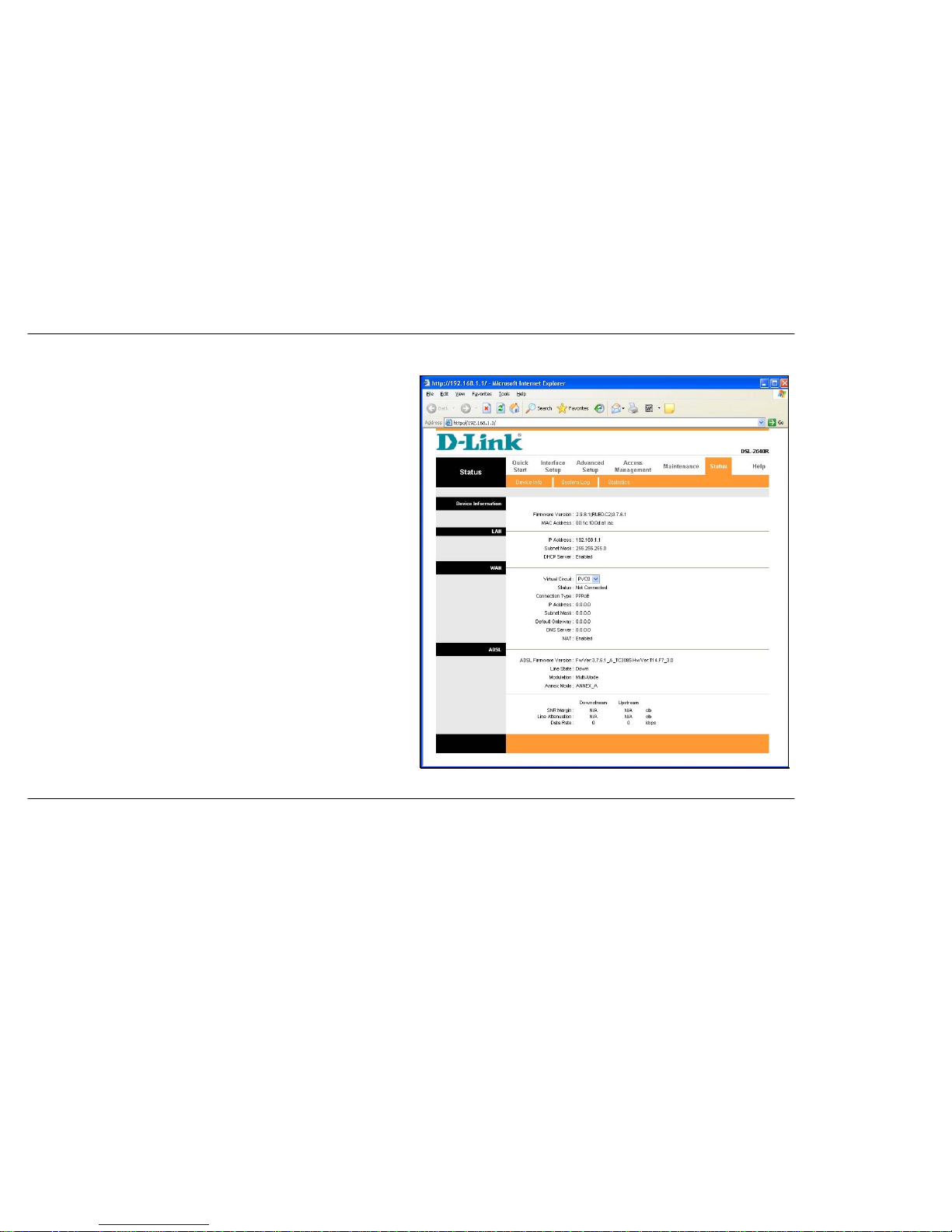

When you successfully connect to the web manager, the main Status
menu displays a summary of the current state of the Ethernet LAN and
WAN networks. This menu can be accessed at any time using the Status
hyperlink.
All configuration and management of the Router is done using the
web-based management interface pictured in the example.
To access the various configuration menus, open the directories listed in
the left panel of the menu, Quick Start, Interface Setup, Advanced
Setup, Access Management, Maintenance, and Status.
The Quick Start Wizard allows you to configure the basic settings for the
WAN (Internet) and Ethernet LAN (including DHCP) settings.

Section 3 – Configuration
D-Link DSL-2640R User Manual 14
Quick Start
This chapter is concerned with using your computer to configure the WAN connection. The following chapter describes the various windows used to
configure and monitor the Router including how to change IP settings and DHCP server setup.

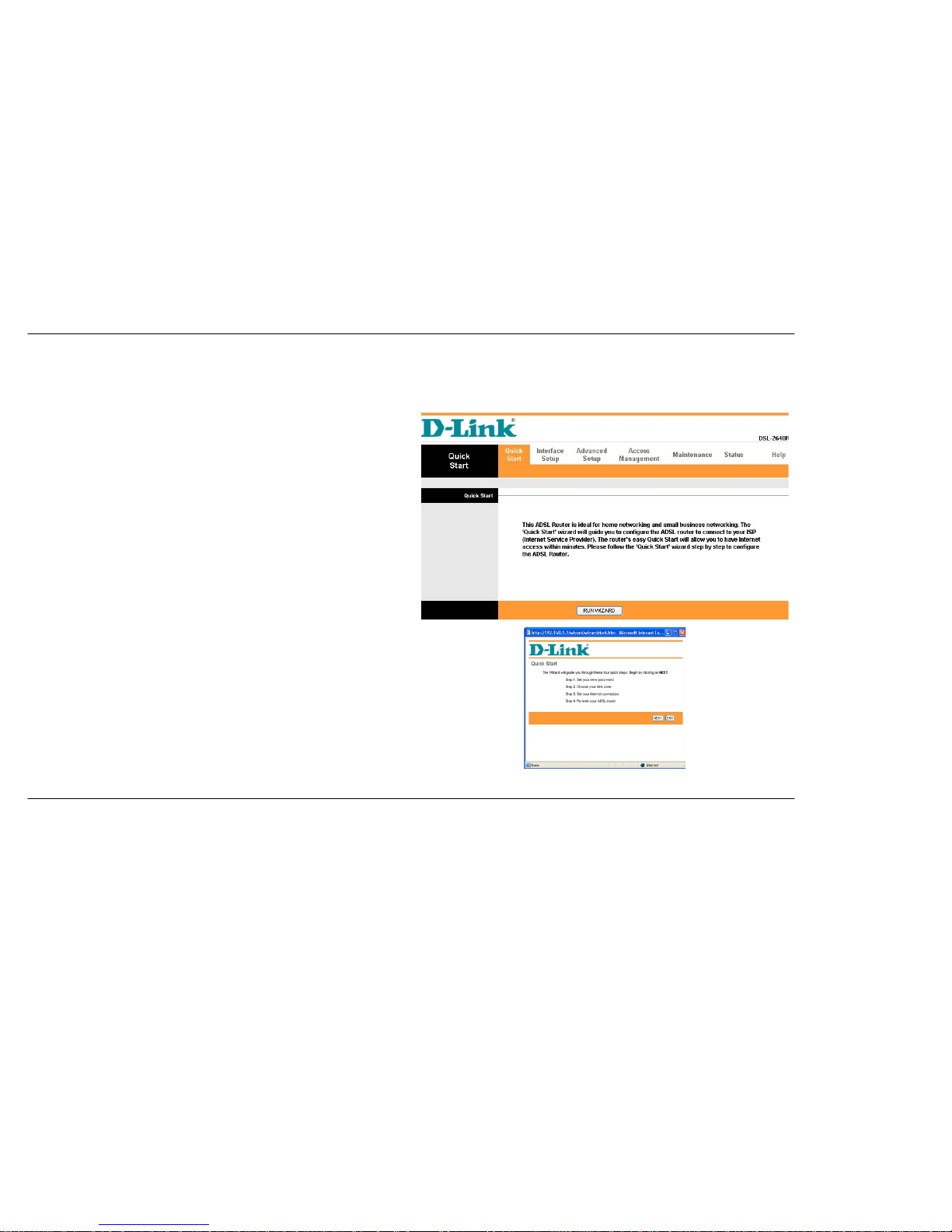

Quick Start
To use the Quick Start Wizard, click the RUN WIZARD button and follow
the instructions in the pop-up window that appears.
The initial window summarizes the setup process. Click the Next button to
proceed. You may stop using the Quick Start Wizard at any time by
clicking the Exit button. If you exit the wizard you will return to the main
Quick Start window without saving any of the settings changed during the
process.
Quick Start Wizard – Opening Window
The first pop-up window of the Quick Start Wizard lists the basic steps in
the process. These steps are as follows:
1. Set your new password
2. Choose your time zone
3. Set your Internet connection
4. Re-start yourADSL router
Click Next to continue.

Section 3 – Configuration
D-Link DSL-2640R User Manual 15

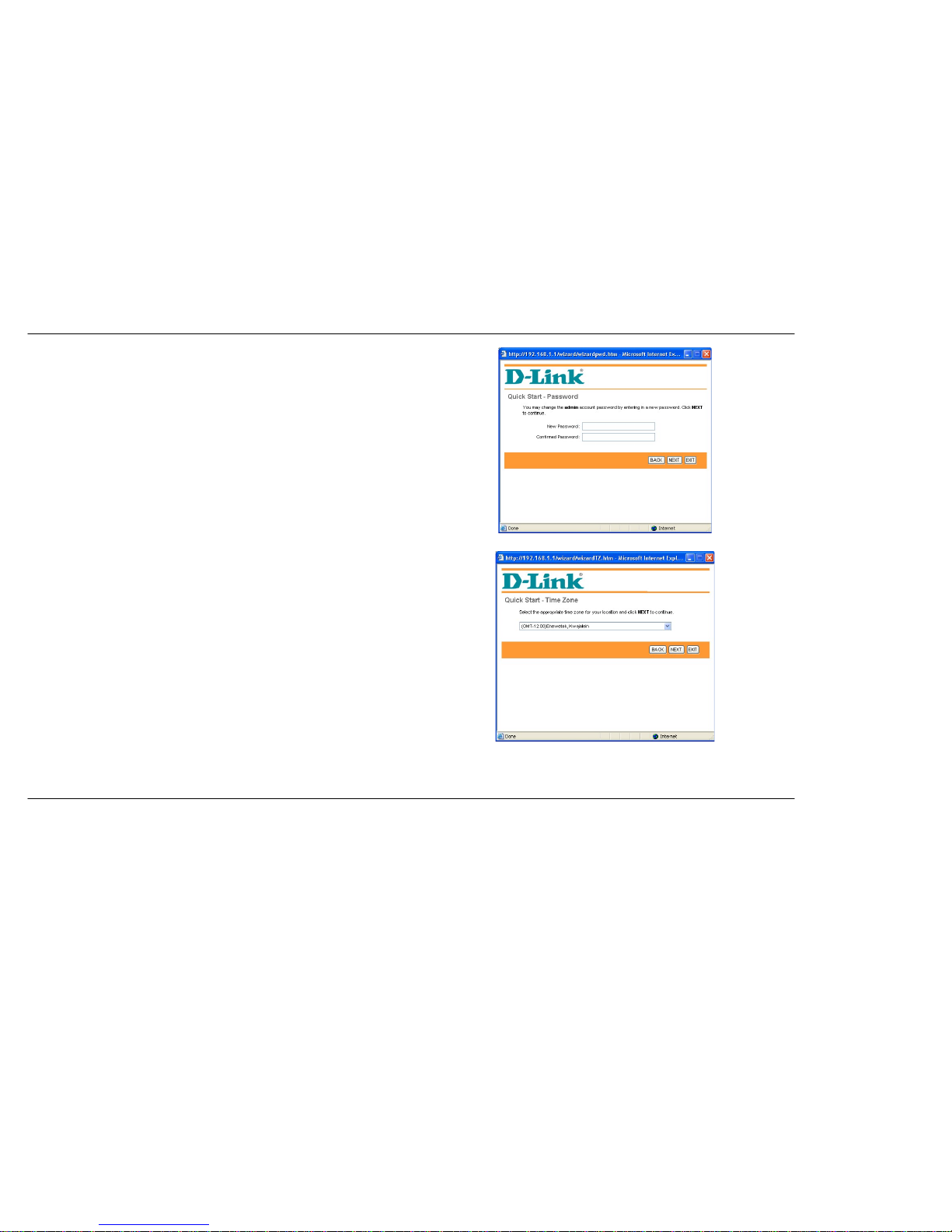

Quick Start Wizard – Set a Password
If you want to change the administrator account password, enter a new
password in the first text box, re-type it in the second text box, and click
Next. If you wish to return to the previous window during the setup
process, click the Back button.
Quick Start Wizard - Choose Time Zone
Choose the time zone you are in from the pull-down menu and click Next.
This sets the system time used for the Router. If you wish to return to the
previous window during the setup process, click the Back button.

Section 3 – Configuration
D-Link DSL-2640R User Manual 16

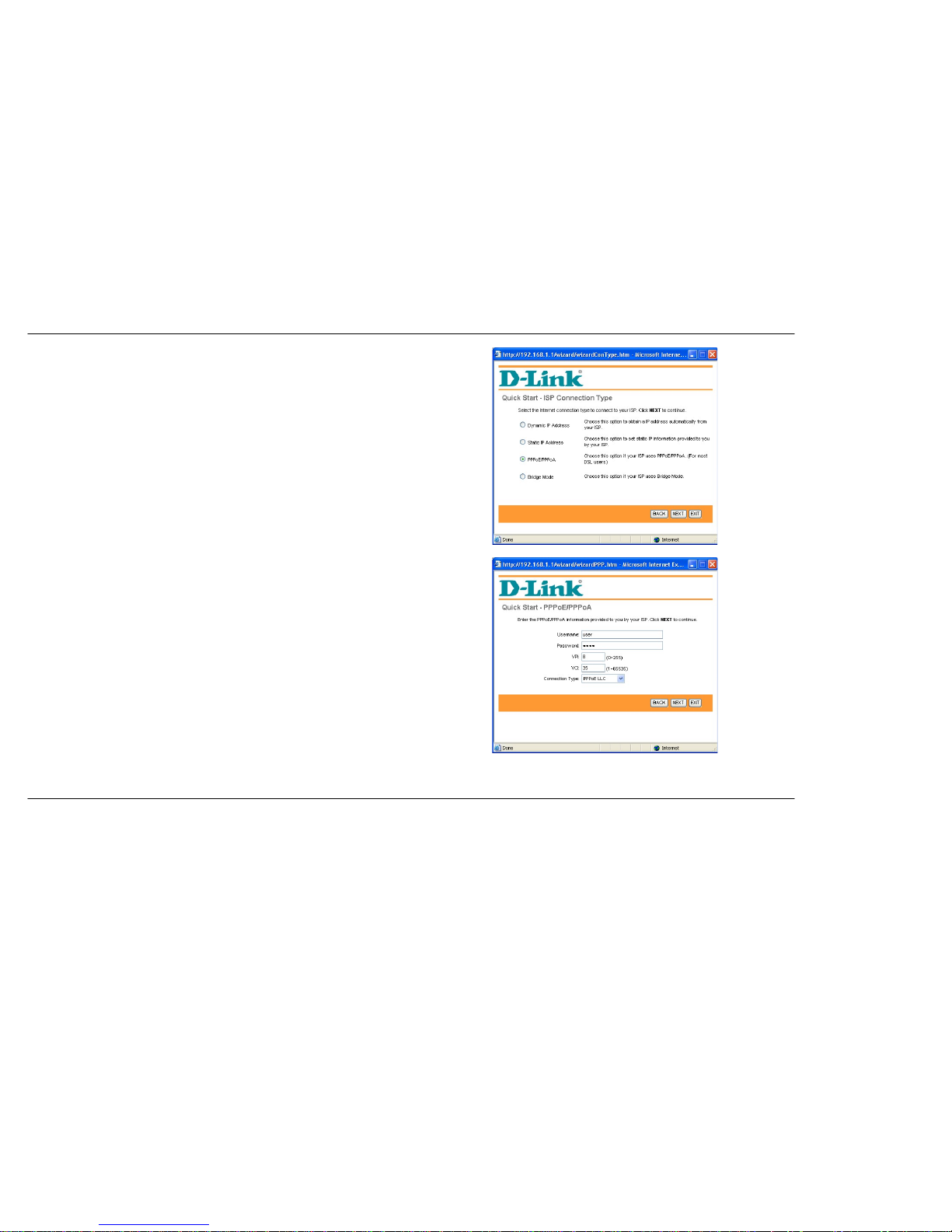

Quick Start Wizard – Select ISP Connection Type
Now select the Connection Type used for the Internet connection. Your
ISP has given this information to you. The connection types available are
Dynamic IP Address, Static IP Address,PPPoE/PPPoA, and Bridge
Mode. Each connection type has different settings that are configured in
the next Quick Start Wizard window.
Select the Connection Type specific to your service and click Next to go
to the next Quick Start Wizard window. Follow the instructions below for
the type of connection you have selected.
Quick Start Wizard - For PPPoE/PPPoA connections:
1. Type in the Username and Password used to identify and verify
your account to the ISP.
2. If you are instructed to change the VPI or VCI number, type in the
correct setting in the available entry fields. Most users will not need
to change these settings. The Internet connection cannot function if
these values are incorrect.
3. Select the specific Connection Type from the drop-down menu.
The available PPP connection and encapsulation types are PPPoE
LLC, PPPoE VC-Mux, PPPoA LLC, and PPPoA VC-Mux.
4. Click Next to go to the next window and complete the Quick Start
Wizard.

Section 3 – Configuration
D-Link DSL-2640R User Manual 17

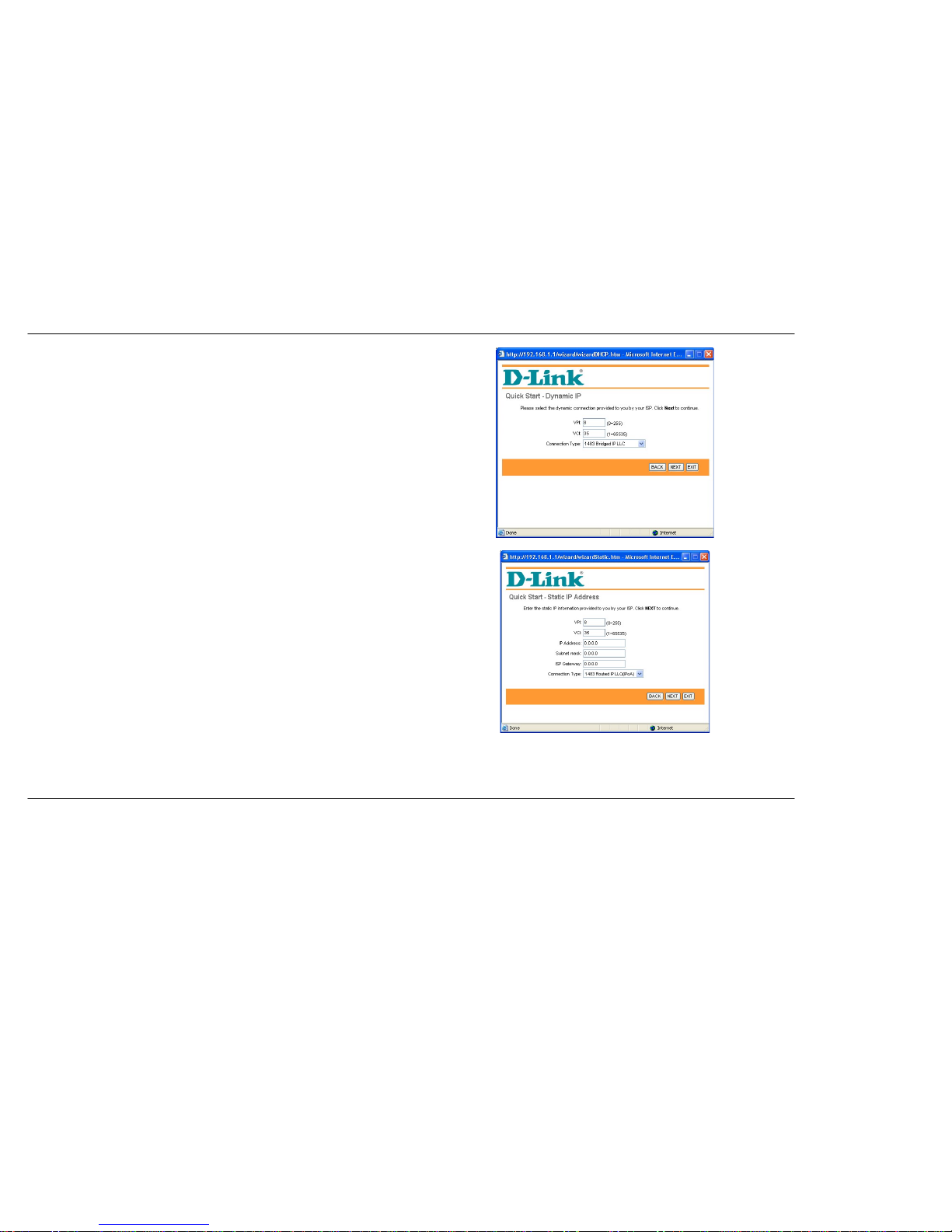

Quick Start Wizard - For Dynamic IP Address connections:
1. If you are instructed to change the VPI or VCI number, type in the
correct setting in the available entry fields. Most users will not need
to change these settings. The Internet connection cannot function if
these values are incorrect.
2. Select the specific Connection Type from the drop-down menu.
The available Dynamic IPAddress connection and encapsulation
types are 1483 Bridged IP LLC, 1483 Bridged IP VC-Mux,1483
Routed IP LLC (IPOA), and 1483 Routed IP VC-Mux.
3. Click Next to go to the next pop-up window and complete the Quick
Start Wizard.
Quick Start Wizard - For Static IP Address connections:
1. If you are instructed to change the VPI or VCI number, type in the
correct setting in the available entry fields. Most users will not need
to change these settings. The Internet connection cannot function if
these values are incorrect.
2. Change the IP Address, Subnet Mask, and ISP Gateway as
instructed by your ISP.
3. Select the specific Connection Type from the drop-down menu.
The available Static IP Address connection and encapsulation
types are 1483 Bridged IP LLC, 1483 Bridged IP VC-Mux,1483
Routed IP LLC (IPoA),and 1483 Routed IP VC-Mux.
4. Click Next to go to the next window and complete the Quick Start
Wizard.
