Contents
4
4
4
4
5
6
7
7
7
8
8
9
10
13
14
15
17
18
18
20
24
31
32
33
1. What is MP3?
2. D-Link MP3 Player
A. Feature
B. System Requirements
3. Contents
4. Looking at the MP3 Player
5. Basic Operation
A. Power-On / Stop / Power Off
B. HOLD
C. Insert / Eject Memory Card
D. LCD Display
E. Battery
F. MP3 File Playback
G. Voice Recording
H. Delete File
I. Player Information
J. Others
6. How to install CD and use S/W
A. How to install CD D-Link Manager
B. How to install D-Link Voice Driver
C. How to use S/W
7. Specifications
8. Cautions
9. Trouble Shooting

1
What is MP3 ?
MP3(MPEG Layer III) is the most popular audio
compression format that creates highly compressed files
without loss of audio quality. All kind of sound from voice
to music can be compressed to be very small MP3 files
which can be easily decoded and stored in any storage
devices such as Flash Memory, CD, HDD and Floppy
Discs.
2
D-Link MP3 Player
- Compact and Light
- Playback MP3 files
- Voice recording available
- 32MB Built-In Flash Memory
- Memory Expandable up to 64MB
- No Sound Interruption by moving
- Support DigiCap
®
(Digital Capsule Audio) for Copy
Right Protection
1. MS Windows 95 or higher
2. CD-ROM Drive
3. 486 CPU or higher
4. Available Memory of 16MB or more
5. Available Hard Disc of 20MB or more
Features
A
System Requirements
B
... 4

3
Contents

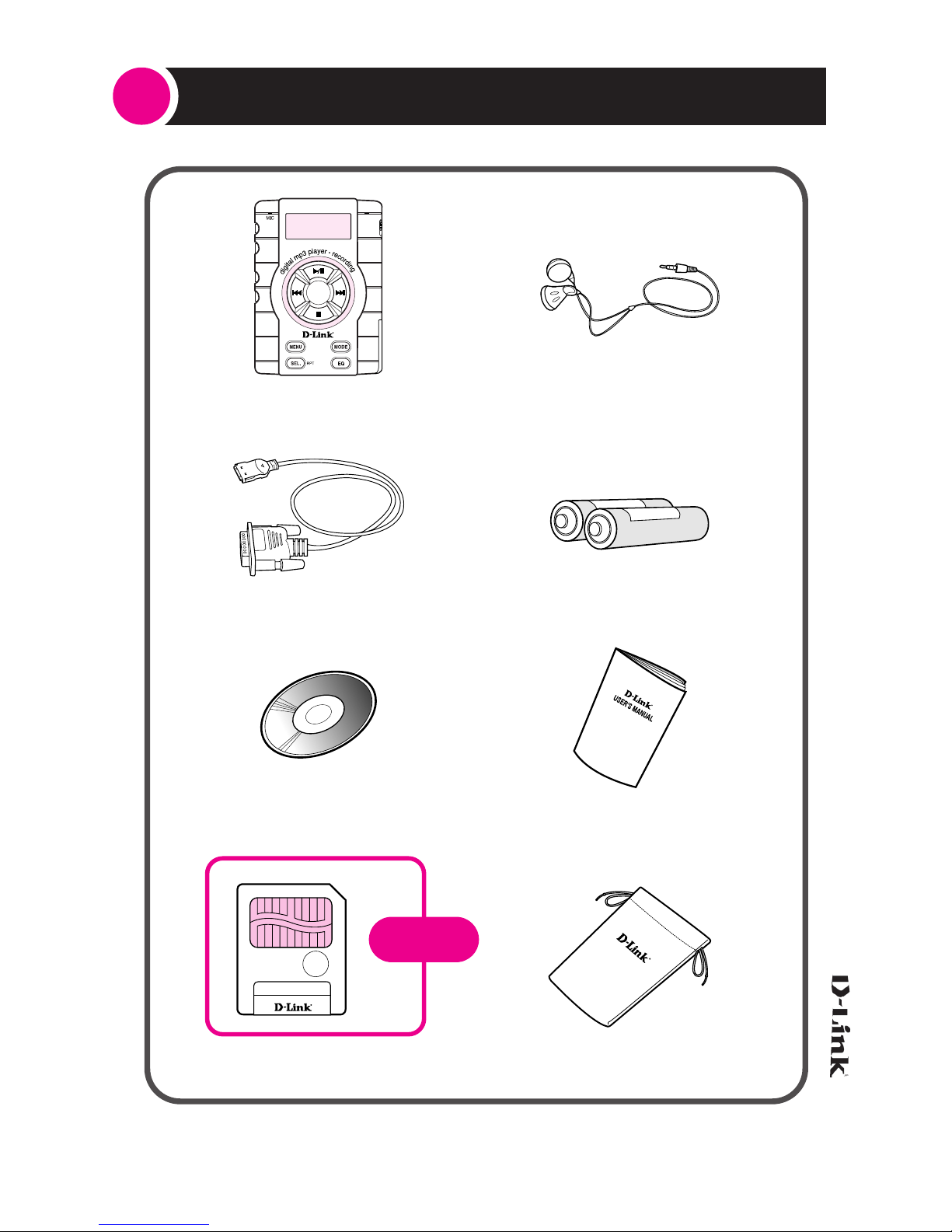

MP3 Player Earphone
Data Cable Two AAA Batteries
Software CD Manual
Memory Card Case
Option
... 5

4

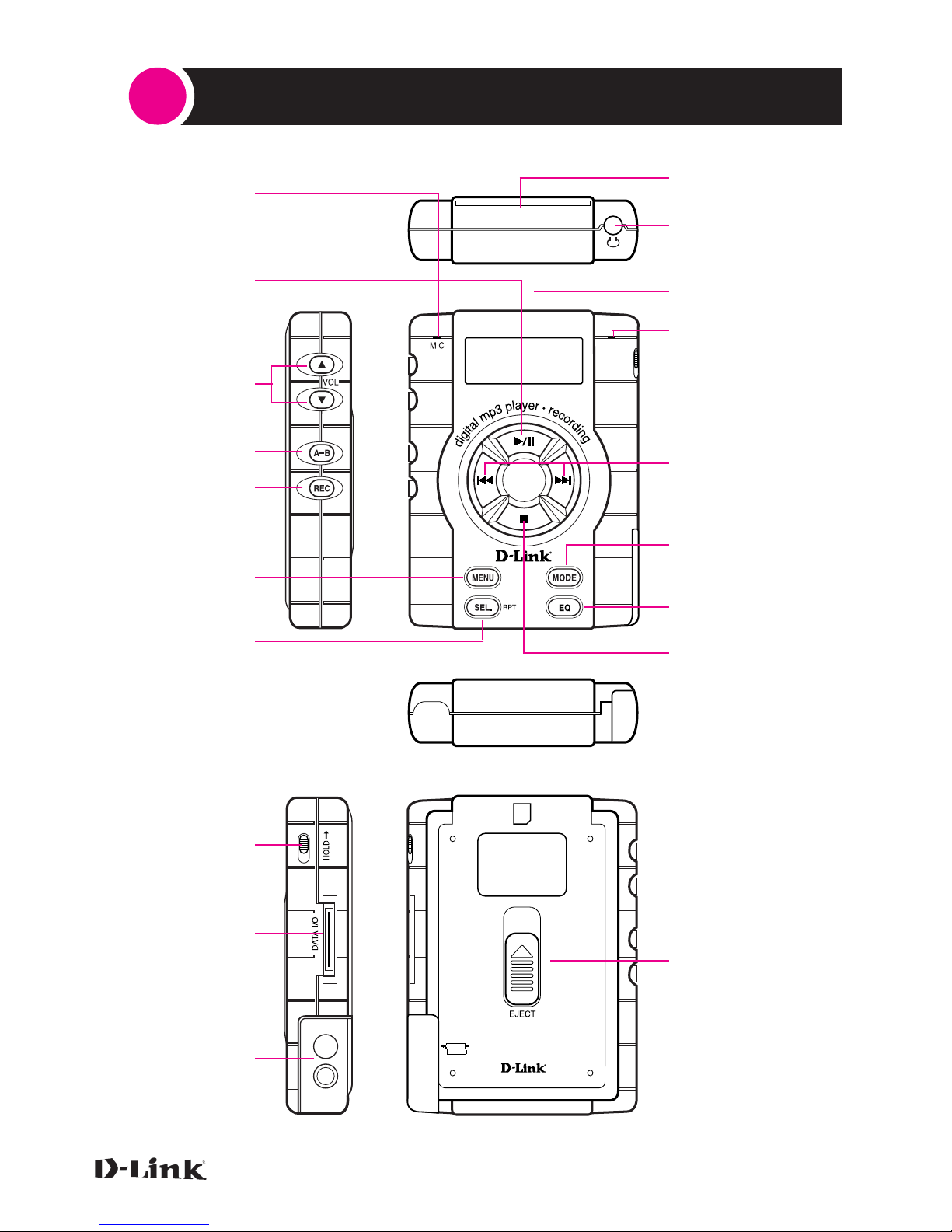

Looking at the MP3 Player
Memory Card I/O
Earphone
LCD
LED
Power ON
Play / Pause
MIC
Volume
A-B
Record
Menu
Select / Repeat Stop/Power OFF
Previous /
Next ( Rewind / Fast Forward )
Mode
Equalizer
Hold Key
Data I/O Port
EJECT
Battery Cover
... 6

HOLD
5
Basic Operation

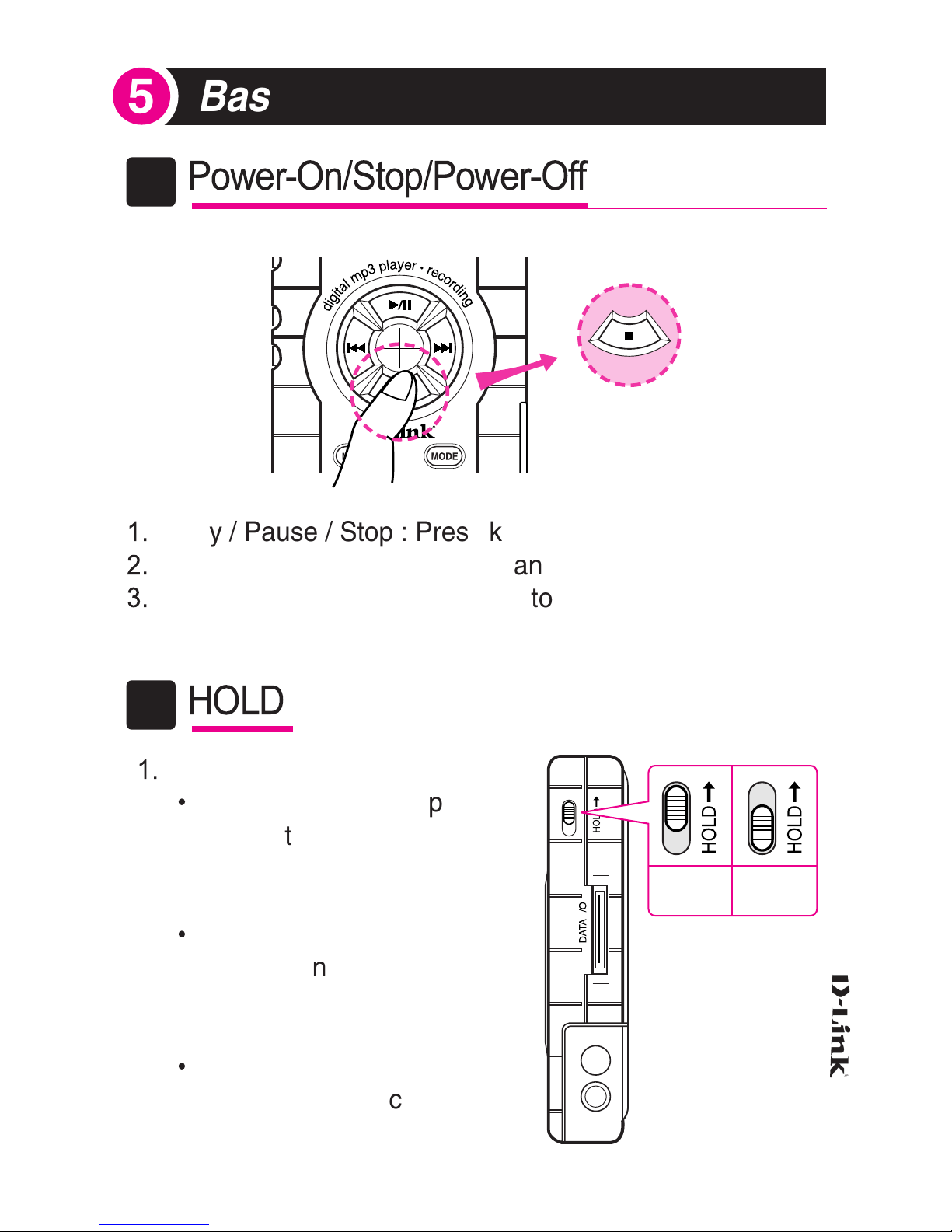

Power-On/Stop/Power-Off
A
1. Play / Pause / Stop : Press key one second
2. Power off : Press key more than two seconds
3. On stop status, the power is automatically off after
60 seconds.
1. Hold Position
• On power-off status, press
the function key
RESULT : All function key
disable
• On power-on status, press
the function key
RESULT : “-HOLD-”display
on LCD
• Hold release position
RESULT : All function key
enable
B
HOLD
Position
HOLD
Release
Position
... 7

Insert/Eject Memory Card
C

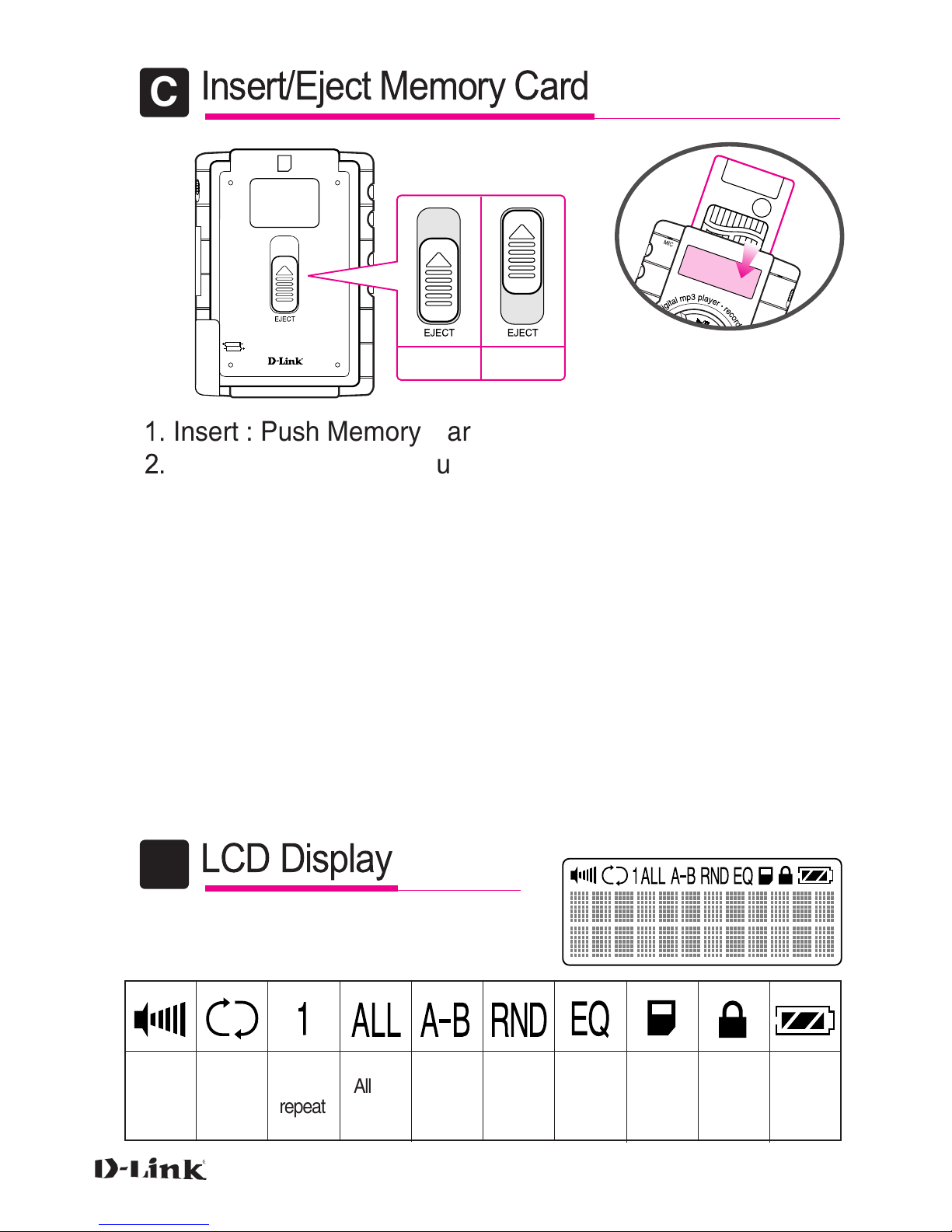

1. Insert : Push Memory Card into card holder
2. Eject : Slide eject key upside and pull out the card
* We recommend that you do not use with our D-Link MP3 Player
the SmartMedia cards which are used in PC or digital cameras.
D-Link MP3 Player and D-Link manager would allow those
SmartMedia to be formatted for use with D-Link player.
However, because the file format used by D-Link MP3 Player is
not compatible to SmartMedia format standard, SmartMedia once
formatted to D-Link MP3 Player is not recognized any more by
PC card adaptors or digital cameras. Furthermore, all the previosly
stored data are also erased upon formatting. Yon should understand
the said issues in using SmartMedias not provided by our company
and take your own responsibility for the problems caused by it.
Memory Card
Insert position
Memory Card
Eject position
LCD Display
D
Sound
Volume Repeat One file repeat
All file
repeat
A-B
Session
repeat
Random
Repeat
Equalizer Memory
Card Hold Battery Level
*Use only 3.3V
memory card.
... 8

Battery
E

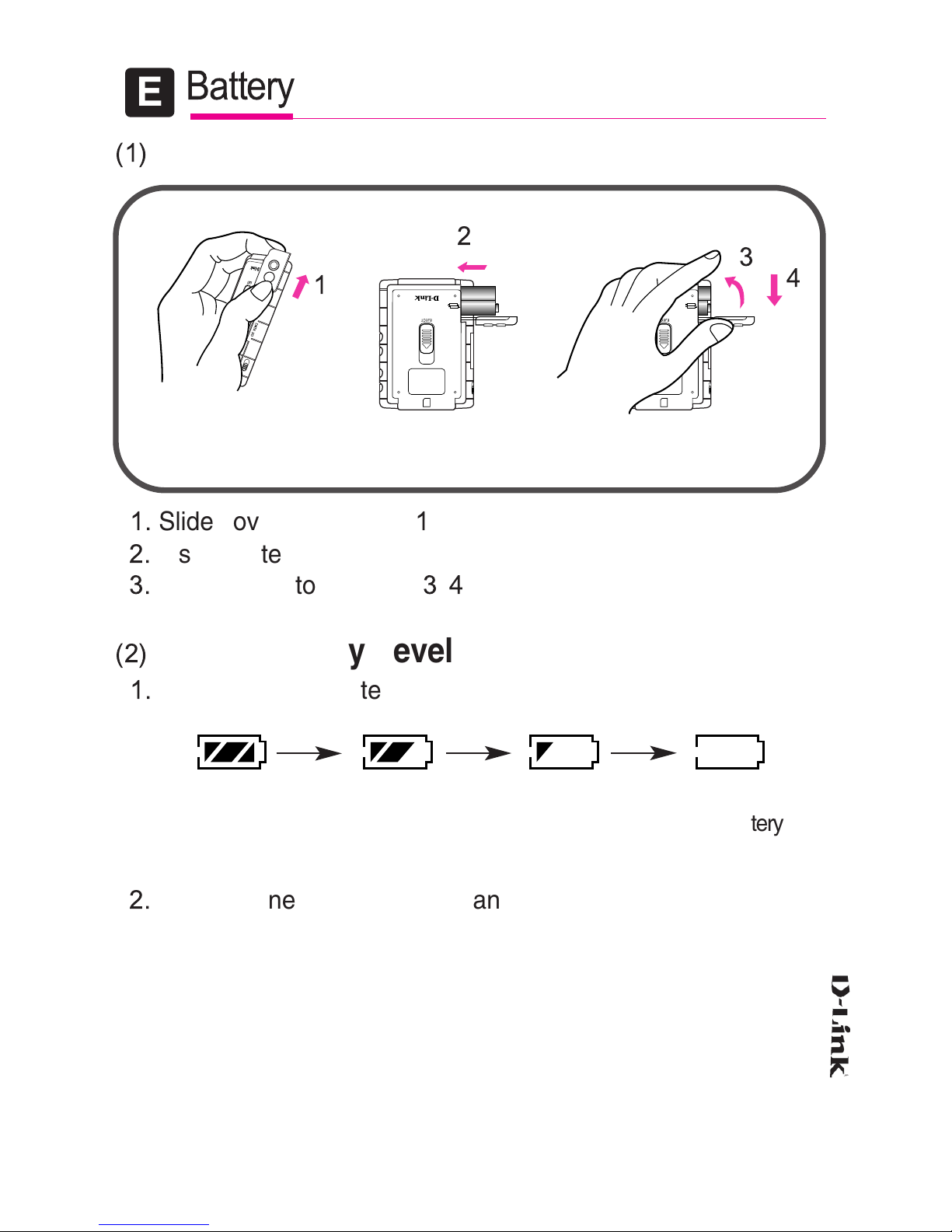

1. Slide cover to direction 1 to open
2. Insert battery making sure +/- side
3. Close cover to direction 3 , 4
(2)
Check Battery Level
1. Battery icon indicates the battery level as follows.
Two 1.5V AAA batteries
1
2
4
3
(Full) (Empty)
Need battery
change
(1) Change Battery
2. Two alkaline AAA batteries can last 10 hours on MP3 play
mode (Tested with Duracell MN 2400 B4D).
Recommendation : Change two batteries together at
the same time
... 9

3. No MP3 file in memory
4. No Voice file in memory
2. Power - Off : Press key more than 2 seconds on
stop mode
• Display following

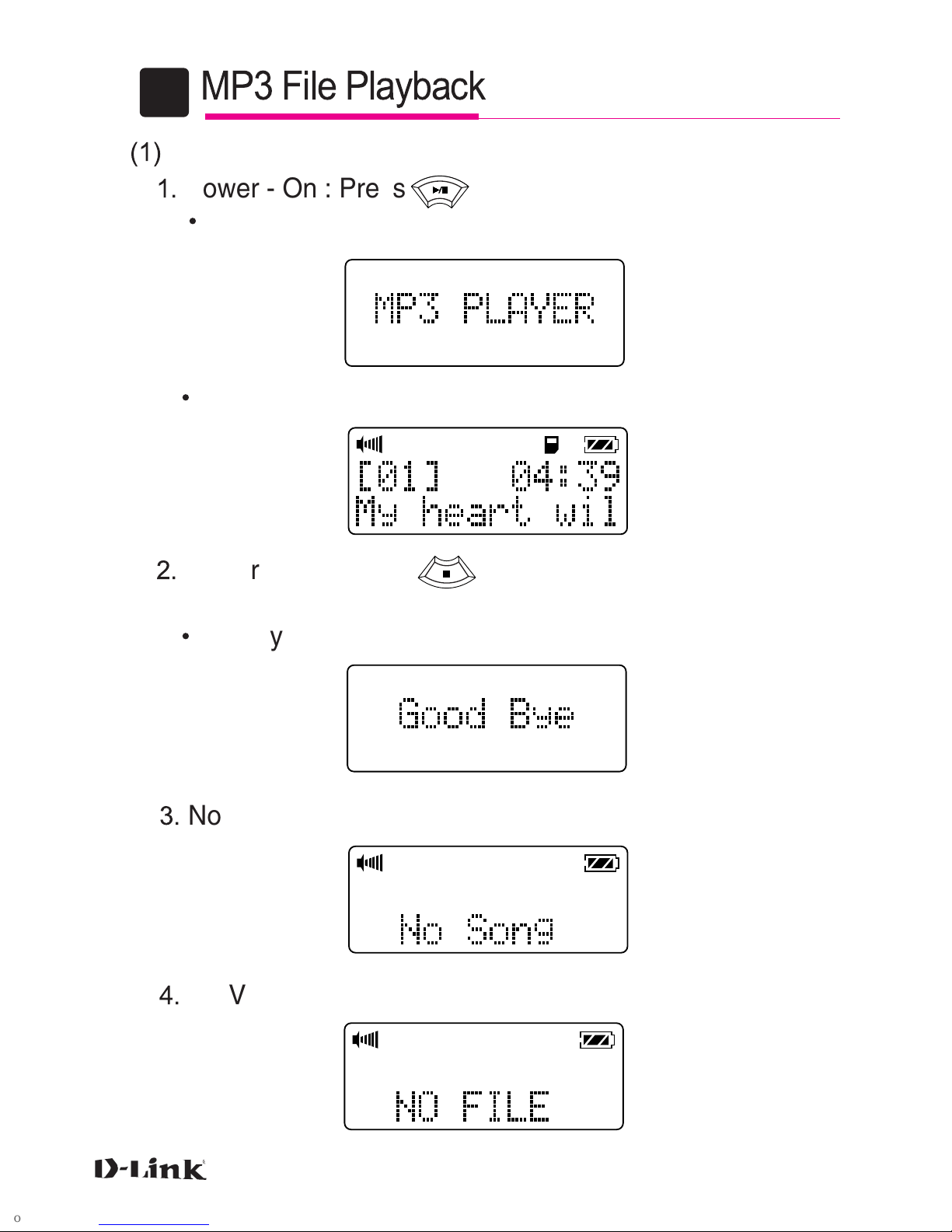

MP3 File Playback
F
(1) Start
1. Power - On : Press key more than one second.
• Display following
• Go to last system mode
... 10

3. Search
• Press Fast Forward / Backward key to Search
4. Title Display
• Title of the file display
• Title more than 12 characters scrolls on LCD
5. Repeat
• Press key
•
: Repeat one file
: Repeat all file
: Playback one time in random order
: All file repeat in random order
(2) MP3 Mode

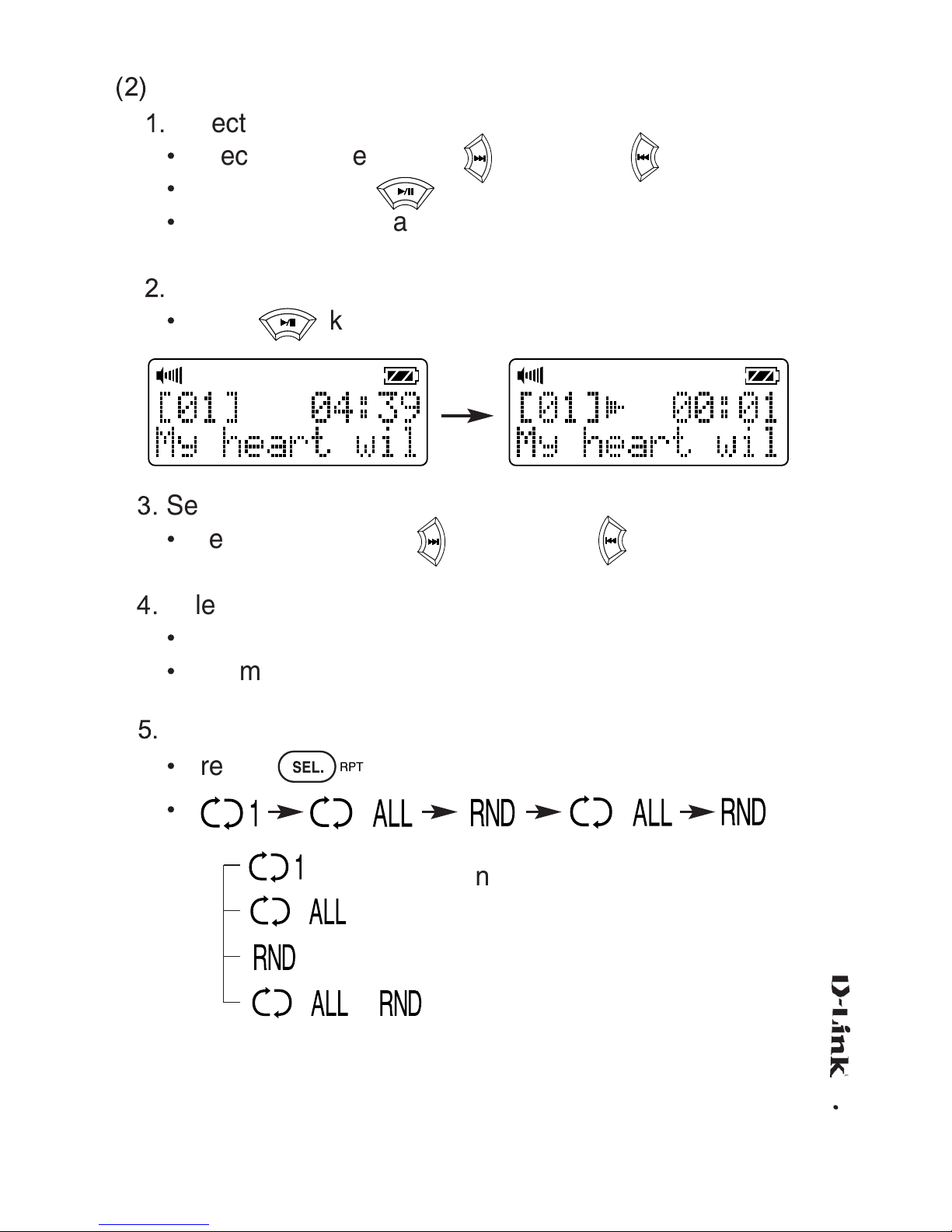

1. Select File
• Select File : Press Next / Previous
• Play : Press the key
• Select MP3 file enable.
2. Play
• Press key
... 11

8. Equalizer
• Press key
• Equalizer has 5 modes
• After EQ mode select,
LCD automatically
back to MP3 mode
7. Change Mode
• Press key
• Display change follows

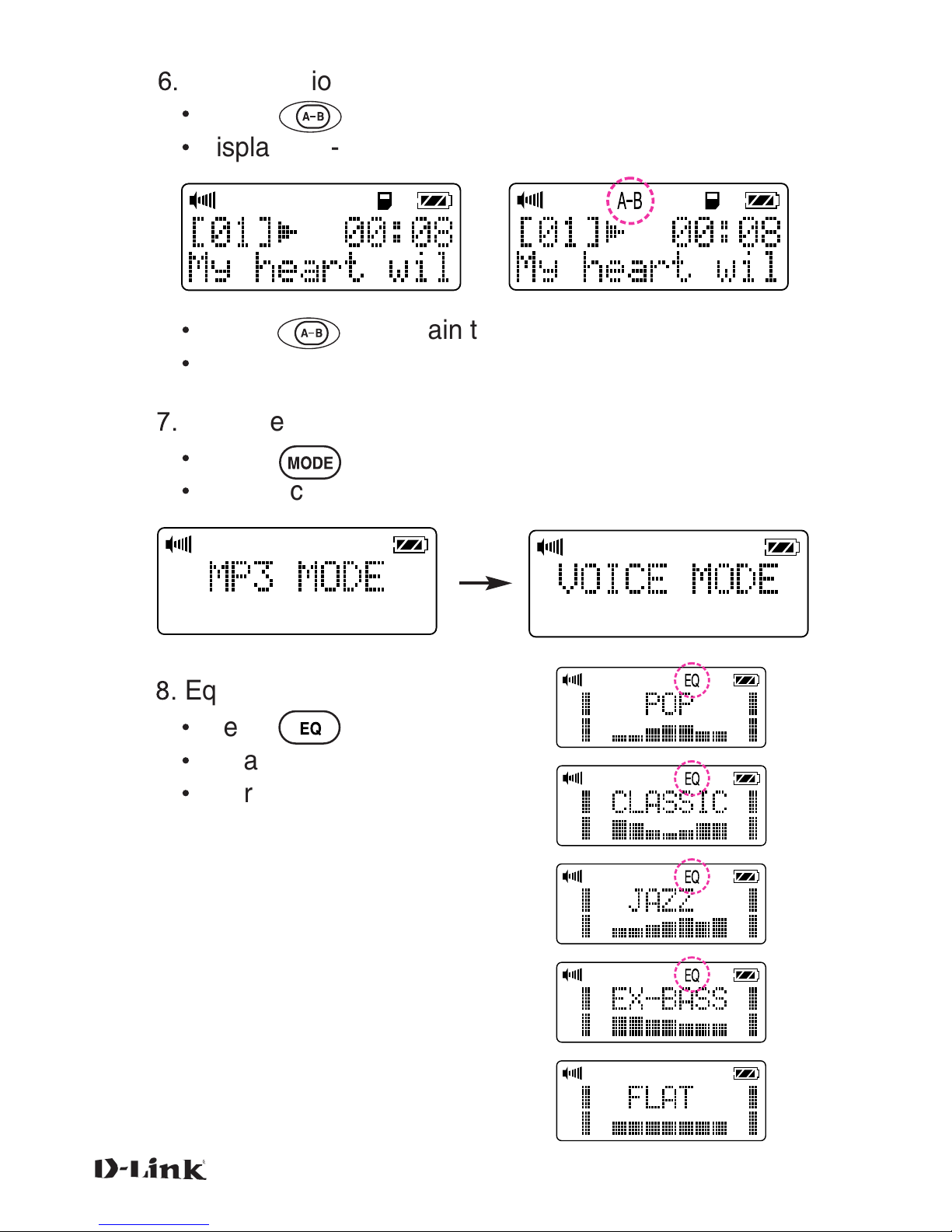

6. A-B (Session) Repeat (On play mode)
• Press key
• Display “A - ” , “ B ” is blink
• Press key again to fix session
• Session repeat to play
... 12

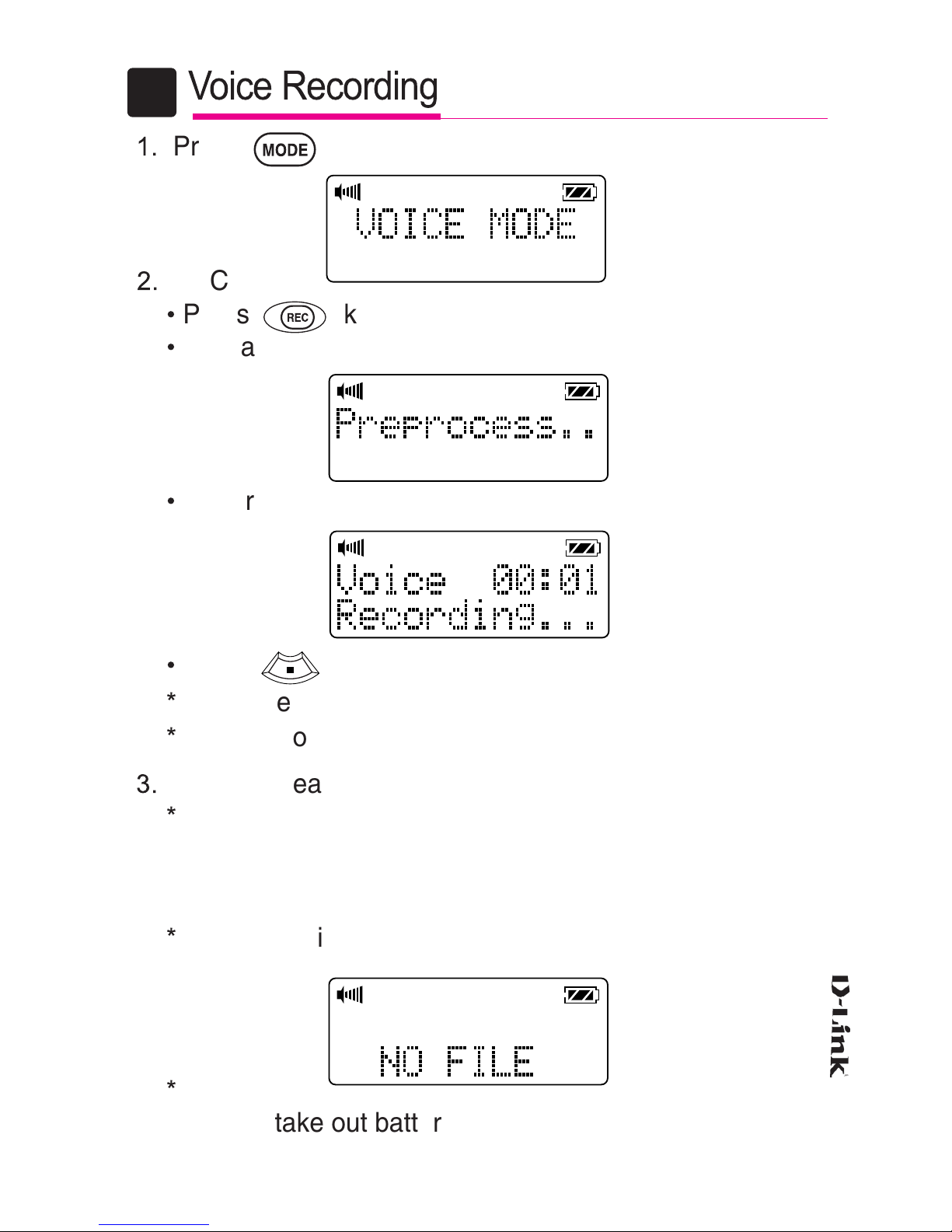

1. Press key to select voice mode
2. REC
• Press key
• Display as follows
• Start recording
• Press to finish record
* During record, time is displayed and LED lamp blinks
* Voice recording availabe up to 99files.
3. Play / Repeat : Same as MP3 Play
* If memory is full, “Memory Full” is displayed and
stopped automatically.
In this case, upload the file to PC and initialize the
memory or change to new memory card.
* If no voice file inside memory, display as follows
Voice Recording
G
* Caution
Do not take out batteries while recording, it way
damage memory
... 13

2. File Delete
• Press to select file
• Press key

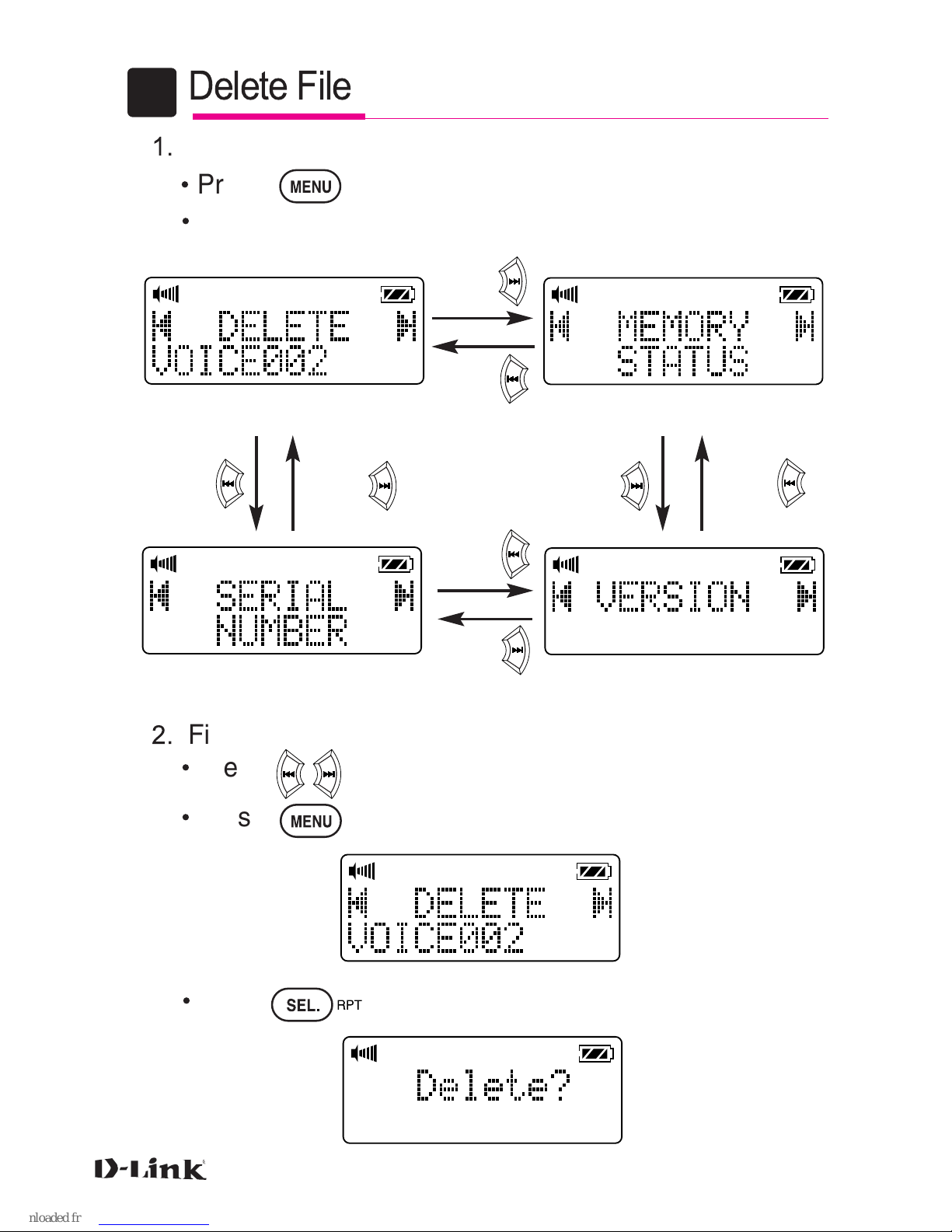

1. Menu
• Press key to select MENU
• Display as follows
File Delete
Press
Press
Check Memory
Check Serial Number Check Version
• Press key
Press
Press
Press
Press
Press Press
Delete File
H
... 14

• If yes, press key
• If no, press and return to initial mode

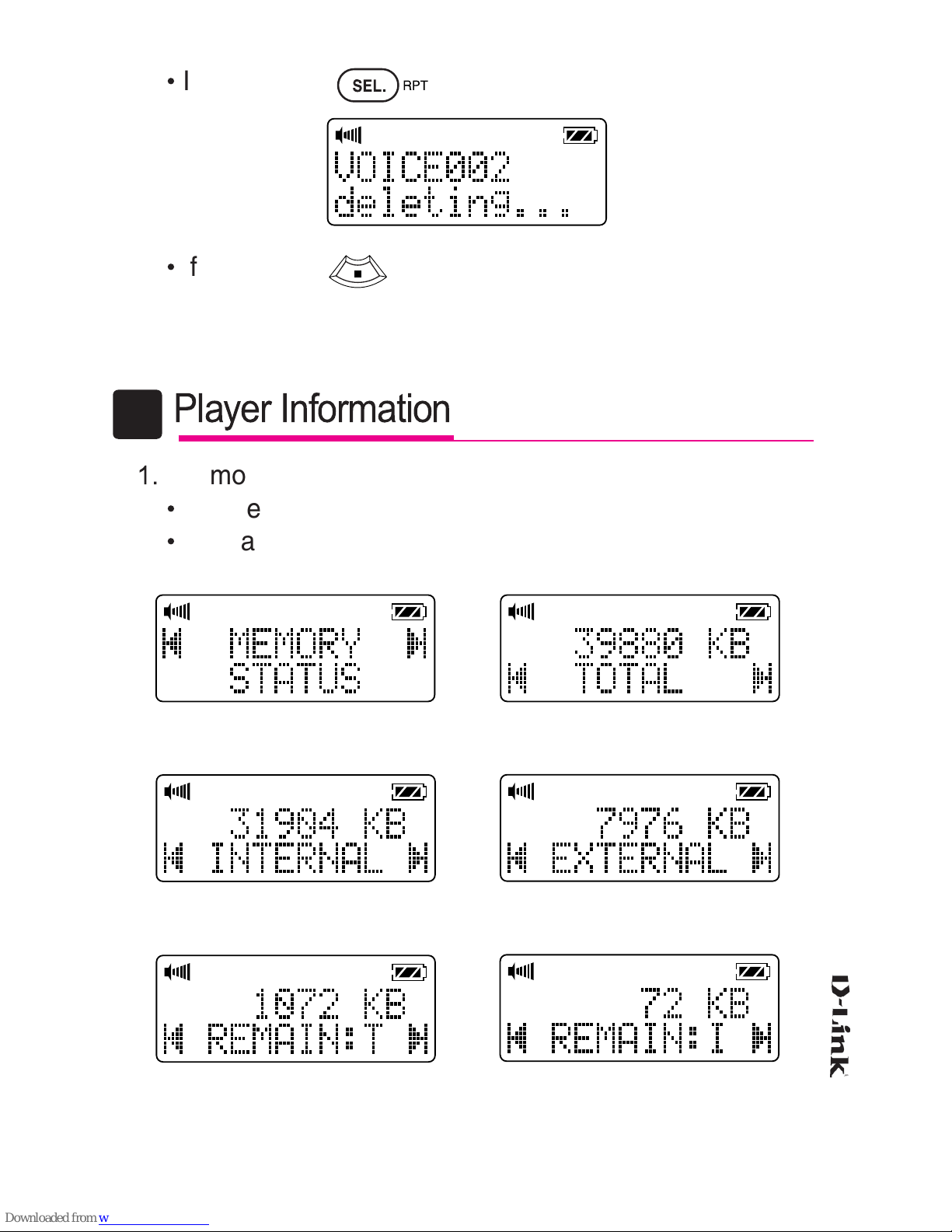

1. Memory Status
• On menu, select memory status.
• Display as follows.
Display Memory Status Display total memory
Display internal memory Display external memory
Display remain / total Display remain / internal
Player Information
I
... 15

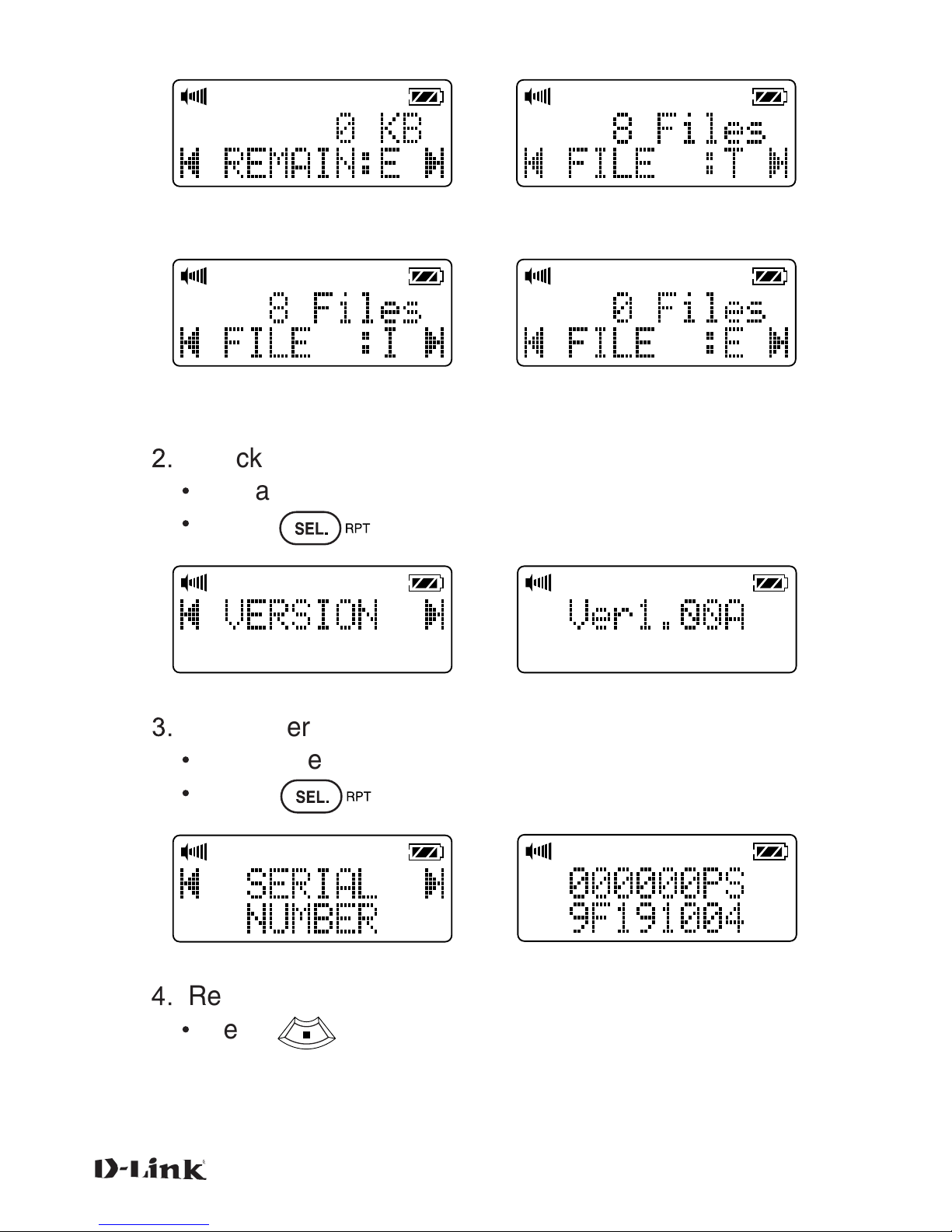

4. Return to Initial Mode
• Press key
2. Check Version
• Display Version
• Press key
Display internal files Display external files
3. Check Serial Number
• Display Serial Number
• Press key
Display remain / external Display total files
... 16

2. Volume Control
• Control sound volume : Press key
• Volume level : From 1 to 30 level

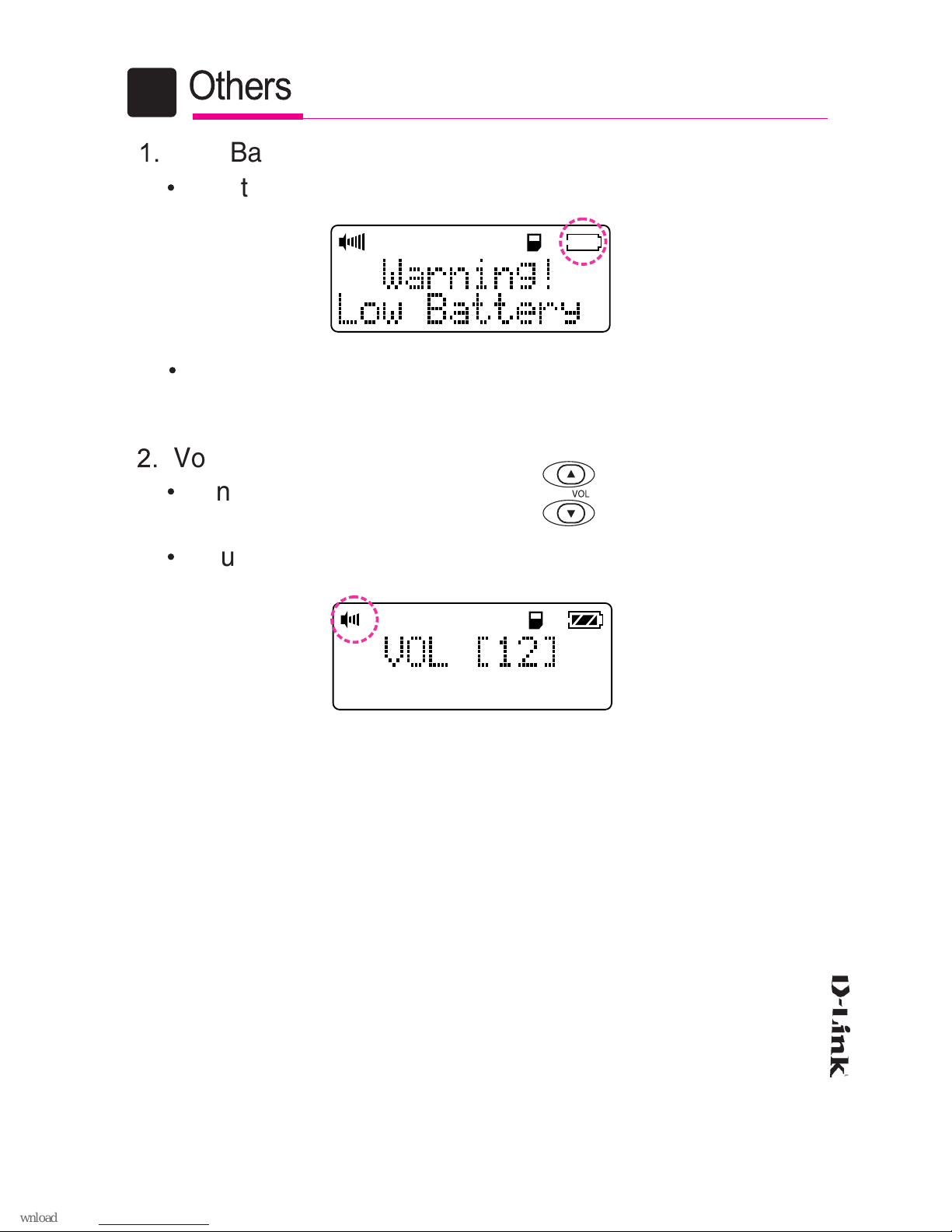

1. Low Battery Warning
• If battery level is low, warning is displayed
• After a while, save the current status and
automatically power off.
Others
J
... 17

6
How to install and use S/W

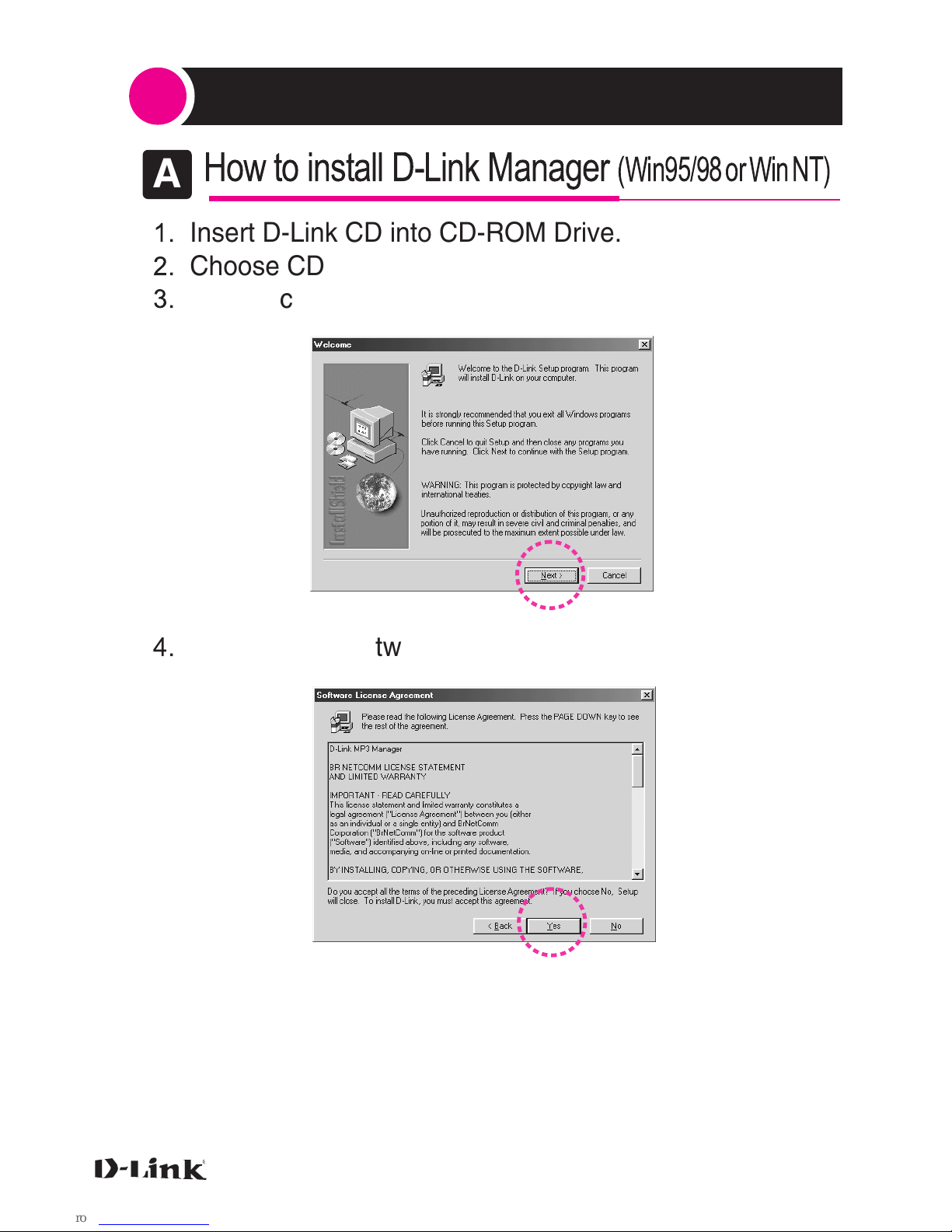

How to install D-Link Manager (Win95/98orWinNT)
A
1. Insert D-Link CD into CD-ROM Drive.
2. Choose CD-ROM Drive and D-Link Manager
3. Double click setup to install.
4. Click OK for Software License.
... 18

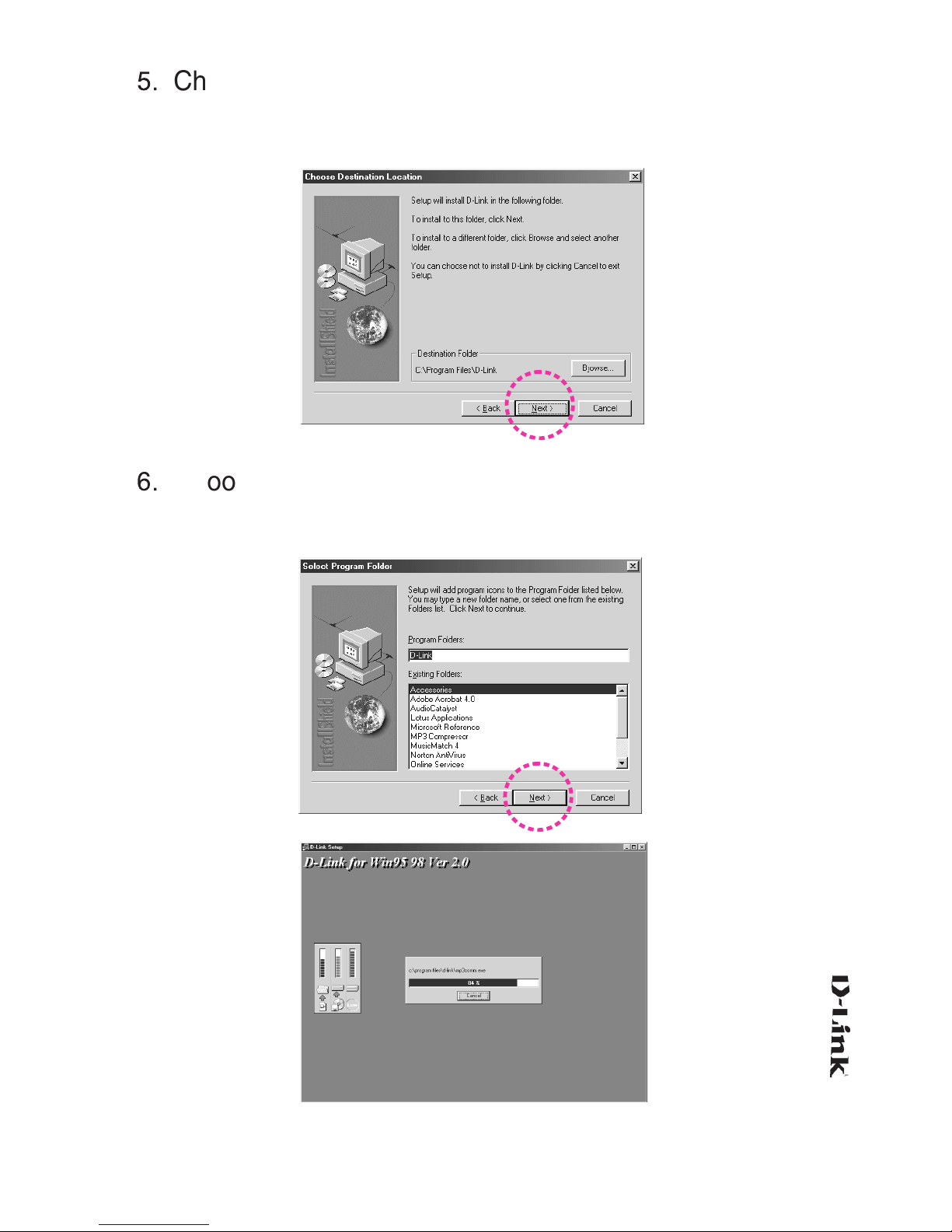

5. Choose directory and click NEXT.
You can make your own directory for installation.
6. Choose program Folder and click NEXT to start
installtion.
... 19

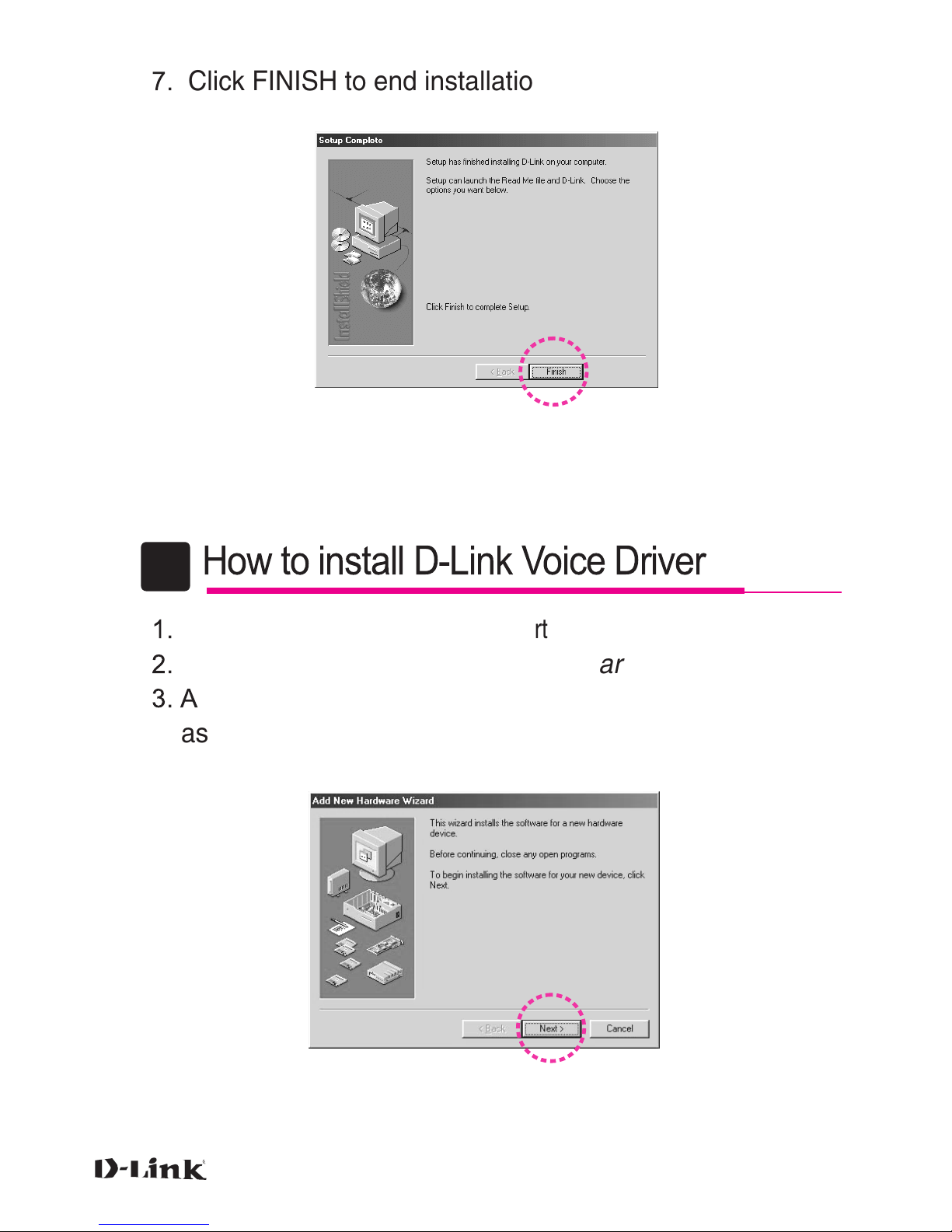

How to install D-Link Voice Driver
7. Click FINISH to end installation.
B
1. Bring up the Control Panel (Start -> Settings -> Control Panel)
2. Double-click on the Add New Hardware icon.
3. A dd New Hardware Wizard will appear,
as shown on Figure 1 :
Figure 1.
... 20

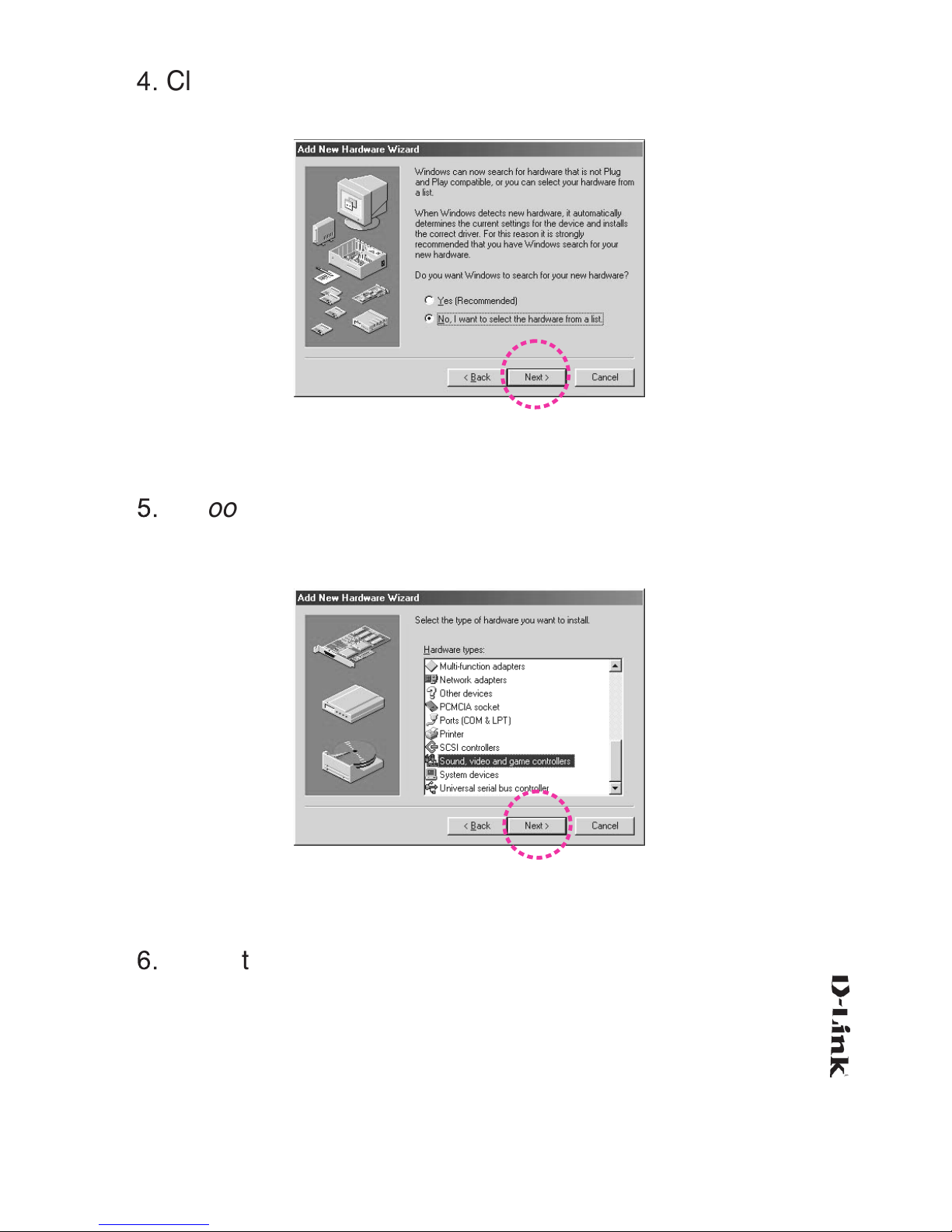

4. Click on Next. Dialog shown on Figure 2 will appear :
5. Choose No, and click on Next again. You should now
see the Dialog shown on Figure 3 :
Figure 3.
6. From the Hardware Types list select Sound, video and
game controllers type, and click on Next (you will
probably have to scroll down the list in order to see the
desired type). Dialog shown on Figure 4 should appear :
Figure 2.
... 21

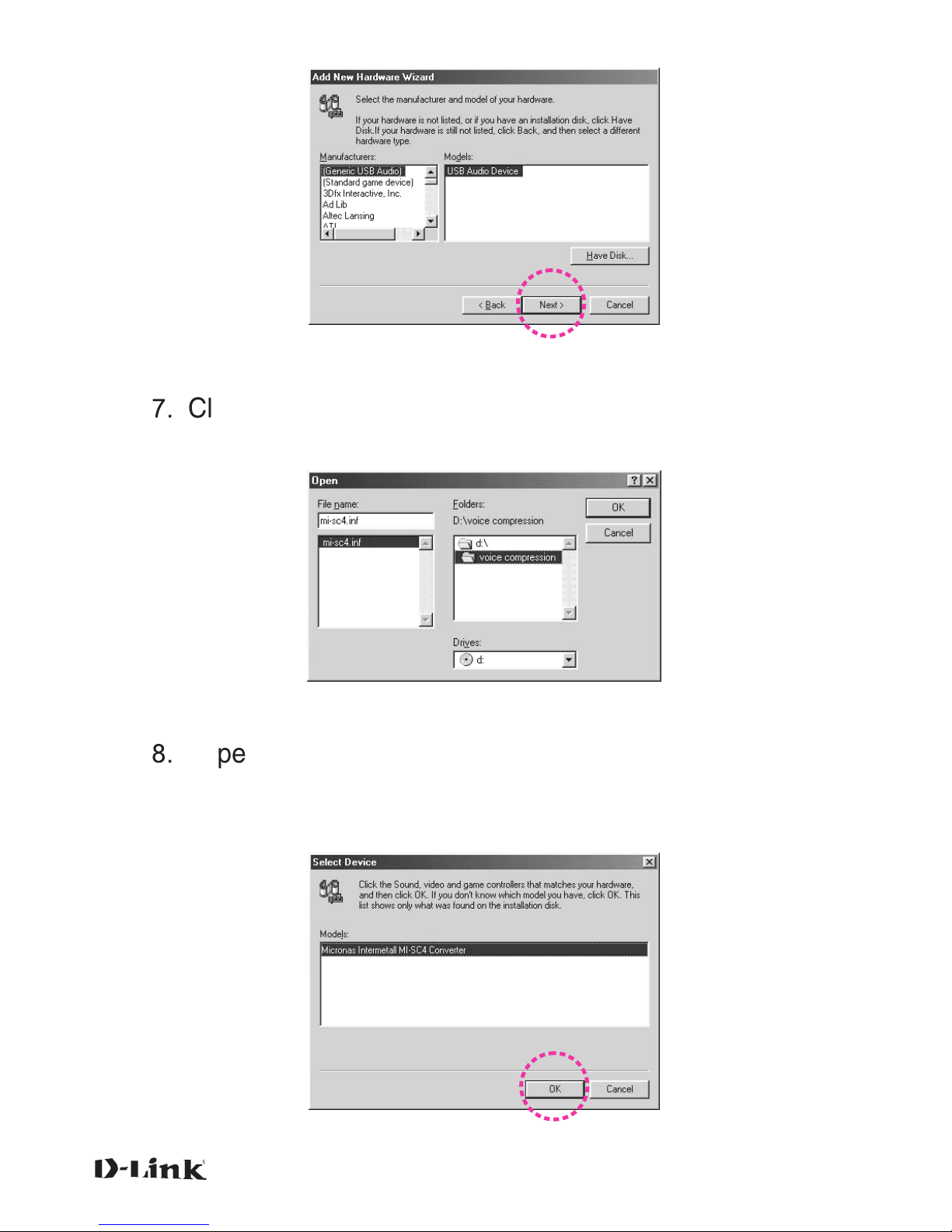

7. Click on Have Disk button and the following Dialog
should appear :
Figure 5.
8. Type the path to installation disk in the Copy Manufacturer’s
files from combo box, or use Browse button. Then click
on OK. The dialog shown on Figure 6 should appear :
Figure 6.
Figure 3.
