D-Link DIR-410 User manual

1
D-Link
DIR-410
M2M 3G VPN Router
User Manual

2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.

3
TABLE OF CONTENTS
COPYRIGHT......................................................................................................................... 2
FCC INTERFERENCE STATEMENT................................................................................... 2
CHAPTER 1. INTRODUCTION ............................................................................................ 4
1.1 PACKAGE LIST.............................................................................................................. 4
1.2 HARDWARE INSTALLATION ....................................................................................... 4
CHAPTER 2. GETTING STARTED...................................................................................... 8
2.1 EASY SETUP BY WINDOWS UTILITY.......................................................................... 8
2.2 EASY SETUP BY CONFIGURING WEB PAGES........................................................ 16
CHAPTER 3. MAKING CONFIGURATION........................................................................ 21
3.1 BASIC SETTING........................................................................................................... 21
3.2 FORWARDING RULES................................................................................................ 40
3.3 SECURITY SETTING.................................................................................................... 43
3.4 ADVANCED SETTING ................................................................................................. 59
3.5 TOOL BOX.................................................................................................................... 66
CHAPTER 4. TROUBLESHOOTING ................................................................................. 70
APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 74
APPENDIX B. LICENSING INFORMATION...................................................................... 75

4
CHAPTER 1. Introduction
Congratulations on your purchase of this outstanding product: DIR-410 M2M 3G VPN Router. This
product is specifically designed for Office needs. It provides a complete solution for Internet surfing,
3G backup, and VPN tunneling. Instructions for installing and configuring this product can be
found in this manual. Before you install and use this product, please read this manual carefully for
fully exploiting the functions of this product.

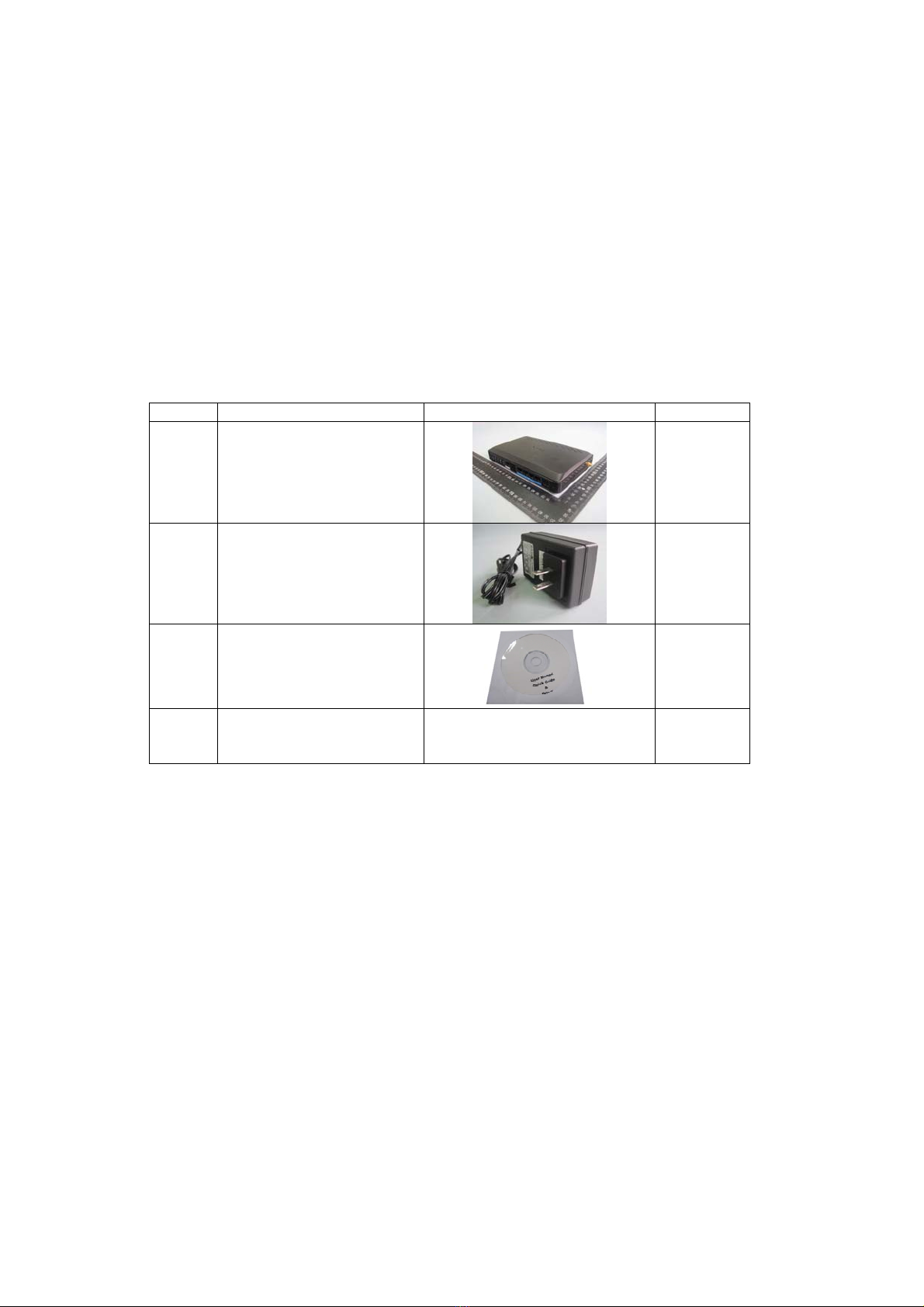

1.1 Package List
Items Description Contents Quantity
1 M2M 3G VPN Router 1
2
Power adapter 12V 2A 1
3
CD
1
1.2 Hardware Installation

5

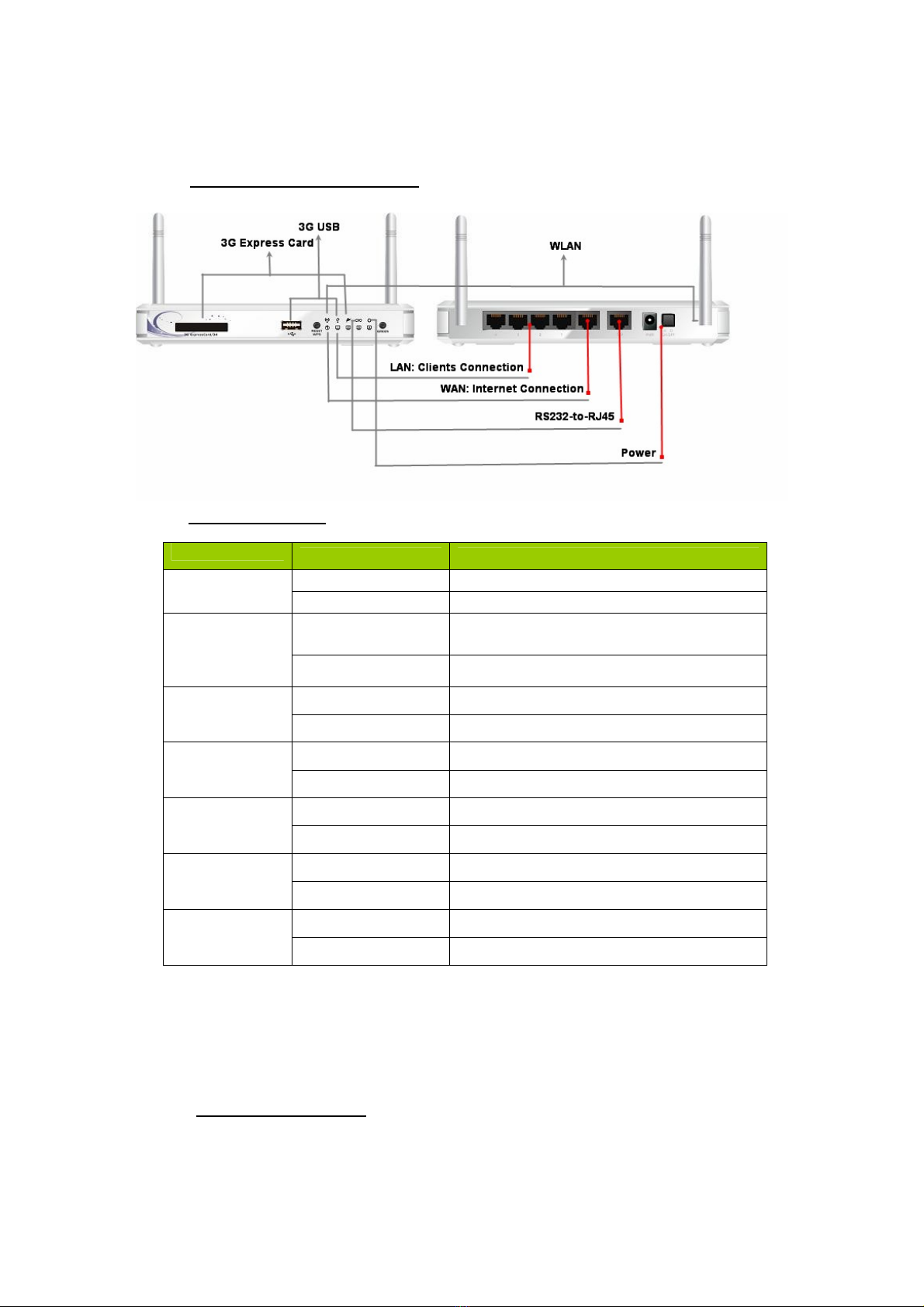

1.2.1 Hardware configuration
1.2.2 LED indicators
LED color Description
WAN Green It is connected to Internet.
Green in flash Data access
LAN Green RJ45 cable is plugged, and Ethernet
connection is established.
Green in flash Data access
WLAN Green WiFi is on.
Green in flash Data access
3G USB Amber 3G/3.5G is on.
Amber in flash Data access
3G Express
Card Amber Connection established
Amber in flash Data access
RS232 Amber Serial port connection established
Amber in flash Data access
Power Green in flash Normal mode (The power is on.)
Green in fast flash Reset mode

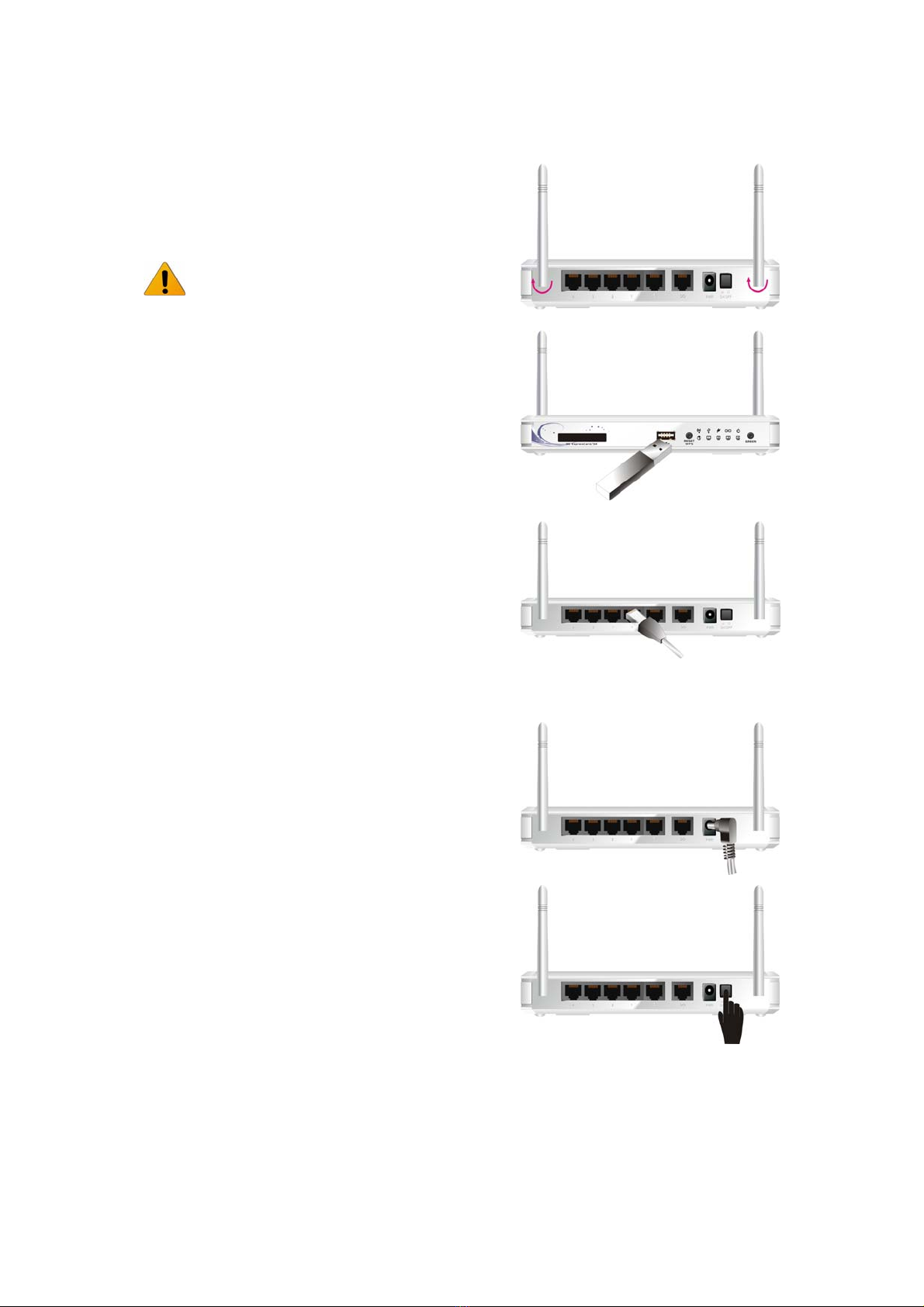

1.2.3 Installation Steps

6
Step 1. Attach the antenna:
Screw the antenna in a clockwise direction to the back
panel of the unit.
DO NOT connect M2M 3G VPN Router to
power before performing the installation
steps below.
Step 2. Insert the 3G USB to the router:
Plug your USB modem which is with activated SIM
card provided by your 3G service provider.
to the USB interface.
Step 3. Connect with the Ethernet patch cable:
Insert the Ethernet cable into RJ45 Ethernet Port on
the back panel. And then plug the other end of RJ45
into the computer or Laptop computer. The LED of
Internet connection will show green color if the
Ethernet connection is normally connected.
Step 4. Connect the power adapter:
Plug the other end of the power adapter into a wall
outlet.
Step 5. Press the power button

7
Step 6. Start to configure the device:
You can start to configure the device via the Easy
Setup.
(see Easy Setup Utility)

8
CHAPTER 2. Getting Started
2.1 Eas
y
Setup b
y
Windows Utilit
y

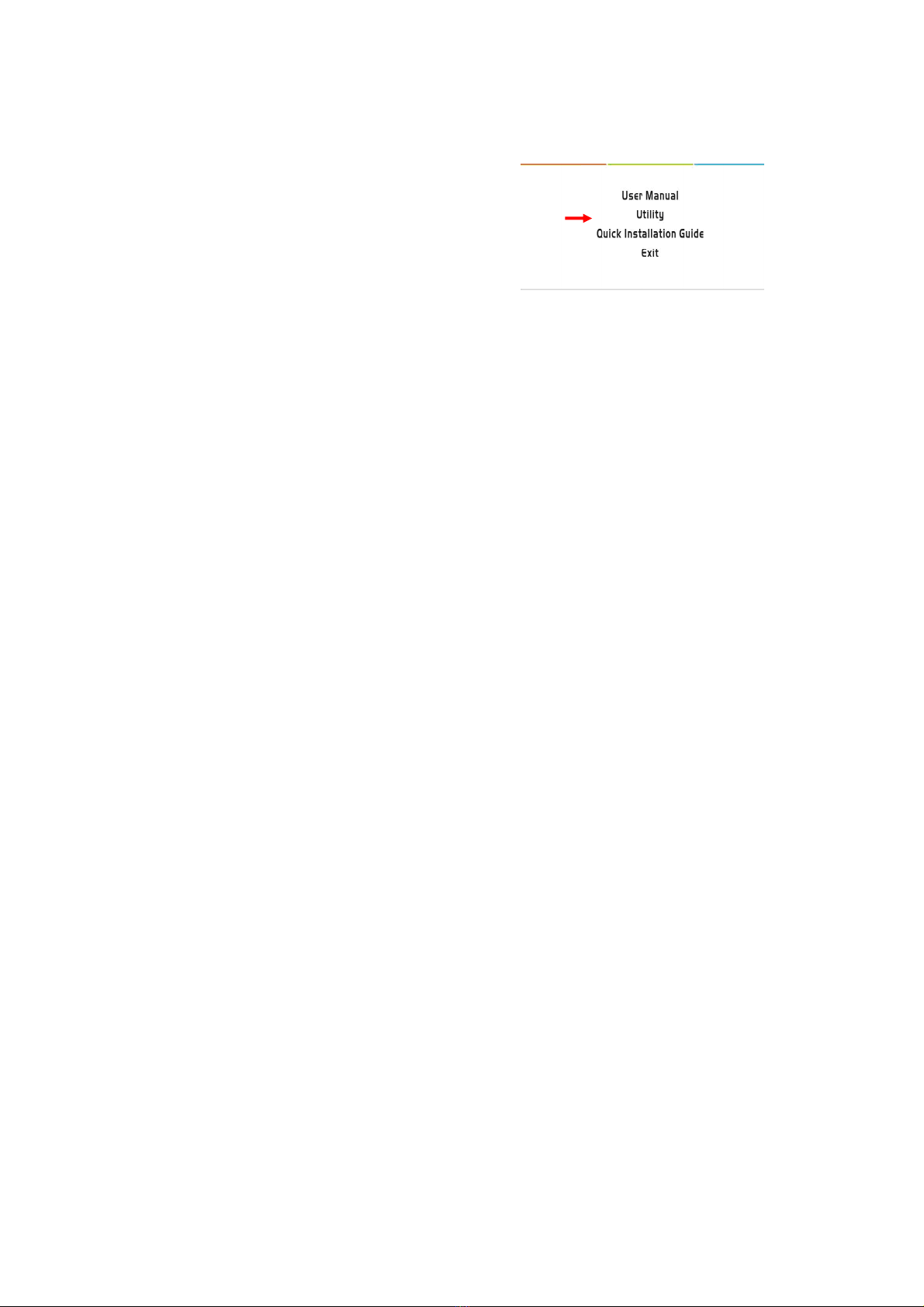

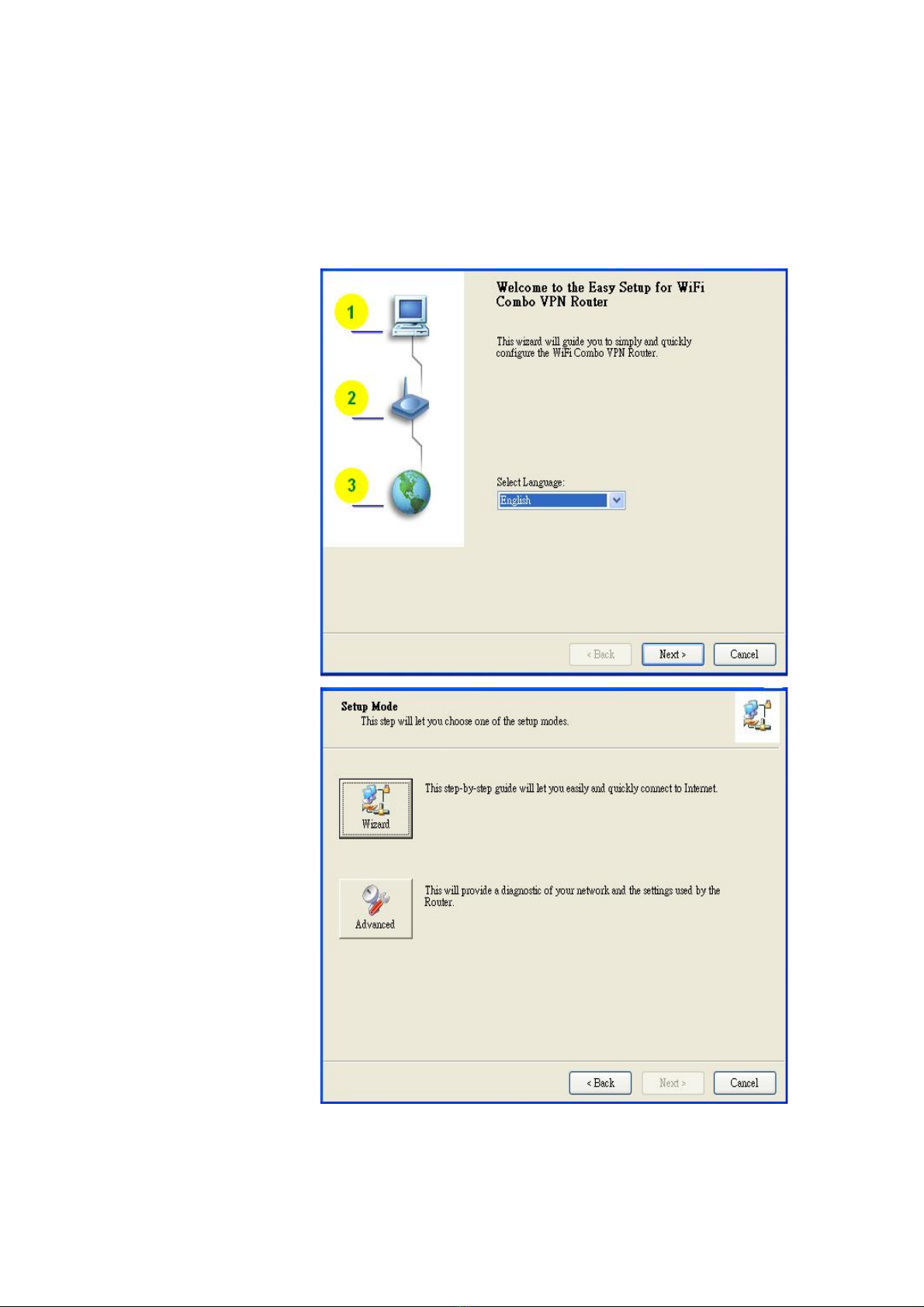

Step 1:
Install the Easy Setup
Utility from CD then
follow the steps to
configure it.
Step 2:
Select Language then
click “Next” to continue.
Step 3:
Then click the “Wizard”
to continue.
Or click “advanced” to
run advanced mode for
more detailed setting.
(See User Manual)

9

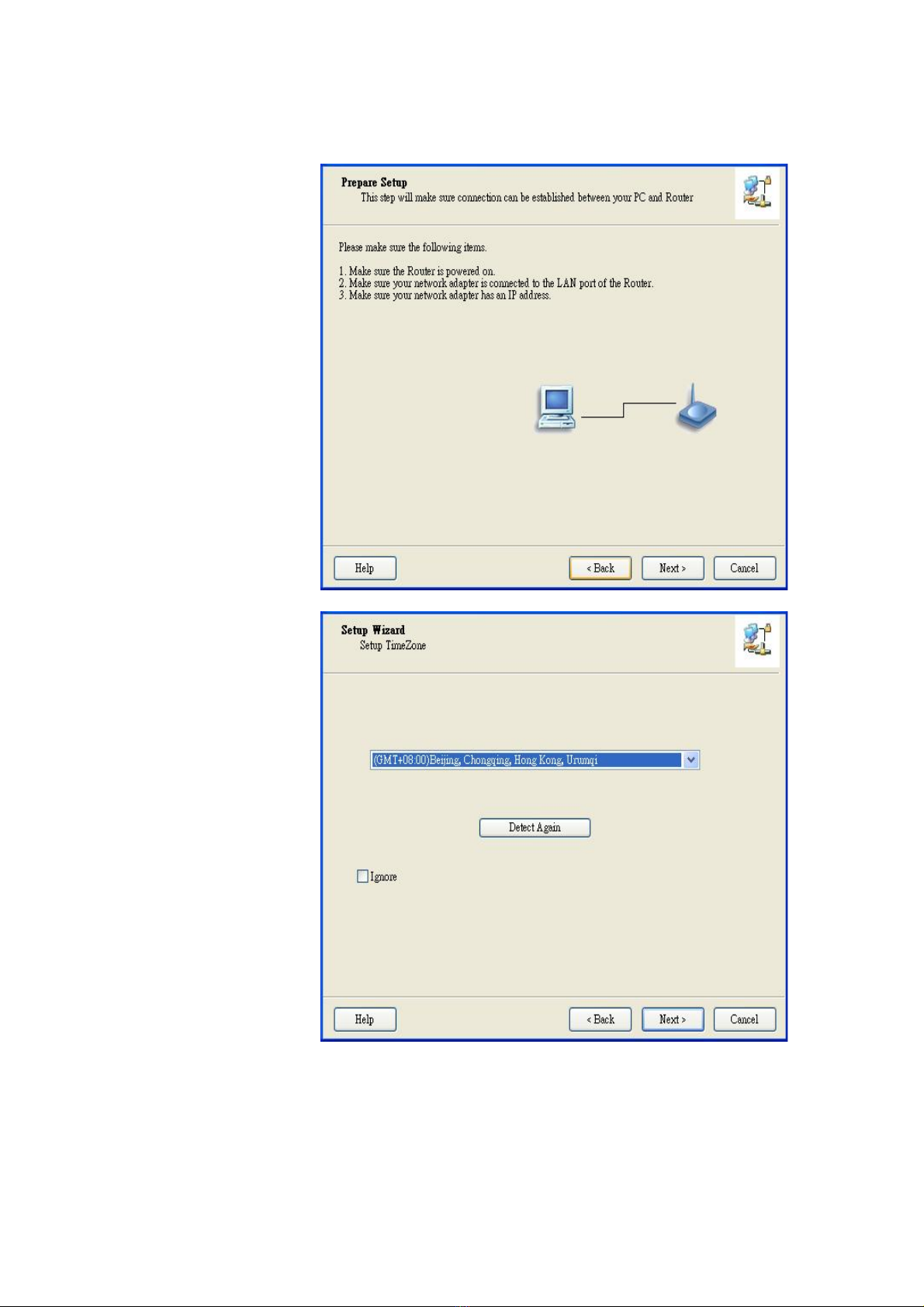

Step 4:
Click “Next” to continue.
Step 5:
Select time zone. It can
help us to synchronize
the system time with
network time server.

10

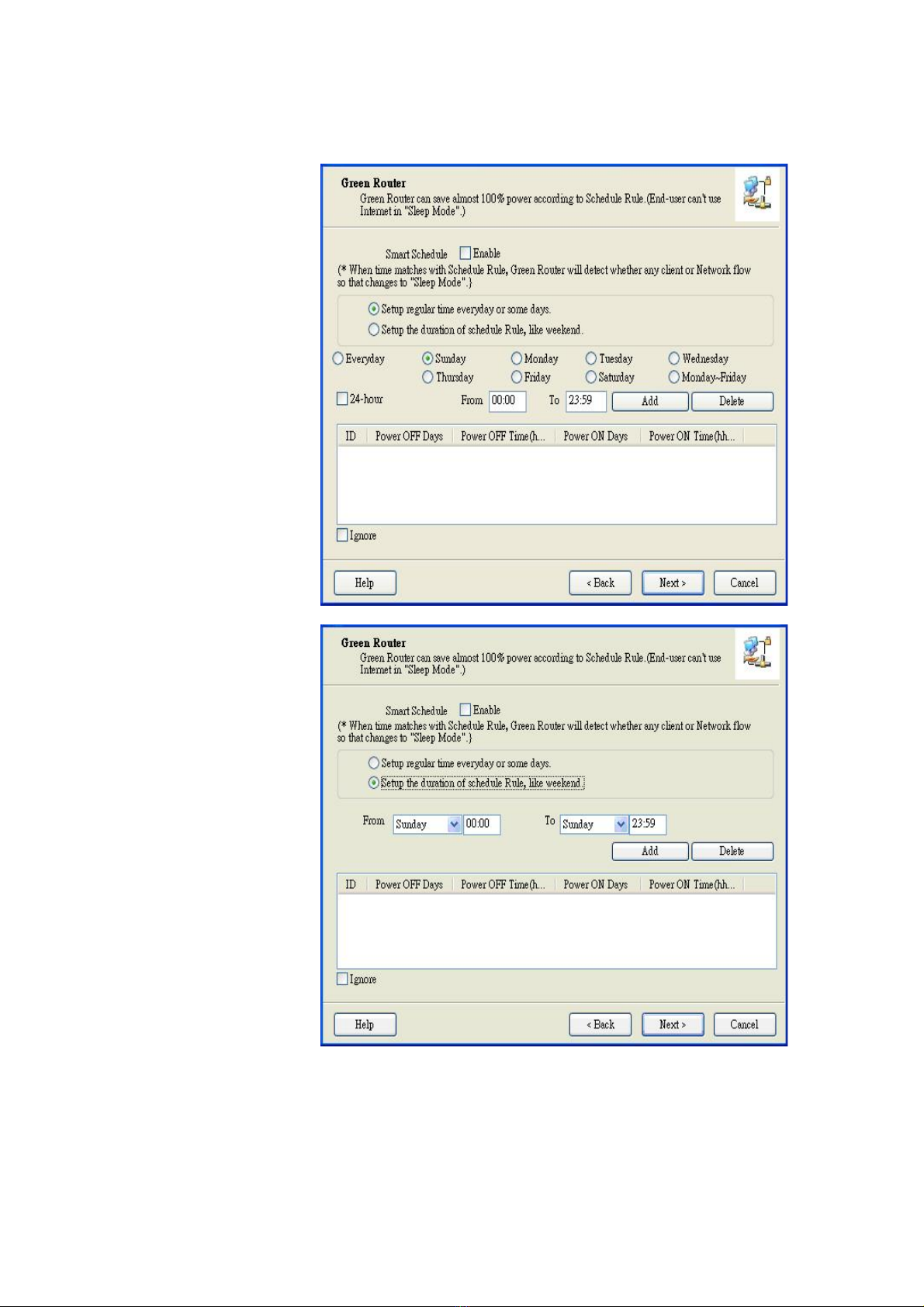

Step 6-1:
Configure the schedule
setting for Green
function. You can set
the schedule for turning
on or turning off this
device automatically.
Step 6-2:
Click SMART
Schedule setting for
Green function. The
device would check the
packet flow before the
power is turned off.
For instance, if the
router is on the sleeping
mode, you could surf
the Internet at that time.
Afterwards, if there are
not any packet flows,
the router would be
turned off automatically.

11

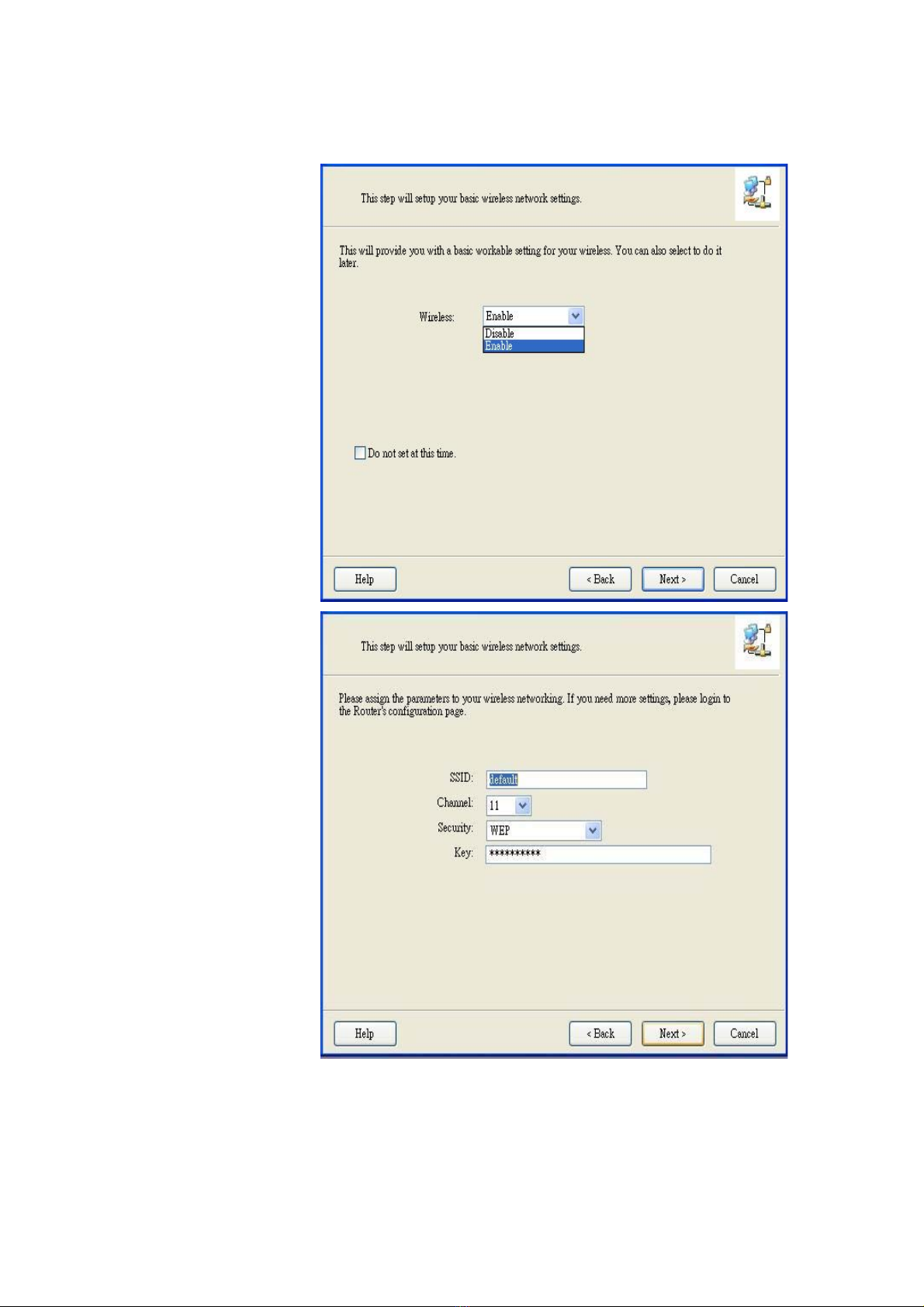

Step 7:
Configure your wireless
interface.
Step 8:
Insert SSID, Channel
and Security options,
and then click “Next” to
continue.

12

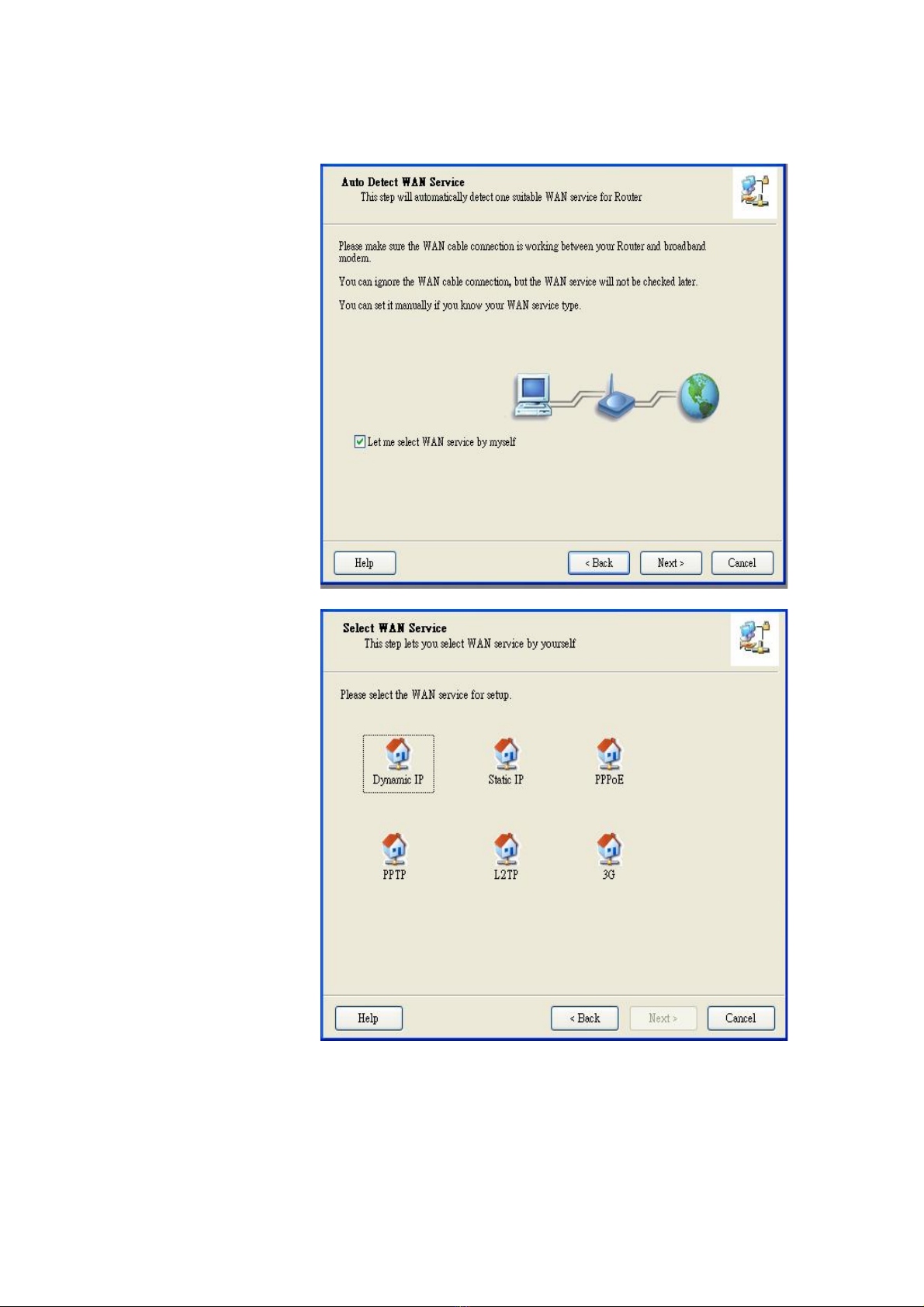

Step 9:
Auto detect the WAN
service, just click the
[Next] button.
Or you could select the
WAN type by yourself
via select the check box
[Let me select WAN
service by myself] Æ
jump to Step 10.
Step 10:
Select the WAN type by
yourself. You can get
this information by
asking your ISP.

13

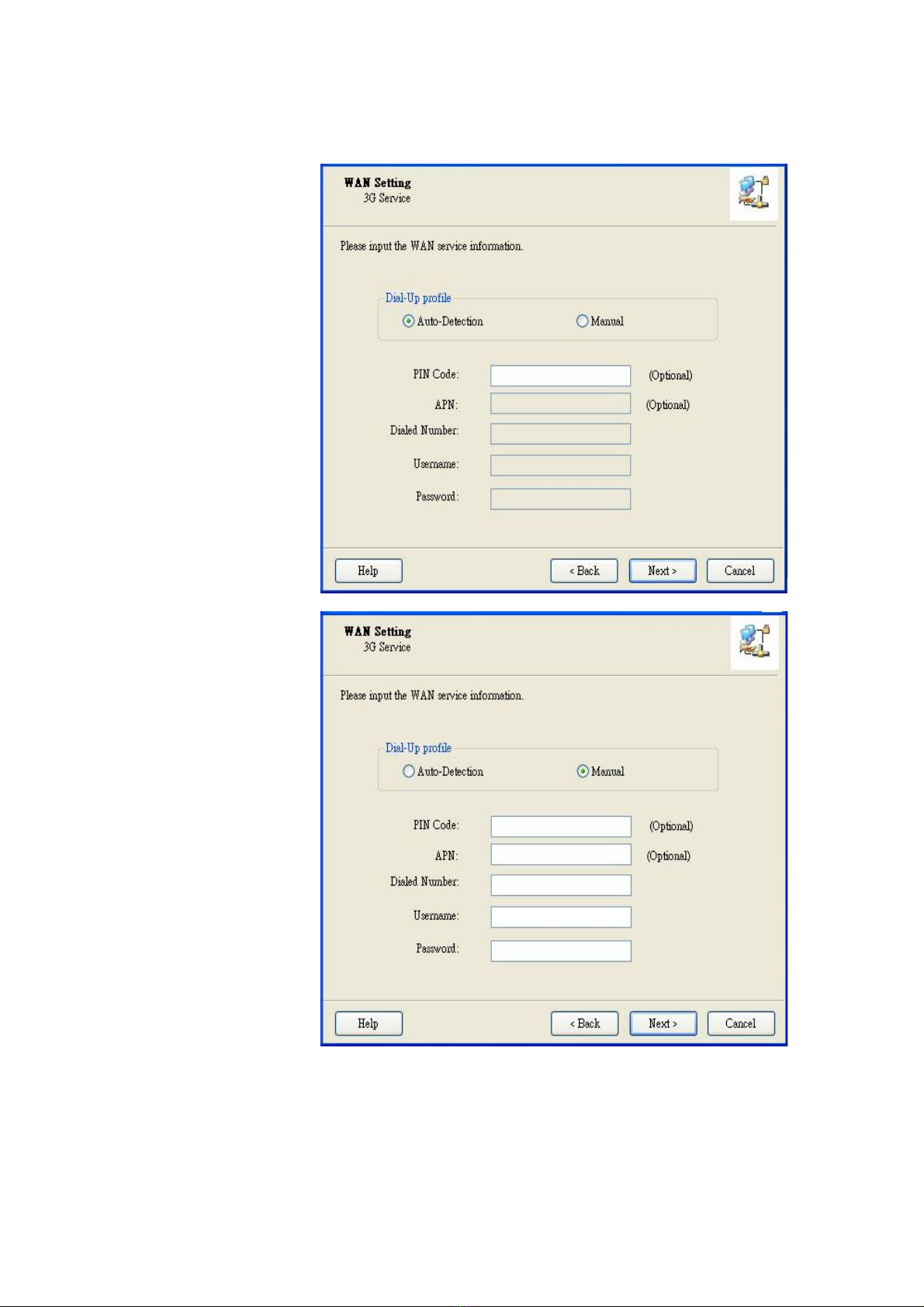

Step 11-1：
Select “Auto-Detection”,
and the Utility will try to
detect and configure
the required 3G service
settings automatically.
Click “Next” to continue.
Default PIN Code is
empty, if you have PIN
Code, you must enter it.
For example “0000”. If
no, just Click “Next” to
continue.
Step 11-2：
Or you can select
“Manual” and manually
fill in the required 3G
service settings
provided by your ISP.
Click “Next” to continue.

14

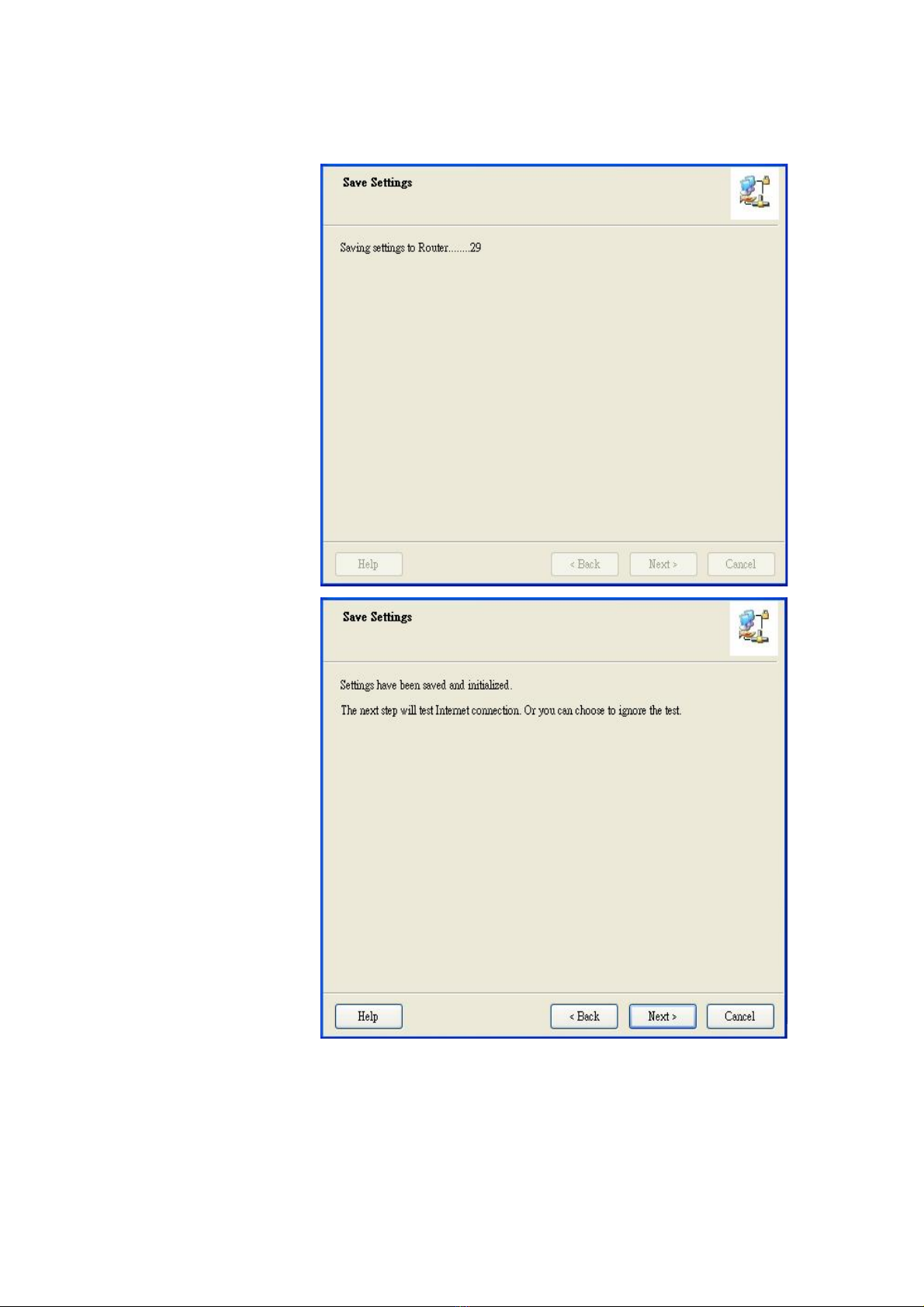

Step 12：
The M2M 3G VPN
Router is rebooted to
make your entire
configuration take
effect.
Step 13：
Click “Next” to test the
Internet connection.

15

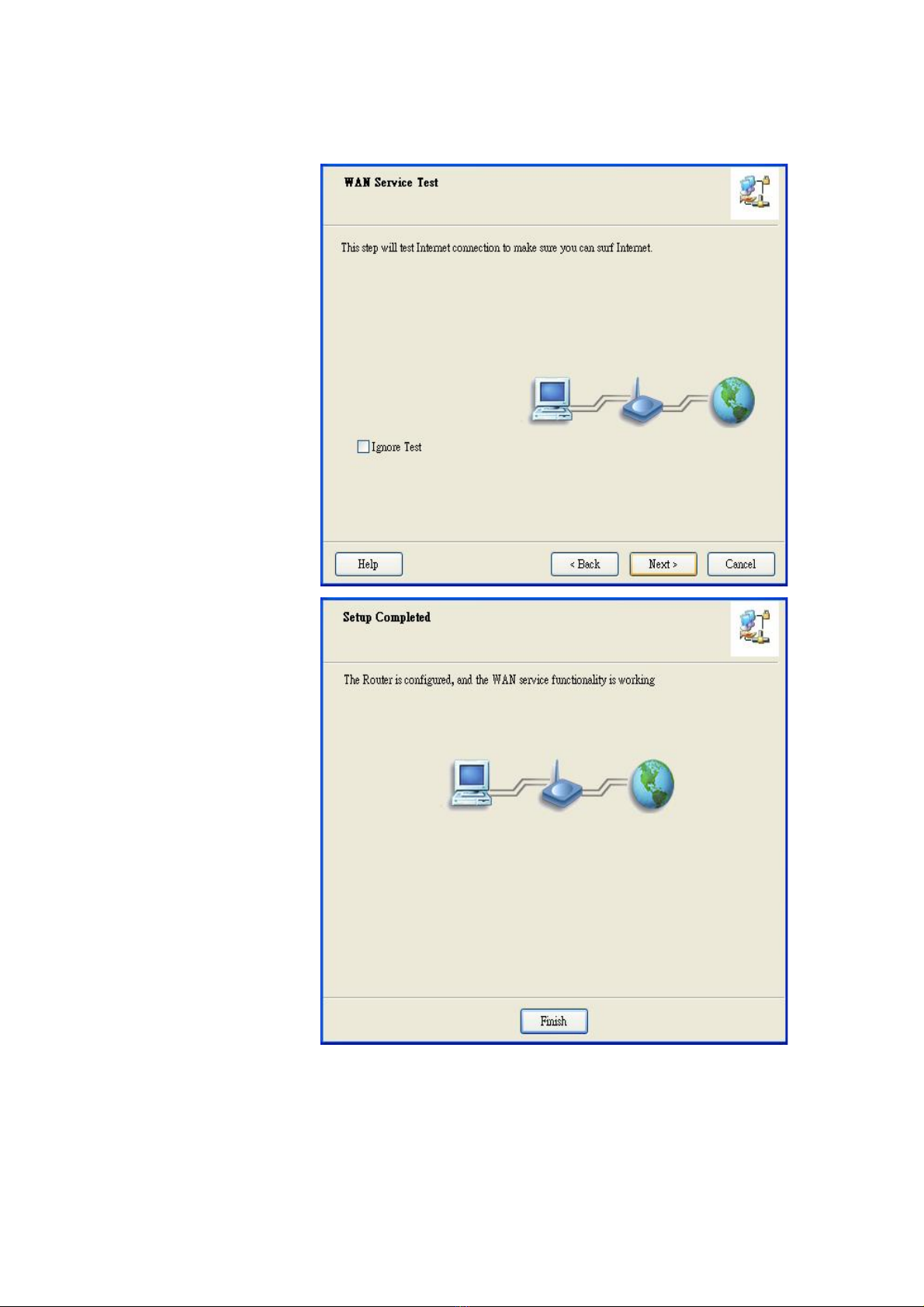

Step 14：
Click “Next” to test
WAN Networking
service or you can
ignore test.
Step 15：
Congratulations!
Setup is completed.
Now you have already
connected to Internet
successfully.

16

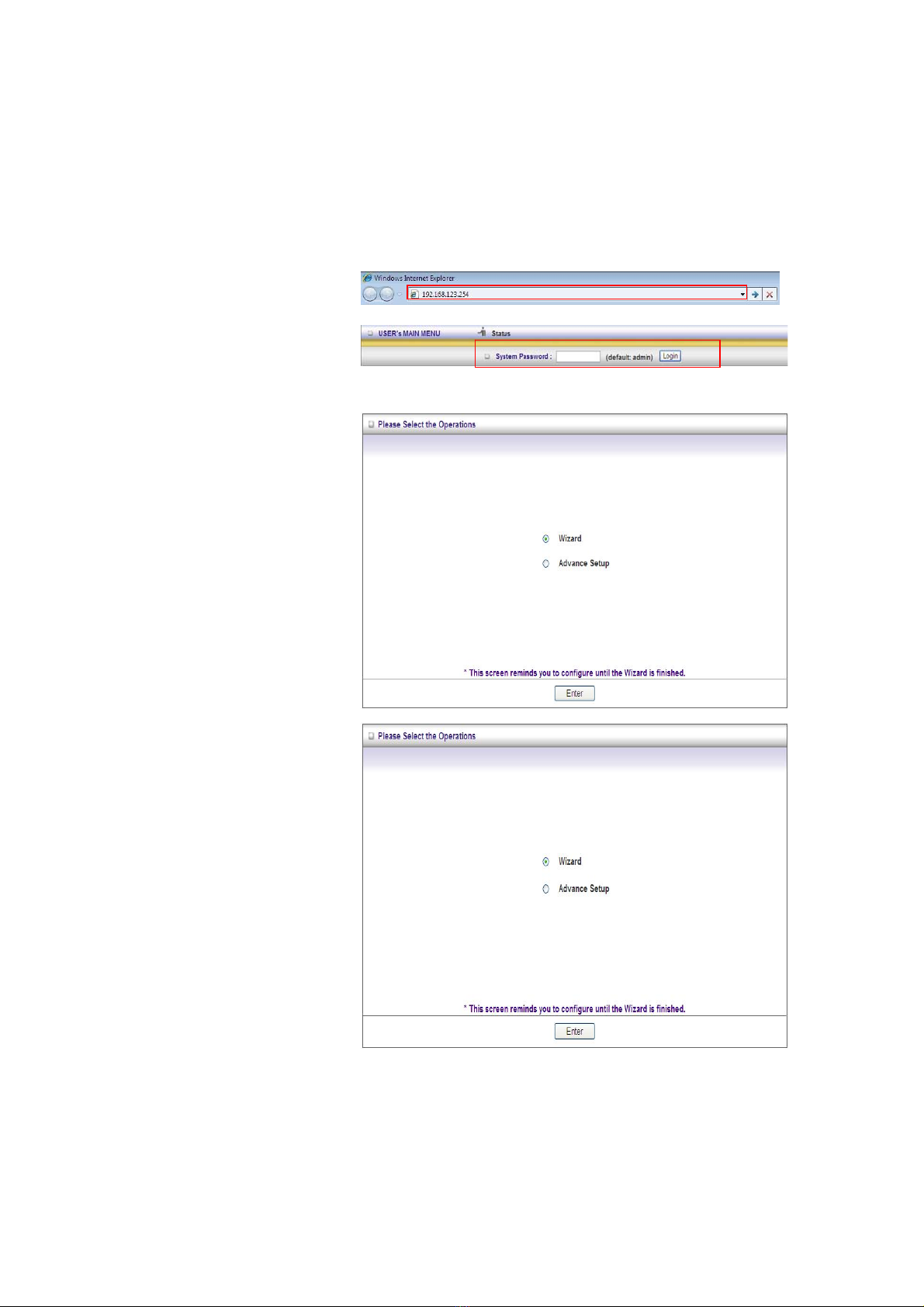

2.2 Easy Setup by Configuring Web Pages
You can also browse UI of the web to configure the device.
Browse to Activate the Setup Wizard
Type in the IP Address
(http://192.168.123.254 )
Type the default
password ‘admin’ in the
System Password and
then click ‘login’ button.
Select “Wizard” for basic
settings in simple way.
Press “Next” to start the
Setup Wizard.

17

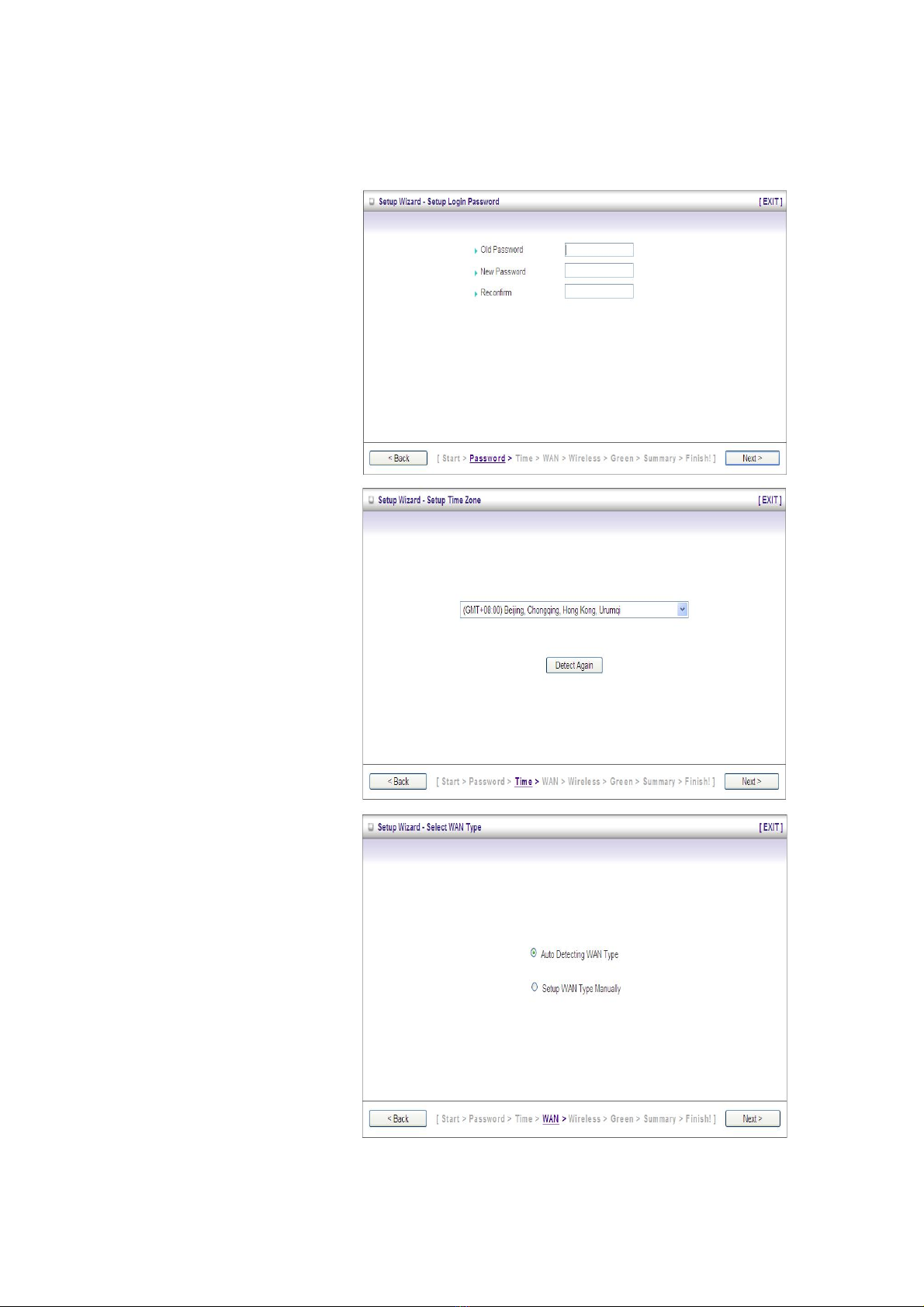

Configure with the Setup Wizard
Step 1:
Setup login password.
Enter your system
password.
Step 2:
Select Time Zone.
Step 3:
Setup Wan Type.

18

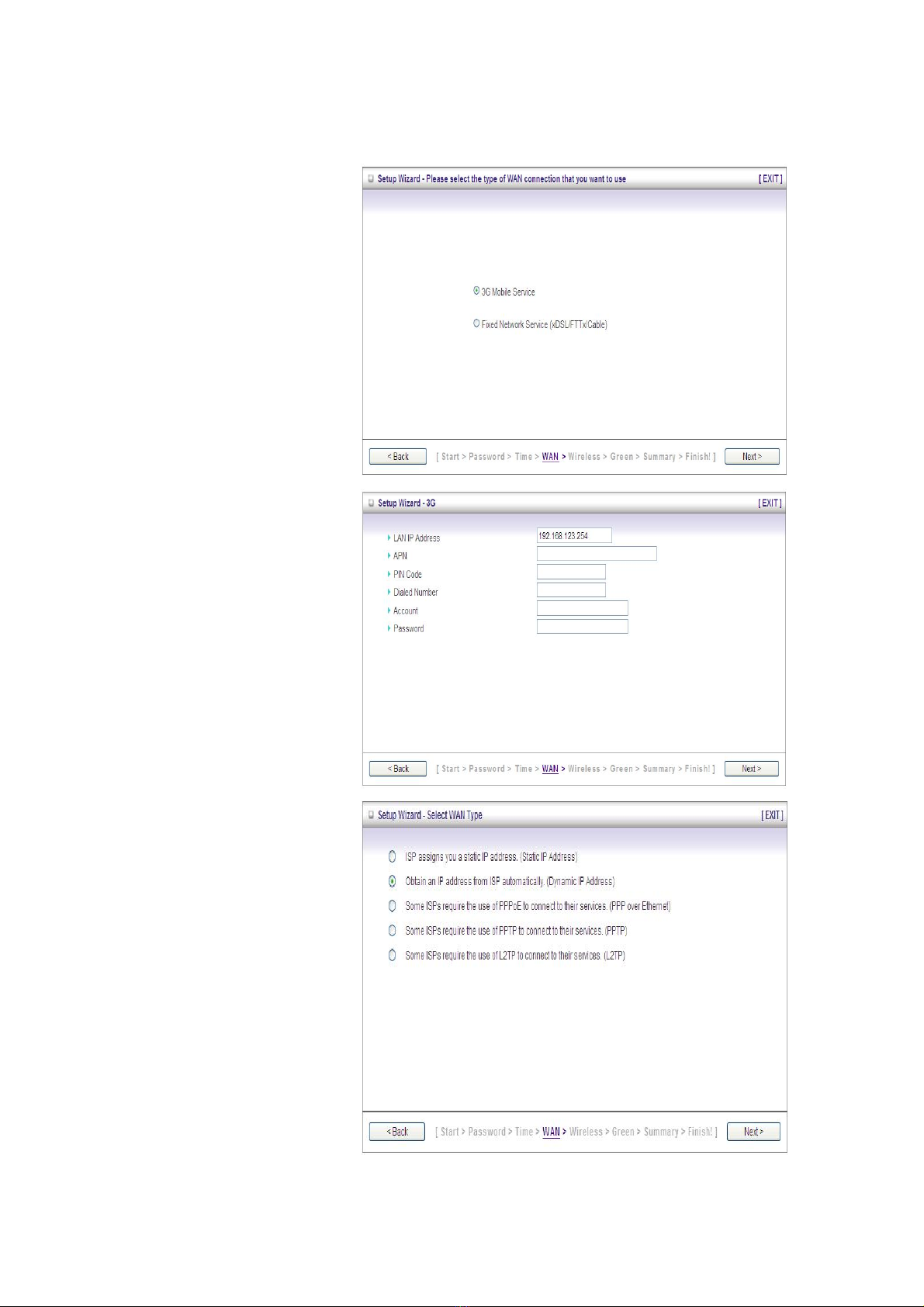

Step 4:
Select the WAN type you
would like to use.
If you select “3G Mobile
Service, please jump to
step 5-1. However, if you
click “Fixed Network
Service, please jump to
step 5-2.
Step 5-1:
Set up 3G Dial-up profile.
Step 5-2:
Select WAN type by
yourself. Afterwards,
please fill in necessary
information.

19

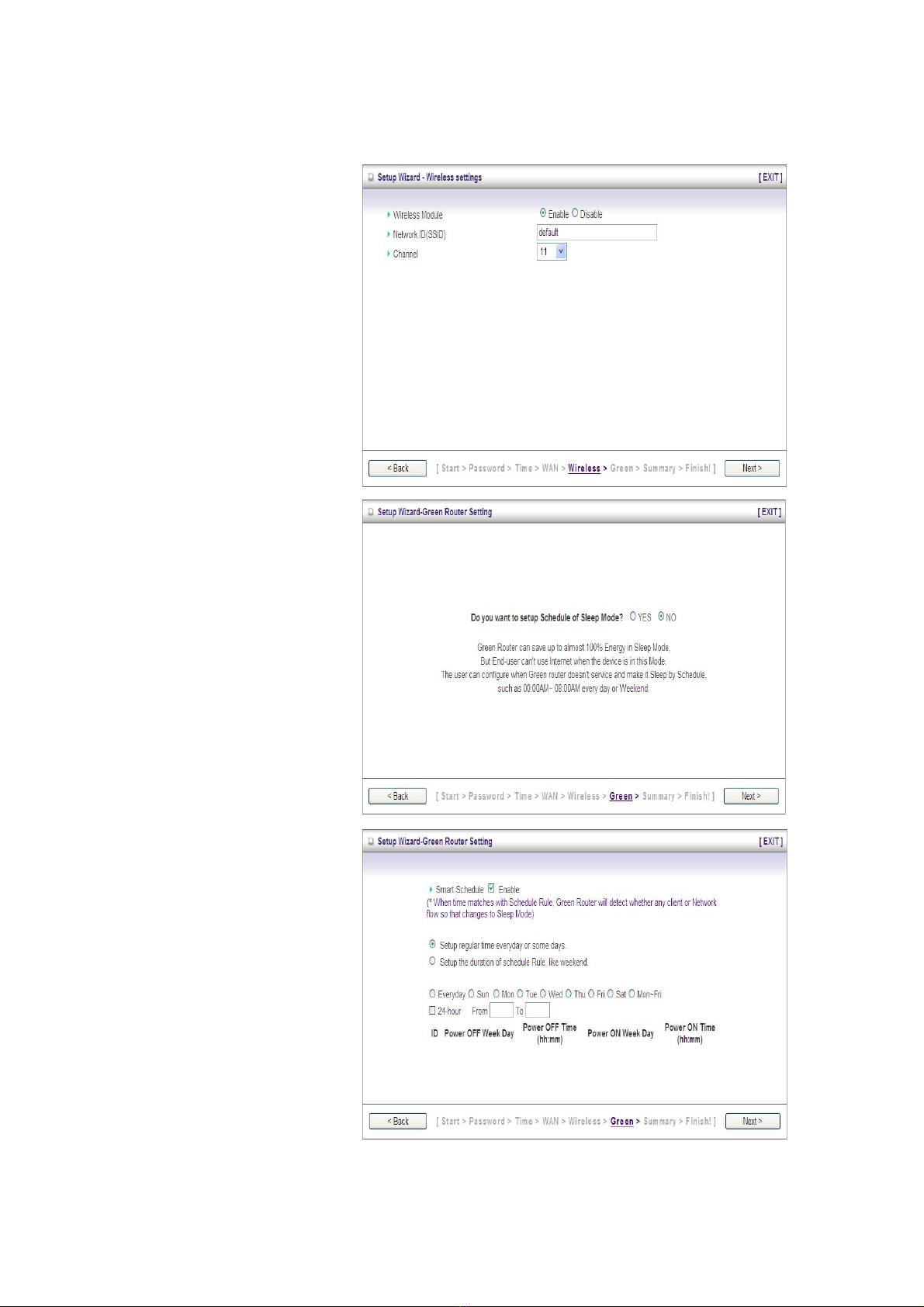

Step 6:
Set up your Wireless
Settings.
Type your network ID in
the blank of SSID.
Step 7:
You could choose
whether to configure
Sleep Mode. If you would
like to trigger the sleep
mode, please click “YES”.
If not, please click “NO”
and jump to step 8.
Step 8
Configure the schedule
setting for Green function.
You can set the schedule
for turning on or turning
off this device
automatically.
As for the Smart
Schedule, the device
would check the packet
flow before the power is
turned off.
For instance, if the router
is on the sleeping mode,
you could surf the Internet
at that time. Afterwards, if
there are not any packet
flows, the router would be
turned off automatically.

20

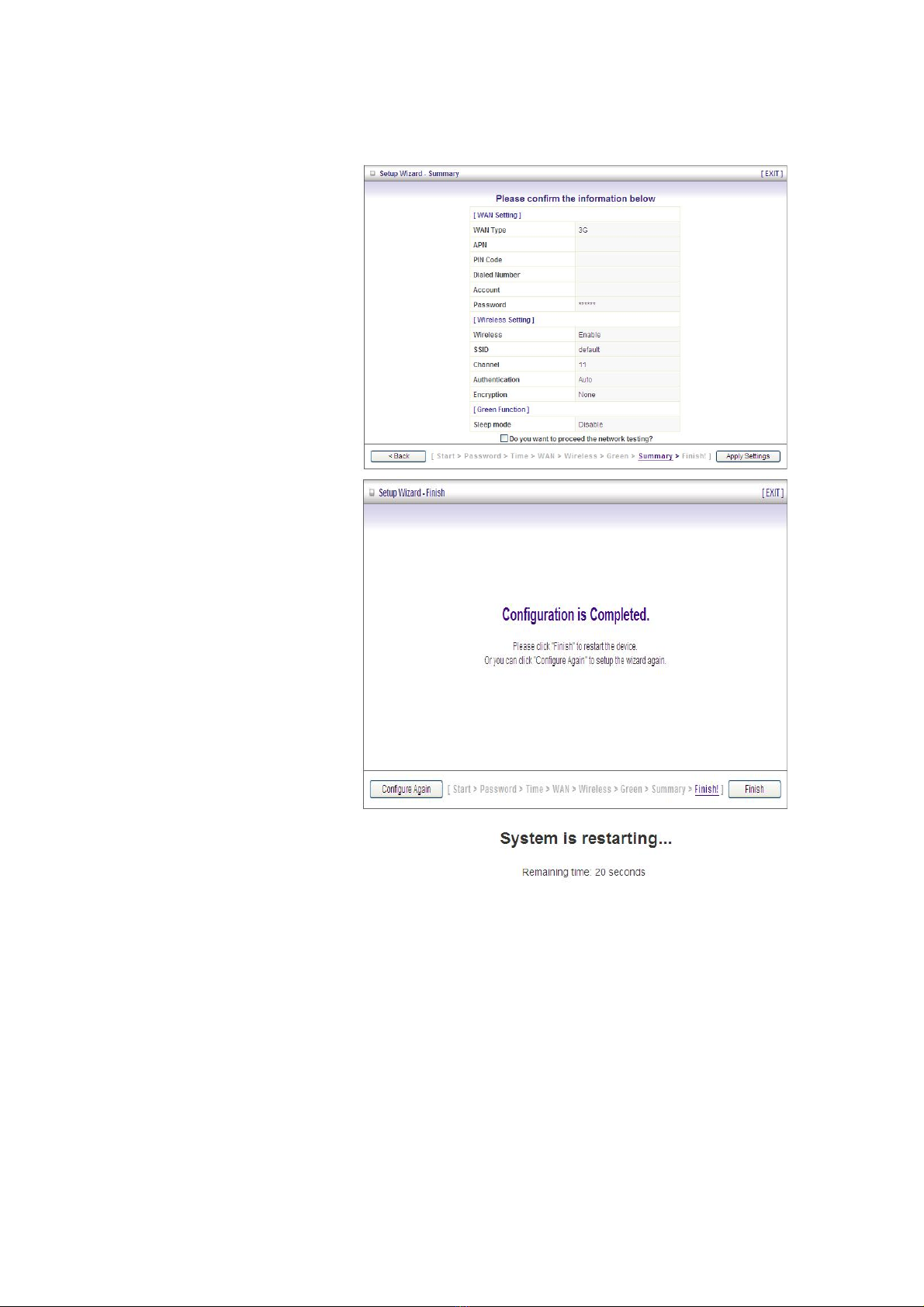

Step 9:
Confirm the information
you set up in User
Interface. If it is correct,
please click ‘Apply
settings’.
Step 10:
Click Finish to complete it.
Step 11:
The system is restarting
to make sure your
configuration take effect.
