D-Link DIR-878 User manual

User Manual
DIR-878
AC1900 MU-MIMO Wi-Fi Gigabit Router
March 2019

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual
Contents
Chapter 1. Introduction..........................................5
Contents and Audience.......................................................5
Conventions.................................................................5
Document Structure..........................................................5
Chapter 2. Overview..............................................6
General Information.........................................................6
Specifications .............................................................8
Product Appearance.........................................................12

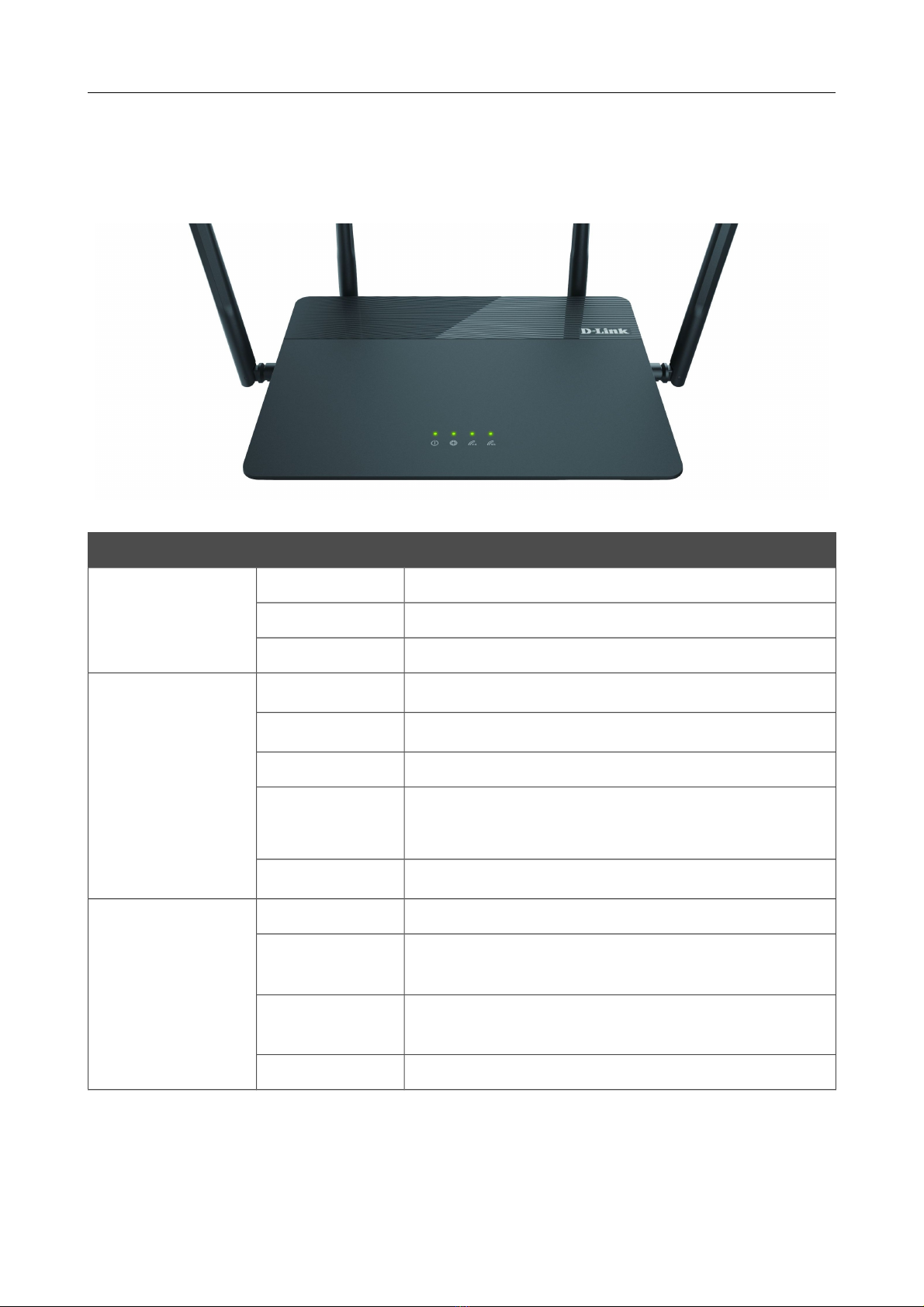

Upper Panel..............................................................12

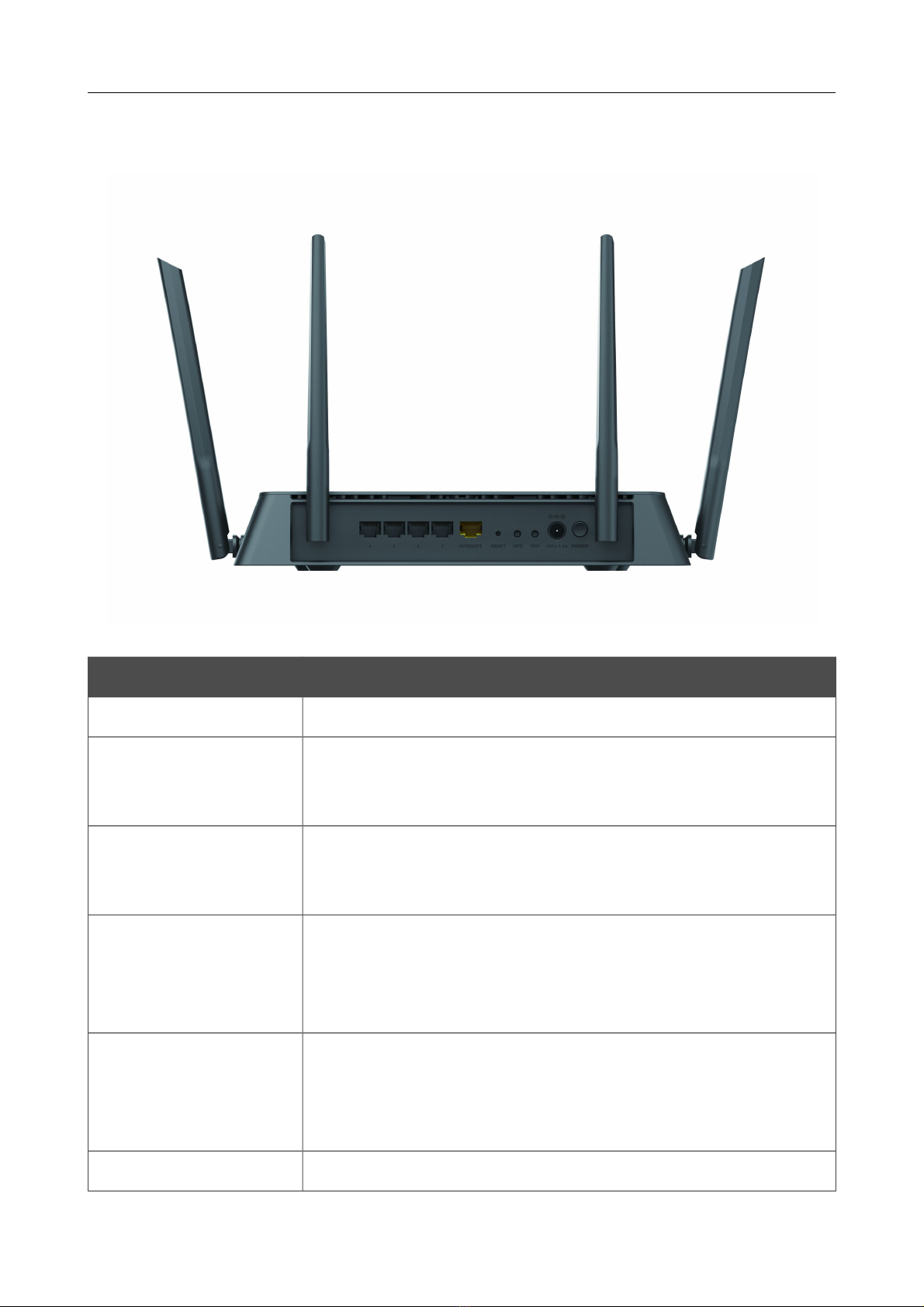

Back Panel...............................................................13
Delivery Package...........................................................15
Chapter 3. Installation and Connection..........................16
Before You Begin...........................................................16
Connecting to PC...........................................................17
PC with Ethernet Adapter.................................................17
Obtaining IP Address Aut matically (OS Wind ws 7)........................18
PC with Wi-Fi Adapter....................................................23
Obtaining IP Address Aut matically and C nnecting t Wireless Netw rk
(OS Wind ws 7)...........................................................24
Connecting to Web-based Interface..........................................27
Web-based Interface Structure..............................................29
Summary Page.............................................................29
H me Page................................................................31
Menu Secti ns............................................................32
N tificati ns............................................................33
Chapter 4. Configuring via Web-based Interface..................34
Initial Configuration Wizard...............................................34
Selecting Operati n M de.................................................36
Changing LAN IPv4 Address................................................39
Wi-Fi Client.............................................................40
C nfiguring WAN C nnecti n...............................................42
Static IPv4 Connection.................................................43
Static IPv6 Connection.................................................44
PPPoE, IPv6 PPPoE, PPPoE Dual Stack,
PPPoE + Dynamic IP (PPPoE Dual Access) Connections.....................45
PPPoE + Static IP (PPPoE Dual Access) Connection.......................46
PP P + Dynamic IP or L2 P + Dynamic IP Connection......................47
PP P + Static IP or L2 P + Static IP Connection........................48
C nfiguring Wireless Netw rk.............................................49
C nfiguring LAN P rts f r IPTV/V IP......................................51
Changing Web-based Interface Passw rd....................................53
Connection of Multimedia Devices...........................................55
Statistics.................................................................58
Netw rk Statistics.......................................................58
DHCP.....................................................................59
R uting Table............................................................60
Clients and Sessi n......................................................61
Multicast Gr ups.........................................................62
Page 2 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual
Connections Setup..........................................................63
WAN......................................................................63
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................65
Creating Dynamic IPv6 or Static IPv6 WAN Connection....................70
Creating PPPoE WAN Connection..........................................74
Creating PP P or L2 P WAN Connection...................................79
Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection.................83
LAN......................................................................89
IPv4...................................................................89
IPv6...................................................................92
WAN Reservati n..........................................................95
Wi-Fi......................................................................97
Basic Settings...........................................................97
Client Management.......................................................105
WPS.....................................................................106
Using WPS Function via Web-based Interface............................108
Using WPS Function without Web-based Interface........................109
WMM.....................................................................110
Client..................................................................113
Additi nal..............................................................116
MAC Filter..............................................................119
R aming.................................................................121
Advanced..................................................................123
VLAN....................................................................124
DNS.....................................................................126
DDNS....................................................................128
NSG.....................................................................130
P rts Settings..........................................................132
Redirect................................................................135
R uting.................................................................136
TR-069 Client...........................................................138
Rem te Access...........................................................140
UPnP IGD................................................................142
UDPXY...................................................................143
IGMP....................................................................145
ALG/Passthr ugh.........................................................146
IPsec...................................................................148
Firewall..................................................................154
IP Filter...............................................................154
Virtual Servers.........................................................158
DMZ.....................................................................161
MAC Filter..............................................................162
URL Filter..............................................................164
System....................................................................165
C nfigurati n...........................................................166
Firmware Update.........................................................168
Local Update..........................................................169
Remote Update.........................................................170
L g.....................................................................171
Ping....................................................................173
Tracer ute..............................................................175
Telnet..................................................................177
System Time.............................................................178
Page 3 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual
Yandex.DNS................................................................180
Settings................................................................180
Devices and Rules.......................................................182
SkyDNS....................................................................184
Settings................................................................184
Devices.................................................................186
Chapter 5. Operation Guidelines................................188
Safety Rules and Conditions...............................................188
Wireless Installation Considerations......................................189
Chapter 6. Abbreviations and Acronyms..........................190
Page 4 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Introduction
CHA TER 1. INTRODUCTION
Contents and Audience
This manual describes the router DIR-878 and explains how to configure and operate it.
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and s stem administrators, who install and configure networks in offices.
Conventions
Example Description
text The bod text of the manual.
Before You Begin A reference to a chapter or section of this manual.
“Quick Installation
Guide” A reference to a document.
Change A name of a menu, menu item, control (field, checkbox, drop-down
list, button, etc.).
192.168.0.1 Data that ou should enter in the specified field.
!Information An important note.
Document Structure
Chapter 1 describes the purpose and structure of the document.
Chapter 2 gives an overview of the router's hardware and software features, describes its
appearance and the package contents.
Chapter 3 explains how to install the router DIR-878 and configure a PC in order to access its web-
based interface.
Chapter 4 describes all pages of the web-based interface in detail.
Chapter 5 includes safet instructions and tips for networking.
Chapter introduces abbreviations and acron ms used in this manual.
Page 5 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
CHA TER 2. OVERVIEW
General Information
The DIR-878 device is a wireless dual band gigabit router with a built-in 4-port switch. It provides a
fast and simple wa to create a wireless and wired network at home or in an office.
You are able to connect the wireless router DIR-878 to a cable or DSL modem or to a private
Ethernet line and use a high-speed Internet connection to successfull fulfill a wide range of
professional tasks. The built-in 4-port switch enables ou to connect Ethernet-enabled computers,
game consoles, and other devices to our network.
Using the DIR-878 device, ou are able to quickl create a high-speed wireless network at home or
in our office, which lets computers and mobile devices access the Internet virtuall an where
(within the operational range of our wireless network). Simultaneous activit of 2.4GHz band and
5GHz band allows performing a wide range of tasks. The router can operate as a base station for
connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at
the wireless connection rate up to 1900Mbps1).
The router supports multiple functions for the wireless interface: several securit standards (WEP,
WPA/WPA2), MAC address filtering, WPS, WMM.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed,
for example, when ou leave home, ou can easil switch the router’s WLAN b pressing the
button, and devices connected to the LAN ports of the router will sta online.
Multi-user MIMO technolog allows to distribute the router's resources to let multiple wireless
clients use the Wi-Fi network efficientl , keeping high rates for HD media streaming, lag-free
gaming, and fast transfer of large files.
Transmit Beamforming technolog allows to flexibl change the antennas' radiation pattern and to
redistribute the signal directl to wireless devices connected to the router.
Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or
routers – when the smart adjustment function is configured on each of them, a client alwa s
connects to the access point (router) with the highest signal level.
Support of guest Wi-Fi network allows ou to create a separate wireless network with individual
securit settings and maximum rate limitation. Devices connected to the guest network will be able
to access the Internet, but will be isolated from the devices and resources of the router's LAN.
The wireless router DIR-878 includes a built-in firewall. The advanced securit functions minimize
threats of hacker attacks, prevent unwanted intrusions to our network, and block access to
unwanted websites for users of our LAN.
In addition, the router supports IPsec and allows to create secure VPN tunnels.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block
access to adult content on children's devices.
The router also supports the Sk DNS web content filtering service, which provides more settings
and opportunities for safer Internet experience for home users of all ages and for professional
activities of corporate users.
1 Up to 600Mbps for 2.4GHz and up to 1300Mbps for 5GHz.
Page 6 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
You can configure the settings of the wireless router DIR-878 via the user-friendl web-based
interface (the interface is available in two languages – in Russian and in English).
The configuration wizard allows ou to quickl switch DIR-878 to one of the following modes:
router (for connection to a wired or wireless ISP), access point, repeater, or client, and then
configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-878 supports configuration and management via mobile application for Android and
iPhone smartphones.
You can simpl update the firmware: the router itself finds approved firmware on D-Link update
server and notifies when read to install it.
Page 7 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Specifications*
Hardware
rocessor ·MT7 21A (880MHz, dual core)
RAM ·128MB, DDR3
Flash ·1 MB, SPI
Interfaces ·10/100/1000BASE-T WAN port
·4 10/100/1000BASE-T LAN ports
LEDs ·Power
·Internet
·WLAN 2.4G
·WLAN 5G
Buttons ·POWER button to power on/power off
·WiFi button to enable/disable wireless network
·WPS button to set up wireless connection
·RESET button to restore factory default settings
Antenna ·Four external non-detachable antennas (5dBi gain)
MIMO ·3 x 3, MU-MIMO
ower connector ·Power input connector (DC)
Software
WAN connection types ·PPPoE
·IPv PPPoE
·PPPoE Dual Stack
·Static IPv4 / Dynamic IPv4
·Static IPv / Dynamic IPv
·PPPoE + Static IP (PPPoE Dual Access)
·PPPoE + Dynamic IP (PPPoE Dual Access)
·PPTP/L2TP + Static IP
·PPTP/L2TP + Dynamic IP
Network functions ·Support of IEEE 802.1X for Internet connection
·DHCP server/relay
·Stateful/Stateless mode for IPv address assignment, IPv prefix delegation
·Automatic obtainment of LAN IP address (for access point/repeater/client
modes)
·DNS relay
·Dynamic DNS
·Static IP routing
·Static IPv routing
·IGMP Proxy
·RIP
·Support of UPnP IGD
·Support of VLAN
·WAN ping respond
·Support of SIP ALG
·Support of RTSP
·WAN reservation
·Autonegotiation of speed, duplex mode, and flow control/Manual speed and
duplex mode setup for each Ethernet port
·Built-in UDPXY application
* The device features are subject to change without notice. For the latest versions of the firmware and relevant
documentation, visit www.dlink.ru.
Page 8 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Software
Firewall functions ·Network Address Translation (NAT)
·Stateful Packet Inspection (SPI)
·IP filter
·IPv filter
·MAC filter
·URL filter
·DMZ
·Prevention of ARP and DDoS attacks
·Virtual servers
·Built-in Yandex.DNS web content filtering service
·Built-in SkyDNS web content filtering service
V N ·IPsec/PPTP/L2TP/PPPoE pass-through
·IPsec tunnels
Management ·Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
·Bilingual web-based interface for configuration and management
(Russian/English)
·Support of D-Link Assistant application for Android and iPhone smartphones
·Notification on connection problems and auto redirect to settings
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of logging to remote host
·Automatic synchronization of system time with NTP server and manual
time/date setup
·Ping utility
·Traceroute utility
·TR-0 9 client
Wireless Module arameters
Standards ·IEEE 802.11a/n/ac
·IEEE 802.11b/g/n
Frequency range ·2400 ~ 2483.5MHz
·5150 ~ 5350MHz
·5 50 ~ 5725MHz
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC/PIN)
Advanced functions ·Support of client mode
·WMM (Wi-Fi QoS)
·Information on connected Wi-Fi clients
·Advanced settings
·Smart adjustment of Wi-Fi clients
·Guest Wi-Fi / support of MBSSID
·Built-in NSG service for users identification in Wi-Fi network
·Limitation of wireless network rate
·Periodic scan of channels, automatic switch to least loaded channel
·Support of 802.11ac (5GHz) and 802.11n (2.4GHz) TX Beamforming
·Autonegotiation of channel bandwidth in accordance with environment
conditions (20/40 Coexistence)
Page 9 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Wireless Module arameters
Wireless connection rate2·IEEE 802.11a: , 9, 12, 18, 24, 3 , 48, and 54Mbps
·IEEE 802.11b: 1, 2, 5.5, and 11Mbps
·IEEE 802.11g: , 9, 12, 18, 24, 3 , 48, and 54Mbps
·IEEE 802.11n (2.4GHz): .5–450Mbps (MCS0–MCS23) to 00Mbps (QAM25 )
·IEEE 802.11n (5GHz): from .5 to 450Mbps (from MCS0 to MCS23)
·IEEE 802.11ac (5GHz): from .5 to 1300Mbps (from MCS0 to MSC9)
Transmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·802.11a (typical at room temperature 25 °C)
15dBm at , 54Mbps
·802.11b (typical at room temperature 25 °C)
15dBm at 1, 11Mbps
·802.11g (typical at room temperature 25 °C)
15dBm at , 54Mbps
·802.11n (typical at room temperature 25 °C)
2.4GHz
15dBm at MCS0, 7
5GHz
15dBm at MCS0, 7
·802.11ac (typical at room temperature 25 °C)
15dBm at MCS0, 9
Receiver sensitivity ·802.11a
-9 dBm at Mbps
-78dBm at 54Mbps
·802.11b
-9 dBm at 1Mbps
-90dBm at 11Mbps
·802.11g
-95dBm at Mbps
-7 dBm at 54Mbps
·802.11n
2.4GHz, HT20
-95dBm at MCS0
-7 dBm at MCS7
2.4GHz, HT40
-92dBm at MCS0
-72dBm at MCS7
5GHz, HT20
-95dBm at MCS0
-7 dBm at MCS7
5GHz, HT40
-93dBm at MCS0
-73dBm at MCS7
·802.11ac
VHT20
-9 dBm at MCS0
-73dBm at MCS8
VHT40
-92dBm at MCS0
- 8dBm at MCS9
VHT80
-88dBm at MCS0
- 4dBm at MCS9
2 Maximum wireless signal rate is derived from IEEE standard 802.11ac and 802.11n specifications. In order to get the rate of 600Mbps in the
2.4GHz band, a Wi-Fi client should support MIMO 3x3 and QAM256 modulation scheme. Actual data throughput will var . Network conditions
and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data
throughput rate. Environmental factors will adversel affect wireless signal range.
Page 10 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Wireless Module arameters
Modulation schemes ·802.11a: BPSK, QPSK, 1 QAM, 4QAM with OFDM
·802.11b: DQPSK, DBPSK, DSSS, CCK
·802.11g: BPSK, QPSK, 1 QAM, 4QAM with OFDM
·802.11n: BPSK, QPSK, 1 QAM, 4QAM, 25 QAM with OFDM
·802.11ac: BPSK, QPSK, 1 QAM, 4QAM, up to 25 QAM with OFDM
hysical arameters
Dimensions (L x W x H) ·259 x 184 x 4 mm (10.8 x 7.24 x 1.81 in)
Weight ·5 5 g (1.25 lb)
Operating Environment
ower ·Output: 12V DC, 1.5A
Temperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 5 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 11 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Product Appearance

Figure 1. Upper panel view.
LED Mode Description
ower
Solid orange The router is being loaded.
Solid green The router is powered on.
No light The router is powered off.
Internet
Solid green The default wired WAN connection is on.
Fast blin ing green The default wired WAN connection is active.
Slow blin ing green The firmware is being updated.
Blin ing orange
•The default wired WAN connection is off, or
•there are no WAN connections created.
No light The WAN cable is not connected.
WLAN 2.4G
WLAN 5G
Solid green The router's WLAN of the relevant band is on.
Fast blin ing green Data transfer through the Wi-Fi network of the relevant
band.
Blin ing green Attempting to add a wireless device via the WPS
function.
No light The router's WLAN of the relevant band is off.
Page 12 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview

Figure 2. Bac panel view.
ort Description
LAN 1-4 4 Ethernet ports to connect computers or network devices.
INTERNET
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the deliver
package).
RESET
A button to restore the factor defaults.
To restore the factor defaults, push the button (with the device turned
on), hold it for 10 seconds, and then release the button.
W S
A button to set up wireless connection (the WPS function).
To use the WPS function: with the device turned on, push the button,
hold it for 2 seconds, and release. The WLAN 2.4G and WLAN 5G
LEDs should start blinking.
WiFi
A button to enable/disable wireless network.
To disable the router's wireless network: with the device turned on,
press the button and release. The WLAN 2.4G and WLAN 5G LEDs
should turn off.
12V=1.5A Power connector.
Page 13 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
ort Description
OWER A button to turn the router on/off.
The device is also equipped with four external non-detachable Wi-Fi antennas.
Page 14 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Overview
Delivery Package
The following should be included:
•Router DIR-878
•Power adapter DC 12V/1.5A
•Ethernet cable
•“Quick Installation Guide” (brochure).
The “User Manual” and “Quick Installation Guide” documents are available on D-Link website
(see www.dlink.ru).
!Using a power suppl with a different voltage rating than the one included will cause
damage and void the warrant for this product.
Page 15 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Installation and Connection
CHA TER 3. INSTALLATION AND CONNECTION
Before You Begin
Please, read this manual prior to installing the device. Make sure that ou have all the necessar
information and equipment.
Operating System
Configuration of the wireless dual band gigabit router with a built-in 4-port switch DIR-878
(hereinafter referred to as “the router”) is performed via the built-in web-based interface. The web-
based interface is available from an operating s stem that supports a web browser.
Web Browser
The following web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet Explorer 10 and later
•Microsoft Edge 20.10240 and later
•Mozilla Firefox 44 and later
•Opera 35 and later.
For successful operation, JavaScript should be enabled on the web browser. Make sure that
JavaScript has not been disabled b other software (such as virus protection or web user securit
packages) running on our computer.
Wired or Wireless NIC Ethernet or Wi-Fi Adapter)
An computer that uses the router should be equipped with an Ethernet or Wi-Fi adapter (NIC). If
our computer is not equipped with such a device, install an Ethernet or Wi-Fi adapter prior to using
the router.
Wireless Connection
Wireless workstations from our network should be equipped with a wireless 802.11a, b, g, n, or ac
NIC (Wi-Fi adapter). In addition, ou should specif the values of SSID, channel number and
securit settings defined in the web-based interface of the router for all these wireless workstations.
Page 16 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Installation and Connection
Connecting to PC

1. Connect an Ethernet cable between an of LAN ports located on the back panel of the router
and the Ethernet port of our PC.
2. Connect the power cord to the power connector port on the back panel of the router, then
plug the power adapter into an electrical outlet or power strip.
3. Turn on the router b pressing the POWER button on its back panel.
Then make sure that our PC is configured to obtain an IP address automaticall (as DHCP client).
Page 17 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Installation and Connection
 !"
1. Click the Start button and proceed to the Control anel window.
2. Select the Network and Sharing Center section. (If the Control Panel has the categor
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section.)

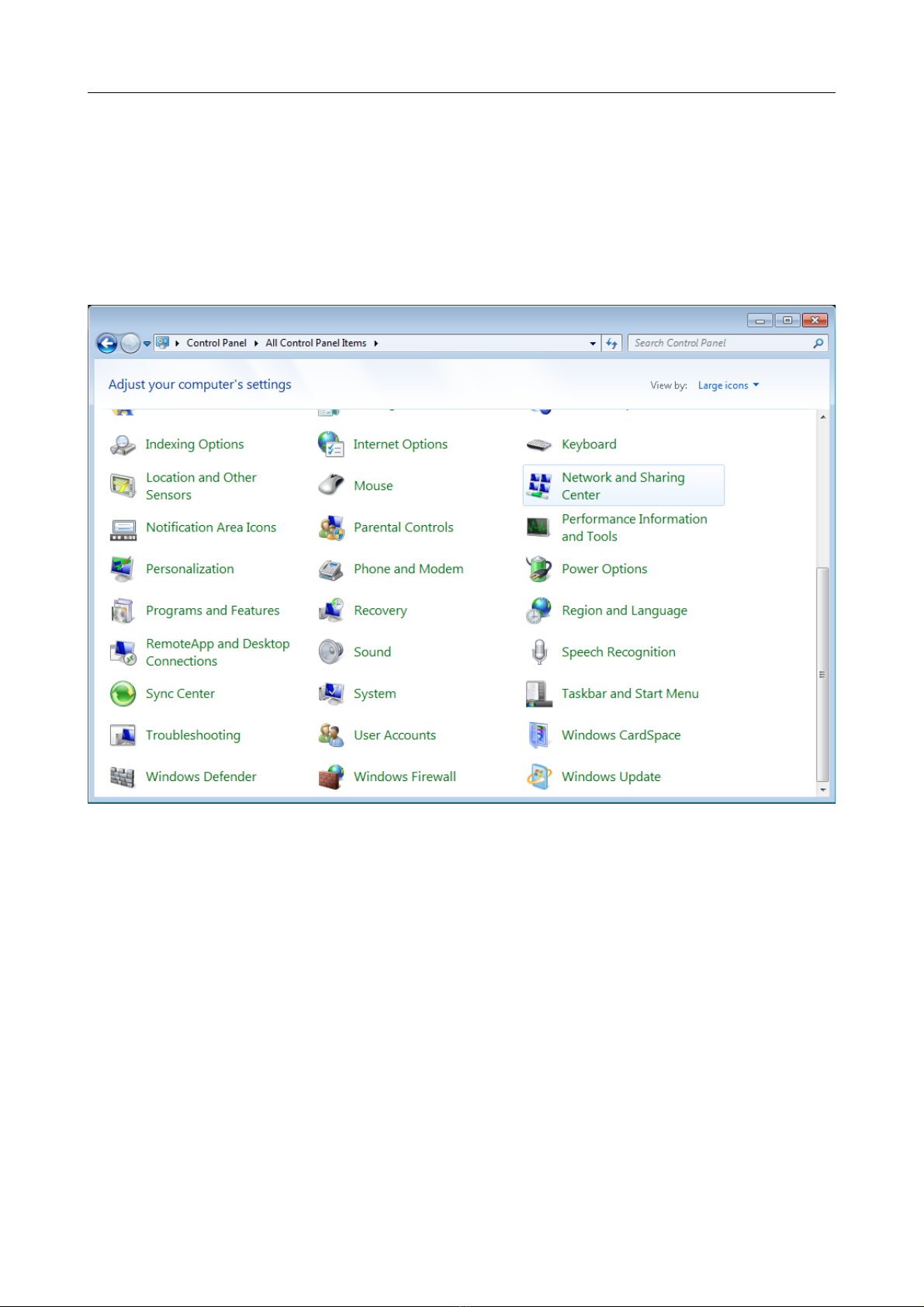

Figure 3. The Control Panel window.
Page 18 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Installation and Connection
3. In the menu located on the left part of the window, select the Change adapter settings
line.

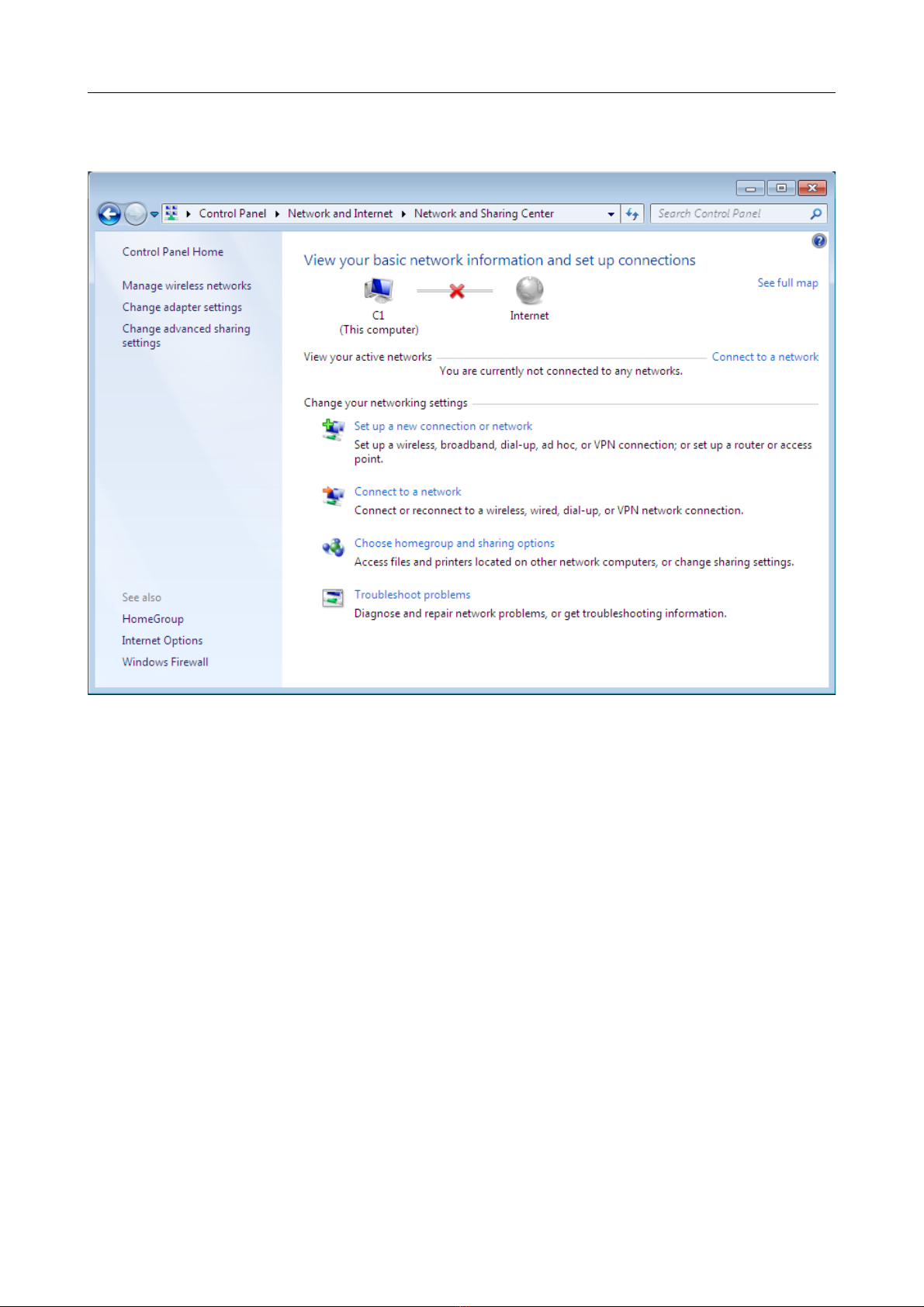

Figure 4. The Net ork and Sharing Center window.
Page 19 of 191

DIR-878 AC1900 MU-MIMO Wi-Fi Gigabit Router
User Manual Installation and Connection
4. In the opened window, right-click the relevant Local Area Connection icon and select
the roperties line in the menu displa ed.

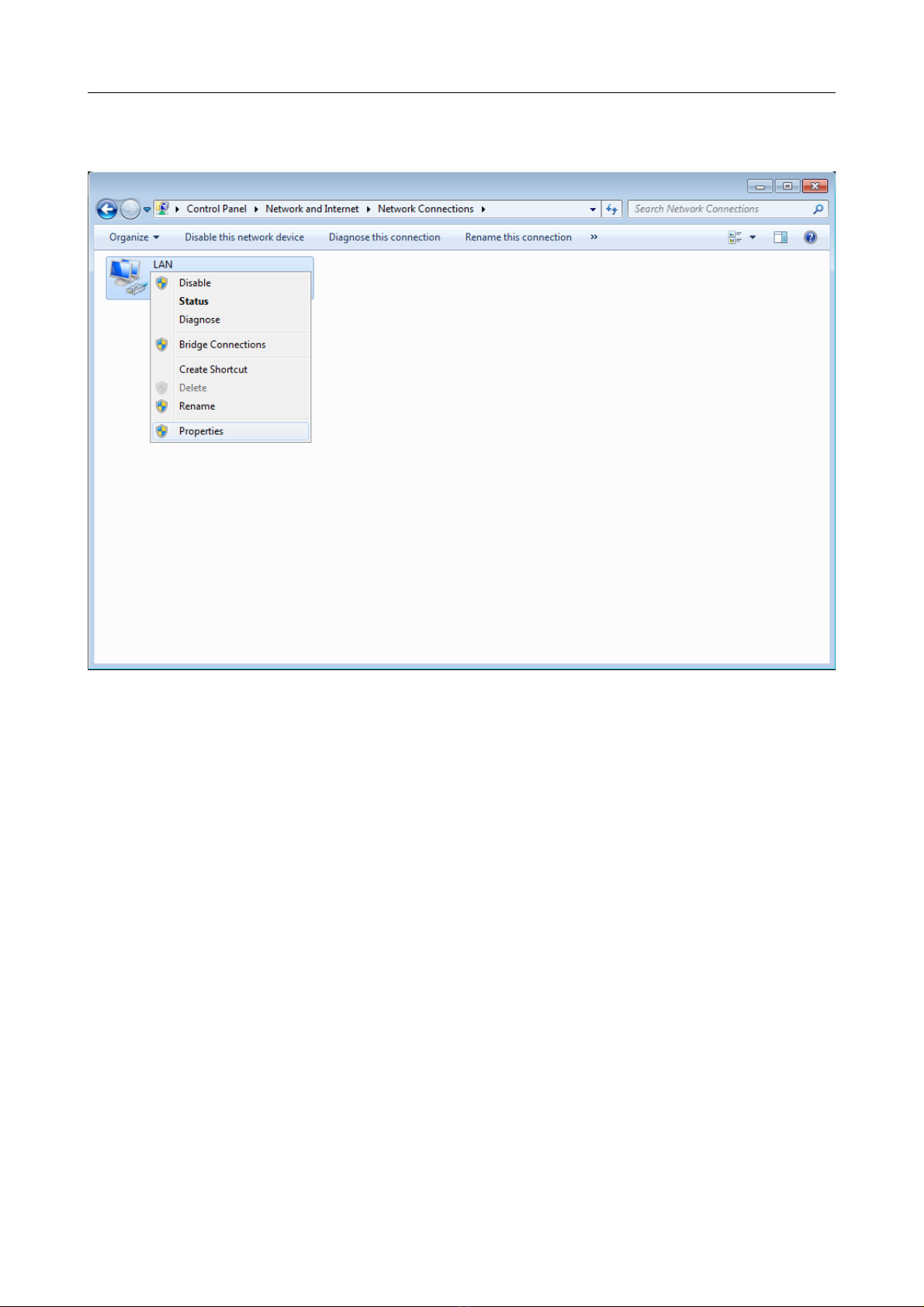

Figure 5. The Net ork Connections window.
