Before You Begin
1. If you purchased this router to share your high-speed Internet connection with
other computers, you must have either an Ethernet-based Cable or a DSL modem
with an established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for
configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will
assign all the necessary IP address information on your network. See Appendix
at the end of this Quick Installation Guide or the Manual on the CD-ROM for
setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
These are the items included with your DI-604 purchase:
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice. DI-604.040903
This product can be set up using any current
web browser, i.e., Internet Explorer 5x,
Netscape Navigator 4x.
DI-604
Express EtherNetwork™
Broadband Router
• DI-604 Ethernet Broadband Router
• CD-ROM (containing Manual and Warranty)
• Ethernet (CAT5 UTP/Straight-Through) Cable
• 5V DC, 2A Power Adapter
Using a powe
r
supply with a
different voltage rating
will damage and void
the warranty for this
product.

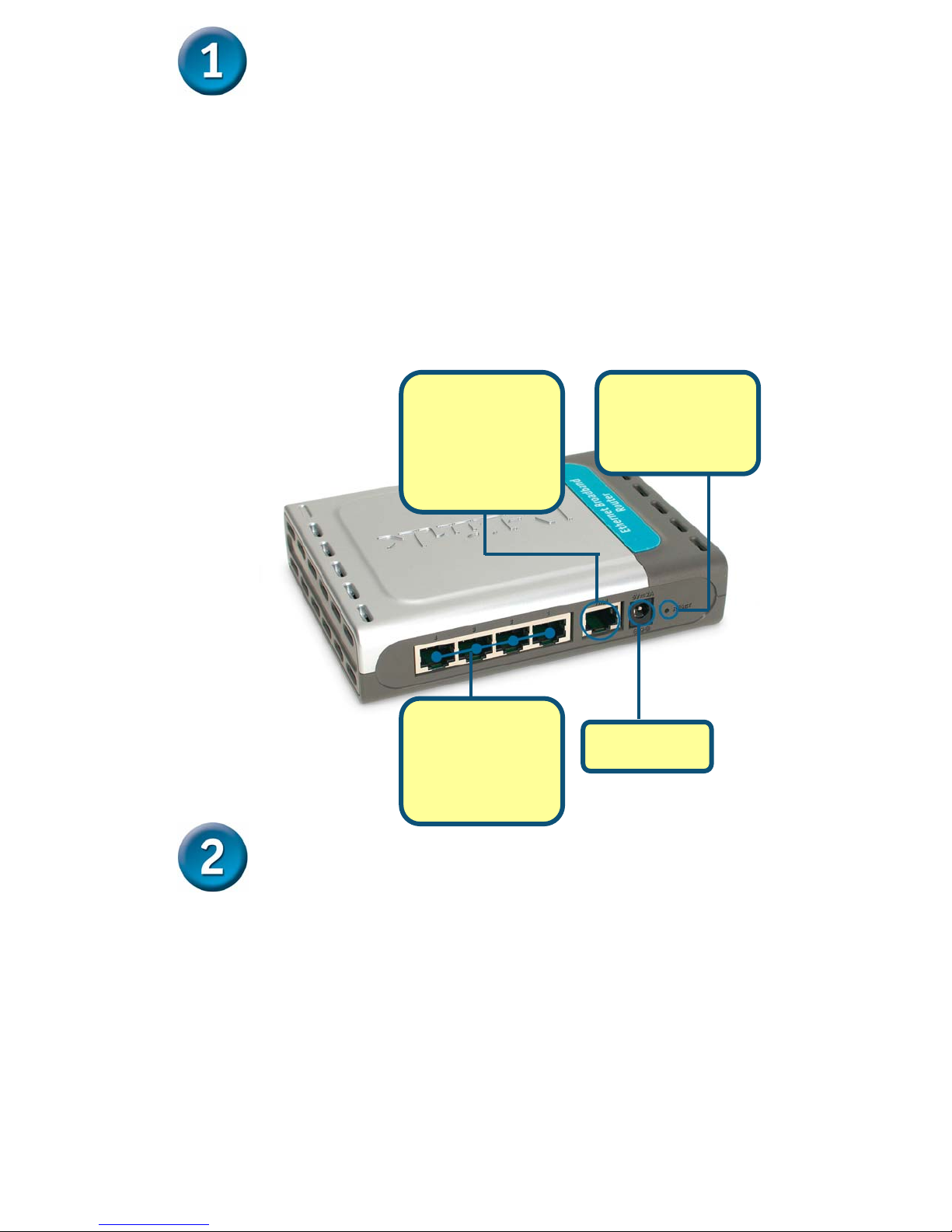

Connecting The DI-604 Broadband Router
To Your Network
A. First, connect the power adapter to the receptor at the back panel of
the DI-604 and then plug the other end of the power adapter to a wall
outlet or power strip. The Power LED will turn ON to indicate proper
operation.
B. Insert one end of an Ethernet cable to the WAN port on the back
panel of the DI-604 and the other end to the Ethernet port located on
your Cable or DSL modem. The WAN LED light will illuminate to
indicate proper connection.
C. Insert one end of an Ethernet cable to LAN port 1 on the back panel
of the DI-604 and the other end to an available Ethernet port on the
network adapter in the computer you will use to configure the DI-604.
The LED light for LAN Port 1 will illuminate to indicate proper
connection. (Note: Some computers already have network adapters
pre-installed.)
Restart Your Computer
A.Receptor for
Power Ada
p
te
r
B.WAN Port
This is the
connection for the
Ethernet Cable to
Ethernet Port on the
Cable or DSL
Modem.
C.LAN Ports
These are the
connections for
Ethernet cables to
your Ethernet-
enabled com
p
uters
Reset Button
Pressing this button
restores the router
to its original factory
default settings.

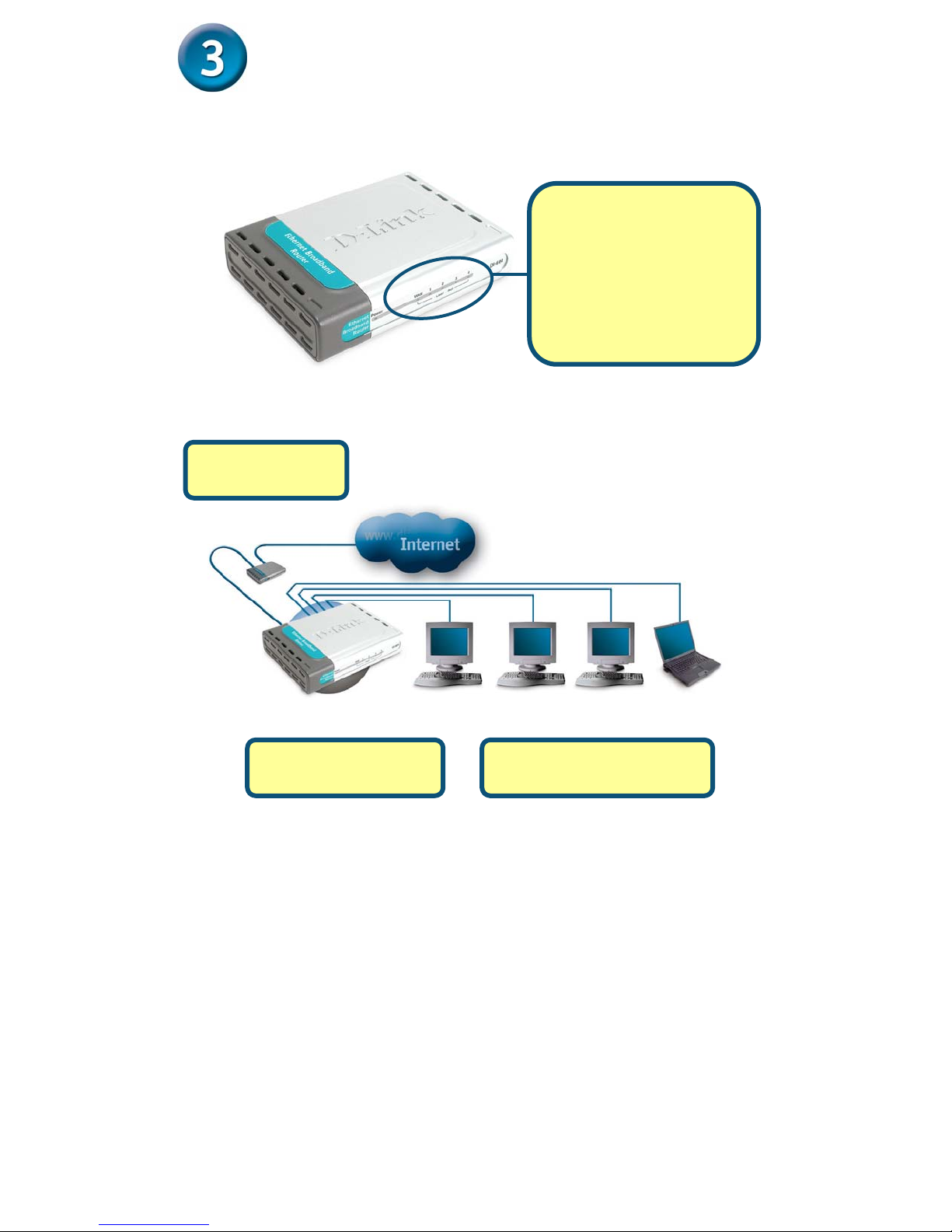

Connecting Additional Computers To The
DI-604 Broadband Router
Using additional Ethernet (CAT5 UTP/Straight-Through) cables, connect
your Ethernet-equipped computer(s) to one of the 3 remaining Ethernet
LAN ports on the back panel of the DI-604.
When you have completed the steps in this Quick Installation Guide, your
connected network should look similar to this:
LAN Port LEDs. Each of the
LAN ports on the back of the
DI-604 have a corresponding
LED light on the front panel
of the unit. When a proper
connection has been made
to a computer that is ON, the
LED on the front panel
should illuminate.
Cable or DSL
Modem
DI-604 Ethernet
Broadband Router
Computers connected
to the LAN Ports

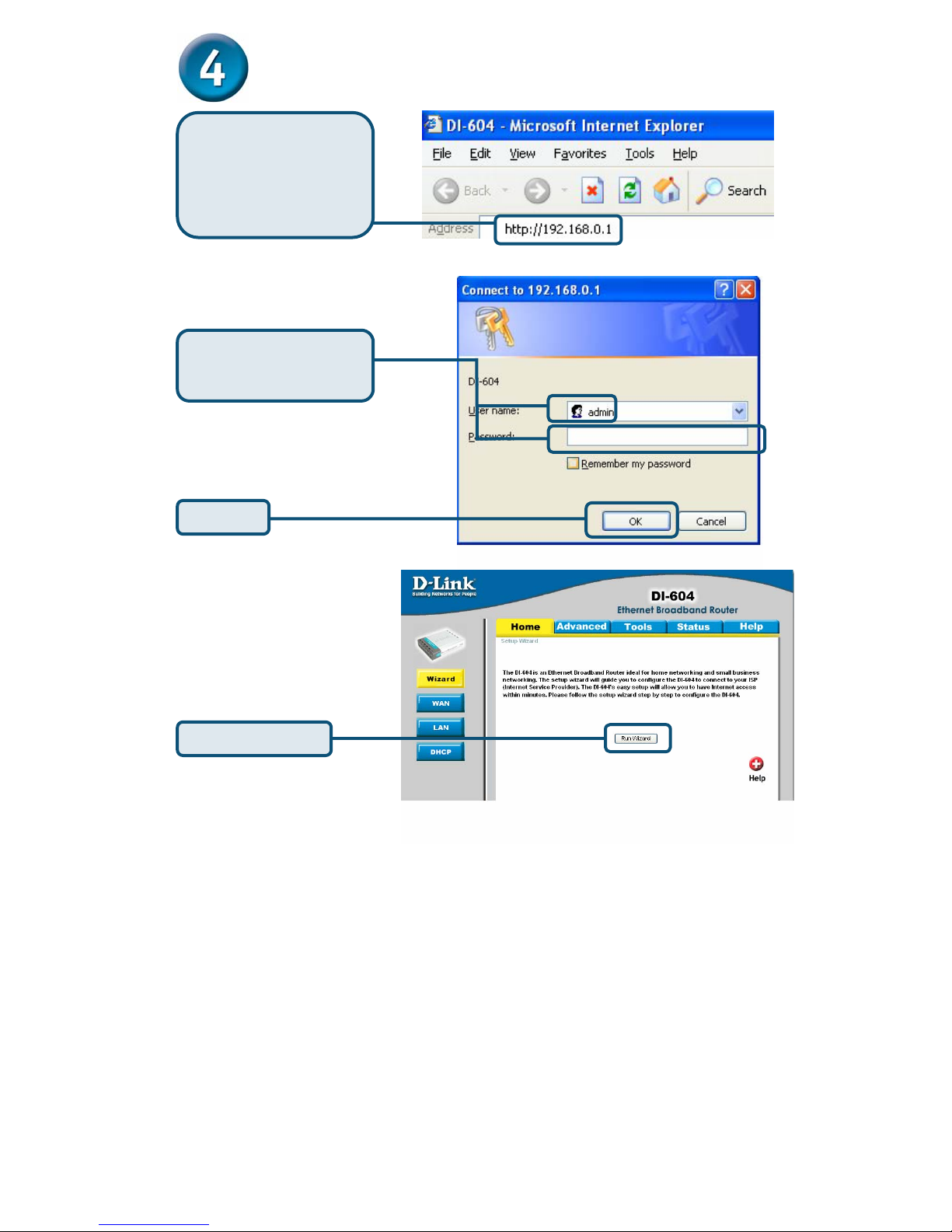

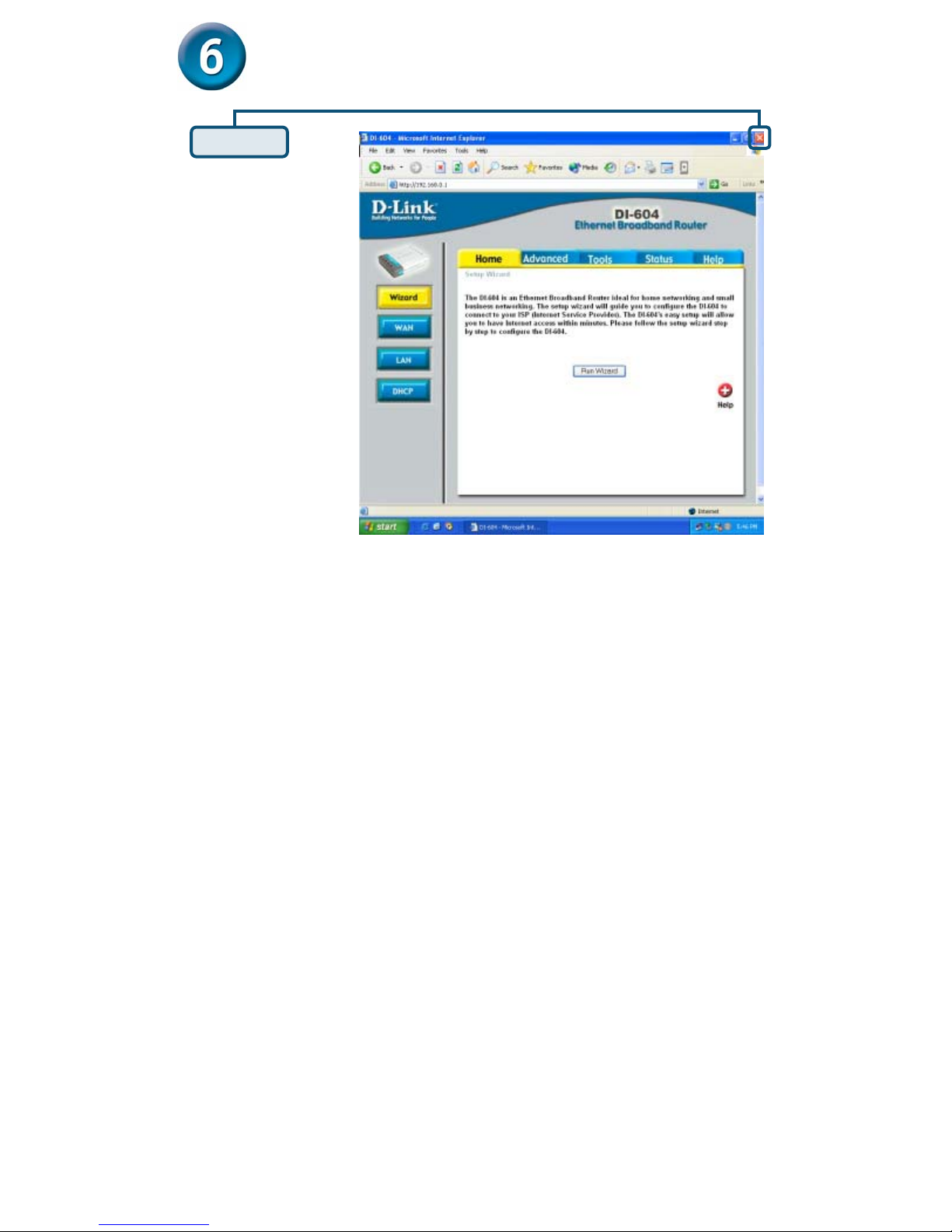

Using The Setup Wizard
The logon pop-up
screen will appear.
Once you have
logged in, the
Home screen
will appear.
Open your Web
browser and type
“http://192.168.0.1” into
the URL address box.
Then press the Enter or
Return key.
Type “admin” for the
username and leave the
password field blank.
Click OK
Click Run Wizard

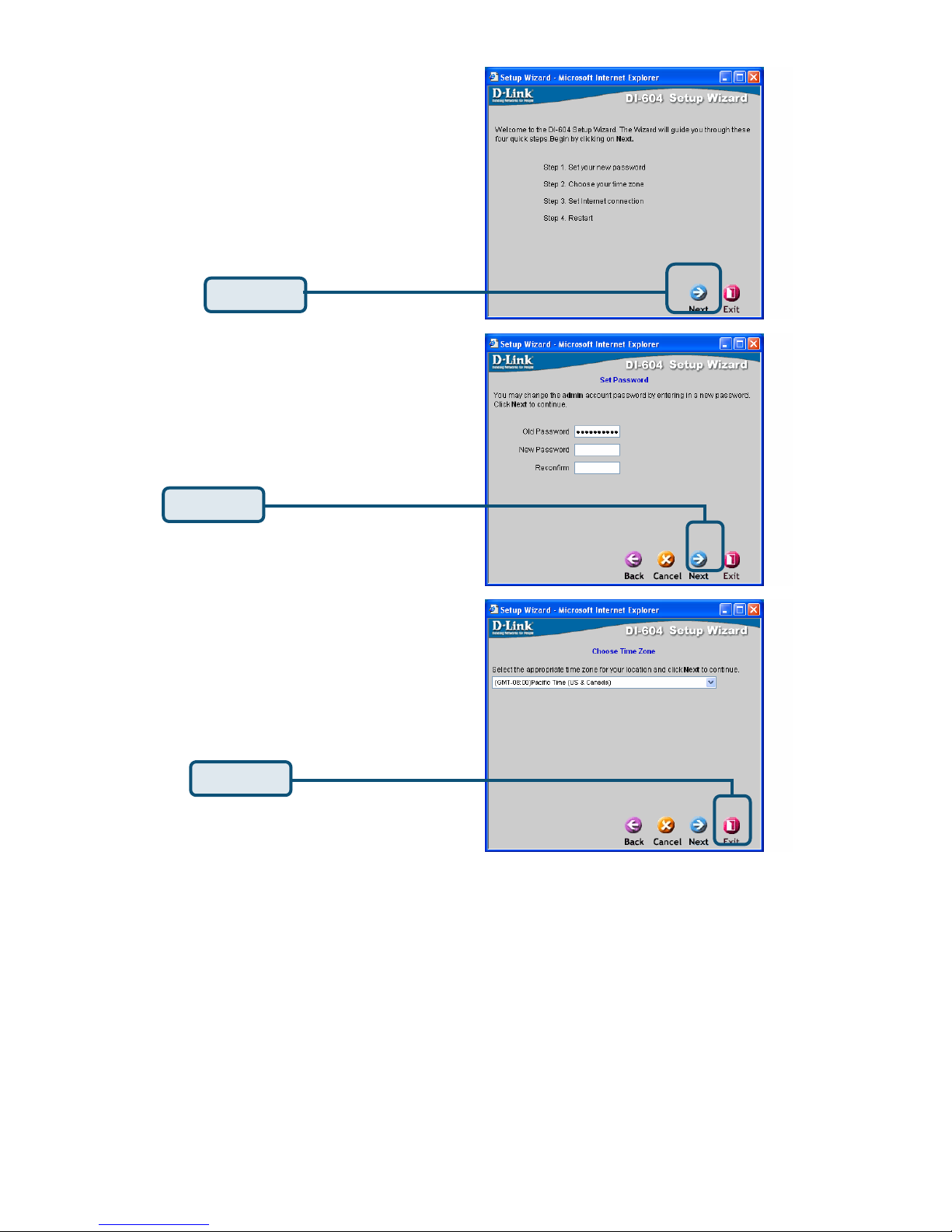

You will see the following screens.
Step 1 - Set up your new password.You
have the option to establish a password.
Step 2 - Choose your time zone.
Click Next
Click Next
Click Next

The Setup Wizard (continued)

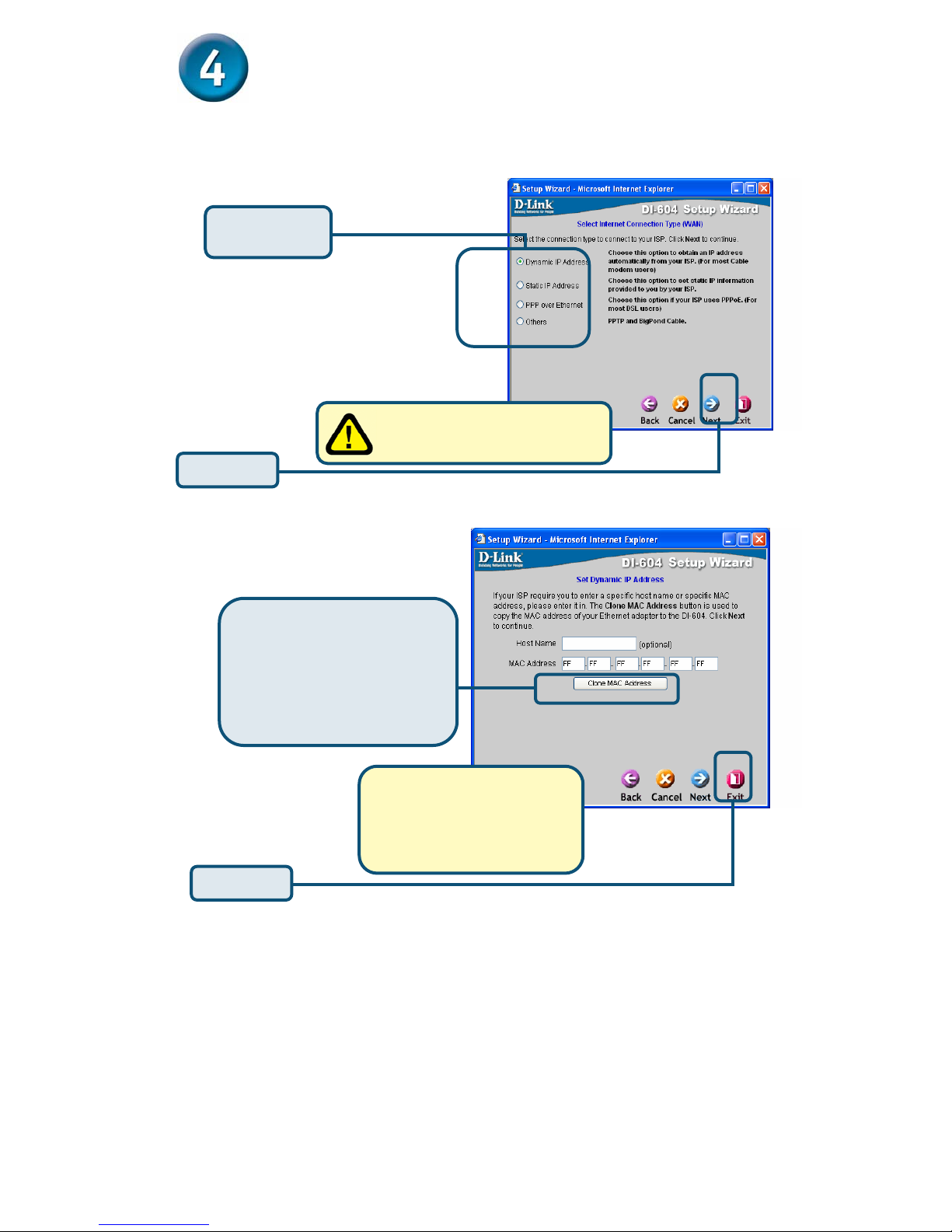

Select the type of Internet connection for your router.
If you selected Dynamic IP
Address, this screen will appear:
Select one of
these settings
Click Next
If you are unsure of which setting to
select, please contact your Internet
Service Provider.
Click the “Clone MAC
Address” button to
automatically copy the MAC
address of the network adapter
in your computer. You can also
manually type in the MAC
address.
Click Next
What is a MAC address? Each
network adapter has a discrete
Media Access Control (MAC)
address. Note that some computers
and peripherals may already include
built-in network adapters.

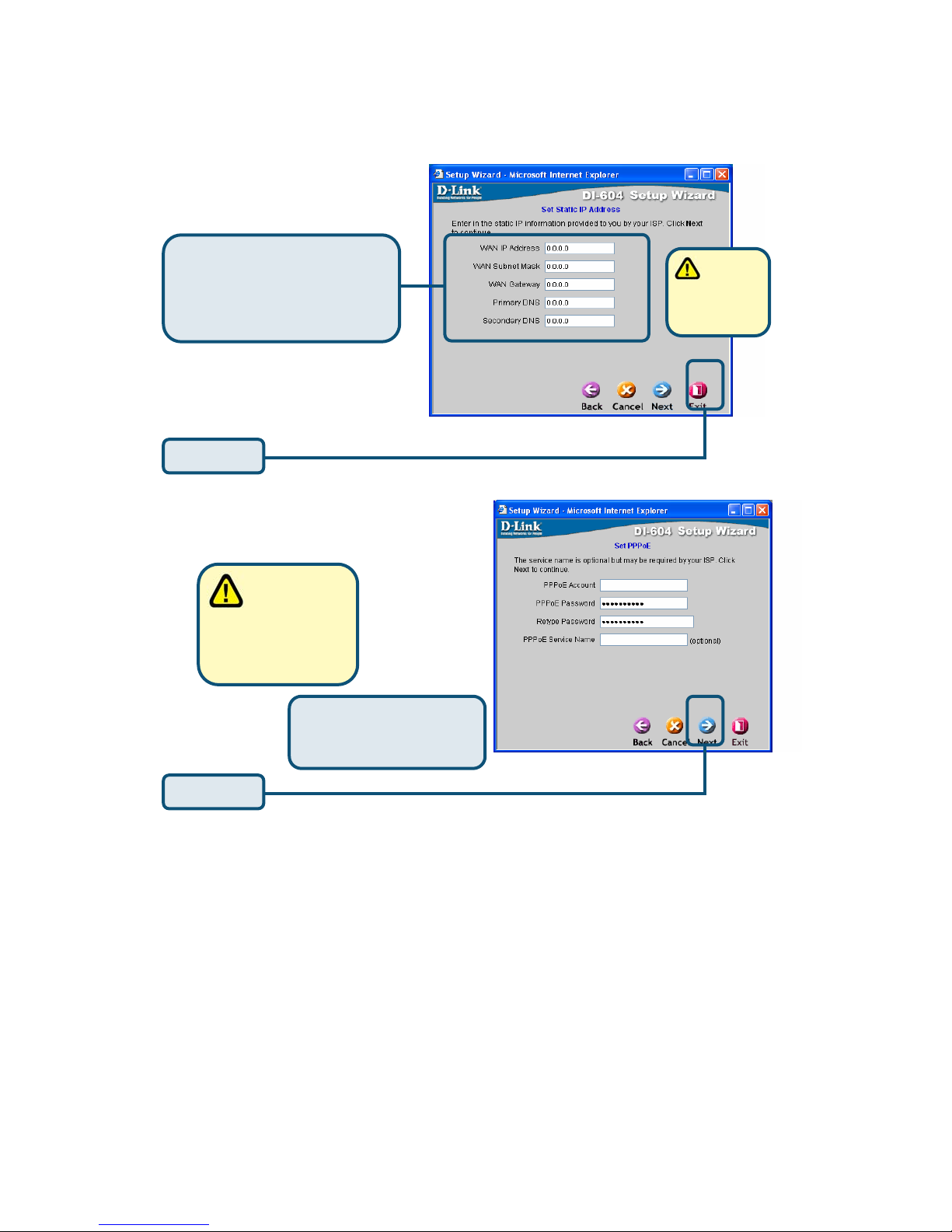

If your ISP requires a Static IP
Address, and this option is
selected, then this screen will
appear:
If your ISP uses PPPoE (Point-to-Point
Protocol over Ethernet) and this option is
selected, then this screen will appear:
Enter the IP address
information originally
provided to you by your ISP.
You will need to complete all
the required fields.
Click Next
Do not use
the numbers
displayed in these
fields. They are only
shown as an example.
Enter in the username
and password provided
to you by your ISP.
Click Next
Please be sure
t to remove any
existing PPPoE
client software
installed on your
com
p
uters.

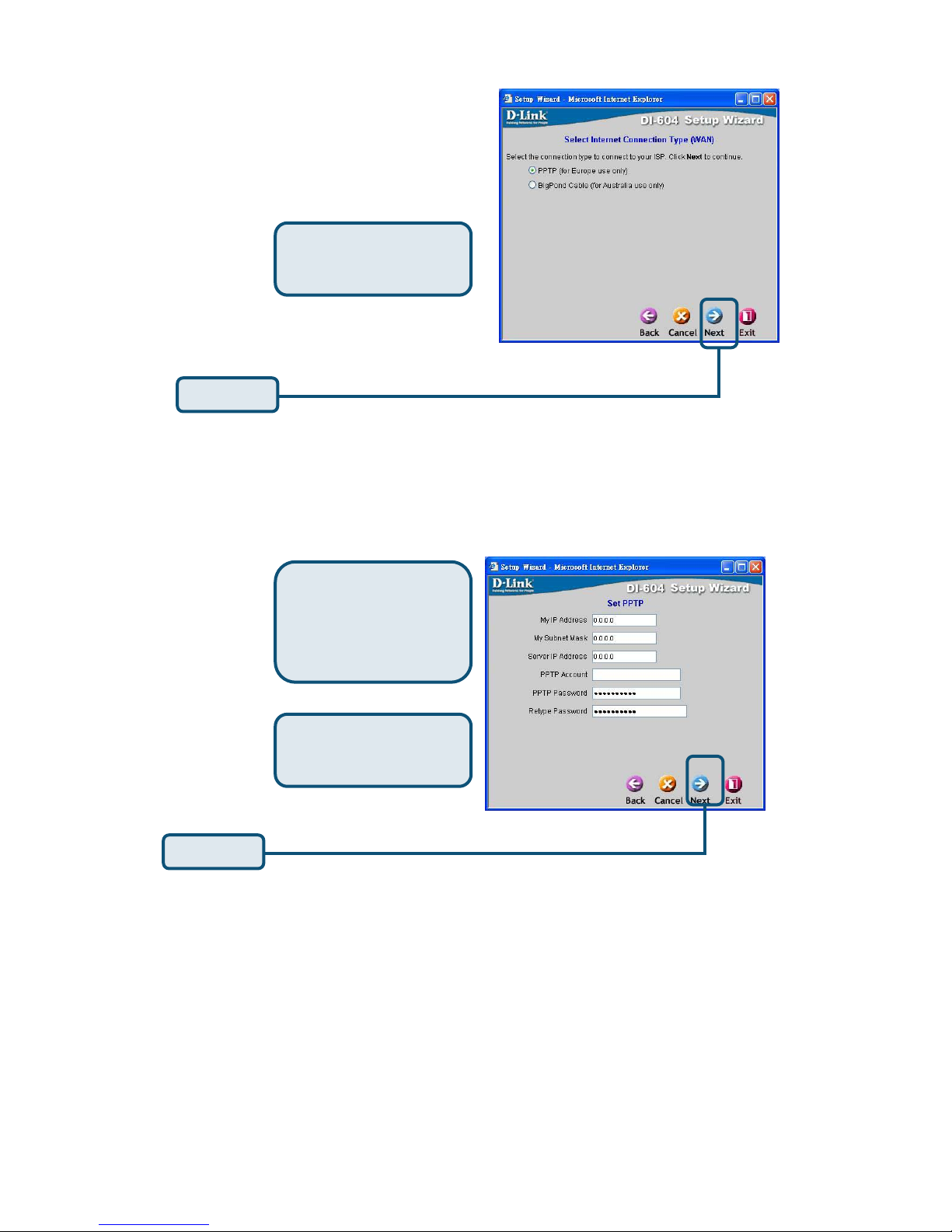

If your ISP uses Others (PPTP and
BigPond Cable) and this option is selected,
then this screen will appear
If your ISP uses PPTP and this option is selected, then this screen will appear
Click Next
Click Next
Enter in the account and
password provided to
you by your ISP.
Select the WAN type
provided to you by
your ISP.
Enter the IP address
information originally
provided to you by
your ISP. You will need
to complete all the
required fields.

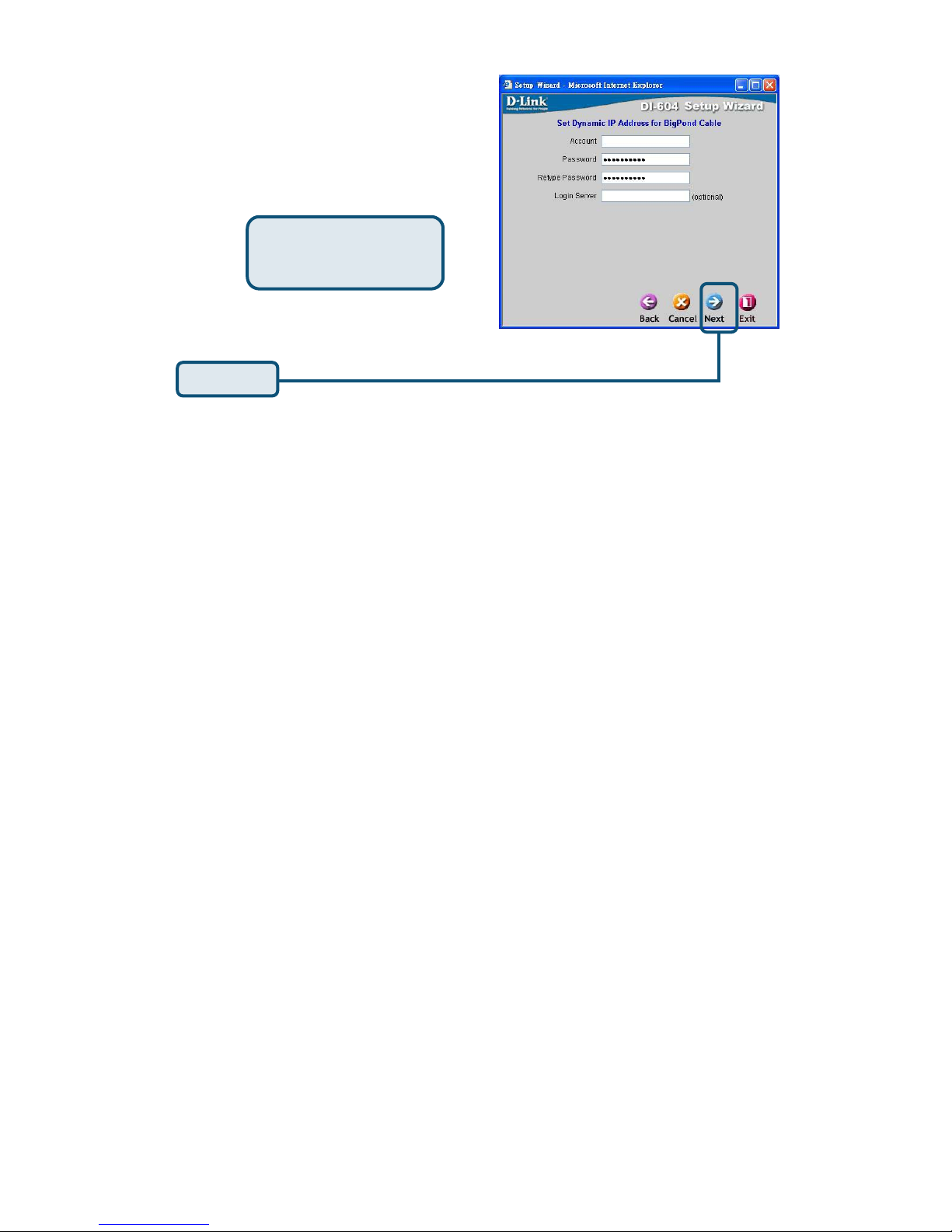

If your ISP uses BigPond Cable and this
option is selected, then this screen will
appear
Click Next
Enter in the account and
password provided to
you by your ISP.

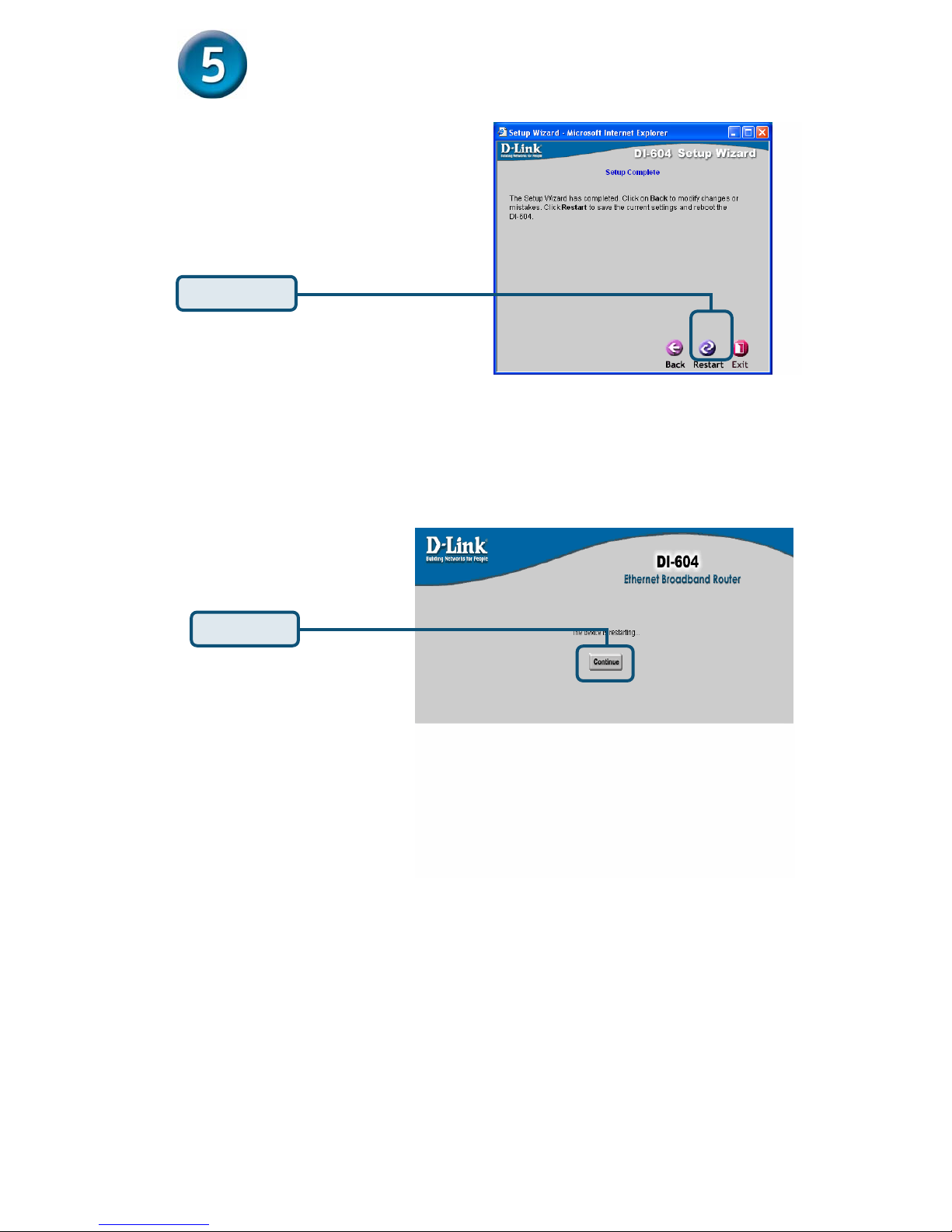

Your Setup is Complete!
You will be returned to the
Home tab.
Click Restart
Click Close

Test Your Internet Connection
Relaunch your Web
browser (i.e., Internet
Explorer or Netscape
Navigator), to link to
your favorite Web site
to test your Internet
connection.
For additional settings
or information, refer to
the Advanced, Tools,
or Status tabs on the
web-management
interface; or to the
manual located on the
CD-ROM.
Click Exit

APPENDIX
To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-604 Broadband Router.

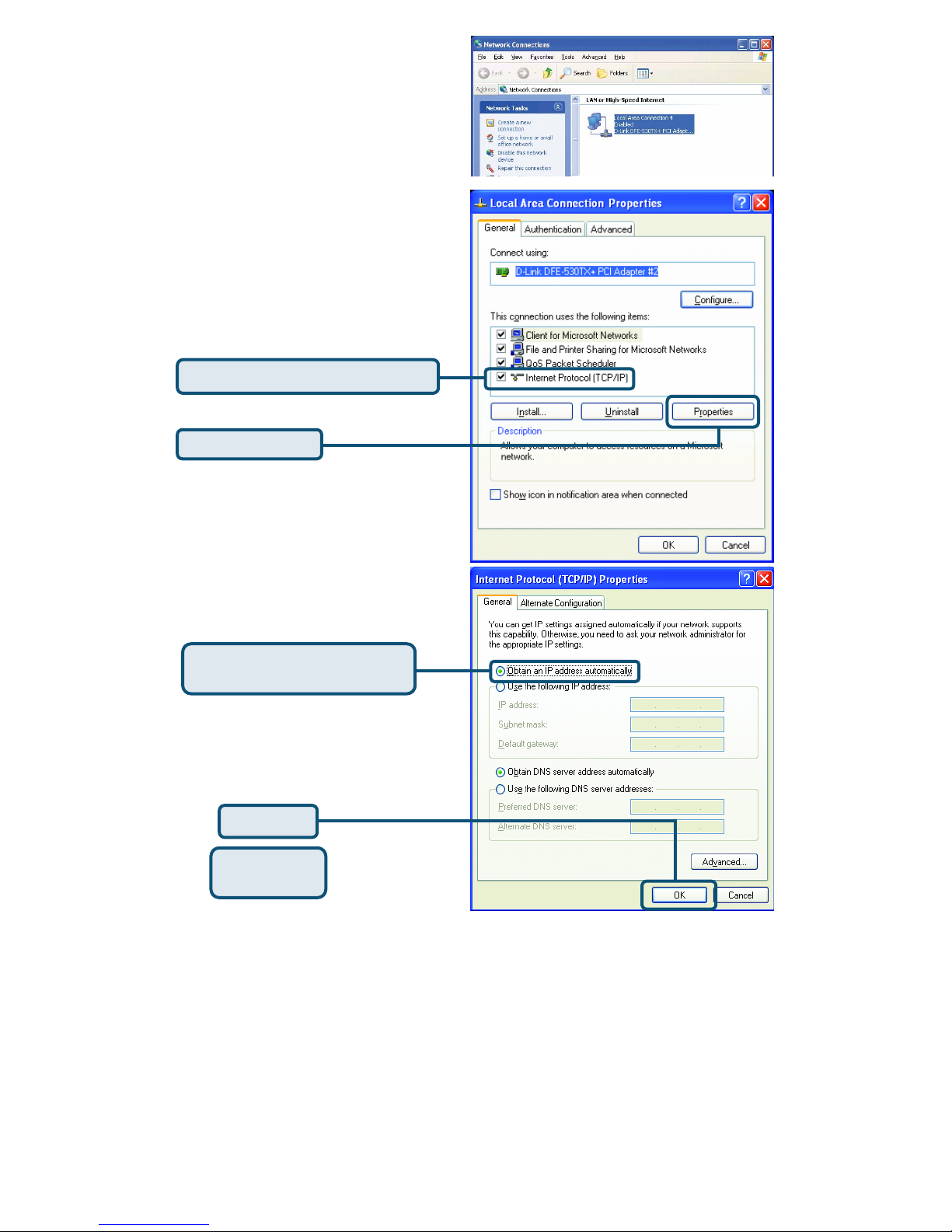

For Microsoft Windows XP:
Go to Start > right click on
My Network Places >
select Properties > Double-click on
the Network Connection associated
with the Ethernet adapter (i.e.,
D-Link DFE-530TX+).
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Click OK
Restart your
computer

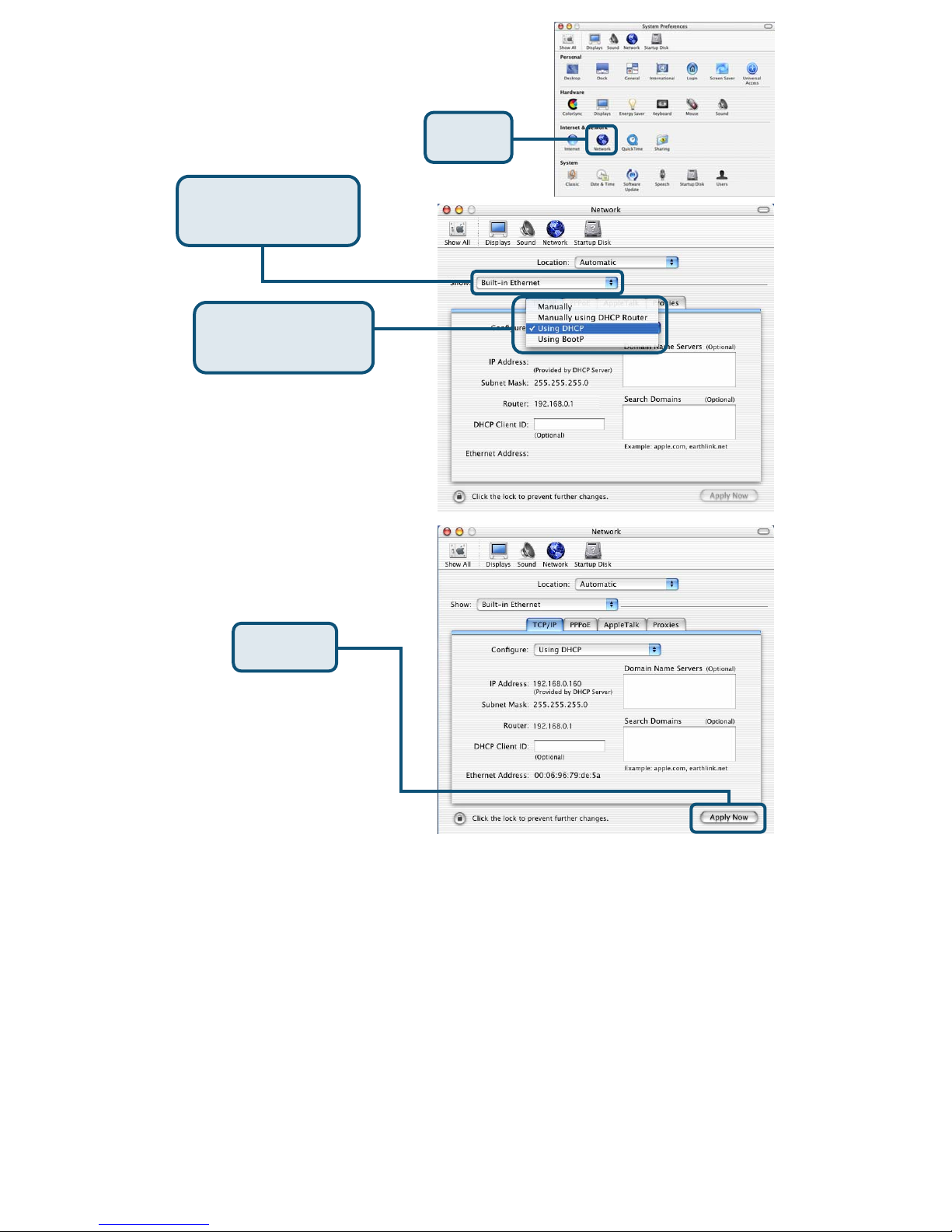

For Apple Macintosh OS X:
Go to the Apple Menu
and Select System
Preferences.
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear.
Click on
Network
Select Built-in
Ethernet in the Show
pull-down menu
Select Using DHCP
in the Configure pull-
down menu
Click on
Apply Now

Technical Suppor
t
You can find the most recent software and user
documentation on the D-Link website.
D-Link provides free technical support for customers
within the United States for the duration of the
warranty period on this product.
U.S. customers can contact D-Link technical support
through our web site or by phone.
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week
D-Link Technical Support over the Internet:
http://support.dlink.com
email: [email protected]
