Before You Begin
Check Your Package Contents
DSM-622H 20GB Wireless Central Home Drive
or
DSM-624H 40GB Wireless Central Home Drive
CD-ROM with Manual
Ethernet (CAT5 UTP/Straight-Through) Cable
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
If any of the above items are missing, please contact your reseller.
5V DC Power Adapter
Stacking and Vertical Stands
DSM-622H/DSM-624H
Youmusthaveat leastthefollowingforconfiguration:
1. A computer with Windows XP, 2000, Me, 98SE, Apple MAC OS X, or Linux based
operatingsystemwithanavailableEthernetport.
2. Activating UPnP in Windows XP and Me is optional, but is highly recommended for
ease of use.
Antenna
Wireless Central Home Drive

2
DSM-622H/624H Overview

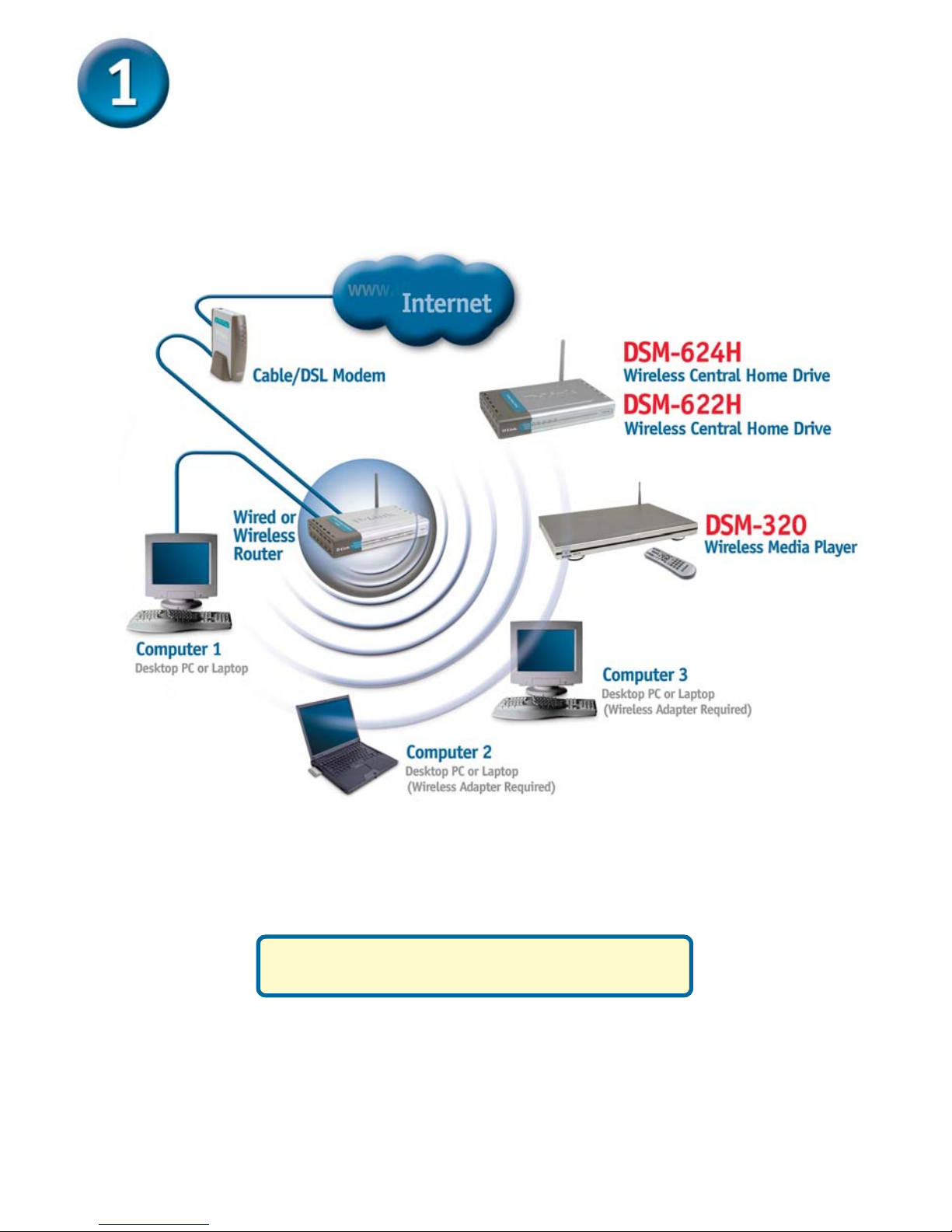

When you have completed the steps in this Quick Installation Guide, your connected
network may look similar to this:
A default IP address of 192.168.0.65 is assigned
to the unit if a DHCP server is not found.

3

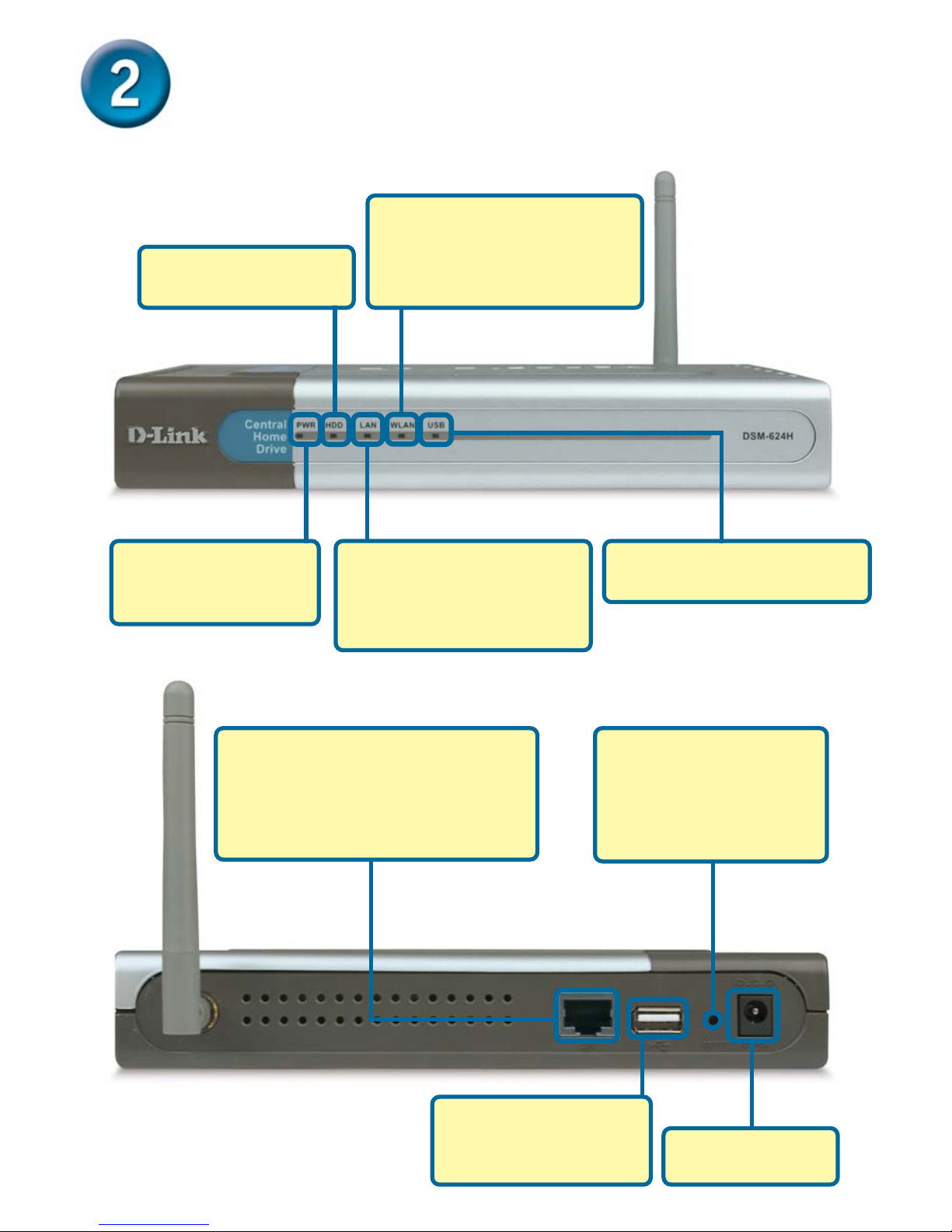

LAN Port: Connects to your
Ethernet network. The LAN port
supports AutoMDI/MDI-X,allowing
you to connect a straight-through
orcrossovercable.
Connectorfor
Power Adapter.
PWR:Solidindicates
a connection to a
goodpowersource.
HDD:Indicatesactivity
ontheharddiskdrive.
LAN: Solid indicates an
Ethernet connection.
Blinkingindicatesactivity
onthe Ethernet network.
USB: A solid light indicates
thataUSB driveis connected.
Hardware Overview
ResetButton:Pressing
this button for 10
seconds restores the
unit to the original
factorydefaultsettings.
WLAN: Asolidlightindicates
that the wireless segment is
ready.ThisLEDblinksduring
wirelessdatatransmission.
USB Port: Used to
connectexternalUSB
storagedevices.

4
c. Connect the power
adaptertotheconnector
on the back panel of the
DSM-622H/624H. Then
plugtheotherendofthe
poweradapterintoawall
outletorpowerstrip.The
Power LED will be on to
indicateproperoperation.
Hardware Installation
d. After the Ethernet cable
is securely connected,
connecttheotherendof
the Ethernet cable to
your network router or
switch.

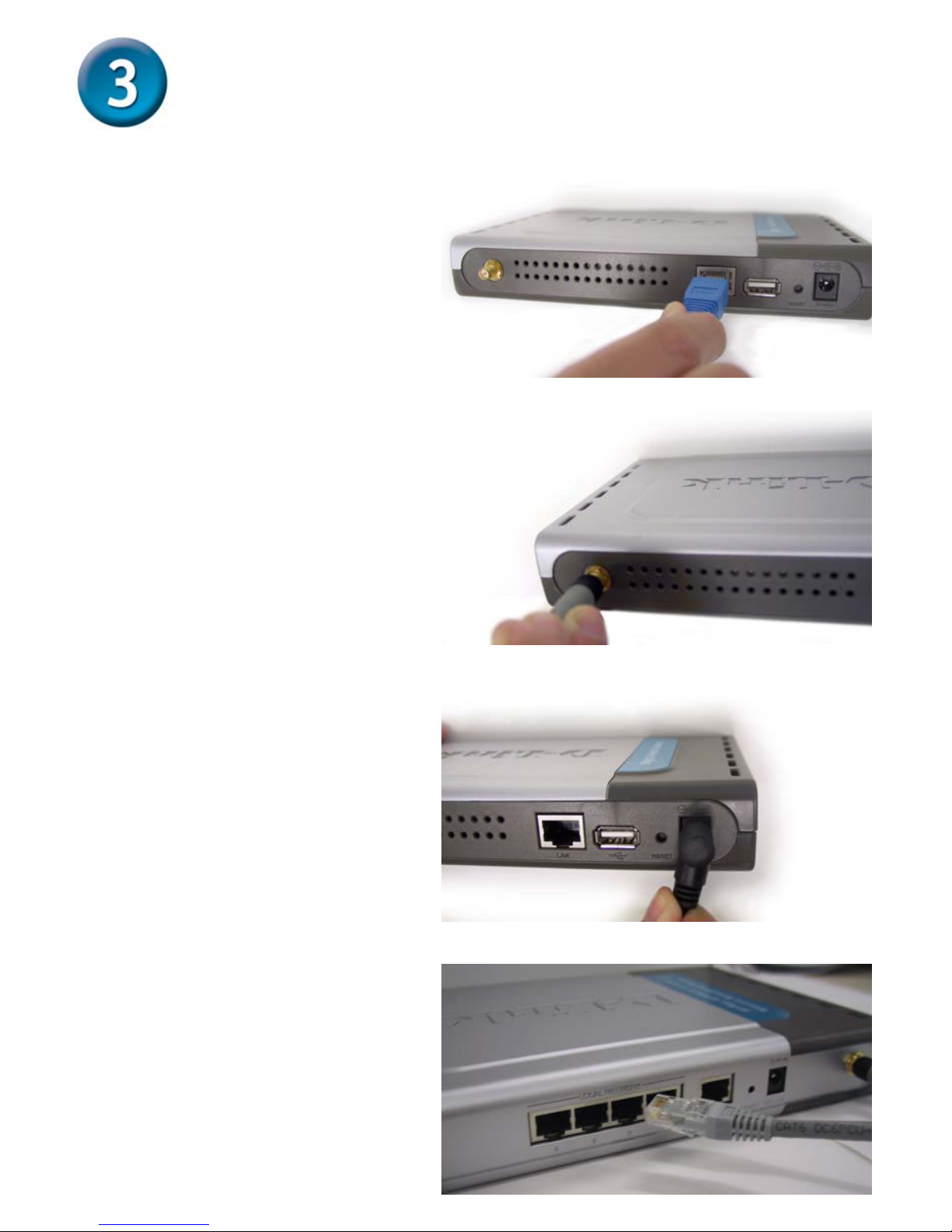

A. Connect an Ethernet
cable to the Ethernet
jacklocatedontheback
oftheDSM-622H/624H.
B. Connect the antenna to
the antenna connector
located on the back of
theDSM-622H/624H.

5
Setting up a Wireless Connection

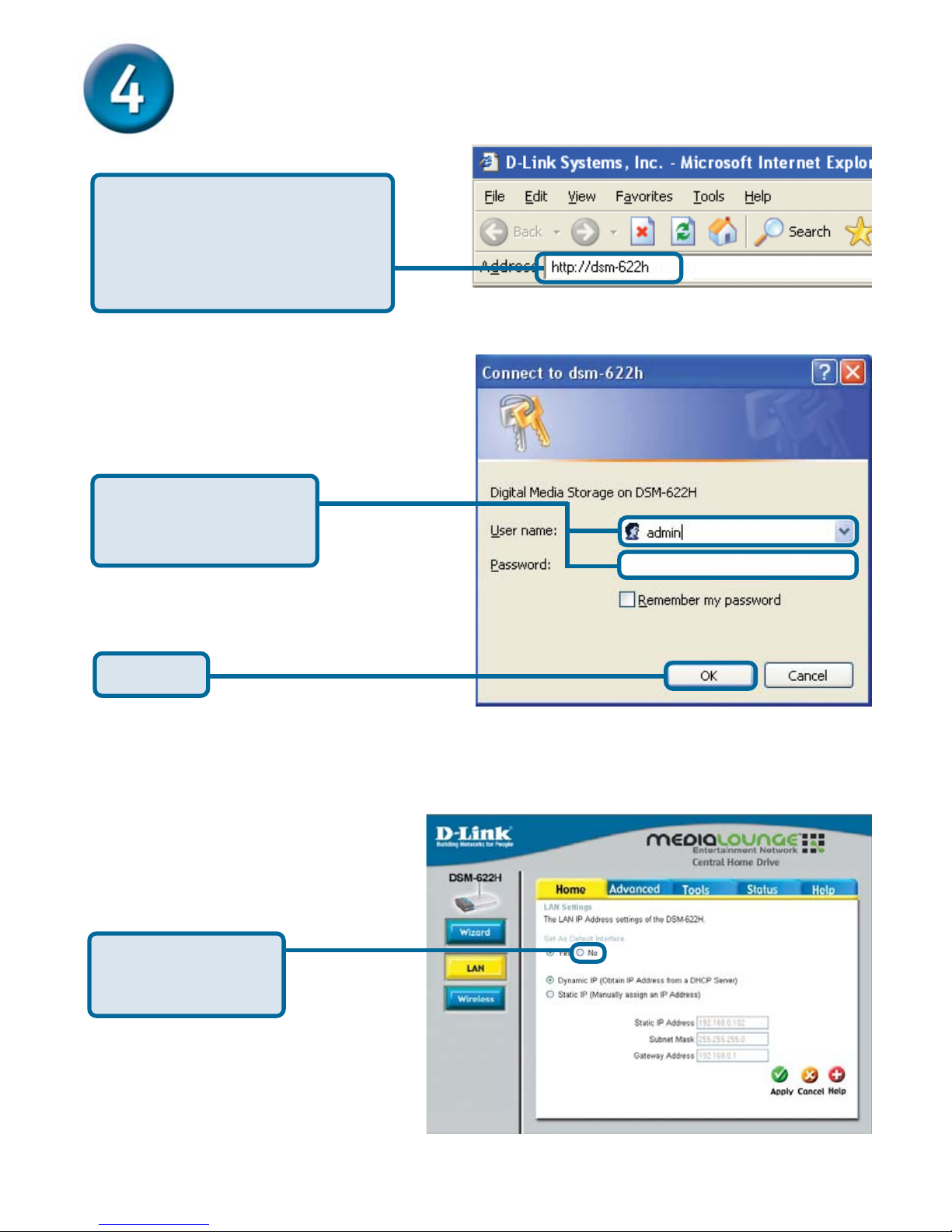

Open your Web browser and
typehttp://dsm-622h orhttp://
dsm-624hintotheURLaddress
box. Then press the Enter or
Return key.
Thelogonpop-upscreenwillappear.
Once you have logged in, the
Home screen will appear. Click
ontheLAN tabontheleftsideof
the screen.
Type admin for the
usernameandleavethe
passwordfieldblank.
Click OK.
Click No underthe
Set as Default
Interface setting.

6
Setting up a Wireless Connection
(continued)

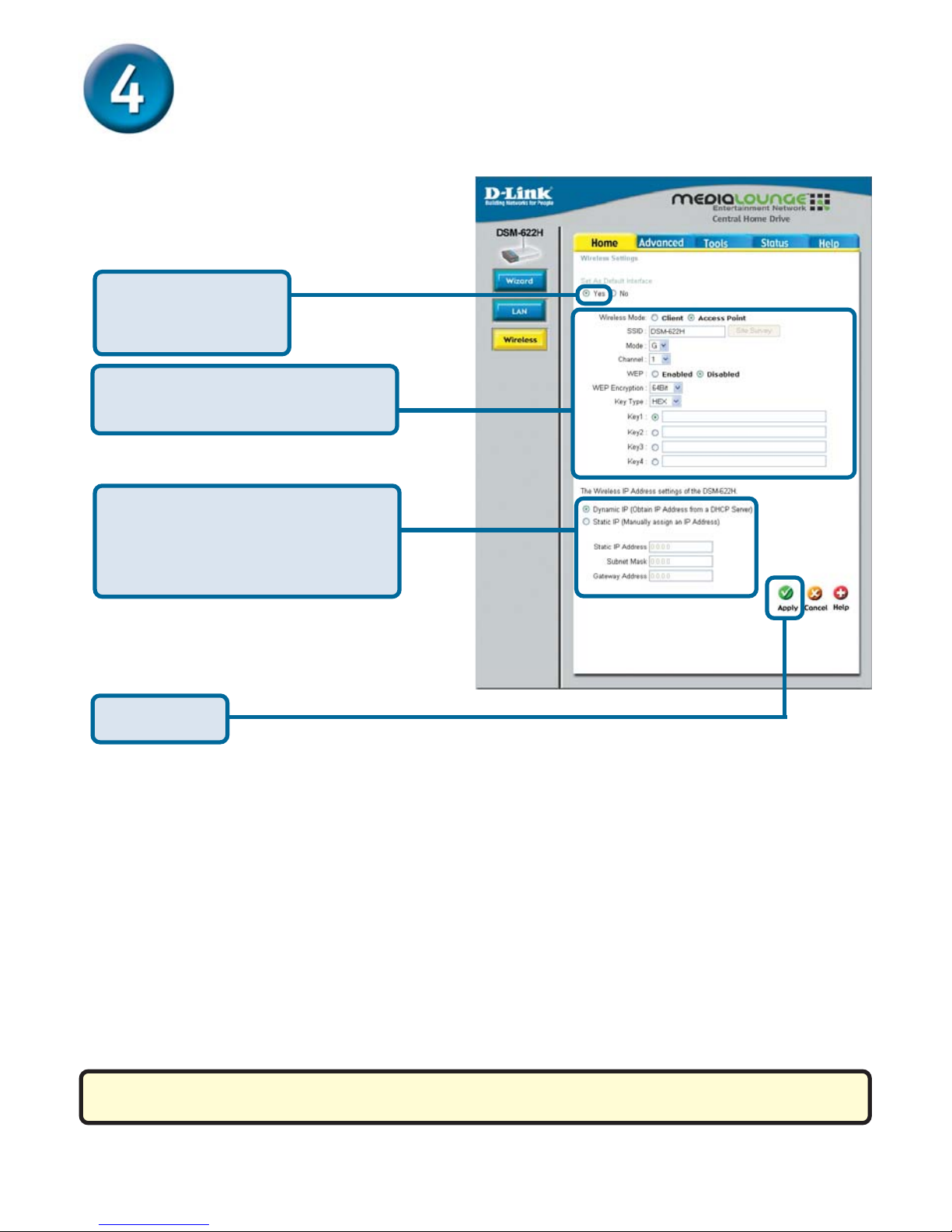

After clicking No, the Wireless
screenwillappear.
ClickYes under
the Set as Default
Interface setting.
Click Dynamic IP or click
Static IP and manually input
your Static IP Address, Subnet
Mask, and GatewayAddress .
ClickApply.
Your wireless connection setup is now complete!
Note: For information on configuring the DSM-622H/624H as a wireless client or help
with the other features on this page, please refer to the section titled Using the
Configuration Utility in the manual.
SelectyourWireless Mode and
input your wireless settings.
You can now unplug the Ethernet cable and access the DSM-622H/624H wirelessly.

7
Accessing the DSM-622H/624H in
Windows Me or XP

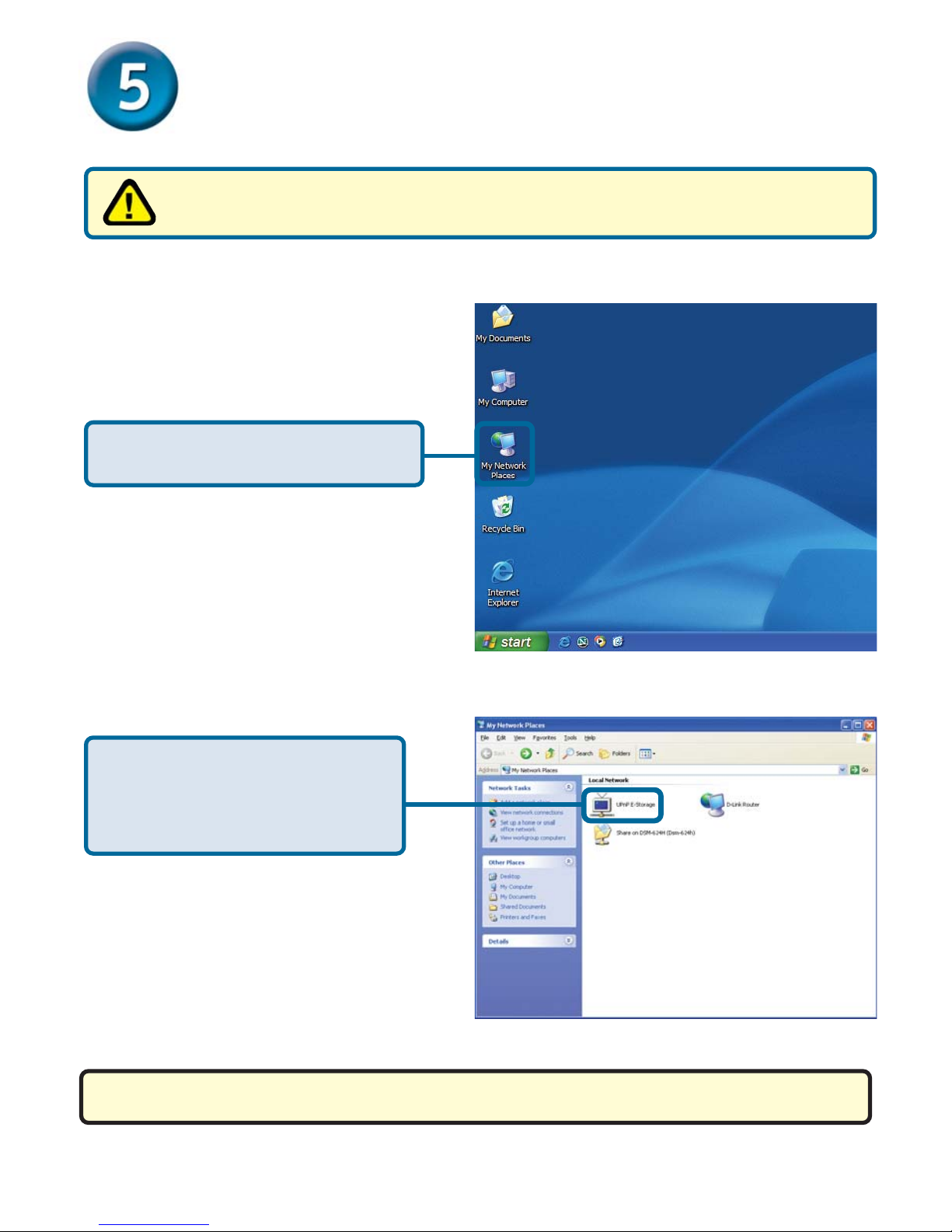

Double Click My Network Places
on the Windows Desktop.
ForWindowsMeorXPusers,itisrecommendedtoactivateUPnPforeaseof
use.To learn how to activate UPnP, please refer to page 9 of the manual.
Once connected, the device will
appearin My Network Places as
UPnP E-Storage, if UPnP is
activatedin Windows Me orXP.
Your setup in Windows XP or Me is now complete!

8
Accessing the DSM-622H/624H in
Windows 2000

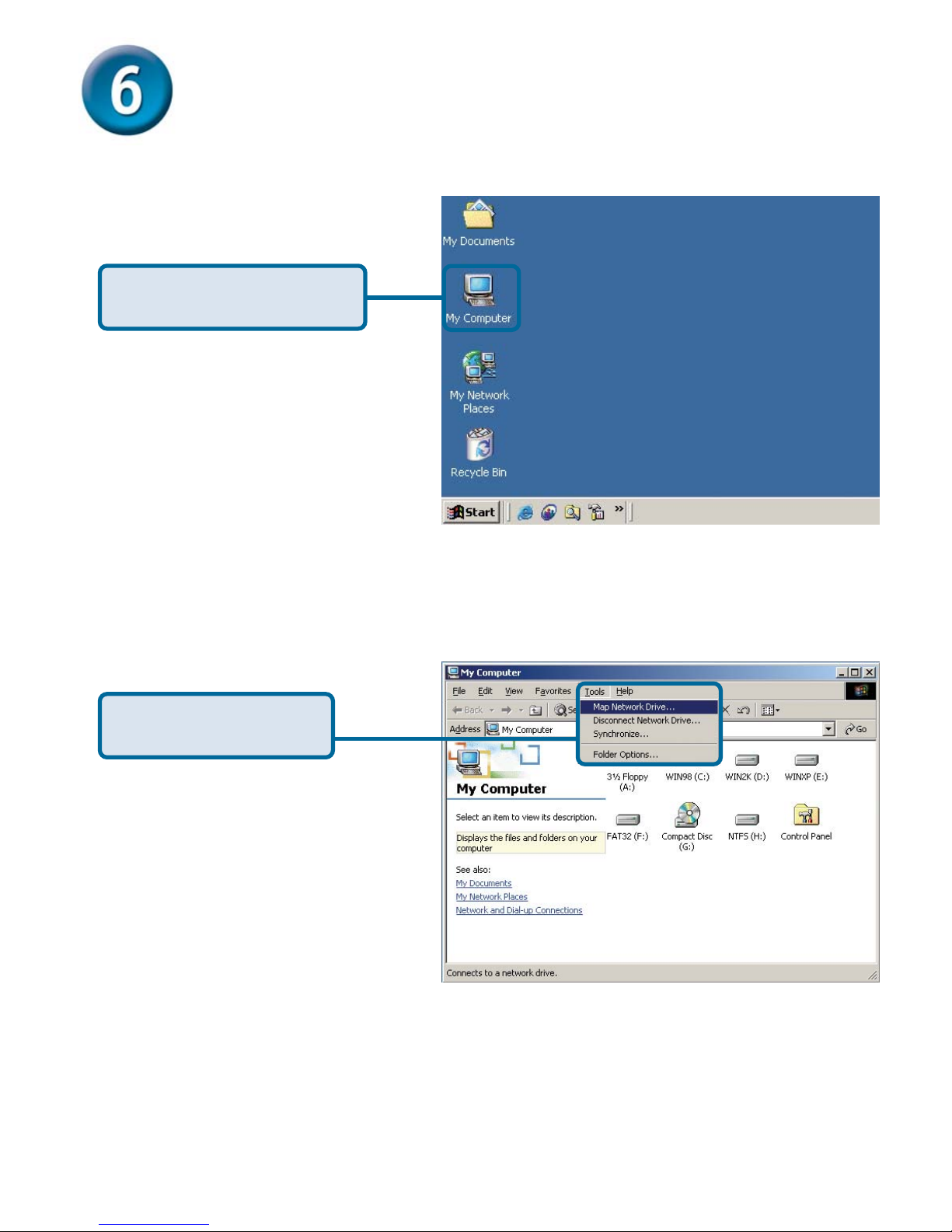

Double click My Computer
on the Windows Desktop.
Under Tools, select
Map Network Drive.

9

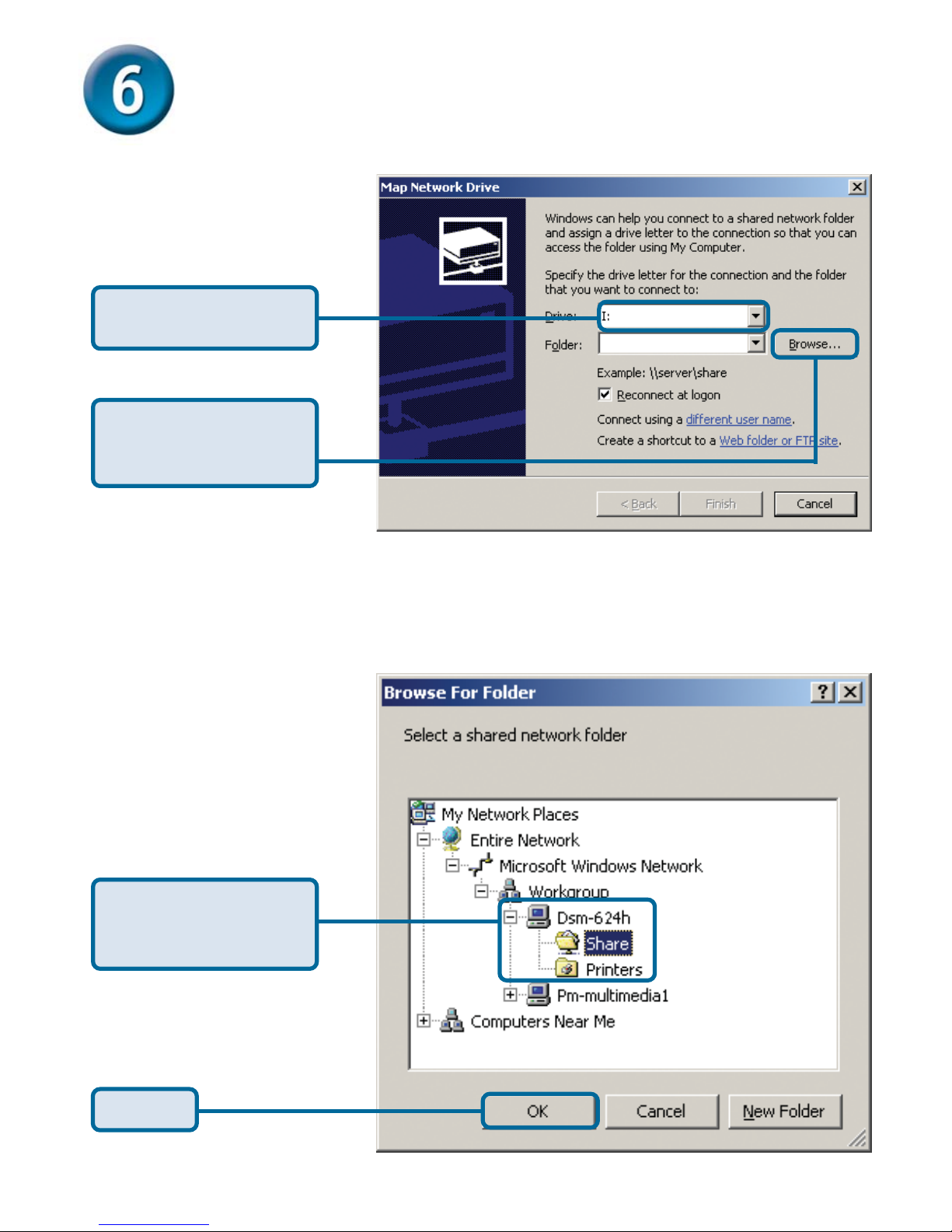

Selectadrive letter for
theDSM-622H/624H.
Select Browse to find
theDSM-622H/624Hon
thenetwork.
Select your
DSM-622H/624H
sharefolder.
Click OK.
Accessing the DSM-622H/624H in
Windows 2000 (continued)

10
Click Finish.
IntheMyComputerwindow,
theDSM-622H/624Hwillbe
displayedwith a mapping to
thedrive letter you selected.
Your setup in Windows 2000 is now complete!
Accessing the DSM-622H/624H in
Windows 2000 (continued)

11
Accessing the DSM-622H/624H in
Windows 98SE

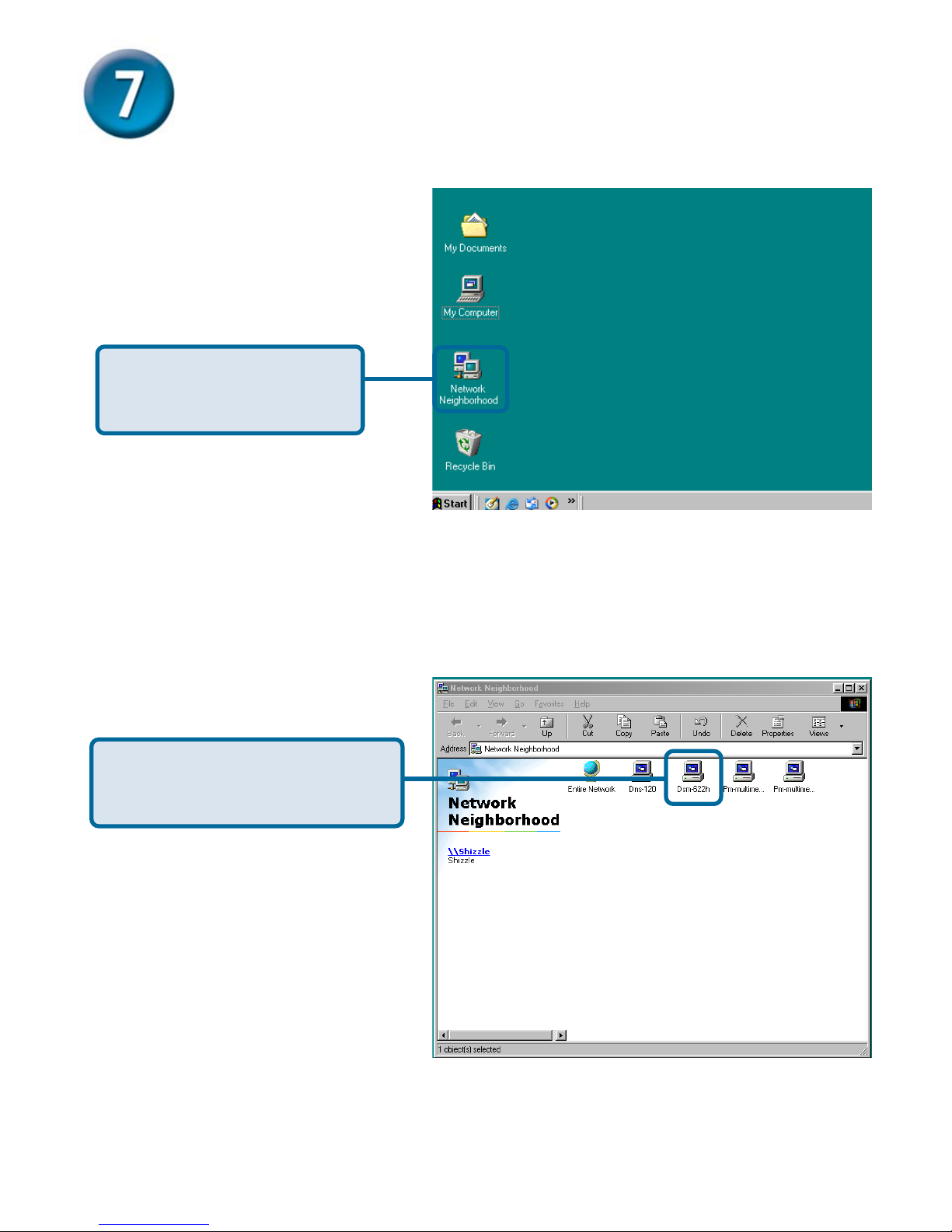

Double click Network
Neighborhood on the
WindowsDesktop.
DoubleclickontheDSM-622H/
624H icon in the Network
Neighborhood.

12
Accessing the DSM-622H/624H in
Windows 98SE (continued)

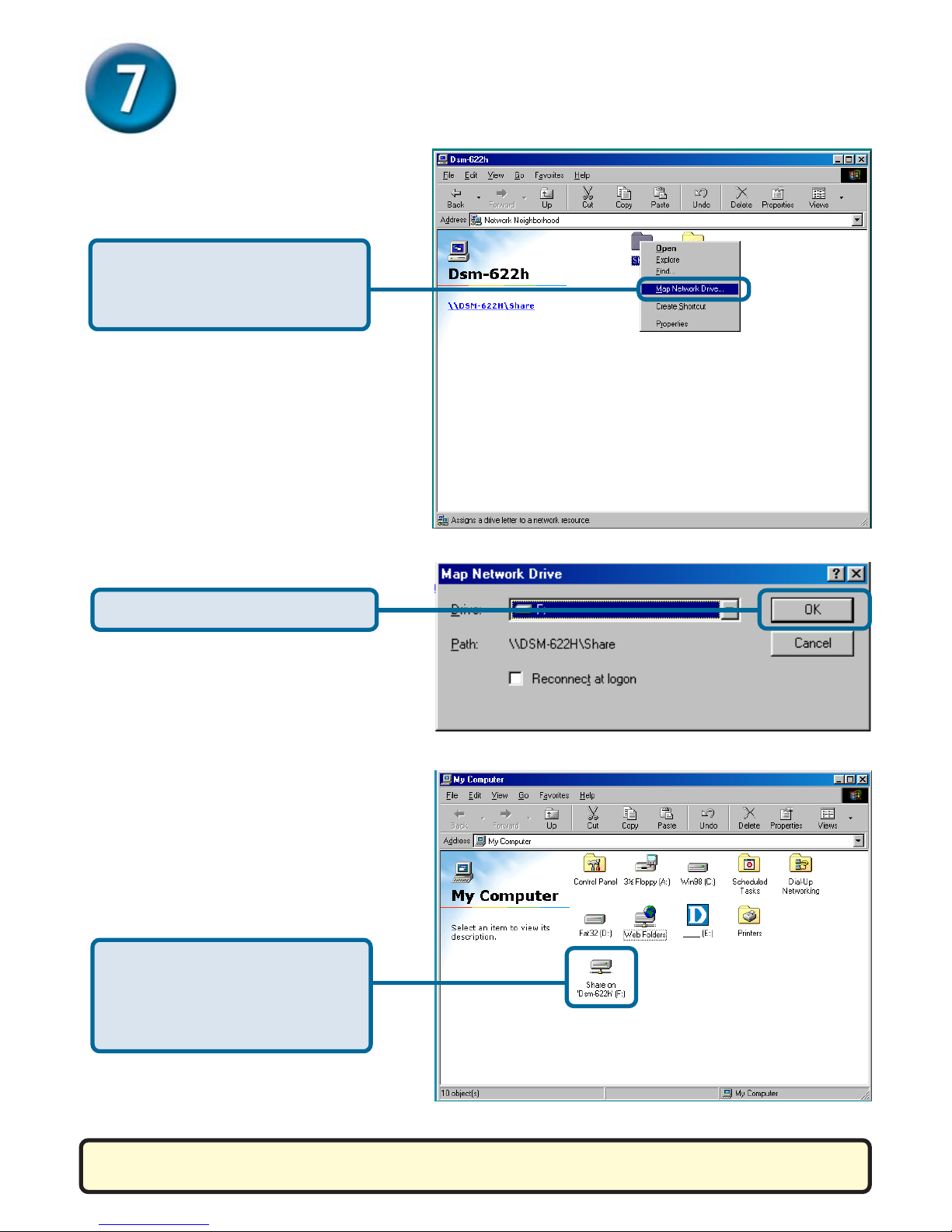

Right click on the share
folder and click Map
Network Drive.
SelectthedriveandclickOK.
IntheMyComputerwindow,
theDSM-622H/624Hwillbe
displayedwith a mapping to
thedrive letter you selected.
Your setup in Windows 98SE is now complete!

13
Accessing the DSM-622H/624H in
Macintosh OS X

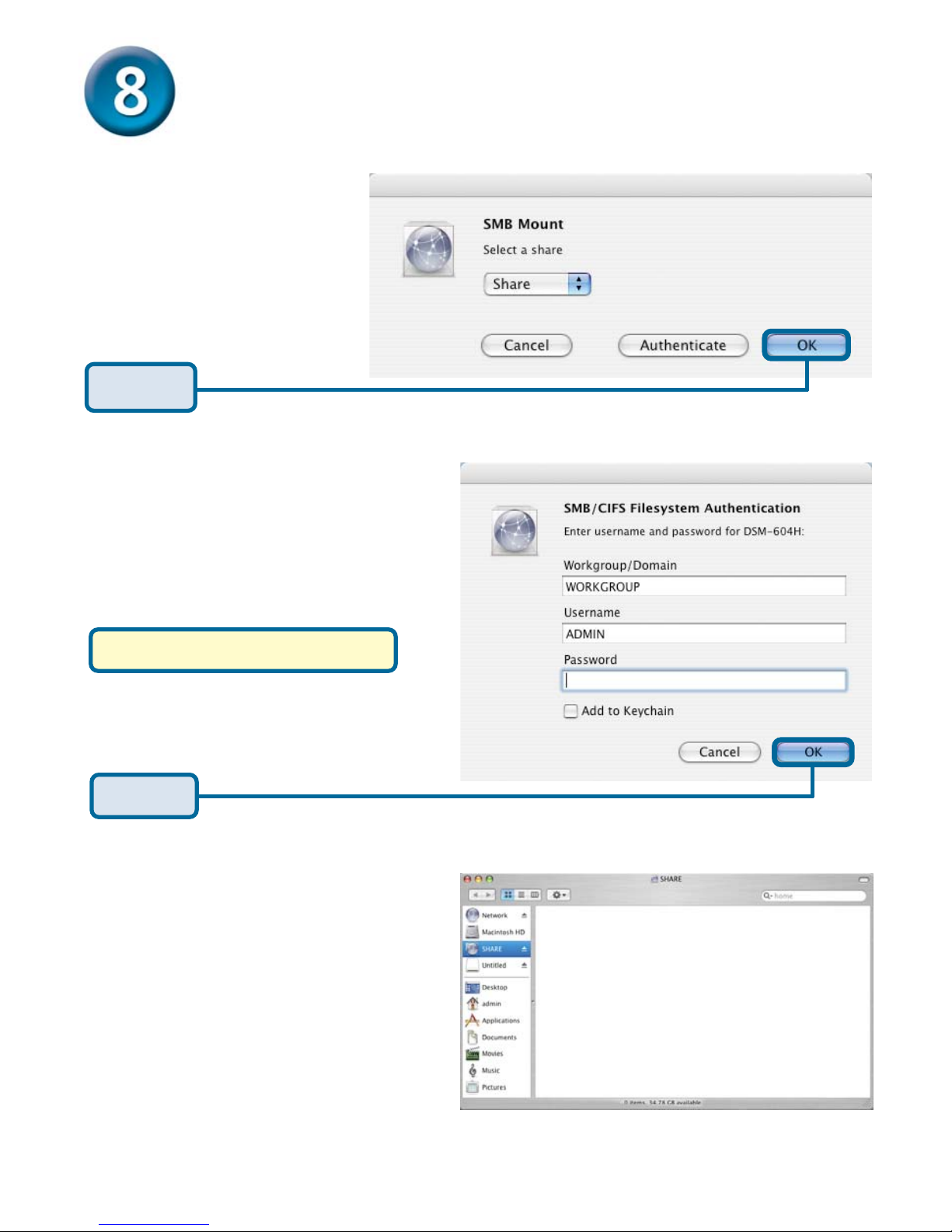

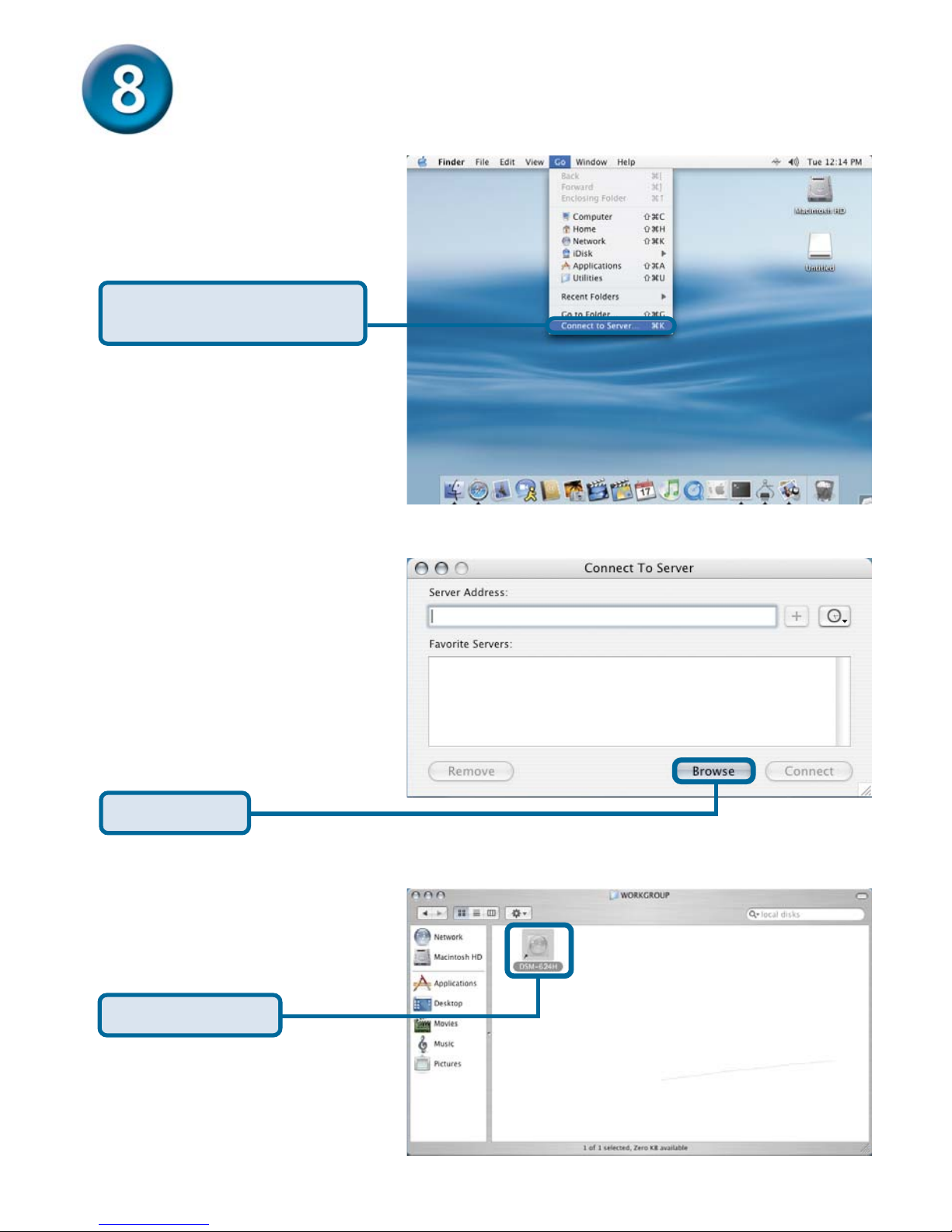

FromthedesktopGomenu,
select Connect to Server.
Click Browse.
Click DSM-624H.

14
Click OK.
By default, there is no password.
Accessing the DSM-622H/624H in
Macintosh OS X (continued)
Click OK.
Thesharewindowwillopen.

15
Your setup in MAC OS X is now complete!
Accessing the DSM-622H/624H in
Macintosh OS X (continued)

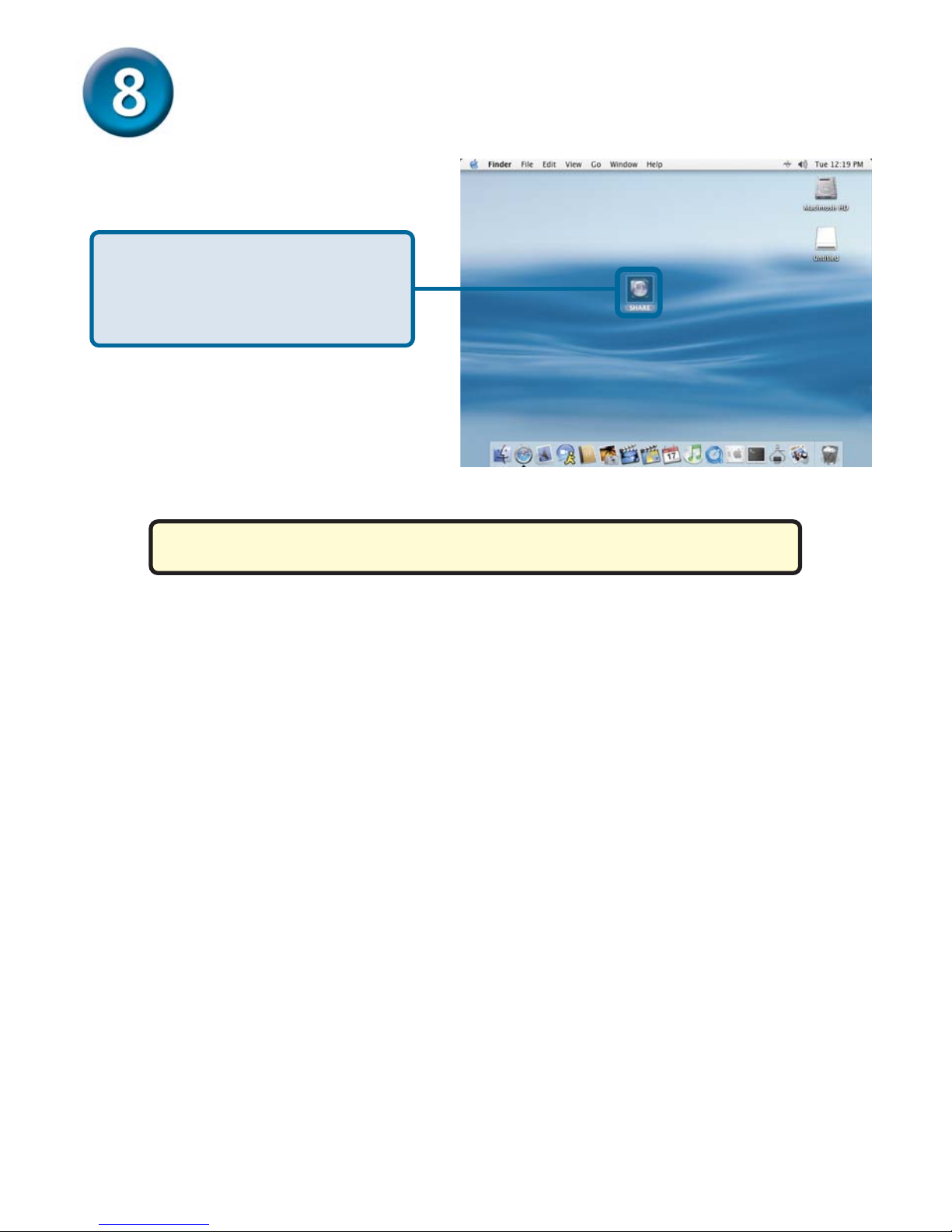

TheDSM-622H/624Hwillappearon
your desktop. Double-click on the
shared drive to access your
WirelessCentralHomeDrive!
