DCH-G020
mydlink™ Connected Home Hub
User’s Manual
Version 01.1
Feb. 4th, 2015

DCH-G020 D-Link Corporation
Data Sheet Page 2 2/11/2015
1. PRODUCT DESCRIPTION
The DCH-G020 is a Connected Home Z-Wave Gateway used to control a
variety of Z-wave home sensors for the application of home automation.
It is able to talk to variety of Z-Wave sensors and communicate with other D-
Link connected Home devices.
DCH-G020 is a Security Enabled Z-Wave Plus product.

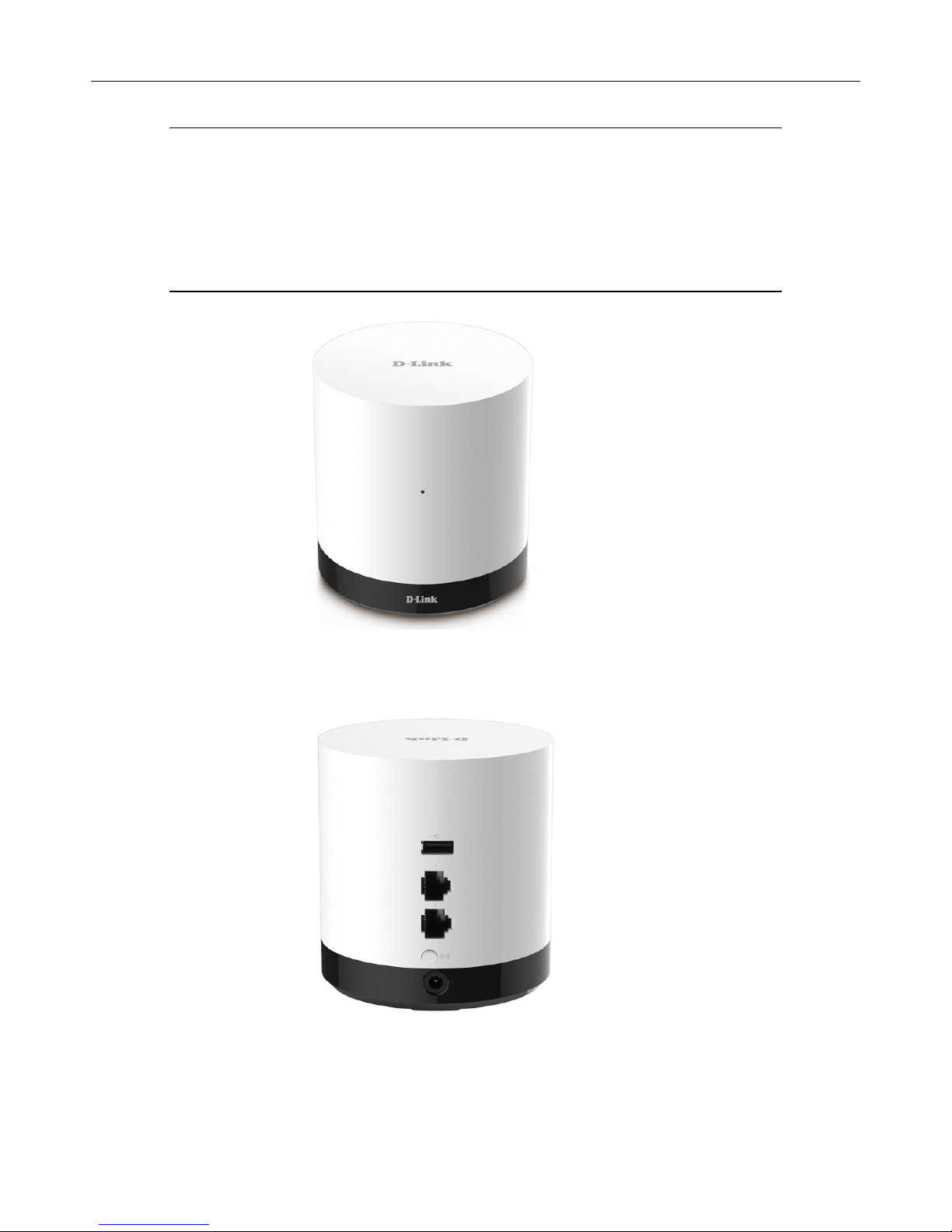

2. APPEARANCE
Front Panel
 LED: Status indicator
Rear Panel
 USB port (Type A): reserved for future support .
 LAN port x2

DCH-G020 D-Link Corporation
Data Sheet Page 3 2/11/2015
 Wireless button: device pair/ un-pair
 Power jack: 5V/2A
Bottom Panel
 Reset button

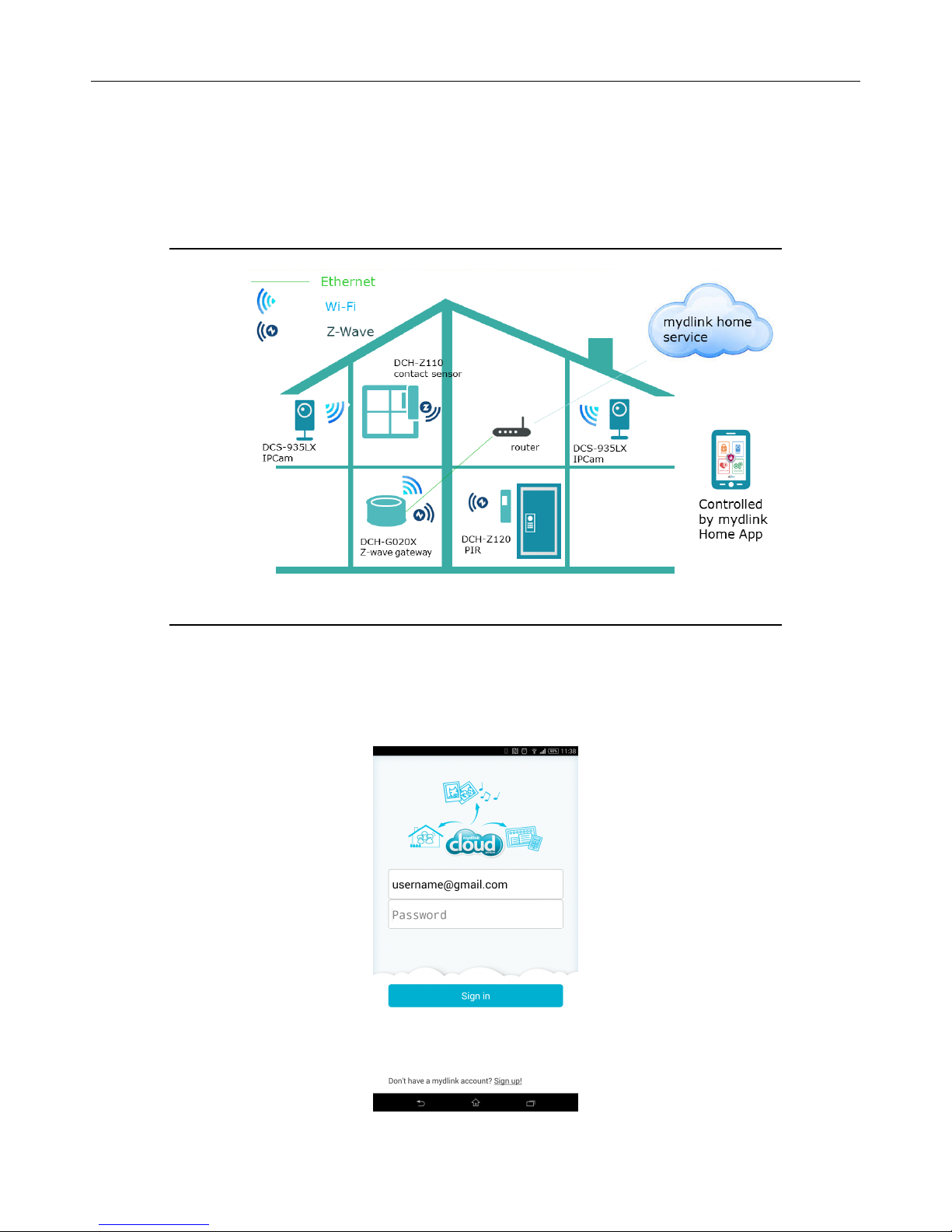

3. APPLICATIONS
4. INSTALLATION & CONFIGURATION
Step 1 Make sure your mobile device connected to the same network as DCH-G020
Step 2 Follow the Quick Install Card to scan the QR code to download the App.
Step 3 Install App and run it.
Step 4 Register an account for mydlink home service and login the App.

DCH-G020 D-Link Corporation
Data Sheet Page 4 2/11/2015

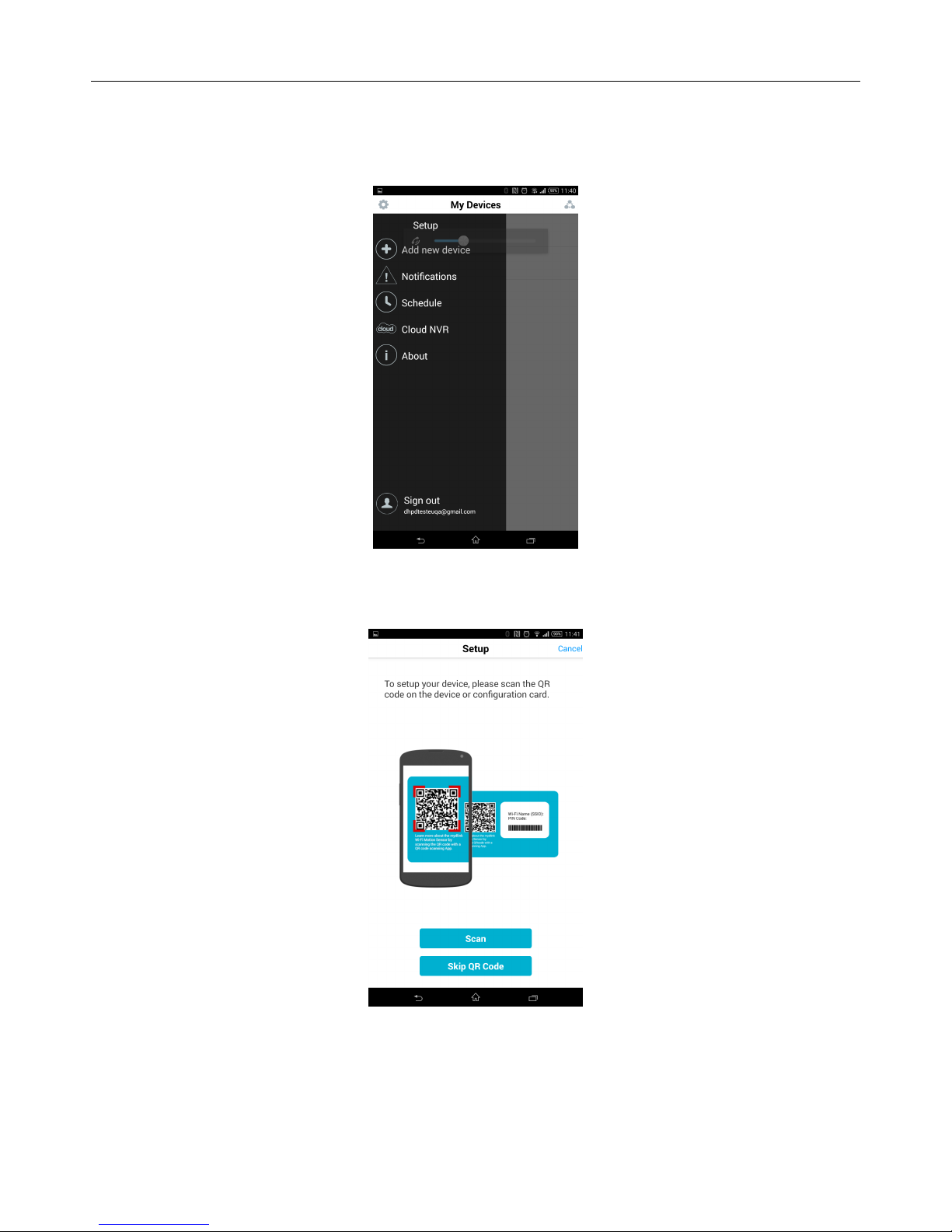

Step 5 Add a new device and select Gateway DCH-G020.
A. Select Add new device to add a new device.
B. Scan device QR code or skip the QR code to manual select the device.

DCH-G020 D-Link Corporation
Data Sheet Page 5 2/11/2015

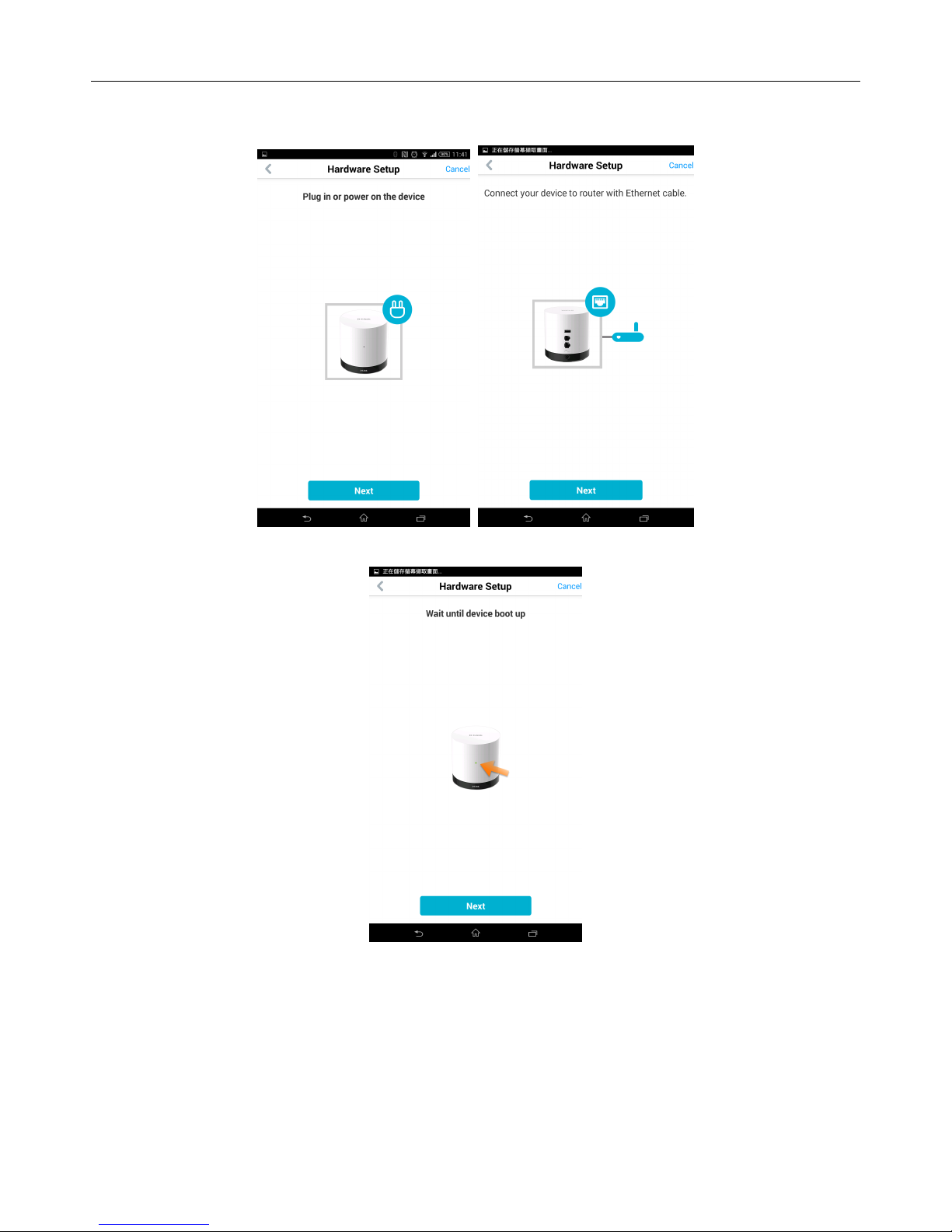

Step 6 Follow the instructions to setup the DCH-G020

DCH-G020 D-Link Corporation
Data Sheet Page 6 2/11/2015

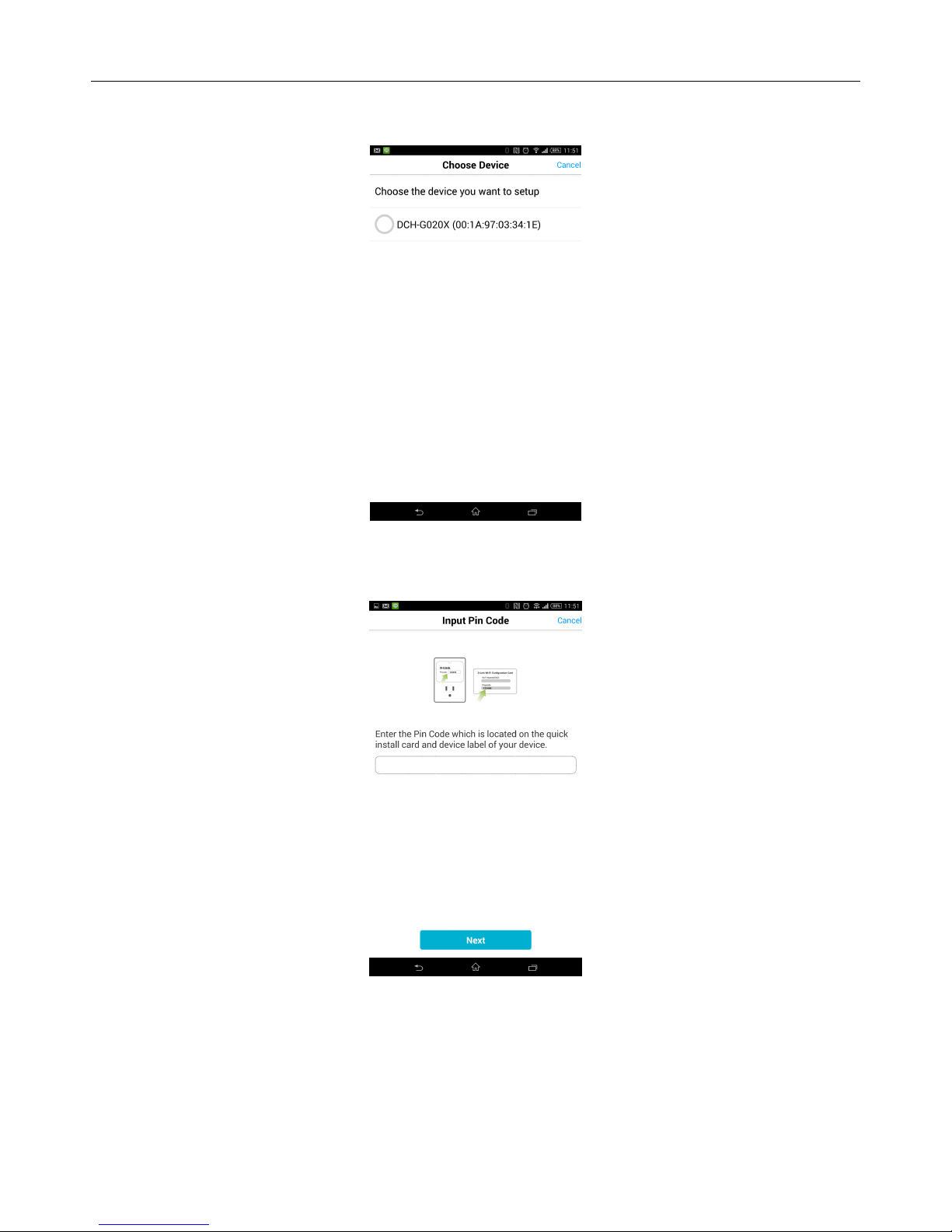

Step 7 Find the DCH-G020 and click to select it.
Step 8 Enter the Pin Code of your DCH-G020.

DCH-G020 D-Link Corporation
Data Sheet Page 7 2/11/2015

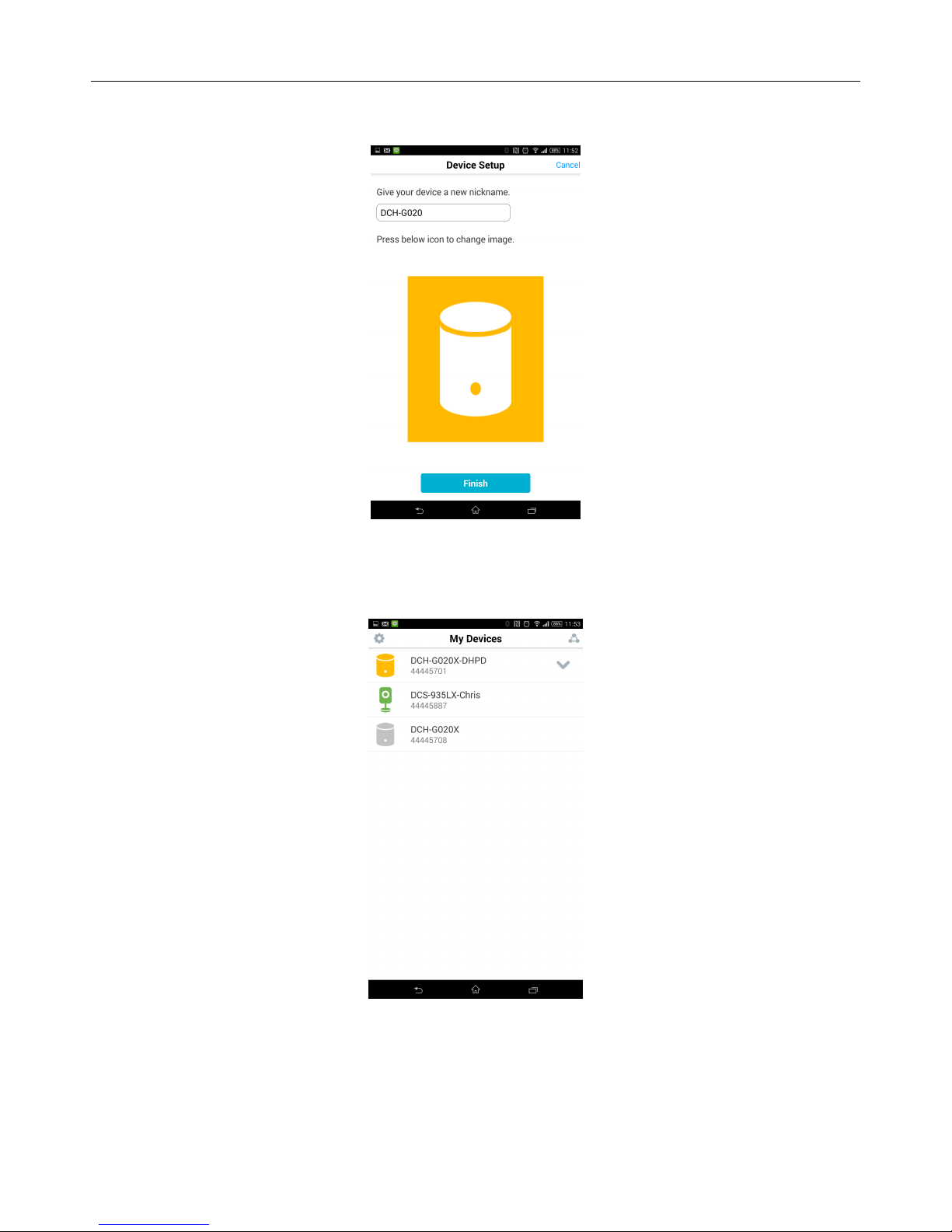

Step 9 Give a name of your DCH-G020.
Step 10 See a DCH-G020 on the device list, then you can continue to add Z-wave
sensors or other D-Link Connected Home devices.

DCH-G020 D-Link Corporation
Data Sheet Page 8 2/11/2015

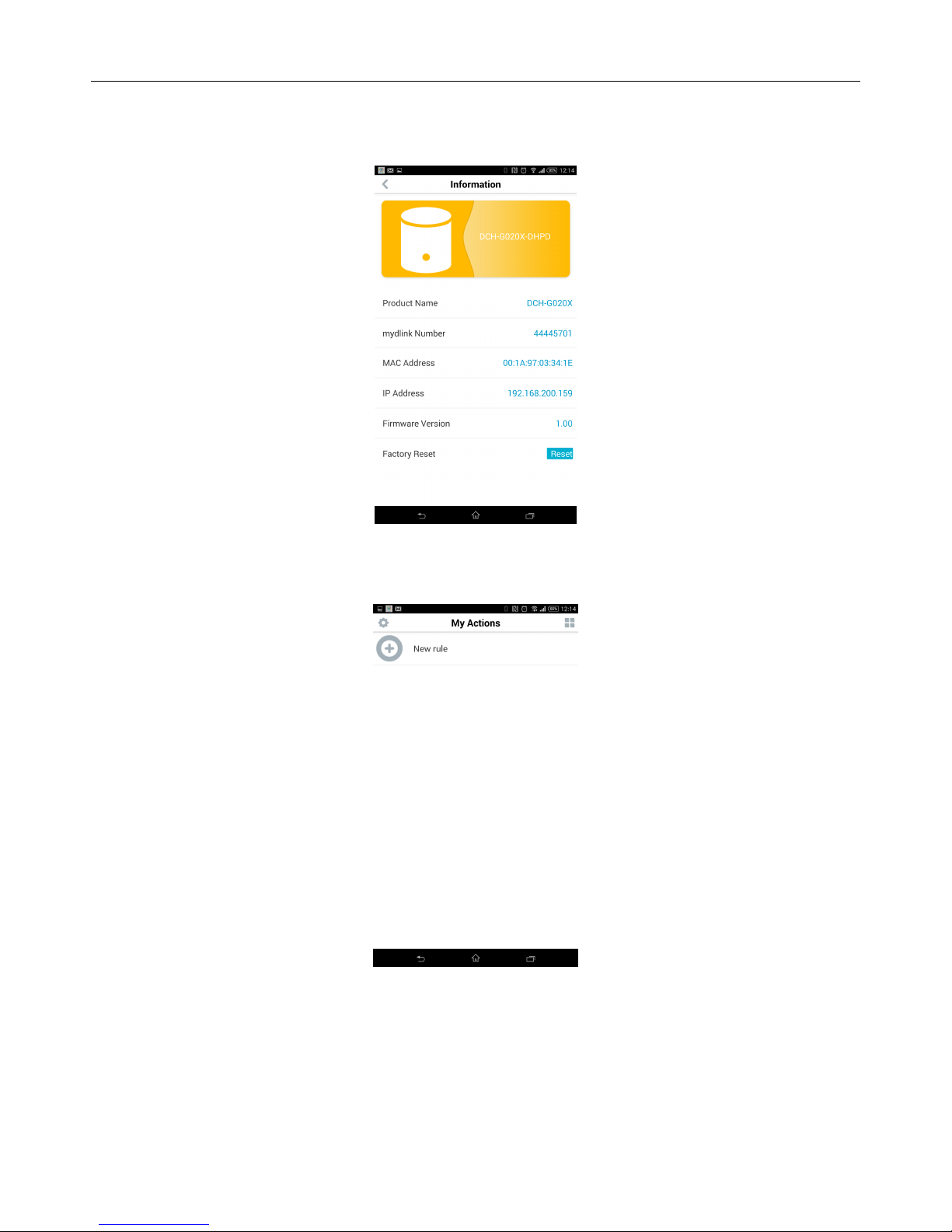

Click the device to see more information of the device.
Make a Policy for Devices

DCH-G020 D-Link Corporation
Data Sheet Page 9 2/11/2015
Make a Group for Devices
You can click the Notification to see the triggered information, click Schedule to
configure the device working schedule, and click Sign out to log out the device.

DCH-G020 D-Link Corporation
Data Sheet Page 10 2/11/2015

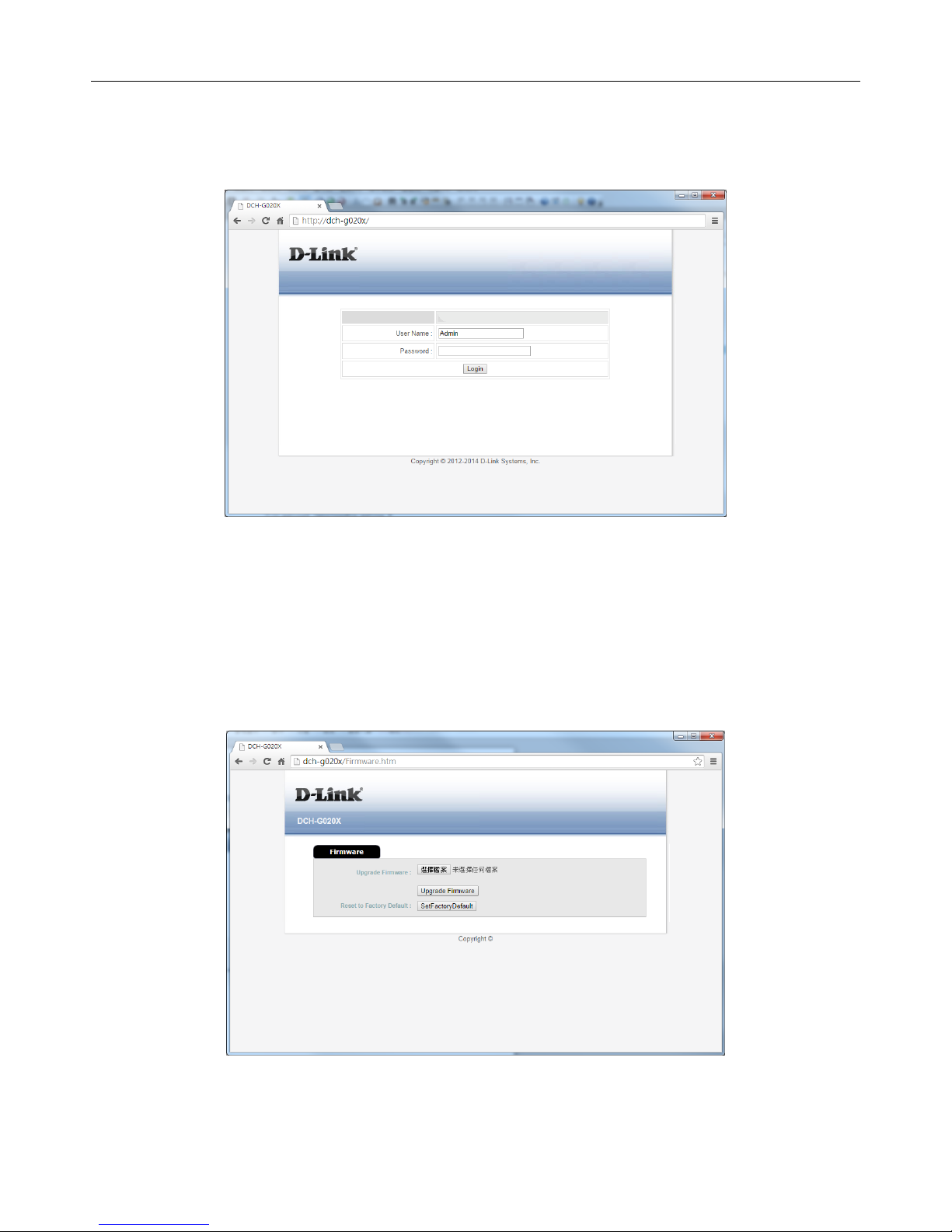

Advance Configuration
Before enter the advance configuration, you need to open an Internet browser on
the PC and type http://dch-g020x to login the web page
Key-in PIN code to login
 Manually Firmware Update
After successful log-in, you will enter the firmware update page.
FW upgrade: Select the FW file first, and then press the “Upgrade Firmware”
button.
You can also press the Set Factory Default button to reset the device to factory
default value (reset Z-Wave to default in the meantime).

DCH-G020 D-Link Corporation
Data Sheet Page 11 2/11/2015

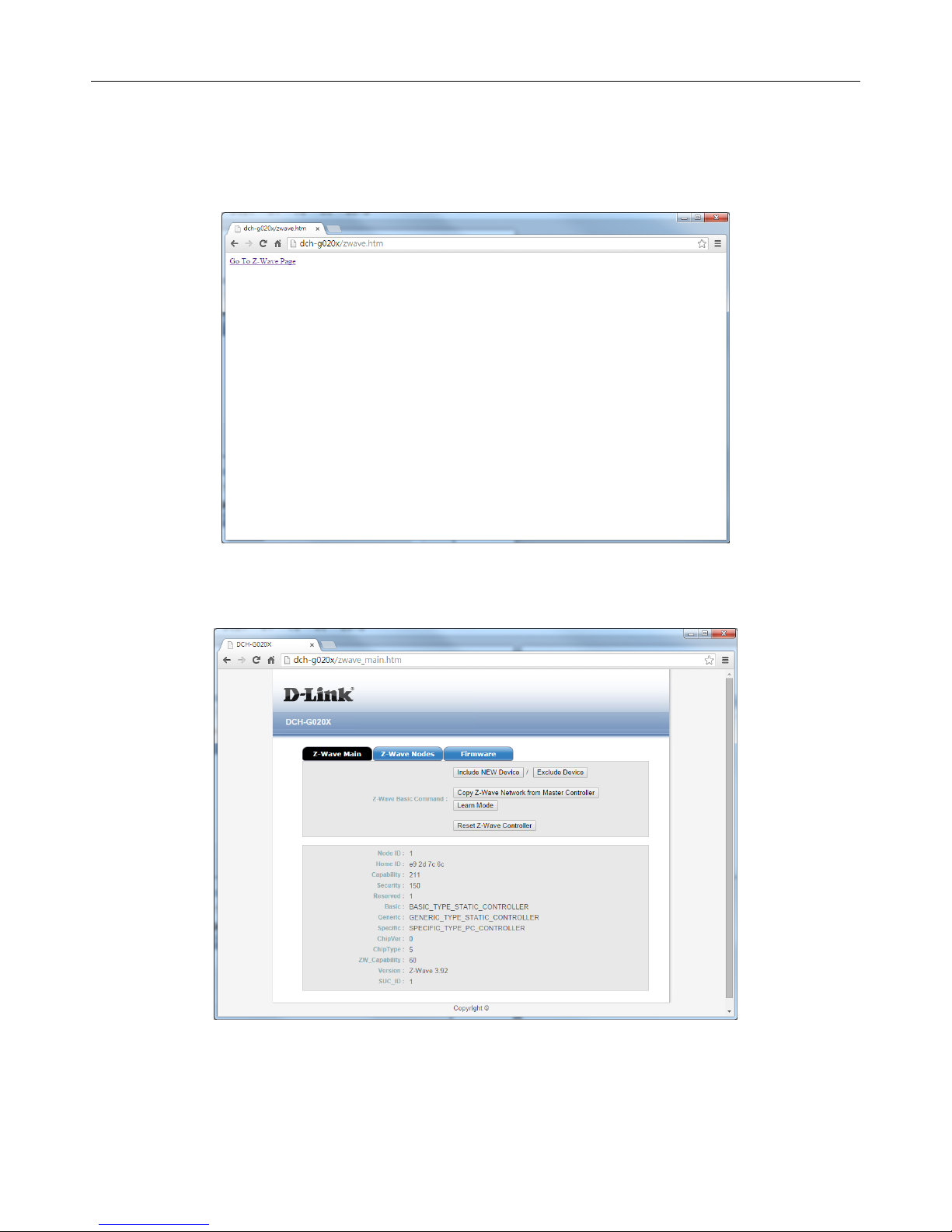

 Z-Wave Configuration
After successful log-in, type http://dch-g020x/zwave.htm on the browser to
enter below page.
Press “Go To Z-wave Page” to do advanced Z-wave configuration as below
shown.

DCH-G020 D-Link Corporation
Data Sheet Page 12 2/11/2015

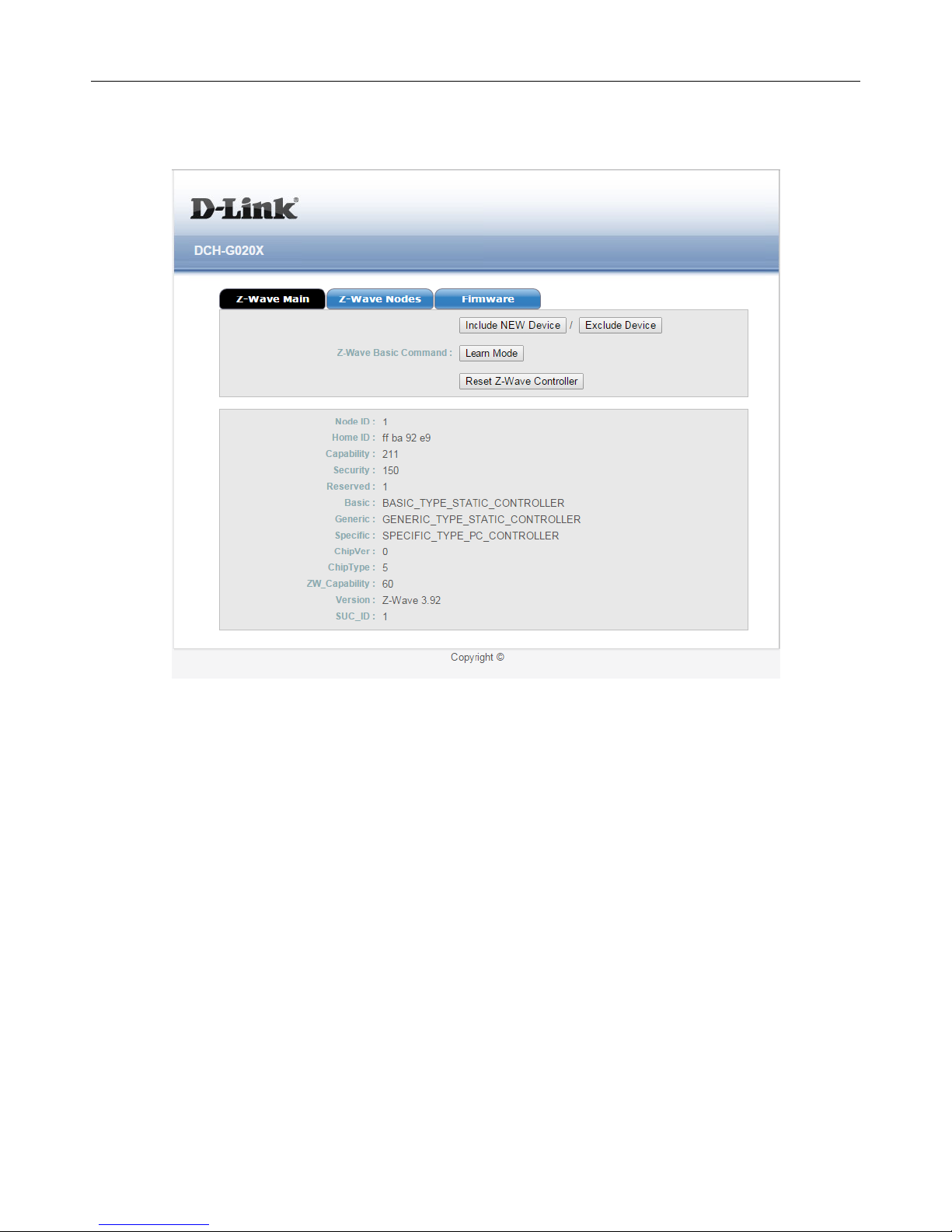

Z-Wave Main Page
This page allows the user to do the advanced Z-Wave configuration of DCH-G020.
Z-Wave Basic Commands:
1. Include NEW Device / Exclude Device: A device must be "included" to the Z-
Wave network before it can be controlled via Z-Wave(DCH-G020). This process
(also known as "pairing" and "adding") is achieved by pressing/(hold for 5
seconds) “Wireless button” on DCH-G020 or pushing the [Include NEW
Device]([Exclude Device]) button on GUI being into the inclusion(exclusion) mode.
(How to add/remove another Controller (a secondary Controller): same as
including a Z-wave node.)
2. Learn Mode: Starts learn mode for DCH-G020 if it is needed to include it in
another controller’s network.
3. Reset Z-Wave Controller: Reset the Z-Wave controller only.
4. This product can be included and operated in any Z-Wave network with other Z-
Wave certified devices from other manufacturers and/or other applications. All
non-battery operated nodes within the network will act as repeaters regardless of
vendor to increase reliability of the network.
Status and Information:
 Node ID: Display the node ID of the DCH-G020
 Home ID: Display the current Home ID of the DCH-G020

DCH-G020 D-Link Corporation
Data Sheet Page 13 2/11/2015
 Node Information: Display the basic type, generic type and specific type of DCH-
G020.
 ZW_Capability: the Z-Wave capabilities of DCH-G0202
 SUC_ID: the ID of Static Update Server

DCH-G020 D-Link Corporation
Data Sheet Page 14 2/11/2015

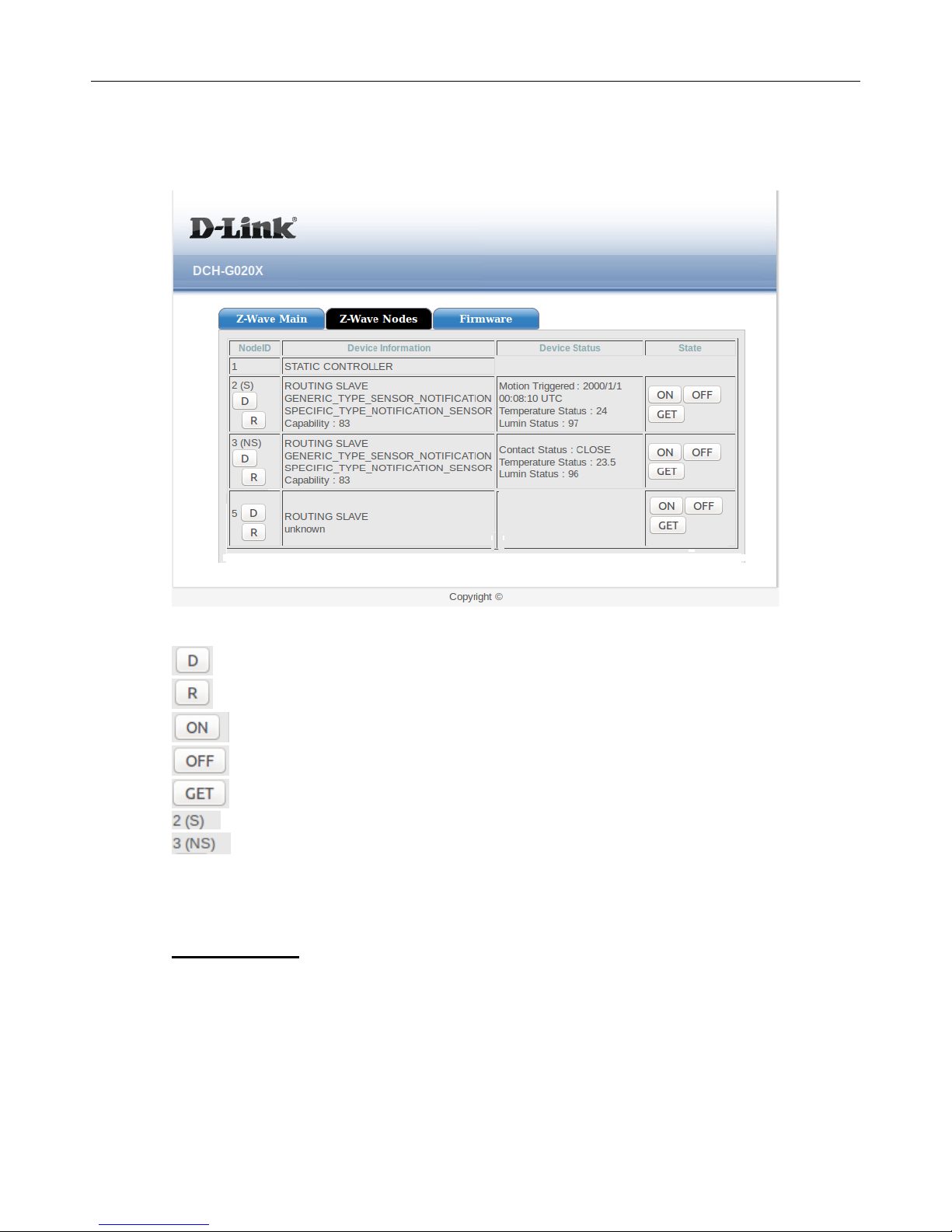

Z-Wave Node Page
This page allows the user to do the advanced Z-Wave configuration of other Z-
Wave sensors.
(Please refresh the GUI to show up the newest status)
: To remove the failed node.
: To replace the failed node.
: Send the BASIC SET ON command to switch the node ON.
: Send the BASIC SET OFF command to switch the node OFF.
: Send the BASIC GET command to the selected node.
: (Security) Node 2 is included by DCH-G020 with security
: (Non-Security) Node 3 is included by DCH-G020 without security
Additional Notes:
1. The Z-Wave Grouping Identifier of DCH-G020 is 1 and used for the Lifeline
association.
2. The maximum number of devices that can be added to the group is 1.
