D-Link GO-SW-5GE User manual

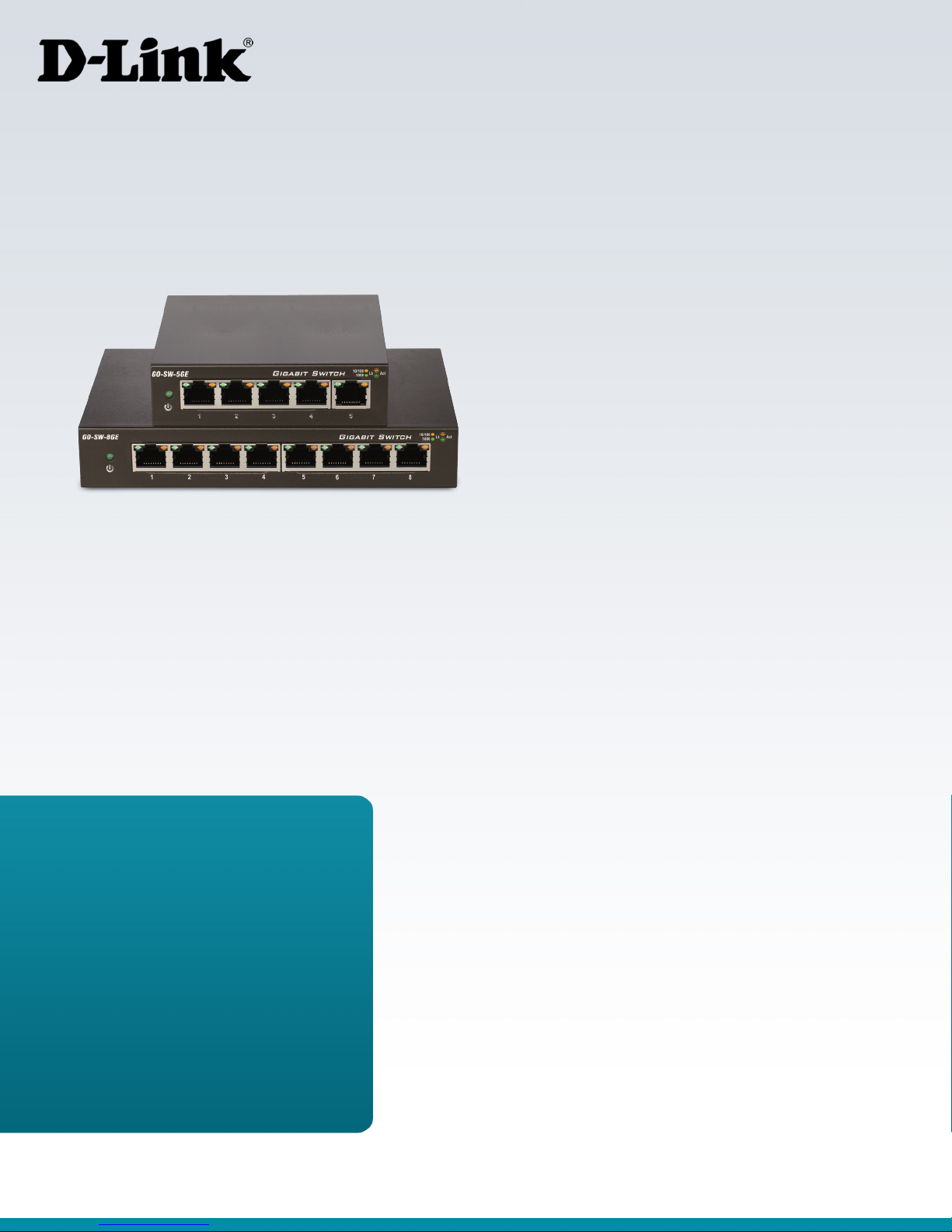

GO-SW-5GE & GO-SW-8GE
• Five/Eight 10/100/1000Mbps Ports
• Up to 1 Gbps of Dedicated Bandwidth per Port and up to
2Gbps Bandwidth in Full-Duplex mode
• Compatible with All Popular Operating Systems
• Plug & Play Installation
• Conserves energy with D-Link Green Technology
• Supports MAC address learning
• Limited 3 Year Warranty1
Product Highlights Think Green
The GO-SW-5GE/8GE 5-Port and 8-Port Gigabit Metal Desktop Switch is part of D-Link’s
new series of SOHO devices that make use of D-Link’s Green Technology, providing
energy savings, reduced heat, and a longer product life without sacricing performance
or functionality. An energy-ecient power adapter (EnergyStar Level V qualied),
minimized use of harmful substances (RoHS compliant), and recyclable packaging
make this switch truly environmentally friendly.
Conserves Energy
The GO-SW-5GE/GO-SW-8GE 5/8-Port Gigabit Metal Desktop Switch helps you conserve
energy automatically. The switch saves substantial amounts of power by cutting power
usage for unused ports or ports connected to computers that have been shut down.
• Economical yet innovative fanless design runs
cool and quiet
• Gigabit ports allow you to connect all your
devices for fast file transfers and smooth
media streaming
• Reduced energy consumption without sacrificing
performance EEE compliance
5/8 Port Gigabit Metal Desktop Switch

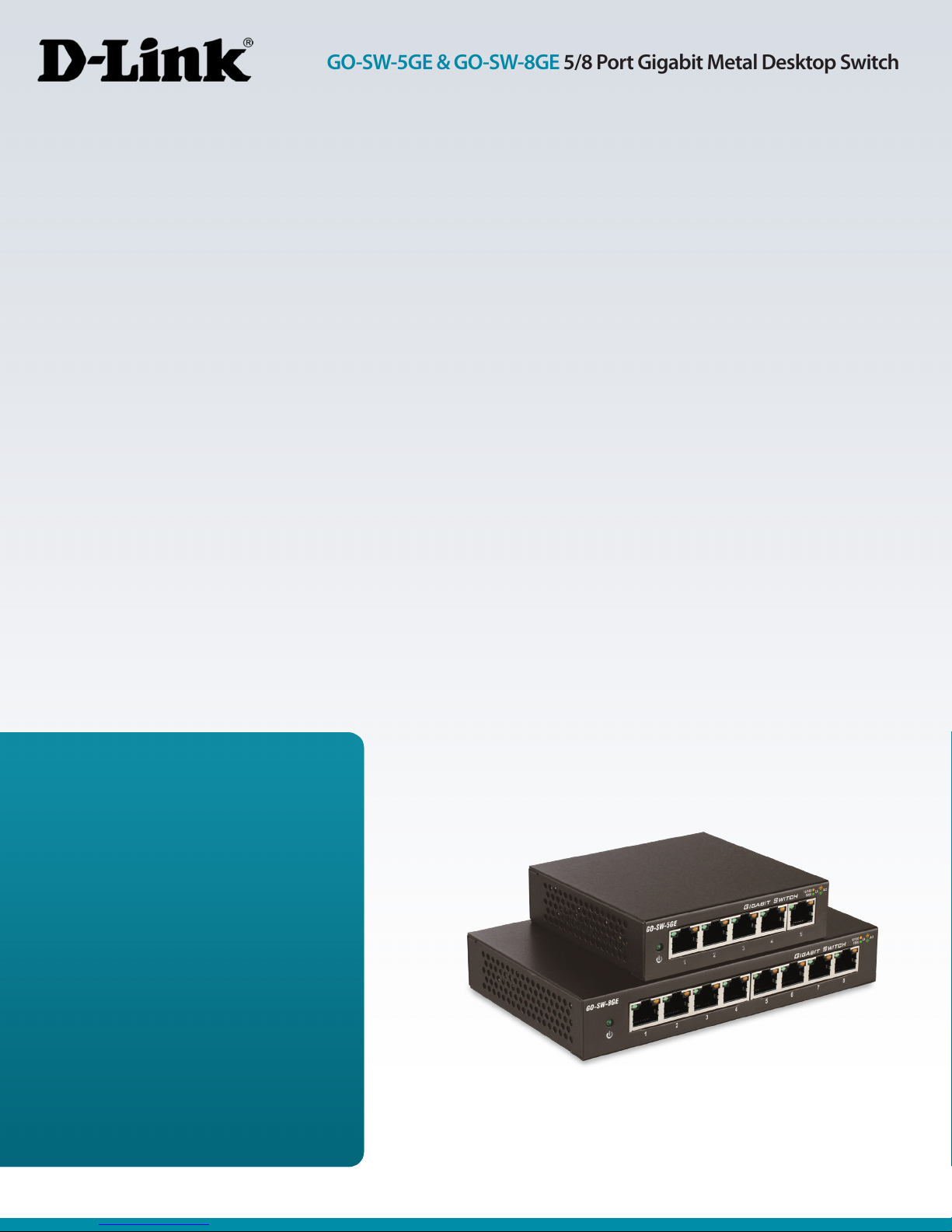

GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch
Environmentally Friendly
The GO-SW-5GE/GO-SW-8GE 5/8-port Gigabit Metal Desktop Switch was
designed with the environment in mind, and is compliant with Energy Star Level
V, as well as with the stringent CEC and MEPS regulations that require the use of
energy ecient power adapters. The switch is also built to follow RoHS standards
to minimize use of hazardous materials, and uses recyclable packaging that helps
reduce waste, complying with the WEEE directive.
Gigabit Connection for Home and SOHO
The GO-SW-5GE/GO-SW-8GE oers an economical way for SOHO and small to
medium businesses (SMB) to benet from the increased bandwidth of Gigabit
Ethernet. It provides ve/eight Gigabit ports for easy expansion of your network
and a quick way to upgrade your network to Gigabit connectivity.
Package Contents
• 5/8 port Gigabit Metal Desktop Switch
(GO-SW-5GE/GO-SW-8GE)
• Power Adapter
• Quick Install Guide
Minimum System Requirements
• Devices Supporting 802.3 Ethernet, 802.u Faster Ethernet,
or 802.3ab Gigabit Ethernet
• Cat5 or better Ethernet Cable
• Network Interface Card for each computer
Features
• Built-in D-Link Green Technology
• Inexpensive Gigabit solution for Home/SOHO
• Five/Eight 10/100/1000 Mbps Gigabit ports
• 10/16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports 9,216 Byte Jumbo Frames
• RoHS compliant
• Plug-and-play installation

GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch

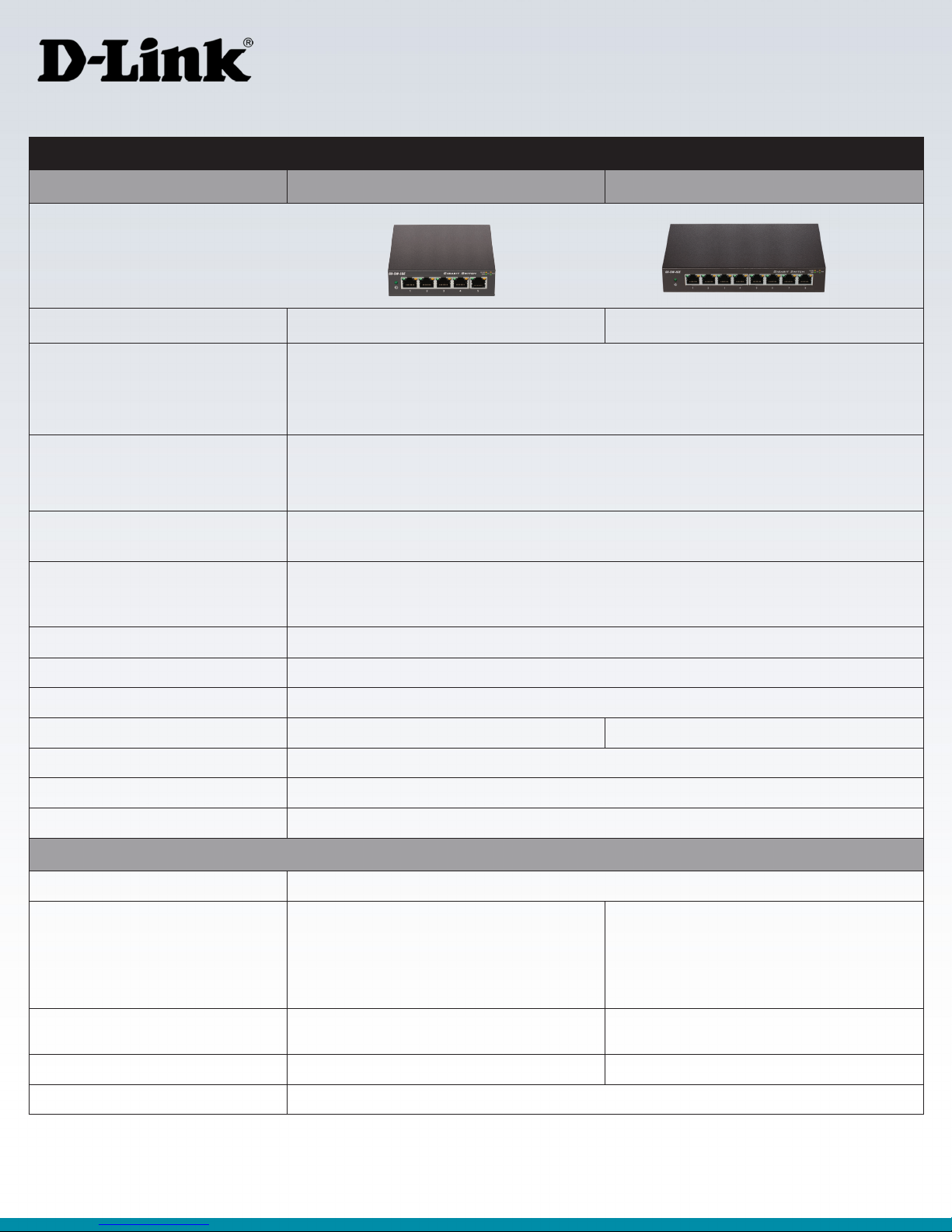

Technical Specications
GO-SW-5GE GO-SW-8GE
Switching Fabric • 10Gbps • 16Gbps
Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair
copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-
pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Data Transfer Rates • Ethernet:
- 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
- 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
-2000 Mbps (full duplex)
Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps
• Fast Ethernet: 148,800 pps
• Gigabit Ethernet: 1,488,000 pps
Network Cables • 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange • Auto MDI/MDIX adjustment for all ports
LED Indicators • Per port: Link/Activity/Speed • Per device: Power
Switching Method • Store-and-forward
MAC Address Table • 2K entries • 8K entries
RAM Buffer • 128KB per device
Jumbo Frames • 9,000 Bytes
QoS • 4 Queues, strict mode
General Specications
DC Input • External 5 V/1 A Level “V” Power Adapter
Power Consumption • Power On (Standby):
DC input: 0.5 watts
AC input: 1.0 watts
• Maximum:
DC input: 2.01 watts
AC input: 3.10 watts
• Power On (Standby):
DC input: 0.55 watts
AC input: 1.0 watts
• Maximum:
DC input: 2.8 watts
AC input: 4.5 watts
Heat Dissipation • Power On (Standby) AC input: 3.41 BTU/h
• Maximum DC input: 6.854 BTU/h
• Power On (Standby) AC input: 3.41 BTU/h
• Maximum DC input: 9.548 BTU/h
MTBF • 1,688,338 hours • 2,053,751 hours
Operating Temperature • 32 to 130 ˚F (30 to 50 ˚C)

All references to speed and range are for comparison purposes only. Product specications, size, and shape are subject to change without notice, and actual product appearance may dier from that depicted herein.
©2013 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, the D-Link RoHS logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States and/or other
countries. Other trademarks or registered trademarks are the property of their respective owners.
Updated 03/18/13
For more information
U.S.A. | 17595 Mt. Herrmann Street | Fountain Valley, CA 92708 | 800.326.1688 | dlink.com
13 Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specications, size and shape are subject to change without notice, and actual product appearance may dier from
that depicted herein.
GO-SW-5GE & GO-SW-8GE 5/8 Port Gigabit Metal Desktop Switch
Storage Temperature • -14 to 158 ˚F (10 to 70 ˚C)
Operating Humidity • 10% to 90% RH non-condensing
Storage Humidity • 5% to 90% RH non-condensing
Dimensions • 3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm) • 6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)
Weight • 10.08 ounces (286 grams) • 15.52 ounces (440 grams)
Certifications • FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• CB
Warranty
Warranty • Three Year Warranty1
Order Information
Part Number Description
GO-SW-5GE 5-Port Gigabit Metal Desktop Switch
GO-SW-8GE 8-Port Gigabit Metal Desktop Switch
