D-Link DES-1008PA User manual

CONNECT PoE DEVICES TO YOUR NETWORK
8-PORT DESKTOP SWITCH with 4 PoE PORTS
The D-Link 8-Port Desktop Switch with 4 PoE Ports (DES-1008PA) enables both home and office users to easily connect and supply power to Power over Ethenet
(PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network
Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates quietly, making it ideal for use in
virtually any room or office.
POWER OVER ETHERNET IEEE 802.3af
The DES-1008PA features 4 10/100BASE-TX ports that support the IEEE 802.3af PoE protocol. Each of the 4 PoE ports can supply up to 15.4 Watts, a total PoE budget
of 56 Watts, allowing users to attach an IEEE 802.3af compliant device to the DES-1008PA without requiring additional power. This eliminates the need of having to
place networking devices within close proximity of a power outlet and minimizes cable clutter in awkward places such as ceilings or walls. For devices that are not
802.3af compliant, a PoE adapter, such as D-Link’s DWL-P50 can be used to enable the non-compliant device to receive power through the DES-1008PA.
SUPERIOR PERFORMANCE
No configuration is required and installation is quick and easy. Support for Auto-MDI/MDI-X on all ports eliminates the need for crossover cables for connection
to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility
and optimal performance. When an IEEE 802.3af compliant device is attached, power supplied to that device will be automatically adjusted to fit the device. The
DES-1008PA also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. With wire-speed
filtering and store-and-forward switching, the DES-1008PA also maximizes network performance while minimizing the transmission of bad network packets.
Combining the convenience of PoE, superior performance, and ease of use, the D-Link 8-Port Desktop Switch with 4 PoE Ports (DES-1008PA) is the ideal choice for
adding PoE devices to both a home or small business network.
DES-1008PA
Ultra-quiet, compact design for
home and office use
Quick, simple
Plug-and-Play installation
No special networking
cables required

WHAT THIS PRODUCT DOES
The D-Link DES-1008PA is an 8-Port 10/100Mbps PoE
Ethernet Switch with four PoE Ports that can provide
power to PoE-enabled devices such as wireless
Access Points (APs), IP phones, and IP cameras. You
can also add other Ethernet devices like computers,
printers, and Network Attached Storage (NAS) onto
your network. This device runs ultra-quiet, making it
ideal for both home and small office use.
HASSLE-FREE SETUP
The DES-1008PA is a plug-and-play device requiring
no configuration, which makes setup simple and
hassle-free. Connect multiple computers and share
files, music, and video across your home or small
office network, or create a multi-player gaming
environment. If you need help setting up your
device, visit D-Link’s award-winning customer
support web site for answers to frequently asked
questions, product downloads, and easy access
to D-Link’s friendly customer support team.
TECHNICAL SPECIFICATIONS
PRODUCT/PERFORMANCE SPECIFICATIONS
+ MAC Address Table: 1K
+ Switch Fabric: 1.6Gbps
+ Transmission Method: Store-and-forward
+ Packet Buffer Memory: 96KB
DIAgNOSTIC LEDS
+ Per Unit: Power / PoE Max
+ Per Port: Activity / Link & Speed
+ PoE port: Power / Status
INTERFACE OPTIONS
RJ-45: 10BASE-T, 100BASE-TX
NETWORK PROTOCOL AND STANDARDS
IEEE: 802.3 Ethernet, 802.3u, 802.3x Flow Control, 802.3af
(Power over Data Pairs)
ELECTRICAL
+ Power Supply: 48V DC/1.45A
+ Max Power Consumption: 69 Watts maximum
+ PoE budget: Up to 15.4 Watts max per port, for Ports 1-4 Only.
56 Watts Total
OPERATINg TEMPERATURE
+ Operating: 32˚ to 104˚F (0˚ to 40˚C)
+ Storage: 14˚ to 158˚F (-10˚ to 70˚C)
OPERATINg HUMIDITY
5% ~ 90% RH, Non-condensing
CERTIFICATIONS
+ FCC Class B
+ CE
+ RoHS
DIMENSIONS (W x D x H)
+ Item: 6.7” x 3.9” x 1.1”
+ Packaging: 10.9” x 8.0” x 2.4”
WEIgHT
+ Item: 1 lb
+ Packaging: 1.4 lbs
WARRANTY
+ 5-Year Limited Warranty for the Switch
1
+ 2-Year Limited Warranty for the Power Adapter
1
CONNECT PoE DEVICES TO YOUR NETWORK
15-Year Limited Warranty for the Switch and 2-Year Limited Warranty for the power adapter are available only in the USA and Canada.
2Latest software and documentation are available at http://support.dlink.com.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual
product appearance may differ from that depicted herein.
©2006-2007 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and other countries. Other trademarks or registered trademarks are the property of their respective owners. Visit www.dlink.
com for more details.
DES-1008PA

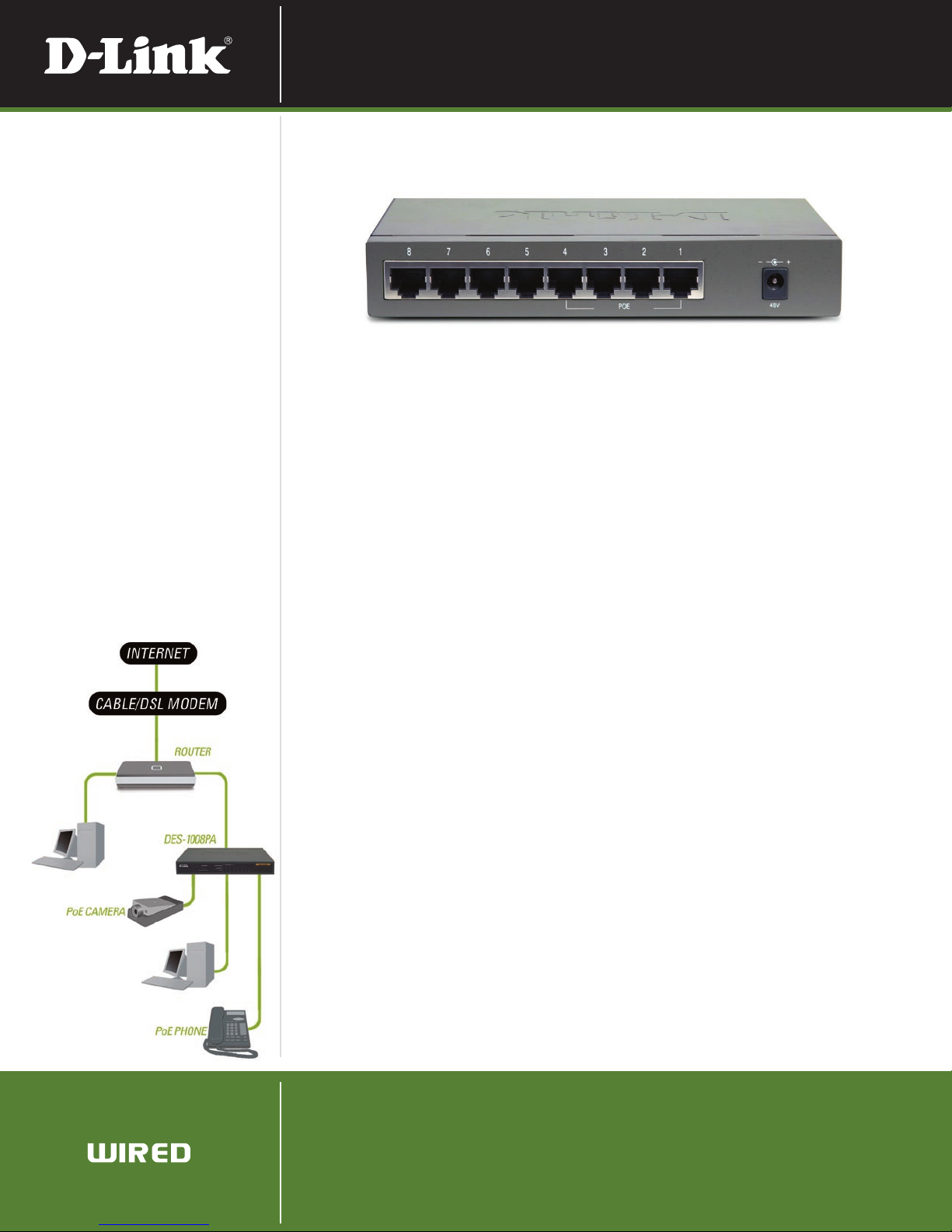

YOUR NETWORK SETUP
MINIMUM SYSTEM REQUIREMENTS
+ Devices Supporting 802.3 Ethernet or 802.3u
Fast Ethernet
+ CAT5 Ethernet Cable
+ Network Interface Card for Each Computer
+ CD-ROM Drive to View Product
Documentation
PACKAgE CONTENTS
+ 8-Port Desktop Switch with 4 PoE Ports
+ Power Adapter
+ CD-ROM2with Product Documentation
