D-Link i2eye DVC-1000 User manual

1
Before You BeginBefore You Begin
Before You BeginBefore You Begin
Before You Begin

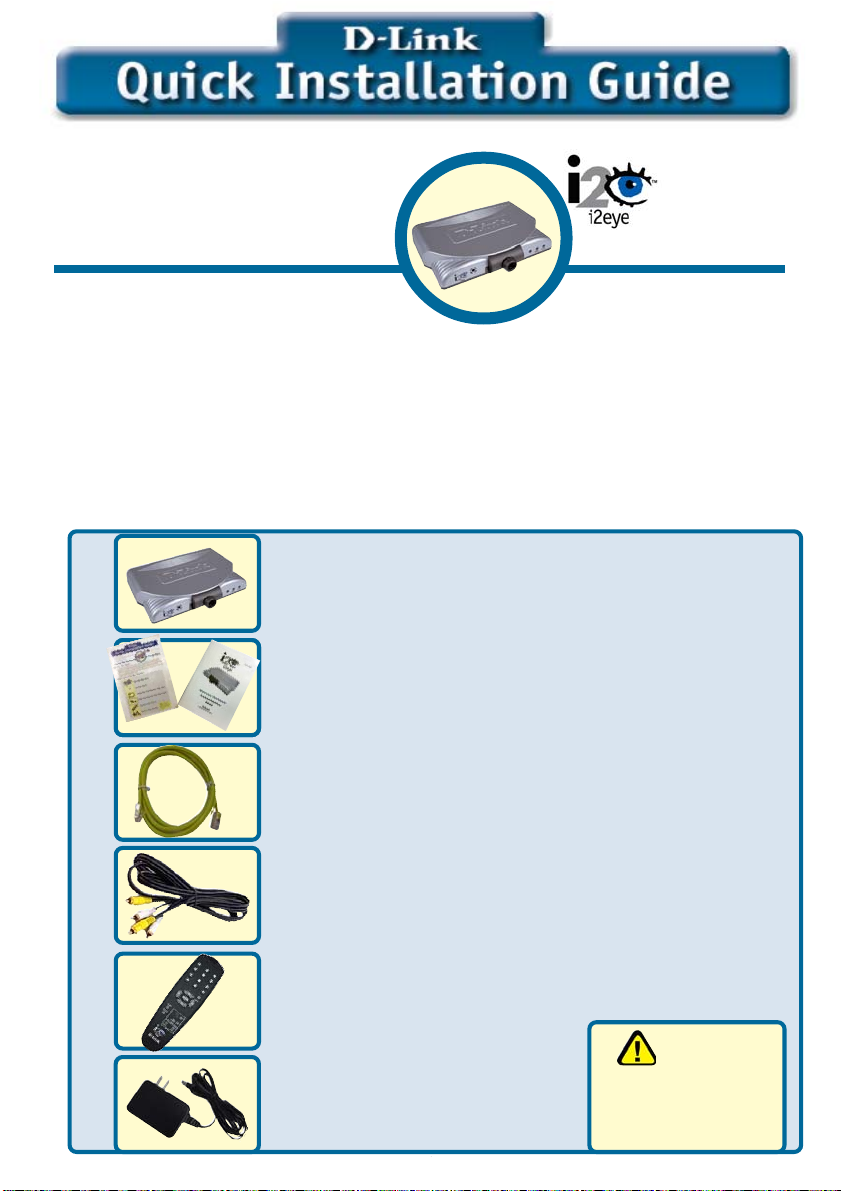

Check Your Package ContentsCheck Your Package Contents
Check Your Package ContentsCheck Your Package Contents
Check Your Package Contents
Stand-alone
Videoconferencing Over
Broadband IP.
No PC Needed!
5V DC, 2A Power Adapter
i2eye DVC-1000 Video Phone
Quick Installation Guide and Instruction Manual
Ethernet (CAT5 UTP/Straight Through) Cable
Standard Composite RCA Audio/Video Cable
Intelligent Remote Control
Patent Pending
different voltage rating
will damage this product
and void the warranty.
Using a power
supply with a
1.1.
1.1.
1. Using the D-Link i2EyeTM DVC-1000 VideoPhone requires a Broadband Internet
connection (e.g., a Cable modem or a DSL modem with a router).
2. Attaching a telephone to the DVC-1000 is optional, but highly recommended for
optimal sound quality.
3. If you are sharing the Internet connection with another device (such as a PC) you
will also need a broadband router or residential gateway.
DVC-1000DVC-1000
DVC-1000DVC-1000
DVC-1000
Fast EthernetFast Ethernet
Fast EthernetFast Ethernet
Fast Ethernet
VideoPhoneVideoPhone
VideoPhoneVideoPhone
VideoPhone

2

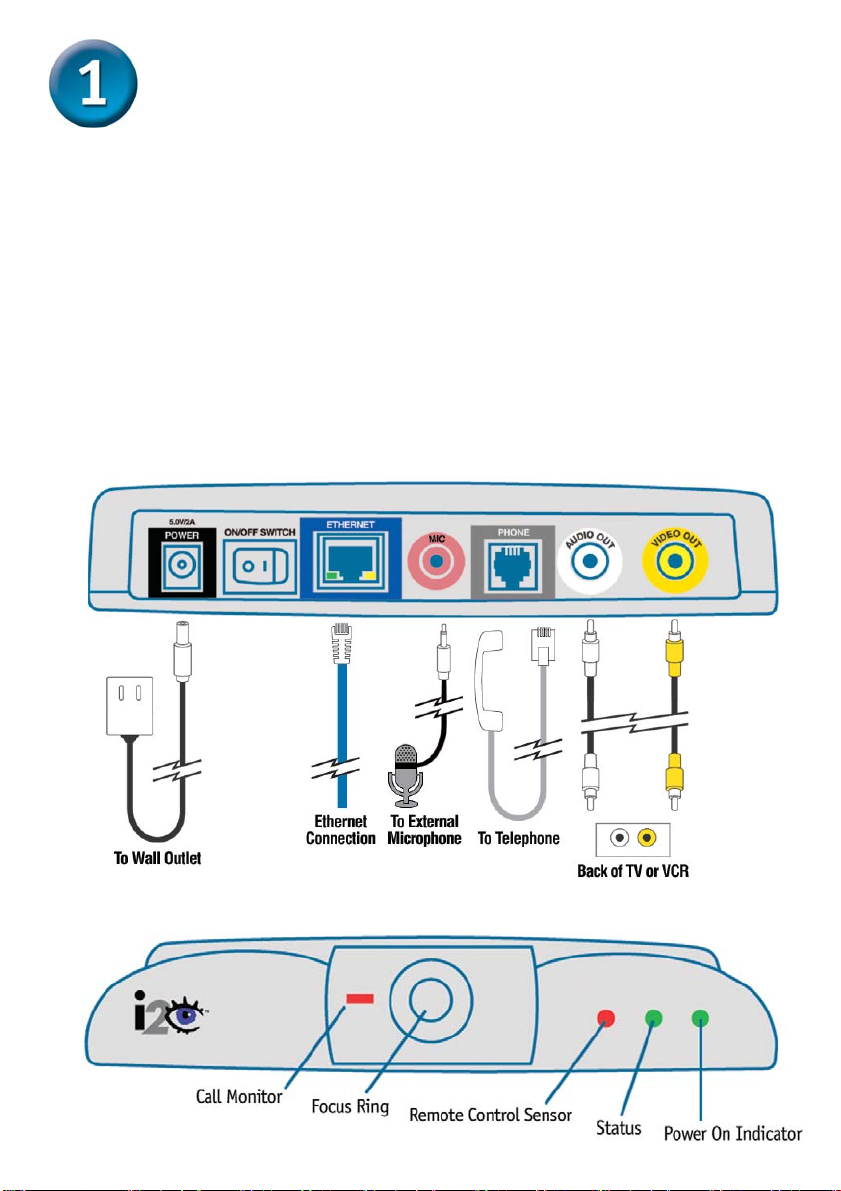

Connecting the DVC-1000 VideophoneConnecting the DVC-1000 Videophone
Connecting the DVC-1000 VideophoneConnecting the DVC-1000 Videophone
Connecting the DVC-1000 Videophone
A. First, place the DVC-1000 VideoPhone directly on top of a television.
To obtain the best viewing experience, the VideoPhone should be 5 to
10 feet away from the intended subject.
B. Attach the supplied audio/video cable to the DVC-1000 and to the
matching audio/video jacks on the television or VCR.
C. Attach the supplied Ethernet cable to the DVC-1000 and to the Cable or
DSL modem or Ethernet network device (hub, switch or router).
D. Attaching a telephone is optional, but recommended for optimal sound
quality when videoconferencing. Attach a standard telephone cable to
the telephone and directly to the DVC-1000. Do NOT attach the
telephone to a wall telephone outlet.
E. Plug the supplied AC power cable into an AC outlet and then into the
DVC-1000.
F. Attaching an external microphone is optional, but recommended for
optimal sound for a group videoconference.
B.
D.C.
E.
F.
i2eyei2eye
i2eyei2eye
i2eye

3

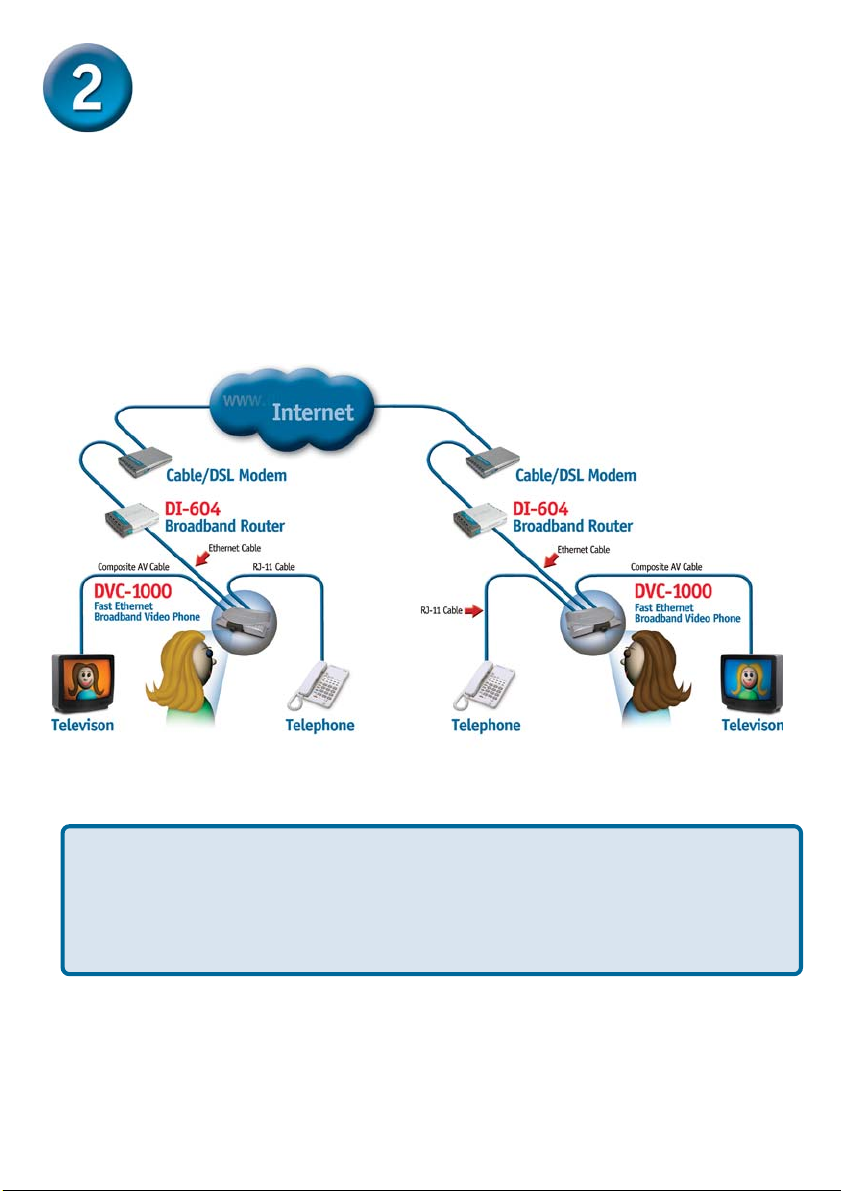

Sharing a Broadband ConnectionSharing a Broadband Connection
Sharing a Broadband ConnectionSharing a Broadband Connection
Sharing a Broadband Connection
With the i2eye DVC-1000With the i2eye DVC-1000
With the i2eye DVC-1000With the i2eye DVC-1000
With the i2eye DVC-1000
If you are sharing your broadband connection with any other
devices, use additional Ethernet (CAT5 UTP) cables to
connect your broadband equipment to a router or residential
gateway.
When you have completed the steps in this Quick
Installation Guide, your connected VideoPhone should
look similar to this:
Before using your D-Link DVC-1000 VideoPhone you will want to understand
the network requirements for this device. If you are using a residential
gateway or router and sharing the broadband connection with your
DVC-1000 please read the section starting on Page 42 of the manual
included with the DVC-1000.

4
Full-Screen /
Picture-in-Picture
Self-View /
Remote View

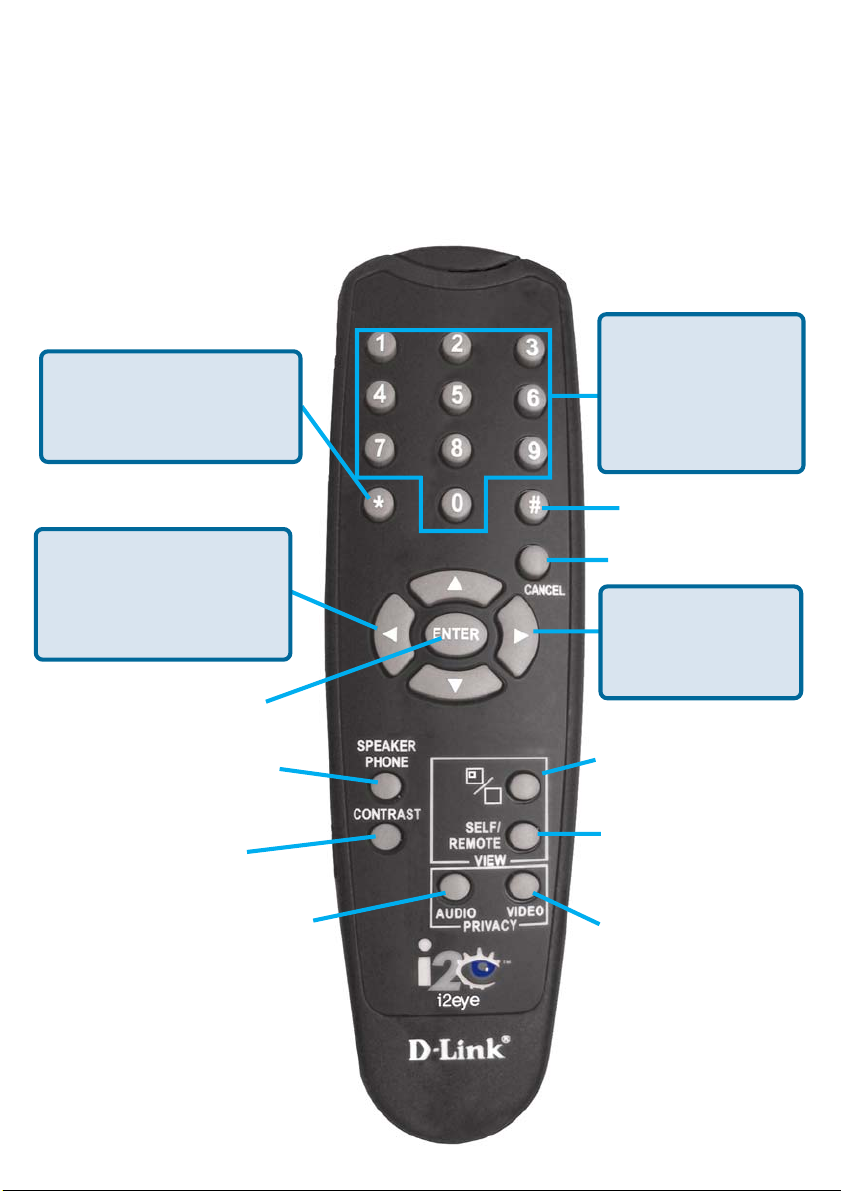

Using the Remote ControlUsing the Remote Control
Using the Remote ControlUsing the Remote Control
Using the Remote Control
The DVC-1000 VideoPhone needs to be setup before use. There is an easy
to use Setup Wizard built into the DVC-1000 to accomplish the setup.
You will use the Setup Wizard along with the remote control included with the
DVC-1000. The remote control is used to enter numbers, characters and
make selections from a keyboard that is displayed on the TV screen.
Mute Video
Mute Audio
Cancel
ENTER key
Number sign
Adjust Contrast
Speakerphone
Mode
The * (asterisk--sometimes
called a “star” key) is used
to enter a “.” (period also
called a “dot”.)
When entering alphanumeric
information the left arrow
key performs a backspace,
deleting the character to the
left of the on-screen cursor.
When a numeric input
is required, (e.g., a
telephone number or
IP address) enter it
directly by pressing
the number keys.
Use the arrow keys
to move the position
of the on-screen
cursor.

5
Using a Telephone with the DVC-1000Using a Telephone with the DVC-1000
Using a Telephone with the DVC-1000Using a Telephone with the DVC-1000
Using a Telephone with the DVC-1000

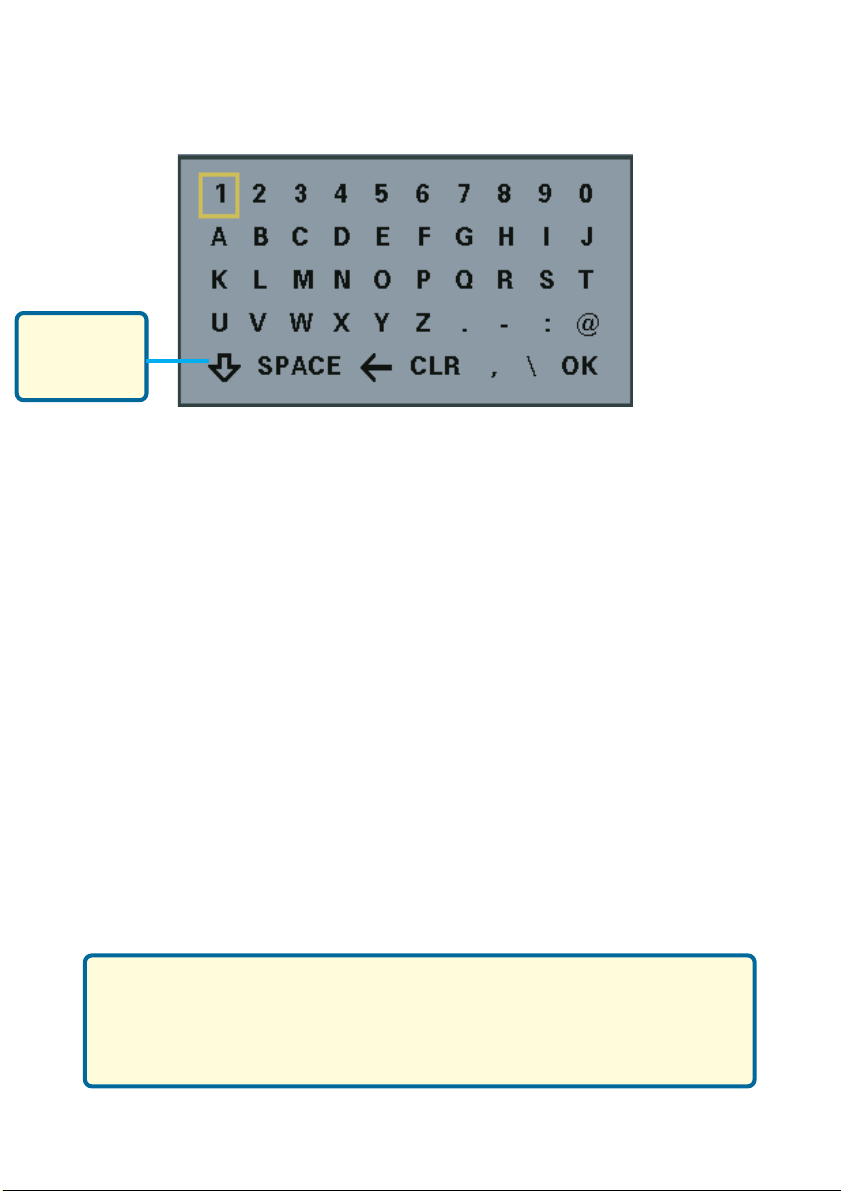

Using the On-Screen KeyboardUsing the On-Screen Keyboard
Using the On-Screen KeyboardUsing the On-Screen Keyboard
Using the On-Screen Keyboard
Whenever you need to enter numbers or letters into a Setup screen, press
ENTER on the remote control and the on-screen keyboard appears:
After entering characters or numbers, and to execute a selection, press
ENTER on the remote. Use the arrow keys to move the cursor on the screen
to the desired character. The cursor can wrap around on the right and left side
of the keyboard to assist you in “typing” a character quickly.
To remove the keyboard from the screen highlight the OK key and press
ENTER on the remote. Also, the CANCEL key on the remote removes the
keyboard from the screen, leaving what you typed on the screen.
You cannot use a telephone plugged into the i2eye
VideoPhone to place regular phone calls as the phone would
not be connected to a standard phone line. Only VideoPhone
calls over the Internet can be made with a telephone con-
nected to the DVC-1000.
Shift Key for
UPPER, lower
case or shift
lock
In addition to providing optimal sound quality, a telephone:
•Can be used to start a videoconference similar to the way you
would place a regular telephone call.
•Lets you receive a videconference call similar to the way you
would receive a regular telephone call.

6

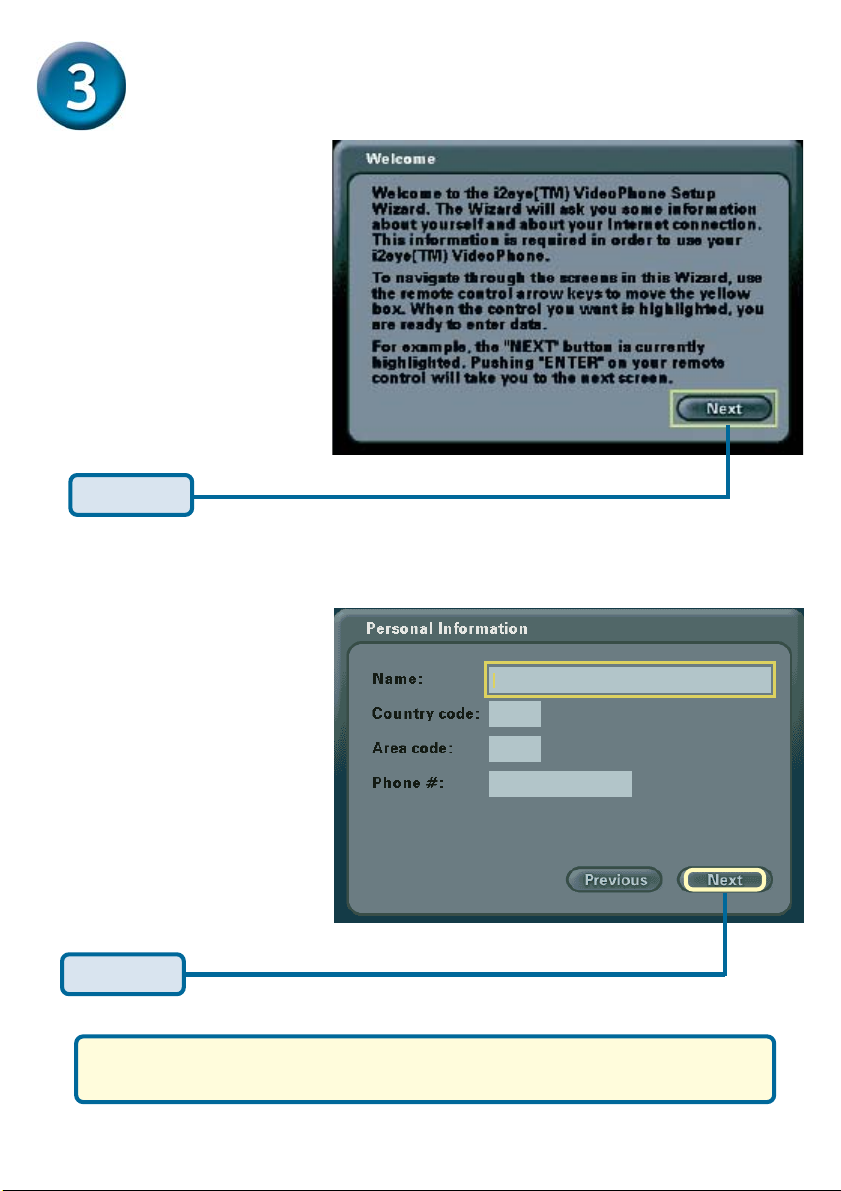

The Setup WizardThe Setup Wizard
The Setup WizardThe Setup Wizard
The Setup Wizard
Personal Information ScreenPersonal Information Screen
Personal Information ScreenPersonal Information Screen
Personal Information Screen
Enter your name and phone
number (consisting of a Country
code, Area code and Phone
number.)
The phone number you enter is
one you create for family, friends
and others to call you. You can
use your regular phone number
or make up a new one. The
Caller ID function displays this
name at the other end of the
connection. Your number willl
not be visible to anyone else.
Click Next
Click Next
Press the power switch on the
back of the DVC-1000 and the
Welcome Screen appears.
Note: The Country code for the United States and Canada is “1”. See
Page 63 of the DVC-1000 manual for Country codes of other countries.

7
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)

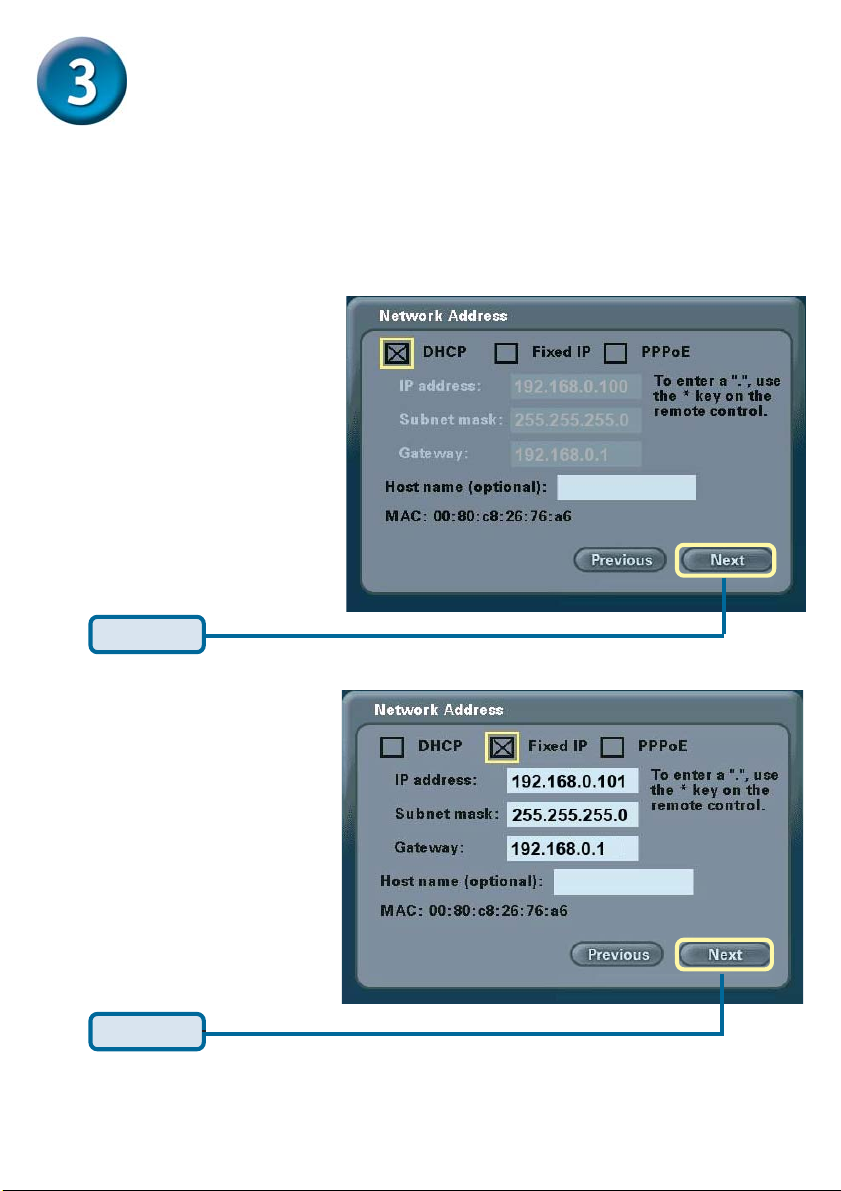

Network Address ScreenNetwork Address Screen
Network Address ScreenNetwork Address Screen
Network Address Screen
Choose one of the three available options that best suits your environment. If
you are not sure which option will work with your Internet connection, please
contact your ISP or network administrator for support.
DHCP is used when connect-
ing directly to a broadband mo-
dem that offers dynamic IP ad-
dressing or when behind a
router/DHCP server that offers
static DHCP.
Fixed IP is used when connect-
ing to a broadband connection
that offers static IP addressing
or when behind a router that is
not configured for static DHCP.
This choice requires the input
of specific IP address informa-
tion.
Click Next
Click Next

8
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)

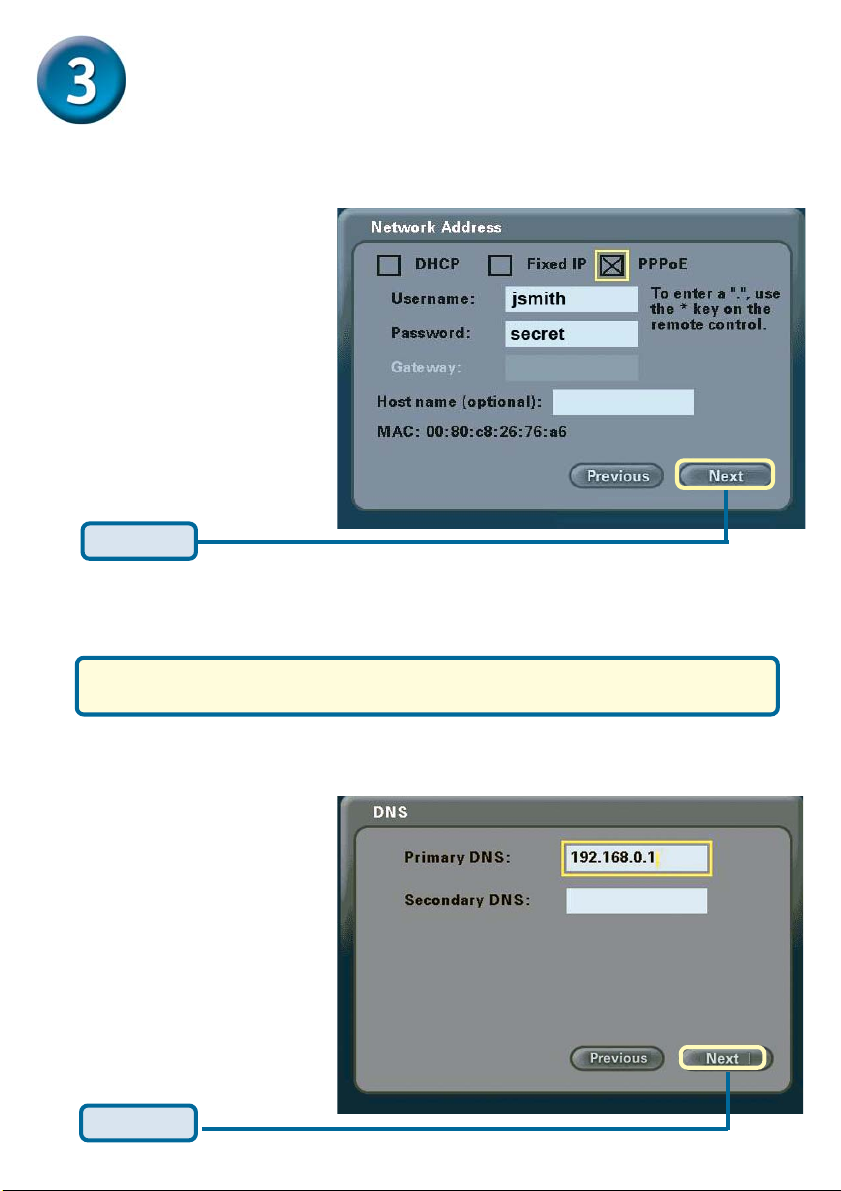

Network Address Screen (continued)Network Address Screen (continued)
Network Address Screen (continued)Network Address Screen (continued)
Network Address Screen (continued)
If you selected Fixed IP in the
Network Address screen,
you will see the screen for
setting DNS server
addresses. Only the primary
DNS is required, although
entering both a primary and
secondary is recommended.
To configure a router to work with the DVC-1000, please see the
section starting on Page 42 of the DVC-1000 manual.
Click Next
DNS ScreenDNS Screen
DNS ScreenDNS Screen
DNS Screen
Click Next
PPPoE is used when connect-
ing directly to a DSL modem
that offers a PPPoE connec-
tion. Your user name and
password for the PPPoE ac-
count must be entered in the
provided fields.

9
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)The Setup Wizard (continued)
The Setup Wizard (continued)

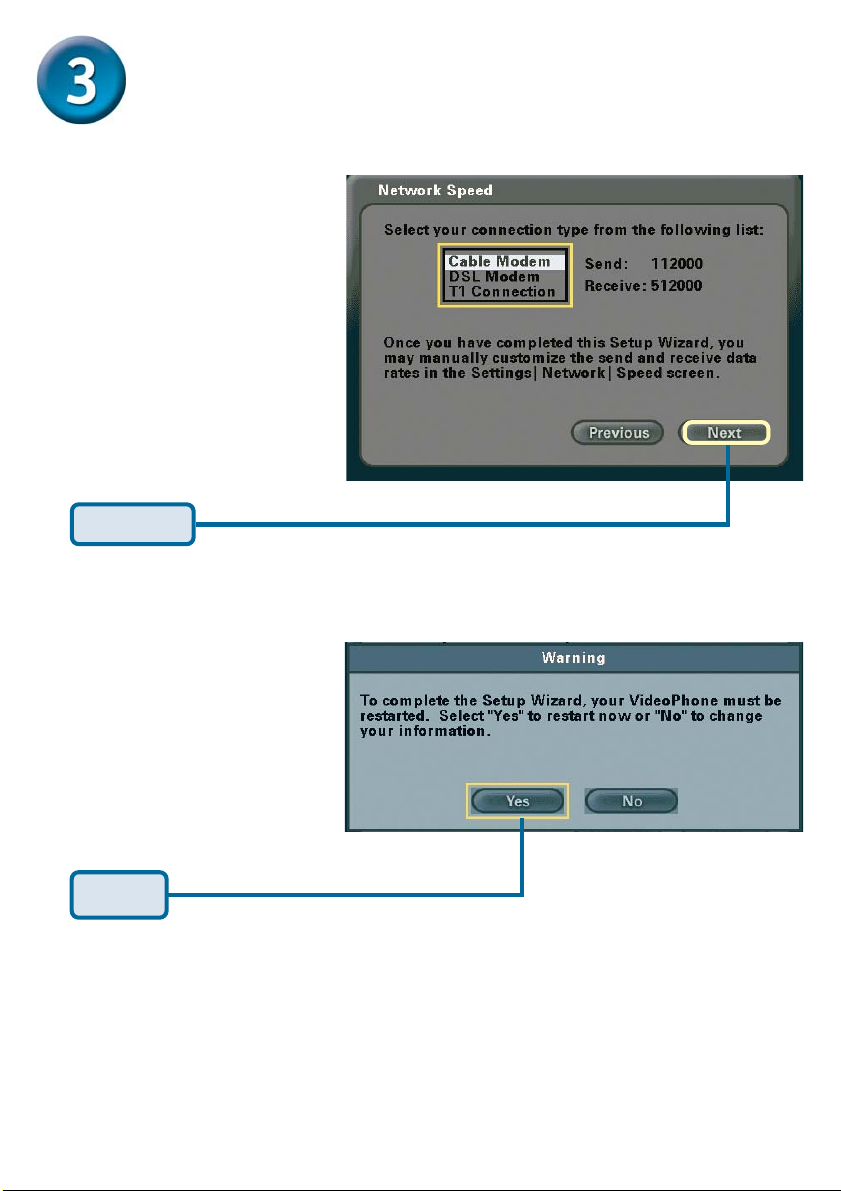

Network Speed ScreenNetwork Speed Screen
Network Speed ScreenNetwork Speed Screen
Network Speed Screen
Select the type of broadband
Internet connection you use.
Click Next
Your Setup is Complete!Your Setup is Complete!
Your Setup is Complete!Your Setup is Complete!
Your Setup is Complete!
Click Yes
System RestartSystem Restart
System RestartSystem Restart
System Restart

10
NOTESNOTES
NOTESNOTES
NOTES

11
Technical SupportTechnical Support
Technical SupportTechnical Support
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
