Section 1 - Product Overview
Product Overview
Package Contents
DWR-920V
U.S. Cellular Home Phone +
Preinstalled SIM/UICC Card
Ethernet Cable
12V 1A Power adapter
+ Power Bank Telephone Cable
2 x 4G Blade Antennas
If any of these items are missing or damaged, please contact your reseller.

2D-Link DWR-920V User Manual
Section 1 - Product Overview
System Requirements
Network Requirements • A compatible mini-SIM/UICC card with mobile data
service1
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
Browser Requirements:
• Internet Explorer 9 or higher
• Firefox 12 or higher
• Safari 4 or higher
• Chrome 20 or higher
Windows®Users: Make sure you have the latest version of
Java installed. Visit www.java.com to download the latest
version.
1 Subject to services and service terms available from your carrier.

3D-Link DWR-920V User Manual
Section 1 - Product Overview
Introduction
SIMPLE AFFORDABLE HOME PHONE SERVICE
The U.S. Cellular Home Phone is a simple-to-use and aordable alternative for home phone service and connects to any corded
or cordless touch-tone telephones. Simply plug any touch-tone telephone into the U.S. Cellular Home Phone to start making
and receiving calls from your home phone using the U.S. Cellular wireless network.
ALWAYS STAY CONNECTED WITH A BACKUP POWER BANK
With a backup power bank, you can stay connected if the power goes out or if you take your U.S. Cellular Home Phone to a
location that does not have a power outlet.
SIMPLE TO INSTALL AND USE
The U.S. Cellular Home Phone can be installed quickly and easily almost anywhere. Its user friendly LED indicators make it easy
to know when you have a waiting voicemail or when you’ve received a SMS message.
Note: This device only works with the US Cellular Home VoLTE Network.

4D-Link DWR-920V User Manual
Section 1 - Product Overview
Hardware Overview
Overview

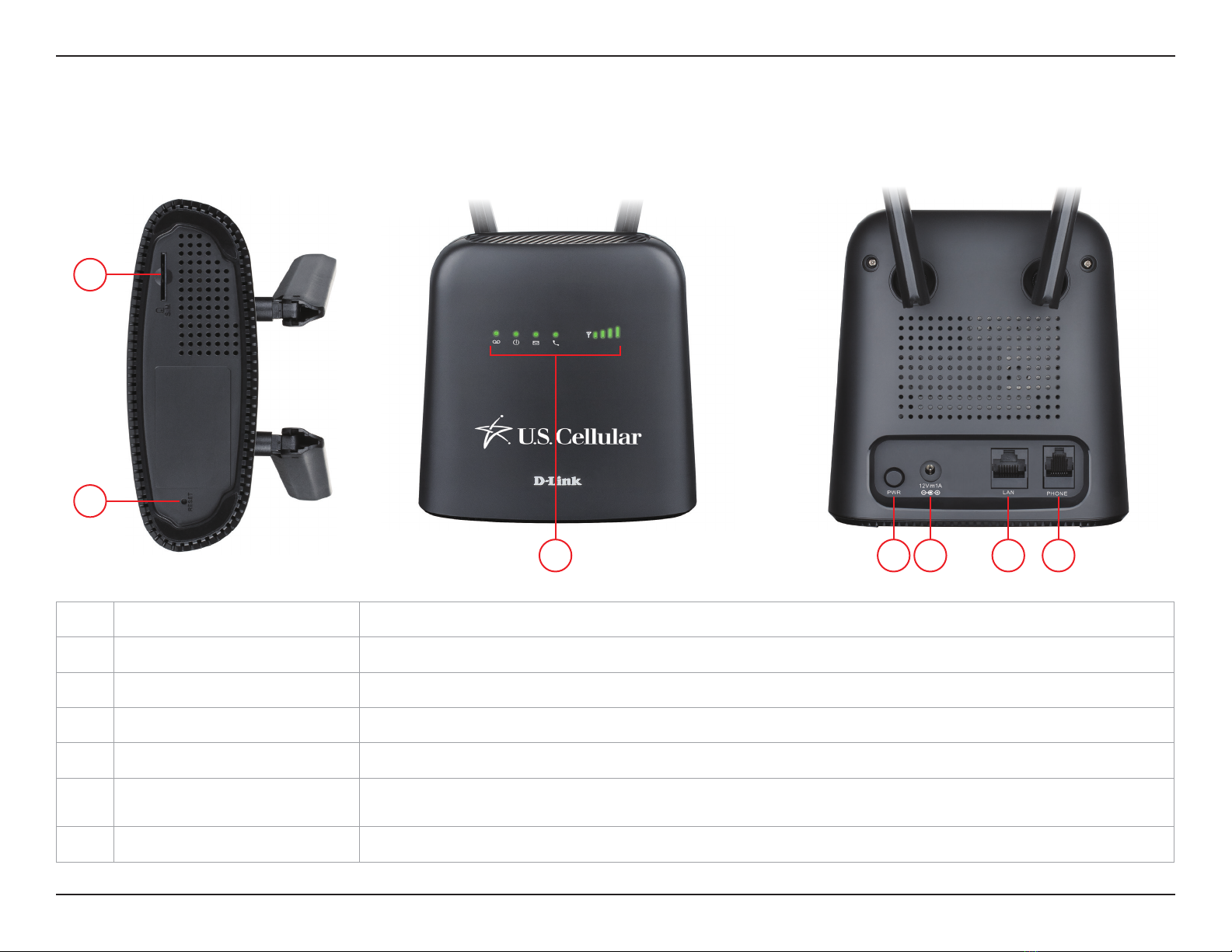

1 SIM/UICC Card Slot Insert a SIM/UICC card for phone service.
2 Reset Button Using a paper clip, press and hold this recessed button for 10 seconds to reset the device to default.
3 LED Indicators Status display. Please refer to LED Indicators on page 5.
4 Power Button Press this button to power on/o the device.
5 Power Input Receptacle for the included power bank.
6 LAN Use an Ethernet cable to congure your advanced settings by accessing the web user interface.
7 Phone Connect a phone here that uses a regular phone line.
43
1
2
5 6 7

5D-Link DWR-920V User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicators

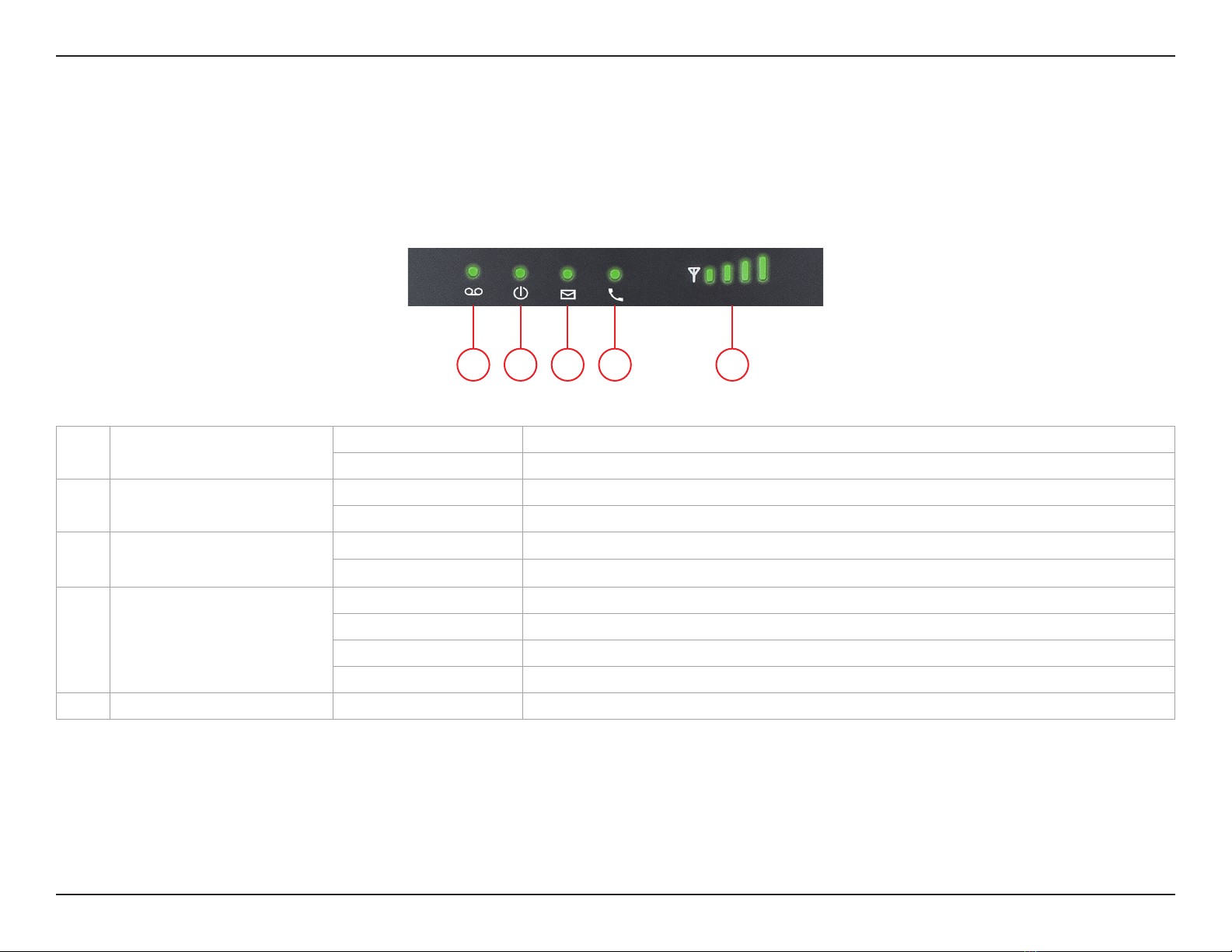

1Voicemail Solid Green New unread voicemail/s
O No new voicemail/s
2Power Solid Green Device is powered on
O Device is powered o
3SMS Solid Green New unread short message/s
O No new short message/s
4Telephone
Solid Green Registered to IMS network and ready for voice calls
Solid Blue Voice call in progress
Solid Red Failed IMS registration
Blinking Red No SIM/UICC card detected or invalid SIM/UICC card
5Signal Strength Blinking Red Indicates signal strength
1 2 3 4 5

6D-Link DWR-920V User Manual
Section 1 - Product Overview
Hardware Overview
Power Bank
1Power LED Indicators Sequential LED’s to indicate the percentage of battery left in the power bank.
2Power LED Indicator Button Press this button to light up the Power LED Indicators.
3Input Receptacle for the power adapter.
4Output Receptacle for the DC connector.
INPUT OUTPUT
2
13 4

7D-Link DWR-920V User Manual
Section 2 - Installation
This section will guide you through the installation process. Placement of the device is very important. Do not place the
DWR-920V U.S. Cellular Home Phone in an enclosed area such as a closet, cabinet, or in an attic or garage. Ensure that your
DWR-920V U.S. Cellular Home Phone is powered o before performing the steps below.
SIM
Card
SIM
RESET
Step 1

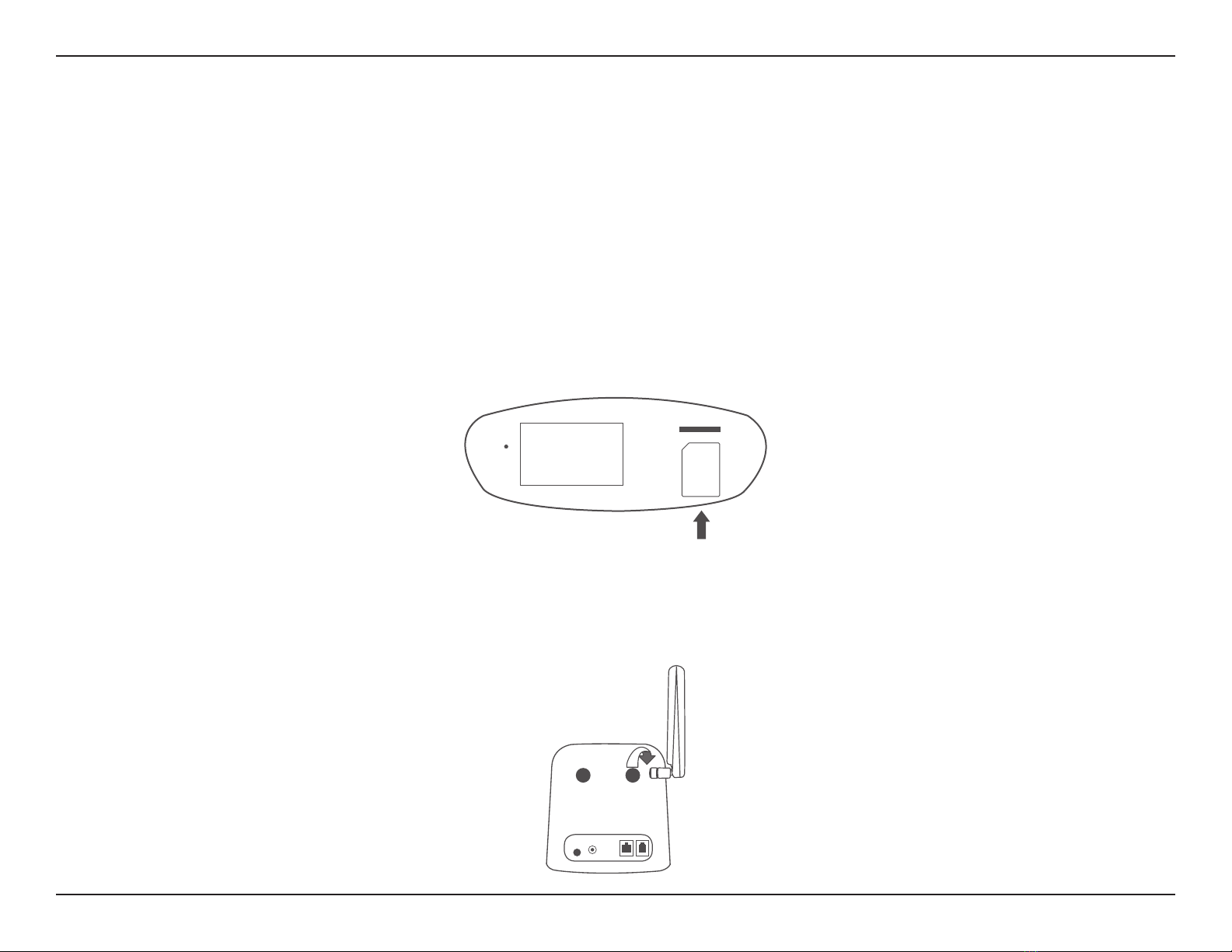

Verify that your SIM/UICC card is installed and has been activated by your carrier. If it has not been installed, follow the diagram
next to the slot at the bottom of the DWR-920V. Push gently until it locks into place.
Installation
Step 2
Attach the included antennas to the back of the device, screwing them in clockwise. Arrange the antennas so that they point
upwards.
