2 DPH-541 Quick Installation Guide
• An available Wireless 802.11b/g access point or router on
the network
• An active subscription to a VoIP Broadband Phone
Service
It’s best to use the same wireless access point that your
computer is connected to for configuring the DPH-541
phone when registering to your VoIP Broadband Phone
Service.
System Requirements
Package Contents
• 802.11b/g Wi-Fi Phone
• CD-ROM with User Manual
• Li-ion Battery
• Mini-USB Cable
• Power Supply
Note: Using a power supply with a different voltage rating will
damage this product and void its warranty.

3DPH-541 Quick Installation Guide

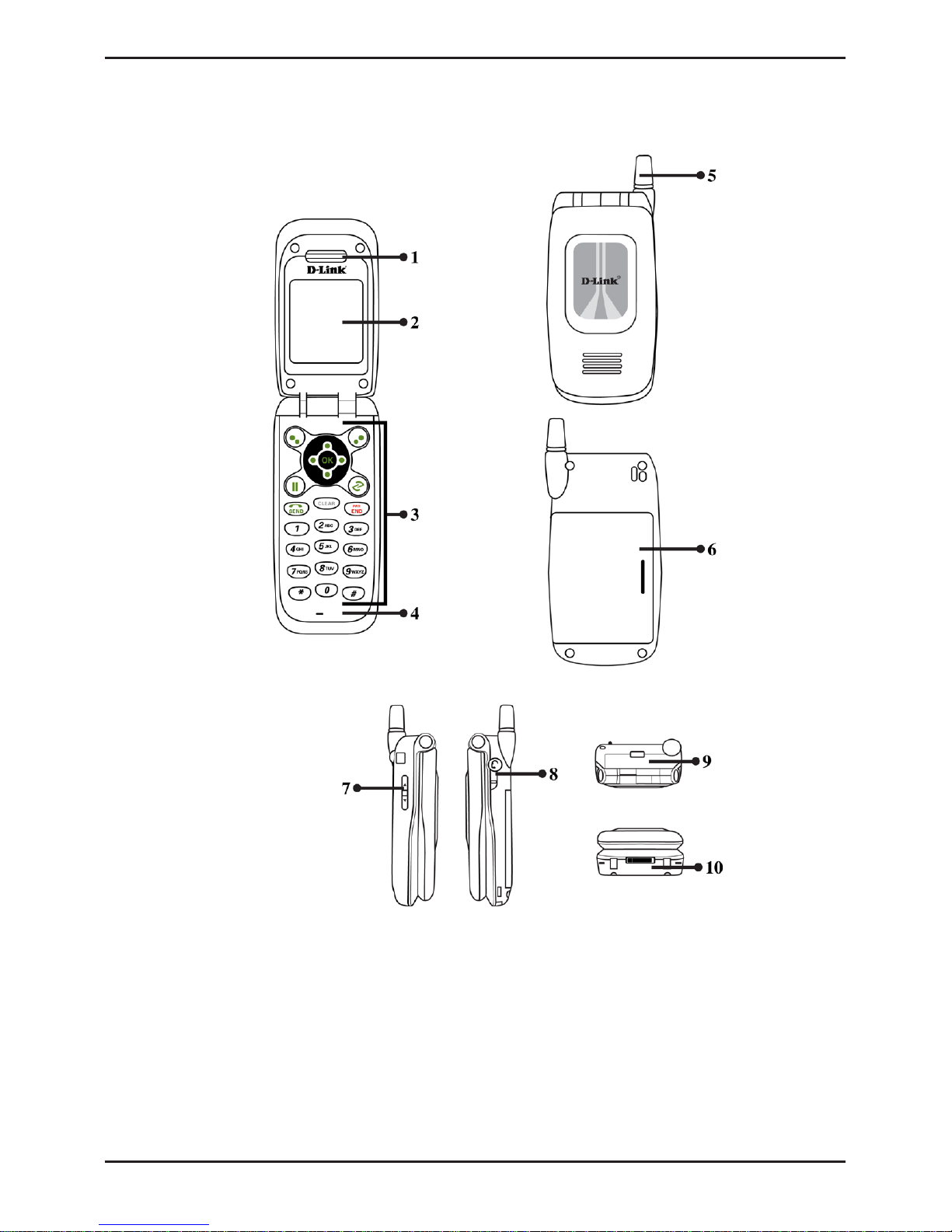

1. Earphone
2. Screen
3. Keypads
4. Microphone
5. Antenna
6. Battery
7. Volume adjustment keys
8. Earphone slot
9. Strap eyelet
10. Data cable slot
Hardware Overview

4 DPH-541 Quick Installation Guide
The new battery is shipped partially charged. Before you
can use your phone, you need to install and charge the
battery.
1. Make sure the battery is installed properly.
2. There are two ways to charge the battery:
• You can either plug the power adapter between the
data cable slot on the bottom of the phone and the
socket.
• Or use mini-USB cable to charge through your notebook
or related device.
3. While charging, you can still do operations according to
your preference with the phone.
Note: For the first time usage, it is recommended to
charge the battery for at least 8 hours. The battery
charging status is properly performed only after
uninterrupted charging/discharging.
The battery heats up a bit during charging. This is not a
malfunction. If the battery is completely exhausted, to be
fully charged requires approximately three hours (with the
phone powered off).
Getting Started

5DPH-541 Quick Installation Guide
It is required to set a password for the default profile. After the profile’s
password is set, you need to input the configured password to enter the
profile menu.
Setting Up Your Phone
1. Press Menu, scroll to Profile by pressing the direction pad and
then press OK.
2. When setting up the phone for the first time, it will prompt you by
saying, No Password! Please Create a New Password. Press OK,
set a password, then press OK.
3. Select Network Profile and then press OK. The first available
profile will be labeled Default. You have 6 profiles to choose from.
4. Highlight a profile and press Option.
5. Select Rename and press Select. Rename the profile then press
OK.
6. Select Edit then press Select. Select Wireless Setting and
then press Select.
7. Select ESSID and then press Select.
8. Select Site Survey and then press Select.
9. Select a wireless network you want to connect to and then press Set.
The SSID that you set is now configured for the profile you created.
10. If the network you are connecting to requires encryption, press
Back, select Security, and then press Select.
11. Select the type of encryption and then press Set.
12. Select the type or level of security and press Set.
To turn on your phone, press and hold the power key.

6 DPH-541 Quick Installation Guide
13. Enter the security key and then press OK.
14. Press Back until you get to the main screen.
Account Information
To add a VoIP account to the profile that you created you must do the
following:
1. Press Menu, scroll to Profile by pressing the direction pad and
press OK.
2. Input the profile’s password and press OK.
3. Press and select SIP Account. Press Select.
4. Select a SIP account and press Options. Scroll down to Rename
and press Select. Name the SIP account and press OK.
5. Scroll up to Edit and push Select.
6. Six profiles can be set in this feature. Only one profile can be
activated at a time. The following information will be provided to you
by your service provider. Below is an example:
Preview: Detailed information is listed.
Phone Number: 1-555-567-8910
Auth. ID: dlinkwins
Auth. Passwd.: (Your Password)
SIP Domain: wifiphone.com
Proxy Addr.: The Address of your SIP Proxy IP: xxx.xxx.xxx.
xxx
Advance: The following options are indicated on the next
page:
Enter VoIP Settings

7DPH-541 Quick Installation Guide
Proxy Port: 5060 Reg. Timer (sec): 3600
Outbound Addr.: 127.3.2.1 Codec: G.711a
Outbound Port: 9090 PKT Time (ms): Default
Local Port: 5060 OutofBand DTMF: On
LED Indicators
LED Indicator Status Description
Lighting Seven Colors Continuously Rotating When receiving an incoming call.
Blue Blinking When there is an unanswered call
or when a new e-mail is received.
Red
Blinking When the phone is powered on
and the battery is charging.
Solid When the phone is powered off
and the battery is charging.
Green
Blinking When the phone is powered on
and the battery is fully charged.
Solid When the phone is powered off
and the battery is fully charged.
Magenta Blinking Indicates low battery level.
7. Once your SIP account is set, you must assign it to your profile.
8. Press Back three times until you are at the Profile menu. Select
Network Profile and press OK.
9. Select the profile you want to assign the SIP settings to and press
Option.
10. Select Edit and press Select. Select Account Choice and
press Select.
11. Select the SIP account you created and press Set.
12. Press Back until you are at the main screen. Your Wi-Fi connection
should be activated. After activation and IP has been received the phone
should register with your ITSP Provider.
