D-Link DPH-541 User manual

D-Link DPH-541 User Manual 2
Product Overview ......................................................4
Package Contents ..................................................5
Charging the Battery ..............................................5
Phone Features..........................................................6
Overall Features ..................................................... 7
WLAN Application .................................................. 8
Learning to Use Your Phone..................................... 9
Using the Icons.......................................................9
Entering Text.........................................................10
English Mode ................................................. 10
Using Numeric Mode .....................................11
Using IP Mode ...............................................11
While Making a Call .......................................11
LED Indicators......................................................12
Checking the Status .............................................12
Configuration........................................................... 13
First Time Use ......................................................13

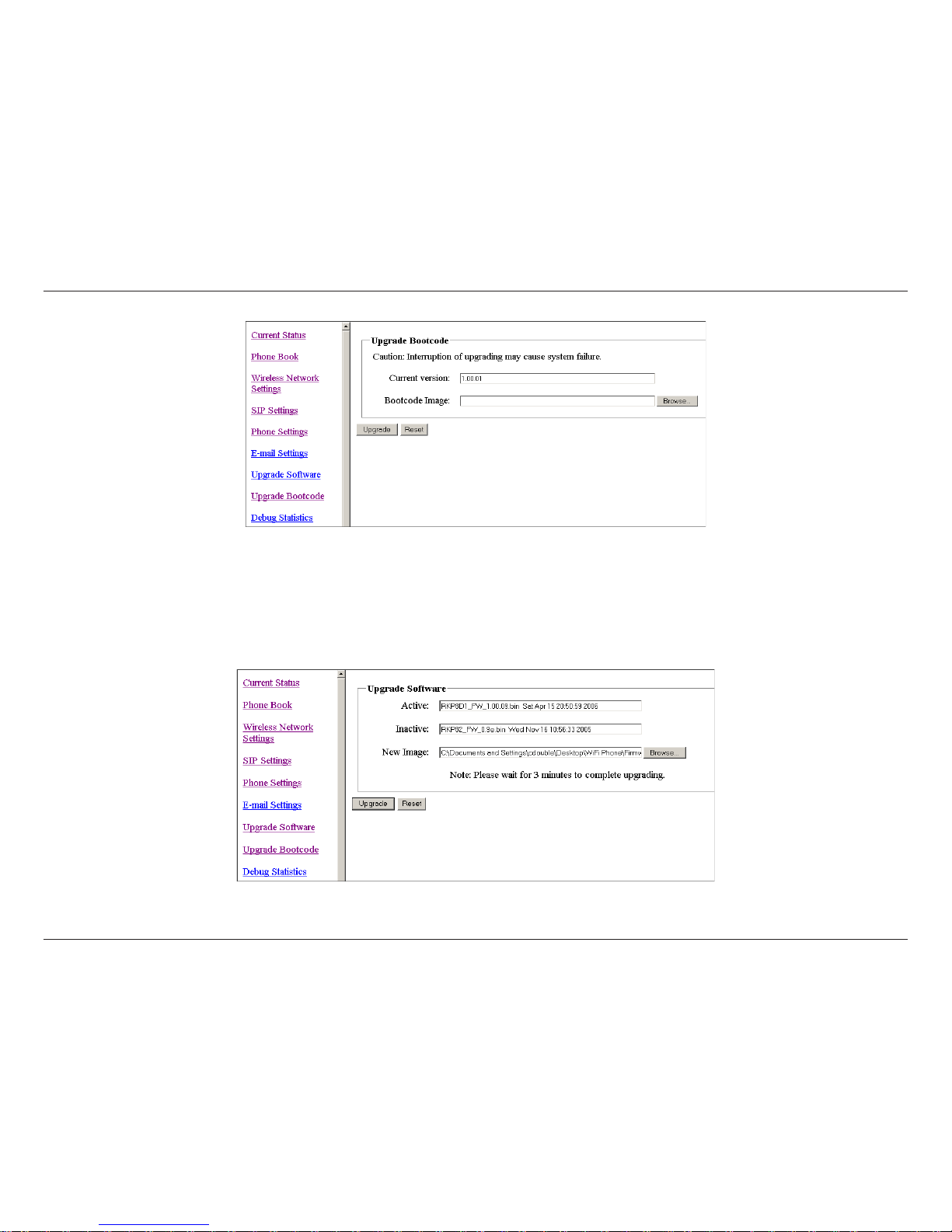

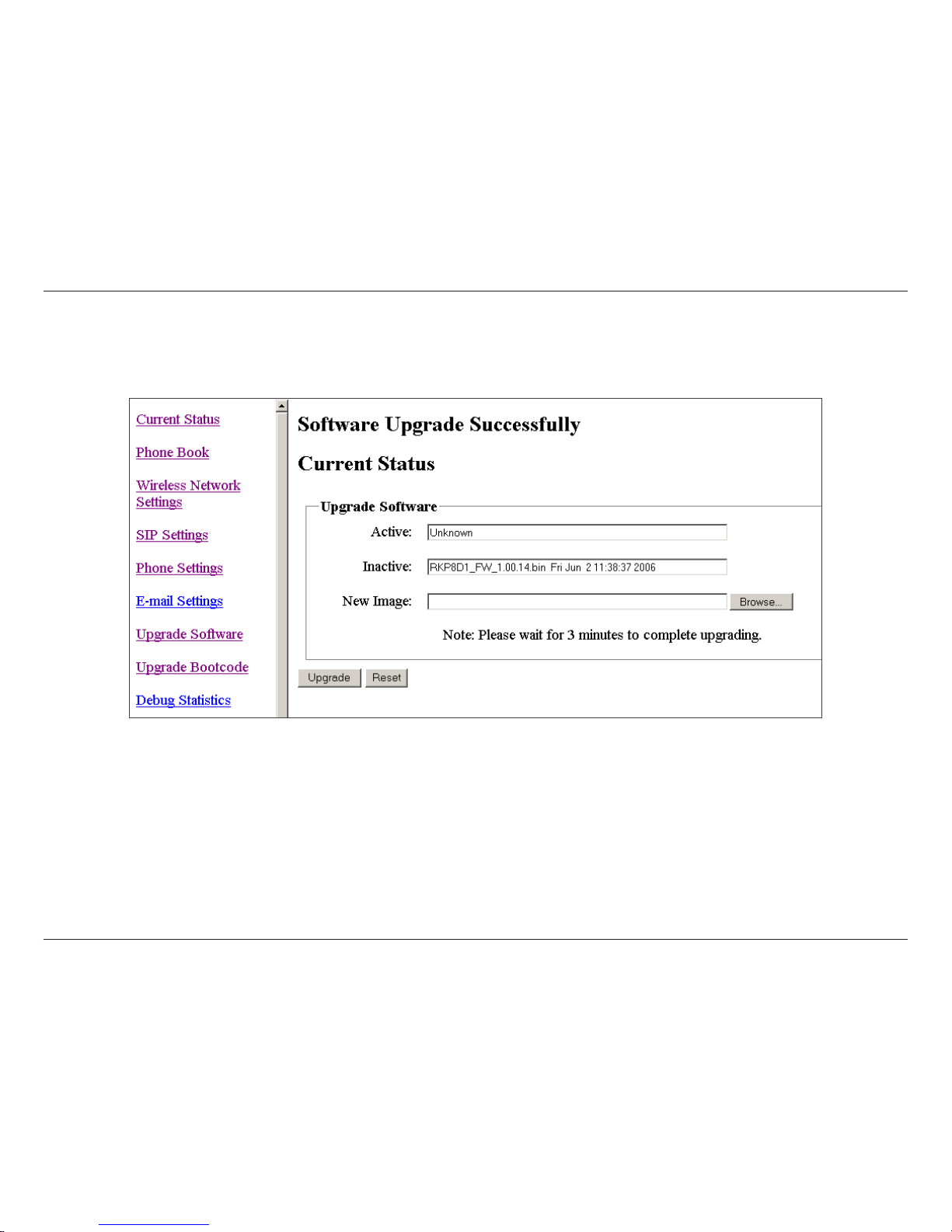

Firmware Upgrade................................................ 16
Basic Functions.......................................................19
Switching the Phone On or Off.............................19
Power Saving Mode..............................................19
Adjusting the Volume............................................19
Making a Call........................................................20
Answering a Call................................................... 20
Using the Key Lock Feature .................................21
Viewing Recent Calls............................................21
Returning an Unanswered Call.............................22
Transferring a Call ................................................22
Using the Call Mute .............................................. 23
Using Call Waiting ................................................23
Using Call Forwarding ..........................................24
Menu Options...........................................................25
Phonebook ...........................................................25
Search ...........................................................25
Edit................................................................. 25
Delete ............................................................26
New................................................................ 26
Call Log ................................................................ 27
Missed Calls .................................................. 27
Dialed Calls.................................................... 27
Received Calls ............................................... 27
Delete All ....................................................... 27
E-Mail ...................................................................28
Write an E-Mail .............................................. 28
Receive Emails .............................................. 29
Inbox .............................................................. 29
Outbox ........................................................... 30
Draft ...............................................................30
Account Settings............................................31
Speed Dial............................................................32
Table Of Contents

D-Link DPH-541 User Manual 3
Profile ...................................................................33
Network Profile .............................................. 33
Wireless Settings ..................................... 34
Wireless Security Settings .......................34
IP Settings................................................35
NAT Settings ............................................35
SIP Account ................................................... 36
Roaming ........................................................37
Profile Password ............................................37
Settings ................................................................38
Language.......................................................38
Clock..............................................................38
Change Time............................................38
Change Date............................................38
Time Format............................................. 38
Time Zone................................................38
Daylight Savings ......................................39
Network Time (NTP) ................................39
Alarm Clock ...................................................39
Call Settings................................................... 40
Call Waiting .............................................. 40
Call Forward.............................................40
Call Block Caller ID .................................. 40
Refuse Private ......................................... 40
Beep Notification...................................... 41
Hold Transfer ............................................41
Regional Tone ..........................................41
Speed Dial ..................................................... 41
Sound Settings .............................................. 42
Speaker Volume ....................................... 42
Ring Tone .................................................42
Ring Mode................................................43
Warning Tone ...........................................43
Display Settings .............................................44
Wallpaper ................................................. 44
Greeting ...................................................44
LCD Off Time ...........................................44
LCD Brightness........................................ 45
LCD Contrast ........................................... 45
Config. Tip ................................................ 45
Keypad...........................................................46
Key Lock...................................................46
Key Tone ..................................................46
Key Backlight............................................46
Tools ..................................................................... 47
Signal Quality................................................. 47
Site Survey.....................................................47
Statistics ........................................................47
Battery ...........................................................47
Ping................................................................ 47
Version ........................................................... 48
Back to Default...............................................48
Restart ........................................................... 48
Troubleshooting.......................................................49
Technical Specifications......................................... 50
Contact Technical Support .....................................52
Warranty ...................................................................53
Registration..............................................................58

D-Link DPH-541 User Manual 4
Product Overview
D-Link introduces the DPH-541 Wireless VoIP Telephone, giving you the freedom of wireless connectivity and the
benefits of Voice over IP service. Utilizing the DPH-541 and an Internet (VoIP) phone service plan can reduce telephone
charges compared to standard telephone services.
When used with an Internet (VoIP) phone service plan, the Wireless VoIP Telephone works like a cellular phone — no
PC is required! The DPH-541 connects to your wireless network using 802.11g, giving you greater freedom to roam
throughout your network while making phone calls. In fact, you can make calls wherever you have Internet access.
The DPH-541 includes a large colorful LCD to display call information such as the numbers you dial, address book
entries and caller ID numbers. The DPH-541 also supports several advanced calling features, including last number
redial, mute, and hold. The DPH-541 uses Session Initiation Protocol (SIP), and is ready to use with an Internet (VoIP)
phone service plan. With echo cancellation, packet delay compensation and lost packet recovery, a VoIP call over a
wireless network will sound similar to regular phone service.
Using the DPH-541 VoIP Telephone gives you the advantages of VoIP, while giving you the ability to use the freedom
of wireless networking. When used with an Internet (VoIP) phone service plan, you will be able to enjoy all of the
advanced features that VoIP offers.
WARNING! Do not expose your phone to high humidity areas.
Never store your phone in temperatures less than -4 °F or greater than 122 °F, such as in your car on a hot day.
Exposure to excessive cold or heat may result in phone malfunction, damage and/or failure.
Use caution when using your phone near other electronic devices. RF emissions from your mobile phone may affect
nearby inadequately shielded electronic equipment. Do not power your phone in a medical facility or at a gas station.
You must choose an Internet (VoIP) Phone Service Plan and sign up for service. VoIP phone plans, rates, and features may vary
depending on VoIP Phone Service Provider. D-Link Systems, Inc. is not a Telephone Service Provider or VoIP Phone Service
Provider.

D-Link DPH-541 User Manual 5
• 802.11b/g Wi-Fi Phone
• CD-ROM with User Manual
• Li-ion Battery
• Mini-USB Cable
• Power Supply
Package Contents
The new battery is shipped partially charged. Before you can use your phone, you will need to install and charge the
battery.
1. Make sure the battery is installed properly.
2. There are two ways to charge the battery:
• You can either plug the power adapter between the data cable slot on the phone and the socket.
• Or use mini-USB cable to charge through your notebook or related device.
3. While charging, you can still do operations according to your preference with the phone.
Note: For the first time usage, it is recommended to charge the battery for at least 8 hours.
The battery charging status is properly performed only after uninterrupted charging/discharging. The battery heats
up a bit during charging. This is not a malfunction. If the battery is completely exhausted, to be fully charged requires
approximately three hours (with the phone powered off).
Charging the Battery

D-Link DPH-541 User Manual 6

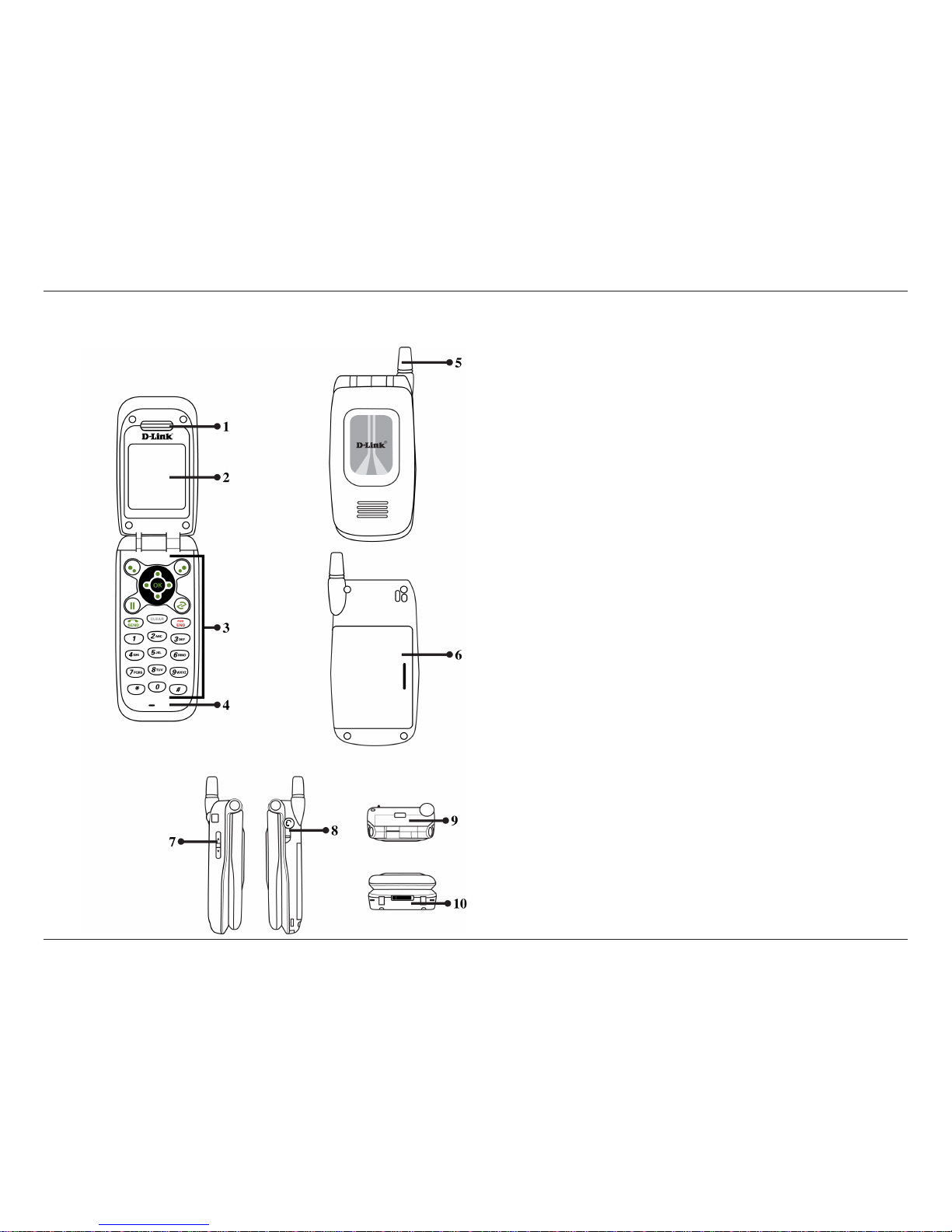

Phone Features
1. Earphone
2. Screen
3. Keypads
4. Microphone
5. Antenna
6. Battery
7. Volume adjustment keys
8. Earphone slot
9. Strap eyelet
10. Data cable slot

D-Link DPH-541 User Manual 7
Overall Features
• Pixel-based display - Intuitive access to calling features.
• Nine speed dials configurable in the set.
• Comfort noise generation (CNG), voice activity detection (VAD) and adaptive jitter buffer
• RF and battery level indication
• Local phone book
• External 2.4GHz antenna
• USB charger interface
• Multi-chords melody
• ABS+PC plastic housing
• Colorful LCM with backlight
• Simple keypad with backlight
• Remote FW upgrading via Wi-Fi
• Special keypads: Redial, Hold & Volume control
• SIP v2 signaling protocol, RFC-3261
• POP3/SMTP E-mail access
• Enhanced security based on WEP/WPA/WPA2
• Support WMM for QoS operation
• Embedded Site-Survey to ease WLAN search

D-Link DPH-541 User Manual 8
WLAN Application
Place a Call via “SIP Proxy Server”
Use your new Wi-Fi phone to make and receive VoIP telephone calls when you are within range of a wireless network
Telephony Service Provider (ITSP). You do not need to know if the recipient’s connection type is an IP, cellular, or
landline-based service. Your Wi-Fi phone can call any landline or mobile telephone that a traditional PSTN telephone
can connect to as well as the IP telephone network. Calls received from IP telephones work exactly as you would
expect from the traditional telephone service.
Your Wi-Fi phone registers with a SIP proxy server in the following circumstance:
• Your connection uses an IP Telephony Service.

D-Link DPH-541 User Manual 9
Learning to Use Your Phone

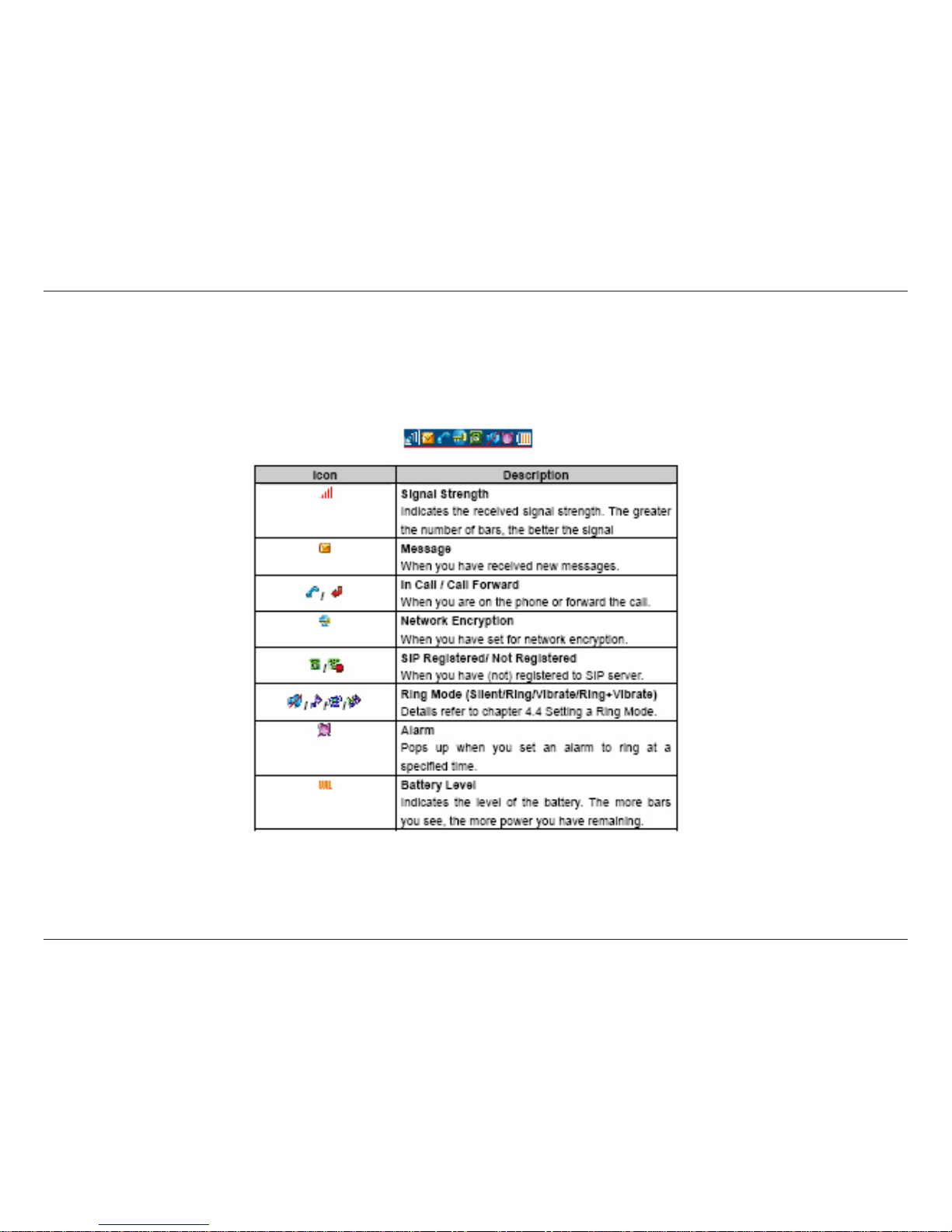

Using the Icons

D-Link DPH-541 User Manual 10
Entering Text

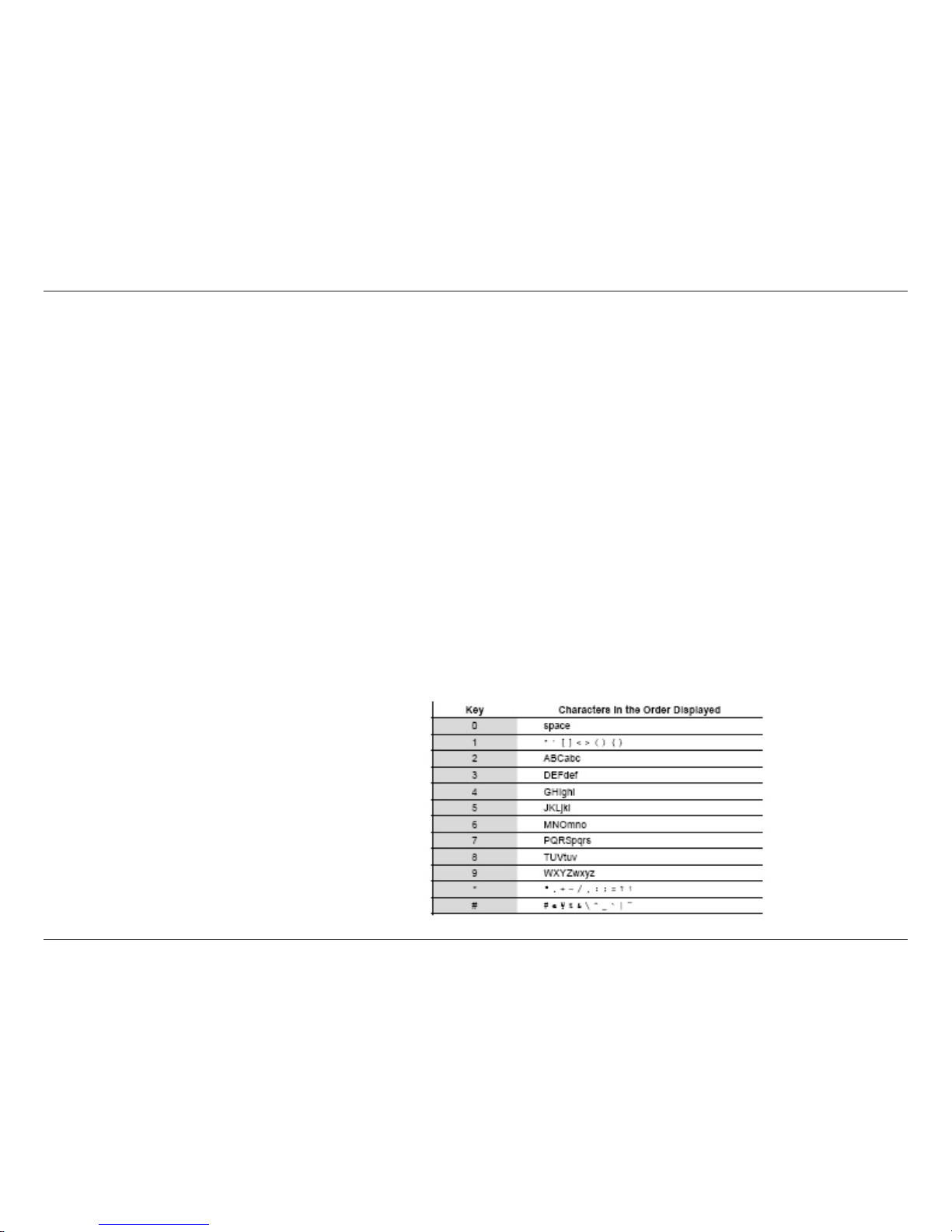

English Mode
• When inputting the text in English, press the key labeled with the character you prefer:
Once for the first character; twice for the second character and so on…
This method is so-called Multi-tap typing.
For example, you have to press the 5key twice to display the character “K”, the 3key five times to
display the character “e” and the 6key five times again to display “n”.
• The cursor moves to the right when you press a different key. When entering the same letter twice
or a different letter on the same key, just wait for a few seconds for the cursor to move to the right
automatically, and then select the next letter.
• You can insert a space between words/letters by pressing the 0key.
• Refer to the chart below for detailed information about the characters available
• To delete letters, press the Clear key.

D-Link DPH-541 User Manual 11
Using Numeric Mode
• Numeric mode enables you to input numbers in your text, such as phone number. Press the keys accordingly
to the digits you want before manually switching back to the appropriate text input mode.
Using IP Mode
While Making a Call
Key Characters in the Order Displayed
0-9 0-9
* *
Key Characters in the Order Displayed
0 0, + (press and hold)
1-9 1-9
* *
# #

D-Link DPH-541 User Manual 12
LED Indicators
LED Indicator Status Description
Lighting Seven Colors Continuously Rotating When receiving an incoming call.
Blue Blinking When there is an unanswered call or when a new e-mail is
received.
Red Blinking When the phone is powered on and the battery is charging.
Solid When the phone is powered off and the battery is charging.
Green Blinking When the phone is powered on and the battery is fully charged.
Solid When the phone is powered off and the battery is fully charged.
Magenta Blinking Indicates low battery level.
Checking the Status
• You can always check your phone’s connection status (Wireless and SIP phone) by using this option.
Press Status:
Phone Status
Wireless You can view the following information: BSSID, IP Address,
and MAC Address.
SIP Phone You will see the following information: SIP Server, User
Agent, and Status.

D-Link DPH-541 User Manual 13
Configuration
First Time Use
It is required to set a password for the default profile. After the profile’s password is set, you need to input the configured
password to enter the profile menu.
1. Press Menu, scroll to Profile by pressing the direction pad and then press OK.
2. When setting up the phone for the first time, it will prompt you by saying, No Password! Please Create a New
Password. Press OK, set a password, then press OK.
3. Select Network Profile and then press OK. The first available profile will be labeled Default.You have 6 profiles
to choose from.
4. Highlight a profile and press Option.
5. Select Rename and press Select. Rename the profile then press OK.
6. Select Edit then press Select. Select Wireless Setting and then press Select.
7. Select ESSID and then press Select.
8. Select Site Survey and then press Select.
9. Select a wireless network you want to connect to and then press Set. The SSID that you set is now configured for
the profile you created. If there is an asterisk (*) next to the SSID, the wireless network is using security.
10. If the network you are connecting to requires encryption, press Back, select Security, and then press Select.
11. Select the type of encryption and then press Set.

D-Link DPH-541 User Manual 14
12. Select the type or level of security and press Set.
13. Enter the security key and then press OK.
14. Press Back until you get to the main screen.
Account Information
To add a VoIP account to the profile that you created you must do the following:
1. Press Menu, scroll to Profile by pressing the direction pad and press OK.
2. Input the profile’s password and press OK.
3. Press and select SIP Account. Press Select.
4. Select a SIP account and press Options. Scroll down to Rename and press Select. Name the SIP account
and press OK.
5. Scroll up to Edit and push Select.
6. Six profiles can be set in this feature. Only one profile can be activated at a time. The following information will be
provided to you by your service provider. Below is an example:
Preview: Detailed information is listed.
Phone Number: 1-555-567-8910
Auth. ID: dlinkwins
Auth. Passwd.: (Your Password)
SIP Domain: wifiphone.com
Proxy Addr.: The Address of your SIP Proxy IP: xxx.xxx.xxx.xxx
Advance: The following options are indicated on the next page:
Enter VoIP Settings

D-Link DPH-541 User Manual 15
Proxy Port: 5060
Outbound Addr.: xxx.xxx.xxx.xxx
Outbound Port: 9090
Local Port: 5060
Reg. Timer (sec): 3600
Codec: G.711a
PKT Time (ms): Default
OutofBand DTMF: On
7. Once your SIP account is set, you must assign it to your profile.
8. Press Back three times until you are at the Profile menu. Select Network Profile and press OK.
9. Select the profile you want to assign the SIP settings to and press Option.
10. Select Edit and press Select. Select Account Choice and press Select.
11. Select the SIP account you created and press Set.
12. Press Back until you are at the main screen. Your Wi-Fi connection should be activated. After activation and
IP has been received the phone should register with your ITSP Provider.

D-Link DPH-541 User Manual 16
Firmware Upgrade
To upgrade the firmware, you must connect to the phone via a computer. The computer and phone must be on the
same network.
When upgrading the firmware of the DPH-541 make sure that the power adapter or the USB cable is plugged in
through the entire process. Also, please make sure that the LCD Off Time is set to “Always On” (refer to page
44). If the phone shuts off or loses power the firmware upgrade will fail.
1. Check for a firmware upgrade at http://support.dlink.com. Download the file(s) to the computer you will perform the
upgrade from.
2. You will need to know the IP address of your phone. Click Status from the main screen. The IP address will be listed
(E.G. 192.168.0.102). Click Back to go to the main screen.
3. From your computer, open a web browser such as Internet Explorer or Firefox. Enter the IP address of the phone
and press Enter.

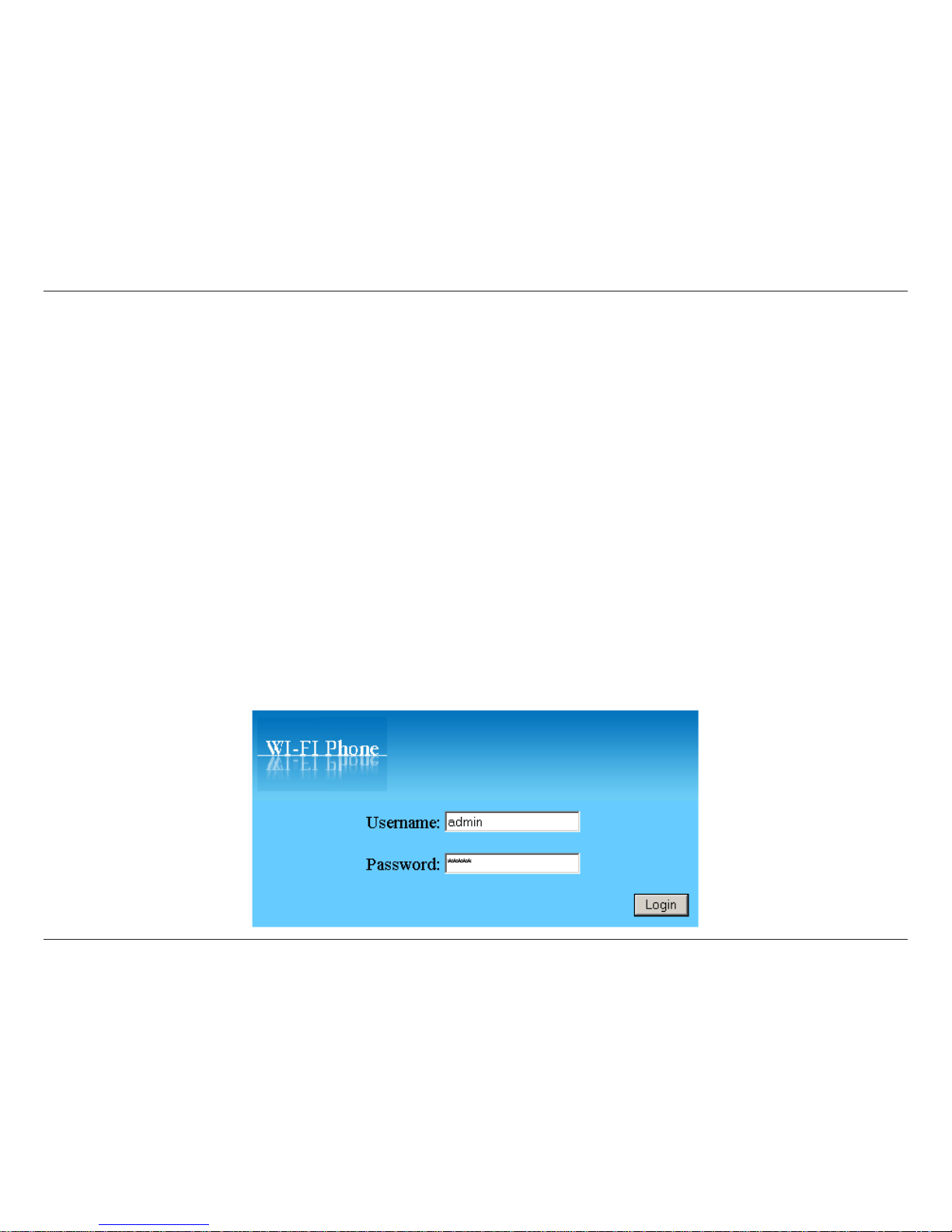

4. At the login page, enter admin for the username and password (lower-case).

D-Link DPH-541 User Manual 17
5. Click on Upgrade Bootcode.You must upgrade the Bootcode before upgrading the software.
6. Click on Browse and locate the bootcode file. Highlight it and click Open. Click Upgrade. The screen on the phone
will display the status of the upgrade. Once the upgrade is finished, continue to the next step.
Caution: Do not turn off the phone during the upgrade process.
7. Click Upgrade Software on the left side.
8. Click on Browse and locate the firmware file. Highlight it and click Open. Click Upgrade. The screen on the phone
will display the status of the upgrade. This process may take up to 3 minutes.

D-Link DPH-541 User Manual 18
9. Click on Browse and locate the firmware file. Highlight it and click Open. Click Upgrade. The screen on the
phone will display the status of the upgrade. This process may take up to 3 minutes. When the Software Upgrade
Successfully message appears, you may close the window. There will be a message on your phone asking to
restart. Click OK to reboot the phone. Once the phone reboots, the upgrade is complete.

D-Link DPH-541 User Manual 19
Switching the Phone On or Off
• Press and hold the Power key to turn ON the phone.
• To turn OFF the phone, press and hold the Power key. An animation will display on the screen.
Power Saving Mode
• To save power consumption, the LCD monitor will turn dark after 15 seconds (as default) without any
operations.
• To turn on again the LCD monitor, just press any key.
Adjusting the Volume
• You can press volume adjustment keys (Up or Down) to increase or decrease the volume.
• Volume adjustment level also indicates on the screen.
Basic Functions

D-Link DPH-541 User Manual 20

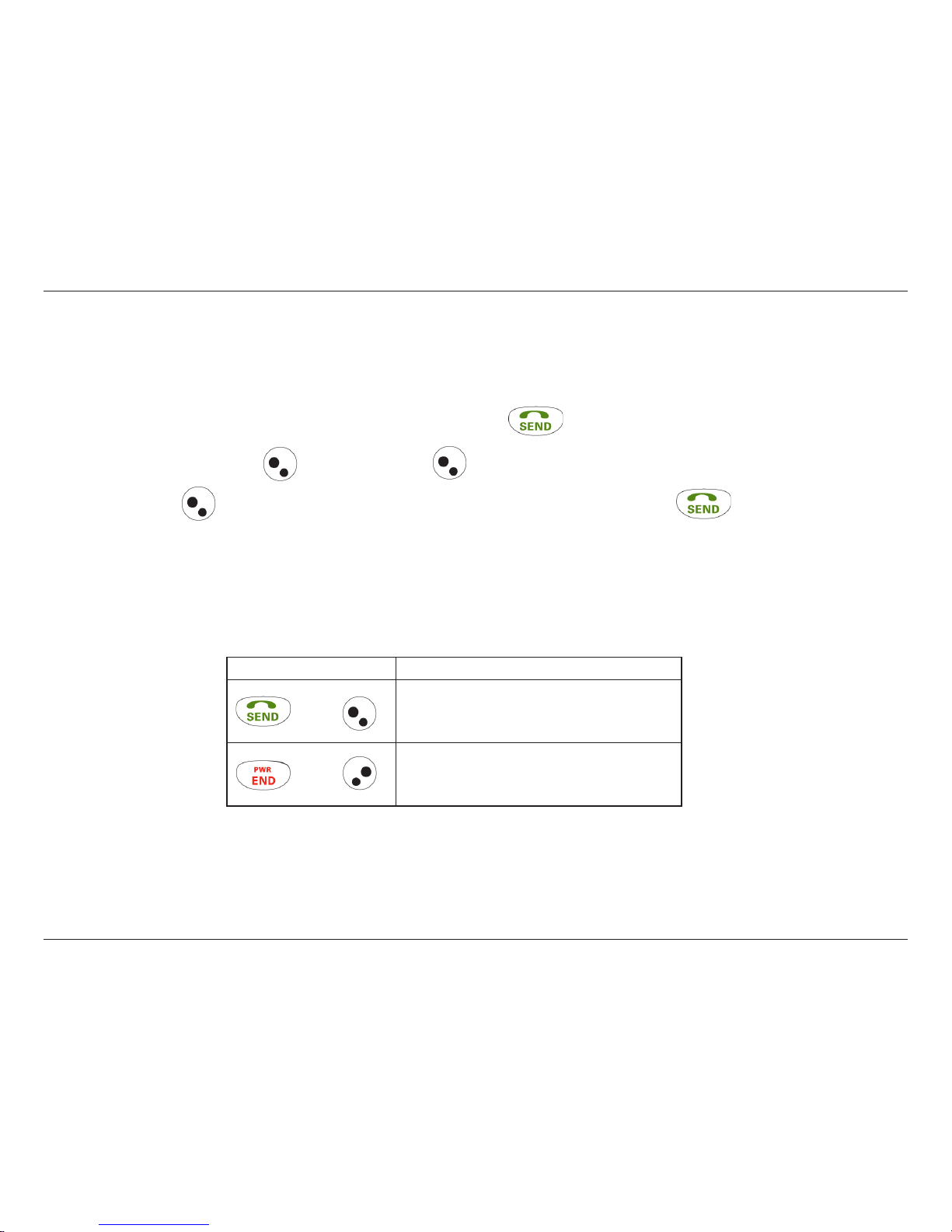

Making a Call
• It is necessary to set up your Wi-Fi phone first before making any calls.
• There are two ways to make call:
• In Standby, enter the numeric keys and then press
• In Standby, press Menu and press Select to view your Phonebook.
Press twice to Search the desired contact member and then press to call.
Answering a Call
When you receive a call, your phone rings and/or vibrates and displays an incoming call message.
Press To
or
Accept and pick up the phone call.
or
Reject the incoming phone call.
