D-Link DWR-720P User manual
1
WCDMA/3GFixedFLLAPhone
UserManual
2
TableofContents
Preface&Trademarks................................................3
1.BasicOverview......................................................4
1.1PackageContents.................................................4
1.2SystemRequirements..........................................4
1.3SafetyandMaintenance......................................4
1.3.1UsingthePhone.................................................4
1.3.2UsingtheBattery.............................................. 5
1.3.3UsingtheBatteryCharger.................................5
2.BasicOverview
2.1Instructionsbeforeuse........................................6
2.1.1Poweron........................................................... 7
2.1.2Poweroff..........................................................8
2.1.3PhoneSecurity..................................................8
2.1.4PINcode............................................................8
2.1.5PUKcode...........................................................9
2.1.6ScreenBackgroundLight..................................9
2.1.7AdjusttheVolume.............................................9
2.2HardwareOverview...........................................10
2.2.1Front...............................................................10
2.2.2Back.................................................................10
2.2.3KeyDescriptions..............................................11
2.2.4StatusIcons.....................................................12
2.3BasicFunctions
2.3.1Directdial........................................................12
2.3.2Quickdialfromdialledlist...............................13
2.3.3Receiveacall...................................................13
2.3.4Terminatecall..................................................13
2.3.5MakeEmergencycall.......................................13
2.3.6MakeInternationallong‐distancecall.............13
2.4TalkOptions
2.4.1Hold/Releasetalkstate.................................14
2.4.2Dialsecondnumber........................................14
2.4.3Answersecondincomingcall..........................14
2.4.4Selectingcurrentphonenumber.................... 14
3.Messaging
3.1WriteMessage.................................................. 15
3.2Inbox..................................................................16
3.3Outbox............................................................... 16
3.4Drafts.................................................................16
3.5SentBox.............................................................16
3.6Templates..........................................................16
3.7SMSsettings...................................................... 17
3.8Messagecapacity..............................................17
3.9Voicemailserver...............................................17
4.Contacts.............................................................. 17
5.Calllogs............................................................... 18
6.Settings................................................................18
6.1PhoneSettings.................................................. 18
6.1.1Date&time
.................................................... 18
6.1.2Languagesetting............................................19
6.1.3Shortcutsettings............................................19
6.1.4Shortcutdialsettings......................................19
6.1.5Autopoweron/off..........................................19
6.1.6Powermanagement.......................................19
6.1.7Restorefactorysettings..................................20
6.2Display................................................................20
6.3Callsettings.......................................................20
6.3.1Networkselection...........................................20
6.3.2Networktype.................................................20
6.3.3Calldivert.......................................................20
6.3.4Callwaiting.....................................................21
6.3.5Callbarring.....................................................22
6.3.6HideID............................................................22
6.3.7Calltimeminutereminder.............................22
6.3.8Autoredial......................................................22
6.3.9Answer/Rejectmode.......................................22
6.3.10Post‐diallingdelay........................................ 23
6.4Security...............................................................23
6.5Profiles.............................................................. 23
6.6PhoneInfo..........................................................24
6.7Calculator...........................................................24
6.8Alarm.................................................................24
6.9OperatorMenu(STK).........................................24
7.FrequentlyAskedQuestions................................ 25
8.TechnicalSpecifications........................................26
3
Preface
D‐Linkreservestherighttorevisethispublicationandtomakechangesinthecontent
hereofwithoutobligationtonotifyanypersonororganizationofsuchrevisionsorchanges.
Trademarks
D‐LinkandtheD‐LinklogoaretrademarksorregisteredtrademarksofD‐LinkCorporation
oritssubsidiariesintheUnitedStatesorothercountries.Allothercompanyorproduct
namesmentionedhereinaretrademarksorregisteredtrademarksoftheirrespective
companies.
Copyrightⓒ2018byD‐LinkSystems,Inc.
Allrightsreserved.Thispublicationmaynotbereproduced,inwholeorinpart,without
priorexpressedwrittenpermissionfromD‐LinkSystems,Inc.
4
1.BasicOverview
1.1PackageContents
D‐LinkDWR‐720PWCDMA/3GFixedFLLAPhone
Battery
HandsetCord
HandsetReceiver
Antenna
PowerSupply
Note:UsingapowersupplywithadifferentvoltageratingthantheoneincludedwiththeDWR‐720Pwillcause
damageandvoidthewarrantyforthisproduct.
1.2SystemRequirements
Acompatible(U)SIMcardwithservice1
1.3SafetyandMaintenance
1.3.1UsingthePhone
Pleaseobservethefollowingpoints:
Beforeuse,pleasereadtheinstructionmanualcarefully.
Don’tpoweronthephonewhenuseofacellularphoneisprohibited‐itmaycauseinterruptions/danger.
Pleasekeepyourphoneswitchedoffwhenyouareonaplane.Iffunctionsthatwillautomaticallypoweron
yourphone,suchasalarmclockorcalendar,aresetup,pleasecheckandcanceltheconfigurationbefore
boardingtheplane.
Whileusingthephone,pleasekeepawayfromheatsourceandhighvoltageenvironments,suchaselectric
appliancesorelectriccookingdevices.Pleaseusethephoneundernormaloperatingtemperatures.
Donotoperatethephonewhilstdriving.
Onlytheoriginalsuppliedbattery,chargerandaccessoriesshouldbeused.
Phonemaycauseinterferencetonearbyelectronicdevices,thereforekeepitawayfromelectronicdevicessuch
asradios,PC’s,pacemakers,hearingaids,etc.Donotplacethephonenearcreditcardsoranymagneticfields.
Donotdisassemblethephone–Anyunauthorizedworkperformedonthephonewillvoidthewarranty.
Donotusebenzene,thinners,alcohol,orcorrosivechemicalssuchasdetergenttocleanyourphone.
Yourphoneisnotwater‐proof,sopleasekeepitdry.Donotuseitindampenvironment,suchasabathroom.
Keepitawayfromrainandmoisture.
1Subjecttoservicesandservicetermsavailablefromyourcarrier.
5
1.3.2UsingtheBattery
Pleaseobservethefollowingpoints:
Beforeuse,pleasereadinstructionsforuseaswellaslabelonthesurfaceofthebattery.
Pleasechargethebatteryinacoolandwell‐ventilatedroomashightemperaturesmayleadtooverheating.
Donotattemptopenthebatteryasitmayleadtoshortcircuitorelectrolyteleakage.
Ifelectrolytesgetincontactwithyoureyes,thereisdangerofblindness.
Insuchcase,immediatelywashyoureyeswithcleanwaterandseekmedicalattentionimmediately(Donotrub
youreyes)
Keepthebatteryawayfrommechanicalvibrationandshaking.Donotshortconnectthebatteryasthismay
damagethebatteryandcomponentsconnectedtoit.
Keepthemetalcontactpointsandbatteryclean.
Donotusedamagedordepletedbatteries.
Thebatteryshouldbereplacedwhenitcannotmeettherequirementforperformance.Batterycanbecharged
hundredsoftimesbeforeitshouldbereplaced.
Thoughitcanbechargedhundredsoftimes,itsquantityofelectricchargemaydecreasegradually.When
servicetime(talktimeandstandbytime)isfoundtohavedecreased,thebatteryneedstobereplaced.
Preventthebatteryfromexposuretotheskinorplaceswithexcessivesmokeordust.Donotuseitindamp
environments,suchasabathroom.Thebatteryisnotwaterproof;sokeepitawayfromrainandmoisture.
Donotputthebatteryinplacesthataretoohotortoocold.Temperatureabove55degreesCelsiusorbelow‐
10degreesCelsiusmayaffectperformanceofthebattery.
Donotputthebatteryinanopenfireasthiscouldleadtoanexplosion.
Donotputthebatteryinwatertoavoidshortcircuitinside,resultinginbatteryoverheat,smoking,distortion,
damageorevenexplosion.
Treatbatteryaccordingtolocalregulations(forexample,recycling).Donottreatbatteryasdomesticgarbage.
Onlytheoriginalchargersuppliedwiththephoneshouldbeusedforchargingthebattery.
Keepbatteryoutofreachofchildrentoavoiddanger.
Usinganothertypeofbattery,chargerorgenericaccessoriesmayviolatethecertificationorwarrantytermsof
equipmentandmayresultindamage.
1.3.3UsingtheBatteryCharger
Pleaseobservethefollowingpoints:
Beforeuse,pleasereadtheuserinstructionsaswellasthelabelonthesurfaceofthecharger.
Donotdisassembleormodifythechargeroruseitwhenpowercableisdamaged.
6
Donottouchthechargerwithwethands.Ifthechargerconnectswithwaterorotherliquid,immediatelycutoff
thepowersupply.
Donotshortconnectthechargerandkeepitawayfrommechanicalvibrationorshakinganddirectsunshine.
Donotuseitindampenvironments,suchasabathroom.
Thebatterychargerisnotwaterproof;keepitawayfromrainandmoisture.
Keepthechargeroutofreachofchildrentoavoiddanger.
2.BasicOverview
2.1Instructionsbeforeuse
Beforeusingthephone,makesuretheplugorbatteryiscorrectlyconnectedandtheSIMcardhas
beeninsertedcorrectly.Followtheinstructionsbelowonhowtoinstallthephone:
7

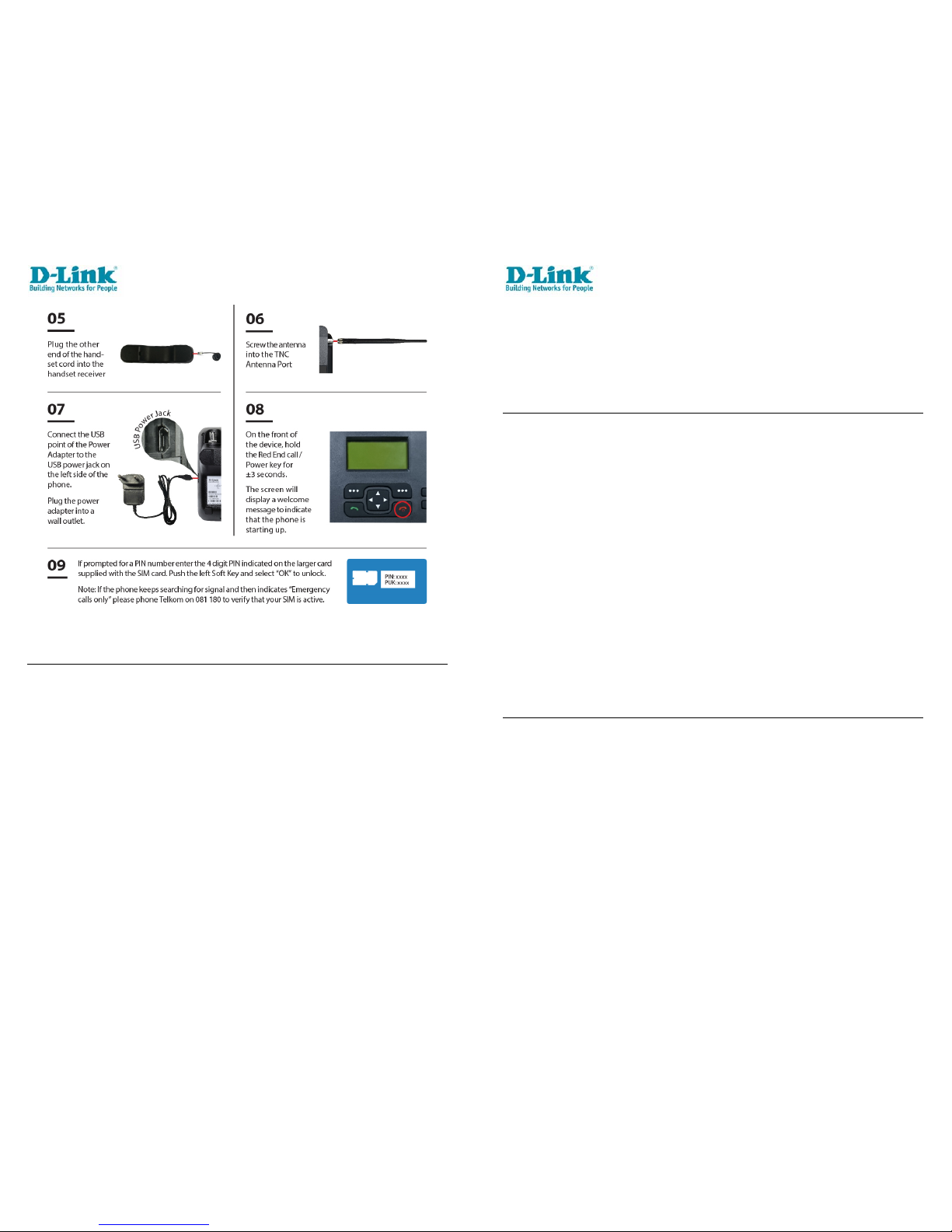

Warning:BeforepullingouttheSIMcard,thephoneshouldbepoweredoff.InsertingorpullingoutSIMcardsisnot
permittedwhentheexternalpowerisconnectedasitcandamagetheSIMcard.
2.1.1Poweron
Thedevicecanworkonsinglebatterymode,singlechargermodeorbothbatteryandchargermode.
Pressandhold[RedPowerKey]buttonuntilthewelcomescreenappears.Boot‐upmusicwillalsoplayifthe
defaultsettingsareunchanged.
IfthereisapromptforPINcode,pleaseenteryourSIMPINcodeandpress[OK]key.
Note:PleasecontactyourserviceproviderforthedefaultSIMPINcodeifunavailable.
Afterpoweron,iftheSIMcardinsertedisvalid,yourphonewillautomaticallysearchavailablenetworkand
connecttothemobileserviceprovider.
IfSIMcardisinsertedincorrectly,invalidorinactive,itwillpromptyoutoInsertSIMorEmergencyCallsonly.
8
2.1.2Poweroff
Topoweroff,pressandholdthe[RedPowerKey]untilpoweroffscreenappears.Apowerdownmusicwillplay
ifdefaultsettingsareunchanged.
Note:Inthisstate,allremindersandalarmswillstillsoundifset.Poweroffthephoneand
disconnecttheexternalpowerwheneverinsertingthebatteryorSIMcard.
2.1.3PhoneSecurity
Youcansetanaccesspasswordtoavoidunauthorizeduseofyourphone.
Thedefaultphonepasswordis1234.
Toactivateordeactivatethisfeature,pleasefollowthesesteps:
Intheidlescreen‐>[Menu]‐>[Settings]‐>[4.Security]‐>[Power‐onpassword].
Younowhavetheoptionto[Activate],[Modify]orswitch[Off]thePhoneLockfeature.
InordertoActivate,orswitchOffthepower‐onpassword,youwillberequiredtoenterthedefaultpassword
[1234]beforeenteringanewpassword.
OnceaPower‐onpasswordisset,whenpoweringonthephone,itwillpromptonscreenforapassword
Note:Itishighlyrecommendedtochangethedefaultpasswordtoa4‐8digitcodeonly
youwillknowandremember.
Tochangethephonepassword,pleasefollowthesesteps:
Intheidlescreen‐>[Menu]‐>[Settings]‐>[4.Security]‐>[Power‐onpassword]‐>[2.Modify].
Youwillberequiredtoentertheoldpasswordbeforeyoucancreateanewone.
[Pleaseinputpassword]‐>[OK]‐>[Inputnewpassword]‐>[OK]‐>[Confirmnewpassword]‐>[OK].
2.1.4PINcode
PINcodeisusedtopreventillegaluseofuser’sSIMcard.
IfyourphonehasenabledPINcodeprotection,youwillbepromptedtoenteryourPINcode.
IfthewrongPINcodeisenteredthreetimesconsecutivelytheSIMcardwillbeautomaticallysoftlocked.
YouwillberequiredtoenterthePUKcodetounlockit.
ThePINcodeisrelatedtoSIMcard,notthetelephoneandisprovidedbyyourNetworkServiceProvider.
9
2.1.5PUKcode
PUKcode,referringtoPersonalUnlockCode,isusedtounlockaSIMcardthatislockedbecauseofwronginput
ofPINcode.
IfthePUKcodeentryattemptsexceedtentimes,theSIMcardwillbehardlockedandaSIMreplacementwill
berequired.
PUKcodesorReplacementSIMcardsareprovidedbyyourNetworkServiceProvider.
2.1.6ScreenBackgroundLight
Backgroundlightilluminatesthescreen.
Whenyoupoweronyourphone,thebackgroundlightwillturnonforapredefinedperiod.
Ifnokeyispressedwithintheperiod,thebackgroundlightwillturnoffautomaticallytosavebatterylife.
Toadjustbackgroundlightbrightnessandperiod:
ForTime(sec):[Menu]‐>[Settings]‐>[2.Display]‐>[2.Backlight].
Youcannowselectbetween:Alwayson,30,20,15,10,5secs:
ForBrightness:[Menu]‐>[Settings]‐>[2.Display]‐>[3.Contrast].
Youcannowpresstheleftorrightarrowkeystoadjustthebrightnessdownorup.
2.1.7AdjusttheVolume
Duringacall:
Press[UpKey]toincreasethevolumeofthehandsetorhandsfree(HF)
Press[DownKey]todecreasethevolumeofthehandsetorhandsfree(HF)
10
2.2.1Front
2.2.2Back
11
2.2.3KeyDescriptions
1
LeftSoftKey
Presstogointothemainmenuinidlescreen,Select/Okinsubmenu
2
DirectionKey
UpKey
Scrollthroughthemenu;DefaultshortcuttoContactListinidlescree
DownKey
Scrollthroughthemenu;DefaultshortcuttoCallLogsinidlescree
LeftKey
DefaultshortcuttoMessaginginidlescreen
RightKey
DefaultshortcuttoProfilesinidlescreen
3
RightSoftKey
Inanymenuyoucangobacktothelastmenu;DefaultshortcutisContact
4
ShortcutDial
Keys
SetM1–M4asquickdialcontacts
5
EndCall/Power
on/OffKey
Holddownforafewsecondstopoweron/offthephone;Prestheendkeyto
endphonecallorreturnbacktoidlescreen
6
SMSKey
ShortcutaccesstoSMSmenuinidlescreen
7
RedialKey
Presstocallthelastdialledphonenumber
8
HandsFreeKey
Presstoactivateordeactivatehandsfree/speakermode
9
NumericKeypad
Toenternumberandcharacters
10
AnswerKey
EnterthephonenumberandpressDialkey;Presstoseelastdiallednumbers
11
StarKey
Inidlescreen,pressmultipletimestoentereither*,+,PorW;DuringSMS
edit,presstoenterthespecialsymbolmode,i.e.?!:;.,’#$%etc.
12
HashKey
Inidlescreen,presstoenter#;Inmessageeditingscreen,presstoswitch
inputmethod,i.e.Abc,ABC,abc,123.
12
2.2.4StatusIcons
Iconsonthescreen:
Signalstrengthindicator
3GNetworkServiceavailable
2GNetworkServiceavailable
NoNetworkServiceavailable
NetworkRoaming
ACadapterPluggedinandPowered
BatteryLifeIndicator
PhonesettoSilentMode
MissedCall
NewMessageReceived
Alarmhasbeenset
2.3BasicFunctions
2.3.1Directdial
Makingaphonecall:
Instandbystate,pressthenumericalkeytoenterthephonenumberandthenpressthe[GreenDialKey]to
initiatethecall.
Press[Rightsoftkey]todeletethelastdigitorlongpressittoclearallshouldyouhaveenteredthenumber
incorrectly.
Pickupthehandsetorpress[HandsFree]forthediallingtone.
Ifthephonenumberbeingdialledoutisrecognizedbythephonebook,thenameofcontactpersonwillbe
displayedonthediallingscreenaswellascallinganimation.
Pressthe[EndCall/RedPowerkey]toendacall.
Quickdialfromcontactslist:
Instandbystate,pressthe[Rightsoftkey]toenterContacts.
Scrolldowntoselectacontact.
13
Pressthe[GreenDialKey]toinitiatethecall.
2.3.2Quickdialfromdialledlist
Instandbystate,press[GreenDialKey]toenter[Dialledcalls]list.
Scrolldowntothedesiredcontactorthenumberyouwanttodial.
Press[GreenDialKey]againtoinitiatethecall.
2.3.3Receiveacall
Whenthereisanincomingcall,callanimationwillbedisplayedtogetherwitharingtone(unlessthephone
issettosilentmode).
Pressthe[GreenDialKey]orpickupthehandsetorPressthe[HandsFree]toanswercalls.
Pressthe[RedPowerKey]torejecttheincomingcall.
Ifphonenumberofthecallerisnothidden,thenumberwillbedisplayedonincomingcallscreen.
Ifthecontactinformationofthecallerisstoredincontacts,thenthecaller’snamewillbedisplayed.
Ifthecalleridishiddenorthenetworkbanscallindication,theincomingcallisdisplayedas✲✲✲✲✲or
PrivateorUnknown.
2.3.4Terminatecall
Whenthereisanincomingcall,pressthe[RedPowerKey]torejectthecall.
Duringthecall,pressthe[RedPowerKey]toterminatecurrentcall.Orhangupthehandsettoendthecall.
Ifhandsfreecallingisused,pressthe[RedPowerKey]or[HandsFree]keytoendthecurrentcall.
Anumberthathasjustbeendialledcanbecancelledbypressingthe[RedPowerKey].
2.3.5MakeEmergencycall
Aslongasyouarewithinnetworkcoverage,youcanmakeanemergencycallevenifyouhavenotregisteredto
localnetworkordonothaveSIMcard.
Enterlocalemergencynumber(112)andthenpress[GreenDialKey]tomakeanemergencycall.
2.3.6MakeInternationallong‐distancecall
Pressthe[✲]keyuntil“+”signappearsbeforeinternationalphonenumbercanbedialled.“+”signtellsthe
networkyouaremakinganinternationalcall.
Enterthecountrycode,areacode(withoutthe0)andphonenumber
Press[GreenDialKey]toinitiatethecall.
14
Note:Somenetworksdonotallow“+”fordiallinginternationalnumbers.
2.4TalkOptions
Thephoneprovidessometalkcontrolfunctionsduringanactivecall.
Duringthecall,press[Leftsoftkey]toenter[Menu]toaccessthetalkcontrolfunctions.
2.4.1Hold/Releasetalkstate
Ifyourmobilenetworksupportsthisfunction,youcanholdacurrentcall.
Pleaseensurethenetworksupportscallwaitingfunction&thestatushasbeensettoEnabledunderSettings.
ToEnableCallWaiting,inidlescreen,[Menu]‐>[Settings]‐>[3.Callsettings]‐>[4.Callwaiting]‐>[Activate].
Duringthecall,press[Leftsoftkey‐Menu]andselect[Hold].
Toreactivatetheheldcall,Press[Leftsoftkey‐Menu]andselect[Unhold].
2.4.2Dialsecondnumber
Duringanactivecallyoucandialanothernumber
Directlyenterthesecondnumberandpress[GreenDialKey]tocall
Orpress[Leftsoftkey‐Menu]‐>[Addnewcall],enterthenumberandpress[GreenDialKey]tocall.
Whenthesecondcallisconnecting,thefirstcallwillbeautomaticallyputonhold.
2.4.3Answersecondincomingcall
Pleaseensurethenetworksupportscallwaitingfunction&thestatushasbeensettoEnabledunderSettings.
ToEnableCallWaiting,inidlescreen,[Menu]‐>[Settings]‐>[3.Callsettings]‐>[4.Callwaiting]‐>[Activate].
Ifthereisasecondincomingcallduringtalk,you’llheara“Beep”toneandthescreenwillpromptyouofthe
incomingcall.
Press[Leftsoftkey]andselect[Hold&answer]toputthefirstcallonhold.Orselect[Release&answer]to
terminatethefirstcall.
Press[RedPowerKey]or[Rightsoftkey]toterminatethesecondcall.
Ifthefirstcallwasputonhold,youwillneedtopress[Leftsoftkey]and[Unhold]toactivatethefirstcall.
2.4.4Selectingcurrentphonenumber
Whenthefirstcallisanswered,press[Leftsoftkey]toenter[Menu]:
1.Addnewcall:Makeasecondcallandplacethefirstcallonhold.
2.Hold:Placethecurrentcallonhold.
15
3.Mute:Youcannowhearyourcallerbutyourcallercannothearyou.
4.Adjustvolume:Adjustthevolumeofthehandset,pressrightforlouderandleftforsofter.
5.Contacts:Accessthephonebook.
6.Calllogs:Accessthecalllogsmenu.
7.Messaging:Accessthemessagingmenu.
Whenthesecondcallisanswered,press[Leftsoftkey]toenter[Menu]:
1.Mergecalls:Mergefirstandsecondcallintoonecall.
2.Swap:Holdcurrentcallandactivatetheheldcall
3.Mute:Youcannowhearyourcallerbutyourcallercannothearyou.
4.Adjustvolume:Adjustthevolumeofthehandset,pressrightforlouderandleftforsofter.
5.Contacts:Accessthephonebook.
6.Calllogs:Accessthecalllogsmenu.
7.Messaging:Accessthemessagingmenu.
8.Endallcalls:Terminatebothcalls
Note:NotallnetworksserviceprovidersofferalltheabovementionedservicesTalkFunctions.
Youcanpressthe[Leftsoftkey]instandbystatetoenterTalkmenu.
Press[Rightsoftkey]or[RedPowerKey]toreturntostandbymode.
3.Messaging
Instandbystate,select[Menu]‐>[Messaging].
Oralternativelyyoucansimplypressthequickaccesskey[SMS]onthephone
3.1WriteMessage
TowriteaSMSmessage,Select[Writemessage]‐>composemessage,then[Send]
Ifyouknowthenumberoftherecipient,select[Options]‐>[Send]‐>Enterphonenumberofreceiver‐>[Send]
OrifrecipientissavedinContacts,select[Options]‐>[Contacts]‐>Marktherecipient(s)by[Options]‐>[Mark]
thentosendtomarkedrecipient(s)[Options]‐>[OK]‐>[Options]‐>[Send]
WheneditingSMS,pressthe[Leftsoftkey]toenter[Options]menutoaccessthefollowing:
1.Send:Sendthemessage.
2.Inserttemplate:Insertthepreconfiguredtemplateintothemessage.
3.Addcontactinfo:InserttheNameandNumberofacontactintothemessage.
4.Addphiz:Insertatextsmileysintothemessage.
5.Saveasdraft:SaveyourcurrentmessagetoDrafts,whichcanbeaccesslaterfromtheDraftsbox.
16
6.Exit:Quitanddiscardcurrentmessage.
Note:Youmusthaveapositiveairtimebalanceandanactiveservicetousethisfeature.
3.2Inbox
TheSMSandMMSyoureceivedareallstoredinthe[Inbox].
ToopenandviewSMSorMMSandpress[Options]‐>[View].
OtherAvailableOptionsare:
Reply,Delete,Deleteall,Voicecall,Mark.
Youcandeletemultiplemarkedmessagesbyselectingthemessagethen[Mark]‐>[Mark]‐>[Options]‐>
[Delete]
Insideaviewedmessage,youcanpress[Options]for:
1.Delete:Deletecurrentmessage.
2.Reply:Replytothesenderofthemessage
3.Forward:Enterintowritemessagemode,youcaneditthemessageper3.1WriteMessage
4.Voicecall:Phonethesenderofthemessage
5.Addsenderto:Addthesendernumbertonewcontactsoraddtoexistingcontact
3.3Outbox
FailedSMSandMMSwillbesavedto[Outbox].
3.4Drafts
Youcanchoosetosendthedraftby[Options]‐>[Edit]‐>[Options]‐>[Send].
Messagesareautosavedtodraftsif:
Suddenexitduringtexteditingwiththe[RedPowerButton].
[Saveasdrafts]functionwasusedduringwritemessage.
3.5SentBox
SMSandMMSwhichhavebeensentsuccessfullyissavedto[Sentbox].
17
3.6Templates
Underthisoption,youwillbeabletoselectfrompre‐loadedmessagetemplates,editthemorremoveand
createyourown.
3.7SMSsettings
SettingsforMessagecentre,Messagevalidityperiod,Statusreport,Preferredstorage
1.Textcentre:Bydefault,thisshouldbesetto+2781191
2.Messagevalidityperiod:SethowlongyourmessageisstoredtemporarilyintheSMScentreiftherecipientmobile
phoneisoffline.Validityperiodcanbesavedfor1,6,24,72hours,1week,Maximum.
3.Statusreport:Check/uncheckforareportonwhetheranSMSmessagehasreachedtherecipientmobilephone.
4.Preferredstorage:Selectwhereyouwouldliketostoreyourmessages.SIMorPhone.
3.8Messagecapacity
Underthisoption,youcancheckhowmuchspaceisstillleftoneachstorage
Youcanstoreupto100messagesonthephoneand20messagesontheSIM
3.9Voicemailserver
Hereyoucansetupthevoicemailserverfor:Line,Fax,orDatanumber.
Tosetupvoicemailforyourline,dial181(freecallforTelkomuser)andfollowthevoiceprompts.
You’llgetanSMStellingyouthatyouhaveanewvoicemessage.
Note:NotallnetworksserviceprovidersofferalltheabovementionedservicesMenuFunctions
4.Contacts
Inidlescreen,select[Menu]‐>[Contacts]:
1.Viewcontact:Viewallcontacts.
2.New:AddNewContacts.Selectthedesiredstoragelocation(Phone/SIM)foryournewcontact,youhavethe
followingfieldsavailabletopersonalisethenewentry:NameandNumber.Oncealldesiredfieldhavebeen
updated,select[Options]‐>[Save]‐>[OK].
3.Search:Youcansearchforthecontactbynameornumber.
18
4.Speeddialsettings:YoucansetContactstohavespeeddialfunctionshere.Thisallowsyoutodialacontactby
pressingandholdingdownthecorrespondingnumerickeyinidlescreen.Tosetthis,selectthenumberposition
ofwhereyouwishtosetspeeddialandpress[Options]‐>[Edit].Inputthenumberthen‐>[OK]or[Contacts]‐>
selectcontact‐>[OK]‐>[OK].
5.Ownnumber:Saveyourpersonalnumberonthedevice.
6.Memorystatus:Viewmemorystatus.
ToEditasavedcontact,you[Viewcontact]‐>[Options]‐>[Details]‐>[Options]‐>[Edit]‐>[Modify]‐>[OK]‐>
[Options]‐>[Save].
ToDeleteasavedcontact:[Viewcontact]‐>[Options]‐>[Details]‐>[Options]‐>[Delete]‐>[OK].
Tocopyasavedcontact:[Viewcontact]‐>[Options]‐>[Details]‐>[Options]‐>[Copy]‐>Selectdesiredlocation.
5.Calllogs
Inidlescreen,select[Menu]‐>[Calllogs]:
1.MissedCalls:Press[OK]toviewhistoryofcallsmissed.
2.DialledCalls:Press[OK]toviewhistoryofcallsdialled.
3.ReceivedCalls:Press[OK]toviewhistoryofcallsreceived.
4.Deleteall:Press[OK]todeleteallhistoryofcallsmade,received,andmissed.
5.Calltimers:Press[OK]toviewcalltimesoflastcall,totalreceivedcalls,totaldialledcallsandcallhistory.
Inthemissed,dialled,receivedcallsinterface,press[Leftsoftkey]toaccessthe[Options]menu.
1.Details:Viewthecalldurationoftheselectednumber.
2.Call:Presstocallbacktotheselectednumber.
3.Writemessage:Presstosendtextmessagetotheselectednumber.
4.Addtocontacts:Addtheselectednumbertoneworexistingcontact
5.Delete:Deletetheselectednumberfromthecallsinterface
6.Deleteall:Deleteallnumbersfromthecallsinterface
Inthecalltimersinterface,press[Leftsoftkey]toresettimerbacktozero.
6.Settings
Instandbystate,enter[Menu]‐>[Settings]menu.Herewiththevarioussettingsavailable:
6.1PhoneSettings
19
6.1.1Date&time
1.Settime:Setthetimeofyourphone.
2.Setdate:Setthedateofyourphone.
3.Timeformat:Selectfrom12hoursor24hoursformat.
4.Dateformat:Selectfrom[Year‐Mon‐Day]or[Mon‐Day‐Year]or[Day‐Mon‐Year]
5.Updatetimesettings:Setyourtimeto[Autoupdatetime]or[Manualupdatetime]
6.1.2Languagesetting
Setthepreferreddisplaylanguage.
6.1.3Shortcutsettings
Youcansettheshortcutkeyfor[Upkey],[Downkey],[Leftkey],[Rightkey],[Rightsoftkey]
Onceattheselectedkey,pressleftorrighttoscrollthroughtheoptions
Orpress[Select]tochoosefromthelist,press[OK]onceconfirmed.
Press[Done]whenyouaredonewiththeshortcutsettings.
6.1.4Shortcutdialsettings
YoucansettheM1‐M4quickdialkeys(locatedonthefaceofthephone)by:
SelecttheM#andpress[Options]‐>[1.Edit]‐>Inputnumberifyouknowitorselect[Contacts]‐>[OK]‐>[OK]
Toviewanexistingquickdialkey,press[Options]‐>[1.View]‐>[Back]toexit
Toeditanexistingquickdialkey,press[Options]‐>[2.Edit]
Tocallanexistingquickdialkey,press[Options]‐>[3.Call]
Todeletetheselectedquickdialkeysetting,press[Options]‐>[4.Delete]
6.1.5Autopoweron/off
Setscheduledtimestoautomaticallyswitchonoroffyourdevice.
Toenable/disableautopoweron,select[Autopoweron]‐>[Options]‐>[1.On/off]
Toeditautopoweron,select[Autopoweron]‐>[Options]‐>[2.Edit]‐>Setthetimetopoweron‐>[OK]
Toenable/disableautopoweroff,select[Autopoweroff]‐>[Options]‐>[1.On/off]
Toeditautopoweroff,select[Autopoweroff]‐>[Options]‐>[2.Edit]‐>Setthetimetopoweron‐>[OK]
20
6.1.6Powermanagement
Displaysthecurrentmethodofwhichthephoneispowered.
Ifthephoneispoweredwiththebattery,itwilldisplaythepercentageofpowerleft.
6.1.7Restorefactorysettings
Enterthepasswordthenthephonewillrestorebacktofactorysettings.
Thedefaultpasswordis[1234].
Thephonewillthenpoweroffandreboot.Alldatawillbeclearedoffthephone.
6.2Display
Underdisplaysetting,youhavethefollowingoptionstoselectfrom:
Idledisplaysettings:Selectwhetheryou’dliketheidlescreentoshowthe[Time&date]and[SIMselection]
Backlight:YouhavetheoptiontochangethetimewhichtheLEDwouldstaylitup.Setbetween5/10/15/20/30
secsorAlwayson.
Contrast:Youcanadjustthebrightnesslevelofthetext.Press[Left]tolightenand[Right]todarkenthetext.
6.3Callsettings
Note:Thisfunctionrequestsnetworksupport.Pleasecontactyouroperatorforfurtherdetailson
whethertheserviceissupportedonthenetwork.
6.3.1Networkselection
Youcansetthenetworksearchmethodto[Auto]or[Manual].
Ifsetto[Manual],youcanmanuallyselectfromalistofnetworkslistedinyourarea.
Selectthenetworkappropriatetoyourserviceprovider.
6.3.2Networktype
Youcansetyourpreferrednetworktype:WCDMApreferred,PreferGSM,GSM,andWCDMA.
6.3.3Calldivert
Diverttheincomingcallstoanotherphonenumber,belowoptionsareavailable:
21
1.Callforwardingunconditional:Thissettingredirectsallincomingcallstoanotherphonenumber.
ToEnablethisfunction,press[Select]‐>[Activate].Choosebetween[Diverttovoicemail]or[Diverttonumber].
If[Diverttovoicemail]isselected,makesurethecorrectsettingsareconfiguredpertheSIMcard’sserviceprovider
under[Linenumber].If[Diverttonumber]isselected,enterthenumberwhichyouwishtodivertthecallto,or
press[Contacts]toselectfromanexistingnumber.
ToDisablethisfunction,press[Select]‐>[Off].
Tocheckifthisfunctionhasbeenactivated,bypress[Select]‐>[CheckStatus].
2.Callforwardingonbusy:Thissettingredirectsallincomingcallstoanotherphonenumberifthephoneline
isbusy.Phonelinecanbebusyifthenumberiscallingout,you’renotinaserviceareaoryou’reusingCallWaiting
andalreadyhavetwocallersontheline.
ToEnablethisfunction,press[Select]‐>[Activate].Youcanchoosebetween[Diverttovoicemail]or[Divertto
number].If[Diverttovoicemail]isselected,makesurethecorrectsettingsareconfiguredpertheSIMcard’sservice
providerunder[Linenumber].
If[Diverttonumber]isselected,enterthenumberwhichyouwishtodivertthecallto,orpress[Contacts]toselect
fromanexistingnumber.
ToDisablethisfunction,press[Select]‐>[Off].
Tocheckifthisfunctionhasbeenactivated,bypress[Select]‐>[CheckStatus].
3.Callforwardingonnoreply:Thissettingredirectsallincomingcallstoanotherphonenumberifthecall
isn’tansweredwithinaspecifiednumberofrings.
ToEnablethisfunction,press[Select]‐>[Activate].Choosebetween[Diverttovoicemail]or[Diverttonumber].
If[Diverttovoicemail]isselected,makesurethecorrectsettingsareconfiguredpertheSIMcard’sserviceprovider
under[Linenumber].If[Diverttonumber]isselected,enterthenumberwhichyouwishtodivertthecallto,or
press[Contacts]toselectfromanexistingnumber.Forbothoptions,youcansetthenoreplytimeto5,10,15,20,
25and30seconds.
ToDisablethisfunction,press[Select]‐>[Off].
Tocheckifthisfunctionhasbeenactivated,bypress[Select]‐>[CheckStatus].
4.Divertifunreachable:Thisredirectsallincomingcallstoanotherphonenumberifthephoneloses
registrationforanyreason.
ToEnablethisfunction,press[Select]‐>[Activate].Choosebetween[Diverttovoicemail]or[Diverttonumber].
If[Diverttovoicemail]isselected,makesurethecorrectsettingsareconfiguredpertheSIMcard’sserviceprovider
under[Linenumber].If[Diverttonumber]isselected,enterthenumberwhichyouwishtodivertthecallto,or
press[Contacts]toselectfromanexistingnumber.
ToDisablethisfunction,press[Select]‐>[Off].
Tocheckifthisfunctionhasbeenactivated,bypress[Select]‐>[CheckStatus].
5.Cancelalldiverts:Presstocancelallexistingcallforwarding/diverts.
6.3.4Callwaiting
Callwaitingallowsyoutotakeasecondcallwithoutdisconnectingthefirst.
22
Toactivatecallwaiting,Press✲43#onstandbymodetoactivatetheserviceonTelkom.
Thereafter,youcan[Activate],[Cancel],[Checkstatus]onthecallwaitinginterface.
6.3.5Callbarring
Callbarringletsyoustopcertaintypesofcallsbeingmadefromyourphone.Thisfeatureis
networkindependent.Pleasecontactyournetworkoperatorforsetupofthisfeature.Available
optionsare:
1.AllOutgoingCalls:Thiswillblockyourphonefrommakingallcalls(exceptemergency&toll‐freecalls).
2.AllReceivedCalls:Thiswillblockyourphonefromreceivinganycalls.
3.ReceiveCallsinRoaming:Thiswillblockyourphonefromreceivinganycallswhileinroamingstatus.
4.InternationalCalls:Thiswillblockyourphonefrommakingallinternationalcalls.
5.MakeCallsinRoaming:Thiswillblockyourphonefrommakinganycallswhileinroamingstatus.
6.Cancelallbarring:Cancelallconfiguredbarring.
7.ChangePassword:Changethepasswordsetforcallbarring.
6.3.6HideID
YoucansettheCLIofthetelephonetodisplay:[HideID],[DisplayownID]or[DisplayIDby
network].
6.3.7Calltimeminutereminder
Enableordisablethisfunction.Itallowsyoutosetatimelimitreminderwithawarningtone
duringthecall.Youcansetthereminderat50,55,60secondsoroff.
6.3.8Autoredial
Enableordisablethisfunction.Thisisaservicefeaturethatwhenyoucallandgetnoansweror
busytone,thephonewillautomaticallyredialoraskifyouwanttoredial.Youmaypress[Cancel]
whenthephoneisredialling.
6.3.9Answer/Rejectmode
YoucanenableordisableAny‐Keyanswerfunction.Withany‐keyanswer,youwillbeableto
answerthephonebypickingupthehandsetorbypressinganykeyonthephoneforhandsfree.
23
6.3.10Post‐diallingdelay
Postdiallingdelayisthetimebetweenthestartofthecallandthemomentthephoneofthe
calledpartystartsringing.Availableoptionsare:Off,1~8seconds.
6.4Security
SIMsecurity:Youcancompletethefollowingfunctionshere:
1.PIN:SetPINlocktoonoroff,ormodifyPIN.NotethattheSIMPINnumberisissuedbyyournetworkproviderand
isshownonyourCompleteSIMcard.
2.PIN2:YouwillbeprompttoenteryourPIN2asyouenterthisoption.Contactyournetworkserviceproviderfor
yourPIN2shouldyouwishtomodify,orturnonthisfeature.
3.Autolockscreen:Youcansetthephonetolockafteracertainidleperiod.Select[Timeout]‐>Defaultpassword
[1234]andchooseapre‐settimebetween[Off],[5s],[15s],[30s],[1min]and[5mins]‐>[OK].Tochangethedefault
password,select[Modifykeylockpassword]‐>[Enteroldkeypassword]‐>[OK]‐>[Enternewkeypassword]‐>[OK]
‐>[Confirmnewkeypassword]‐>[OK].
4.Power‐onpassword:Youcansetalockonthephonewhenpoweringon.Thiswillmakeaccesstoyourphone
moresecure.
ToEnable,Select[Power‐onpassword]‐>[OK]‐>[Activate]‐>[Setpassword(4‐8digits)]‐>[OK]‐>[Activate]‐>[OK].
ToModify,Select[Power‐onpassword]‐>[OK]‐>[Modify]‐>[Entertheoldpassword]‐>[OK]‐>
[Enternewpassword(4‐8digits)]‐>[OK]‐>[Confirmnewpassword]‐>[OK]‐>[Modify]‐>[OK].
ToDisable,Select[Power‐onpassword]‐>[OK]‐>[Off]‐>[Entertheoldpassword]‐>[OK]‐>[Off]‐>[OK].
Note:IfanyofthefunctionsareEnabled,itwilldisplayaticknexttothefunction.
6.5Profiles
Inidlescreen,press[Menu]‐>[Settings]‐>[5.Profiles].Pleasetakenotethatthephoneonly
provides4pre‐definedmodesand3emptyprofiles.Youcanconfigurethefollowingfunctionshere
foreachprofile:
1.Activate:Enabletheselectedprofileforthephone.
2.Settings:Youcansettheincomingcallring,messagerings,volumeadjustment,otheralertringsforeachprofile.
Optionsavailableundersettingsare:
24
1.Ringsettings:Hereyoucansetthecallerringtoneandmessageringtone.
2.Adjustvolume:Hereyoucanadjustthevolumelevelforthecallerringtone,messageringtone,callvolume
(handsetorhandsfreevolume),alarm&calendarringtoneandpoweron/offringtone.
3.Otheralertringtone:Hereyoucanenable/disabletheringtoneforKeyTone(keypadsound),Batterylowalert,
Powerringtone(ringtonewhenthephoneispoweredon/off).
6.6PhoneInfo
Hereyouwillfindtheversioninfoofthephone.
6.7Calculator
Inthismenu,youcandobasiccalculationsofaddition,subtraction,multiplicationanddivision.
KeyfunctionsinCalculatorMode:
[UpKey]:PressonceforAddition‟+”
[DownKey]:PressonceforSubtraction‟‐”
[LeftKey]:PressonceforMultiplication‟x”
[RightKey]:PressonceforSubtraction‟÷”
[LeftSoftKey]:PressforoperationssuchasEqual(=),M+,M‐,MR,MCandClear(C)
[RightSoftKey]:Presstoclearcontentsthathavebeenentered
[✲]:Presstoenterdecimal‟•”
[#]:Presstoenternegatives‟‐”
Note:Whenmemory(M+)isused,thenumberwillbestoredandindicatedonthescreenasM:
6.8Alarm
Youcansetuptothreealarmclocks.
Chooseonepre‐setalarmtoedit.
Whenyouedit,youwillhavethefollowingoptionstocustomizeyouralarm:
1.Time:Setthedesiredtimeforwhenthealarmshouldsound.
2.Ring:Setthedesiredtonetosoundwhenthealarmgoesoff.
3.Repeat:SetthealarmforOnce,DailyorCustomize.WhenyouselectCustomize,youcanmanuallyselectthedays
whenthealarmshouldsound.Oncethedesireddayshavebeenselected,press[Save]Done[Back].
Todisablethealarm,press[Options]‐>[On/off].
6.9OperatorMenu(STK)
25
SIMApplicationToolkit(STK)isastandardoftheGSMsystemwhichenablestheSubscriber
IdentityModule(SIM)toinitiateactionswhichcanbeusedforvariousvalue‐addedservices.This
functionisNetworkOperatorspecificandcanvary.PleasecontactyourNetworkOperatorfor
furtherassistance.
7.FrequentlyAskedQuestions
Ifanyproblemsareencounteredwhileusingthephone,pleaserefertobelowFAQs.Ifthe
problemsstillexit,pleasecontacttheNetworkOperator.
Q.“EnterPINcode"appearsonthescreen.
A.EnterthePINcodeofyourSIMcard.PleasecontactyourNetworkProviderimmediatelyifyoudonot
knowthecode.
Q.“EnterPUKcode"appearsonthescreen.
A.YourSIMcardwillbelockedifyouenterwrongPINcodeforthreetimes.TounlockyourSIMcard,you
havetoenterPUKcode.EnterthePUKcodeofyourSIMcard.PleasecontactyourNetworkProvider
immediatelyifyoudonotknowthecode.
Q.“InsertSIMcard"appearsonthescreen.
A.MakesuretheSIMcardiscorrectlyinstalled.CheckiftheSIMcardworksproperlyinanotherdevice
wherepossible.SIMcardmaybedefectiveorfaulty.PleasecontactyouNetworkProviderforaSIMswopif
SIMisfaulty.
Q.Poorsoundquality,echoornoisemakescommunicationdifficult.
A.Hang‐upyourphoneanddialagain.TheNetworkmayconnectthephonetoalinewithbetter
communicationquality.Iftheproblempersists,pleasecontactyouNetworkProvider.
Q.“Notinservicearea.Networkfailure.”isdisplayed.
A.Checkthesignalindicator.Ifthereisnosignal,youmaybeinthebasementornetworkblindareaina
building.Pleasemovetootherlocationstoreceivesignal.Orpotentiallyyouarenotinacoveragearea.If
so,pleasecontactyourNetworkProviderforassistance.
Q.BatteryLife/StandbyTimedeclines.
A.Signalatyourlocationisweaksothatthephonehastosearchsignalforalongtime.Whenyoudon’t
wanttoansweranycalls,pleasepoweroffforatimebeing.Itisalsopossiblethatthebatteryhasbeen
usedforalongtimeandapproachesitslife‐span.Inthiscase,pleasereplacethebattery.
Q.Phonefailstoboot.
A.Yourbatteryispotentiallynotcharged.Pleasechargeyourphoneuntilthebatterypowerisrestored,
thentrytopoweronagain.
Q.Cannotsendshortmessages(SMS).
A.Pleasecheckthatthecorrectnumberhasbeenenteredoriftherecipientcontactnumberisvalid.
PleasealsocheckifthereissufficientfundtosendtheSMS.
Q.Cannotaddentriesintophonebook
A.Phonebookisfull.Pleasedeletesomeuselessentries.
Q.Cannotcharge.
A.Therearethreepossibilities:
26
•Chargerofyourphonedoesnotworkproperly.Youcancontactnearestserviceproviderordealer;
•Ambienttemperatureisnotappropriate.Pleasechangechargingenvironment;
•Poorcontact.Pleasecheckplugofyourcharger.
Q.Cannotselectsomefunctions
A.Theserviceisnotavailableorthelocationnetworkdoesnotsupportthisservice.Pleasecontactyour
operatorfordetails.
Q.WhocanIcontactfortechnicalsupport?
A.YoucancallTelkomCustomerCareon081180.
8.TechnicalSpecifications
UMTS/HSPA+(WCDMA)BandSupport
•Bands850/1900MHz
Structure
•Size:227x157x70mm/0.4kg
GSMQuad‐band
•850/900/1800/1900/MHz
Poweradapter
•Poweradapter:DC5V/500mA
•Battery:3.7V/800mA
LCD
•240x32dots,backlightfunction
Feature
•Make&Answercalls,Send&ReceiveSMS,Contacts
•Emergencycall,Callwaiting&delay&forwarding,Calendar,
Calculator
StandbyTime
•Standbytime:120hours(Battery)
•Talktime:3hours(Battery)
•Rechargetime:<3hours(Battery)
PackageContent
•PhoneUnitx1pc
•HandsetReceiverx1pc
•HandsetCordx1pc
•Li+Batteryx1pc
•PowerAdapterx1pc
•TNCAntennax1pc
•BasicUserSetupGuidex1pc
Other manuals for DWR-720P
1
Table of contents
Other D-Link Telephone manuals
D-Link
D-Link i2eye DVC-1000 User manual
D-Link
D-Link DWR-720 /PW User manual
D-Link
D-Link DPH-128MS - VoiceCenter VoIP Phone User manual
D-Link
D-Link DPH-540 User manual
D-Link
D-Link DPH-541 User manual
D-Link
D-Link DVC-2000 User manual
D-Link
D-Link DVX-2000MS-10 - VoiceCenter IP Phone System User manual
D-Link
D-Link DWR-720P User manual
D-Link
D-Link DVC-1000 User manual
D-Link
D-Link DWR-720 User manual
D-Link
D-Link DVX-2000MS-10P - VoiceCenter IP Phone Sys... User manual
D-Link
D-Link GVC-3000 User manual
D-Link
D-Link DPH-C160S User manual
D-Link
D-Link DPH-70s User manual
D-Link
D-Link DVC 2000 - i2eye Broadband VideoPhone Video Conferencing... User manual
D-Link
D-Link DVC-1000 User manual
D-Link
D-Link DWR-720PW T2 Use and care manual
D-Link
D-Link DVX-2000MS-10P - VoiceCenter IP Phone Sys... User manual
D-Link
D-Link DWR-720/PW User manual
D-Link
D-Link DWR-920V User manual
Popular Telephone manuals by other brands
Cortelco
Cortelco Trendline 8150 Owner's instruction manual
Philips
Philips VOIP4332B/69 quick start guide
Yealink
Yealink CP960 Teams Edition user guide
Serene
Serene HD 40S operating guide
ClearSounds
ClearSounds Freedom Phone CSC1000 operating manual
TransTel Communications
TransTel Communications Lynx DK7-21 user guide
