D-Link DAP-1513 User manual

2D-Link DAP-1513 User Manual
Table of Contents
Product Overview.............................................................. 3
Package Contents......................................................................... 3
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 7
Hardware Overview..................................................................... 8
Connections ........................................................................... 8
LEDs ........................................................................................... 9
WPS Button...........................................................................10
Installation .......................................................................11
Wireless Installation Considerations....................................12
Conguration...................................................................13
First Time Setup...........................................................................13
Web-based Conguration Utility..........................................17
Wireless Setup Wizard...............................................................18
Manual Conguration...............................................................19
Wireless Setup......................................................................19
LAN Settings.........................................................................20
Static IP..............................................................................21
Advanced ......................................................................................22
Advanced Wireless .............................................................22
Maintenance ................................................................................23
Admin .....................................................................................23
System ....................................................................................24
Language Pack.....................................................................25
Firmware ................................................................................25
Time.........................................................................................26
Status ..............................................................................................27
Device Info ............................................................................27
Logs .........................................................................................28
Statistics .................................................................................29
Help .................................................................................................30
Wireless Security .............................................................31
What is WPA?................................................................................32
Congure WPA/WPA2 Personal .............................................33
Troubleshooting ..............................................................34
Networking Basics...........................................................36
Check your IP address...............................................................36
Statically Assign an IP address...............................................37
Technical Specications ..................................................38
Contacting Technical Support ........................................39
Warranty...........................................................................40
Registration .....................................................................46
Table of Contents

3D-Link DAP-1513 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1513 will cause damage and void
the warranty for this product.
Package Contents
DAP-1513 Wireless N Dual Band MediaBridge®
Ethernet Cable
Power Adapter
CD-ROM with Manual

4D-Link DAP-1513 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• AnEthernet-basedNetwork
• IEEE802.11n/gwirelessMediaBridge®orwirelessrouter
• 10/100Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®,Macintosh,orLinux-basedoperatingsystem
• AninstalledEthernetadapter
Browser Requirements:
• InternetExplorer®6.0andhigher
• MozillaFirefox3.0andhigher
• Google™Chrome2.0andhigher
• AppleSafari3.0andhigher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

5D-Link DAP-1513 User Manual
Section 1 - Product Overview
Introduction
D-Link,anindustryleaderinnetworking,introducesthenewD-LinkDAP-1513WirelessNDualBandMediaBridge®.Withthe
abilitytotransferleswithamaximumwirelesssignalrateofupto300Mbps*,theDAP-1513givesyouhigh-speedwireless
network access for your home or oce.
TheDAP-1513isWi-FiIEEE802.11ncompliant,meaningthatitcanconnectandinteroperatewithother802.11ncompatible
wireless client devices. The DAP-1513 is also backwards compatible with 802.11b/g and oers dual band support for 802.11a.
WithitsSetupWizard,theDAP-1513ensuresthatyouwillbeupandrunningonawirelessnetworkinjustamatterofminutes.
The DAP-1513 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-1513 also includes additional security features to keep your wireless connection safe from
unauthorized access.
•Actualdatathroughputwillvary.Networkconditionsandenvironmentalfactors,includingvolumeofnetworktrac,buildingmaterialsandconstruction,andnetwork
overhead,loweractualdatathroughputrate.

6D-Link DAP-1513 User Manual
Section 1 - Product Overview
TOTAL PERFORMANCE
Combines award winning MediaBridge® features and 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA/WPA2 encryption to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class home coverage.
TOTAL NETWORK SECURITY
TheDAP-1513supportsallofthelatestwirelesssecurityfeaturestopreventunauthorizedaccess,beitfromoverthewirelessnetwork
orfromtheInternet.SupportforWPAandWPA2standardsensurethatyou’llbeabletousethebestpossibleencryptionmethod,
regardless of your client devices.
*MaximumwirelesssignalratederivedfromIEEEStandard802.11gand802.11nspecications.Actualdatathroughputwillvary.Networkconditionsandenvironmentalfactors,
includingvolumeofnetworktrac,buildingmaterialsandconstruction,andnetworkoverhead,loweractualdatathroughputrate.Environmentalconditionswilladversely
aect wireless signal range.

7D-Link DAP-1513 User Manual
Section 1 - Product Overview
• FasterWirelessNetworking-TheDAP-1513providesupto300Mbps*wirelessconnectionwithother802.11nwireless
devices.Thiscapabilityallowsuserstoparticipateinreal-timeactivitiesonline,suchasvideostreaming,onlinegaming,
and real-time audio.
• CompatiblewithIEEE802.11gDevices-TheDAP-1513isstillfullycompatiblewiththe802.11gstandards,soitcan
connectwithexisting802.11gPCI,USB,andCardbusadapters.
• WPSPBC-(Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button that can be pressed
toaddthedevicetoanexistingnetworkortocreateanewnetwork.Avirtualbuttoncanbeusedontheutilitywhile
a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1513 and another WPS enabled
device. A PC is no longer needed to log into the Web-based interface.
• WPSPIN-(Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used to add
theMediaBridge®toanexistingnetworkortocreateanewnetwork.ThedefaultPINmaybeprintedonthebottomof
the MediaBridge®
.Forextrasecurity,anewPINcanbegenerated.YoucanrestorethedefaultPINatanytime.OnlytheAdministrator
(“Admin” account) can change or reset the PIN.
• User-friendlySetupWizard-Throughitseasy-to-useWeb-baseduserinterface,theDAP-1513letsyoucongureyour
MediaBridge® to your specic settings within minutes.
Features

8D-Link DAP-1513 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1 LAN Ports (1-4) Connect10/100Ethernetdevicessuchascomputers,cameras,andNAS(Network-Attached
Storage).
2Power Receptor Receptor for the supplied power adapter.
3 Reset Button Hold the reset button for at least 6 seconds to reset the device back to the factory default
settings. All the LEDs will turn on for 2 second and then begin the reboot process.
1
2
3

9D-Link DAP-1513 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1
1PowerLED A solid green light indicates a proper connection to the power supply.
2 WirelessLED A static green light indicates the wireless function is working. The light will blink fast when
the WPS is associating. The light will be o during device reboot.
2

10D-Link DAP-1513 User Manual
Section 1 - Product Overview
Hardware Overview
WPS Button
1
1WPS/Button
PresstheWPSbuttontostarttheprocess.Youwillhave120secondstostarttheWPS
process on another wireless device. The Power LED will blink on and o when the
WPS button is pressed.

11D-Link DAP-1513 User Manual
Section 2 - Installation
Installation
TheDAP-1513actsasawirelessnetworkbridgeforyourEthernet-enableddevice(suchasagameconsoleoraTVset-topbox).
Connect your Ethernet-enabled device to the MediaBridge using Ethernet cables. The DAP-1513 MediaBridge can support up
to 4 wired devices. Additional devices can be added by connecting an Ethernet switch.
Example: Connect a gaming console using an Ethernet cable to the DAP-1513. The unit is set to Wireless bridge which will
wirelessly connect to a wireless router on your network.
Internet Modem Router DAP-1513
Gaming Console

12D-Link DAP-1513 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless MediaBridge® lets you access your network using a wireless connection from virtually anywhere within the
operatingrangeofyourwirelessnetwork.Keepinmind,however,thatthenumber,thicknessandlocationofwalls,ceilings,
orotherobjectsthatthewirelesssignalsmustpassthrough,maylimittherange.Typicalrangesvarydependingonthetypes
ofmaterialsandbackgroundRF(radiofrequency)noiseinyourhomeorbusiness.Thekeytomaximizingwirelessrangeisto
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link MediaBridge® and other network devices to a
minimum. Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your
devices so that the number of walls or ceilings is minimized.
2.Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range.TrytopositionMediaBridge®,wirelessaccesspoints,andcomputerssothatthesignalpassesthrough
drywalloropendoorways.Materialsandobjectssuchasglass,steel,metal,wallswithinsulation,water(sh
tanks),mirrors,lecabinets,brick,andconcretewilldegradeyourwirelesssignal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5.Ifyouareusing2.4GHzcordlessphonesorX-10(wirelessproductssuchasceilingfans,lights,andhomesecurity
systems),yourwirelessconnectionmaydegradedramaticallyordropcompletely.Makesureyour2.4GHzphone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

13D-Link DAP-1513 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless MediaBridge® using the web-based conguration utility.
First Time Setup
Click Next to continue.
The DAP-1513 is in wireless bridge mode. Click Next to
continue.

14D-Link DAP-1513 User Manual
Section 3 - Conguration
If you have a Wi-Fi Protected Setup (WPS)-enabled
wireless routeror AccessPoint,selectWPS and click
Next to continue.
Ifyouwanttomanually enter the networksettings,
select Manual and click Next to continue. Skip to page
17.
Onthedeviceyouwanttoconnect to,startthe PBC
processonthedevice.Youwillhave2minutestostart
the PBC process on both devices.

15D-Link DAP-1513 User Manual
Section 3 - Conguration

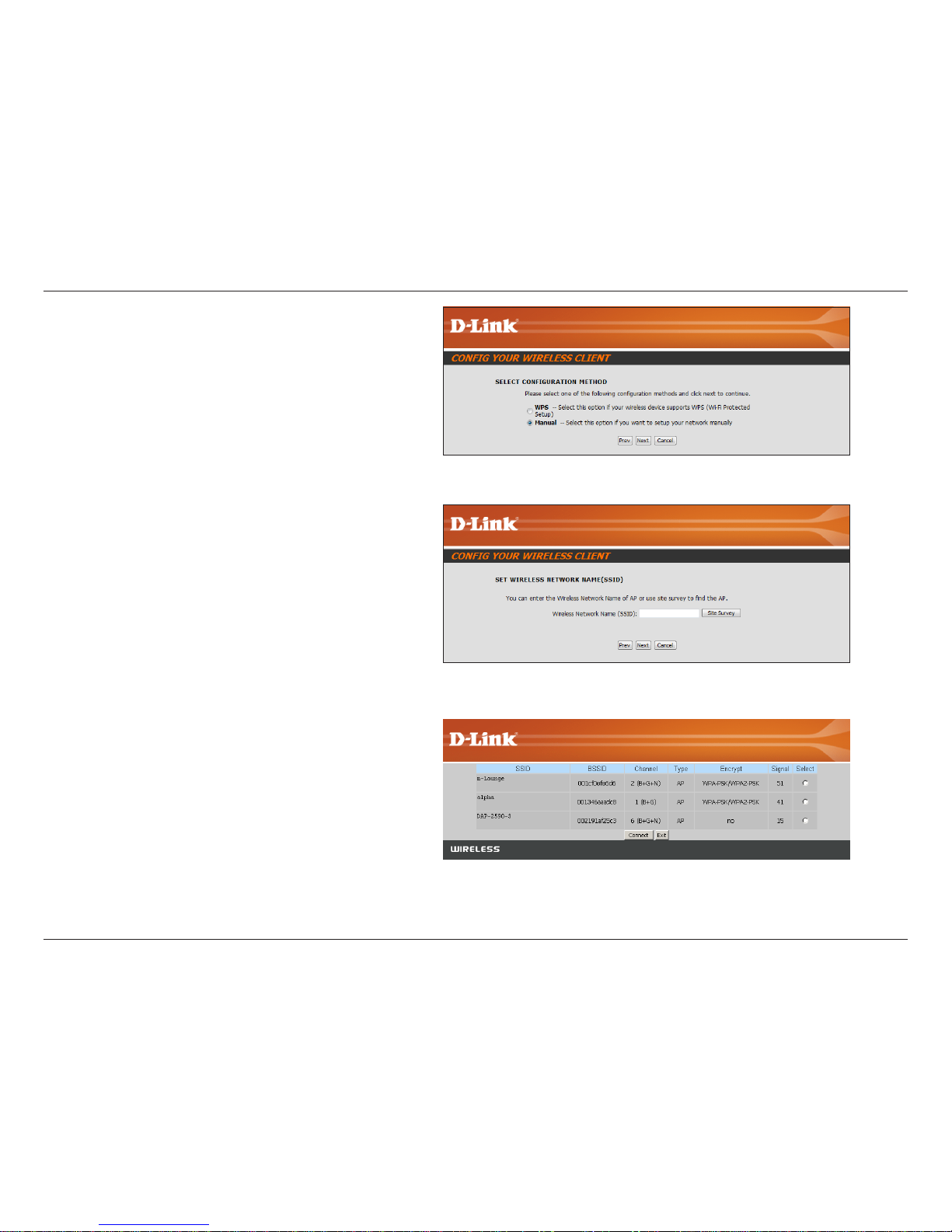

Select Manual conguration to setup your network
manually.
Click Next to continue.
Enter the network name (SSID) of the network you want
toconnectto.Ifyoudonotknowtheexactnameor
wouldliketosearchforthewirelessnetwork,clickSite
Survey.
Findyourwirelessrouteroraccesspointfromthelist,
clicktheradio button intheright column, andclick
Connect.

16D-Link DAP-1513 User Manual
Section 3 - Conguration

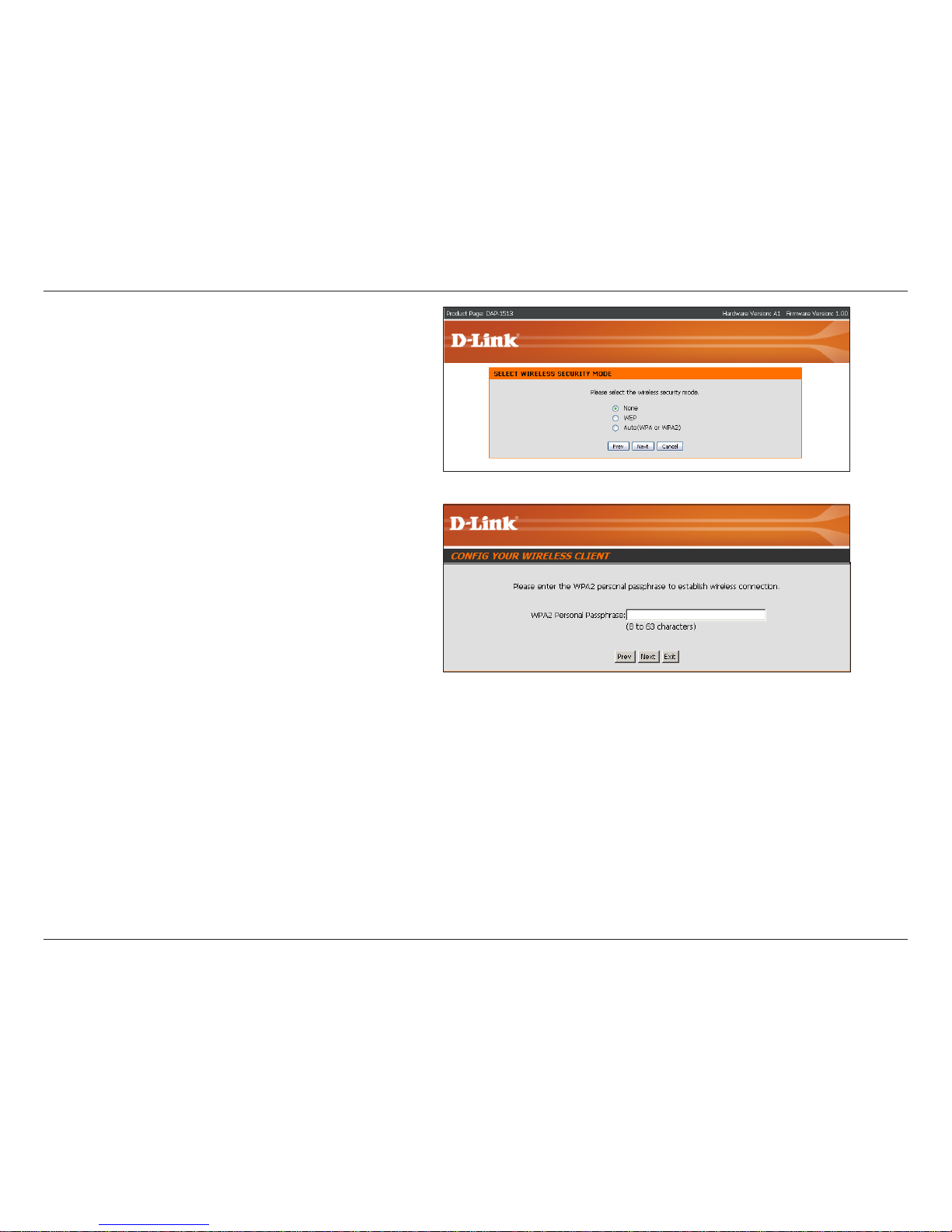

Select the wireless security mode you would like to use.
If you select WPA or WPA2,enterthewirelesssecurity
password. Click Next to complete the Setup Wizard.
The Setup Wizard is complete. Click Finish to reboot
the device.

17D-Link DAP-1513 User Manual
Section 3 - Conguration

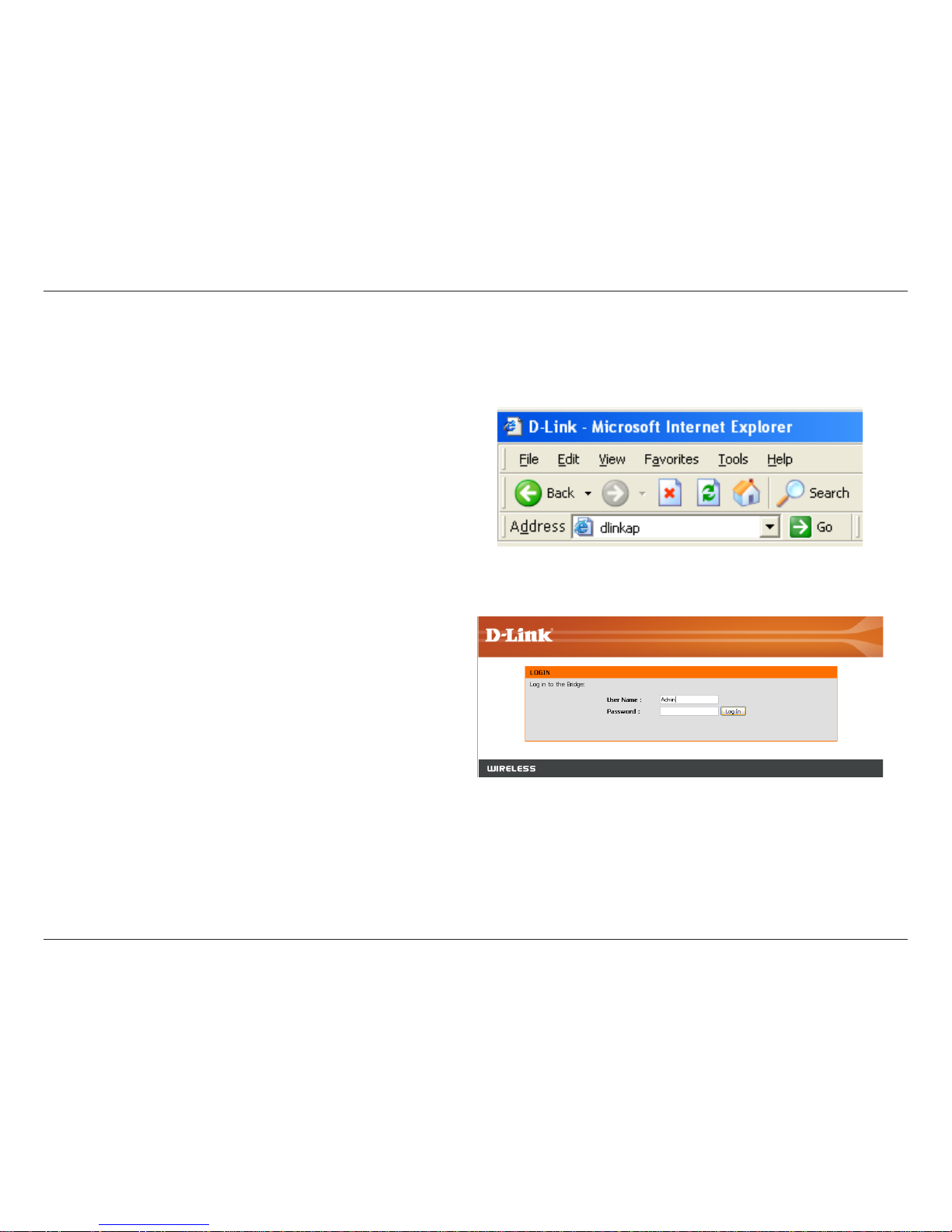

Web-based Conguration Utility
If you wish to change the default settings or optimize the
performanceoftheDAP-1513,youmayusetheweb-based
conguration utility.
Toaccessthecongurationutility,openawebbrowsersuch
asInternetExplorerandenterdlinkap or 192.168.0.50 in
the address eld.
Type Admin and then enter your password. Leave the
password blank by default.
IfyougetaPageCannotbeDisplayederror,pleasereferto
the Troubleshooting section for assistance.

18D-Link DAP-1513 User Manual
Section 3 - Conguration

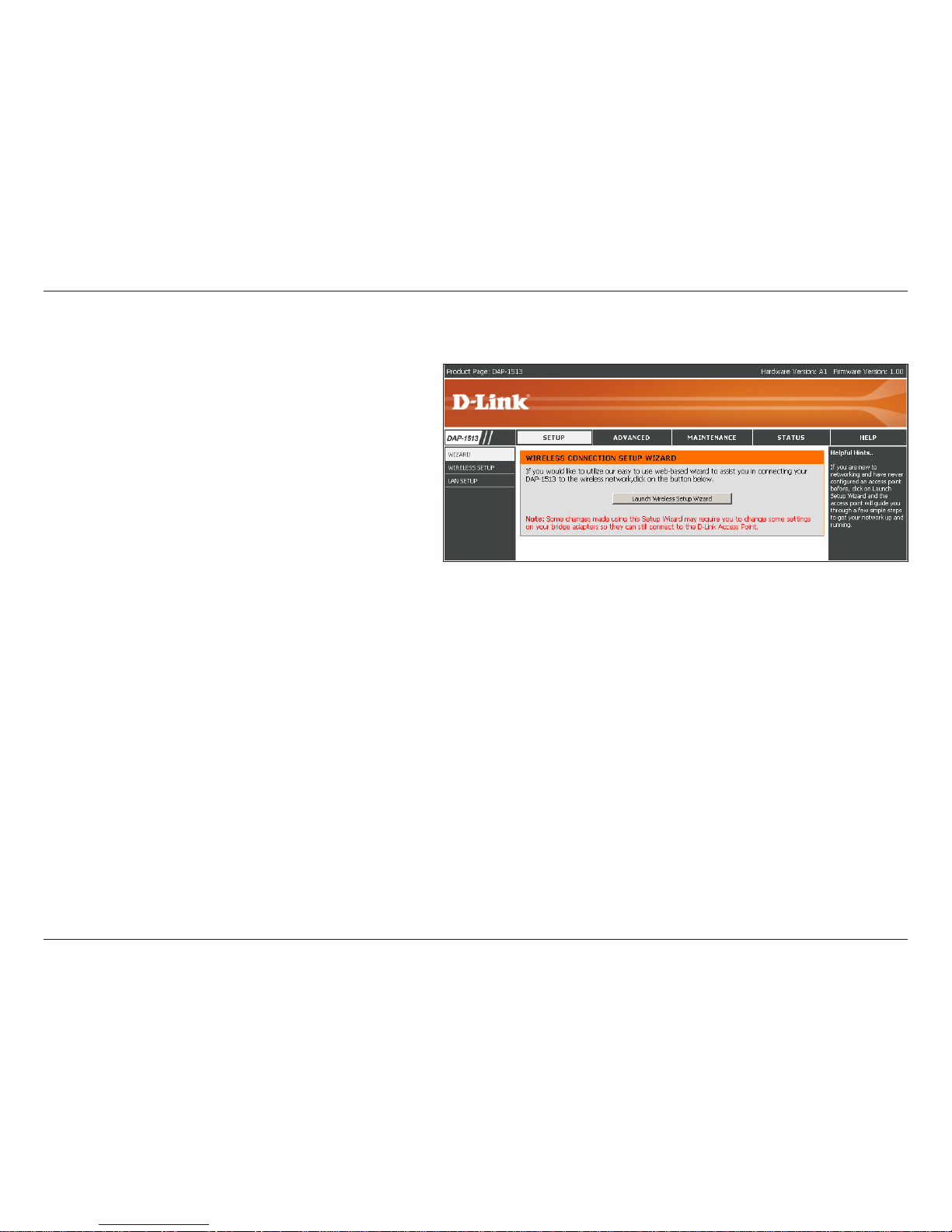

Click LaunchWirelessSetupWizard to congure your
wireless bridge. Refer to the FirstTime Setup section for
the Wireless Setup Wizard.
If you want to enter your settings without running the
wizard,clickWireless Setup on the left side and skip
tothenextpage.
Wireless Setup Wizard

19D-Link DAP-1513 User Manual
Section 3 - Conguration

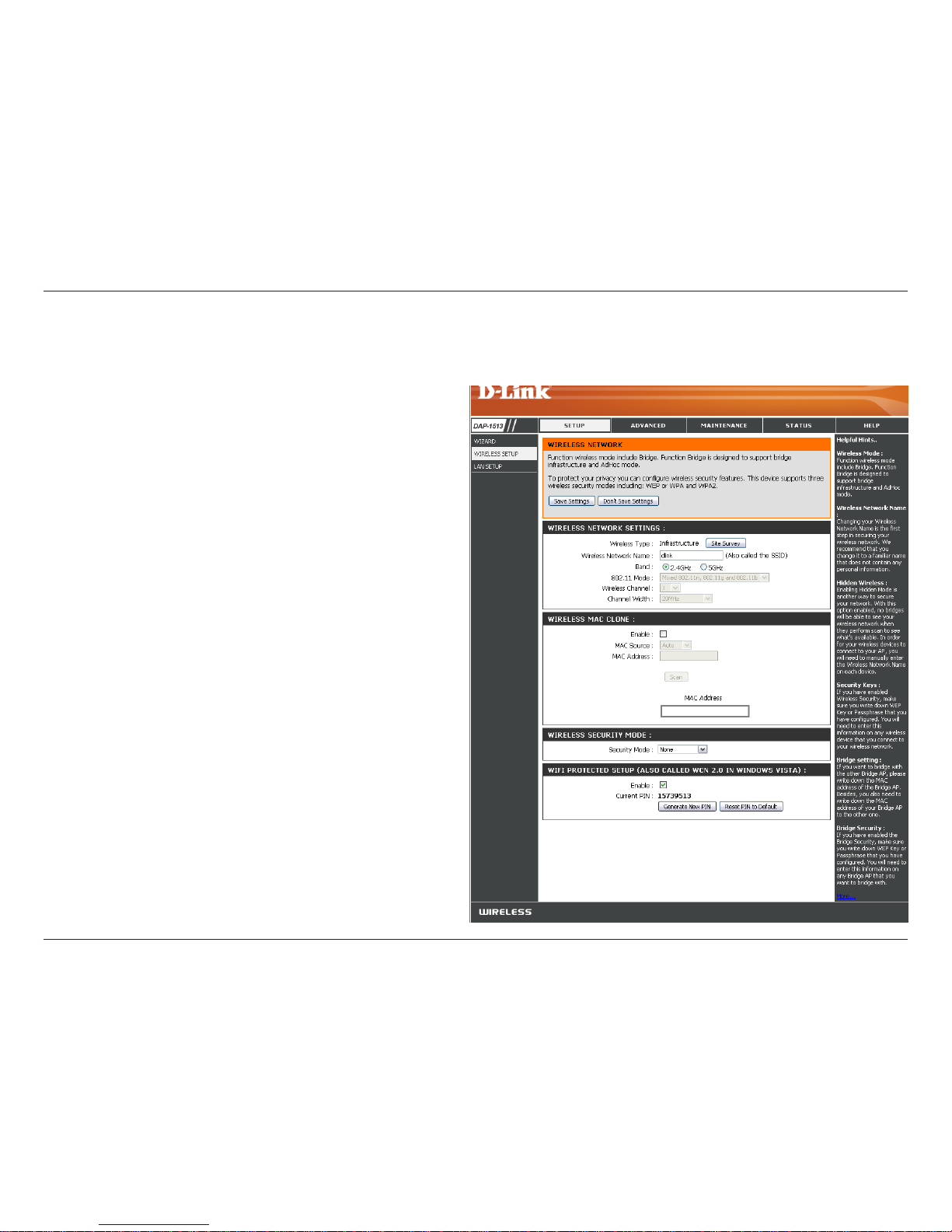

Manual Conguration
Wireless Setup
Wireless Mode:
Site Survey:
Wireless Network
Name:
Wireless Channel:
802.11 Mode:
Channel Width:
Wireless MAC Clone:
Wireless Security
Mode:
WPS:
Bridge Mode only.
Click Site Survey to display a list of wireless networks
inyourarea.Youmayselect thewireless routeror
access point to connect to.
Enter the SSID of the access point or wireless router
youwanttoconnectto.Ifyoudonotknowforsure,
click Site Surveyandselectitfromthelist,ifavailable.
The channel will automatically change to the channel
of the AP you are connected to.
Select the appropriate 802.11 mode based on the
wireless clients in your network. The drop-down
menu options are 802.11gOnly,Mixed802.11b/g,
802.11bOnly,802.11nOnly,orMixed802.11b/g/n.
Select the appropriate channel width between
20MHz or Auto20/40MHz from the drop-down
menu.
YoucanclonethewirelessMACaddresstoconnect
the device.
Select a wireless security setting. Options are None,
WEP, WPA, or WPA2. See the Wireless Security
sectioninthismanualforadetailedexplanationof
the wireless security options.
Select enable if you want to congure the DAP-1513
with Wi-Fi Protection setup.

20D-Link DAP-1513 User Manual
Section 3 - Conguration

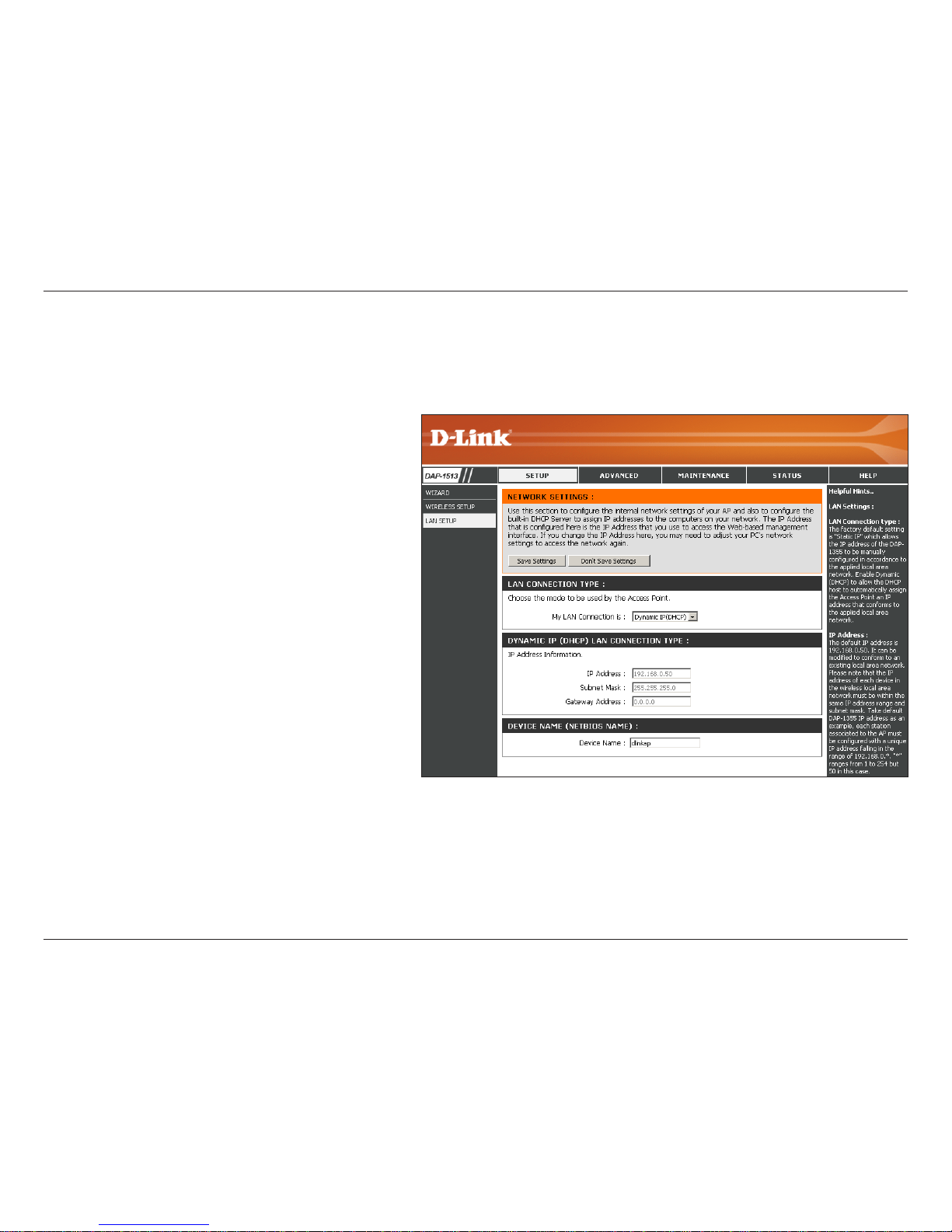

LAN Settings
This section will allow you to change the local network settings of the MediaBridge® and to congure the DHCP settings.
LAN Connection
Type:
Device Name:
Use the drop-down menu to select Dynamic IP
(DHCP) to automatically obtain an IP address on
the LAN/private network.
Enter the Device Name of the DAP-1513. It is
recommended to change the Device Name if
there is more than one D-Link device within the
subnet.
