DAP-3666
Quick Installation Guide
Nuclias Connect AC1200 Wave 2 Outdoor Access Point
LAN2 LAN1(PoE)

DAP-3666 Quick Installation Guide 1
ENGLISH
• Internet Explorer 11, Safari 7, Firefox 28,
or Google Chrome 33 and above (for
configuration)
Hardware Overview
LED Indicators
LAN2 LAN1(PoE)

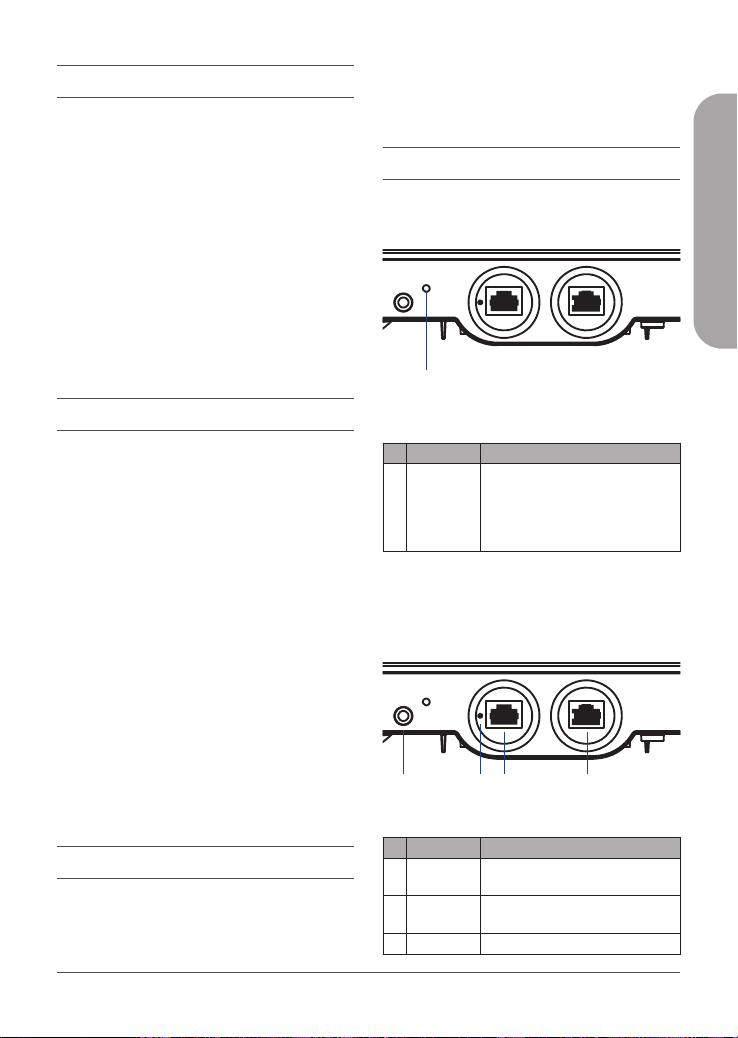

Figure 1: Front Panel LED
# LED Description
1Power/
Status
Green (Solid) - Device operational
Red (Flashing) - Device booting
up/Device malfunctioned
Red (Solid) - Device boot up
has failed
Table 1: LED Description
Interface Connectors
LAN2 LAN1(PoE)
Figure 2: Bottom Connectors
# Connector Description
1Mounting
Lock
Connector for the mount screw.
2 Reset Press and hold for 10 seconds to
factory reset the device.
3 LAN2 Port Gigabit RJ-45 port for data.
Before You Begin
This installation guide provides instructions
for installing the DAP-3666 on your network.
Additional documentation is also available on
the D-Link support website.
• Nuclias Connect Manual: For additional
information and instructions on how
to configure the device using Nuclias
Connect.
• DAP-3666 User Manual: For additional
information and instructions on how to
configure the device using the web user
interface.
Package Contents
This DAP-3666 package includes the following
items:
• DAP-3666 Access Point
• Mounting Plate and Hardware
• Grounding Wire
• Quick Start Guide
• Mounting kit (Wall/Pole Mount)
- Stainless steel mount base x 1
- Stainless tie back straps x 2
- Wall screw x 4
- Wall plug x4
- Stainless mount screw (hexagonal hole) x1
If any of the above items are damaged or
missing, please contact your local D-Link reseller.
Note: To power the unit, use an 802.3af or
802.3at PoE Switch or PoE Injector.
System Requirements
• Computers with Windows®, Macintosh®,
or Linux-based operating systems with an
installed Ethernet Adapter
1
1 2 3 4

2DAP-3666 Quick Installation Guide
ENGLISH
# Connector Description
4LAN1(PoE)
Port
Gigabit RJ-45 port for data and
Power over Ethernet (PoE) power.
Table 2: Interface Description
LAN2 LAN1(PoE)

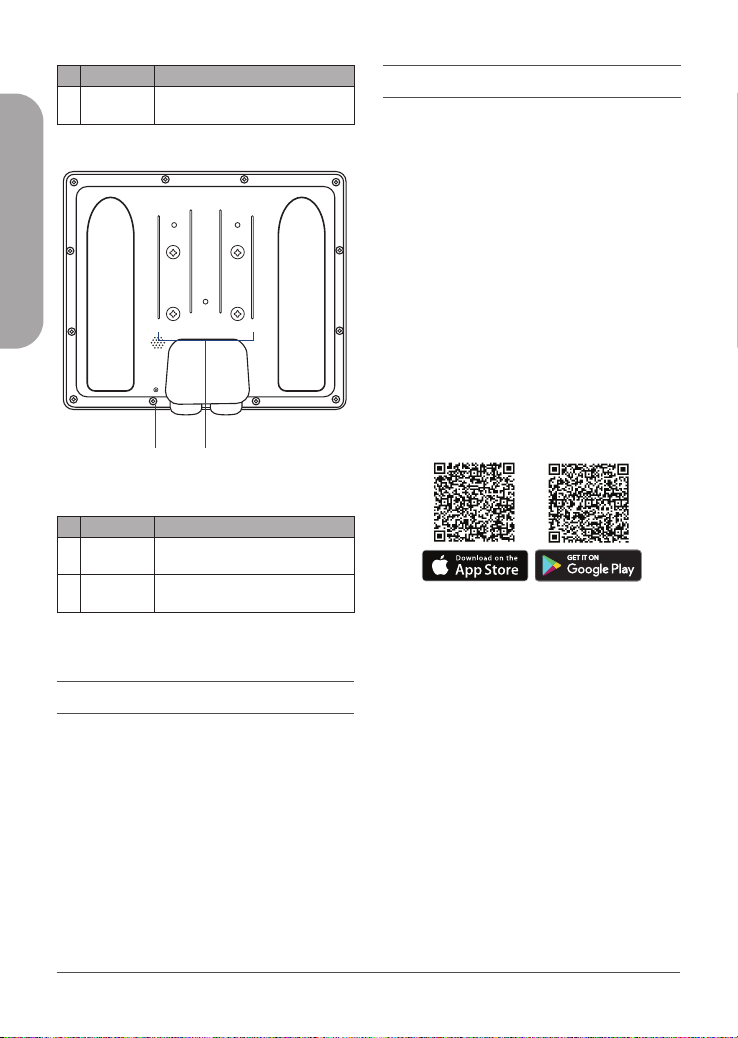

Figure 3: Rear Connectors
# Connector Description
1Grounding
Wire
Connector for the grounding wire.
2Wall/Pole
Mount
Mount to connect to the mounting
plate on a wall or a pole.
Table 3: Interface Description
Installation
Using Power over Ethernet (PoE)
1. Use a standard Ethernet cable to connect
the LAN1(PoE) port on the DAP-3666
to a PoE power source device such as
an 802.3af or 802.3at PoE switch or PoE
injector.
Conguration
Using Nuclias Connect
The DAP-3666 is designed to be managed
through Nuclias Connect. Refer to the Nuclias
Connect Manual for detailed configuration
instructions.
Note: D-Link recommends manually configuring
the device before mounting it.
Nuclias Connect App Conguration
1. Download the free Nuclias Connect app
from the App Store or Google Play by
searching for Nuclias Connect or by
scanning the QR code below.
2. Open the Nuclias Connect app and follow
the onscreen instructions to discover and
set up your device.
Manual Conguration
Note:The management computer, DHCP server
and DAP-3666 must be in the same subnet.
Use one of the following methods to access the
web user interface:
Connecting through Ethernet
1. Use an Ethernet cable to connect the
DAP-3666 to the management computer,
or to the switch or router the management
computer is connected to.
21

DAP-3666 Quick Installation Guide 3
ENGLISH
2. Manage the access point from a computer.
Enter dap3666.local in the address field
of your browser.
3. Log in to the administration user
interface. The default login information is
Username: admin
Password: admin
Connecting Wirelessly
1. Connect the management computer to
the default SSID of the DAP-3666, “dlink”.
2. Manage the access point from a computer.
Enter dap3666.local in the address field
of your browser.
3. Log in to the administration user
interface. The default login information is
Username: admin
Password: admin
Mounting
Figure 4: LAN Port Waterproof Enclosure
1. Connect an Ethernet Cable to the
LAN1(PoE) port on the DAP-3666. Use
the LAN Port Waterproof Enclosures to
seal the ports.
Mounting on a Pole

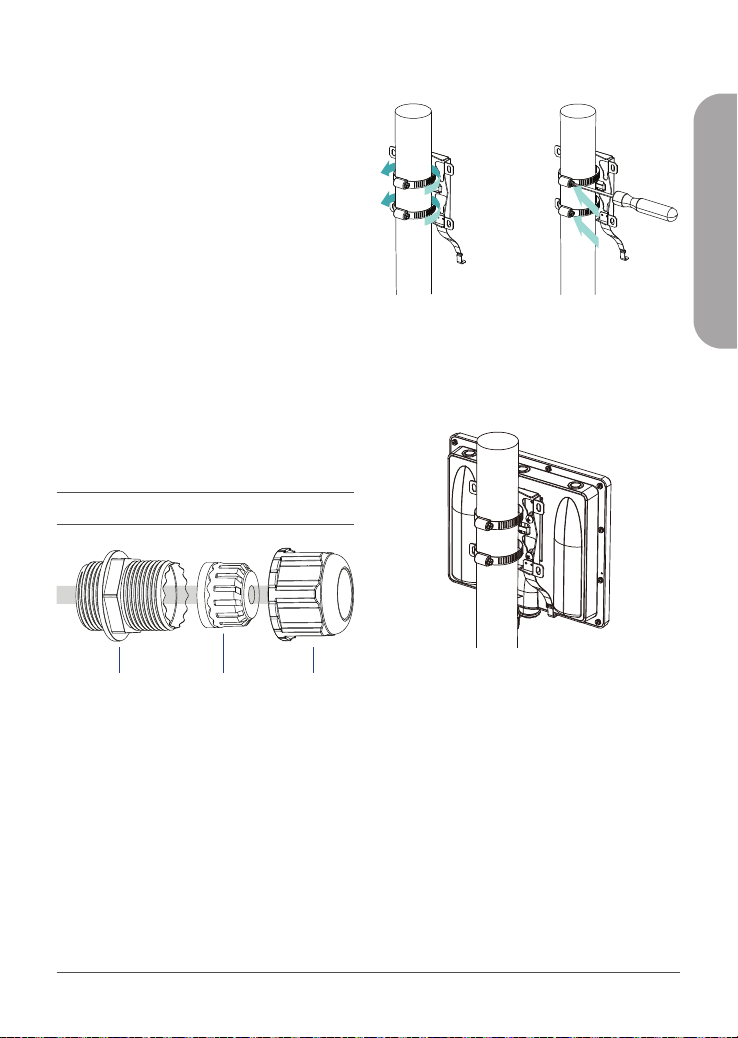

Figure 5: Attaching the Mounting Plate
1. Secure mount base to the pole with the
two stainless tie back strap sets. Ensure
that the tie back is locked securely.
Figure 6: Mounting the Device
2. Align and slide the DAP-3666 down so
that the mounting plate securely locks to
the DAP-3666.
Gland Sealing
Nut Sealing

4DAP-3666 Quick Installation Guide
ENGLISH
Mounting on a Solid Wall

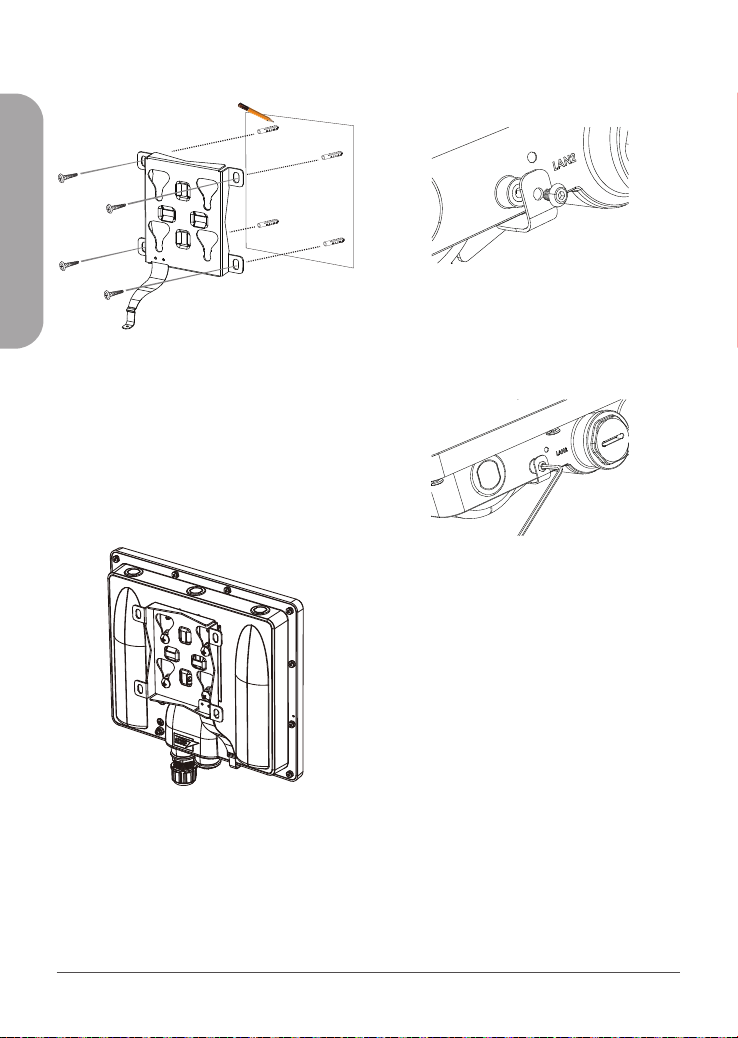

Figure 7: Attaching the Mounting Plate
1. Use the mounting plate to mark the
location where to drill the holes in the wall.
2. Drill holes on the markings and place the
included anchors into the drilled holes.
3. Align and place the mounting plate on top
of the anchors and use the included screws
tosecure the mountingplateto the surface.
Figure 8: Mounting the Device
4. Align and slide the DAP-3666 down so
that the mounting plate securely locks to
the DAP-3666.
Securing the Mount Screw and
Connecting the Grounding Wire
Figure 9: Attaching the Mount Screw
1. Use the included mount screw (hexagonal
hole) to lock the DAP-3666 to the pole/
wall mount.
Figure 10: Securing the Mount Screw
2. With the included hexagon socket
spanner, tighten the mount screw until
the DAP-3666 is secured.

TECHNICAL SUPPORT dlink.com/support
DAP-3666 Quick Installation Guide 5
ENGLISH
Figure 11: Attaching the Grounding Wire
3. A grounding wire is to protect your device
from lightning strikes and the buildup of
static electricity. Attach the grounding
wire to the DAP-3666 using the included
screw(M3.9 * 7.8 mm).

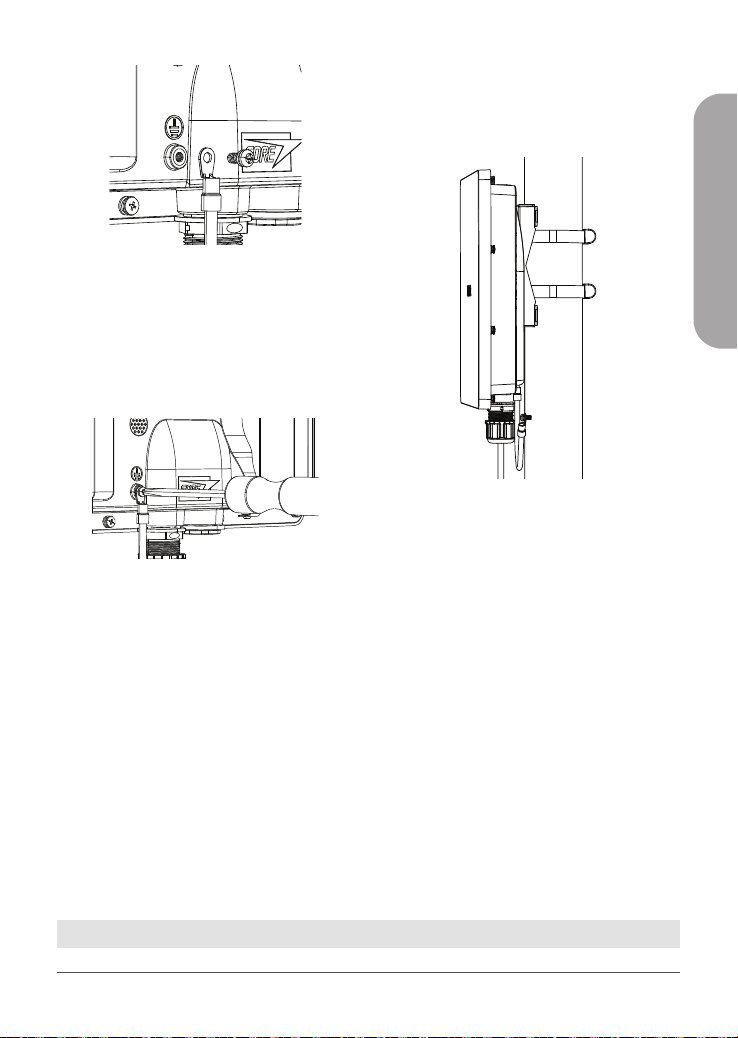

Figure 12: Attaching the Grounding Wire
4. Tighten the grounding wire (green-and-
yellow, 18AWG) to the DAP-3666 until it is
securely attached.
Figure 13: Attaching the Grounding Wire
5. Attach the other end of the grounding
wire to either the wall or pole mount.
Ensure that the wall or pole mount is
connected to an electrical ground.

ErP Power Usage
This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned off through a power
switch to save energy when it is not needed.
Network Standby: 5.84 watts
