D-Link DAP-1160 User manual

DAP-1160
User Manual
Version 2.0 | 12/09/2013
Wireless N 150 Bridge/Access Point

2D-Link DAP-1160 User Manual
Table of Contents
Package Contents......................................................................... 4
System Requirements................................................................. 5
Introduction ................................................................................... 6
Features............................................................................................ 8
Hardware Overview..................................................................... 9
Connections ........................................................................... 9
LEDs.........................................................................................10
Installation .......................................................................11
Operation Modes........................................................................11
Access Point Mode .............................................................12
Wireless Client Mode.........................................................13
Wireless Installation Considerations....................................14
Conguration...................................................................15
Web-based Conguration Utility..........................................15
Wireless Setup Wizard...............................................................16
Access Point Mode .............................................................17
Wireless Client Mode.........................................................19
Manual Conguration...............................................................21
Wireless Settings.................................................................21
Access Point Mode ........................................................22
Wireless Client Mode....................................................24
LAN Settings.........................................................................25
Static IP..............................................................................26
DHCP Server ....................................................................27
Advanced ......................................................................................28
Advanced Wireless .............................................................28
MAC Address Filter.....................................................................29
Wi-Fi Protected Setup ...............................................................30
User Limits.....................................................................................31
Maintenance ................................................................................32
Admin .....................................................................................32
System ....................................................................................33
Language Pack.....................................................................34
Firmware ................................................................................34
Time.........................................................................................35
System Check.......................................................................36
Schedules ..............................................................................37
Status ..............................................................................................38
Device Info ............................................................................38
Logs .........................................................................................39
Statistics .................................................................................40
Wireless ..................................................................................41
Help .................................................................................................42
Wireless Security .............................................................43
What is WPA?................................................................................44
Congure WPA/WPA2 Personal .............................................45
Congure WPA/WPA2 Enterprise..........................................46
Connect to a Wireless Network.......................................47
Using Windows®XP ....................................................................47
Congure WPA-PSK....................................................................48
Using Windows Vista®...............................................................50
Congure WPA-PSK....................................................................52
Table of Contents

3D-Link DAP-1160 User Manual
Table of Contents
Using Windows®7.......................................................................53
Congure WPS.....................................................................56
Troubleshooting ..............................................................60
Wireless Basics .................................................................64
What is Wireless?.........................................................................65
Tips...................................................................................................67
Wireless Modes............................................................................68
Networking Basics...........................................................69
Check your IP address...............................................................69
Statically Assign an IP address...............................................70
Technical Specications..................................................71

4D-Link DAP-1160 User Manual
Section 1 - Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1160 will cause damage and void
the warranty for this product.
Package Contents
DAP-1160 Wireless N 150 Bridge/Access Point
Ethernet Cable
Power Adapter

5D-Link DAP-1160 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Network
• IEEE 802.11n/g wireless clients (AP)
• IEEE 802.11n/g wireless network (Client Mode)
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 8 or later
• Firefox 12.0 or later
• Safari 4 or later
• Google Chrome 20.0 or later
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

6D-Link DAP-1160 User Manual
Section 1 - Product Overview
Introduction
D-Link, an industry leader in networking, introduces the new D-Link DAP-1160 Wireless N 150 Bridge/Access Point. With the
ability to transfer les with a maximum wireless signal rate of up to 150Mbps*, the DAP-1160 gives you faster wireless network
access for your home or oce.
The DAP-1160 can connect and interoperate with other 802.11n compatible wireless client devices. The DAP-1160 is also
backwards compatible with 802.11b/g. It can be exibly congured to operate in 2 dierent modes Access Point, Wireless
Client. With its Setup Wizard, the DAP-1160 ensures that you will be up and running on a wireless network in just a matter of
minutes.
The DAP-1160 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-1160 also includes additional security features to keep your wireless connection safe from
unauthorized access.
The DAP-1160 supports WPS on the AP, and wireless client operation modes,with each capable of being conveniently set up
by using the PIN method or Push Button.
• Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac, building materials and construction, and network
overhead, lower actual data throughput rate.

7D-Link DAP-1160 User Manual
Section 1 - Product Overview
TOTAL PERFORMANCE
Combines award winning access point features and Wireless N 150 technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA/WPA2 encryption to protect your network against outside intruders.
Connect home and soho to a wireless network
Create a wireless network for your home and oce using the D-Link DAP-1160 as an 802.11n standard Wireless Access Point. Connect
this Access Point to a broadband modem and let others wirelessly access your Internet connection. Enjoy surng the web, checking
e-mail, and chatting with family and friends online.
TOTAL NETWORK SECURITY
The DAP-1160 supports all of the latest wireless security features to prevent unauthorized access, be it from over the wireless network
or from the Internet. Support for WPA and WPA2 standards ensure that you’ll be able to use the best possible encryption method,
regardless of your client devices.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.

8D-Link DAP-1160 User Manual
Section 1 - Product Overview
• FasterWireless Networking - The DAP-1160 provides up to 150Mbps* wireless connection with other 802.11n wireless
clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming,
and real-time audio.
• Compatible with IEEE802.11g Devices - The DAP-1160 is still fully compatible with the 802.11g standards, so it can
connect with existing 802.11g PCI, USB, and Cardbus adapters.
• Advanced Firewall Features - TheWeb-based user interface displays advanced network management features including
Content Filtering, which allows easily applied content ltering based on MAC Address.
• WPS PBC- (Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button that can be pressed
to add the device to an existing network or to create a new network. A virtual button can be used on the utility while
a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1160 and another WPS enabled
device. A PC is no longer needed to log into the Web-based interface.
• WPS PIN - (Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used to add
the access point to an existing network or to create a new network. The default PIN may be printed on the bottom of
the access point. For extra security, a new PIN can be generated. You can restore the default PIN at any time. Only the
Administrator (“admin”account) can change or reset the PIN.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the DAP-1160 lets you control what
information is accessible to those on the wireless network, whether from the Internet or from your company’s server.
Congure your access point to your specic settings within minutes.
Features

9D-Link DAP-1160 User Manual
Section 1 - Product Overview

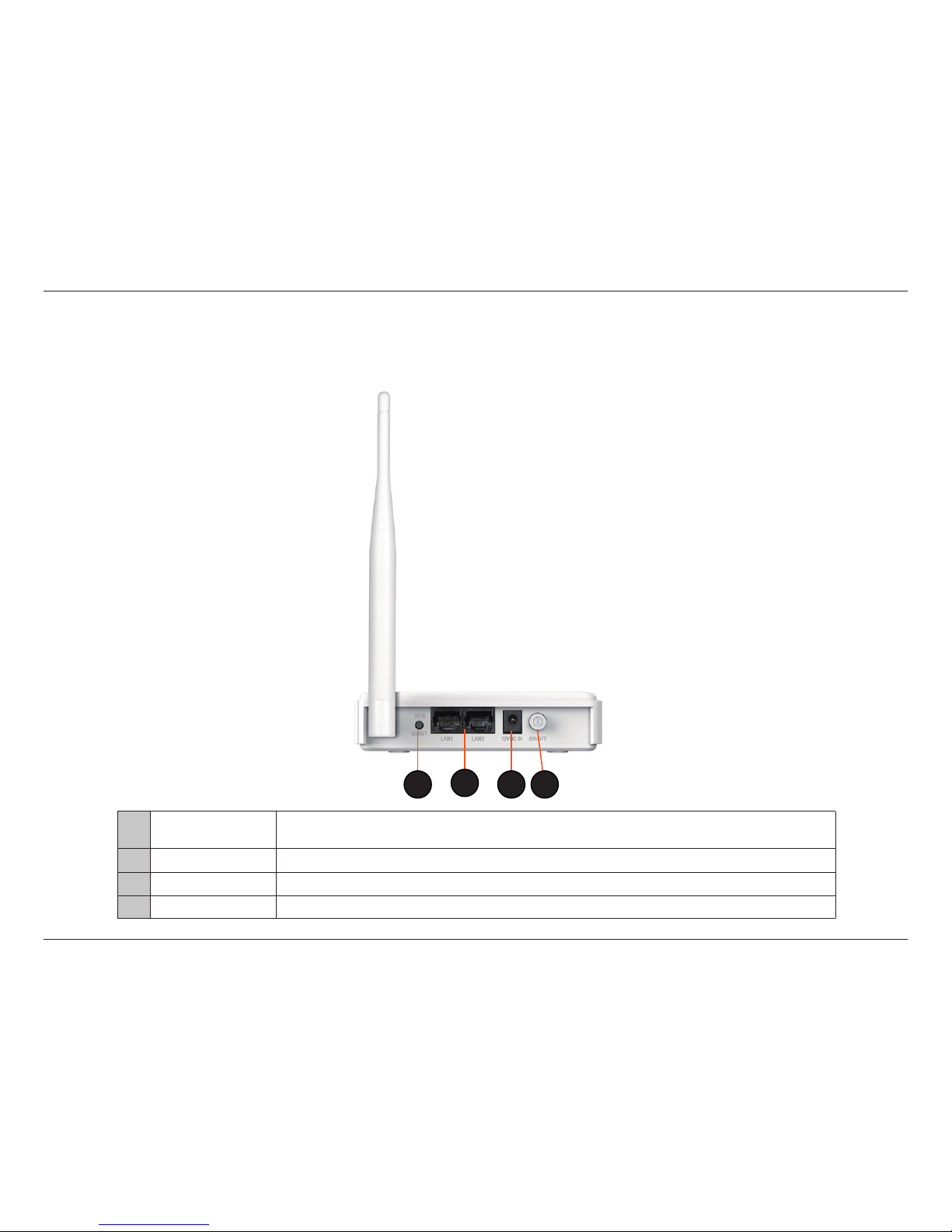

Hardware Overview
Connections
1WPS/Reset Button Press 1 second to start the WPS process.
Press and hold for 5 seconds is Reset Button to restore to its original factory default settings.
2 LAN Port Connect 10/100 Ethernet devices such as computers, switches, and hubs.
3 Power Button Push the Power Button to switch power on/o.
4 Power Receptor Receptor for the supplied power adapter.
231 4

10D-Link DAP-1160 User Manual
Section 1 - Product Overview

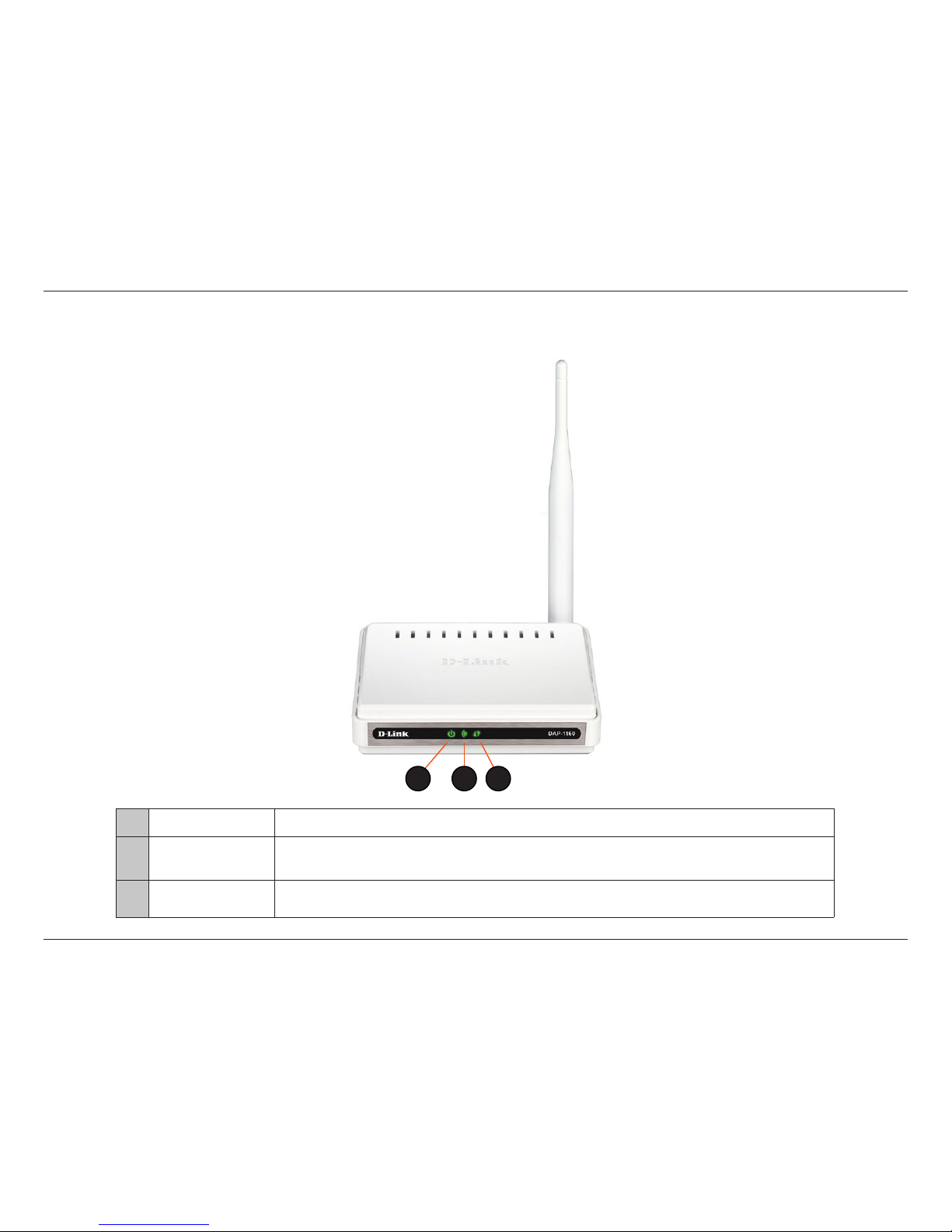

Hardware Overview
LEDs
1 Power LED A solid green light indicates a proper connection to the power supply.
2 Wireless LED A solid green light indicates the wireless function is working. The light will be o during
device reboot or if the wireless radio is disabled.
3 WPS LED A solid light indicates a successful WPS connection. A blinking light indicates the device is
trying to establish a connection.
1 2 3

11D-Link DAP-1160 User Manual
Section 2 - Installation
Installation
Please congure the DAP-1160 with a computer connected directly to the AP. The next few pages will explain the dierent
operational modes you can use.
Operation Modes
Depending on how you want to use your DAP-1160 will determine which mode you use. This section will help you gure out
which setting works with your setup.
• Access Point Mode - page 12
• Wireless Client Mode - page 13

12D-Link DAP-1160 User Manual
Section 2 - Installation

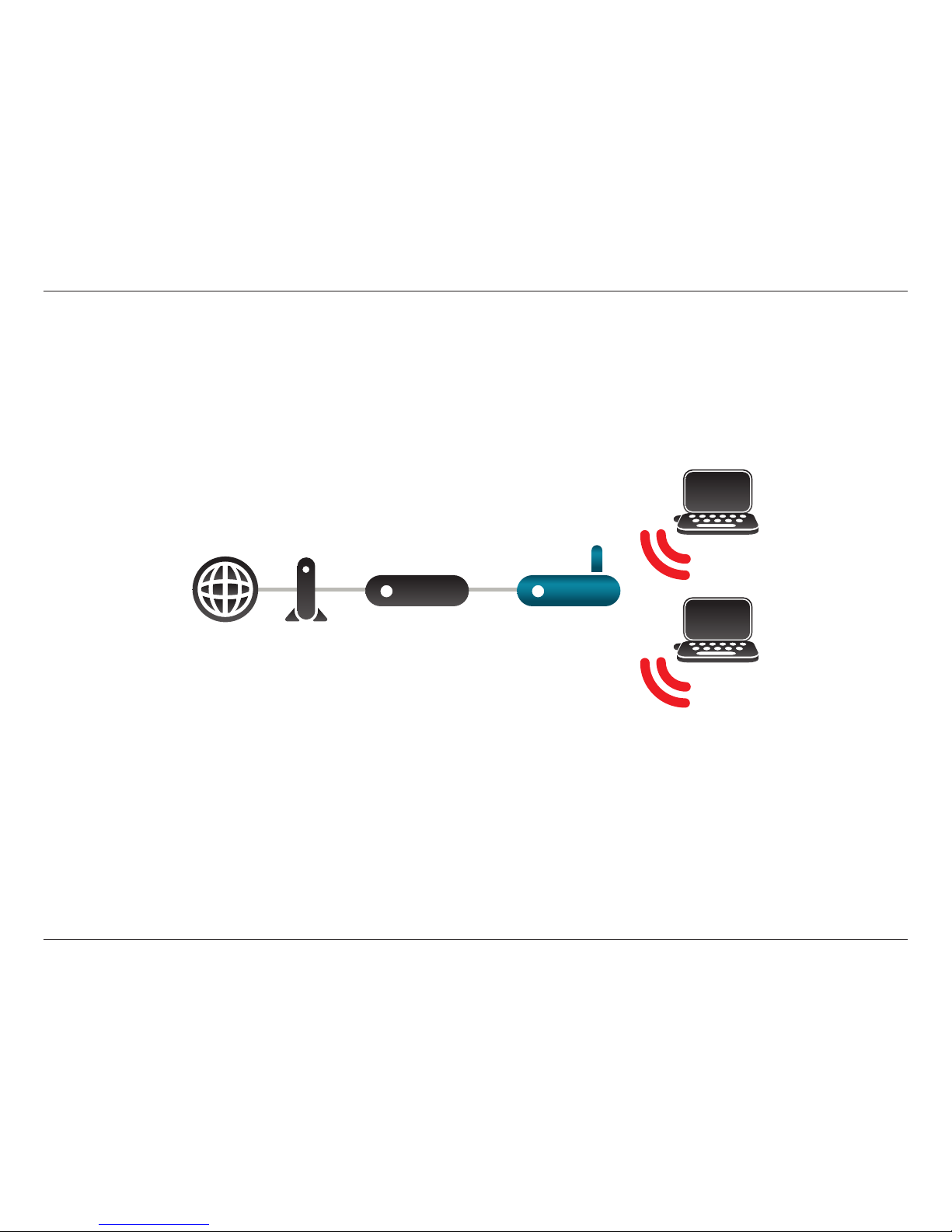

Access Point Mode
In the Access Point mode, the DAP-1160 acts as a central connection point for any computer (client) that has a 802.11n or
backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless
network name) and channel as the AP in order to connect. If wireless security is enabled on the AP, the client will need to enter
a password to connect to the AP. In Access Point mode, multiple clients can connect to the AP at the same time.
InternetModemRouterDAP-1360
(in Access Point Mode)
Computer
Computer
DAP-1160

13D-Link DAP-1160 User Manual
Section 2 - Installation

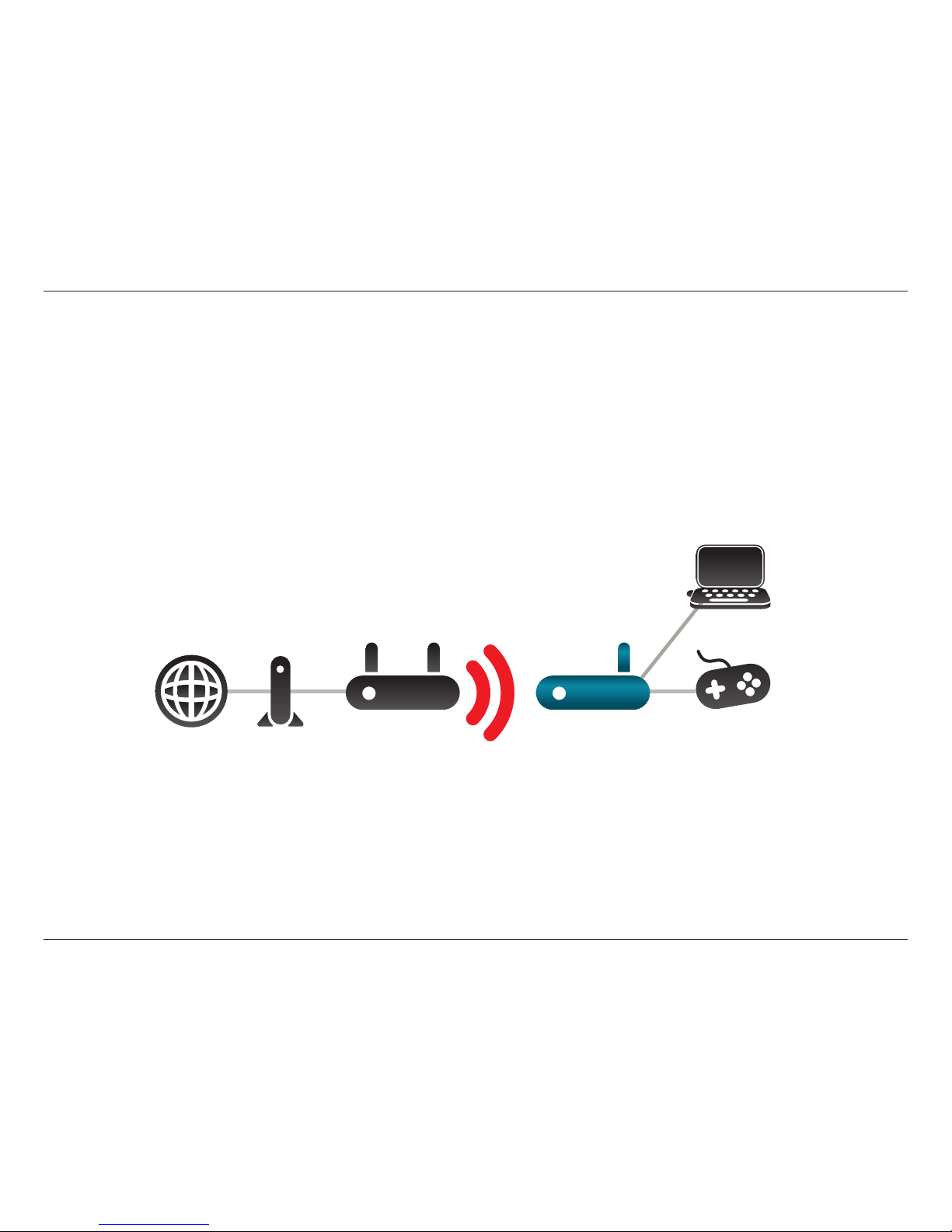

Wireless Client Mode
In the Wireless Client mode, the DAP-1160 acts as a wireless network adapter for your Ethernet-enabled device (such as a game
console or a TV set-top box). Connect your Ethernet-enabled device to the AP using an Ethernet cable. The AP Client mode
can support multiple wired clients.
Example: Connect a gaming console using an ethernet cable to the DAP-1160. The unit is set to Wireless Client mode which
will wirelessly connect to a wireless router on your network.
InternetModemRouterDAP-1360
(in Wireless Client Mode)
Gaming Console
DAP-1160
Computer

14D-Link DAP-1160 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless access points, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.

15D-Link DAP-1160 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless access point using the web-based conguration utility.
Web-based Conguration Utility
If you wish to change the default settings or optimize the
performance of the DAP-1160, you may use the web-based
conguration utility.

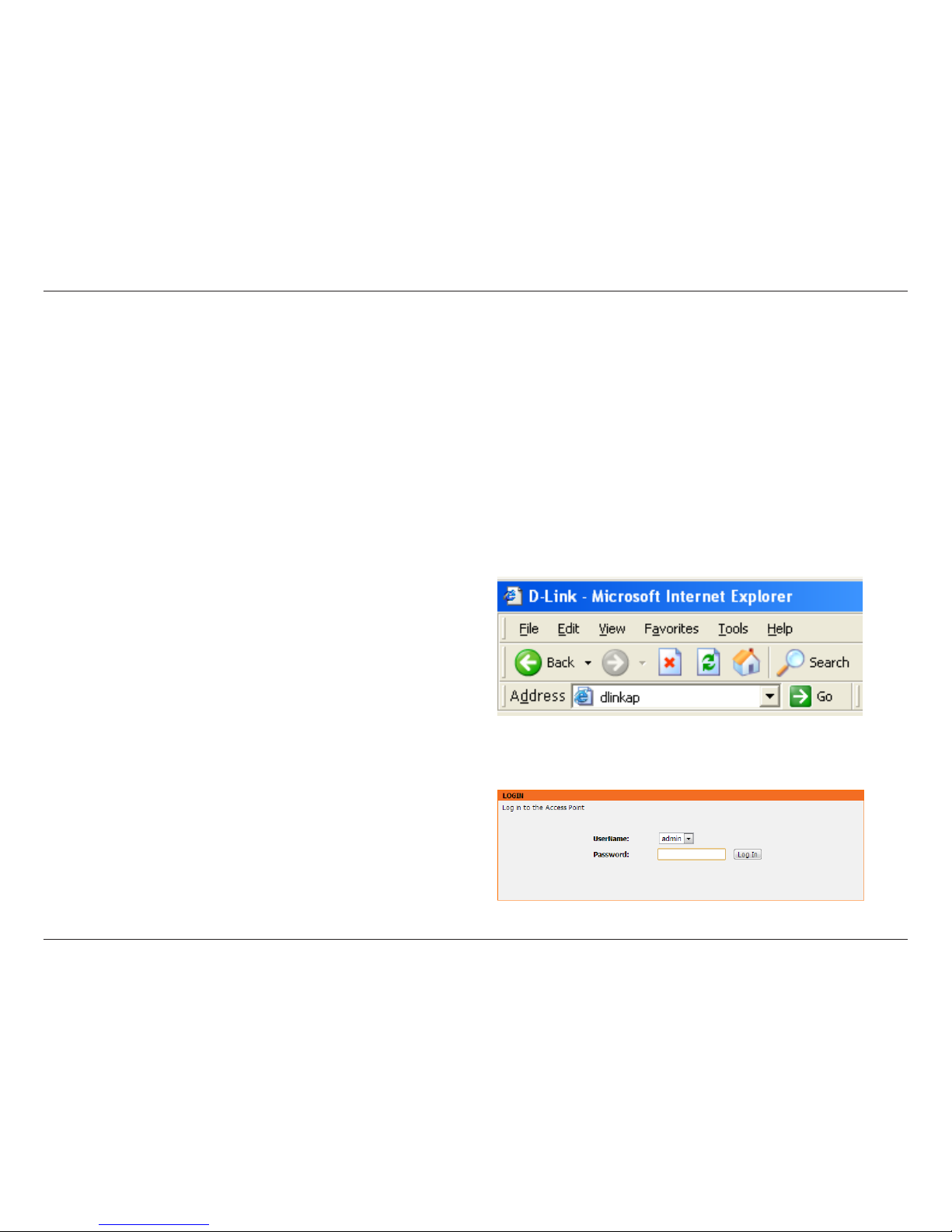

To access the conguration utility, open a web browser
such as Internet Explorer and enter http://dlinkap or
http://192.168.0.50 in the address eld.
Select admin and then enter your password. Leave the
password blank by default.
If you get a Page Cannot be Displayed error, please refer to
the Troubleshooting section for assistance.

16D-Link DAP-1160 User Manual
Section 3 - Conguration

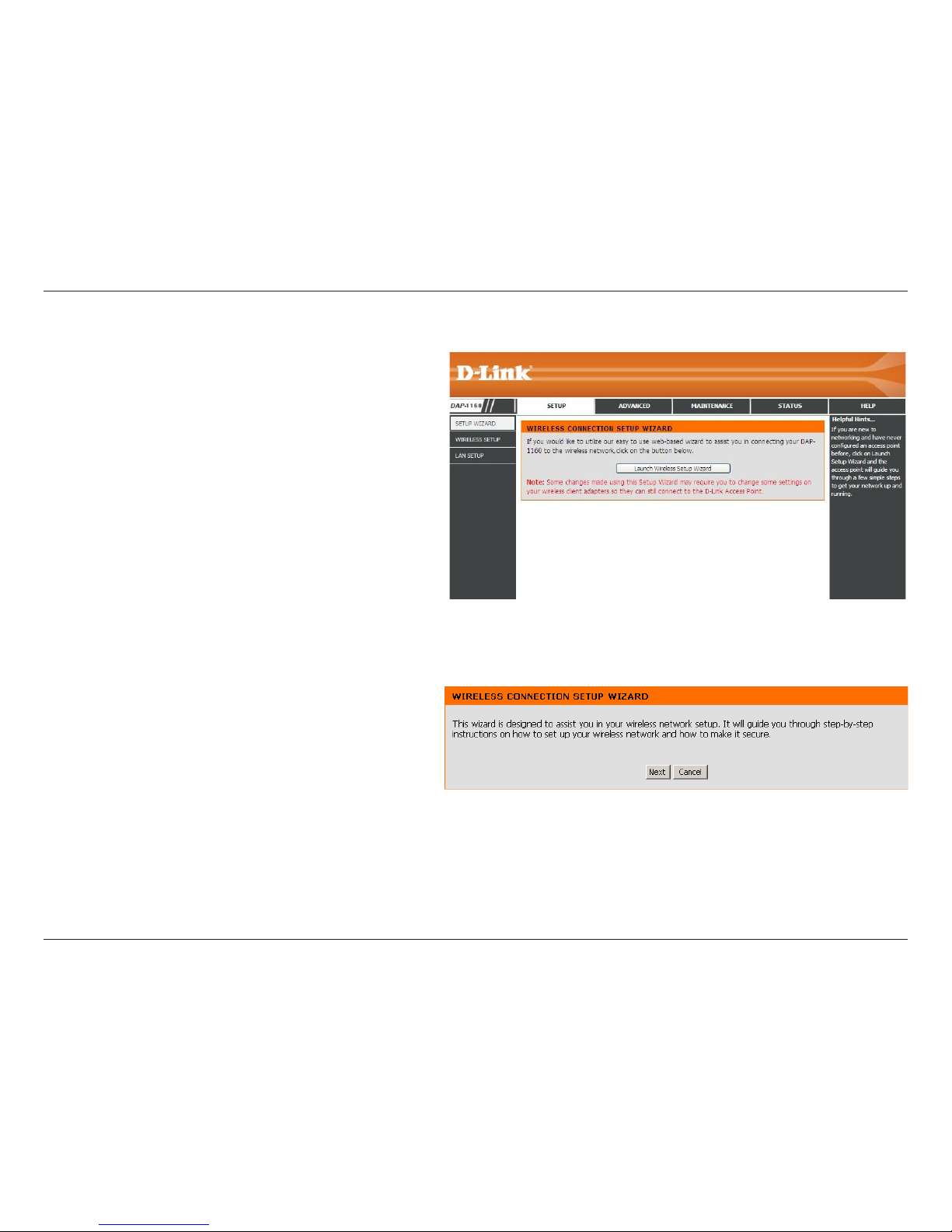

Click Launch Wireless Setup Wizard to congure your
access point.
Wireless Setup Wizard
Click Next to continue.

17D-Link DAP-1160 User Manual
Section 3 - Conguration

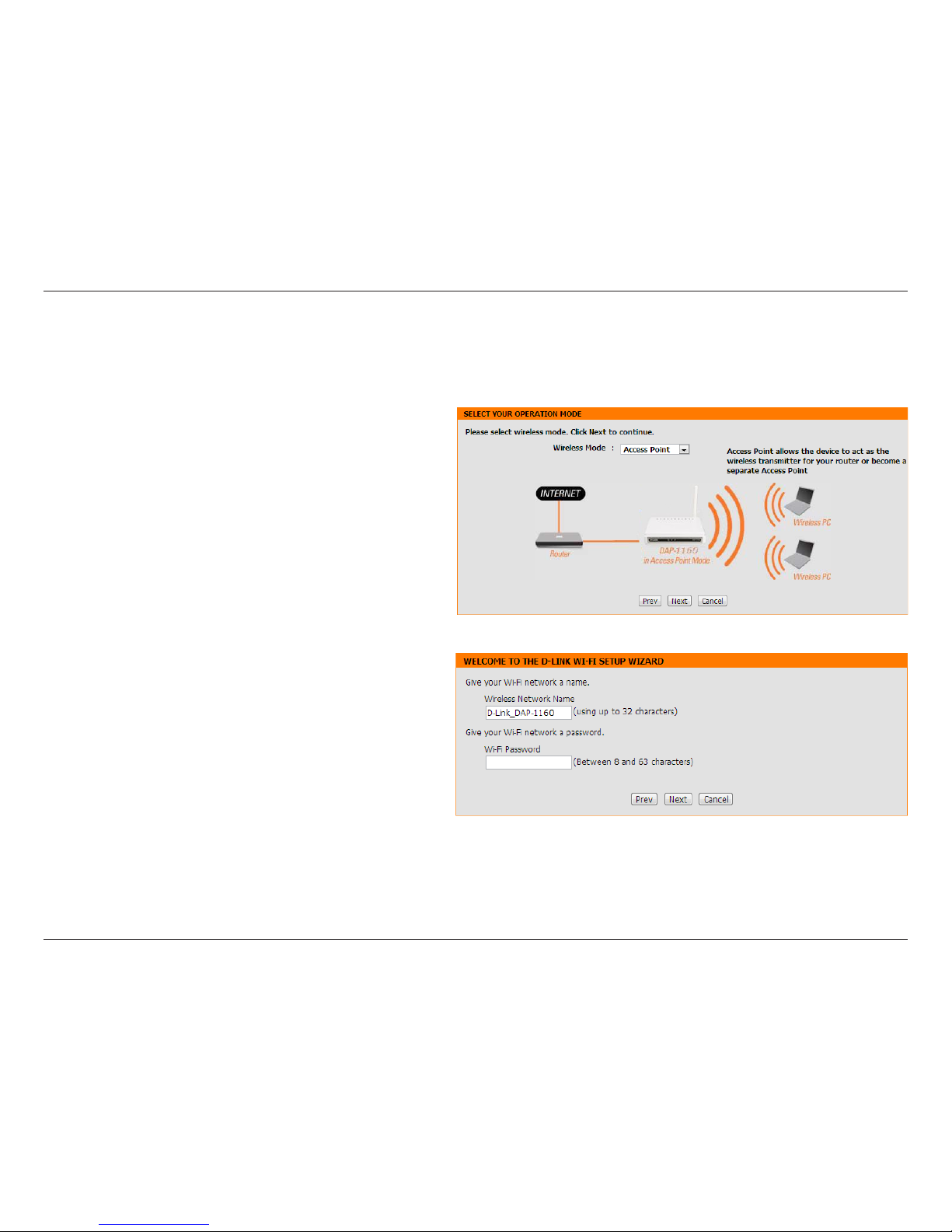

This Wizard is designed to assist you in conguring your DAP-1160 as an access point.
Access Point Mode
Select Access Point from the drop-down menu. Then,
click Next to continue.
Enter a name for your wireless network (SSID).
Enter your Wi-Fi Password. This Password
must be entered on your wireless clients.
Click Next to continue.

18D-Link DAP-1160 User Manual
Section 3 - Conguration

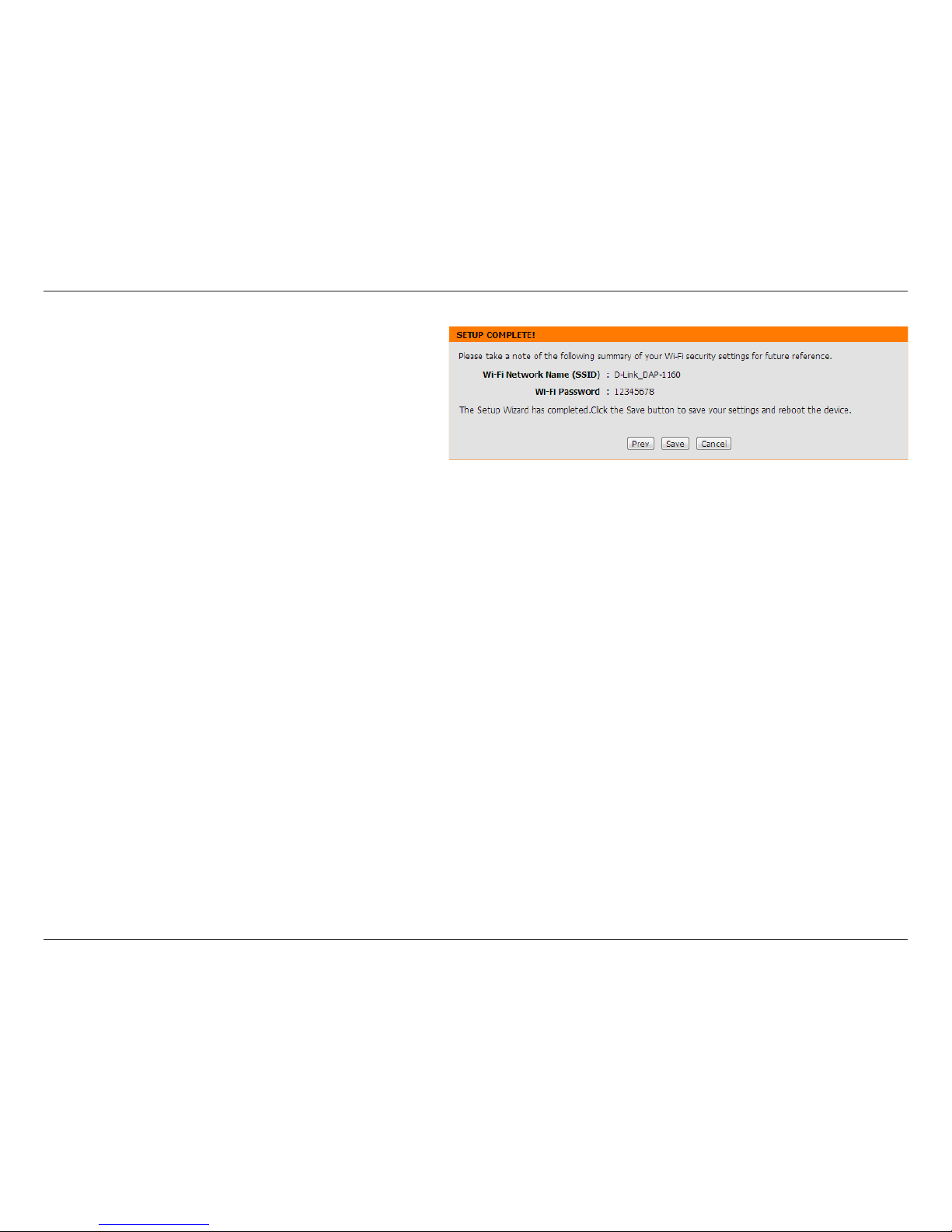

The following screen will show you your network key to
enter on your wireless clients.
Click Save to nish the Setup Wizard.

19D-Link DAP-1160 User Manual
Section 3 - Conguration

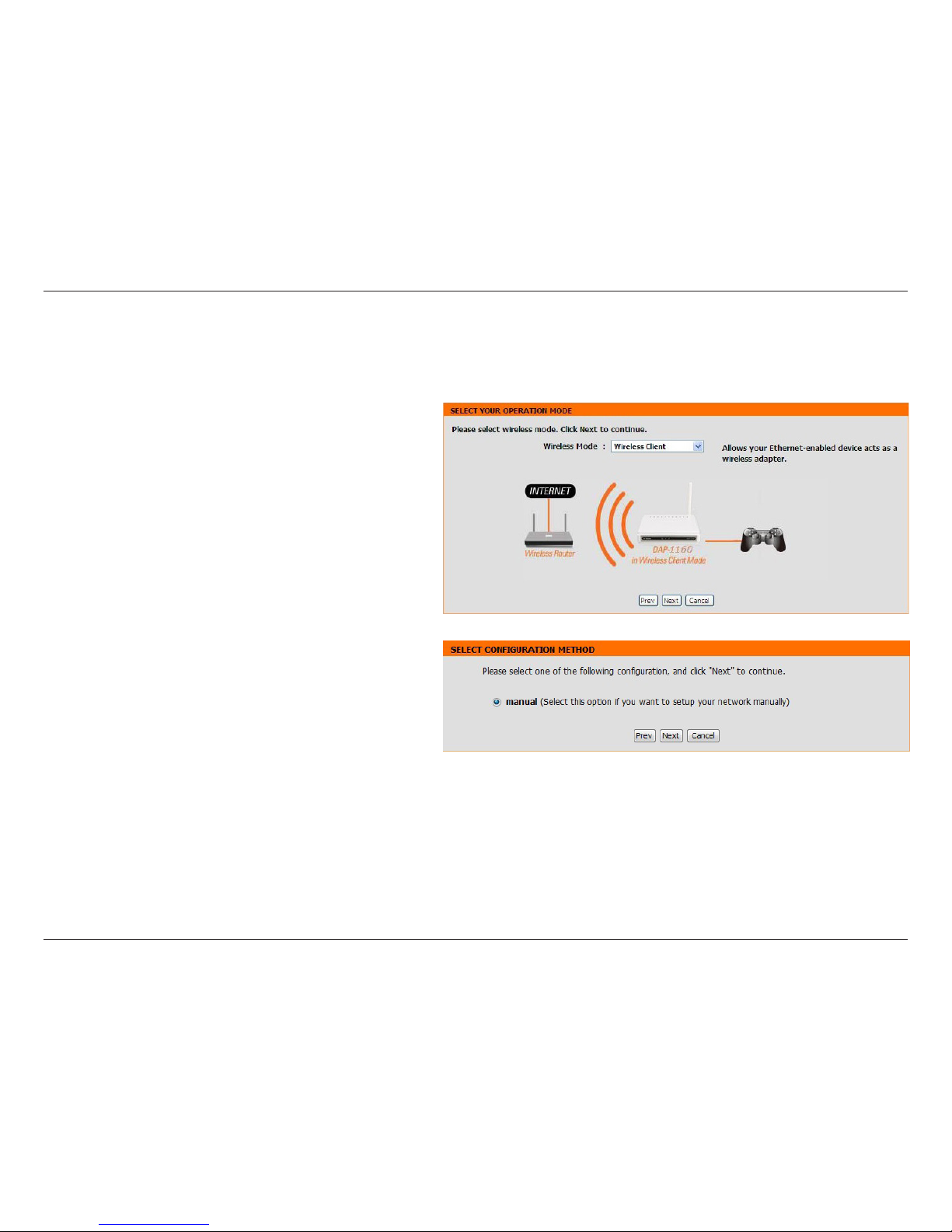

This Wizard is designed to assist you in conguring your DAP-1160 as a wireless client.
Wireless Client Mode
Select Wireless Client from the drop-down menu.
Select Manual conguration to setup your network
manually.
Click Next to continue.

20D-Link DAP-1160 User Manual
Section 3 - Conguration

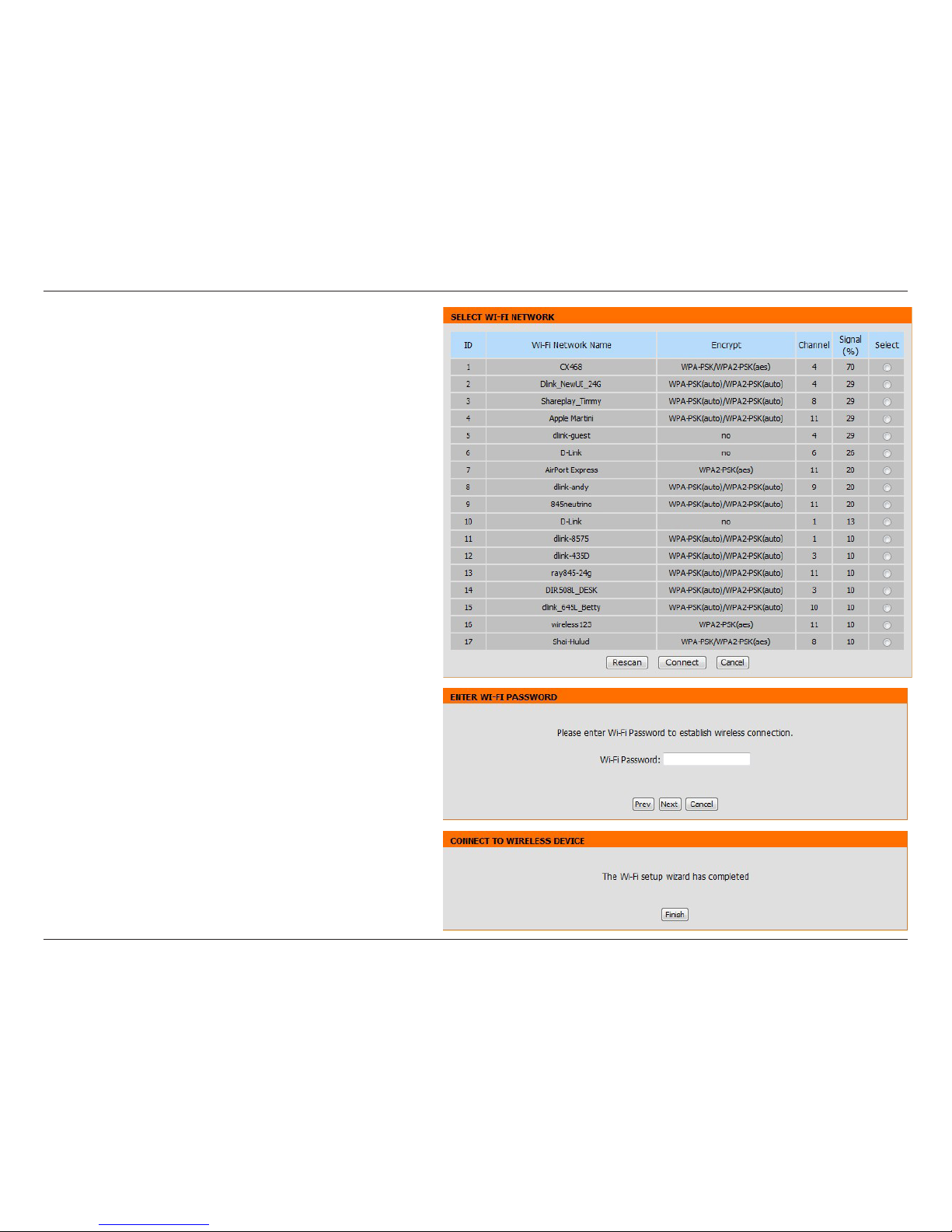

Find your access point from the list, click the radio
button in the right column, and click Connect.
The Wi-Fi Setup Wizard is complete. Click Finish to
reboot the device.
Enter the Wi-Fi password. Click Next to complete the
Setup Wizard.
