D-Link AirPremier N DAP-2310 User manual

22
ENGLISH

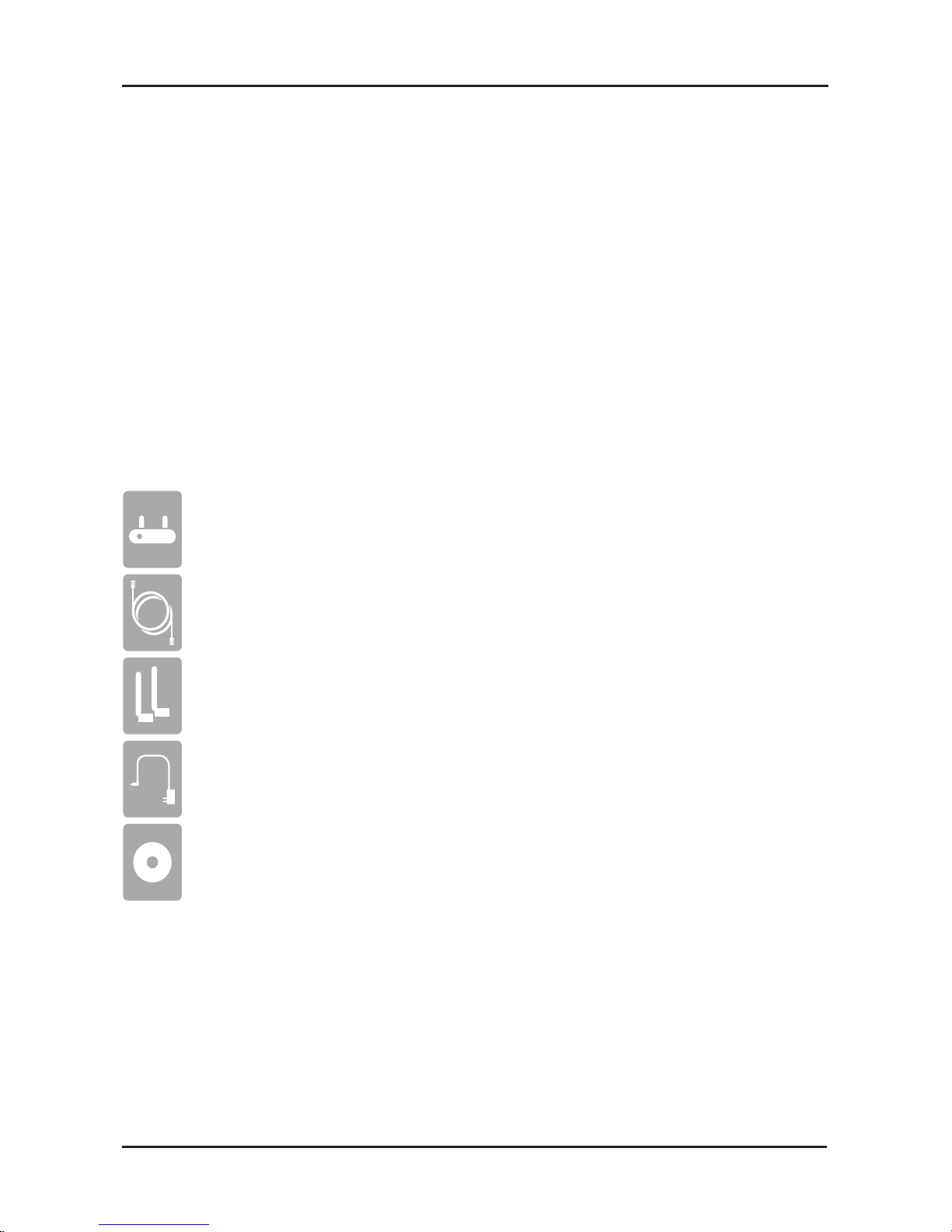

Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Macintosh®, or Linux-based operating systems and
an installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 or higher (for conguration)
D-Link DAP-2310 AirPremier® N 2.4GHz High Power Access Point
CAT5 Ethernet Cable
Two Detachable Antennas
Power Adapter
CD-ROM with Installation Guide, User Manual, and Special Oers
Note: Using a power supply with a dierent voltage than the one included with the
DAP-2310 may damage the unit and will void the warranty for this product.

33
ENGLISH
1
2
3

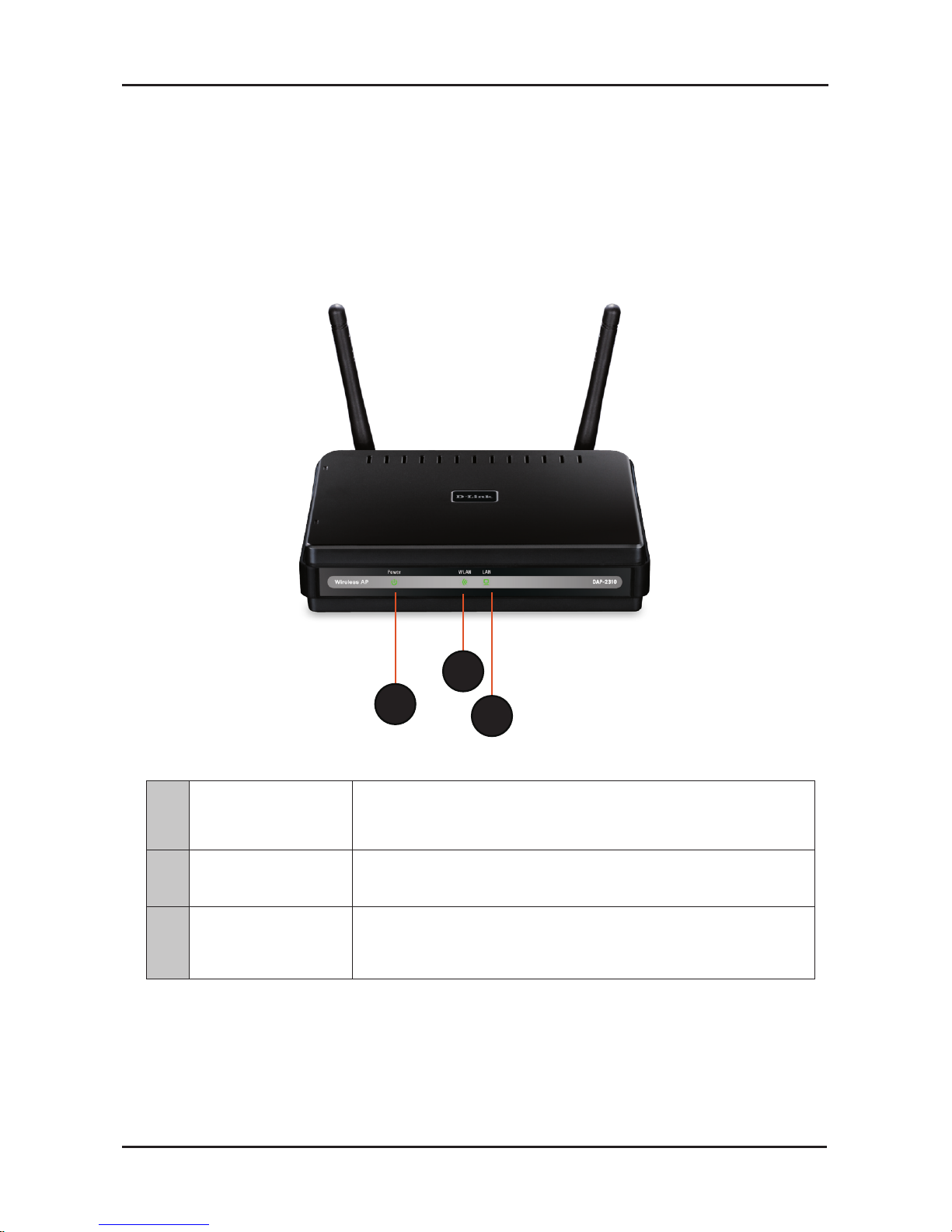

Hardware Overview
1Power LED This light will be solid green when the unit is powered on.
2WLAN LED This light will be flickering green when the 2.4GHz
frequency is in use.
3LAN LED This light will be ickering green when there is active
LAN trac.
LEDs

44
ENGLISH
1. You will need broadband Internet access.
2. Consult with your cable or DSL provider for proper installation of the modem.
3. Connect the Cable or DSL modem to a router.
4. If you are connecting a desktop computer to your network, install a wireless
adapter into an available slot on your desktop computer.
5. Install the drivers for your wireless adapter into a laptop computer.
Getting Started

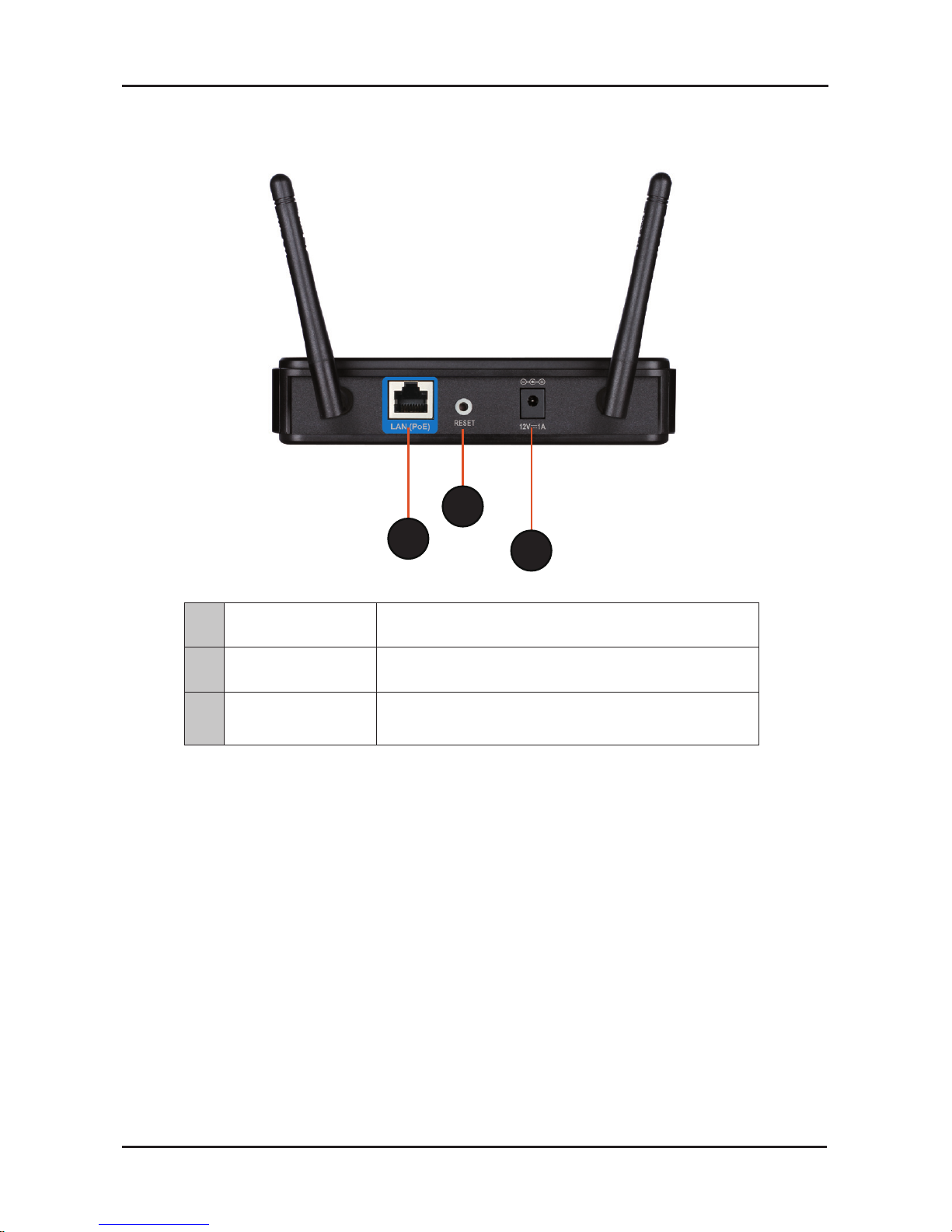

1LAN Port (PoE) Connects the DAP-2310 to a switch or PC.
2Reset Reset the Access Point.
3Power Receptor Receptor for Power Adapter.
Connections
1
2
3

55
ENGLISH
LAN(PoE)
RESET
12V
1A
1
2
LAN(PoE)
RESET
12V
1A
or

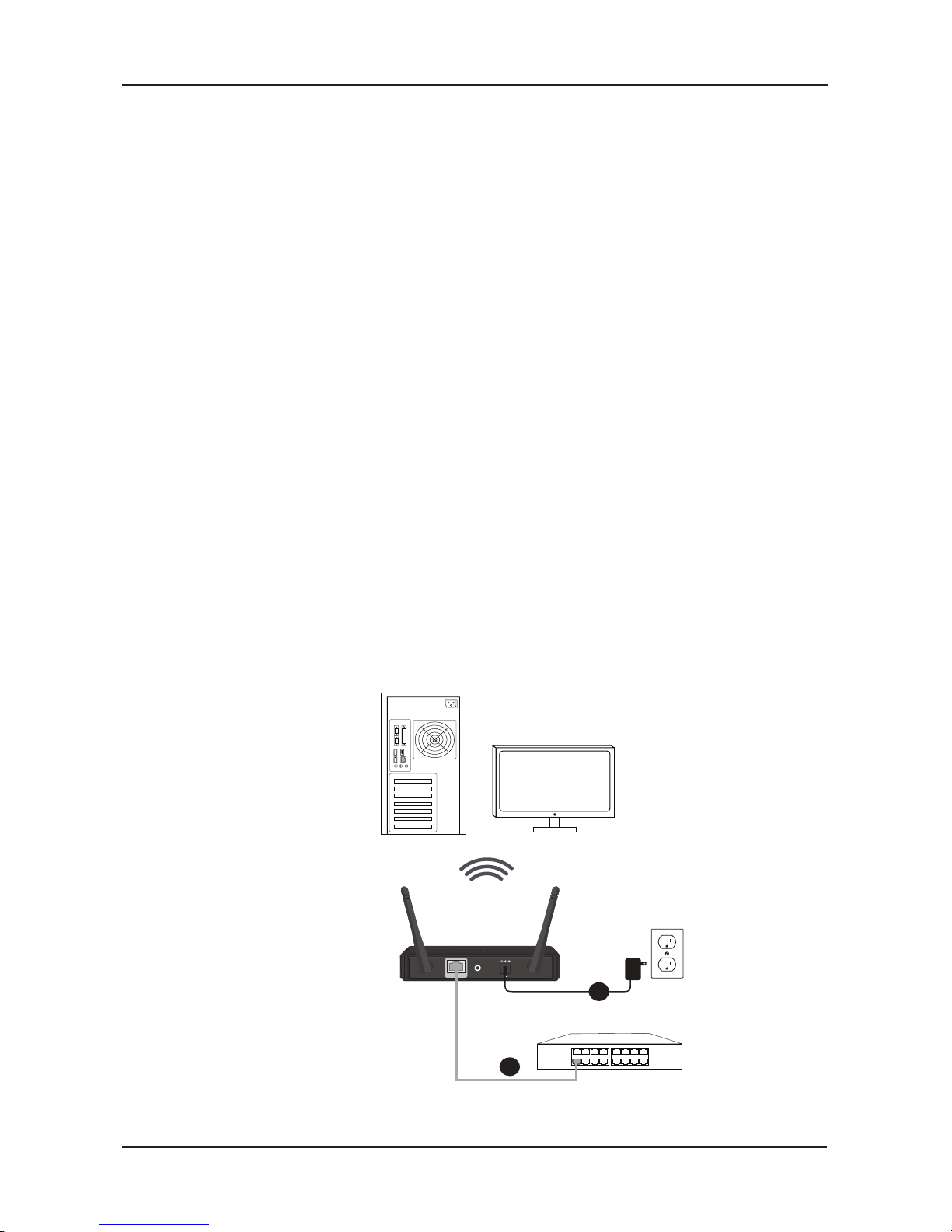

Connecting the
DAP-2310 to your network
1. Connect the power adapter to the receptor on the rear panel of the
DAP-2310 and then plug the other end of the power adapter to a wall outlet
or power strip. The power LED will turn ON to indicate proper operation.
Note: If you are going to connect the DAP-2310 to a Power over Ethernet
(PoE) switch, do NOT connect the power adapter.
2. Using an Ethernet cable, insert one end of the cable to the LAN port on the rear
panel of the DAP-2310 and the other end of the cable to a switch or router’s
LAN port .
Note: You can also connect the DAP-2310 directly to the computer that will
be used for conguration. The LAN LED will illuminate to indicate a proper
Ethernet connection.
3. Computers with 802.11 b/g/n wireless adapters can connect to the DAP-2310.
DAP-2310
Switch
Monitor
Desktop

66
ENGLISH

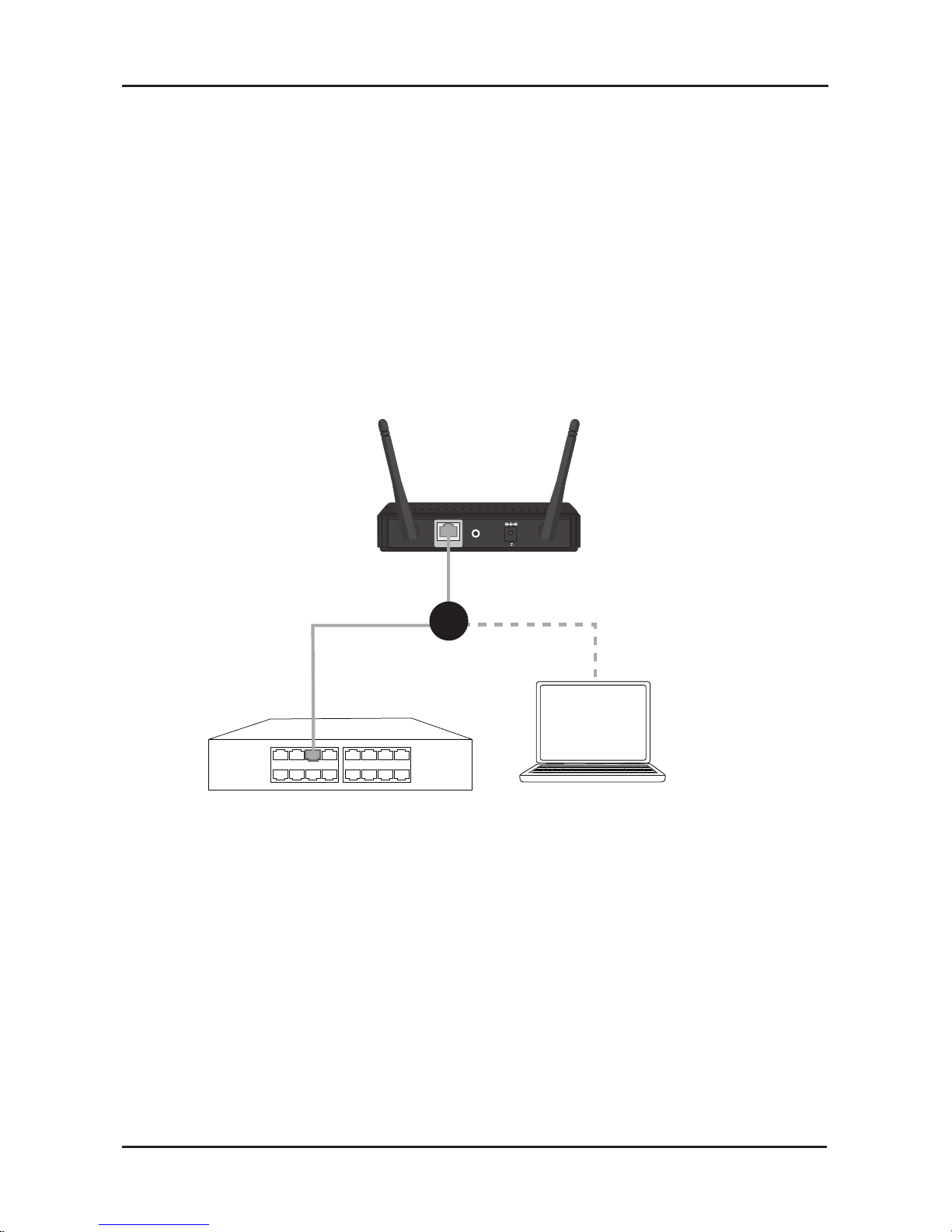

Connecting PoE (Power over Ethernet)
Connect one end of an Ethernet cable (included with your package to
the LAN Port on the DAP-2310 and the other end of the Ethernet cable
to your computer or to your PoE Switch. The AP can be powered on by a
PoE switch or by the power adapter shipped with the AP.
Note: If you are going to connect the DAP-2310 to a Power over Ethernet (PoE)
switch, do NOT connect the power adapter.
LAN(PoE)
RESET
12V
1A
1
2
LAN(PoE)
RESET
12V
1A
or
DAP-2310
PoE Switch Laptop

77
ENGLISH

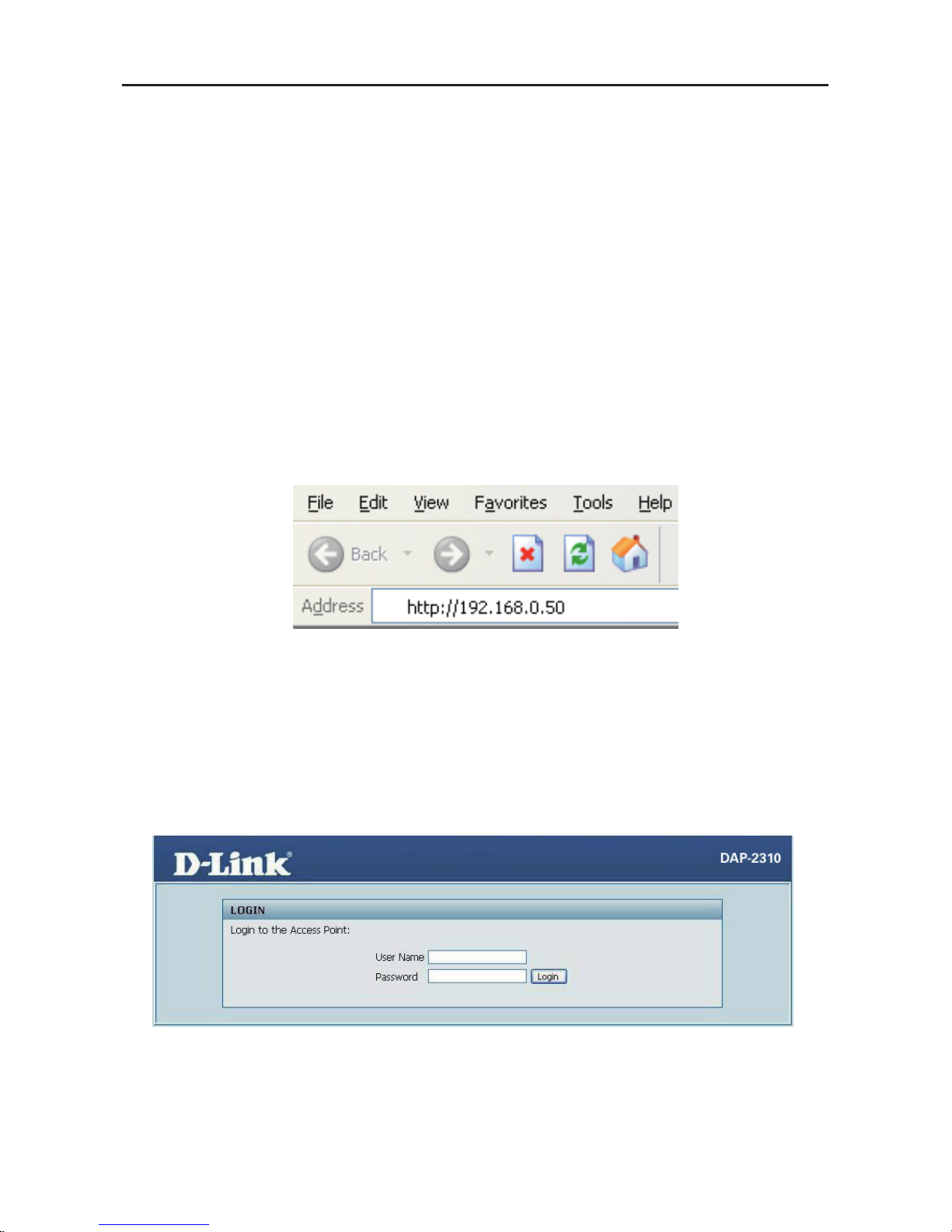

Using the Conguration Menu
Enter the user name (admin) and your password. Leave the password eld blank by default
and click Login.
Note: If you have changed the password, make sure to enter the correct password.
To congure the DAP-2310, use a computer that is connected to the DAP-2310 with
an Ethernet cable (see the Network Layout diagram ).Launch your web browser.
Type the IP address of the DAP-2310 in the address eld (http://192.168.0.50) and
press Enter. Make sure that the IP addresses of the DAP-2310 and your computer
are in the same subnet.
Note: If you have changed the default IP address assigned to the DAP-2310, make sure to enter
the correct IP address.

8
Technical Support
D-Link’s website contains the latest user documentation and software
updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical Support
through our website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.ca
Version 2.0
April 7, 2014
6AP2310USQ01G
