DWL-AG700AP Install Guide
System Requirements
Minimum System Requirements:
Computers with Windows XP/2000, Macintosh, or
Linux-based operating systems with an installed Ethernet
adapter
Internet Explorer version 6.0 or Netscape Navigator
version 7.0 and above

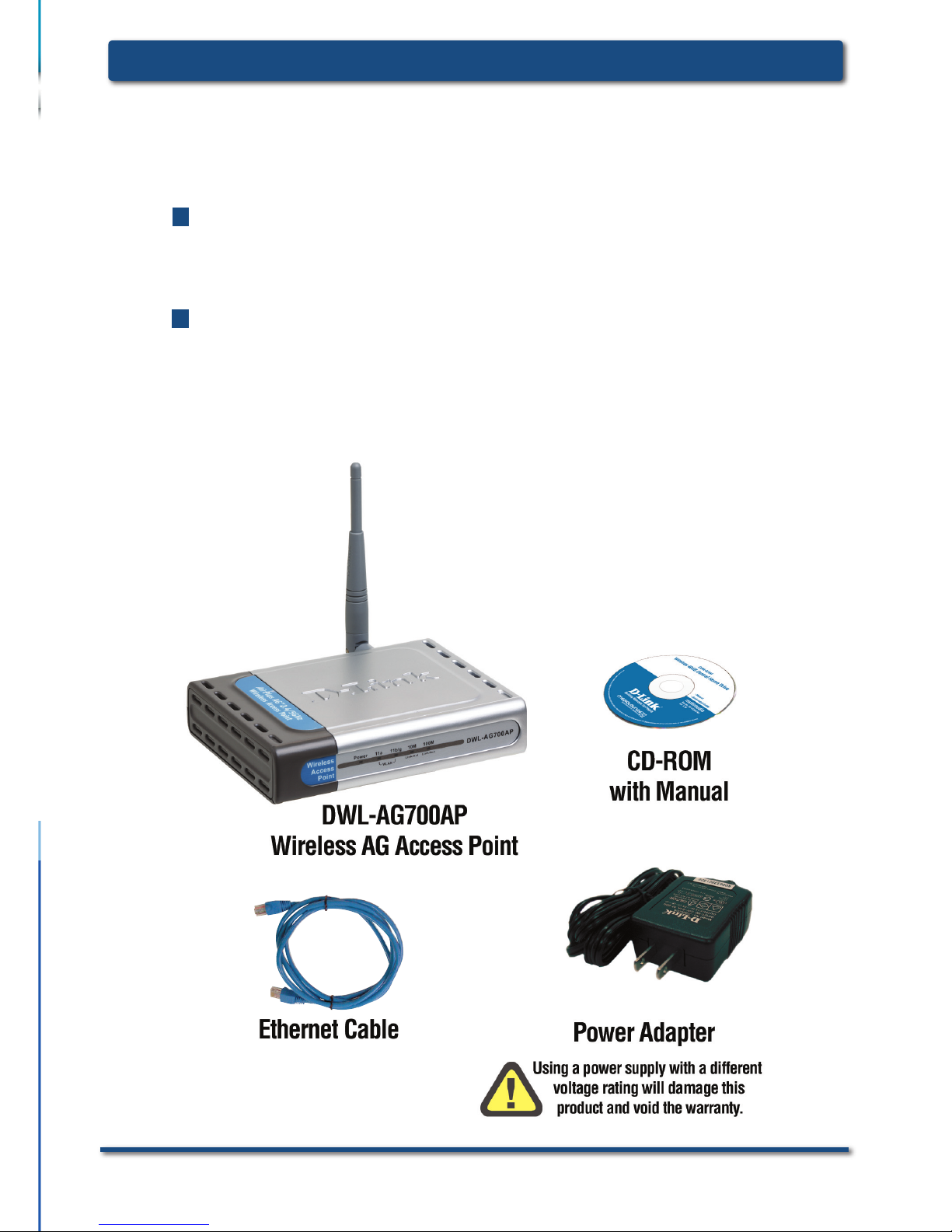

Package Contents

D-Link Systems, Inc. 2
DWL-AG700AP Install Guide System Requirements
System Requirements
Minimum System Requirements:
Computers with Windows XP/2000, Macintosh, or
Linux-based operating systems with an installed Ethernet
adapter
Internet Explorer version 6.0 or Netscape Navigator
version 7.0 and above
Package Contents

DWL-AG700AP Install Guide
Connecting to your network
D-Link Systems, Inc.3
DWL-AG700AP
Install Guide
Con
necting to your network
DWL-AG700AP Install Guide Connecting to your network

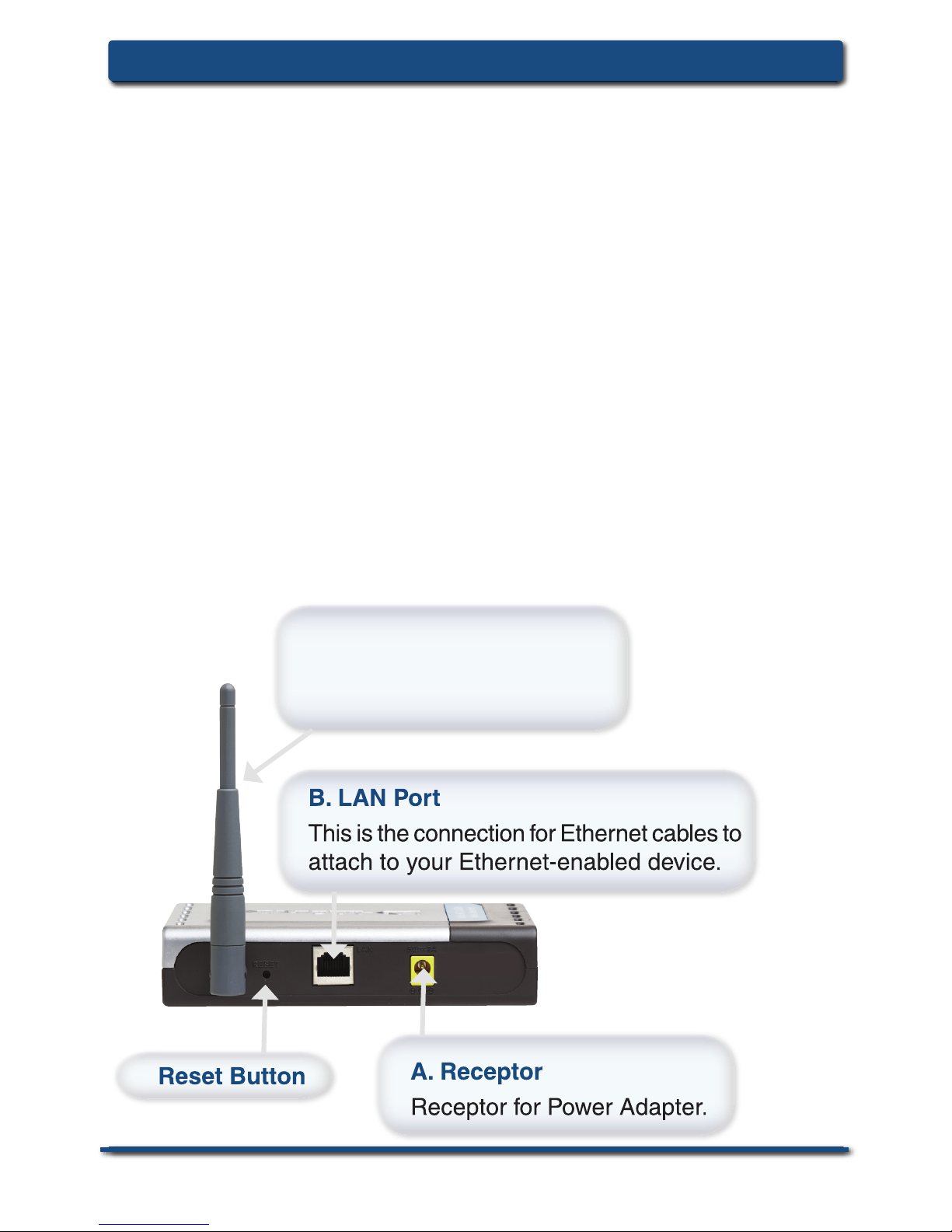

Connecting the DWL-AG700AP
to your network
Reset Button A. Receptor
Receptor for Power Adapter.
Reset Button
A. Receptor
Receptor for Power Adapter.
A.
B.
C.
B. LAN Port
This is the connection for Ethernet cables to
attach to your Ethernet-enabled device.
B. LAN Port
This is the connection for Ethernet cables to
attach to your Ethernet-enabled device.
C. Antenna
Used to wirelessly connect to
802.11a/g networks.
Connect the power adapter to the receptor on the rear panel
of the DWL-AG700AP and then plug the other end of the
power adapter to a wall outlet or power strip. The power LED
will turn ON to indicate proper operation.
Using an Ethernet cable, insert one end of the cable to the
LAN port on the rear panel of the DWL-AG700AP and the other
end of the cable to a switch. Note: You also have the option of
connecting the DWL-AG700AP directly to the computer that will
be used for confi guration. The link LED will illuminate to indicate
a proper Ethernet connection.
Computers with 802.11a/g wireless adapters can connect to
the DWL-AG700AP.

D-Link Systems, Inc. 4
DWL-AG700APUsing the Setup Wizard
DWL-AG700AP
Using the Setup Wizard
DWL-AG700APUsing the Setup Wizard
Connecting to your network

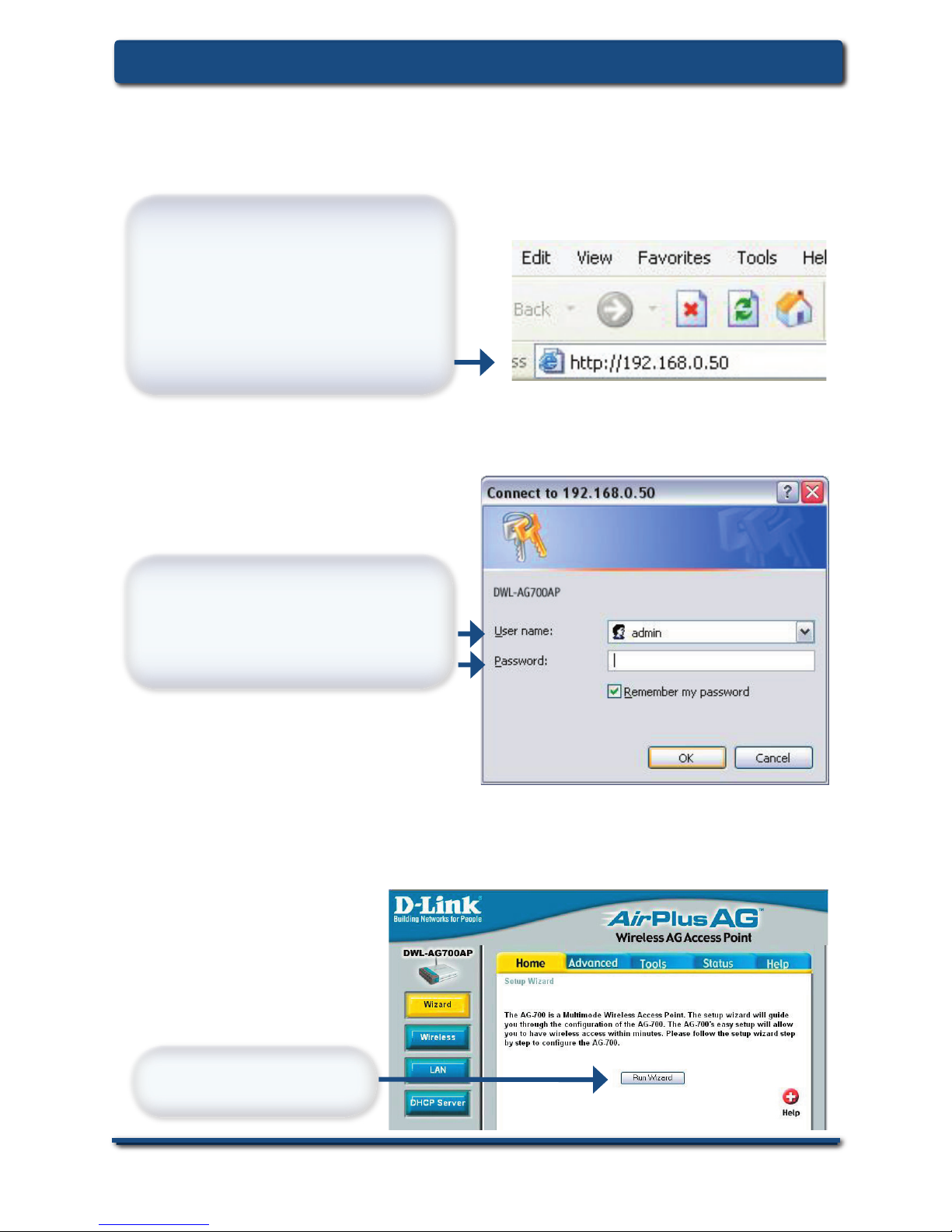

Open your Web browser
and type http://192.168.0.50
into the URL address box.
Then press the Enter or
Return key.
Click Run Wizard
The logon pop-up screen will
appear.
Type admin
for the username and leave
the password fi eld blank.
Once you have logged in, the
Home screen will appear.
Using the Setup Wizard

DWL-AG700APUsing the Setup Wizard
D-Link Systems, Inc.
5

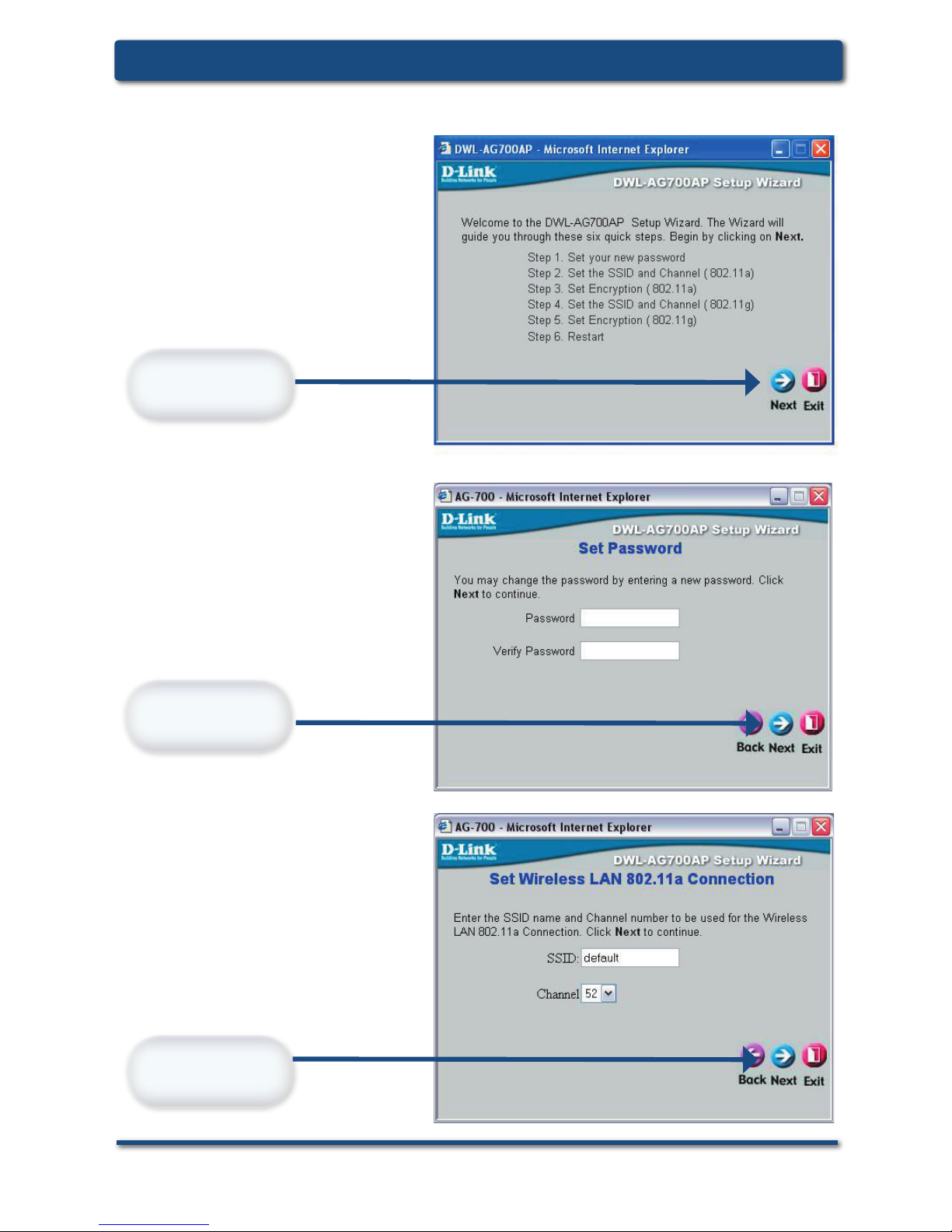

You will see the following
screens.
Click Next
Step 1 - Setup your new
password. You have the
option to establish a
password.
Click Next
Step 2 - Set Wireless LAN
Connection.
By default the
DWL-AG700AP SSID
is set to default with a
Channel setting of 52.
Click Next
For 802.11a networks please
do the following:

D-Link Systems, Inc. 6
DWL-AG700APUsing the Setup Wizard
DWL-AG700AP
Using the Setup Wizard
DWL-AG700APUsing the Setup Wizard

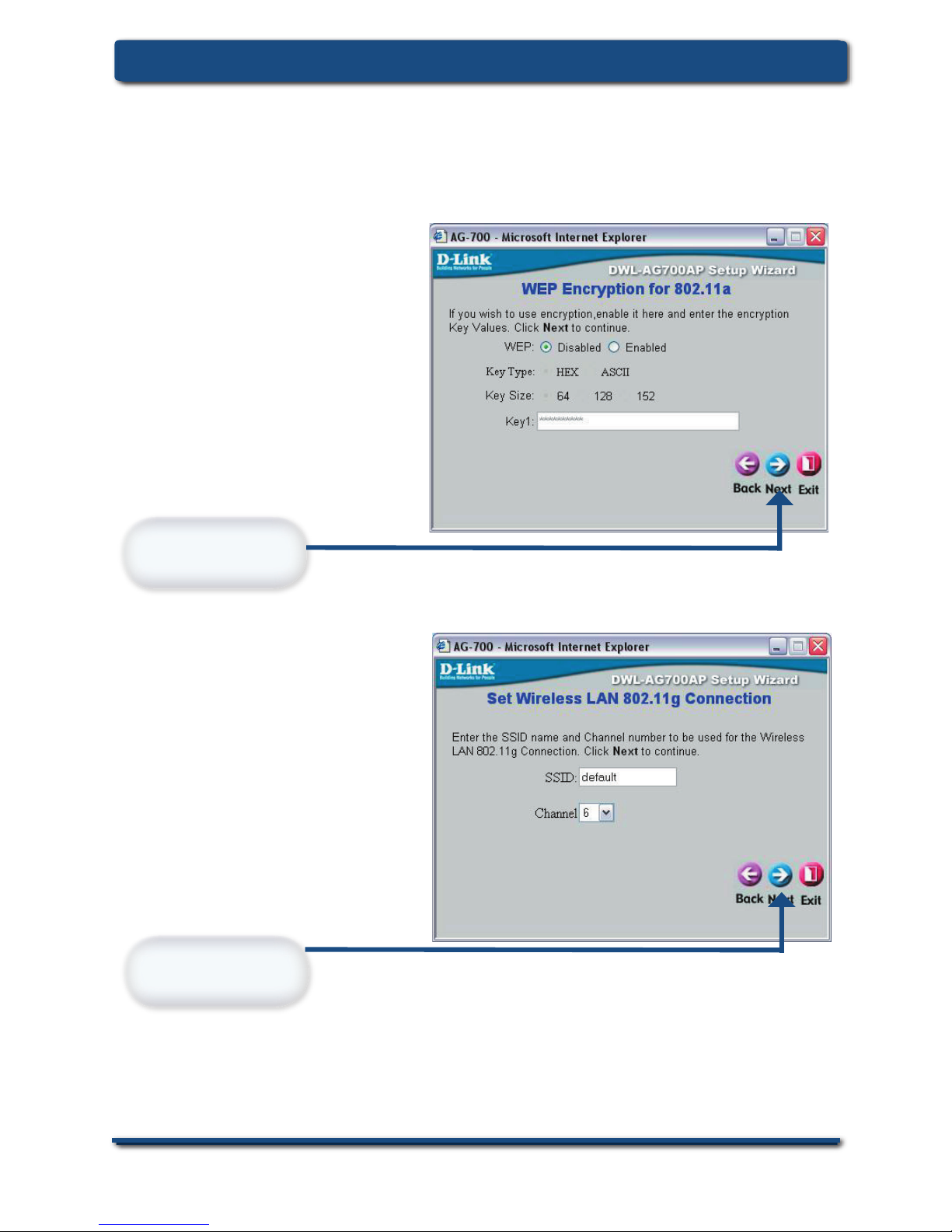

For 802.11a networks please continue as follows:
Click Next
Step 2 - Set Wireless LAN
Connection.
By default the
DWL-AG700AP SSID is set
to default with a Channel
setting of 6.
For 802.11g networks
please do the following:
Click Next
Step 3 - Encryption
The DWL-AG700AP is
capable of three levels
of wireless encryption:
64-,128-,or 152-bit, using
either Hexadecimal or
ASCII key type. By default
encryption is disabled. You
can change the encryption
settings for more secure
wireless communication.

D-Link Systems, Inc.
7
DWL-AG700APUsing the Setup Wizard

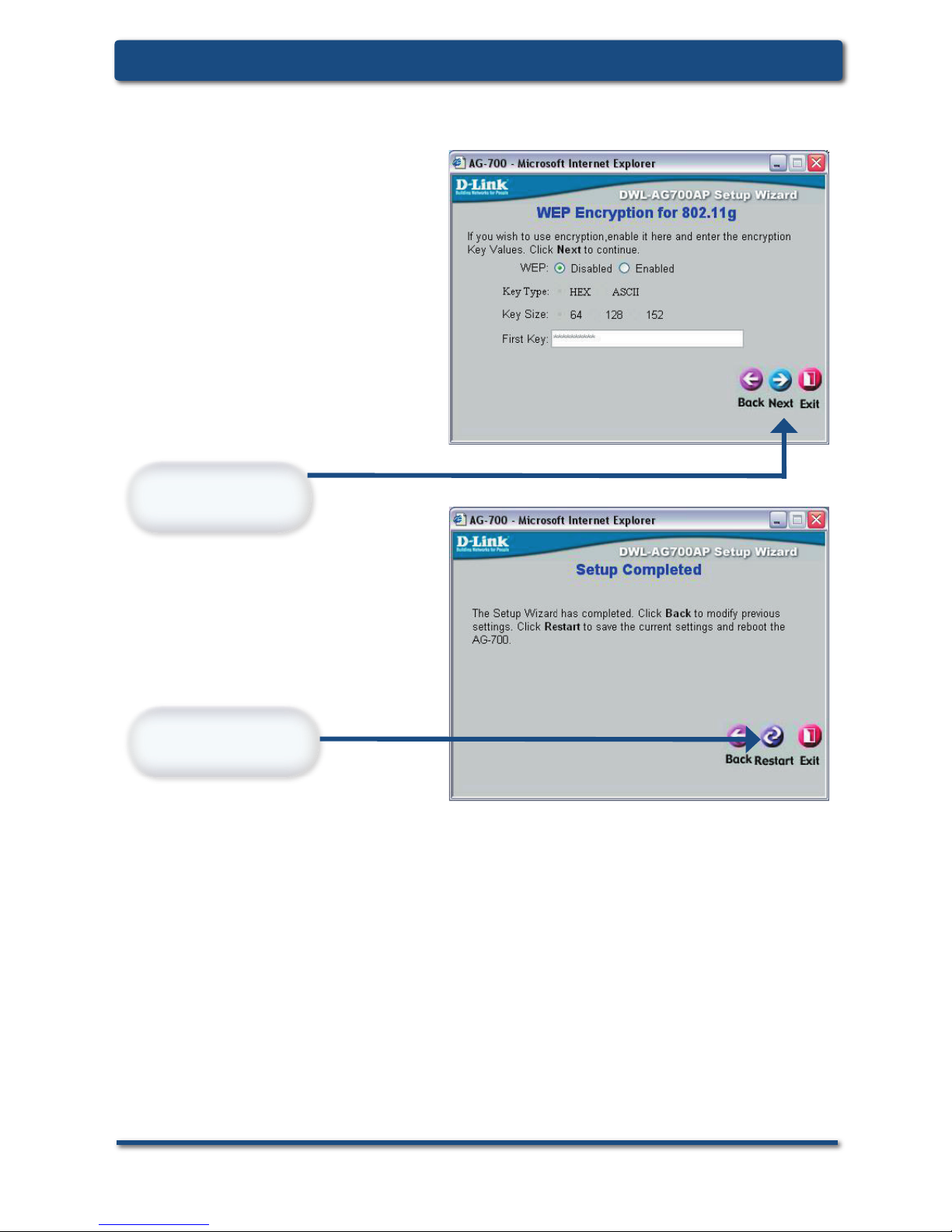

For 802.11g networks please continue as follows:
Click Next
Your Setup is complete!
Step 3 - Encryption
The DWL-AG700AP is
capable of three levels
of wireless encryption:
64-,128-,or 152-bit, using
either Hexadecimal or
ASCII key type. By default
encryption is disabled. You
can change the encryption
settings for more secure
wireless communication.
Click Restart

D-Link Systems, Inc. 8
DWL-AG700AP Install Guide Your Setup is Complete!

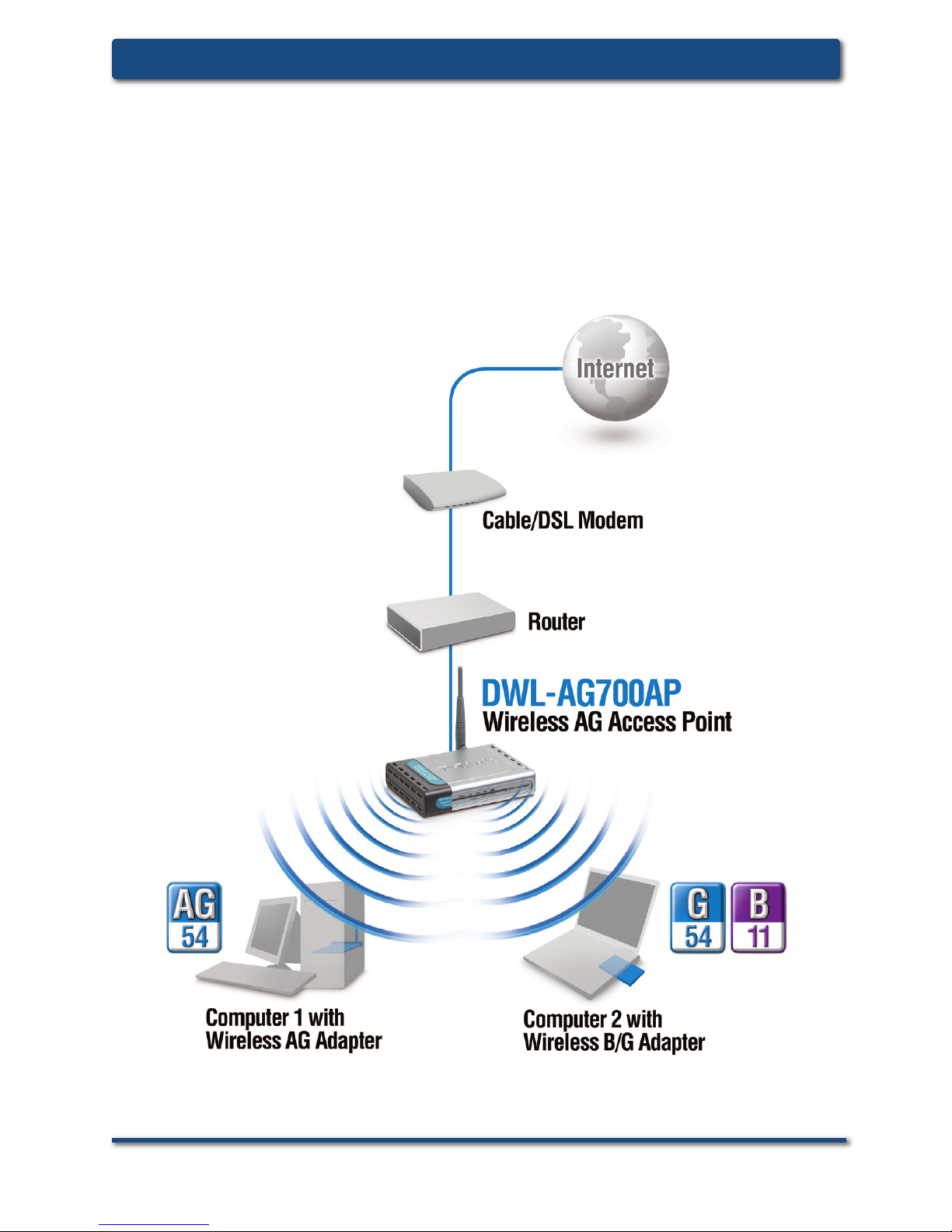

When you have completed the steps in this Quick Installation Guide,
your connected network should look similar to this:
Your Setup is Complete!

D-Link Systems, Inc. 9
DWL-AG700AP Install Guide Contacting Technical Support
Technical Support
D-Link’s website contains the latest user documentation and software updates
for D-Link products.
D-Link provides free technical support for customers within the United States
and Canada for the duration of the product’s warranty period.
U.S. and Canadian customers can contact D-Link Technical Support through
our website or by phone.
United States
Telephone
[phone]
Twenty four hours a day, seven days a week.
World Wide Web
http://support.dlink.com
E-mail
suppor[email protected]
Canada
Telephone
[phone]
Monday through Friday, 7:30am to 12:00am EST.
World Wide Web
http://support.dlink.ca
E-mail
suppor[email protected]
Version 1.0
Revised 02/11/05
