INSTRUCTION BOOK FOR
Large Advantage®
Deluxe Electrol®

2
1. The case provides multiple attachment points for bolts, cables,
or threaded rod. Page 6 shows threaded rod installed. The
variable position-mounting bracket may be located anywhere
along the length of the case. It is recommended to keep the
brackets spaced evenly enough to distribute the weight of the
screen.
One mounting bracket is required for every 4' of case length.
The case has a self-trimming lange around the bottom. Ceiling
tiles or drywall may be placed on top of this lange to provide a
inished appearance.
2. After securing the case in the ceiling check that the case is level
and plumb.
3. Install electrical connections that apply to your unit. Review the
wiring diagrams on page 5 for proper installation.
Case Installation
Important Safety Instructions
When using your video equipment, basic safety precautions
should always be followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any appliance is used
by or near children. Do not leave appliance unattended while
in use.
3. Do not operate appliance with a damaged cord or if the
appliance has been dropped or damaged – until it has been
examined by a qualiied serviceman.
4. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
5. If an extension cord is necessary, a cord with a current rating
at least equal to that of the appliance should be used. Cords
rated for less amperage than the appliance may overheat.
6. To reduce the risk of electric shock, do not immerse this
appliance in water or other liquids.
7. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric
shock when the appliance is used subsequently.
8. The use of an accessory attachment not recommended by
the manufacturer may cause a risk of ire, electric shock, or
injury to persons.
Pre-Installation
1. Carefully unpack screen and remove outer wrapping from case.
2. Make sure to recheck measurements of screen location before
installation.
PLEASE NOTE: Motor Operator Projection Screen Models LADT,
LADDT, LAD and LADD must be installed in accordance with the
requirements of the Local Building Codes, the Canadian Electrical
Code (CEC), CAN/CSA C22.1 and the National Electric Code (NEC),
NFPA 70. An appropriate disconnect device shall be provided as
part of the building installation.

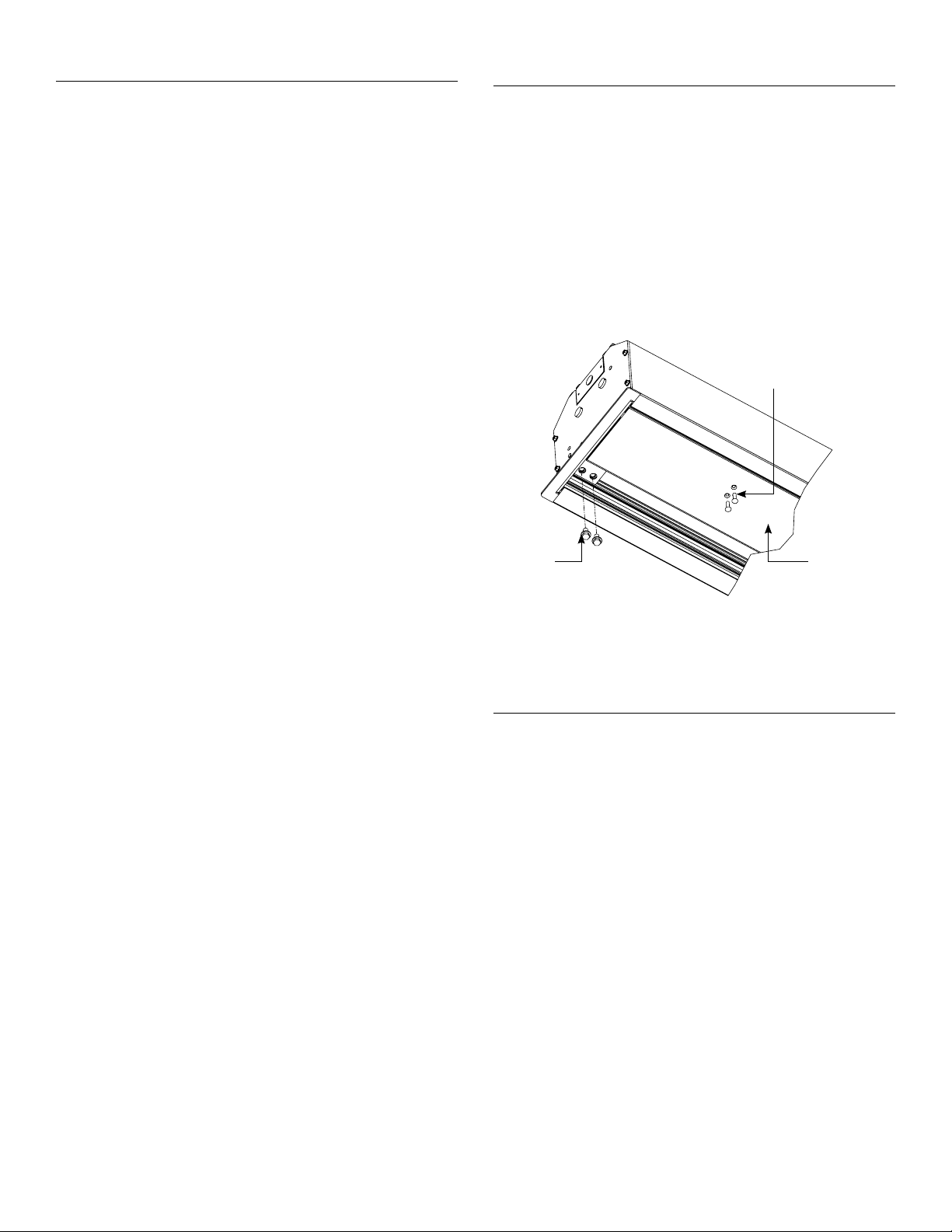

Figure 1
Door Support Screws
(Not All Sizes)
Access
Door
Bolts

3
Screen And Roller Assembly Installation
If your screen was shipped with the motor and roller already installed proceed to step 7.
1. Remove four bolts from ends of door assembly (2 bolts on
each end) (Fig. 1). This will allow the door assembly to drop
open for access to case. For larger sizes, you will also need
to remove the door support screws.
2. Carefully unpack screen and roller assembly. Leave packing
paper on the roller.
3. Remove the square peg bracket from the motor end of the
roller assembly.
4. Remove the safety clip from the motor attachement bracket
located in the motor end of the screen housing.
5. Place the roller assembly into the case with the motor on the
left side. The limit switches should be facing down. Line up
the head of the motor with the motor attachment bracket.
6. Loosen four bolts that secure pin end mounting bracket into
housing. Lift pin end of roller into position and slide the
bracket into the roller pin. Tighten all four bolts.
7. Complete electrical hook-up by snapping motor 1/3 wire
connectors into case connectors.
8. Return to motor end and insert safety clip over casting
bracket to secure motor end.
CAUTION! Do not cut tape on fabric with a knife or any
sharp tool. Remove by hand.
9. Carefully remove tape strips securing picture surface around
roller. Slat should move freely (Fig. 2). (Only if the roller
assembly is pre installed.)
10. Test installation by operating the screen several times. Be
prepared to stop the screen. The door assembly will not
close until the wall switch is placed in the up position and
when the screen motor stops at its limit switch in the up
direction.
NOTE: Unit duty cycle is 1 minute on, 3 minutes of.
NOTE: Excessive continuous operation may cause the motor
to overheat. If this happens the motor will shut of until it
cools to a normal operating temperature.
11. Close door assembly and replace four bolts at ends of door
(2 bolts on each end) (Fig. 1).
Figure 2
Dual Motor LVC
Control Box
Screen Motor
Limit Switches
Screen Motor
Door Motor
Limit Switches
Door Motor
Access Door
Assembly

4
Screen Adjustment
Recalibration
The screen controller is factory calibrated to control the screen and door sequence timing. If the line voltage varies 10% or more from
the factory setting, the door will not close properly and the unit will need to be recalibrated. The steps are:
1. The screen surface must be all the way up
2. Press and hold the stop button for 10 seconds
The screen will then run through a whole cycle and be
recalibrated upon completion. Press "up" button to close door
after recalibration.
If the screen limit switch setting is changed in the up direction,
the unit must be recalibrated. Surface travel is stopped
automatically in the fully opened and closed positions by limit
switches that are factory set at Da-Lite. Should it be necessary to
adjust for more or less drop of picture, proceed in the following
manner:
Surface travel is stopped automatically in the fully opened and
closed positions by limit switches that are properly adjusted at
Da-Lite. Should it be necessary to adjust for more or less drop of
picture, proceed in the following manner:
NOTE: Use a screw driver or 5/32" Allen wrench to make
adjustments.
More Screen Drop
1. Place operating switch in “down” position.
2. When the screen stops, turn the white “down” limit knob
(Fig. 2) one-quarter turn counterclockwise. Test by raising
picture surface approximately two feet, then lower again.
Repeat until desired picture surface position is attained.
CAUTION: Do not adjust for more drop than what was
ordered. At least 11/2 wraps of fabric must remain on the
roller. This screen comes standard with 0" or 2" black at
the top. See the speciication data sheet for details.
3. Recalibrate according to above instructions. Press "up" button
to close door after recalibration.
Less Screen Drop
1. Raise picture surface approximately two feet above
desired level.
2. Place operating switch in “of” position.
3. Turn the white “down” limit switch (Fig. 2) one-quarter turn
clockwise. Test by raising picture surface approximately two
feet, then lower again. Repeat until desired picture surface
position is attained.
4. Recalibrate according to above instructions. Press "up" button
to close door after recalibration.
Contact Da-Lite at 8006223737 if door motor needs
adjustment.

5
Large Advantage Deluxe®Electrol®Instructions
Power Input
120VAC / 60HZ
120V Wiring Diagram
DOWN
STOP
UP
NOTE: Do not use 3-position high voltage
rocker switch with this unit! This will
damage the dual motor control board.
NOTE: Do not use 3-position high voltage
rocker switch with this unit! This will
damage the dual motor control board.
NOTE: 2024AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO
DUAL MOTOR CONTROLLER.
NOTE: 2024AWG WIRE RECOMMENDED
FOR CONNECTING WALL SWITCH TO
DUAL MOTOR CONTROLLER.
White
(Common)
White
(Common)
White (Common)
White (Common)
Blue (Common)
Blue (Common)
Black
(Down)
Red
(Up)
Screen
Motor
Red
(Up)
White
(Common)
Black
(Down)
Front of
Wall
Switch
Front of
Wall
Switch
Back of
Wall
Switch
Back of
Wall
Switch
Green
(Ground)
Black
(Down)
Red
(Up)
Green
(Ground)
Door
Motor
Dual Motor Control Board
White
(Common)
Black (Down)
Black (Down)
Brown (Down)
Brown (Down)
Red (Up)
Red (Up)
Black (Up)
Black (Up)
Green (Ground)
Green (Ground)
Green / Yellow (Ground)
Green / Yellow (Ground)
"Eye" Port
Plug "IR" or "RF"
Remote Here
Power Input
240VAC / 50HZ
240V Wiring Diagram
DOWN
STOP
UP
Brown
(Hot)
White
(Common)
Blue
(Common)
Brown
(Down)
Black
(Up)
Green / Yellow
Ground)
Screen
Motor
Red
(Up)
Black
(Down)
Not Used
Door
Motor
Dual Motor Control Board
Blue
(Common)
Green / Yellow
Ground)
Blue
(Common)
Brown
(Down)
Black
(Up)
Green / Yellow
Ground)
Green
(Ground)
Black
(Hot)
Not Used
"Eye" Port
Plug "IR" or "RF"
Remote Here

6

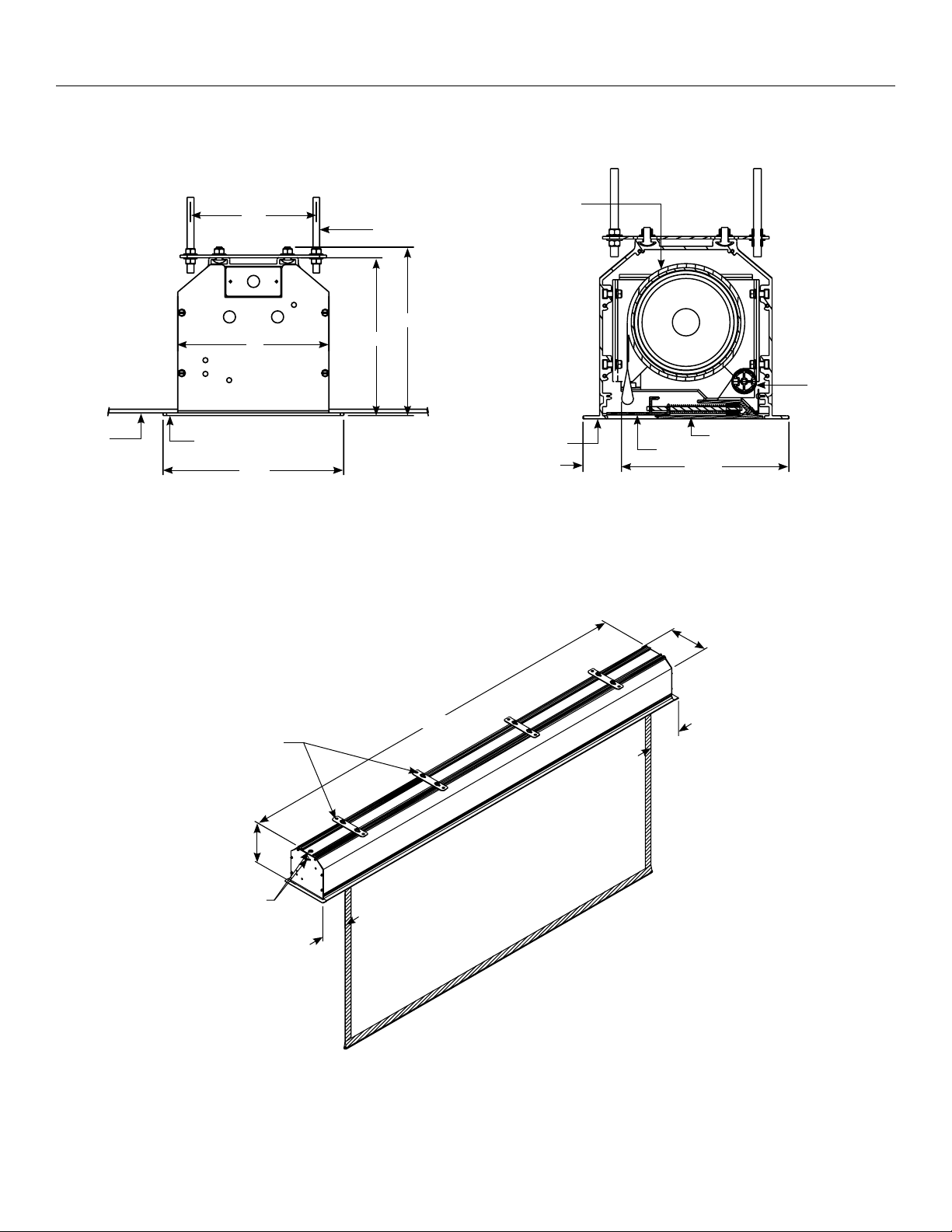

Large Advantage Deluxe®Electrol®Installation
(Suggested) ½"
Threaded Rod (Not
Included) Attached
To Mounting
Bracket
Finished
Ceiling
Self-Trimming
Flange
9 ⅛"
13 ⅛"
12 ⁄"
11 ⁄"
11"
Door Roller
Screen
Roller
Closing Door
Access Door
Audience
Side
Self-Trimming
Flange
2 ⁄" 10 ⁄"
Variable
Position
Mounting
Brackets
Electrical
Junction
Box
8 ½"
8 ½"
11 ½"
Case Length
11"

7
Troubleshooting
Visit www.da-lite.com/products/product_videos.php to ind
installation and troubleshooting videos and tutorials. You will
also ind a link to Live Chat for interactive support and you
can contact us by e-mail at [e-mail] or by phone
at (800) 6223737 or (574) 2678101 with any troubleshooting
questions.
Symptom Cause Solution
Screen will not operate or will
not go “down”.
Motor does not hum.
Motor hums.
Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,
rewire incoming electric line.
Blown facility fuse. Replace facility fuse.
Tripped facility circuit breaker. Reset facility circuit breaker.
No power to operating switch
or junction box.
Check above. Tighten all loose wire connections.
Recheck wiring. See installation instructions.
Low voltage board has no power or
blown transformer.
Replace low voltage board.
"Down" Position
Check for power across black and white leads.
Power at junction box.
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “down” position. Check for continuity.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.
Screen will not move upward.
Motor does not hum.
Motor hums.
Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,
rewire incoming electric line.
Blown facility fuse. Replace facility fuse.
Tripped facility circuit breaker. Reset facility circuit breaker.
No power to operating switch or junction box. Check above. Tighten all loose wire connections. See above.
Low voltage board has no power or
blown transformer.
Replace low voltage board.
"Up" Position
Check for power across red and white leads.
Open door limit switch. Replace switch.
Power at junction box.
Thermal overload tripped. Let motor cool down for 15 minutes. Try again.
Broken wire in the “up” position. Check for continuity.
Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.
Capacitor burned out. Replace motor assembly.

8
Troubleshooting
Symptom Cause Solution
Door will not open.
Spring has an obstruction not
allowing door to open..
Check installation to free door. Clear any foreign
substance from spring.
No power. See above.
Door does not close.
Mis-adjusted door motor limit. Adjust door motor limit. Call Da-Lite for instruction.
Low voltage board has no power or a blown
transformer. Replace low voltage board.
Unit not calibrated Recalibrate per instructions on page 3
“Down” limit switch incorrect.. “Down” limit switch out of adjustment. See installation instructions.
Noise.
NOTE: Screen will operate with
a low-pitched hum.
Buzzing noise. Adjust door limit switch (too far down).
Gear noise Replace motor assembly.
Coasting. Defective brake. Replace motor assembly.
Roller displaced from
mounting bracket. Pin end slipped out of nylon bearing Realign pin end bracket.
Fabric hangs crooked.
Screen not installed properly. Check for level and plumb.
Fabric is damaged. Replace fabric.
Door closes before screen is all
the way up. Screen “up” limit out of adjustment. Adjust “up” limit (call factory for instructions).
Door opens but screen does not
operate. Loose wire. Check all wiring and connections..

9

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS
Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly
operated according to Da-Lite’s instructions and are not damaged due to improper handling or treatment after shipment from the
factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered
with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.
Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,
transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,
or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION
OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,
Warsaw, IN 465810137, (574) 2678101, (800) 6223737.
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS
WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
35895
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: [e-mail]
www.da-lite.com
DL–0171 11.13
© 2013 Milestone AV Technologies LLC. Printed in U.S.A.
