Instruction Book for
TENSIONED LARGE COSMOPOLITAN®
ELECTROL®
9'x12', 180" Diagonal and Larger Sizes
The Da-Lite Difference.

IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions should
always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or
contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at
least equal to that of the appliance should be used. Cords rated
for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this
appliance. Contact an authorized service dealer when repair
work is required. Incorrect reassembly can cause electric shock
when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the
manufacturer may cause a risk of fire, electric shock, or injury to
persons.
SAVE THESE INSTRUCTIONS
1

Carefully unpack screen and remove outer wrapping from case.
The slat retainer screws must be removed before installation. The slotted 1/4" hex screws fasten through the back of the
case (at the bottom) into the slat bar. Orient the case with the slat down and then remove the screws. The case must
remain in that orientation throughout the installation process to avoid fabric damage.
The Tensioned Cosmopolitan® Electrol® comes with brackets to allow for wall mount or ceiling mount installations.
Procedures for each method are as follows:
INSTALLATION
2

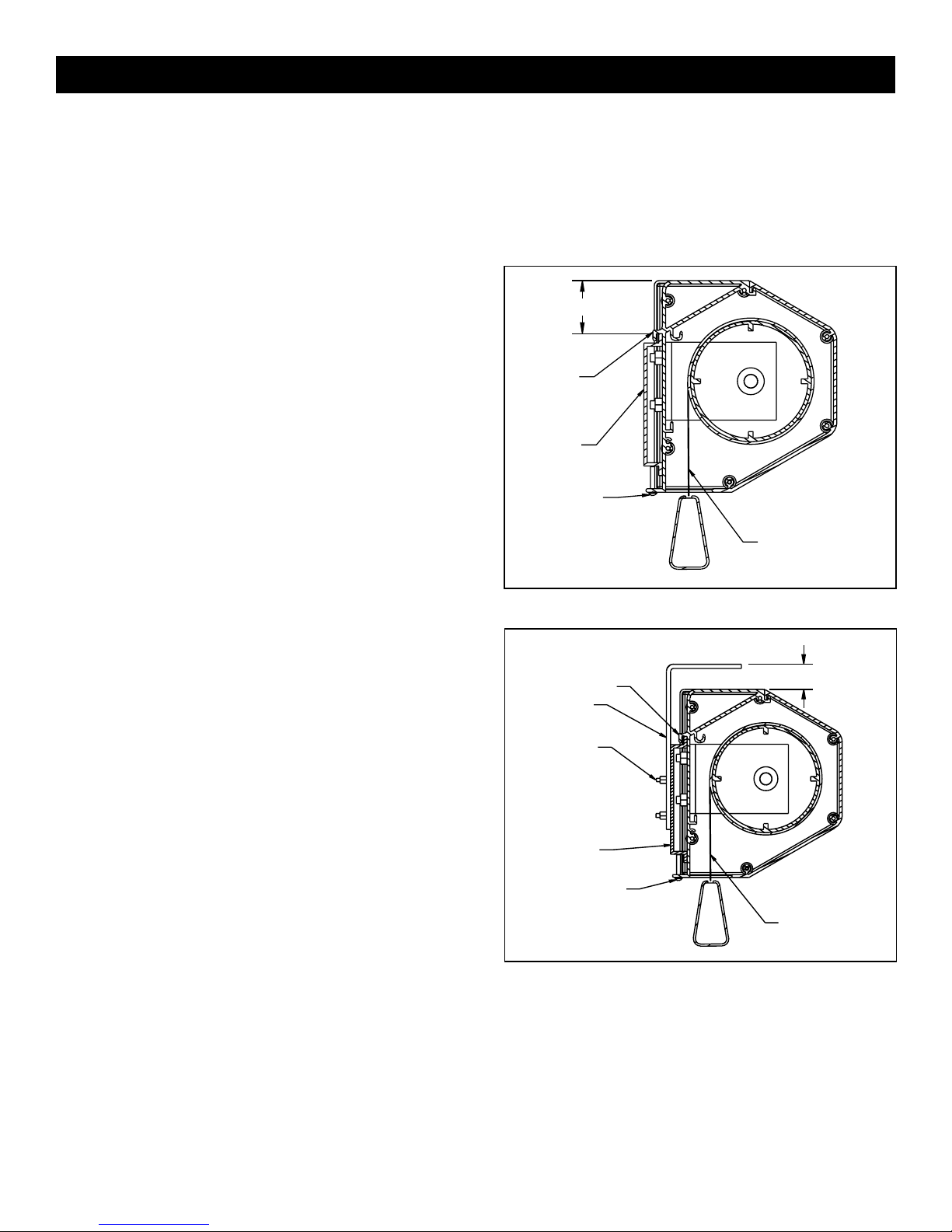

CASE HOOK
VIEWING SURFACE
(AUDIENCE SIDE)
FIGURE 2
FIGURE 1
2"
VIEWING SURFACE
(AUDIENCE SIDE)
CASE HOOK
WALL
MOUNT
BRACKET
STOP SCREW
CEILING
MOUNT
BRACKET
5/16x3/4"
BOLT, NUT
AND LOCK
WASHER
WALL MOUNT
BRACKET
STOP SCREW
1-1/8"
Wall Mount
1. The wall mount bracket should be fastened to wall
studs or some reinforcement within the wall. Concrete
or brick walls require special fasteners and anchors.
2. The wall bracket has holes spaced at 16" and 24" to
align with most wall studs.
3. The bracket must be level and plumb.
4. Keep in mind you will need at least 2-3/4" between the
ceiling and the top of the wall mount bracket to be
able to position the case on the bracket.
5. Mount the screen case on the wall bracket as shown
in figure 1. Be sure the case is fully seated on the
bracket. Tighten the stop screws against the wall
bracket.
Ceiling Mount
1. Be sure the ceiling has adequate reinforcement to
attach the screen brackets.
2. Attach the ceiling brackets to the wall mount bracket
using the supplied 5/16" x 3/4" bolts, washers and
nuts.
3. Position the ceiling bracket asssembly on the ceiling
and attach with 5/16" bolts (not supplied). The bolts
should be long enough to pass through the drywall or
ceiling tile and penetrate at least 1-1/2" into the
reinforcement in the ceiling.
4. Mount the screen on the wall bracket as shown in
figure 2. Be sure the case is fully seated on the
bracket. Tighten the stop screws against the wall
bracket.

TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE
CONTROL
Internal wiring has been completed at the factory. Installer must route power to the wall switch and to the junction box
located on the left end of the screen case.
See wiring diagram below for wire connections.
NOTE: This screen can only be controlled by a single 120VAC or 240VAC wall switch. To use multiple switches, an optional low
voltage control must be used.
UP
OFF
DOWN
THIS SWITCH CAN NOT
BE USED WITH LVC.

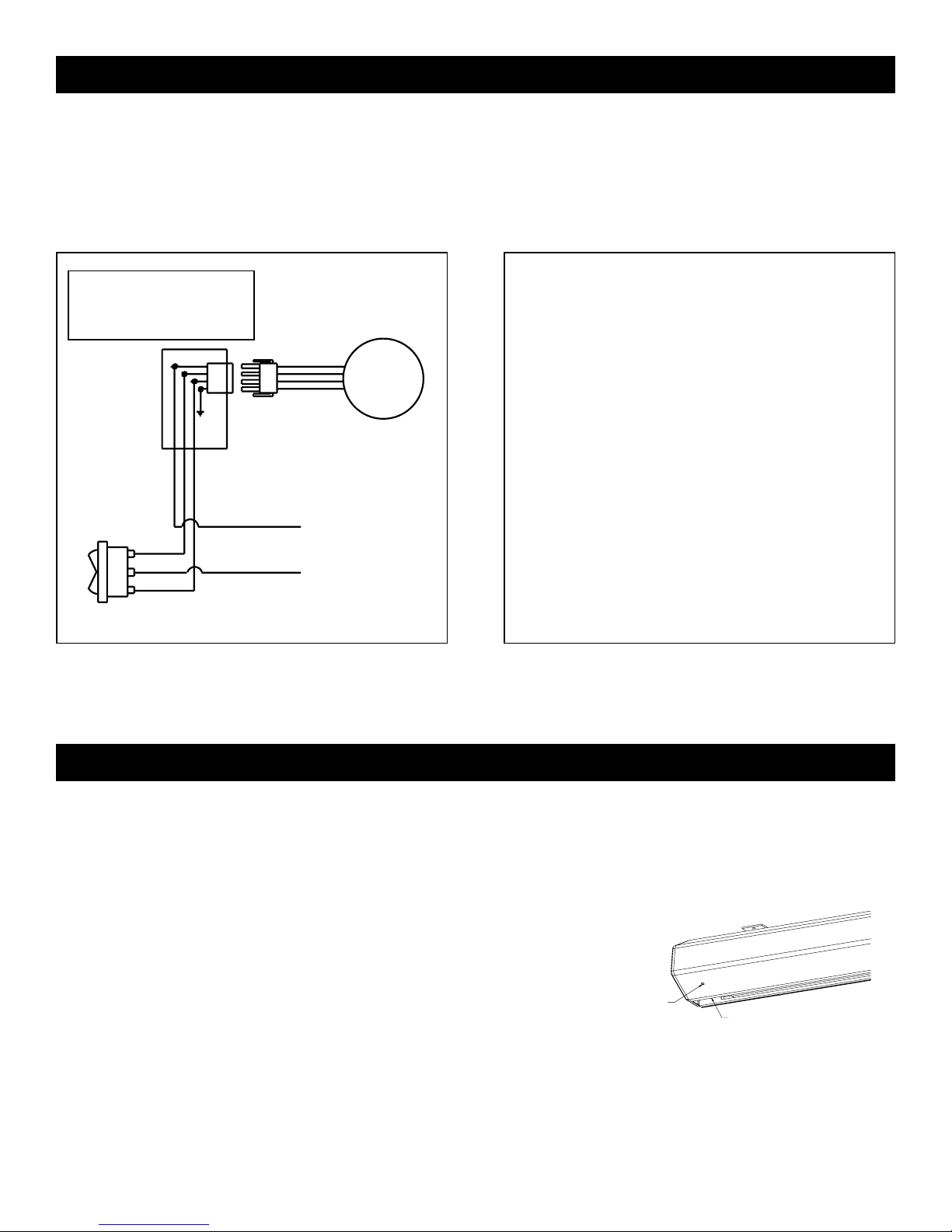

120V WIRING DIAGRAM
FOR STANDARD
WALL SWITCH
SPDT SWITCH WITH
CENTER OFF AC (COMMON)
AC HOT 120VAC 60HZ 1 AMP
BLACK/YELLOW
BLACK
RED
WHITE BLACK (DOWN) RED (UP)
JUNCTION BOX
LOCATED IN LEFT
ENDCAP
WHITE
BLACK
RED
GREEN
MOTOR
NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN
ONE SCREEN. CONTACT THE FACTORY FOR FURTHER
INFORMATION.
3
Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory.
No further adjustment is necessary.
If you need to make minor stop position adjustments see the appropriate step below.
SETTING THE DOWN LIMIT POSITION
NOTE: One turn of the limit screw equals approximately 2" of screen travel.
TO REDUCE SCREEN DROP:
Turn the down limit switch screw clockwise to decrease the
amount of screen drop. Run the screen down to test the stop
position. If the screen drops too far, raise the screen about one foot
and adjust the limit switch again. Repeat until the desired position
is set.
TO INCREASE SCREEN DROP:
Turn the down limit switch screw counterclockwise to increase the amount of screen drop. Run the screen down to
test the stop position. If the screen does not drop enough, raise the screen about one foot and adjust the limit
switch again. Repeat until the desired position is set. Do not adjust for more drop than what was ordered. At least
1-1/2 wraps of fabric must remain on the roller.
SCREEN ADjUSTMENT FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE CONTROL
UP LIMIT SWITCH ACCESS
THROUGH CASE OPENING
FIGURE 3
DOWN LIMIT
SWITCH
ACCESS HOLE
240 VOLT WIRING DIAGRAM FOR
STANDARD WALL SWITCH:
Da-Lite offers two styles of 240 volt
wall switches for standard operation.
Please see wiring diagram in wall
switch boxes included with screen.

4
SETTING THE UP LIMIT POSITION
CAUTION: Do not allow the slat bar to wrap over the top of the roller when the screen is rolling into the case. The screen could
be damaged.
SCREEN TRAVELS INTO CASE TOO FAR:
Turn the up limit switch screw clockwise to decrease the amount of travel. Run the screen up to test the stop
position. If the screen does not stop properly, lower the screen about one foot and turn the limit switch again.
Repeat until the desired position is set.
SCREEN DOES NOT TRAVEL FAR ENOUGH INTO CASE:
Turn the up limit switch screw counterclockwise to increase the amount of up travel. Run the screen up to test the
stop position. If more travel is desired, lower the screen about one foot and adjust the limit switch again. Repeat
until the desired position is set.
SCREEN ADjUSTMENT FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE CONTROL
s
!
TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITH A BUILT-IN LOW VOLTAGE
CONTROL

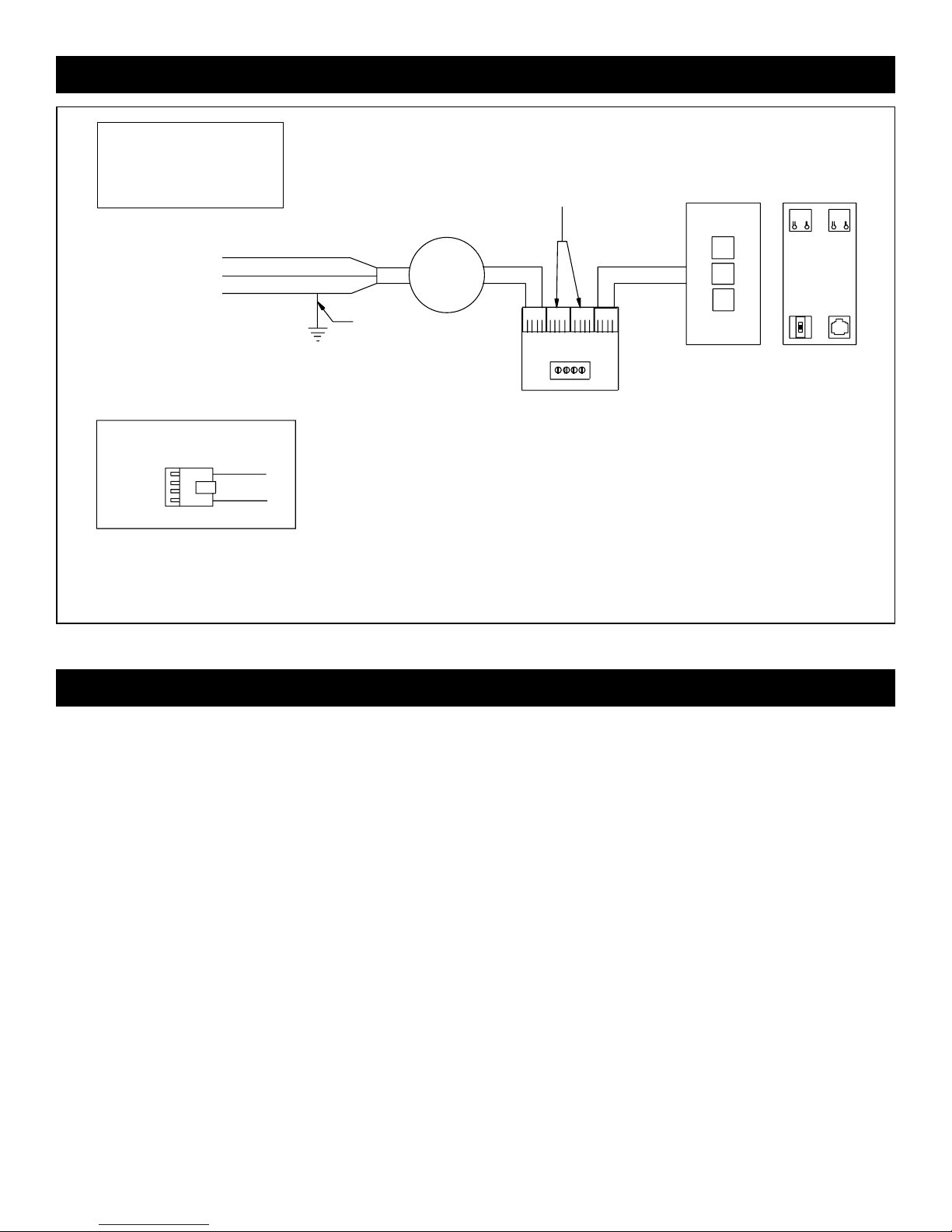

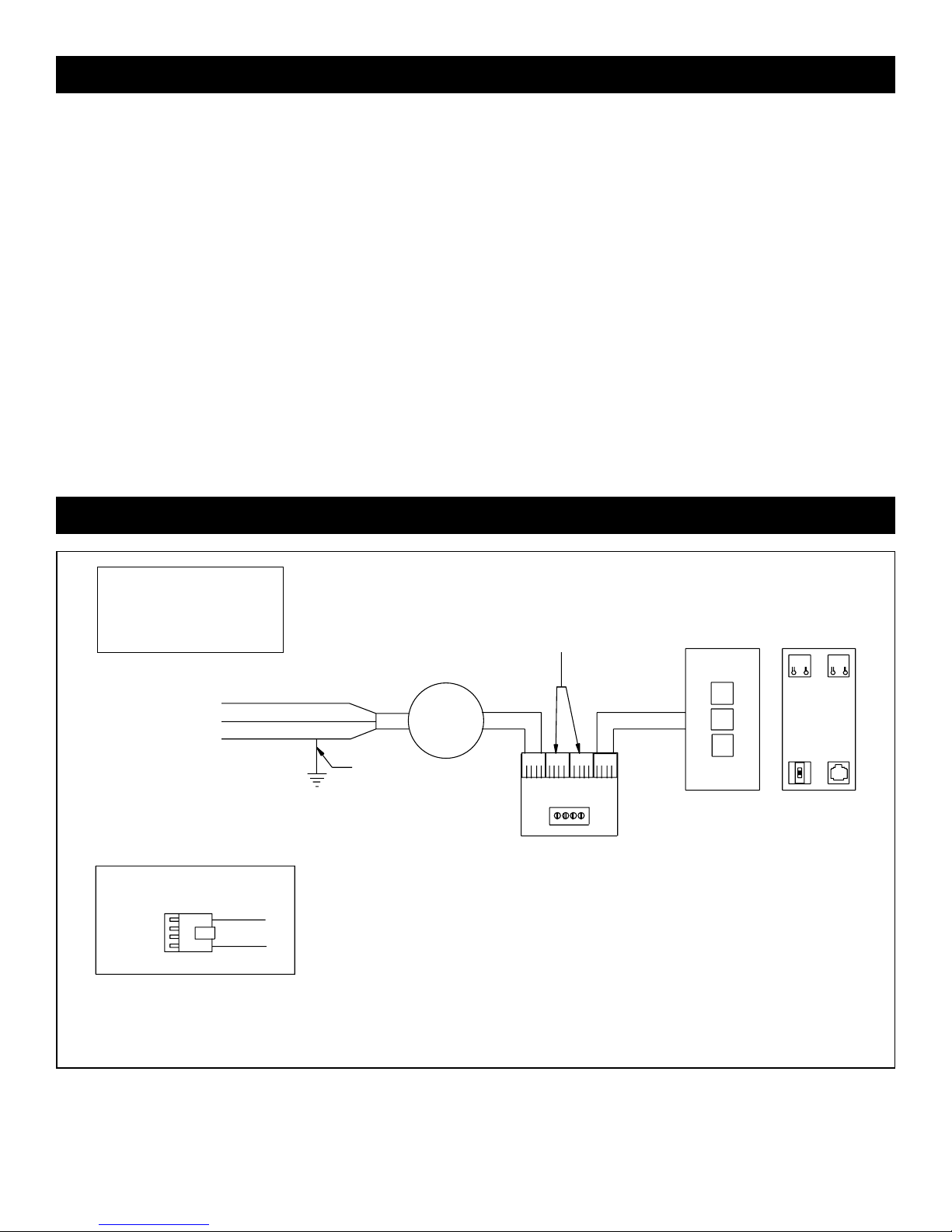

LOW-VOLTAGE WALL SWITCH
OPTIONAL IR AND RF
REMOTE CONTROL
MOTOR
WHITE (COMMON)
BLACK (HOT)
GREEN
GROUND TO CASE
120VAC 60HZ
120V WIRING DIAGRAM
WITH OPTIONAL BUILT-IN
LOW VOLTAGE CONTROL
SPLITTER
RJ9
UP
STOP
DOWN
GROUND–MUST BE
CONNECTED TO
BUILDING GROUND
RJ9
GREEN
FRONT BACK
UP DN GND +5V
3-POSITION
SWITCH RJ9
ILT RJ9 PIN-OUTS
(TAB IS FACING UP)
IR or UP BLACK
GND COMMON RED
+5V GREEN
DN or DATA WHITE
UP +5V COM DN
DRY CONTACTS
FIGURE 4
IMPORTANT NOTE: The wall switch is REQUIRED to make any limit
switch adjustments, EVEN if a third party control
system is used. Therefore, it is advised to wire the
switch or provide a 4-conductor connection that is
accessible.

5
TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITH A BUILT-IN LOW VOLTAGE
CONTROL
SCREEN ADjUSTMENT FOR SCREENS WITH A BUILT-IN LOW VOLTAGE CONTROL
1. Remove the cover plate from the 3-button wall switch and remove the switch from the junction box.
2. Locate small 3-position switch on back of wall switch. See Figure 4 for 120V screens or Figure 5 for 220/240V
screens.
3. To adjust the down limit switch, slide the 3-position switch to the down position. Press and hold the down button
to run the screen down to the desired stop position. Release the button to stop the screen. DO NOT PUSH THE
STOP BUTTON.
4. When the screen is in the desired down position, slide the 3-position switch to the off (center) position. The down
limit switch is now set.
5. To adjust the up limit switch, slide the 3-position switch to the up position. Press and hold the up button to run the
screen up to the desired stop position. Release the button to stop the screen. DO NOT PUSH THE STOP BUTTON.
6. When the screen is in the desired up position, slide the 3-position switch to the off (center) position. The up limit
switch is now set.
7. To test limit switch setting, make sure the 3-position switch is in the off (center) position. Press and release the up
or down button on the wall switch to operate the screen.
8. Replace switch and cover plate on the wall.
NOTE: If stop button is pressed, the wall switch will reverse direction. To correct this, press the stop button again. This
will reset the switch. You will have to re-set both the up and the down settings.
IMPORTANT NOTE: The wall switch is REQUIRED to make any limit switch adjustments, EVEN if a third party control
system is used. Therefore, it is advised to wire the switch or provide a 4-conductor connection that is
accessible.
LOW-VOLTAGE WALL SWITCH
OPTIONAL IR AND RF
REMOTE CONTROL
MOTOR
BLUE (COMMON)
BROWN (HOT)
GREEN
GROUND TO CASE
240VAC 50HZ
240V WIRING DIAGRAM
WITH OPTIONAL BUILT-IN
LOW VOLTAGE CONTROL
RJ9
UP
STOP
DOWN
GROUND–MUST BE
CONNECTED TO
BUILDING GROUND
RJ9
GREEN
FRONT BACK
UP DN GND +5V
3-POSITION
SWITCH RJ9
ILT RJ9 PIN-OUTS
(TAB IS FACING UP)
IR or UP BLACK
GND COMMON RED
+5V GREEN
DN or DATA WHITE
DRY CONTACTS
SPLITTER
UP +5V COM DN
FIGURE 5
IMPORTANT NOTE: The wall switch is REQUIRED to make any limit
switch adjustments, EVEN if a third party control
system is used. Therefore, it is advised to wire the
switch or provide a 4-conductor connection that is
accessible.

TROUBLESHOOTING
SYMPTOM
1. Screen will not operate.
Motor does not hum.
2. Incorrect stopping position in
downward direction.
3. Incorrect stopping position in
upward direction.
4. Noise.
NOTE: Screen will operate with a
low pitched hum.
5. Coasting.
CAUSE
(a) Blown fuse.
(b) Tripped circuit breaker.
(c) No power to operating switch
or junction.
Power at junction box
(d) Thermal overload tripped.
(e) Broken wire in the “down” or “up”
position.
(f) Defective motor, limit switch or
capacitor.
(g) Capacitor burned out.
(a) Lost roller wrap.
(b) “Down” limit switch out of
adjustment
(a) Lost roller wrap.
(b) “Up” limit switch out of
adjustment
(a) Gear Noise.
(a) Defective brake.
SOLUTION
(a) Replace fuse.
(b) Reset circuit breaker.
(c) Check above. Tighten all loose
wire connections. Correct any
improper connections.
“Down” Position
Check for power across black
and white leads.
“Up” Position
Check for power across red
and white leads.
(d) Let motor cool down for 15
minutes. Try again.
(e) Check for continuity. Cut off old
splice and reconnect.
(f) Replace motor assembly.
NOTE: Motor is a sealed assembly.
(g) Replace motor assembly.
(a) See instructions below.
(b) See installation instructions.
(a) See instructions below.
(b) Adjust “up” limit switch. See
installation instructions
(a) Replace motor assembly.
(a) Replace motor assembly.
6

LIMITED ONE YEAR WARRANTY
ON DA-LITE PRESENTATION PRODUCTS
Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from
defects in materials and workmanship for a period of one (1) year from the date of purchase by
the original purchaser provided they are properly operated according to Da-Lite’s instructions and
are not damaged due to improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental
damage, or which has been tampered with or repaired by a person other than authorized Da-Lite
personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)
the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer.
If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses
to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in
shipment. To protect yourself against damage or loss in transit, insure the product and prepay all
transportation expenses.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied
warranties of fitness for use, or merchantability, that may be mandated by statute or rule of law
are limited to the one (1) year warranty period. This warranty gives you specific legal rights, and
you may also have other rights, which vary from state-to-state. NO LIABILITY IS ASSUMED
FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF
EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY
NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may
contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, [phone], [phone].
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE
BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH
DA-LITE’S WRITTEN INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
Printed in U.S.A. 98770 Rev. 7/09
7
