dacell DN-330 User manual

DIGITAL INDICATOR
USER’S MANUAL
DN-330 (VER 1.0)
DN-340 (VER 1.0)
DACELL CO.,LTD.
Address : 37-9 Cheoksan 5gil ,Nami - Myeon , Seowon-Gu, Cheongju-city , Chung-
Buk,Korea
TEL : [phone]
FAX : [phone]
http://www.dacell.com
E-Mail : [e-mail]

1
TABLE OF CONTENTS
1. Features ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2
1-1. Calibration Method ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2
1-2. Comparison Output ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2
1-3. Data Back-up ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2
1-4. Watch dog ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2
2. Precautions ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 3
2-1. Precautions for Installation ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 3
2-2. Precautions for Use ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 3
3. Specification ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 4
4. Front Panel ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 5
5. Rear Panel ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 6
6. Wiring Diagram ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 8
7. Components and Function ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 10
7-1. Flow Chart ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 10
7-2. How to Use Hold mode ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 11
8. Setting mode ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 13
8-1. Type and Use of Setting mode ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 13
8 - 2. Function mode ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 14
1) How to set function ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 14
2) How to set Relay Output Value ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 14
8-3. Digital calibration Calibration by sensor output ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 21
8 - 4. Actual load calibration ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 22
8-5. Lock Set-up⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 23
9. Product Inspection ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 24
10. OPTION
Option 02 (RS232C) ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 25
Option 03 (RS485) ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 27

2
1. Features
Thank you for choosing our product. Please refer to this manual or contact us if any
problems occur during use.
This product is an indicator that amplifies the micro voltage signal from various
sensors to display them digitally. It is mainly used to measure physical quantities at
objects using strain gage such as load cells, pressure sensors, displacement sensors,
torque sensors, etc. This product has the following features.
1-1. Calibration Method
Two types of calibration methods are applied: actual load (standard load) calibration
and digital calibration (calibration by rated output of sensor).
1-2. Comparison Output
Set the maximum and lower limit using the keys on the front panel and output contact
point signal of the rear panel.
1-3. Data Back-up
All settings will be remembered in the Flash Memory so all input data can be saved
and no reset needed even in the event of power failure or power interruption.
1-4. Watch dog
Auto reset is enabled at system shutdown due to external factors such as noise.

3
2. Precautions
Make sure to read and observe the following precautions to ensure the performance
and safe use of this product.
Use of this product for any other purpose of use or to attempt to make any alteration to
this product is strictly prohibited.
2-1. Precautions for Installation
•Keep away from wet areas (low humidity).
•Do not install near areas with risk of vibration or shock, high temperature or humidity.
Keep out of direct sunlight. Install where there is less dust and no ions or salt in the
air.
•Do not use in places in which flammable gases or vapors or combustible dusts are
present.
•Always use a grounded terminal ( ).
•Do not interconnect wiring with power system or noisy wires.
•Use a four-wire shield cable for sensors. Longer cables may lead to measurement
error due to wiring resistance. Always keep the length of cable within 10m.
2-2. Precautions for Use
During actual calibration, wait for the product to stabilize before pressing the ENTER
key at no-load and actual load. Pressing the Enter key without waiting may cause a
calibration error.
Avoid accidental pressing of any key during use. For detailed information on the
function and use of key, refer to this manual.

4
3. Specification
Spec.
Model
DN-340,DN330
DSC40
SIGNAL - 1 ~ 3mV/V
ANALOG OUT DC 0~10V (4 ~ 20mA option) -
EXCITATION - 5V
Pressure Sensor
count - 4 Channel
Available
Sensors - Stainless gauge sensor
(bridge 350Ω, 700Ω)
Display range Individual display: -1999 ~ +9999
Sum display: -19999 ~ +99999 -
A/D converter - 24 bit
D/A converter 16 bit -
Temp.
ZERO - 0.5μV/℃
SPAN - 50ppm/℃
Measurement
display
Individual display:7 segment LED
8mm
Sum display:7 segment LED 14mm
-
Status LED Red LED 6 EA -
Key switch 4 EA -
Comparison
output
Upper limit (HI), lower limit (LO),
normal (OK)
Output (4 Relay)
-
Contact capacity AC 250V 5A -
Temperature -10℃~ 60, 80% RH or less -10℃~ 60, 80% RH or less
Weight about 600g about 700g
Power supply AC 90 ~ 240V, 50/60㎐DC 8~12V, 2W
CABLE GRAND - Ø8mm cable grand 5 EA
OPTION RS232C or RS485 -
Outer diameter 97×97×141 mm (W×H×D) 125×80×58 mm (W×H×D)
Panel Cutting Size
92.5 × 92.5 mm -

5
4. Front Panel
①Sum display: Displays 4CH sum, or setting value.
②1CH Display: Displays the current value of 1CH.
③2CH Display: Displays the current value of 2CH.
④3CH Display: Displays the current value of 3CH.
⑤4CH Display: Displays the current value of 4CH.
⑥Relay status: This LED illuminates when the measured value exceeds the setting.
⑦HOLD display LED: Illuminates when the measured value is in HOLD mode.
⑧MOD LED: Illuminates when the measured value is stable.
⑨ZERO/SPAN setting VR: Used to adjust the ZERO and SPAN of Analog output (DC
0~10V or 4~20mA).
⑩
Measuring Mode: If this key is pressed for longer than 1 second, the current reading
will be zero (1); Analog output is 4mA as well.
Set-up Mode: If this Key is pressed at Function Setting mode, it will return to
Measuring Mode.
⑪
Measuring Mode: If this Key is pressed, the comparison output is displayed and can
be changed.
Set-up Mode: Moves the row of flashing numbers.
⑫

6
Set-up Mode: Increases the flashing number by 1 digit.
⑬
Set-up Mode: Saves each setting.
***DN-330 : 3CH Total indicator
1.:Sum display: Displays 4CH sum, or setting value
2. 3, 4 : Displays the current value 1ch,2ch,3ch
5.:
Relay status
6.:
HOLD display LED
7.:
MOD LED
The other functions are the same DN-340.

7
5. Rear Panel
To connect wiring, check for the position and use of terminals and insert the cable
completely into the lower hole of the terminal block while the upper button is being
pressed. Check if any cable is missing by pulling the cable slightly.
(The recommended length of cable is Φ 0.5 to1. Use stranded wires and tie the ends of
several stranded wires with lead or use one terminal.)
①AC-L,N: Power connection terminal
②: Earth terminal (independent ground connection)
③OUT,GND: Analog (DC 0 ~10V/DC 4 ~ 20mA) output terminal
④EXC+: DSC40 supply voltage + connection terminal (+15V)
⑤EXC-: DSC40 supply voltage - connection terminal (-15V)
⑥SERIAL INTERFACE
RS232C : GND (COM), TXD (TXD), RXD (RXD)
⑧TXD2, RXD2:DSC40 communication terminal
⑨GND: External output common terminal
⑩IN1: External HOLD input terminal
⑪IN2: External ZERO input terminal

8
⑫IN3: N/A
⑬IN4: N/A
⑭COM: RELAY Output common terminal
⑮RY1: RELAY1 (Hi) output terminal
16 RY2: RELAY2 (Lo) output terminal
○
16E
ARY3: RELAY3 (Ok) output terminal
A○
17E
ARY4: RELAY4 output terminal
◀CAUTION▶
1. Always turn off the system before wiring.
2. Use a thick grounded terminal ( ) to prevent impulse voltage or surge and use an
independent ground connection if possible.
(Thick grounded terminals must be used in noisy area. If an independent ground
connection is not used, it may be greatly influenced by noise.)
3. Ensure the terminal is functional to prevent mis-operation before wiring.
4. We assume no liability for any accident resulting from disassembly or modification
without obtaining prior approval from the manufacturer. This will void your warranty.

9
6. Wiring Diagram
< Wiring Diagram >
< Example of External Input PLC Connection >

10
<DSC-40 Internal Wiring Diagram>
<DSC-30 Internal Wiring Diagram>

11
7. Component and Function

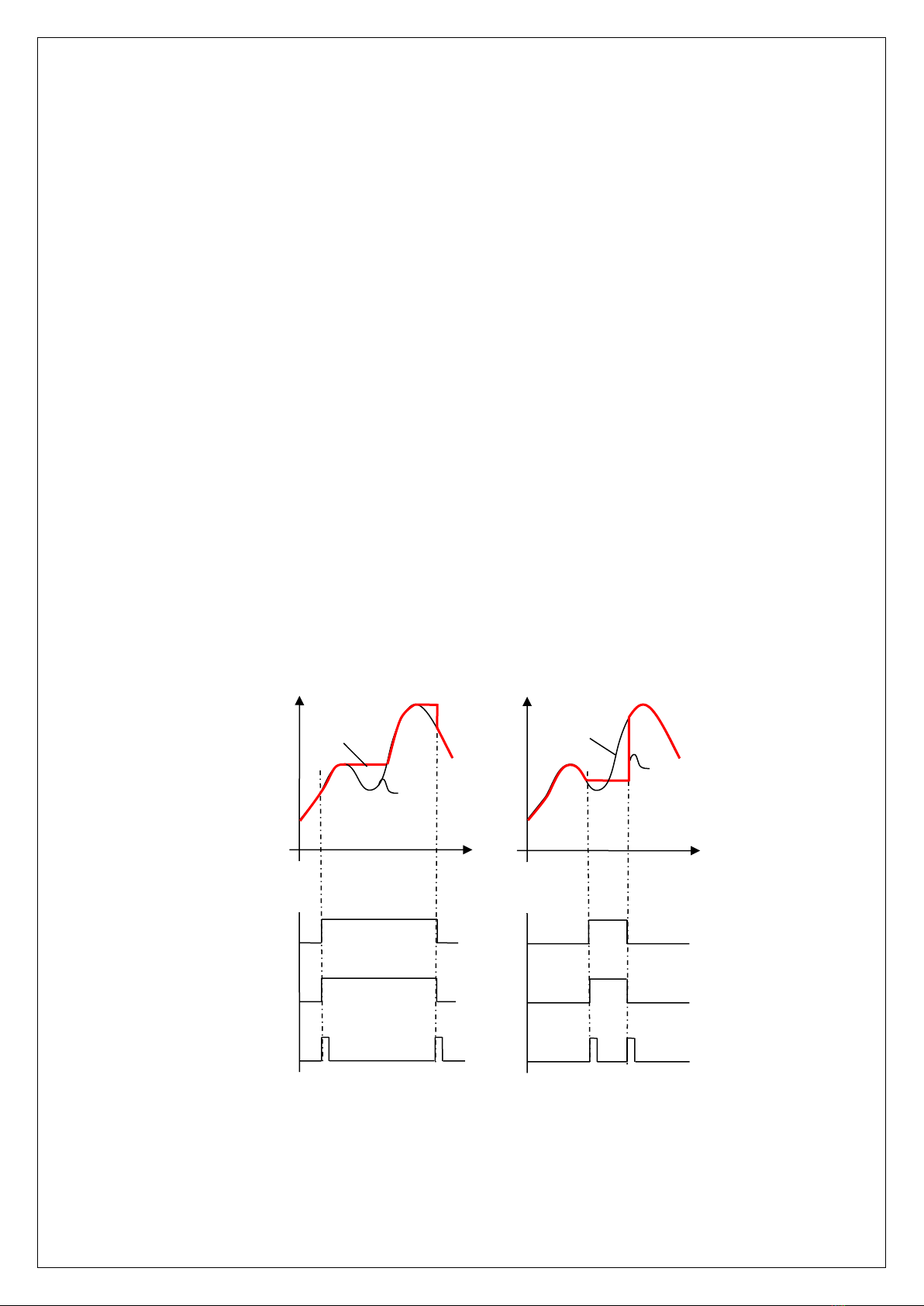

7-1. How to Use Hold mode
Hold mode is mainly classified into Peak Hold and Sample Hold and according to the
intended use (High Speed, Low Speed), Analog, Digital, or Display Hold can be
selected.
Hold mode can be used by using the Hold key at the front panel or by the external input.
For operation method, see the following figure.
1) Sample hold: Hold and display the value at the Hold signal input among measured
values.
·Display sample hold mode: Operate in Low Speed sample hold.
2) Peak Hold: Hold the maximum (peak) value during the hold signal input among
measured values.
·Display peak hold mode: As the low speed Peak hold, hold and display the maximum value
in the normal direction (+).
Measured Value
Time
②
Measured Value
Time
①
②
Front Panel
HOLD LED
External HOLD
Input terminal
Front Panel
HOLD Key
<Peak Hold> <Sample Hold>

12
7-2. How to Use Comparison Output Function
In comparison output function, there are 3 different modes such as Decision, High
limit, and Low limit. It displays each setup value (comparison output) at the Relay of the
rear panel.
In High limit and Low limit modes, Hysteresis can be used.
To set the upper limit (High) and lower limit (Low), please use the key on the front
panel.
1) Decision mode: Measured Value ≤Lower limit ⇒RY1 ON (LO)
Measured Value ≥Upper limit ⇒RY2 ON (HI)
Lower limit < Measured Value < Upper limit ⇒RY3 ON (OK)
2) High limit mode: Measured Value ≥1st Setting Value ⇒RY1 ON
Measured Value ≥2nd Setting Value ⇒RY2 ON
Measured Value ≥3rd Setting Value ⇒RY3 ON
Measured Value ≥4th Setting Value ⇒RY4 ON
Measured Value < 1st Setting Value - Hysteresis value ⇒RY1 OFF
Measured Value < 2nd Setting Value - Hysteresis value ⇒RY2 OFF
Measured Value < 3rd Setting Value - Hysteresis value ⇒RY3 OFF
Measured Value < 4th Setting Value - Hysteresis value ⇒RY4 OFF
3) Low limit mode: Measured Value ≤1st Setting Value ⇒RY1 ON
Measured Value ≤2nd Setting Value ⇒RY2 ON
Measured Value ≤3rd Setting Value ⇒RY3 ON
Measured Value ≤4th Setting Value ⇒RY4 ON
Measured Value > 1st Setting Value + Hysteresis value ⇒RY1 OFF
Measured Value > 2nd Setting Value + Hysteresis value ⇒RY2 OFF
Measured Value > 3rd Setting Value + Hysteresis value ⇒RY3 OFF
Measured Value > 4th Setting Value + Hysteresis value ⇒RY4 OFF
4) Low & High limit mode
Measured Value ≤1st Setting Value ⇒RY1 ON
Measured Value ≤2nd Setting Value ⇒RY2 ON
Measured Value ≥3rd Setting Value ⇒RY3 ON
Measured Value ≥4th Setting Value ⇒RY4 ON
Measured Value > 1st Setting Value+ Hysteresis value ⇒RY1 OFF
Measured Value > 2nd Setting Value+ Hysteresis value ⇒RY2 OFF
Measured Value < 3rd Setting Value - Hysteresis value ⇒RY3 OFF
Measured Value < 4th Setting Value- Hysteresis value ⇒RY4 OFF

13

14
8. Setting Modes
8-1. Type and Use of Setting Mode
In Setting mode, there are three modes: Function mode, Digital calibration mode, and
Actual load calibration mode.
Measuring Mode
While key
is pressed,
press key.
Function mode
END
①
Digital calibration
mode
END
②
END
③
Actual load
calibration mode
①Function mode
Access each function setting mode. See 8-2 Function Mode.
②Digital calibration mode
Calibrate into output value of sense. See 8-3 Calibration Method.
③Actual load calibration mode
Use actual load (standard load) to calibrate. See 8-4 Calibration Method.

15
8-2. Function mode
1) How to Set Function
Measuring Mode
While key
is pressed,
press key.
END

16
2) How to set RELAY Output Value
①Decision mode (Decision Mode: mode 0)
Press the front Lo and Hi key for value setting and then ENT key.
②Limit mode (Comparison Output Mode: mode 1 ~ 3)
Measuring Mode
Press key.
END
Value
setting

17
# Function mode list #
Name
Function
Setting
Default
F-01 Decimal point 0, 1, 2, 3 1
F-02 Division 1, 2, 5, 10, 20, 50 1
F-03 Display filter 10, 20, 30, 40 10
F-04 Hold mode Display SH, Display PH(+) Display Sample hold
F-05 Comparison mode Decision, High limit, Low limit,
Low&High limit Decision
F-06 Hysteresis 0 ~ 99 0
F-08 DAC capacity -19999 ~ [phone]
F-09 ID Number 0 ~ 32 0
F-10 Baud rate & PRINT 2400, 4800, 9600, print 9600
F-11 Auto zero tracking 0 ~ 99 0
F-12 Auto zero tracking time 0.0 ~ 5.0 sec 0.0
F-13 dummy CH1 ~ CH4 0000
F-14 Key disabling Zero key, Lo key, Hi key, Hold key 0000

18
F-01. Decimal point (Decimal point setting)
(Default: 1)
Display data Setting
0 00000 : No decimal point
1 0000.0 : One decimal place
2 000.00 : Two decimal place
3 00.000 : Three decimal place
F-02. Division (Minimum display unit setting)
(Default: 1)
Display data Setting
1 Displayed in 1 (0, 1, 2, 3, 4 …….)
2 Displayed in 2 (0, 2, 4, 6, 8 …….)
5 Displayed in 5 (0, 5, 10, 15 …….)
10 Displayed in 10 (0, 10, 20, 30 …….)
20 Displayed in 20 (0, 20, 40, 60 …….)
50 Displayed in 50 (0, 50, 100, 150 …….)
F-03. Display filter (Display speed setting)
(Default: 10)
Display data Setting
0 No filter.
10 Average 1sec
20 Average 2 sec.
30 Average 3 sec.
40 Average 4 sec.
F-04. Hold mode
(Default: 1)
Display data Setting
0 Digital sample Hold : Hold the display at the hold signal input.
1 Display Peak Hold : Hold the display peak during the hold signal input.

19
F-05. Comparison mode (Comparison Output Mode setting)
(기준설정값: 0)
Display data Setting
0 Decision mode : Relay RY1(Lo), RY2(Hi), RY3(Ok) Output
1 High limit mode : Relay RY1, RY2, RY3, RY4 Output
2 Low limit mode : Relay RY1, RY2, RY3, RY4 Output
3 Low & High limit mode : Relay RY1, RY2, RY3, RY4 Output
F-06. Hysteresis
(Default: 00)
Display data Setting
00 00 : Hysteresis Not Used
~
99 01 ~99 : Hysteresis Used (Decision mode is not applied)
F-08. DAC capacity (Analog output value setting)
(Default: 10000)
Display data Setting
-19999 Set the rated capacity of analog output.
<Example of Setting Value and Output>
Setting
Voltage Output (±10V) Current Output (4 ~20mA)
Display
value Output Display value Output
+10000
-10000 -10V 10000 -
0 0V 0 4mA
+10000 +10V +10000 20mA
-10000
-10000 +10V -10000 20mA
0 0V 0 4mA
+10000 -10V +10000 -
1
~
+99999
F-09. ID Number (Communication Device Number Setting)
(Default: 00)
Display data Setting
00 00 : No device number setting (Stream mode: regular data transmit)
~
32 01 ~32 : Device number setting (Command mode: Data transmit by command)
