DAEWOO ELECTRONICS CO., LTD.
Service Manual
Split System Air
Conditioner
Model: DSA-101L
DSA-121L
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
S/M No. :DSA101L010

CONTENTS
1. Specifications..........................................................................................................2
2. Outline and Dimensions.........................................................................................4
3. Operation.................................................................................................................7
4. Wiring Diagram.....................................................................................................18
5. Refrigerant Cycle..................................................................................................20
6. Control Block Diagram .........................................................................................21
7. Electric Circuit Diagram........................................................................................22
8. Trouble Shooting...................................................................................................24
9. Key Components of Electronic Circuit.................................................................43
10. Disassembly Instructions .....................................................................................46
1) Indoor Unit........................................................................................................46
2) Outdoor Unit.....................................................................................................47
3) Exploded Diagram (Indoor Unit)......................................................................49
4) Exploded Diagram (Outdoor Unit)...................................................................52
5) Control Box Assembly......................................................................................56
Contents

2
1. SPECIFICATIONS
MODEL DSA-101L
ITEM
Function Cooling
Class T
Power AC 208~230V / 60Hz
Capacity W 2,923
Btu/h 10,000
Dehumidification l/h 1.28
Running Current A 5.1
Power Input W 1,110
Starting Current A 27
Type Rotary
Model RCA 100A001
Capacitor 25µF / 400VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µ F 400VAC 2.0µF 400VAC
Motor Model Number IC-8428DWKG7C IC-9630DWLA6B
Control Capillary
Charge Q'ty g 1,150
Type Flare
OD (Liquid/Suction) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 925 x 285 x 194 666 x 552 x 264(Before)
654 x 549 x 256(After)
Net Weight kg 9.7 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
¡DSA-101L

3
MODEL DSA-121L
ITEM
Function Cooling
Class T
Power AC 208~230V / 60Hz
Capacity W 3,507
Btu/h 12,000
Dehumidification l/h 1.53
Running Current A 5.89
Power Input W 1,280
Starting Current A 34
Type Rotary
Model RCA 120A001
Capacitor 30µF / 400VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µ F 400VAC 2.0µF 400VAC
Motor Model Number IC-8428DWKG7C IC-9630DWLA6B
Control Capillary
Charge Q'ty g 1,200
Type Flare
OD (Liquid/Suction) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 925 x 285 x 194 666 x 552 x 264(Before)
654 x 549 x 256(After)
Net Weight kg 9.7 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
¡DSA-121L

4
REMOCON
Filter - L Filter - R
Grille Insert
Frame Grille
Body
Plate Mounting
Connecting Pipe
Plate Mounting
406
194
285
925
REMOTECONTROLLER
¡DSA-101L/DSA-121L 2. OUTLINE AND DIMENSIONS
1
INDOOR UNIT

5
256
549
654
2
OUTDOOR UNIT
¡DSA-101L/DSA-121L (After)
Inlet
Inlet
Outlet
Outlet
Foot
Foot Cushion
Handle
Cabinet Side Panel Top Guide Support
Service Valve
Cabinet Front

6
Cabinet SideHandleCabinet Front Foot
264
334
Panel Top Cabinet Back
552
572
Inlet
AIR
Inlet
Outlet
Foot Cushion
Service Valve
666
¡DSA-101L/DSA-121L (Before)

7
1
PARTS OF NAME AND FUNCTION
3. OPERATION
Indoor Unit
¡DSA-101L/DSA-121L
Power Plug
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Electrostatic Filter Deodorizing FilterAir Inlet
Antibacterial
Filter Air Outlet Fan Direction (Up, Down)
Remote Controller
Remote
Controller
Receiver
Lamp
REMOTECONTROLLER

8
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Remote Control Signal Receiver
This place is the part to receive the signal if it
receive the signal, you can hear the signal
"beep, beep".
Timer (Yellow)
Lights during the time
reservation mode.
ON (Red)
Lights when the
operation is
going on.
■There is a switch panel at inside of Front
Panel. At the time of operating, open the
Front Panel.
Air clean (Green) Quick(Red)
Indoor Unit Display Switch Panel
EMERGENCY REMOTE
ON AIR CLEAN QUICK TIMER
Remote switch is usally used by Remote
Controller.
Emergency switch can be used when the remote
controller is lost or testing.
¡DSA-101L/DSA-121L

9
Outdoor Unit
¡DSA-101L/DSA-121L (After)
Air Inlet (Side Back)
Connection Wire
Connecting Pipe
Drain Hose
Air Outlet

10
AIR
Air Inlet (side Back)
Air Outlet
Connection
Wire
Connecting
Pipe
Drain Hose
Outdoor Unit
¡DSA-101L/DSA-121L (Before)
NOTE:
How to remove Top Panel
1. Loosen the screw at left and right side.
2. Push the three parts op Front and Back sides like figure orderly.
3. Unhook the locking parts of Top Panel.
The front locking parts
FRONT SIDE BACK SIDE
The back locking parts

11
Name of Each Button
2
REMOTE CONTROLLER
¡DSA-101L/DSA-121L
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
Display
Displays information
pertaining to unit.
TURBO/MILD
Press to be colder the unit.
TIMER ENTER/CANCEL Button
Press to enter a timer setting or
to cancel timer setting
TIMER ON/OFF Button
Press to set the unit of or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)
MODE Button
Press to cycle through the modes
(Auto/Quick/Cooling/Fan/Dry)
SLEEP Button
Press to set the unit for
the sleep mode.
FAN DIR.
FAN DIR. Button
Press to select up/down
direction for fan.
ON/OFF Button
Press to turn the unit
on or off.
TEMPERATURE Buttons
Press to raise or lower
the desired temperature.
FAN SPEED Button
Press to select the fan speed
(High " ", Middle " ",
Low " ").
COVER
Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.
AUTO
REMOTE CONTROLLER

12
Replacing Batteries
3
REMOTE CONTROLLER DISPLAY
Open the cover after
pressing the arrow
direction and pulling out.
Put the drycell by ●● + ●● -
direction. Close the cover after pushing into arrow
direction.
123
REMOTE CONTROLLER
+–
+–
REMOTE CONTROLLER
¡DSA-101L/DSA-121L
MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier)
Lights to indicate the mode selected.
TIMER Indicators (Include sleep)
Lights to indicate the timer function mode.
TEMPERATURE & RESERVATION TIME lndicator
Lights to indicate the temperature or time.
FAN DIRECTION Indicators
Lights to indicate the
fan direction.
NATURAL Indicator
Lights to indicate the
speeds simulating a loreeze.
FAN Indicators
Lights to indicate
the fan speed.
AUTO

13
If you set time in OFF-Timer Mode, the unit will stop at the set time.
If you set time in ON-Timer Mode, the unit will run at the set time.
(1) Range of setting temperature: 18~32°C
(2) Setting temperature: Operating temperature of compressor
If the Indoor Unit Display receive the signal of Remote Controller, you can hear the signal "beep –" or "beep,
beep".
(1) In the case of receiving ON/OFF signal-"beep""beep"
(2) And so on-"beep"
OFF-Timer
4

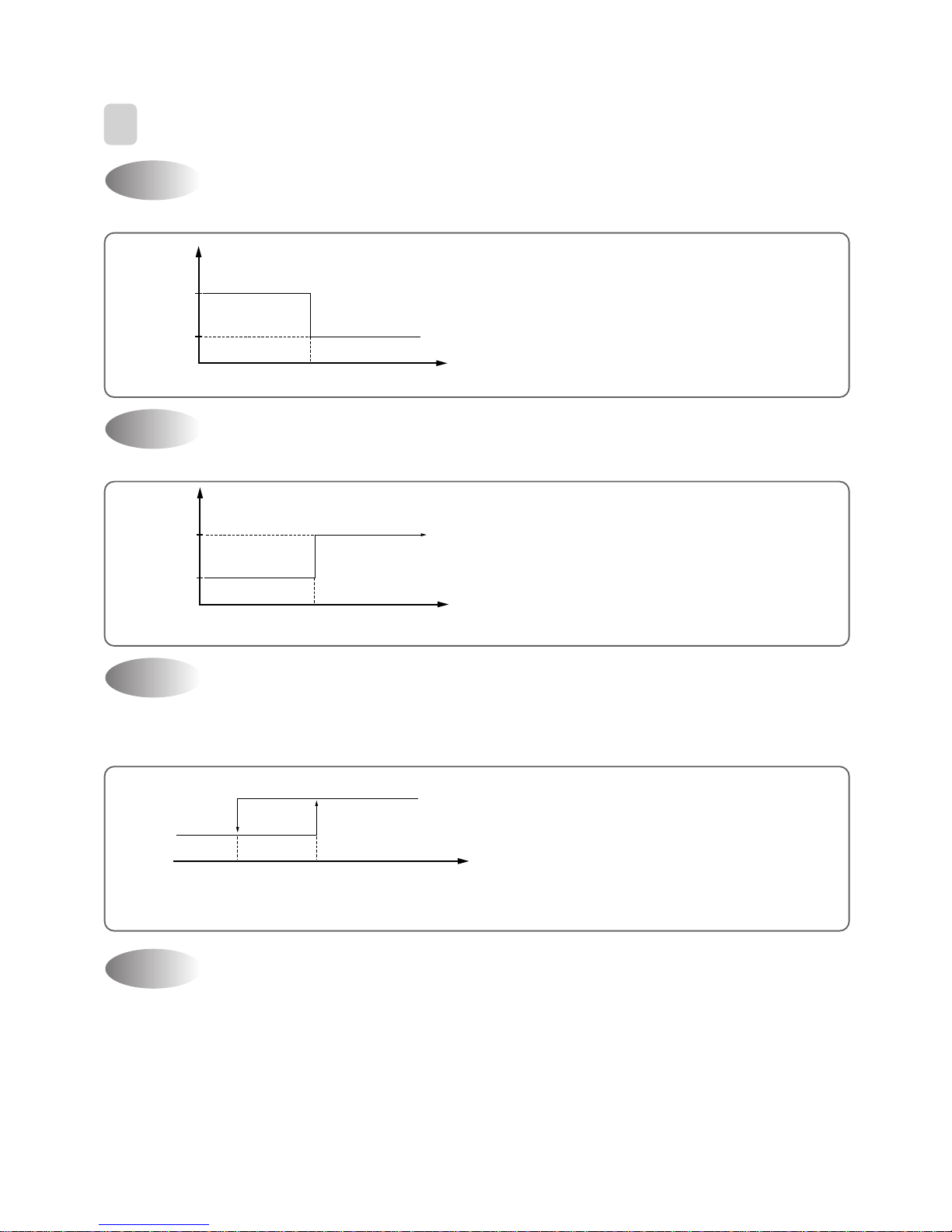

DESCRIPTION OF FUNCTIONS
Unit ON
Unit OFF
SET Time HOUR
ON
OFF
ON-Timer
Unit ON
Unit OFF
SET Time HOUR
ON
OFF
Control of Room Temperature
Buzzer
COMP (ON)
(COOLING)
Desired temperature
COMP (OFF)
-1˚C Temperature
¡Room temperatrue
< setting temperature
Compressor OFF
Room temperature
> setting temperafure
Compressor ON
(
(

14
(1) When you are going to sleep, select sleep switch and the unit controls the room to the desired temperature.
(The unit will not operate after 4 hour)
(2) For changing the temperature.
Sleep Mode
0 0.5 1.0 HOUR
SET TIME
Desired
Difference
desired temperature
between room
temperature (°C) 0.5°C0.5°C0.5°C
Temperature
Fan Speed (Indoor Unit)
(1) Motor speed (Super high speed, high speed, normal speed, low speed, ultra low speed).
(2) Remote controller setting fan speed. (Auto, L, M, H, Natural)
(3) Relation of operating mode between fan speed.
(4) Automatic Operation
If the unit is set in 'AUTO' mode, the unit operates automatically according to the room temperature to keep the
room temperature comfortable.
FAN ONLY COOL DEHUMI- AUTO QUICK
DIFICATION
HHHLHH
MMMLMH
LLLLLH
Auto Auto Auto L Auto H
Natural Natural Natural L Natural H
0°C
L
M
H
1°C2°C
(R.T-D.T)
(D.T)
(COOLING)
R.T=Room temperafure
D.T=Desired temperafure

15
(1) When the remote controller is lost, damaged or the battery is discharged, the Emergency operation can be
used to run the unit.
(2) The setting conditions of Emergency operation are as follows.
• Operation mode: AUTO
• Preset temperature: 26°C
• Fan speed: LOW
¡You cannot operate with remote controller.
Emergency Operation
Frost Prevention of Indoor Unit
When the unit operates at low ambient temperature, frost may appear on the Evaporator. When the indoor coil
temperature is lower than 0°C at the end of 10 minutes of continuous compressor operation from the start, the
microcomputer of the unit stops the compressor to protect the unit from the frost. The control procedure for
indoor coil freeze protection.
1) The compressor and outdoor fan turn off.
2) Indoor fan operates according to user set speed.
3) The normal operation returns when the indoor coil temperature is higher than 7°C or equal to 7°C.
0°C7°C
Compressor and
Outdoor Fan OFF
OFF
ON
Set Speed
Indoor Fan
(Indoor coil temperature)
3 min. Time Delay of Compressor
In normal operation, there is a time delay of three minutes between turn off and turning back on including initial
power up.

16
Dehumidification Mode
Air Discharge Direction(only remocon operation)
The air discharge direction procedure is below.
Fixed Up/Down Fixed
Up/Down
Auto Mode
(1) When the room temperature is higher than 28°C (Cooling Mode)
!Compressor and lndoor Fan
@The fan will automatically operate as following Figure
-1 0 °C
OFF
ON
(Room temperature-
Desired temperature)
(Room temerature-
Desired temperature)
0°C
L
M
H
1°C2°C
(R.T-D.T)
(D.T)
!Desired temperature < Room temperature
Outdoor Fan, Compressor : ON
Indoor Fan : Low speed
@Desired temperature ≥Room temperature
Compressor : 3 min/ON, 5 min/OFF
Indoor Fan : 3 min 30 second/ON, 4 min 30 second/OFF
Fan Speed : low speed
#Room temperature ≤18°C
Compressor : OFF
Indoor Fan : 1 min/ON, 7 min/OFF
Fan speed : Low speed

17
!Fan Speed: Super high speed
@Air discharge direction: Fixed
#Set temperature: 18°C Fixed (Cooling)
$Compressor and Outdoor Fan
The air discharge direction procedure is below
Fixed Up/Down Fixed
Up/Down
ƒRThe option is LEFT/RIGHT direction.
Quick Mode(Powerful Cooling)
-1
OFF ON
(Room temperature-18˚C)
01
Self-Diagnostic Function
The control will contain diagnostic test to verify the integrity of the system.
(1)Error Code Display Pattern
!ON LAMP: ON (Red) LED ON/OFF
@Error Code
#Only Emergency mode
ERROR CODE DISPLAY PATTERN ERROR CONTENTS
3Compressor, Electrical parts of
comp. Gas leak
8 seconds
0.5 second

18
4. WIRING DIAGRAM
¡DSA-101L/DSA-121L
OUTDOOR UNIT INDOOR UNIT
FAN MOTOR BRN
BLUE BLU
BLU
COMP
BLU
BRN
BRN
YEL/GRN
YEL/GRN
BROWN
YELLOW/GREEN
BRN
BRN
BLU
POWER CORD
BLK
YEL/GRN
CAPACITOR
OUTDOOR TERMINAL BLOCK
YEL
RED
S
CR
COMPRESSOR FAN
HERM
C
1
1
BLK
BLK
RED
RED
BLU
ORG
RED
BLK
RED
PINK
BLU
ORG
YEL
YEL
WHT
BLU
RED
GRN
YEL
GRY
BRN
BLK
BLK
BLK
BLK
BLK
2
TRANS
1 12345678 1 23 4
I/D SENSOR
LED PCB
2
123
SC
R
INDOOR
FAN MOTOR
FAN MOTOR
CAPACITOR SWING
MOTOR
12 12345
Y
L
Y
L
1 2 3

19
1
MAIN ELECTRIC PARTS
¡DSA-101L
¡DSA-121L
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108001220 IC-8428DWKG7C 1
Fan Motor Capacitor 3106900300 1.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050100 220V/18V 1
Stepping Motor 3108000100 MP28GA (L=400mm) 1
Terminal Block 3108912300 SN-DBW-03P 1
Compressor 3100030EE0 RCA100A001 1
Fan Motor 3108003010 IC-9630DWLA6B 1
Dual Capacitor 3109502100 2.0+25µF 400VAC 1
Terminal Block 3108912300 SN-DBW-03P 1
Indoor
Unit
Outdoor
Unit
Indoor
Unit
Outdoor
Unit
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108001220 IC-8428DWKG7C 1
Fan Motor Capacitor 3106900300 1.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050100 220V/18V 1
Stepping Motor 3108000100 MP28GA (L=400mm) 1
Terminal Block 3108912300 SN-DBW-03P 1
Compressor 3100030DE0 RCA120A001 1
Fan Motor 3108003010 IC-9630DWLA6B 1
Dual Capacitor 3109502000 2.0+30µF 400VAC 1
Terminal Block 3108912300 SN-DBW-03P 1
