Daikin FDM10CXV1 User manual

TECHNICAL MANUAL
Split Unit Air Conditioner
Ceiling Concealed Series
FDM-C, FDB-C, FDYM-C, FDYB-C Series
— Cooling only & Heatpump [50Hz] —
R22
00_Cover_R22 CC.indd i00_Cover_R22 CC.indd i 11/19/2012 10:34:04 AM11/19/2012 10:34:04 AM

DAIKIN_R22 CC.indb iiDAIKIN_R22 CC.indb ii 11/8/2012 11:40:01 AM11/8/2012 11:40:01 AM

Table of Contents
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Outdoor..........................................................................................................................1
Product Line-Up.............................................................................................................2
Application Information .....................................................................................................4
Operating Range ...........................................................................................................4
Refrigerant Circuit Diagrams .........................................................................................5

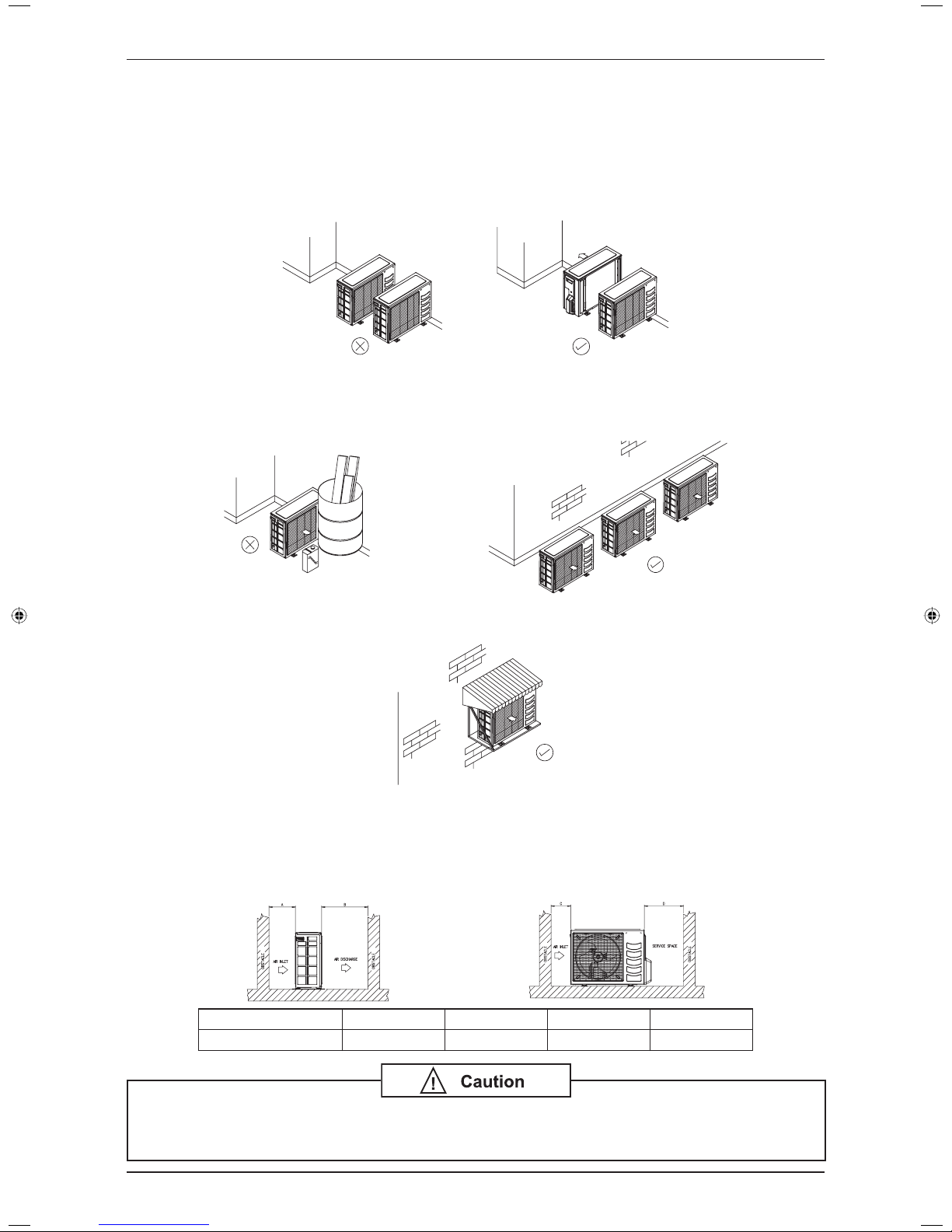

Installation Guideline ................................................................................................... 11
Sound Data........................................................................................................................17
Sound Power Level .....................................................................................................17
Sound Pressure Level .................................................................................................18
NC Curve.....................................................................................................................19
Selection Process.............................................................................................................28
Engineering & Physical Data...........................................................................................46
Performance Data.............................................................................................................60
Calculation Steps.........................................................................................................60
Performance Tables.....................................................................................................62
Outlines & Dimensions ..................................................................................................125
Wiring Diagrams .............................................................................................................130
Service & Maintenance ..................................................................................................148
Troubleshooting .............................................................................................................150
DAIKIN_R22 CC.indb iDAIKIN_R22 CC.indb i 11/8/2012 11:40:01 AM11/8/2012 11:40:01 AM

Nomenclature
1
Nomenclature
Indoor
FD(Y)(B)(M) 10 C X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Production
X: OYLM
Product Series
C: C Series
Capacity
10: 10000 Btu/hr
Model
FDM: Ceiling Concealed Standard Static (Cooling Only)
FDYM: Ceiling Concealed Standard Static (Heatpump)
FDB: Ceiling Concealed Low Static (Cooling Only)
FDYB: Ceiling Concealed Low Static (Heatpump)
Outdoor
R(Y) 10 C X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Y1: 3 phase 50 Hz 380-415V
Production
X: OYLM
Product Series
C: C Series
D: D Series
Capacity
10: 10000 Btu/hr
Model
R: Single Split Condensing Unit (Cooling Only)
RY: Single Split Condensing Unit (Heatpump)
DAIKIN_R22 CC.indb 1DAIKIN_R22 CC.indb 1 11/8/2012 11:40:01 AM11/8/2012 11:40:01 AM

Nomenclature
2
Product Line-Up
Indoor Unit
FD(Y)M / FD(Y)B
Nomenclature
Classification
Handset PCB Fin Refrigerant Control Air Purification Others
BRC51A62 BRC51A61 L208A EC L208A AP Bare Aluminium Cap Tube Without Cap Tube Air Filter Built-in Filter Rail
COOLING
FDM10CXV1 XXXXX
FDM15CXV1 XXXXX
FDM20CXV1 XXXXX
FDM25CXV1 XXXXX
FDM28CXV1 X X X X X X
FDM30CXV1 X X X X X X
FDM38CXV1 X X X X X X
FDM40CXV1 X X X X X X
FDM50CXV1 X X X X X X
FDM60CXV1 X X X X X X
FDB10CXV1 XXXXX
FDB15CXV1 XXXXX
FDB20CXV1 XXXXX
FDB25CXV1 XXXXX
FDB30CXV1 X X X X X X
FDB40CXV1 X X X X X X
FDB50CXV1 X X X X X X
FDB60CXV1 X X X X X X
HEATPUMP
FDYM10CXV1 X X X X X
FDYM15CXV1 X X X X X
FDYM20CXV1 X X X X X
FDYM25CXV1 X X X X X
FDYM28CXV1 X X X X X X
FDYM30CXV1 X X X X X X
FDYM38CXV1 X X X X X X
FDYM40CXV1 X X X X X X
FDYM50CXV1 X X X X X X
FDYM60CXV1 X X X X X X
FDYB10CXV1 X X X X X
FDYB15CXV1 X X X X X
FDYB20CXV1 X X X X X
FDYB25CXV1 X X X X X
FDYB30CXV1 X X X X X X
FDYB40CXV1 X X X X X X
FDYB50CXV1 X X X X X X
FDYB60CXV1 X X X X X X
DAIKIN_R22 CC.indb 2DAIKIN_R22 CC.indb 2 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

Nomenclature
3
Outdoor Unit
R(Y)
Nomenclature
Classification
Refrigerant Control Fin Safety Devices Compressor Others
Cap Tube TXV Hydrophilic (Blue) Hydrophilic (Gold) Bare Aluminium Contactor High Pressure Switch Low Pressure Switch Phase Sequencer Scroll Rotary Drain Elbow
COOLING ONLY
R10CXV1 X X X
R10CGXV1 X X X
R15CXV1 X X X
R15CGXV1 X X X
R20CXV1 X X X
R20CGXV1 X X X
R25CXV1 X X X
R25CGXV1 X X X
R28CXV1 X X
R28CGXV1 X X
R30DXV1 X X X X X
R30DGXV1 X X X X X
R30DXY1 X X X X X X
R30DGXY1 X X X X X X
R35DXV1 X X X X X
R35DGXV1 X X X X X
R40DXV1 X X X X X
R40DGXV1 X X X X X
R40DXY1 X X X X X X
R40DGXY1 X X X X X X
R50DXY1 X X X X X X
R50DGXY1 X X X X X X
R61DXY1 X X X X X X
R61DGXY1 X X X X X X
HEATPUMP
RY10CXV1 X X X X
RY10CGXV1 X X X X
RY15CXV1 X X X X
RY15CGXV1 X X X X
RY18CXV1 X X X X
RY18CGXV1 X X X X
RY20CXV1 X X X X
RY20CGXV1 X X X X
RY25CXV1 X X X X
RY25CGXV1 X X X X
RY28CXV1 X X X X
RY28CGXV1 X X X X
RY30DXV1 X X X X X X X
RY30DGXV1 X X X X X X X
RY30DXY1 X X X X X X X X
RY30DGXY1 X X X X X X X X
RY35DXV1 X X X X X X X
RY35DGXV1 X X X X X X X
RY40DXV1 X X X X X X
RY40DGXV1 X X X X X X
RY40DXY1 X X X X X X X
RY40DGXY1 X X X X X X X
RY50DXY1 X X X X X X X
RY50DGXY1 X X X X X X X
RY61DXY1 X X X X X X X
RY61DGXY1 X X X X X X X
DAIKIN_R22 CC.indb 3DAIKIN_R22 CC.indb 3 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

4
Application Information
Application Information
Operating Range
Ensure the operating temperature is in allowable range.
Cooling
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
DB (°C)
46
43
19
14 19 23 Indoor WB (°C)
Heating
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
WB (°C)
18
15 20 27 Indoor DB (°C)
10
-9
DAIKIN_R22 CC.indb 4DAIKIN_R22 CC.indb 4 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

5
Application Information
Refrigerant Circuit Diagrams

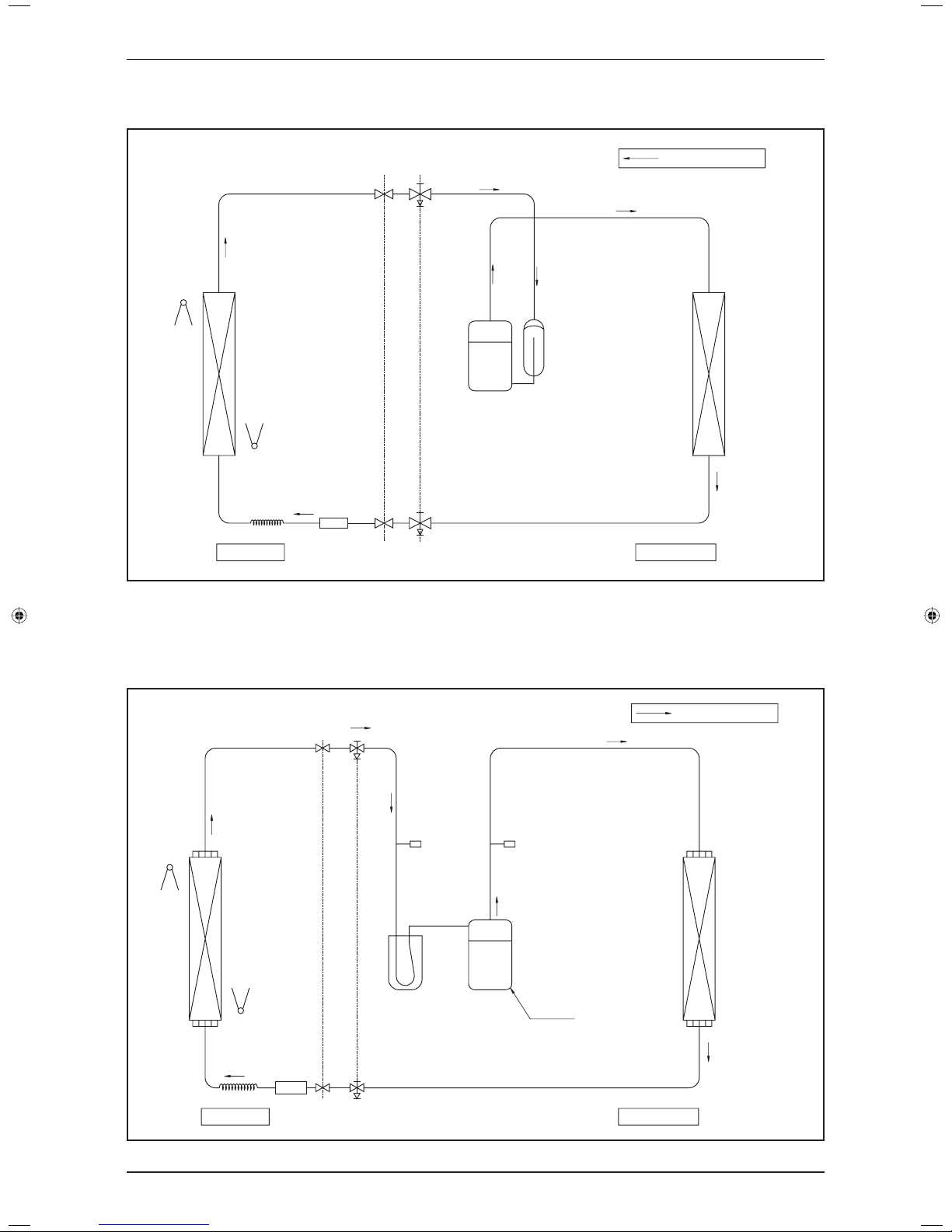

Model: FDM10/15CXV1 – R10/15CXV1 / FDM20CXV1 – R20CXV1
FDB10/15CXV1 – R10/15CXV1 / FDB20CXV1 – R20CXV1
COOLING OPERATION
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
2 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
INDOOR UNIT OUTDOOR UNIT
Model: FDM25CXV1 – R25CXV1
FDB25CXV1 – R25CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
DAIKIN_R22 CC.indb 5DAIKIN_R22 CC.indb 5 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

6
Application Information
Model: FDM28CXV1 – R28CXV1 / FDM30CXV1 – R28CXV1
FDB30CXV1 – R28CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FDM28/30CXV1 – R30DXV1 / FDM30CXV1 – R30DXY1 / FDM38/40CXV1 – R35/40DXV1 /
FDM38/40CXV1 – R40DXY1 / FDM50CXV1 – R50DXY1
FDB30CXV1 – R30DXV1 / FDB30CXV1 – R30DXY1 / FDB40CXV1 – R35/40DXV1 /
FDB40CXV1 – R40DXY1 / FDB50CXV1 – R50DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
DAIKIN_R22 CC.indb 6DAIKIN_R22 CC.indb 6 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

7
Application Information
Model: FDM60CXV1 – R61DXY1
FDB60CXV1 – R61DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
DISCHARGE
COMPRESSOR
3 WAY
VALVE
Model: FDYM10CXV1 – RY10CXV1 / FDYM20CXV1 – RY18CXV1
FDYB10CXV1 – RY10CXV1 / FDYB20CXV1 – RY18CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
DAIKIN_R22 CC.indb 7DAIKIN_R22 CC.indb 7 11/8/2012 11:40:02 AM11/8/2012 11:40:02 AM

8
Application Information
Model: FDYM15CXV1 – RY15CXV1 / FDYM20CXV1 – RY20CXV1
FDYB15CXV1 – RY15CXV1 / FDYB20CXV1 – RY20CXV1
COOLING OPERATION
HEATING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
HEATING CAP
TUBE
CHECK
VALVE
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Model: FDYM25CXV1 – RY25CXV1 / FDYM28/30CXV1 – RY28CXV1
FDYB25CXV1 – RY25CXV1 / FDYB30CXV1 – RY28CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
DAIKIN_R22 CC.indb 8DAIKIN_R22 CC.indb 8 11/8/2012 11:40:03 AM11/8/2012 11:40:03 AM

9
Application Information

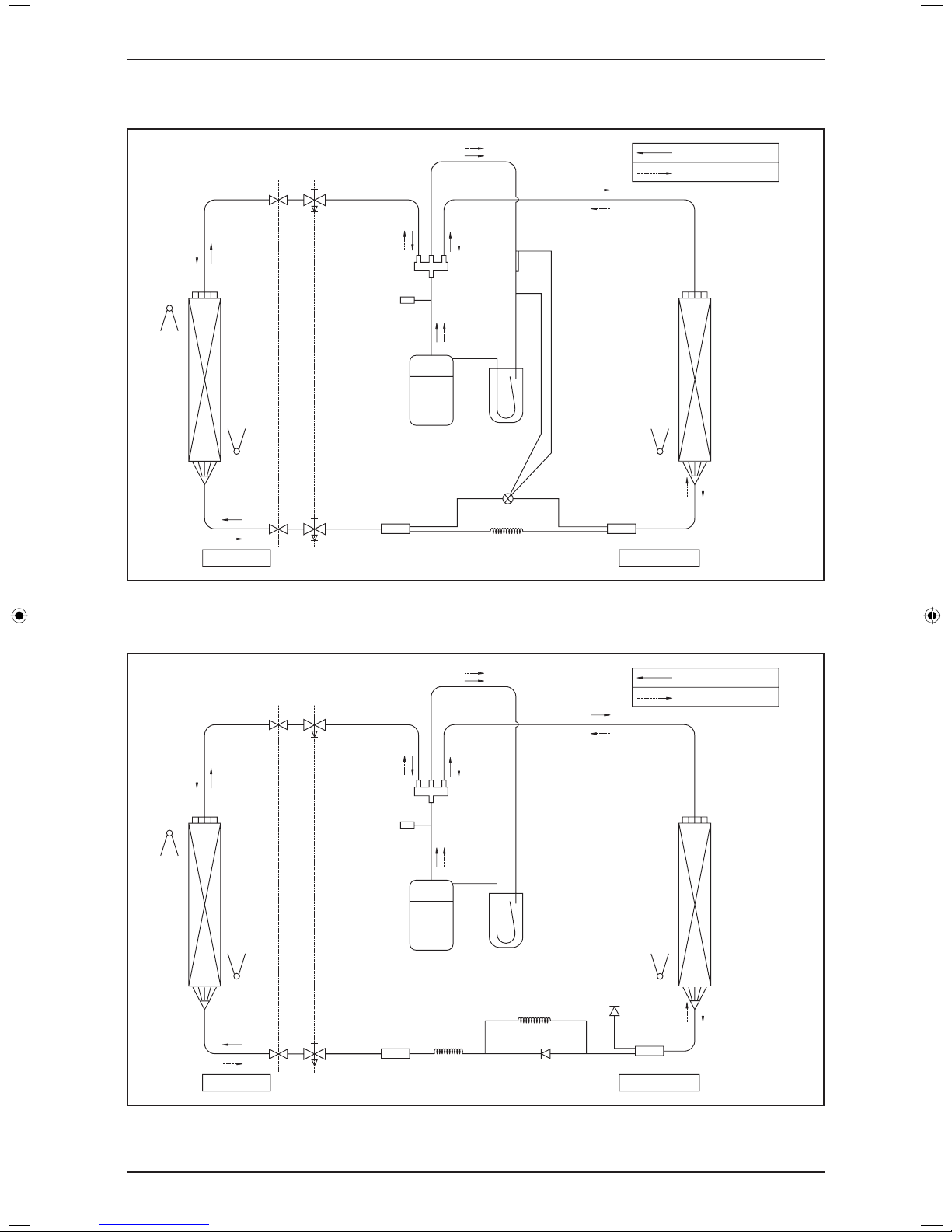

Model: FDYM28/30CXV1 – RY30DXV1 / FDYM28/30CXV1 – RY30DXY1 / FDYM38/40CXV1 – RY35DXV1
FDYB30CXV1 – RY30DXV1 / FDYB30CXV1 – RY30DXY1 / FDYB40CXV1 – RY35DXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER
BIFLOW
TXV
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
DISCHARGE
4 WAY VALVE
HIGH
PRESSURE
SWITCH
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
Model: FDYM38/40CXV1 – RY40DXV1 / FDYM38/40CXV1 – RY40DXY1 / FDYM50CXV1 – RY50DXY1
FDYB40CXV1 – RY40DXV1 / FDYB40CXV1 – RY40DXY1 / FDYB50CXV1 – RY50DXY1
ACCUMULATOR
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
HEATING CAP. TUBE
ACCESS
VALVE
STRAINER
COOLING
CAP. TUBE
CHECK
VALVE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
HIGH
PRESSURE
SWITCH
COMPRESSOR
DAIKIN_R22 CC.indb 9DAIKIN_R22 CC.indb 9 11/8/2012 11:40:03 AM11/8/2012 11:40:03 AM

10
Application Information

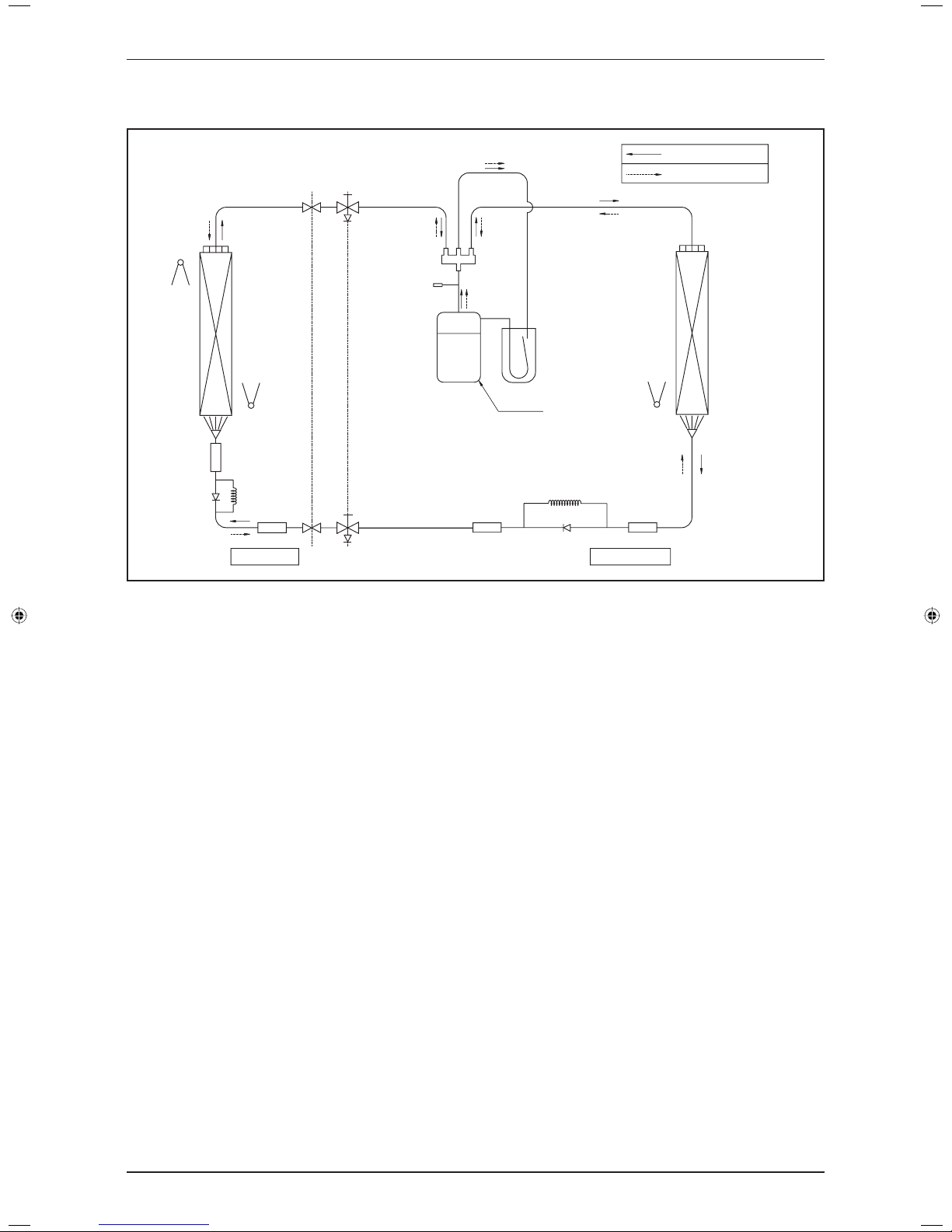

Model: FDYM60CXV1 – RY61DXY1
FDYB60CXV1 – RY61DXY1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
HEATING CAP. TUBE
STRAINER CHECK VALVE STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
STRAINER
STRAINER
CHECK
VALVE
COOLING
CAP. TUBE
4 WAY VALVE
HIGH PRESSURE
SWITCH
ACCUMULATOR
COMPRESSOR
DAIKIN_R22 CC.indb 10DAIKIN_R22 CC.indb 10 11/8/2012 11:40:03 AM11/8/2012 11:40:03 AM

11
Application Information
Installation Guideline
Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.
(1) Installation of Indoor Unit
Preliminary Survey
Electrical supply and installation is to confirm to local authority’s (e.g. National Electrical Board) codes and
regulations.
Voltage supply fluctuation must not exceed ± 10% of rated voltage. Electricity supply lines must be
independent of welding transformers which can cause high supply fluctuation.
Ensure that the location is convenient for wiring, piping and drainage.
The indoor unit must be installed in such that free from any obstacles in path of cool air discharge and
warm air return, and must allow spreading or air throughout the room (near the centre of the room).
Clearance must be provided for the indoor unit from the wall and obstacles as shown in the figure.
Use the hanger supplied with the unit.
Ensure the support is strong enough to withstand the weight of the unit.
Use the supplied drain socket to connect the drain pipe (the drain socket is only available for
FD(Y)M10CXV1 / FD(Y)B10CXV1 to FD(Y)M25CXV1 / FD(Y)B25CXV1)
Install the unit in such a way that
the condensate water can flow
out smoothly.

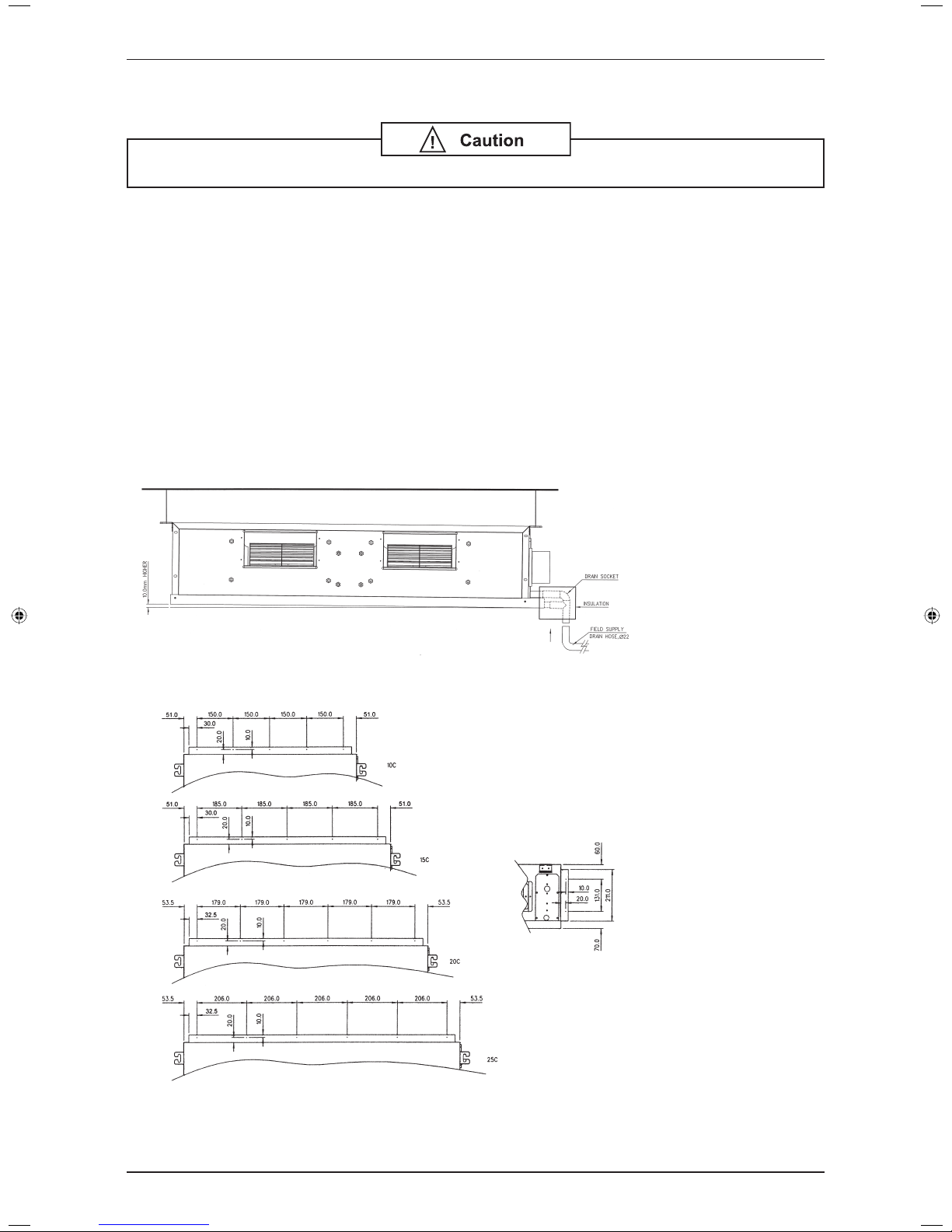

The diagrams below show the screws position for duct work connection.
•
•
•
•
•
•
•
•
DAIKIN_R22 CC.indb 11DAIKIN_R22 CC.indb 11 11/8/2012 11:40:03 AM11/8/2012 11:40:03 AM

12
Application Information
(2) Installation of Outdoor Unit
As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve
maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements:
Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit
cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for
maintenance around the unit.
Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air
intake or discharge.
The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus lowering
the condensing temperature.
A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.
The location must not be susceptible to dust or oil mist.
Installation Clearance
Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to
smooth air flow. Select the coolest possible place where intake air should not be hotter than the outside
temperature (max. 45˚C).
ALL MODEL A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm
If the condensing unit is operated in an atmosphere containing oils (including machine oils), salt
(coastal area), sulphide gas (near hot spring, oil refinery plant), such substances may lead to
failure of the unit.
•
•
•
•
•
•
•
DAIKIN_R22 CC.indb 12DAIKIN_R22 CC.indb 12 11/8/2012 11:40:03 AM11/8/2012 11:40:03 AM

13
Application Information
(3) Cable Size
Model Unit
FDM10CXV1
FDB10CXV1
FDM15CXV1
FDB15CXV1
FDM20CXV1
FDB20CXV1
FDM25CXV1
FDB25CXV1 FDM28CXV1
R10CXV1 R15CXV1 R20CXV1 R25CXV1 R28CXV1
Power supply cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Recommended fuse A 10 10 16 20 20
Model Unit
FDM28CXV1 FDM30CXV1
FDB30CXV1 FDM38CXV1
R30DXV1 R28CXV1 R30DXV1 R30DXY1 R35DXV1
Power supply cable size
Number of wire
mm24.0
3
2.5
3
4.0
3
1.5
5
4.0
3
Interconnection cable size
Number of wire
mm22.5
4
2.5
3
2.5
4
1.5
4
2.5
4
Recommended fuse A 25 20 25 10 25
Model Unit FDM38CXV1
FDM40CXV1
FDB40CXV1
FDM40CXV1
FDB40CXV1
R40DXV1 R40DXY1 R35DXV1 R40DXV1 R40DXY1
Power supply cable size
Number of wire
mm24.0
3
1.5
5
4.0
3
4.0
3
1.5
5
Interconnection cable size
Number of wire
mm22.5
4
1.5
4
2.5
4
2.5
4
1.5
4
Recommended fuse A 25 10 25 25 10
Model Unit
FDM50CXV1
FDB50CXV1
FDM60CXV1
FDB60CXV1
R50DXY1 R61DXY1
Power supply cable size
Number of wire
mm22.5
5
2.5
5
Interconnection cable size
Number of wire
mm22.5
4
2.5
4
Recommended fuse A 16 20
Model Unit
FDYM10CXV1
FDYB10CXV1
FDYM15CXV1
FDYB15CXV1
FDYM20CXV1
FDYB20CXV1
FDYM20CXV1
FDYB20CXV1
FDYM25CXV1
FDYB25CXV1
RY10CXV1 RY15CXV1 RY18CXV1 RY20CXV1 RY25CXV1
Power supply cable size
Number of wire
mm21.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm21.5
5
1.5
5
2.5
5
2.5
5
2.5
5
Recommended fuse A 10 10 16 16 20
DAIKIN_R22 CC.indb 13DAIKIN_R22 CC.indb 13 11/8/2012 11:40:04 AM11/8/2012 11:40:04 AM

14
Application Information
Model Unit
FDYM28CXV1 FDYM28CXV1 FDYM30CXV1
FDYB30CXV1
RY28CXV1 RY30DXV1 RY30DXY1 RY28CXV1
Power supply cable size
Number of wire
mm22.5
3
4.0
3
1.5
5
2.5
3
Interconnection cable size
Number of wire
mm22.5
5
2.5
4 & 3
1.5
4 & 3
2.5
5
Recommended fuse A 20 25 10 20
Model Unit
FDYM30CXV1
FDYB30CXV1 FDYM38CXV1 FDYM38CXV1
RY30DXV1 RY30DXY1 RY35DXV1 RY40DXV1 RY40DXY1
Power supply cable size
Number of wire
mm24.0
3
1.5
5
4.0
3
4.0
3
1.5
5
Interconnection cable size
Number of wire
mm22.5
4 & 3
1.5
4 & 3
2.5
4 & 3
2.5
4 & 3
1.5
4 & 3
Recommended fuse A 25 10 25 25 10
Model Unit
FDYM40CXV1
FDYB40CXV1
FDYM40CXV1
FDYB40CXV1
FDYM50CXV1
FDYB50CXV1
FDYM60CXV1
FDYB60CXV1
RY35DXV1 RY40DXV1 RY40DXY1 RY50DXY1 RY61DXY1
Power supply cable size
Number of wire
mm24.0
3
4.0
3
1.5
5
2.5
5
2.5
5
Interconnection cable size
Number of wire
mm22.5
4 & 3
2.5
4 & 3
1.5
4 & 3
1.5
4 & 3
1.5
4 & 3
Recommended fuse A 25 25 10 16 16
DAIKIN_R22 CC.indb 14DAIKIN_R22 CC.indb 14 11/8/2012 11:40:04 AM11/8/2012 11:40:04 AM

15
Application Information
(4) Refrigerant Piping
Maximum Pipe and Maximum Number of Bends
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends
increases, system piping resistance to the refrigerant flow increases, thus lowering the cooling capacity,
and as the result the font compressor may become defective. Always choose the shortest path and follow
the recommendation as tabulated below:
Model
Indoor
FDM10/15CXV1
FDYM10/15CXV1
FDB10/15CXV1
FDYB10/15CXV1
FDM20/25CXV1
FDYM20/25CXV1
FDB20/25CXV1
FDYB20/25CXV1
FDM28/30CXV1
FDYM28/30CXV1
FDB30CXV1
FDYB30CXV1
Outdoor R(Y)10/15CXV1 R(Y)20/25CXV1 R(Y)28CXV1 R(Y)30DXV1 /
R(Y)30DXY1
Max. Length, m 12 15 15 45
Max. Elevation, m 5 8 8 25
Max. No. of Bends 10 10 10 10
Model
Indoor
FDM38/40/50CXV1
FDYM38/40/50CXV1
FDB40/50CXV1
FDYB40/50CXV1
FDM60CXV1
FDYM60CXV1
FDB60CXV1
FDYB60CXV1
Outdoor
R(Y)35/40DXV1
R(Y)40/50DXY1 R(Y)61DXY1
Max. Length, m 45 35
Max. Elevation, m 25 15
Max. No. of Bends 10 10
Piping Sizes (Flare connection type)
Piping sizes are as follows:
R22
Model R(Y)10CXV1 R(Y)15CXV1 R20CXV1 /
RY18/20CXV1 R(Y)25CXV1
Liquid, mm / in 6.35 / 1/4 6.35 / 1/4 6.35 / 1/4 9.52 / 3/8
Suction, mm / in 9.52 / 3/8 12.70 / 1/2 15.88 / 5/8 15.88 / 5/8
Model
R(Y)28CXV1 /
R(Y)30DXV1 /
R(Y)30DXY1
R(Y)35/40DXV1 /
R(Y)40DXY1 R(Y)50DXY1 R(Y)61DXY1
Liquid, mm / in 9.52 / 3/8 9.52 / 3/8 9.52 / 3/8 12.70 / 1/2
Suction, mm / in 15.88 / 5/8 19.05 / 3/4 19.05 / 3/4 19.05 / 3/4
•
DAIKIN_R22 CC.indb 15DAIKIN_R22 CC.indb 15 11/8/2012 11:40:04 AM11/8/2012 11:40:04 AM

16
Application Information
(5) Additional Charge
The refrigerant charge has already charged into the outdoor unit. For the piping length of 7.6m, additional
refrigerant charge after vacuuming is not necessary.
When the piping length is more than 7.6m, please use the table below (unit in gram).
R22 – Cooling Only
Indoor FDM10CXV1
FDB10CXV1
FDM15CXV1
FDB15CXV1
FDM20CXV1
FDB20CXV1
FDM25CXV1
FDB25CXV1 FDM28CXV1
Outdoor R10CXV1 R15CXV1 R20CXV1 R25CXV1 R28CXV1
Add. Charge, g/m 16 16 16 39 41
Indoor FDM28CXV1 FDM30CXV1
FDB30CXV1
FDM30CXV1
FDB30CXV1 FDM38CXV1
Outdoor R30DXV1 R28CXV1 R30DXV1 R30DXY1 R35DXV1
Add. Charge, g/m 56 41 41 55 54
Indoor FDM38CXV1 FDM40CXV1
FDB40CXV1
FDM40CXV1
FDB40CXV1
Outdoor R40DXV1 R40DXY1 R35DXV1 R40DXV1 R40DXY1
Add. Charge, g/m 40 41 54 55
Indoor FDM50CXV1
FDB50CXV1
FDM60CXV1
FDB60CXV1
Outdoor R50DXY1 R61DXY1
Add. Charge, g/m 54 102
R22 – Heatpump
Indoor FDYM10CXV1
FDYB10CXV1
FDYM15CXV1
FDYB15CXV1
FDYM20CXV1
FDYB20CXV1
FDYM20CXV1
FDYB20CXV1
FDYM25CXV1
FDYB25CXV1
Outdoor RY10CXV1 R15CXV1 RY18CXV1 RY20CXV1 RY25CXV1
Add. Charge, g/m 22 22 16 16 40
Indoor FDYM28CXV1 FDYM28CXV1 FDYM30CXV1
FDYB30CXV1
Outdoor RY28CXV1 RY30DXV1 RY30DXY1 RY28CXV1
Add. Charge, g/m 41 41 41
Indoor FDYM30CXV1
FDYB30CXV1 FDYM38CXV1 FDYM38CXV1
Outdoor RY30DXV1 RY30DXY1 RY35DXV1 RY40DXV1 RY40DXY1
Add. Charge, g/m 55 41 57 57
Indoor FDYM40CXV1
FDYB40CXV1
FDYM40CXV1
FDYB40CXV1
FDYM50CXV1
FDYB50CXV1
FDYM60CXV1
FDYB60CXV1
Outdoor RY35DXV1 RY40DXV1 RY40DXY1 RY50DXY1 RY61DXY1
Add. Charge, g/m 57 55 41 56 106
The additional refrigerant charge amount recommended is a guideline for longer piping application. The
actual charge required may be different from the guideline due to different application and variation in site
conditions.
•
•
DAIKIN_R22 CC.indb 16DAIKIN_R22 CC.indb 16 11/8/2012 11:40:04 AM11/8/2012 11:40:04 AM

17
Sound Data
Sound Data
Sound Pressure Level
Model Speed 1/1 Octave Sound Pressure (dB, ref 20μPa) Overall
(dBA)
Noise
Criteria
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
FD(Y)M10CXV1
High 43 35 35 30 26 18 13 36 30
Med 43 34 34 28 25 17 12 35 29
Low 42 31 31 27 22 14 9 33 25
FD(Y)M15CXV1
High 46 40 40 33 29 21 17 40 35
Med 45 38 38 31 27 18 14 38 33
Low 40 33 33 26 21 11 9 33 28
FD(Y)M20CXV1
High 47 41 43 35 31 24 19 42 38
Med 47 41 41 34 31 23 18 41 36
Low 47 39 39 33 29 21 16 40 34
FD(Y)M25CXV1
High 48 41 40 35 31 24 19 41 35
Med 47 39 39 34 29 22 17 40 34
Low 44 35 35 30 25 17 12 36 30
FD(Y)M28CXV1
S. High 48 45 42 38 34 29 26 44 37
High 45 42 39 35 31 26 22 41 34
Med 42 38 37 32 28 22 17 38 32
Low 36 33 33 27 23 16 11 34 27
FD(Y)M30CXV1
S. High 54 50 46 45 40 34 30 49 44
High 50 45 43 42 37 31 26 46 41
Med 45 40 40 38 32 26 20 42 37
Low 42 36 37 33 28 22 15 38 32
FD(Y)M38CXV1
S. High 56 57 53 50 46 41 36 55 49
High 54 51 48 46 41 36 31 51 45
Med 51 48 46 45 37 32 26 48 44
Low 47 45 44 41 34 28 22 45 40
FD(Y)M40CXV1
S. High 56 49 49 46 41 37 32 51 45
High 54 47 47 45 39 35 29 49 44
Med 49 42 43 41 35 31 24 45 40
Low 45 39 41 37 30 26 18 41 36
FD(Y)M50CXV1
S. High 56 50 50 49 44 38 33 53 48
High 54 49 49 48 43 37 32 52 47
Med 53 47 46 47 40 35 29 50 46
Low 51 45 44 44 36 32 26 47 43
FD(Y)M60CXV1
S. High 57 50 51 51 46 39 35 55 50
High 55 49 49 50 44 37 33 53 49
Med 53 46 47 47 39 34 28 50 46
Low 51 43 44 43 35 30 24 47 42
Model Measuring location
FD(Y)M10CXV1
FD(Y)M15CXV1
FD(Y)M20CXV1
FD(Y)M25CXV1
FD(Y)M28CXV1
FD(Y)M30CXV1
FD(Y)M38CXV1
FD(Y)M40CXV1
FD(Y)M50CXV1
FD(Y)M60CXV1
FD(Y)B10CXV1
FD(Y)B15CXV1
FD(Y)B20CXV1
FD(Y)B25CXV1
FD(Y)B30CXV1
FD(Y)B40CXV1
FD(Y)B50CXV1
FD(Y)B60CXV1
DAIKIN_R22 CC.indb 17DAIKIN_R22 CC.indb 17 11/8/2012 11:40:04 AM11/8/2012 11:40:04 AM
